McGill MR 26 N CAGEROL needle roller bearing, 1-5/8 in bore, 2-3/16 in OD, 1 in width. Machined outer ring with steel-caged needles, oil hole, open ends.
List Price
$30.83
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | McGill |
|---|---|
| MPN | MR 26 N 2 |
| Model | MR 26 N 2 |
| Bearing Type | Needle Roller Bearing |
| ID | 1-5/8 in |
| OD | 2-3/16 in |
| Width | 1 in |
| Industry Terms | CAGEROL, needle bearing, machined race needle bearing, heavy duty needle roller bearing |
|---|---|
| Common Misspellings | Mcgill MR26N, MR26-N, Cagerol |
| Mpn Variants | MR26N2, MR-26-N-2, MR 26 N 2, MR 26 N, MR26N, MR-26-N |
| Compatible With Replaces | McGill MR 26 N; inner ring McGill MI 21 N |
| Precision Class | RBEC 1 / ISO Class 0 |
| Additional Attributes | Housing bore stationary 2.1882 in; housing bore rotating 2.1871 in; fillet radius 0.06 in; oil hole 0.094 in; outer ring and roller assembly |
| Min Temp | -20 °F |
| Dynamic Load Rating | 10,600 lbf |
| Static Load Rating | 16,400 lbf |
| Series | MR CAGEROL, Narrow |
| Rolling Elements | Needle Roller |
| Max Temp | 250 °F |
| Item Weight | 0.365 lb |
| Cage Material | Steel |
| Limiting Speed | 7,400 rpm |
| Bearing Material | 52100 bearing steel |
| Application Types | machine tool and industrial machinery roller supports; cam followers and rocker arms; gearboxes; printing and packaging machinery; shafts running directly on a hardened journal |

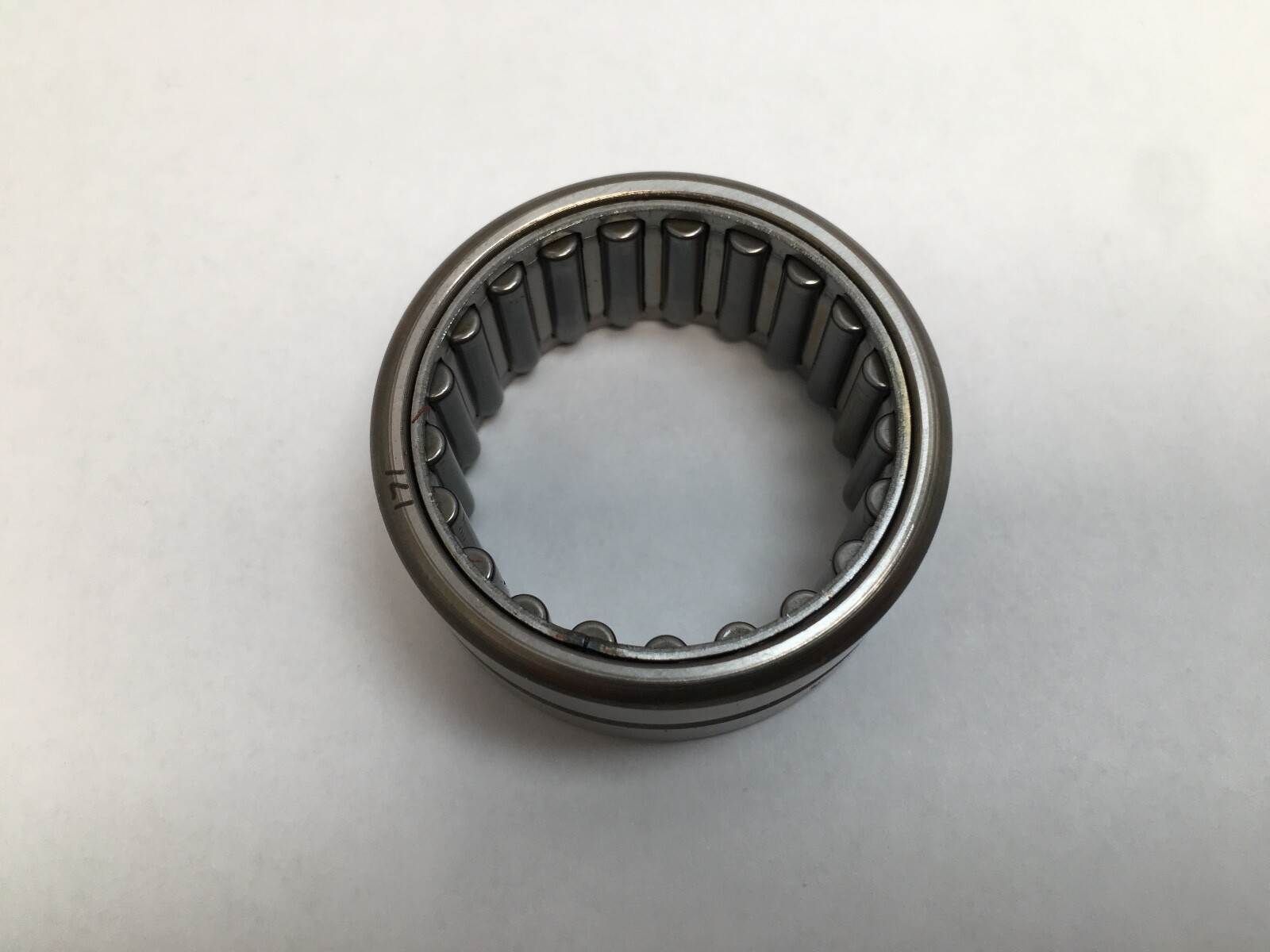

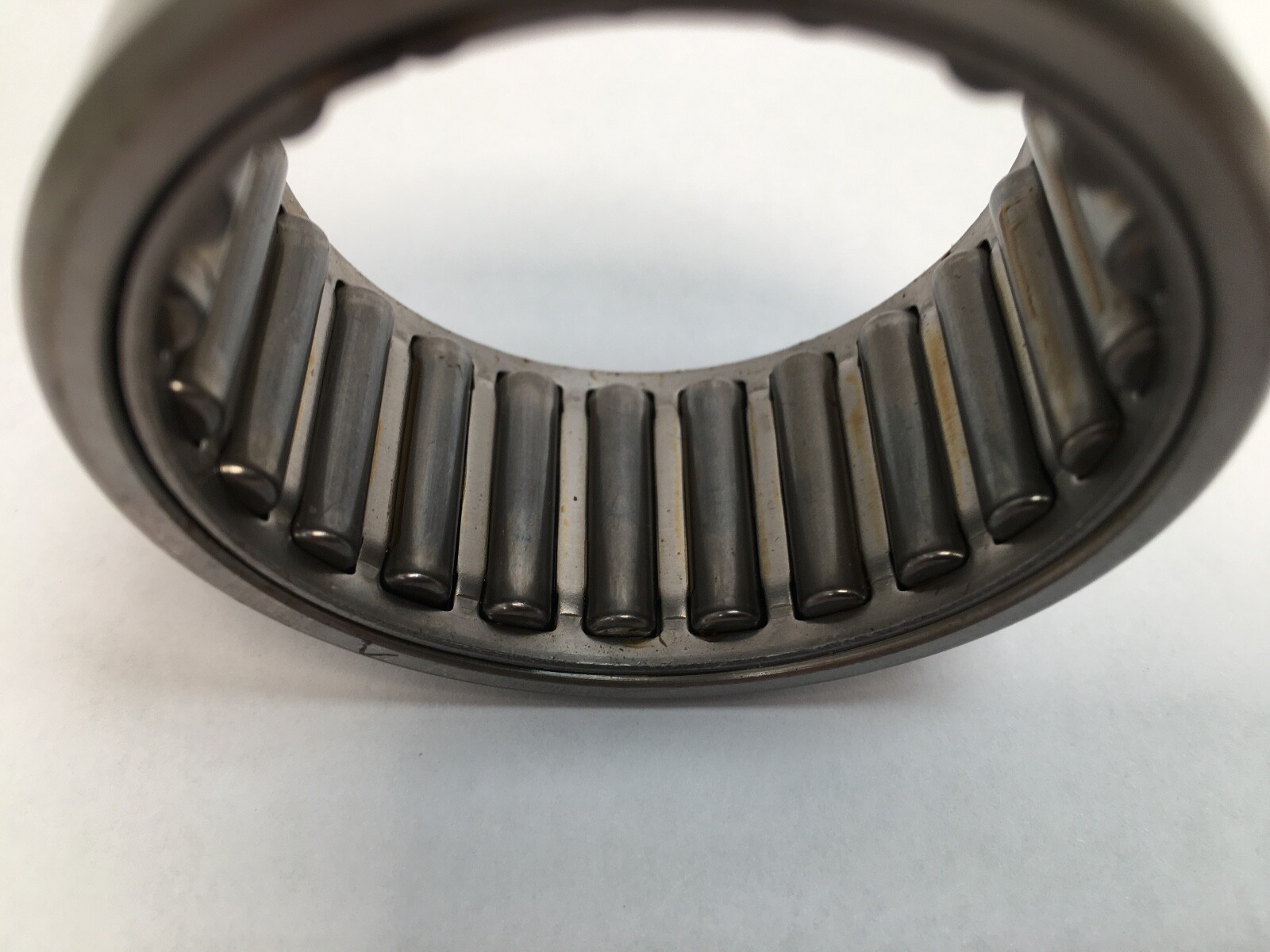

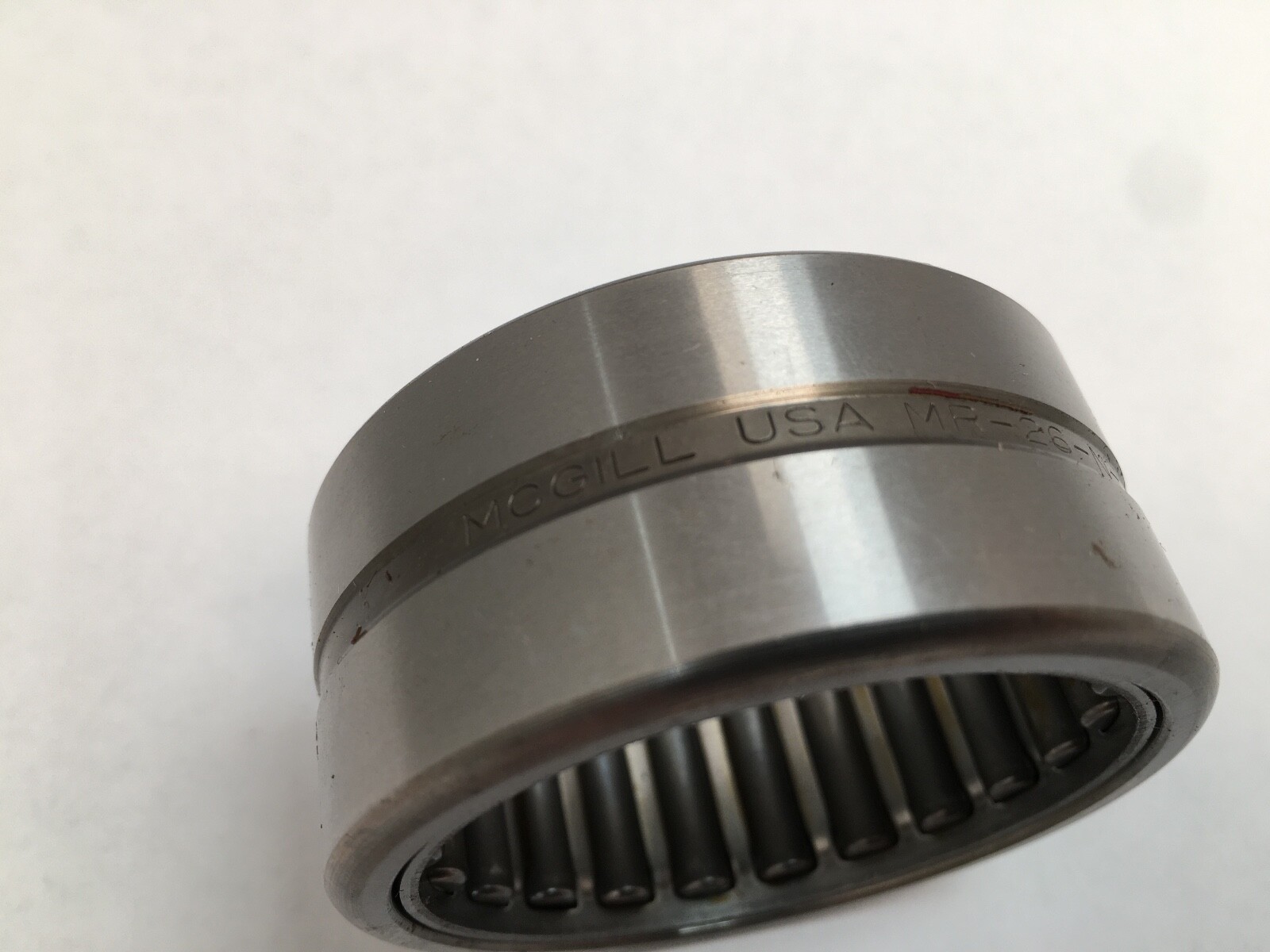

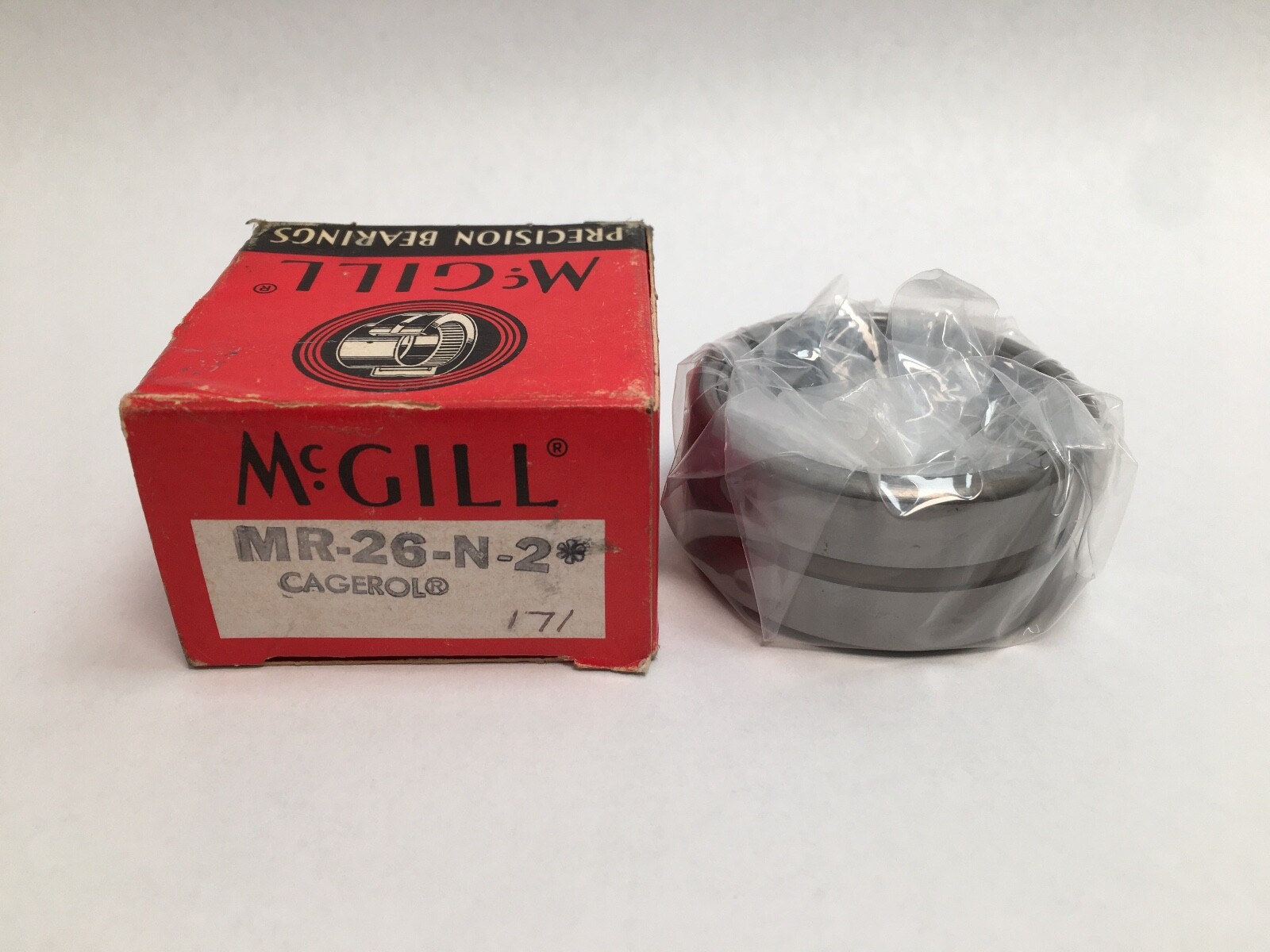

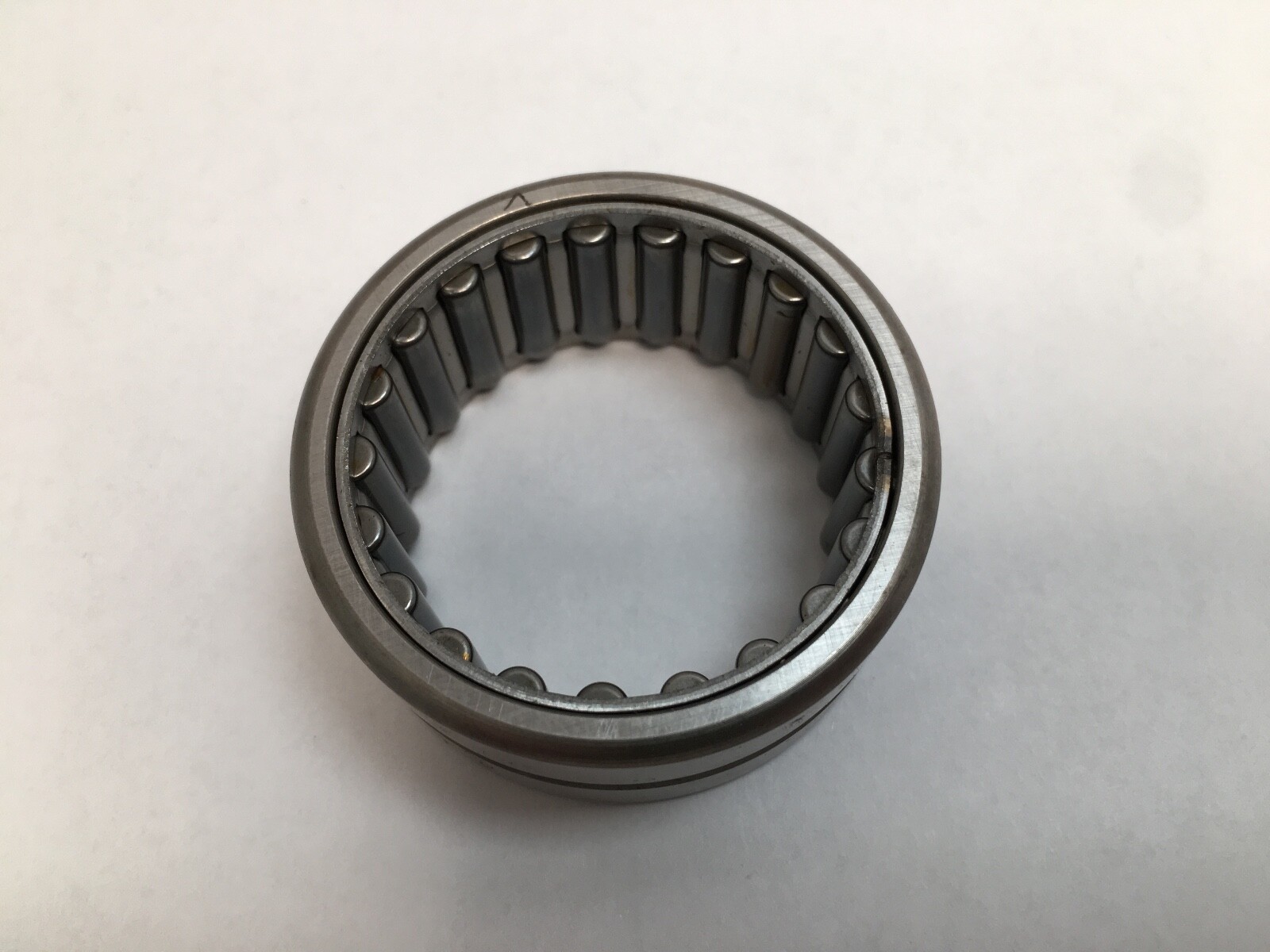

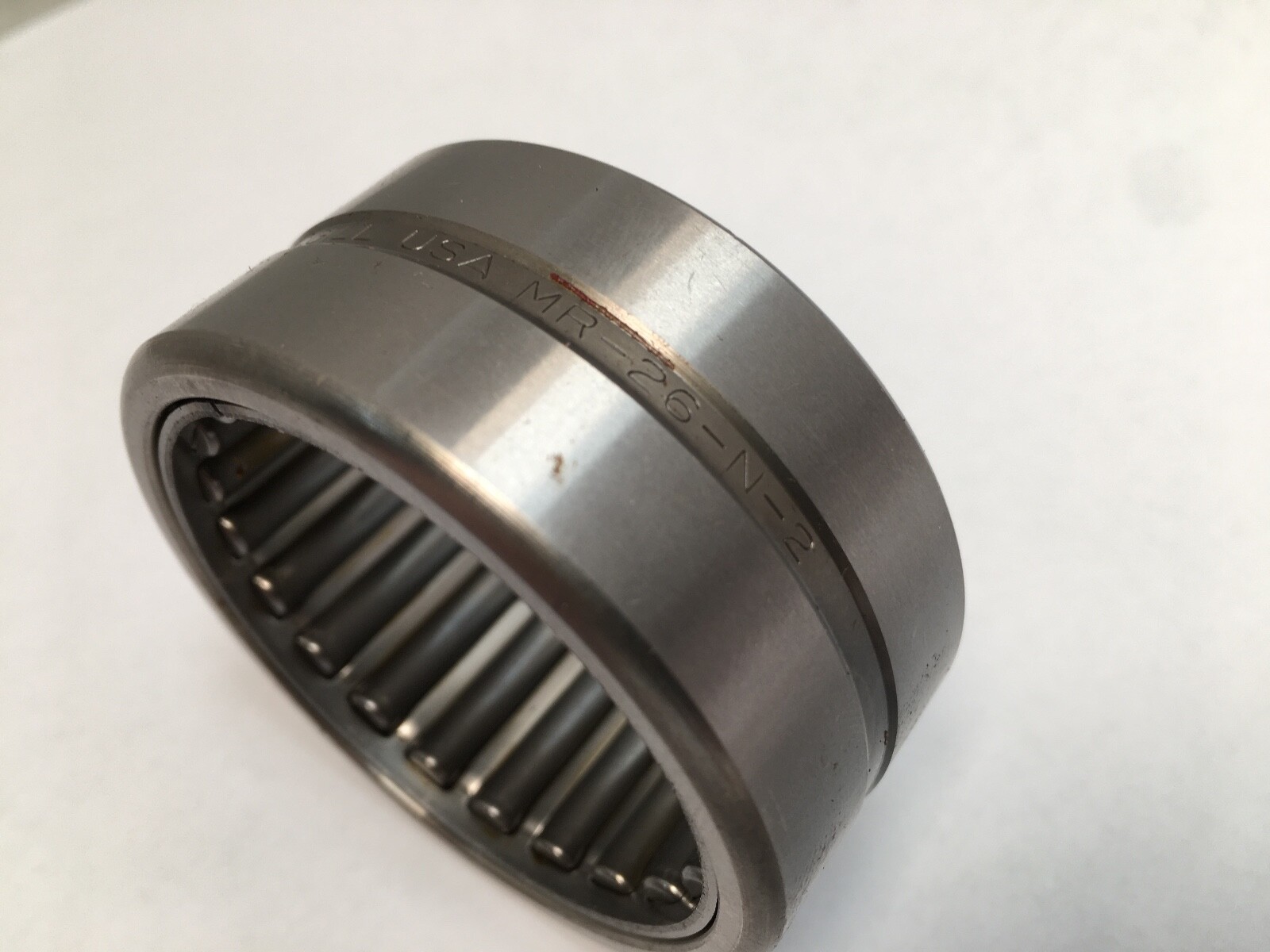

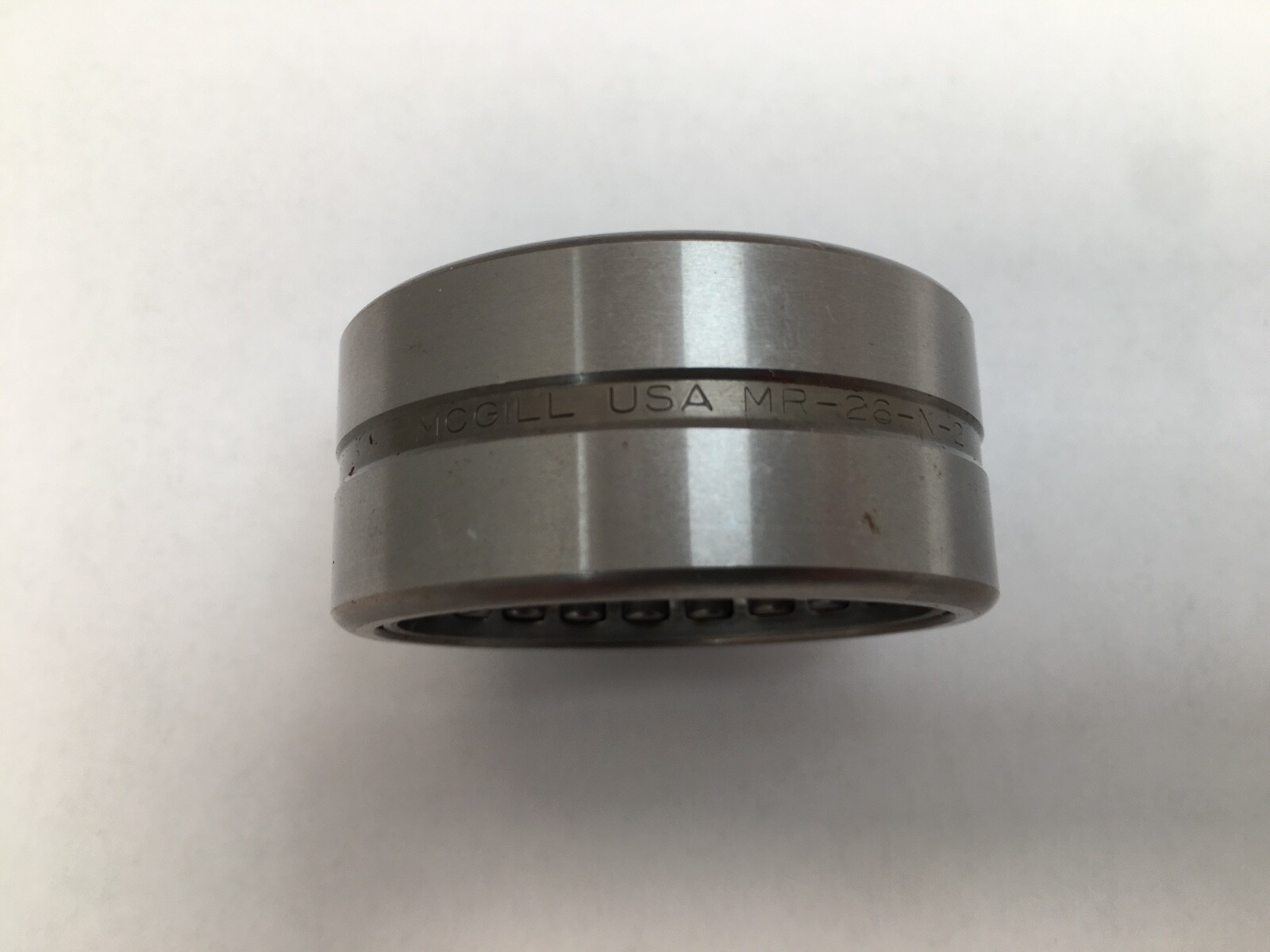

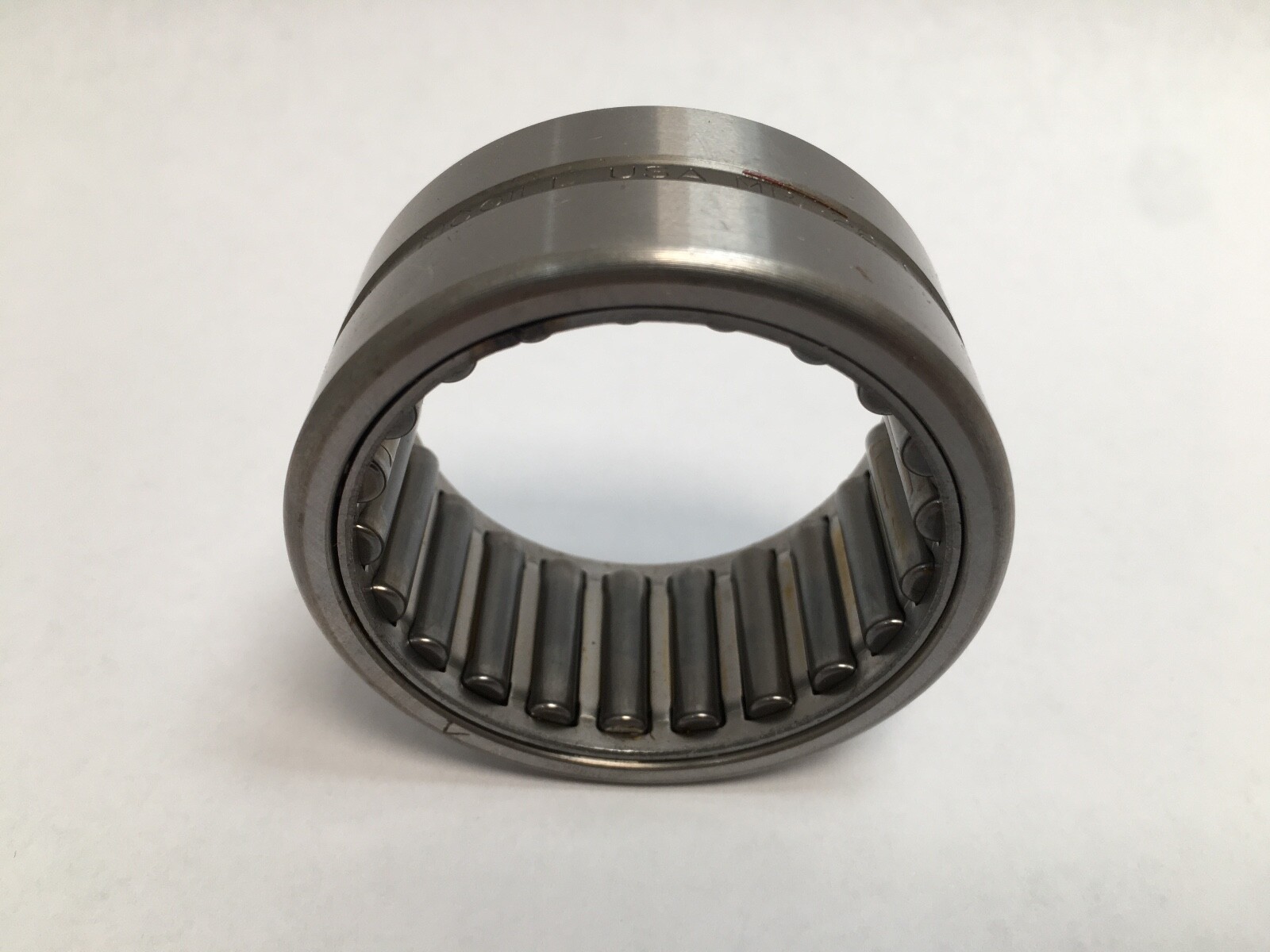

The McGill MR26N2 (MR 26 N) is a CAGEROL heavy-duty machined-race needle roller bearing: an outer ring and roller assembly with needle rollers retained by a steel cage, running directly on a 1-5/8 in shaft. New, open box. Unit Quantity: 1 Pc.
MR — McGill MR series CAGEROL needle bearing, outer ring and roller assembly without inner ring.
26 — size 26: 1-5/8 in roller ID.
N — narrow series.
Bearing Type: Needle roller bearing, outer ring and roller assembly. Rolling Elements: Needle Roller. Inner Diameter: 1-5/8 in (1.625 in). Outside Diameter: 2-3/16 in (2.1875 in). Width: 1 in. Dynamic Load Rating: 10,600 lbf. Static Load Rating: 16,400 lbf. Limiting Speed: 7,400 rpm. Cage Material: Steel. Bearing Material: 52100 bearing steel. Precision Class: RBEC 1 / ISO Class 0. Closure Type: Open. Lubrication: Oil hole, 0.094 in (3/32 in). Operating Temperature: -20 to 250 °F. Item Weight: 0.365 lb.
Housing Bore Diameter, Stationary Load: 2.1882 in. Housing Bore Diameter, Rotating Load: 2.1871 in. Fillet Radius: 0.06 in. Matching Inner Ring: McGill MI 21 N.
Replaces McGill MR 26 N, also written MR26N, MR-26-N and MR-26-N-2. Runs on a hardened 1-5/8 in shaft or on the McGill MI 21 N inner ring. Part number variants: MR26N2, MR-26-N-2, MR 26 N 2, MR 26 N, MR26N, MR-26-N.
Inner Diameter: 1-5/8 in. Outside Diameter: 2-3/16 in. Width: 1 in.
Dynamic Load Rating: 10,600 lbf. Static Load Rating: 16,400 lbf.
McGill MI 21 N.
