INAK35X42X18Needle Roller and Cage Assembly – 35 mm Inner, 42 mm Outer, 18 mm Width, Single Row, 2 Pcs

Product Description

What this part is

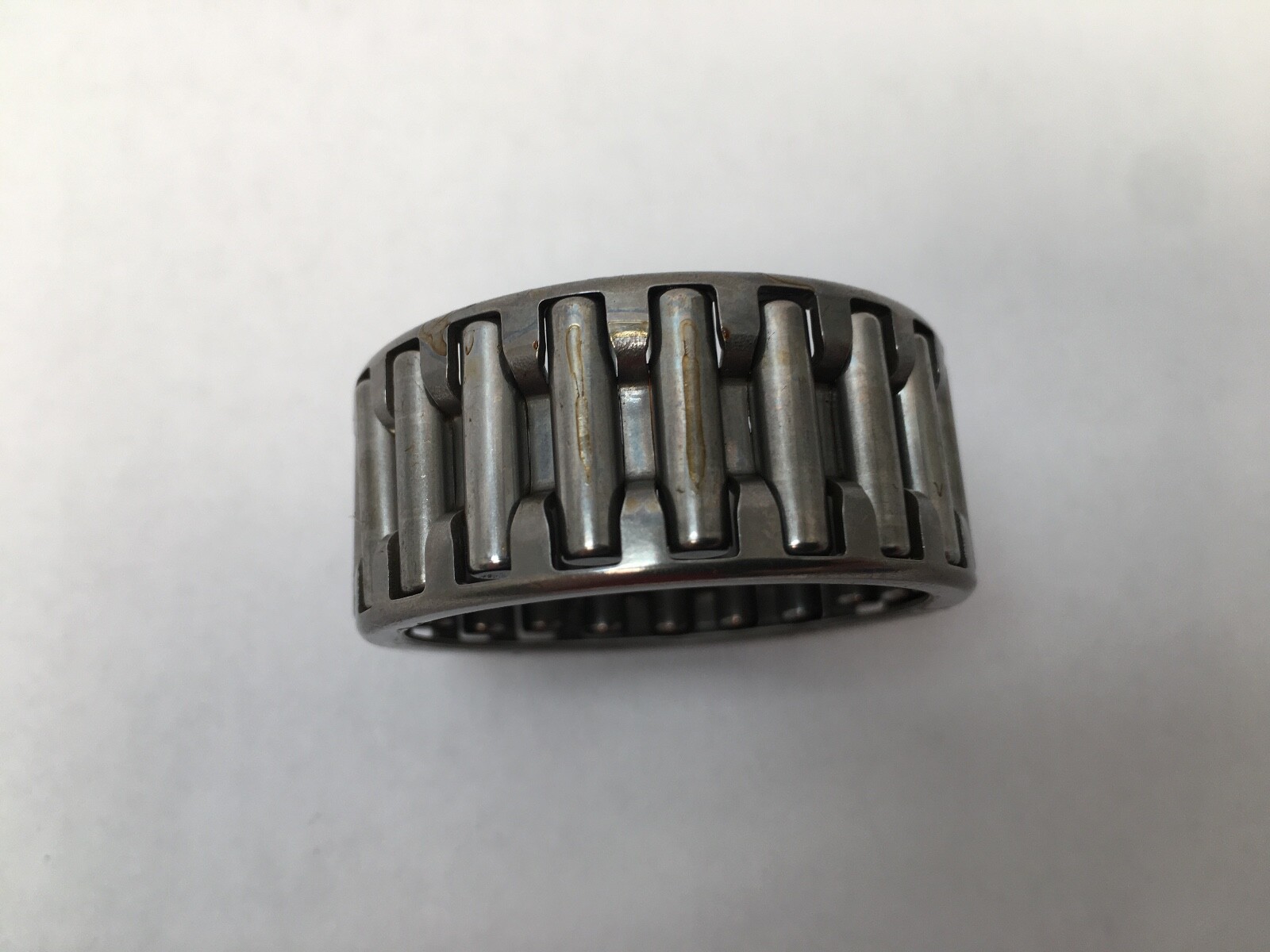

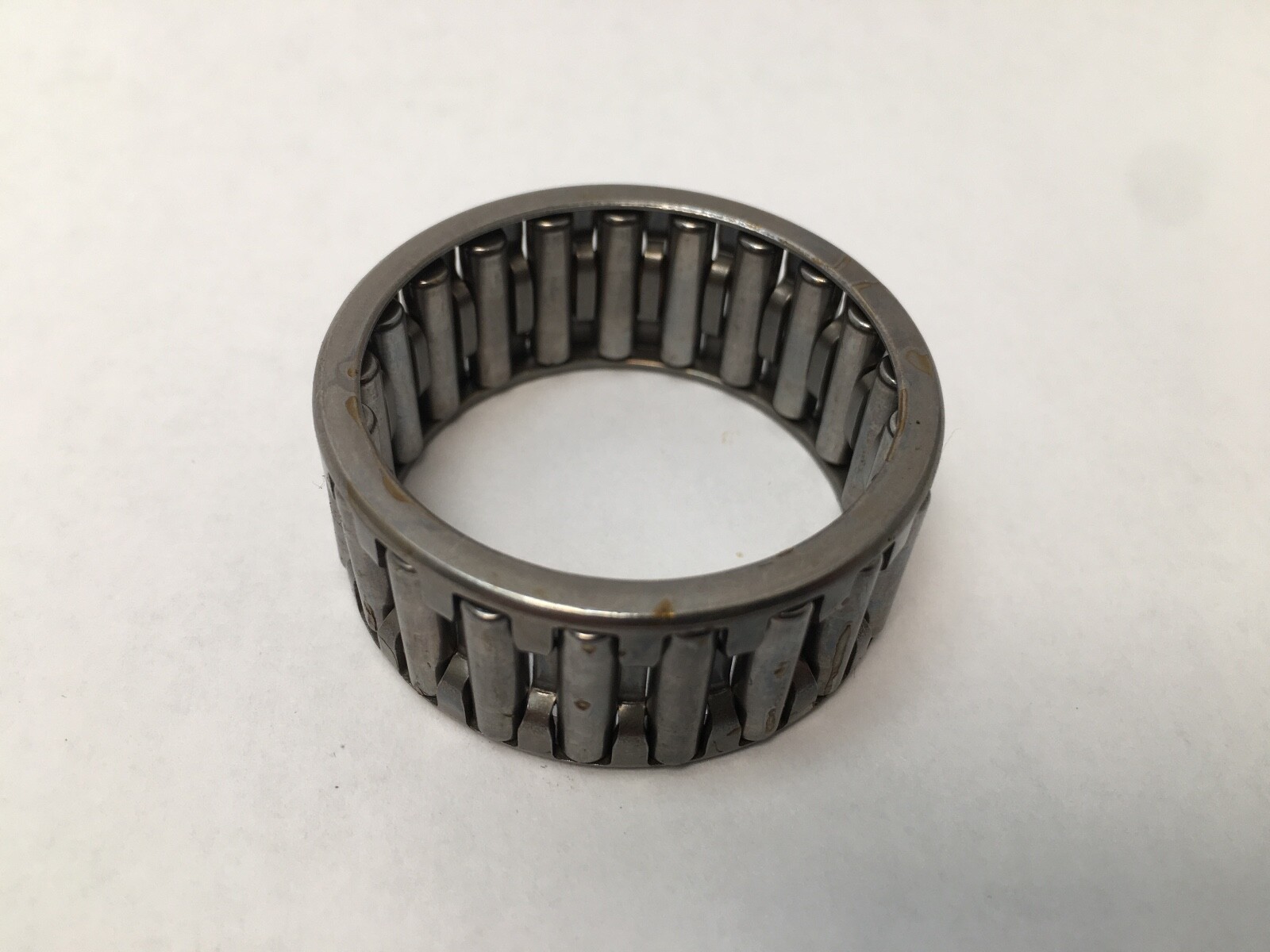

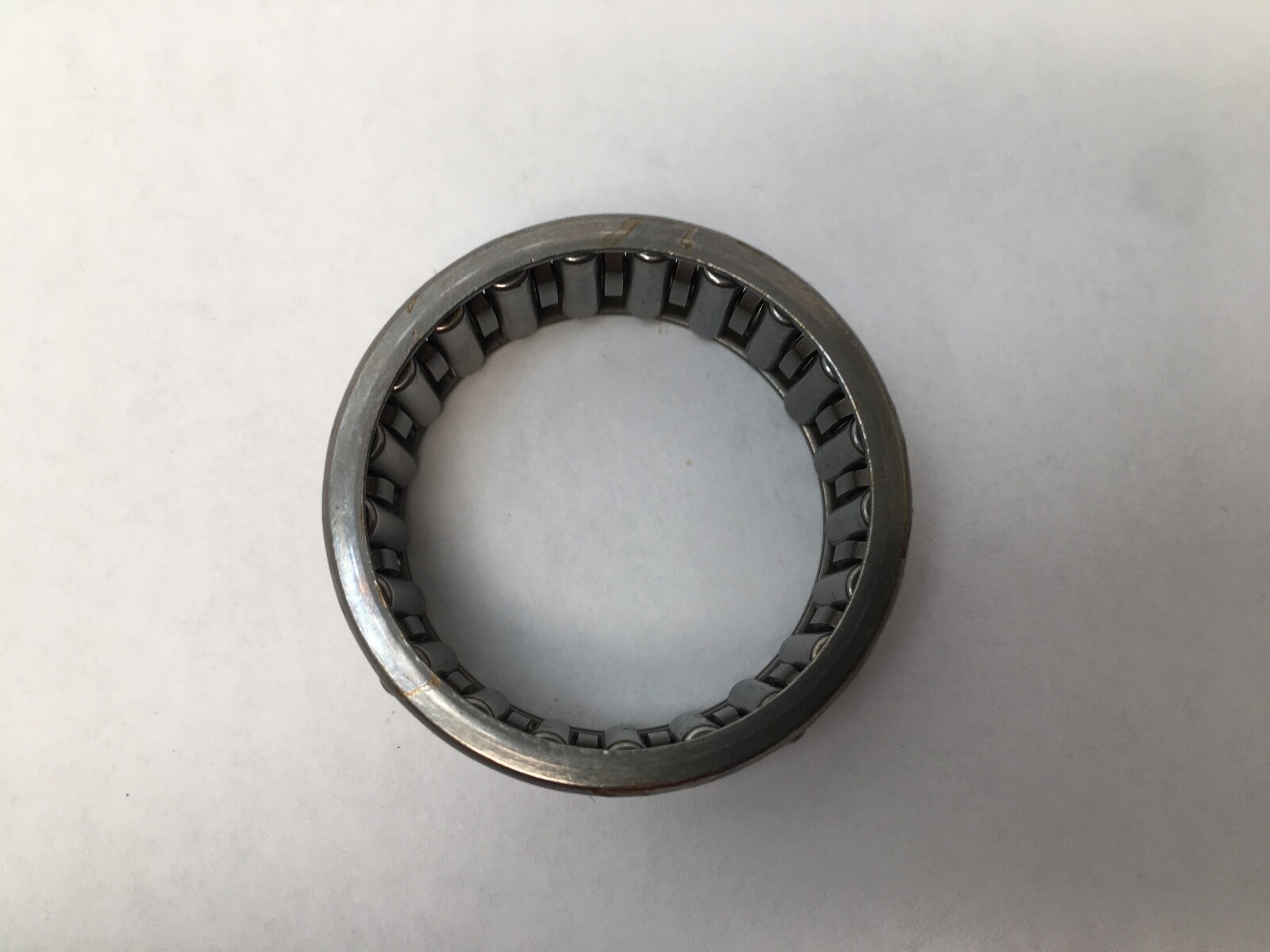

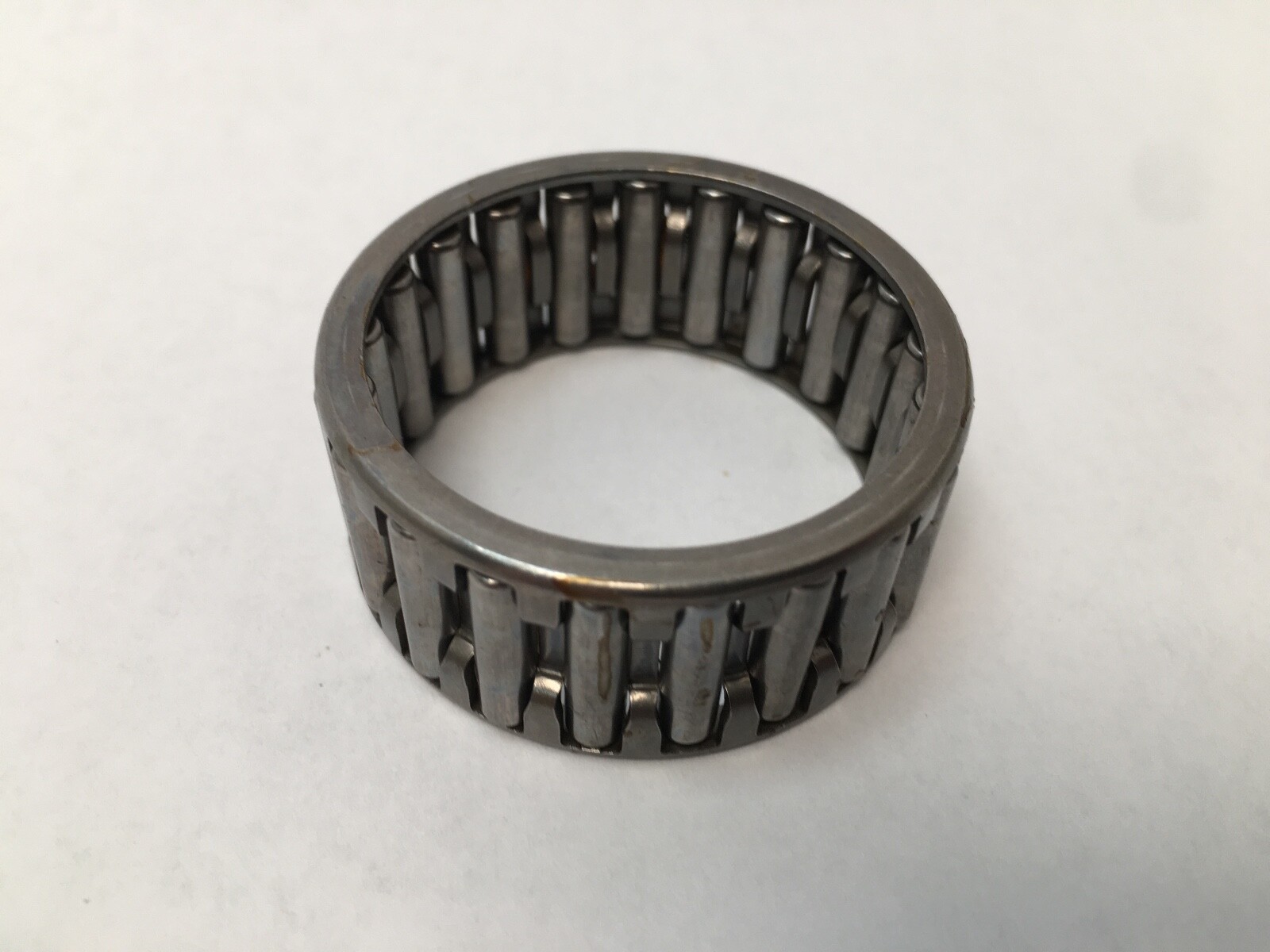

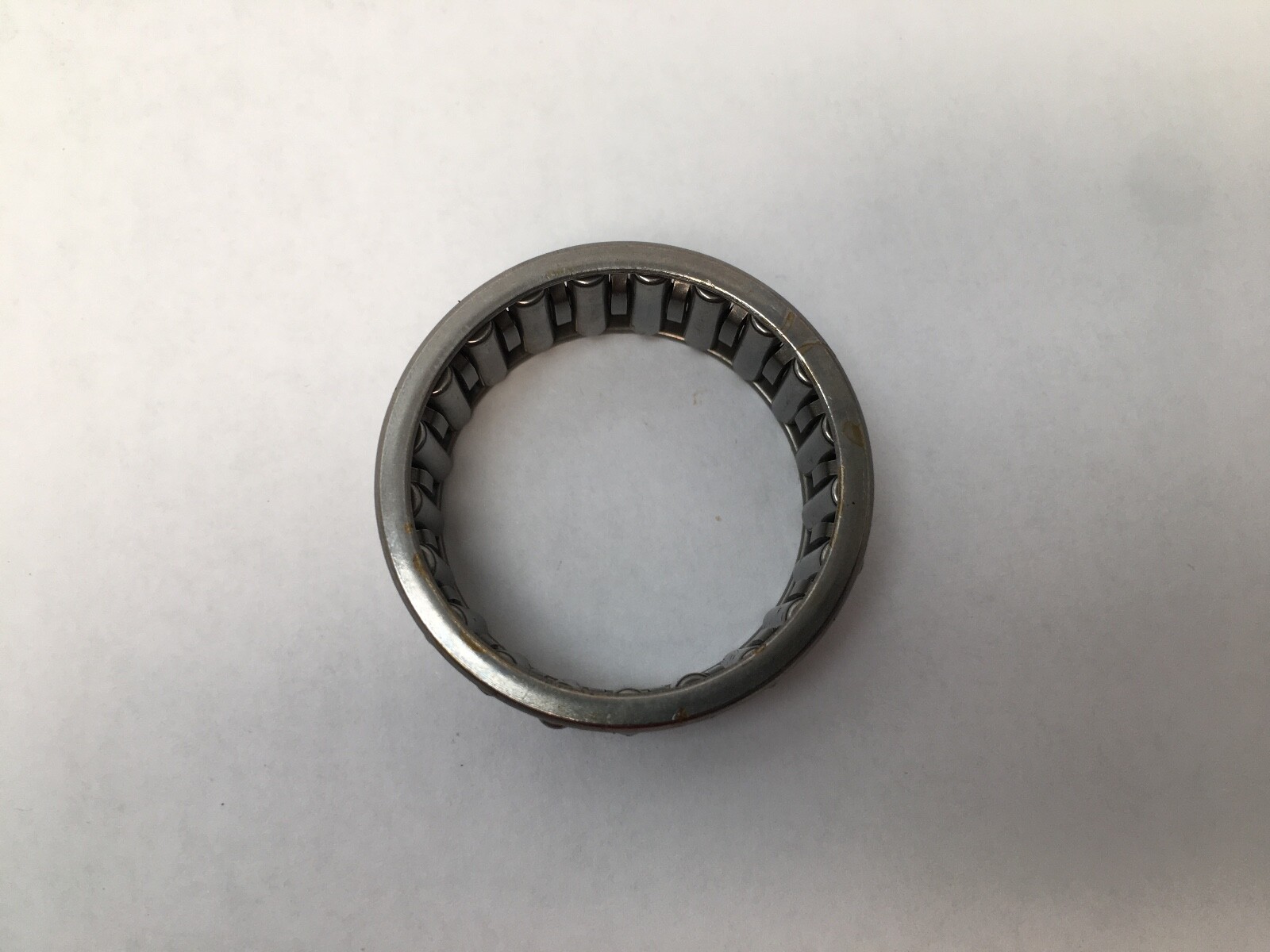

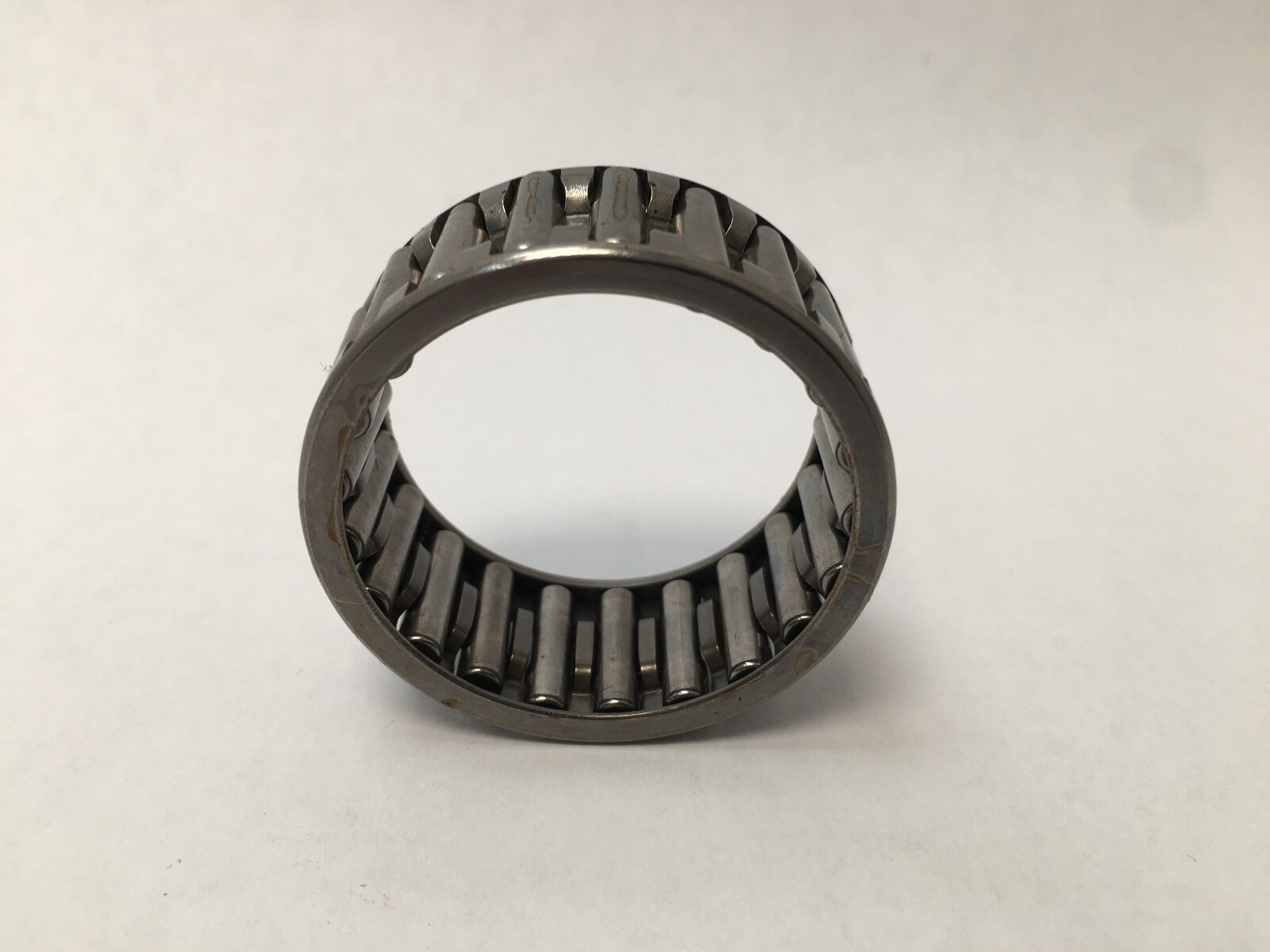

INA K35X42X18 is a single-row needle roller and cage assembly. Bore Diameter: 35 mm, measured over the inside of the needle roller complement. Outside Diameter: 42 mm, measured over the outside of the complement. Overall Width: 18 mm. Rolling Elements: Needle Roller. Number Of Rows: 1. Closure Type: Open. Bearing Material: Chrome steel. Item Weight: 0.033 kg (0.07 lb) each.

Decoding the designation

K — Needle roller and cage assembly. The cage holds the rollers; there are no inner or outer rings, so the shaft and the housing bore form the raceways.

35X42X18 — The three governing dimensions in millimetres: roller complement inner diameter, roller complement outer diameter and width.

What these specs mean in practice

Dynamic Load Rating: 27,500 N. Static Load Rating: 43,000 N. Limiting Speed: 12,700 rpm. Reference Speed: 7,100 rpm. Fatigue load limit, radial: 6,100 N. Lubricant: grease or oil. Operating temperature range: -30 °C to +140 °C.

A cage assembly gives the highest load rating per unit of radial space of any rolling bearing arrangement, because the 3.5 mm wall between 35 mm and 42 mm contains nothing but rollers. That is why 27,500 N dynamic fits in a 42 mm bore. Static above dynamic is normal for the type.

Series: K. Base Number: K35X42X18.

Mounting data

Shaft raceway diameter 35 mm and housing raceway diameter 42 mm, both hardened and ground, since the assembly runs directly against them. Width 18 mm.

Quantity and configuration

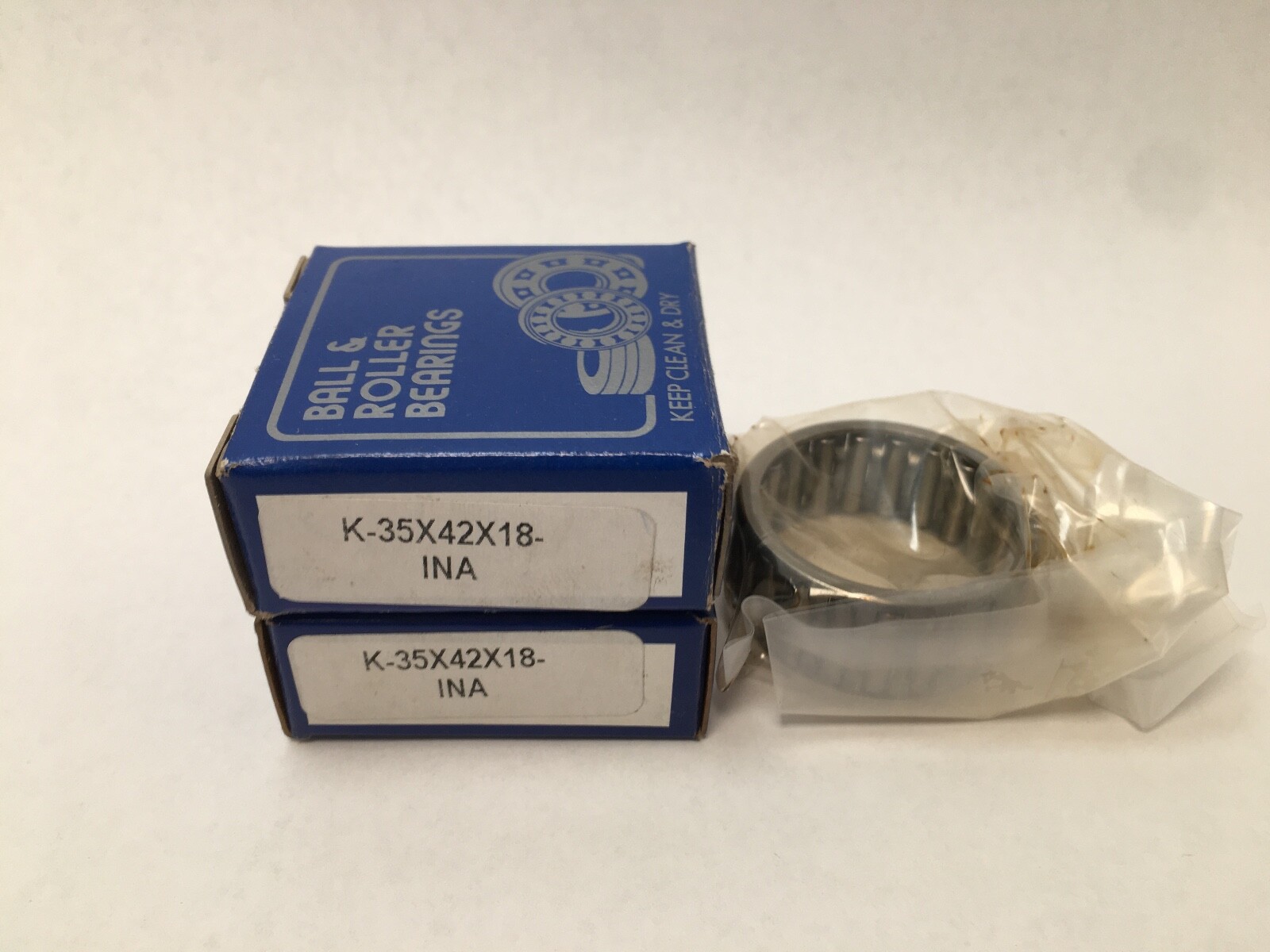

Unit Quantity: 2 Pcs. Two needle roller and cage assemblies.

Interchange guidance

Same-envelope equivalents: Koyo K35X42X18, IKO KT354218 and NTN K35X42X18. Needle roller cage assemblies are defined entirely by the three-figure envelope, so the 35 x 42 x 18 mm dimensions are the whole match.

Searchable forms of the number: K35X42X18, K-35X42X18, K 35 X 42 X 18, K35x42x18, KT354218.
