INANKX60Needle Roller / Axial Ball Bearing – 60 mm Bore, 72 mm OD, 40 mm Overall Width, Oil Lubricated

Product Description

What this part is

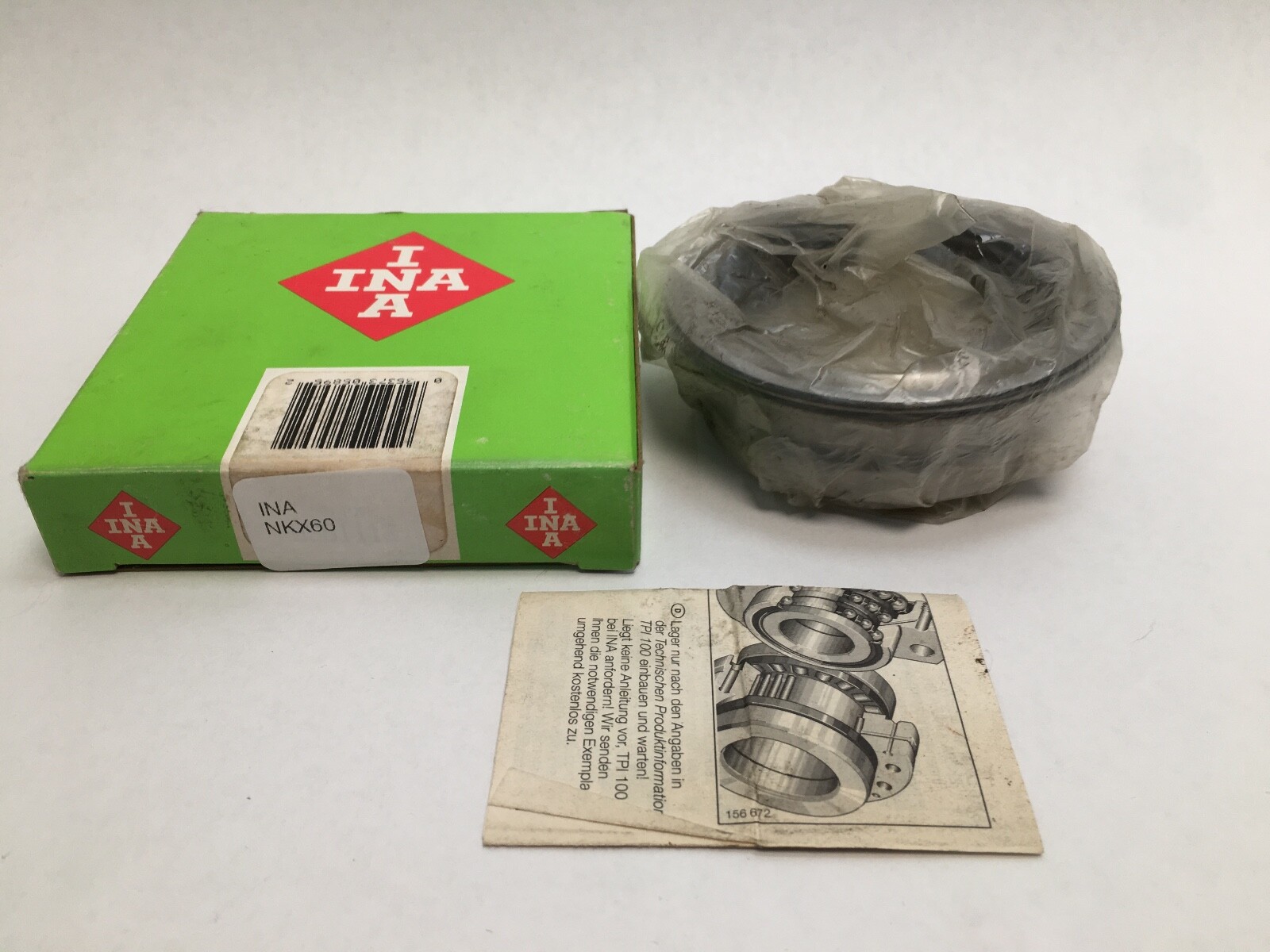

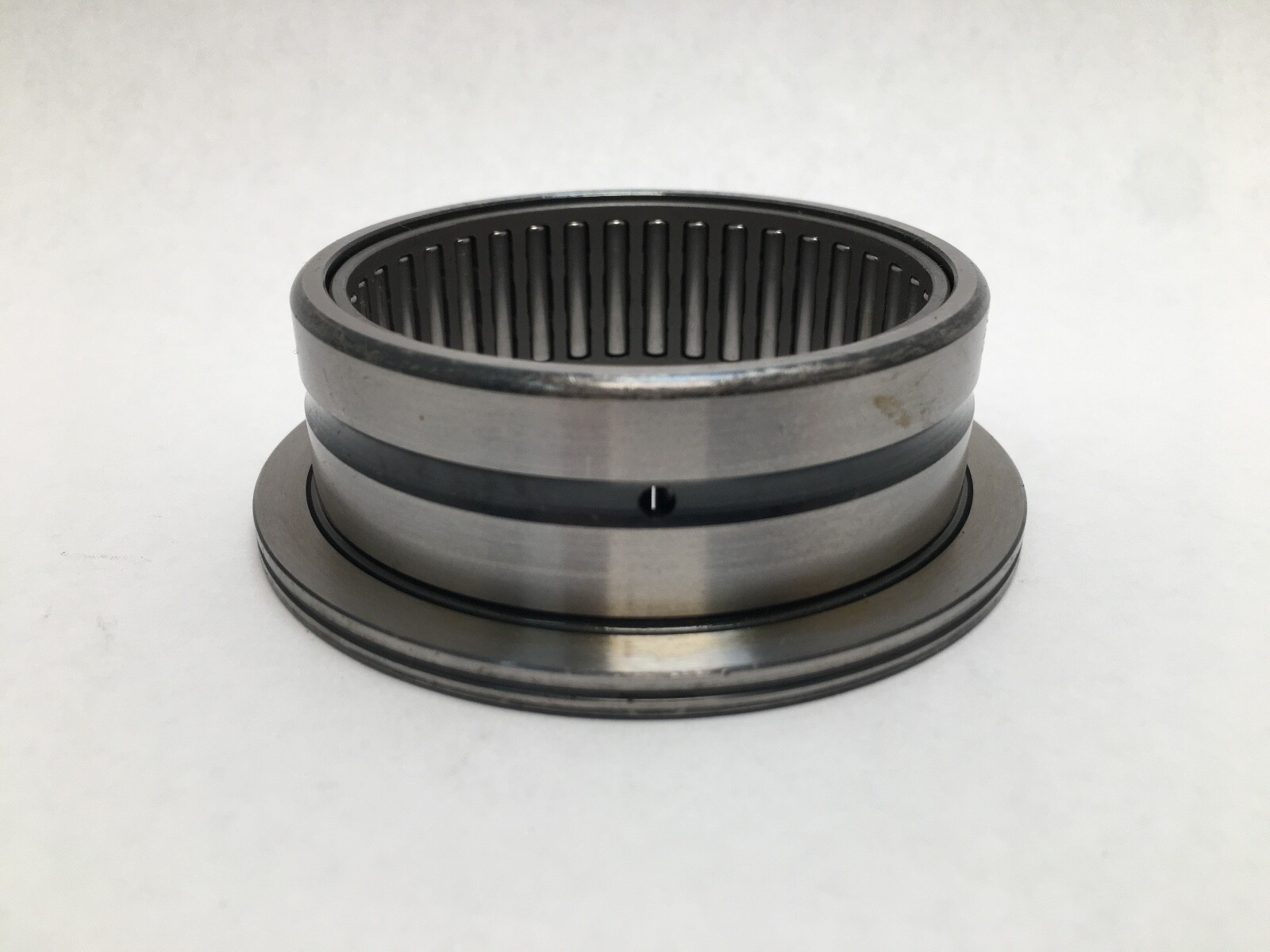

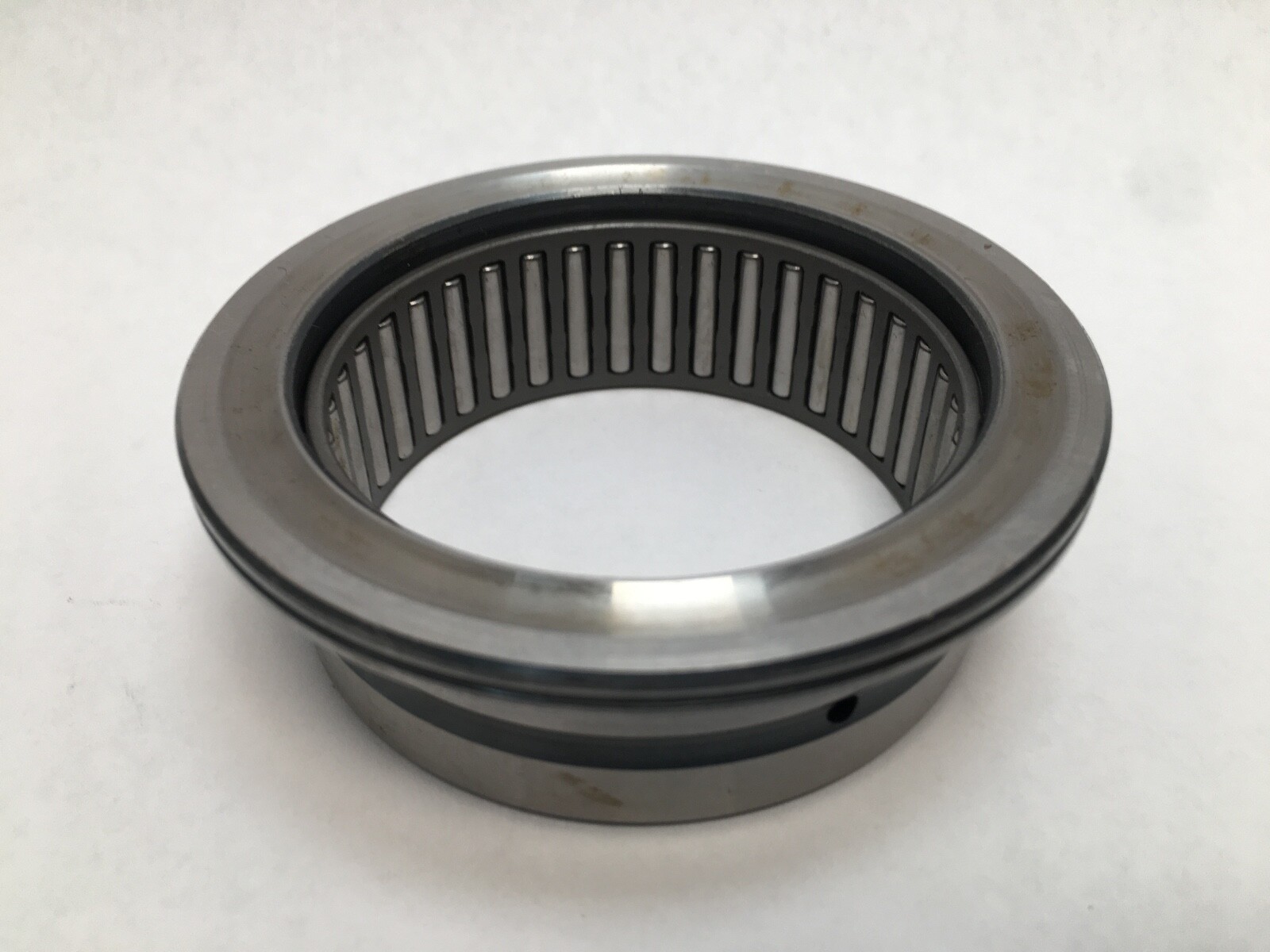

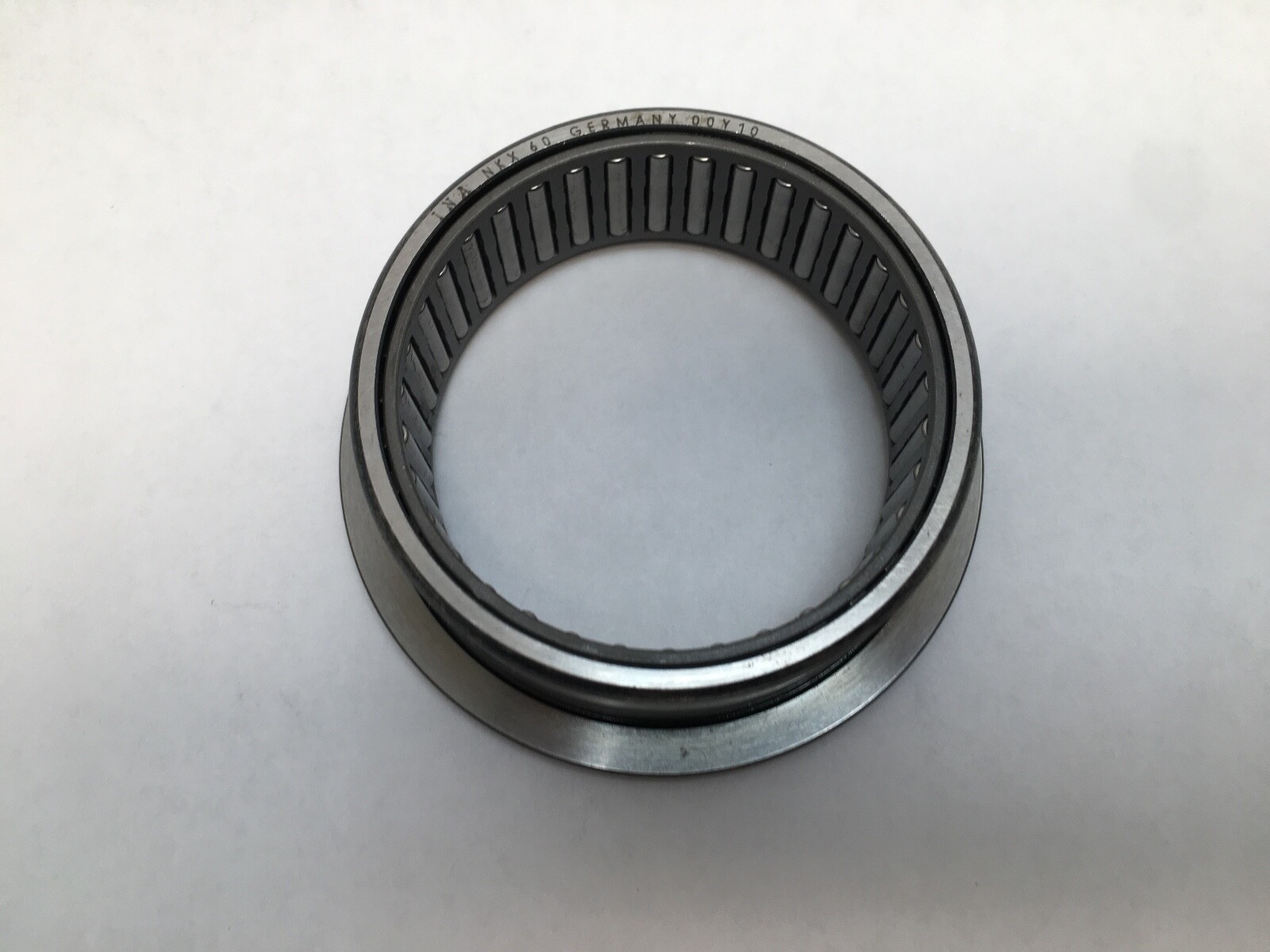

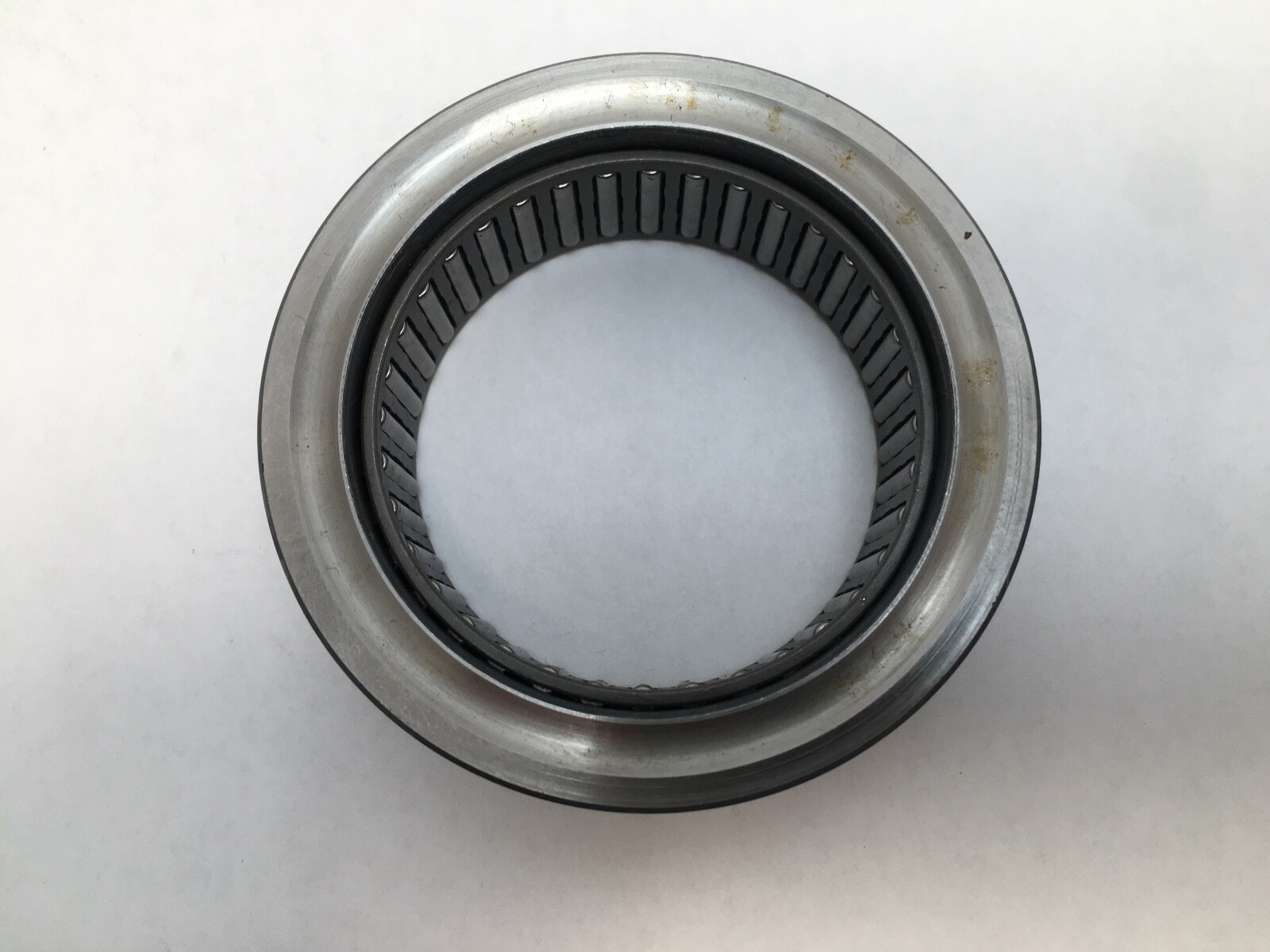

INA NKX60 combined needle roller and axial ball bearing. It carries a heavy radial load on a caged needle roller set and a single-direction axial load on a ball thrust component, in one envelope. Bore Diameter: 60 mm. Outside Diameter: 72 mm. Overall Width: 40 mm. Width of the axial bearing component: 17 mm. Dynamic Load Rating: 47,500 N radial. Static Load Rating: 90,000 N radial. Axial dynamic load rating: 41,500 N. Axial static load rating: 113,000 N. Limiting Speed: 2,800 rpm. Rolling Elements: Needle Roller and Ball. Bore Type: Straight. Number Of Rows: one needle row plus one axial ball row. Item Weight: 0.431 kg (0.95 lb). Series: NKX. Base Number: NKX60.

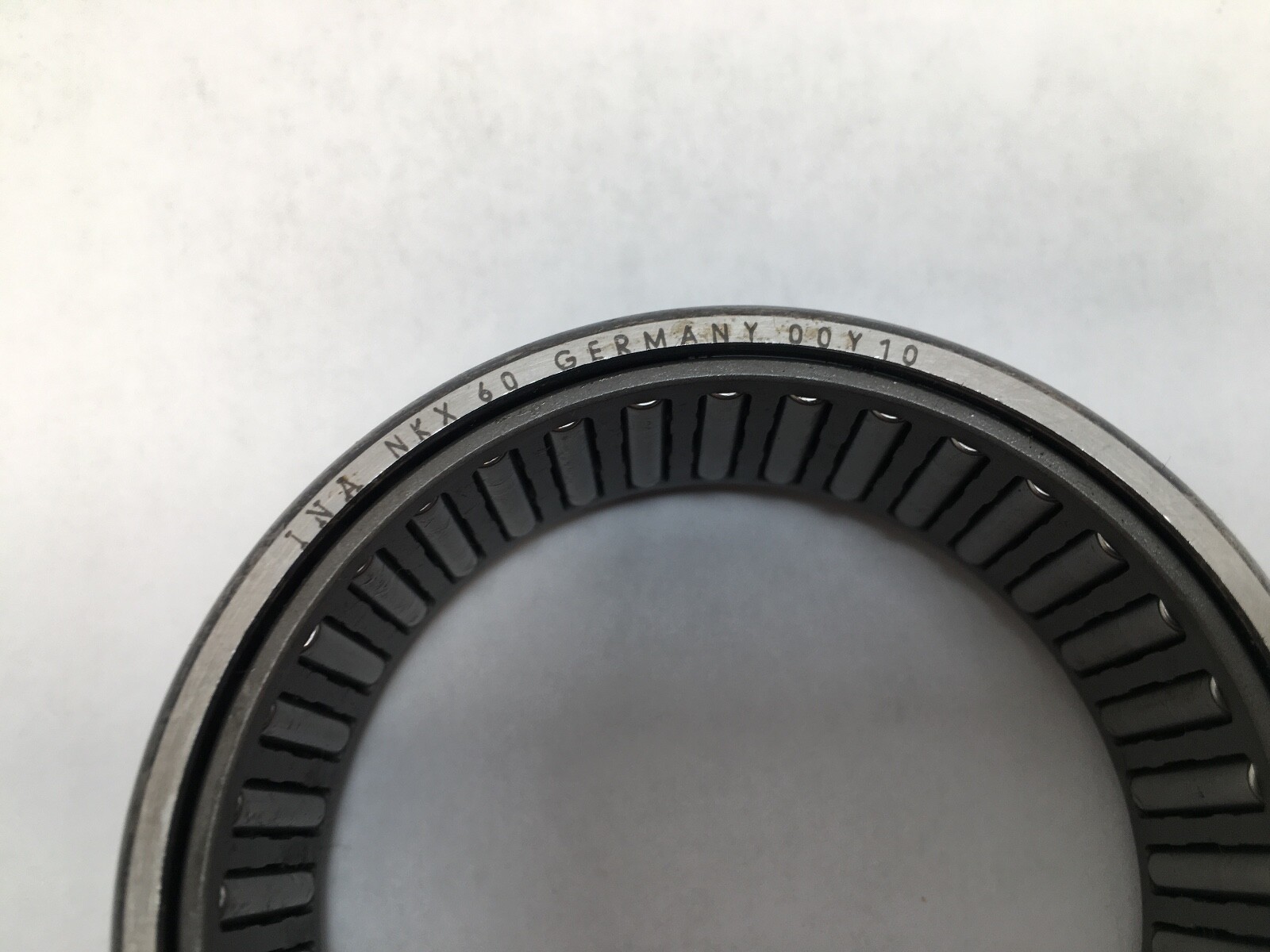

Decoding the designation

NK — machined needle roller bearing element. The needle rollers run directly on the shaft, so the shaft seat doubles as the inner raceway.

X — axial ball bearing component added to the needle roller assembly, acting in one direction.

60 — bore diameter in millimetres.

XL — Schaeffler’s current-generation designation for this part. Schaeffler lists NKX60 on the NKX60-XL page as the replaced number, so the two are the same bearing.

What these specs mean in practice

The needle roller set gives a 47,500 N dynamic radial rating in a 12 mm radial section — roughly triple what a ball bearing of the same envelope would carry. The axial ball component adds 41,500 N of one-direction thrust capacity and a 113,000 N static axial rating, which is what makes the combination useful on a shaft that has to be located axially without a second bearing position.

Limiting Speed: 2,800 rpm. Fatigue load limit: 15,600 N radial and 5,600 N axial — below those figures the raceways operate in the infinite-life region.

Operating temperature range: −30 °C to 120 °C.

Mounting data

The needle rollers run on the shaft. The shaft raceway needs a hardness of 670 HV or better and a ground finish; where the shaft cannot be hardened, Schaeffler’s matching inner ring is the IR50X60X25-XL, which converts the 60 mm bore to a 50 mm shaft seat.

Maximum flange outside diameter: 85.2 mm. Mounting dimension, shaft shoulder: 80.5 mm. Maximum recess radius: 1 mm. Minimum chamfer dimension: 1 mm. Distance to lubrication hole: 12 mm.

Lubricant: oil. The NKX execution is supplied open for oil lubrication; the NKX60-Z variant carries the end cap used for grease.

Quantity and configuration

Unit Quantity: 1 Pc. Single bearing assembly, straight bore, open.

Interchange guidance

NKX combination bearings are close to an INA-exclusive design and there is no broad nine-way interchange across the major makers. The genuine dimensional and functional equivalent is the IKO NAX6040 at 60 x 72 x 40 mm. Designation variants for the same part: NKX 60, NKX-60, NKX60-XL.
