Combined needle roller and axial ball bearing, 25 x 37 x 30 mm, radial plus single-direction thrust in one unit. Grease lubricated, end cap fitted.
List Price
$30.39
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | INA |
|---|---|
| MPN | NX25-Z-XL |
| Model | NX25Z XL |
| Bearing Type | Needle Roller Bearing |
| ID | 25 mm |
| OD | 37 mm |
| Width | 30 mm |
| Material | Bearing Steel |
|---|---|
| Series | NX |
| Base Number | NX25 |
| Overall Width | 30 mm |
| Mpn Variants | NX 25 Z; NX25Z; NX25-Z; NX25ZXL; NX25-Z-XL |
| Compatible With Replaces | Matching inner ring IR20X25X16-IS1-XL; matching snap rings WR37 and SW37 |
| Additional Attributes | Axial dynamic load rating 11,100 N; axial static load rating 24,300 N; fatigue load limit 4,200 N radial and 1,110 N axial; mounting dimension shaft shoulder 31.6 mm; distance to lubrication hole 8 mm; connection diameter snap ring 40.4 mm; connection width with snap ring 14.2 mm |
| Closure Type | Single Shield |
| Min Temp | -30 °C |
| Dynamic Load Rating | 16,800 N |
| Static Load Rating | 22,400 N |
| Rolling Elements | Needle Roller and Ball |
| Max Temp | 120 °C |
| Item Weight | 0.111 kg (0.24 lb) |
| Limiting Speed | 4,900 rpm |
| Number Of Rows | One needle row plus one axial ball row |
| Bore Type | Straight |
| Snap Ring Included | No |
| Lubricant | Grease |
| Harmonization Code | 8482.10.50.68 |
| Bearing Material | Chrome steel |
| Cross Reference 1 | IKO NAX2530Z |
|---|

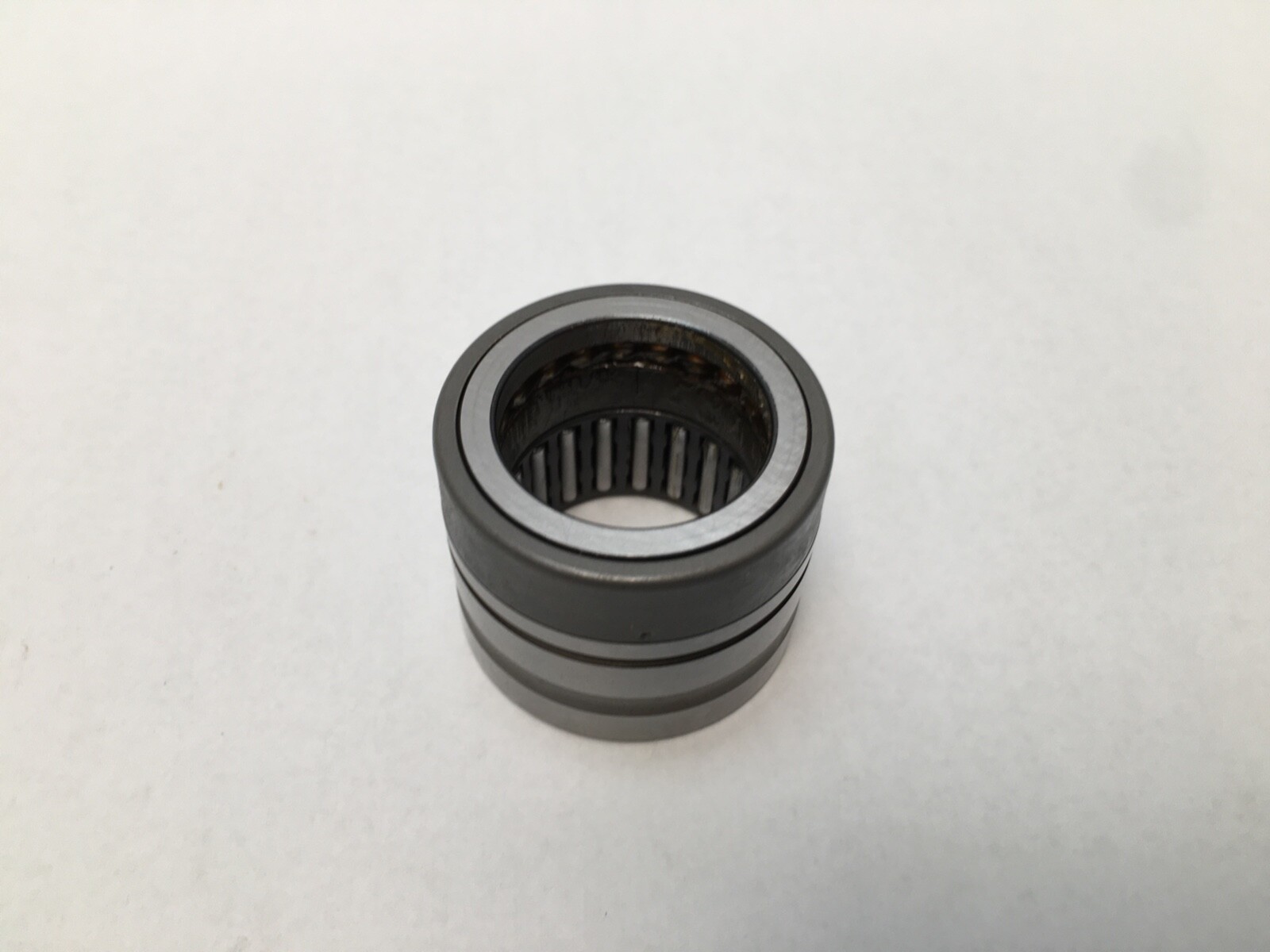

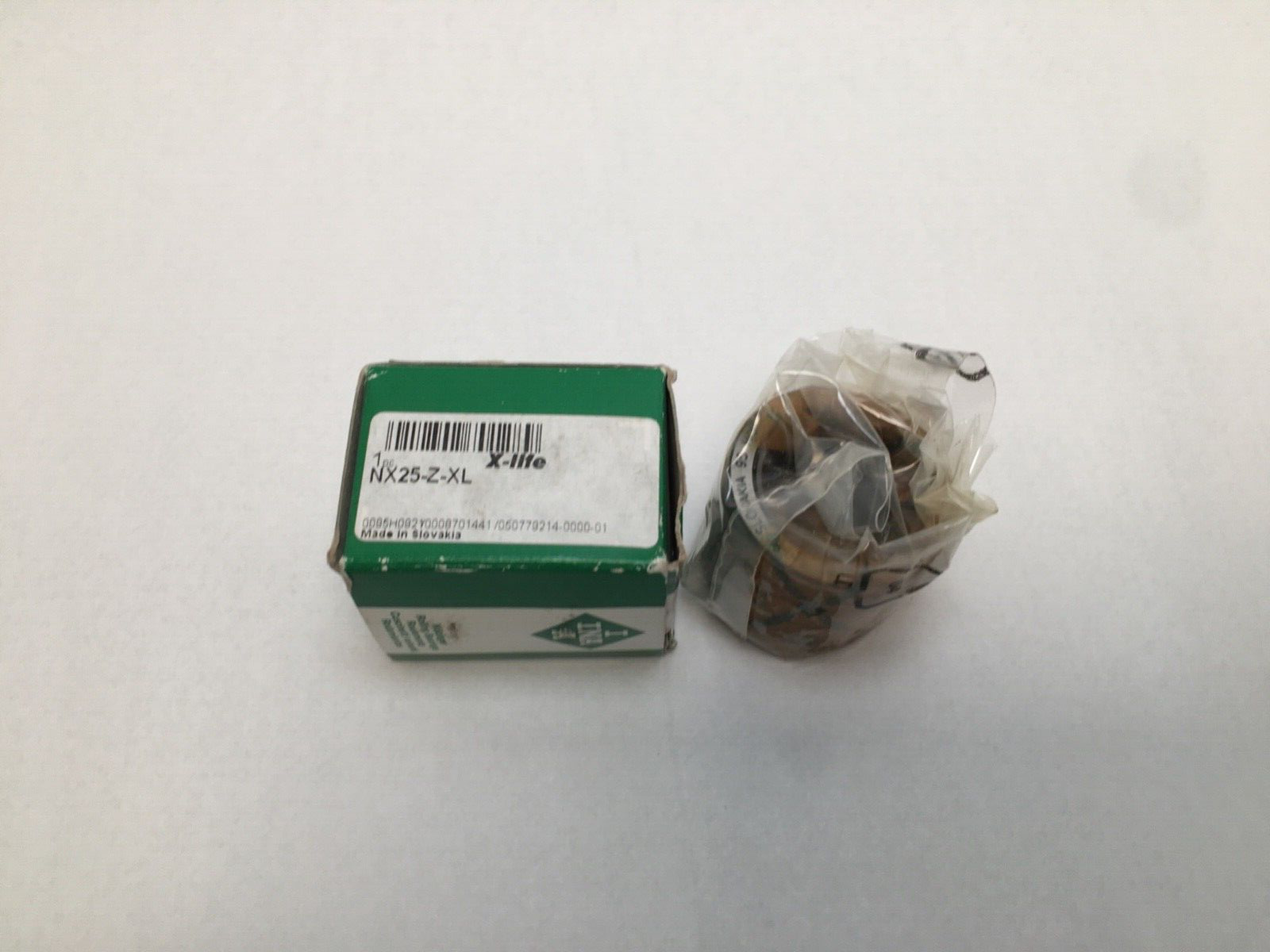

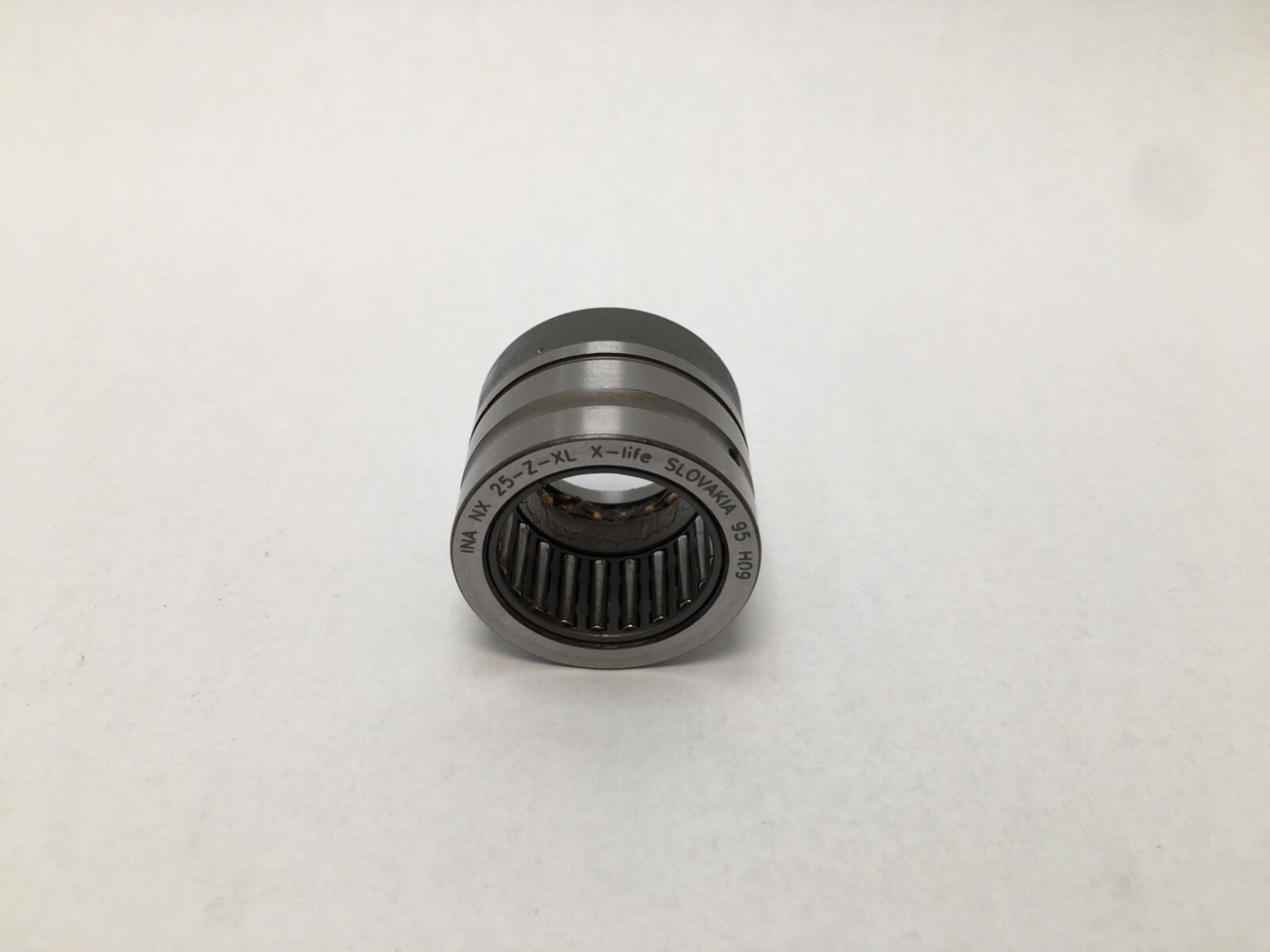

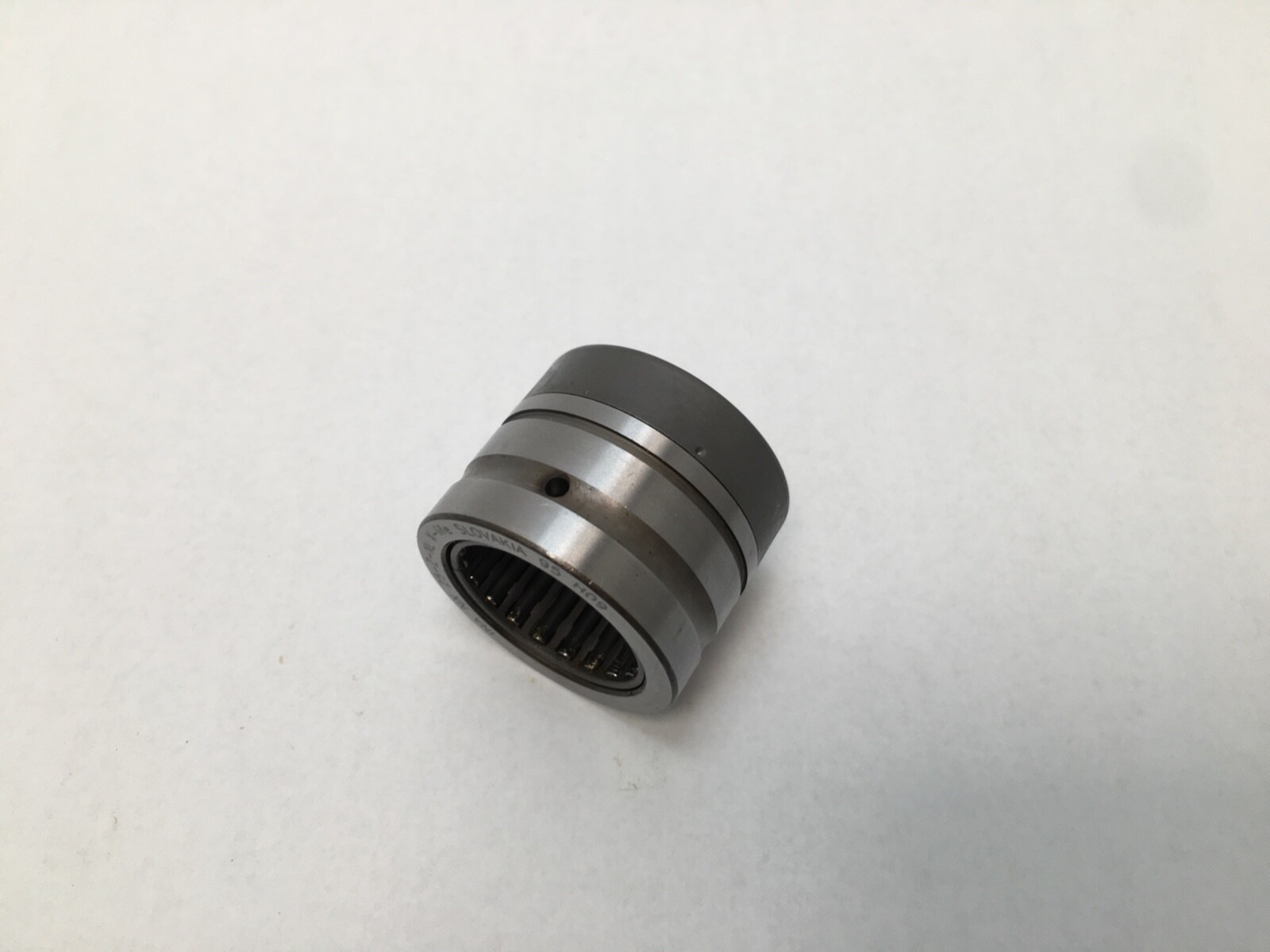

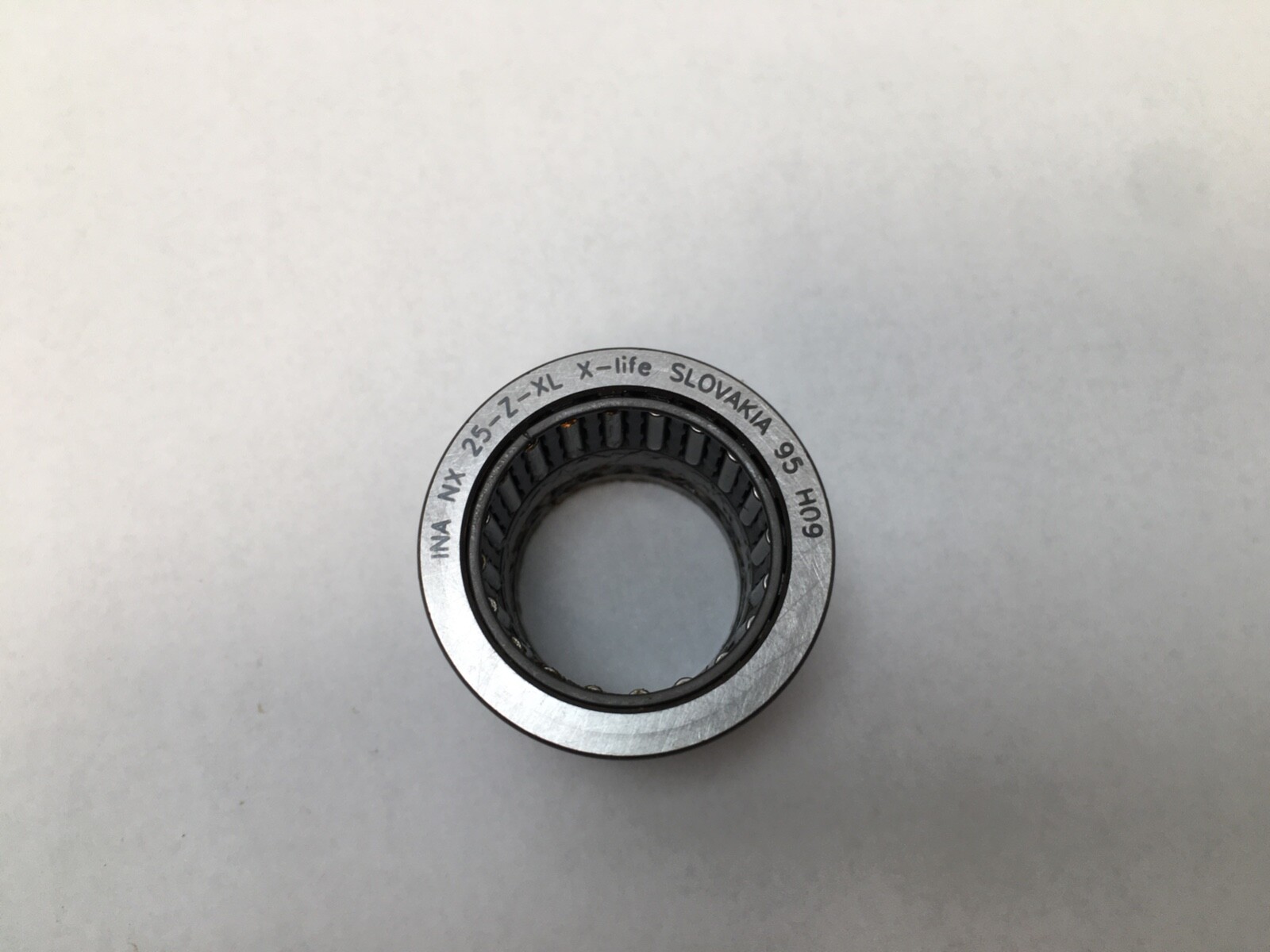

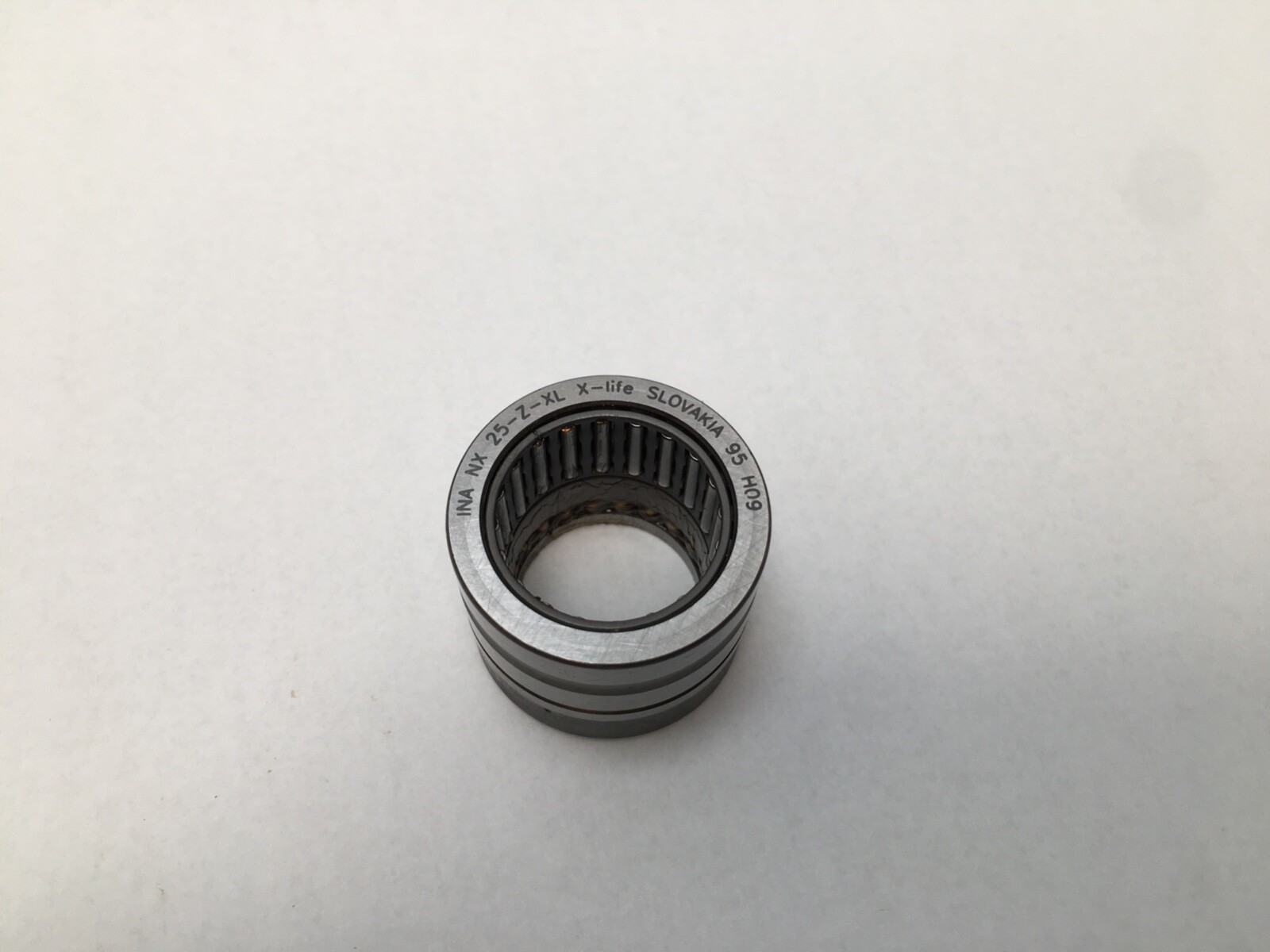

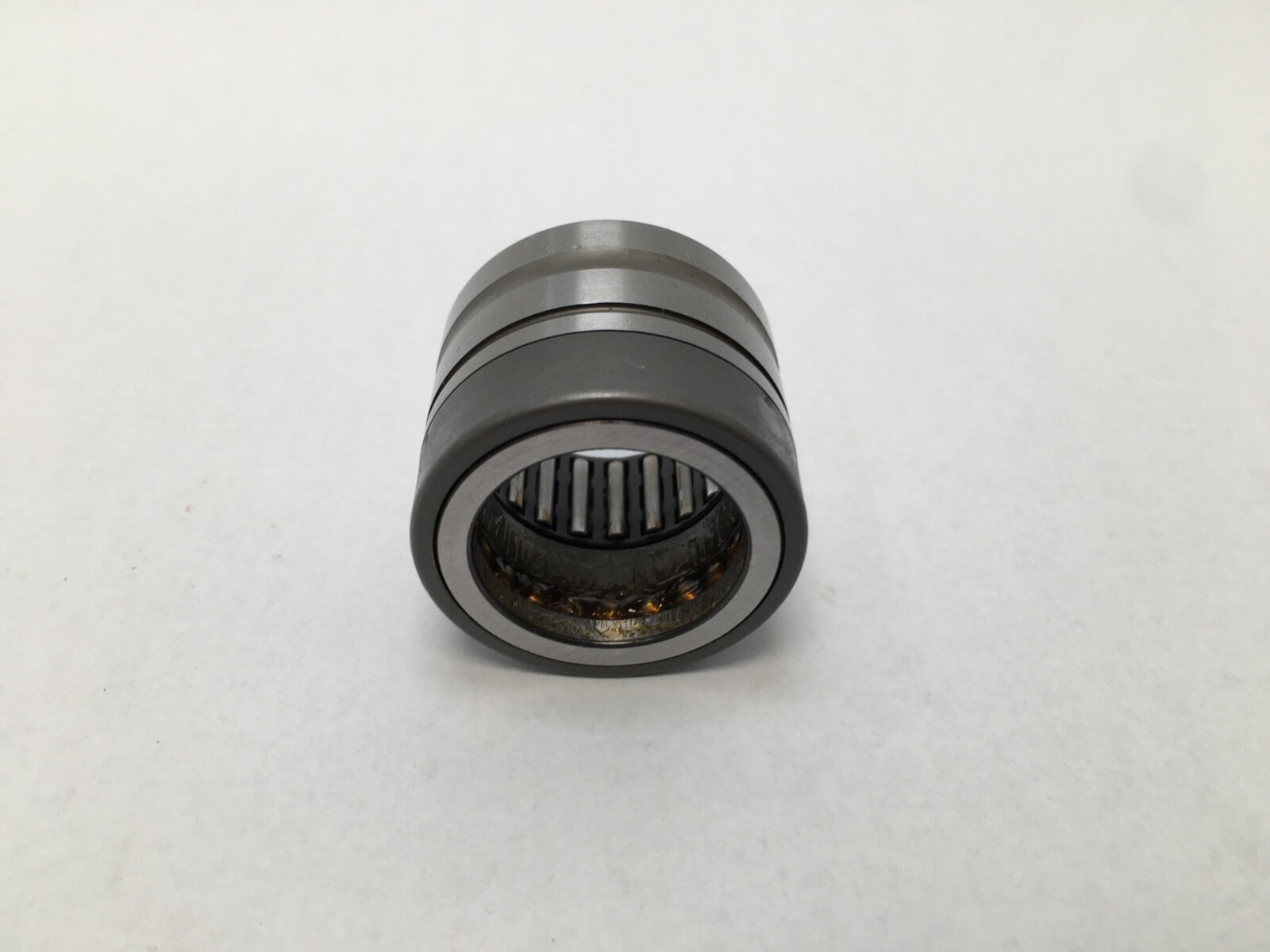

INA NX25-Z-XL combined needle roller and axial ball bearing. A caged needle roller set takes the radial load and a ball thrust component takes load in one direction, in one unit. Bore: 25 mm. Outside diameter: 37 mm. Width: 30 mm. Grease lubricated, end cap fitted.
N — needle roller bearing element, rollers running directly on the shaft.
X — axial ball bearing component combined with the radial needle roller assembly, acting in one direction.
25 — bore diameter in millimetres.
Z — end cap fitted; the grease-lubricated execution.
XL — Schaeffler’s current-generation designation; NX25-Z-XL supersedes NX25-Z.
Bore Diameter: 25 mm. Outside Diameter: 37 mm. Overall Width: 30 mm. Dynamic Load Rating: 16,800 N radial. Static Load Rating: 22,400 N radial. Axial Dynamic Load Rating: 11,100 N. Axial Static Load Rating: 24,300 N. Fatigue Load Limit: 4,200 N radial and 1,110 N axial. Limiting Speed: 4,900 rpm. Rolling Elements: Needle Roller and Ball. Bore Type: Straight. Closure Type: End cap. Lubricant: Grease. Operating Temperature: -30 °C to 120 °C. Item Weight: 0.111 kg (0.24 lb). Series: NX. Base Number: NX25. Unit Quantity: 1 Pc.
Mounting dimension, shaft shoulder: 31.6 mm. Distance to lubrication hole: 8 mm. Maximum recess radius: 0.3 mm. Minimum chamfer dimension: 0.3 mm. Connection diameter for the snap ring: 40.4 mm. Connection width with snap ring: 14.2 mm.
Cross-reference: IKO NAX2530Z. Matching inner ring: IR20X25X16-IS1-XL. Matching snap rings: WR37 and SW37. Designation variants: NX 25 Z, NX25Z, NX25-Z, NX25ZXL.
A combined needle roller and axial ball bearing, 25 x 37 x 30 mm, with radial and single-direction thrust capacity in one unit.
Radial dynamic 16,800 N and static 22,400 N; axial dynamic 11,100 N and static 24,300 N.
Inner ring IR20X25X16-IS1-XL and snap rings WR37 and SW37.
