Availability:
1 in stock
Combined needle roller and axial cylindrical roller bearing, 20 mm bore, 30 mm OD, 30 mm height. Radial plus single-direction thrust, oil lubricated.
List Price
$40.78
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | INA |
|---|---|
| MPN | NKXR20 |
| GTIN | 035373405008 |
| Model | NKXR-20 |
| Bearing Type | Needle Roller Bearing, Open |
| ID | 20 mm |
| OD | 30 mm |
| Width | 30 mm |
| Series | NKXR |
|---|---|
| Lubricant | Oil |
| Base Number | NKXR20 |
| Overall Width | 30 mm |
| Mpn Variants | NKXR 20; NKXR-20; NKXR20-XL |
| Compatible With Replaces | Matching inner ring IR17X20X20-XL |
| Additional Attributes | Axial dynamic load rating 25,000 N; axial static load rating 53,000 N; fatigue load limit 4,200 N radial and 7,500 N axial; maximum flange outside diameter 35.1 mm; shaft shoulder mounting dimension 30.7 mm; distance to lubrication hole 10.5 mm; DIN 5429 |
| Min Temp | -30 °C |
| Dynamic Load Rating | 18,600 N |
| Static Load Rating | 23,800 N |
| Rolling Elements | Needle Roller and Cylindrical Roller |
| Max Temp | 120 °C |
| Item Weight | 0.079 kg (0.18 lb) |
| Limiting Speed | 10,000 rpm |
| Number Of Rows | One needle row plus one axial roller row |
| Bore Type | Straight |
| Snap Ring Included | No |
| Bearing Material | Chrome steel |
| Industry Terms | combined needle roller axial cylindrical roller bearing; needle roller thrust roller combination; NKXR combination bearing; DIN 5429 bearing |
| Common Misspellings | INA NKXR 20; INA NKX R20; INA NKXR-20; INA NXKR20 |
| Application Types | machine tool spindles; gearboxes; combined radial and axial loads on shafts |
| Cross Reference 1 | IKO NAXR20 |
|---|

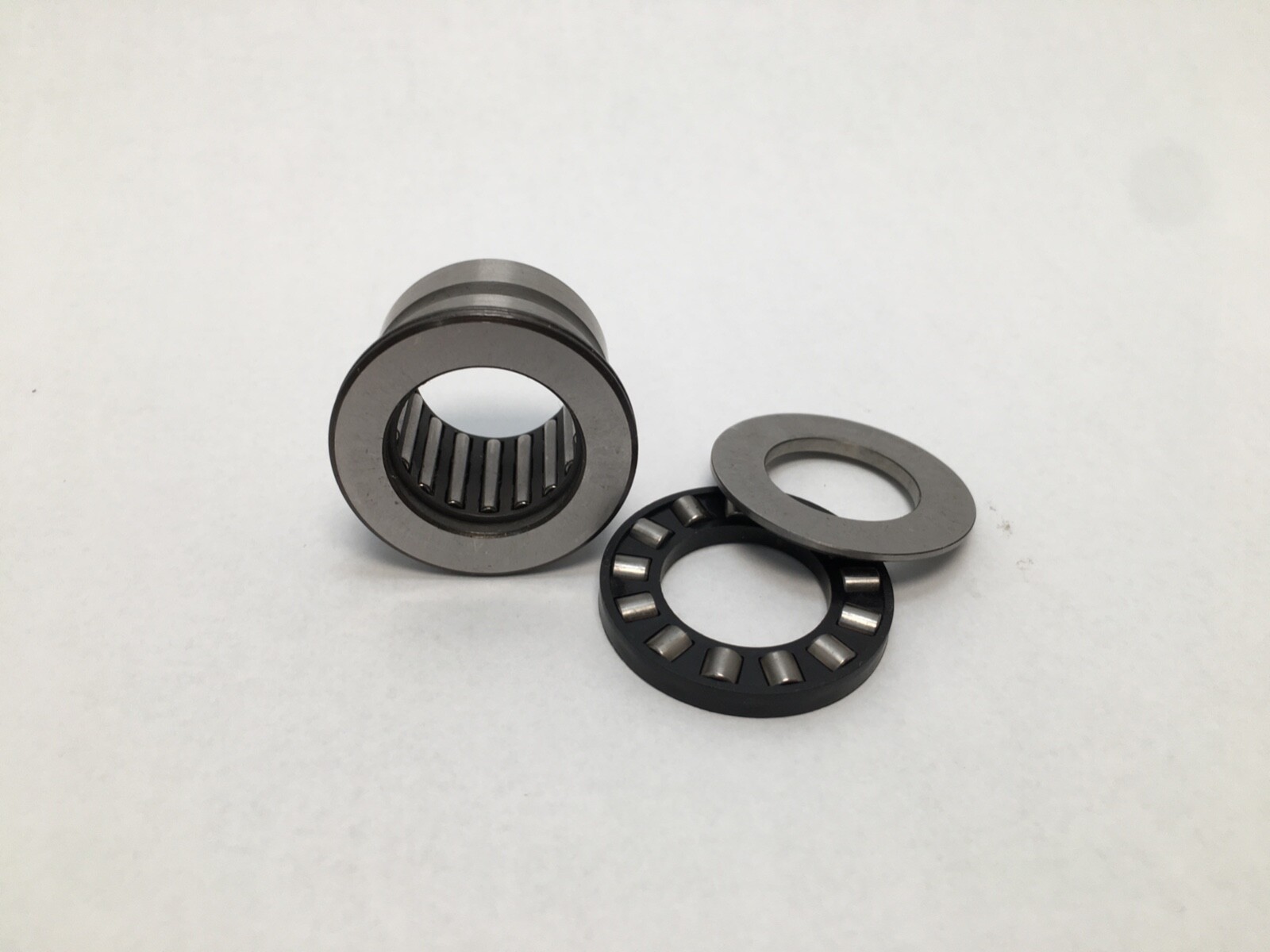

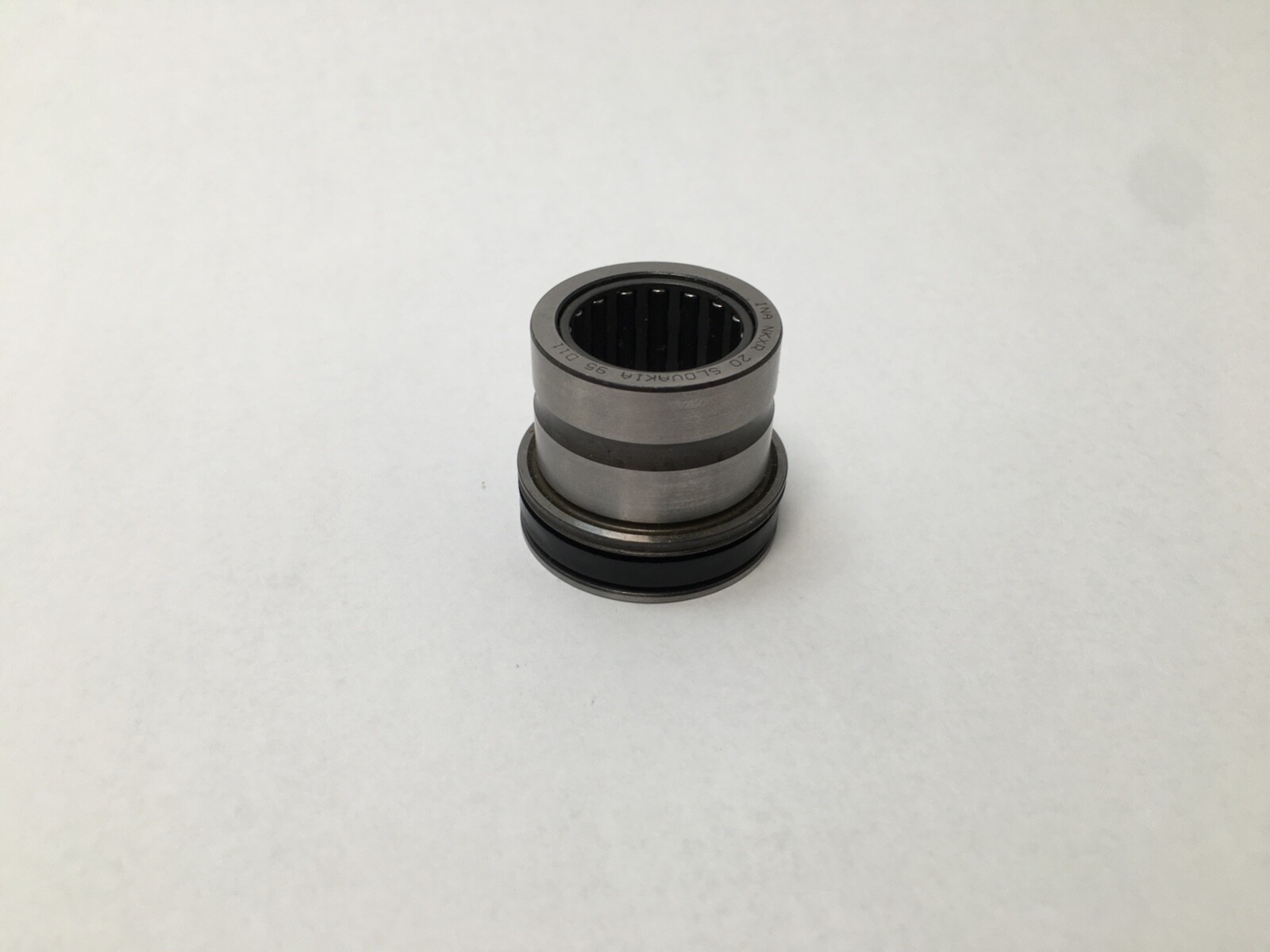

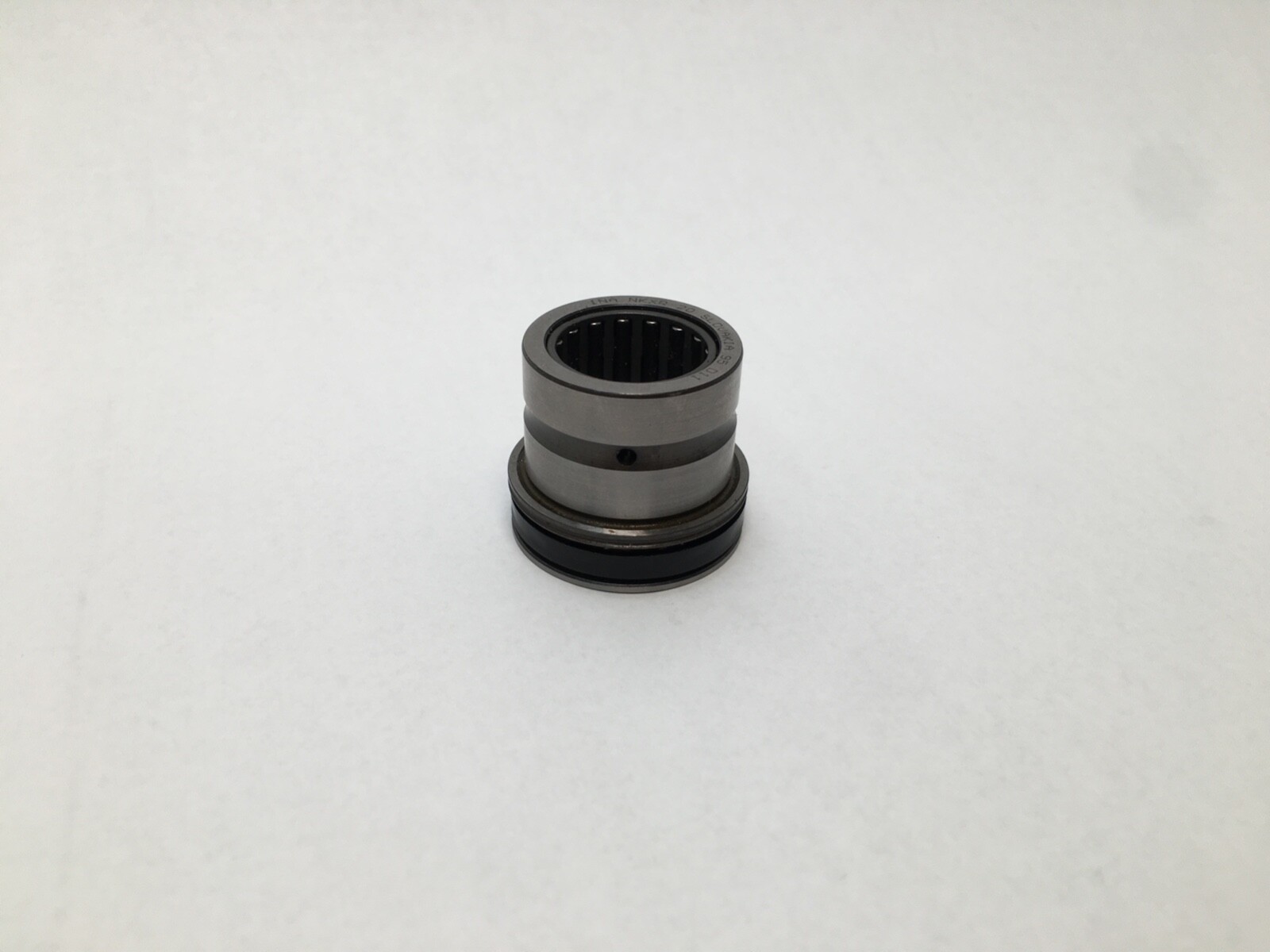

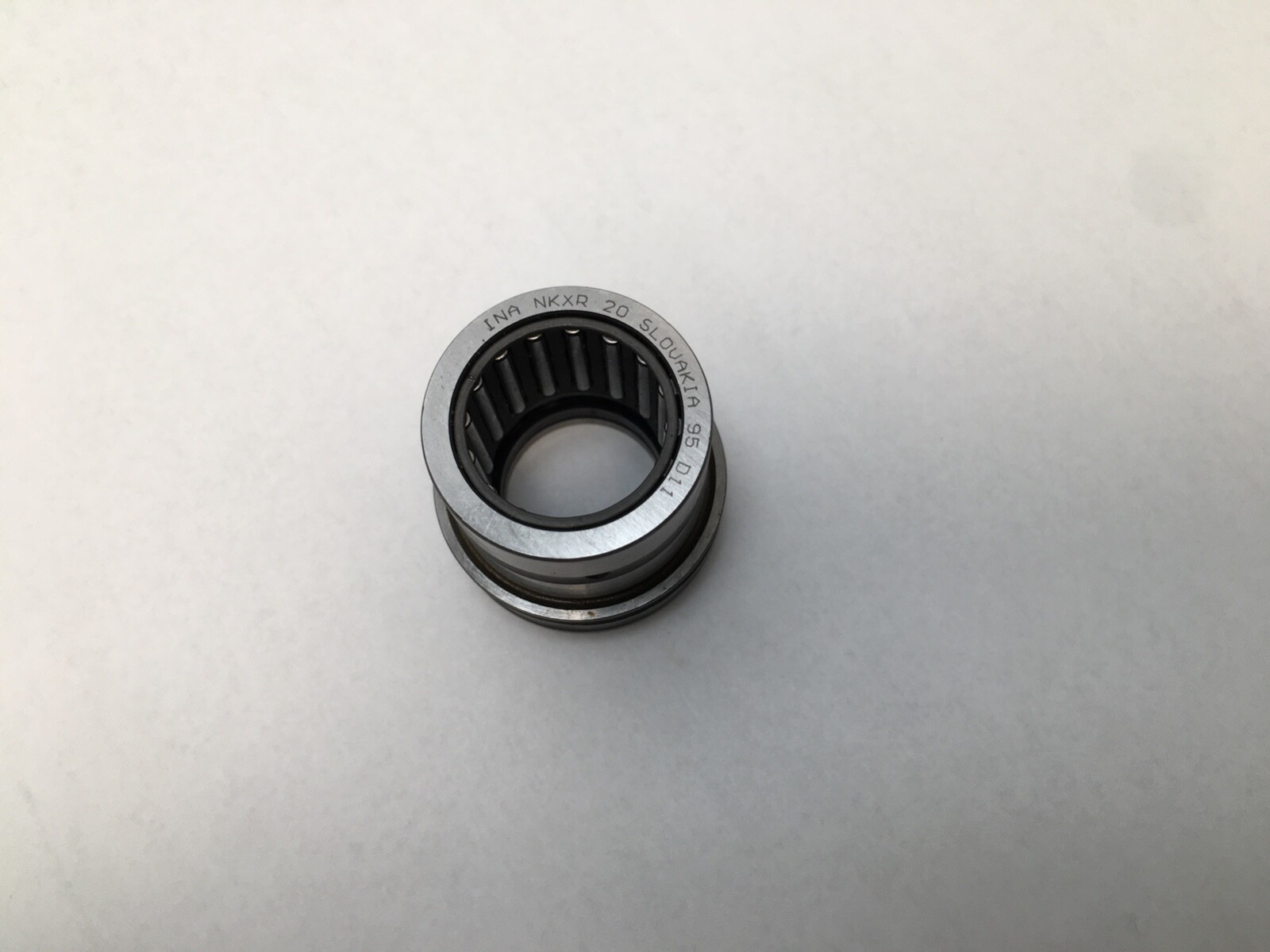

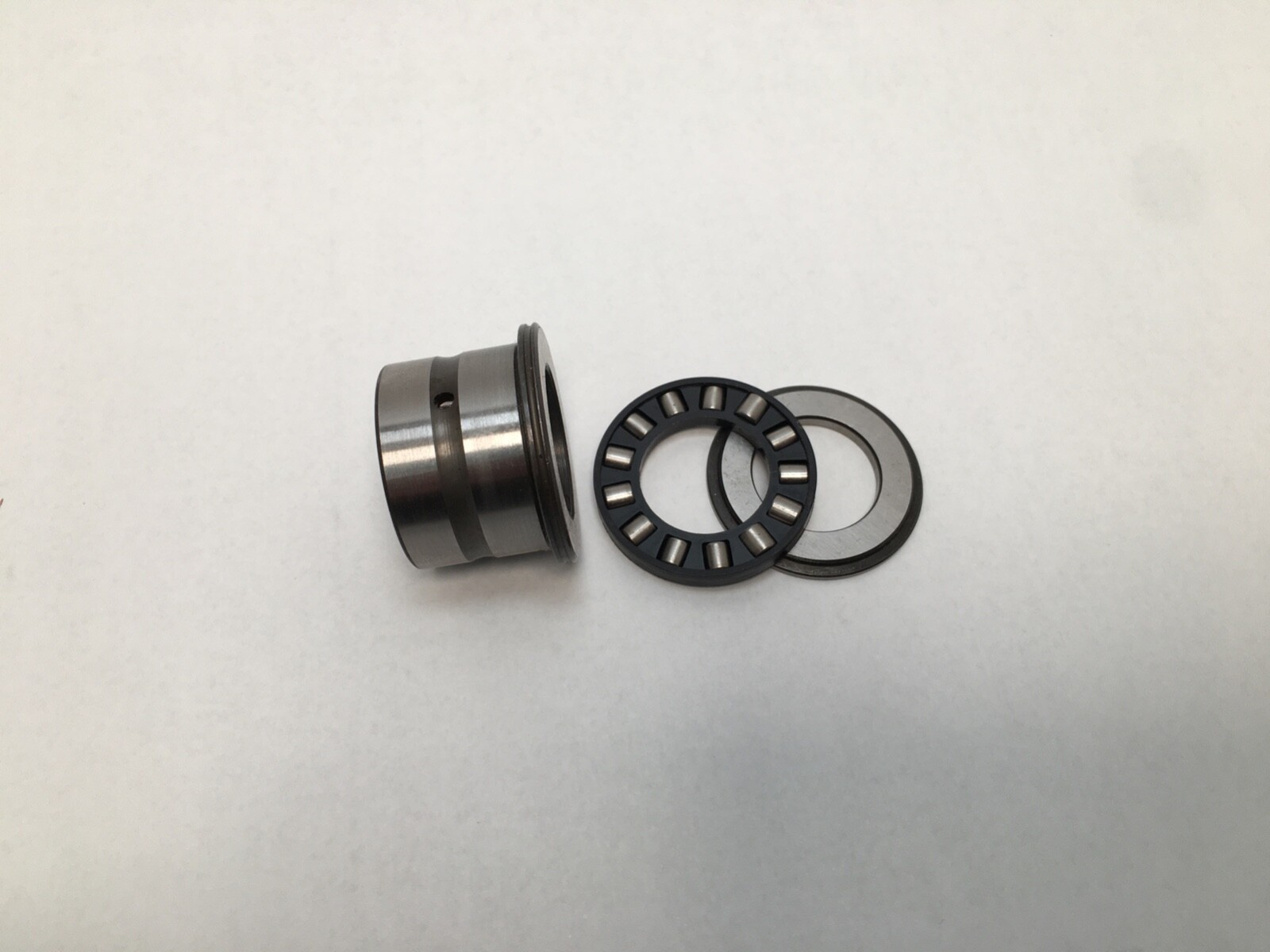

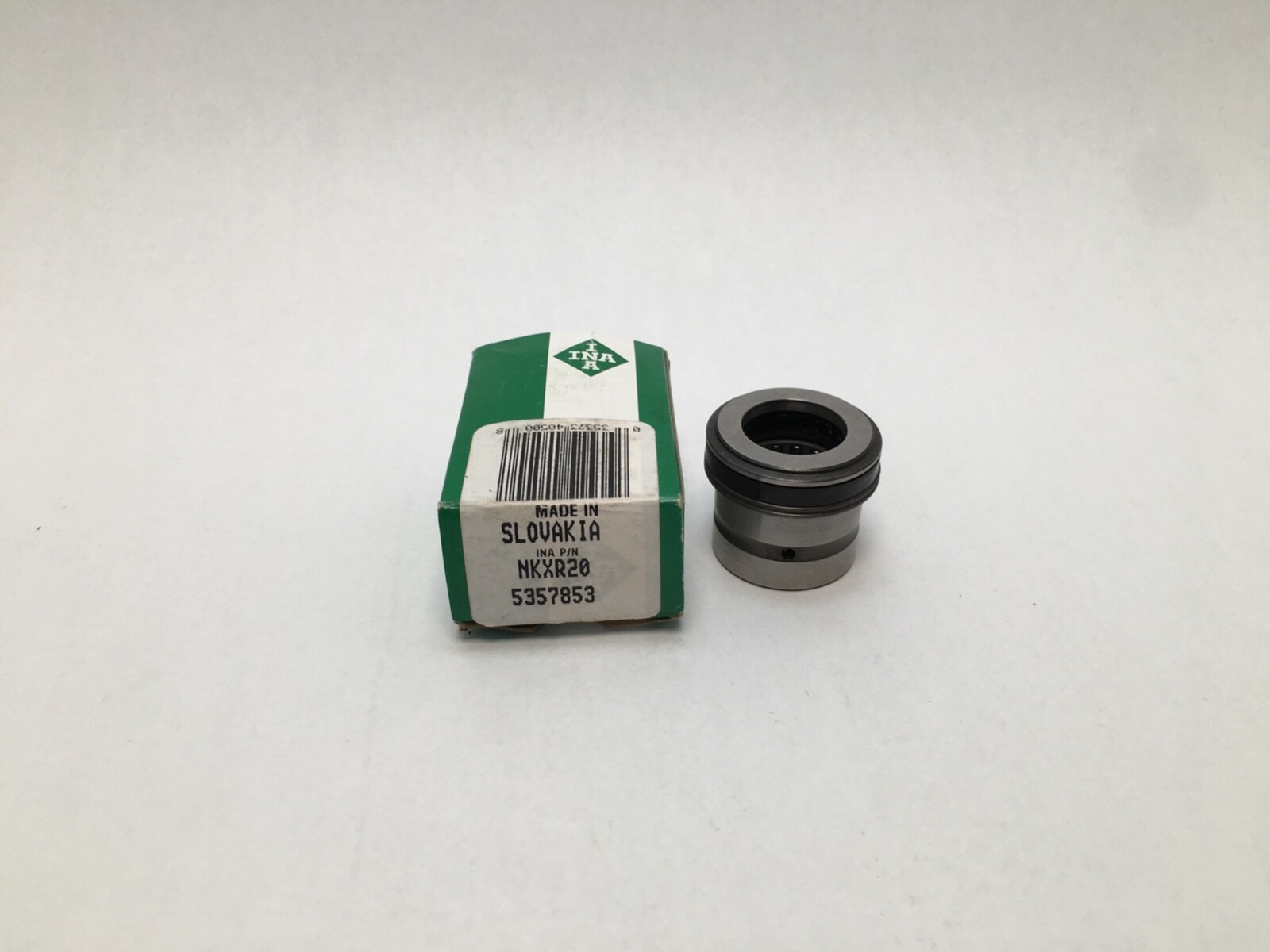

The INA NKXR20 is a combined needle roller and axial cylindrical roller bearing to DIN 5429. A caged needle roller set takes the radial load and an axial cylindrical roller component takes thrust in one direction, in a single unit. Unit Quantity: 1 Pc. Single combination bearing, straight bore, open, without end cap, for oil lubrication.
NK — machined needle roller bearing element, rollers running directly on the shaft.
X — axial bearing component combined with the radial needle roller assembly, acting in one direction.
R — the axial component uses cylindrical rollers (NKX uses balls).
20 — bore diameter in millimetres.
XL — Schaeffler’s current-generation designation; NKXR20-XL supersedes NKXR20.
Bearing Type: Needle Roller / Axial Cylindrical Roller Bearing. Dynamic Load Rating: 18,600 N radial. Static Load Rating: 23,800 N radial. Axial dynamic load rating: 25,000 N. Axial static load rating: 53,000 N. Fatigue load limit: 4,200 N radial and 7,500 N axial. Limiting Speed: 10,000 rpm. Reference Speed: 4,200 rpm. Rolling Elements: Needle Roller and Cylindrical Roller. Bore Type: Straight. Closure Type: Open. Lubricant: Oil. Item Weight: 0.079 kg (0.18 lb). Operating temperature: −30 °C to 120 °C. Series: NKXR. Base Number: NKXR20.
Bore Diameter: 20 mm. Outside Diameter: 30 mm. Overall Width: 30 mm. Maximum flange outside diameter: 35.1 mm. Width of the axial bearing component: 10 mm. Mounting dimension, shaft shoulder: 30.7 mm. Maximum recess radius: 0.3 mm. Minimum chamfer dimension: 0.3 mm. Distance to lubrication hole: 10.5 mm. Shaft raceway hardness: 670 HV or better. Matching inner ring: IR17X20X20-XL, converting the 20 mm bore to a 17 mm shaft seat.
Cross-reference: IKO NAXR20, the same 20 x 30 x 30 mm envelope. GTIN: 035373405008. Designation variants: NKXR 20, NKXR-20, NKXR20-XL. The NKXR20-Z variant carries the end cap used with grease.
20 mm bore, 30 mm outside diameter, 30 mm height.
Radial: 18,600 N dynamic and 23,800 N static. Axial: 25,000 N dynamic and 53,000 N static.
R marks an axial component built with cylindrical rollers; the NKX version uses balls.
