FAG B7204C.TPA.P4S.UL super-precision angular contact spindle bearing, 20 x 47 x 14 mm, 15° contact angle, phenolic cage, P4S, universal light preload.
List Price
$69.73
13 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7204-C-T-P4S-UL |
| GTIN | 4012801152709 |
| Model | B7204C.TPA.P4S.UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 47 mm |
| Width | 14 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Lubricant | Grease or oil |
| Preload | Light |
| Base Number | 7204 |
| Industry Terms | Spindle bearing, machine tool bearing, super precision angular contact bearing, universally matchable bearing |
| Bore Shaft Size | 20 mm |
| Mpn Variants | B7204C.TPA.P4S.UL, B7204-C-T-P4S-UL, B7204CTPAP4SUL, B7204C-TPA-P4-K5-UL, B7204CTPAP4K5UL, B7204C TPA P4 K5 UL, 7204C, 2MM204 |
| Precision Class | P4S (ABEC 7/9) |
| Cage Type | Machined window |
| Dynamic Load Rating | 17,200 N |
| Static Load Rating | 8,000 N |
| Rolling Elements | Balls |
| Item Weight | 0.11 kg (0.25 lb) |
| Cage Material | Phenolic, fabric-base laminate |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Plain outer ring |
| Limiting Speed | 32,000 rpm grease; 48,000 rpm oil |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally matchable |
| Part Number | B7204C.TPA.P4S.UL |
| Closure Type | Open |
| Cross Reference 1 | SKF 7204 CDGA/P4A |
|---|---|
| Cross Reference 2 | NSK 7204CTRSULP4Y |
| Cross Reference 3 | NTN 7204CVDUJ74 |
| Cross Reference 4 | Timken Fafnir 2MM204WI-SUL |

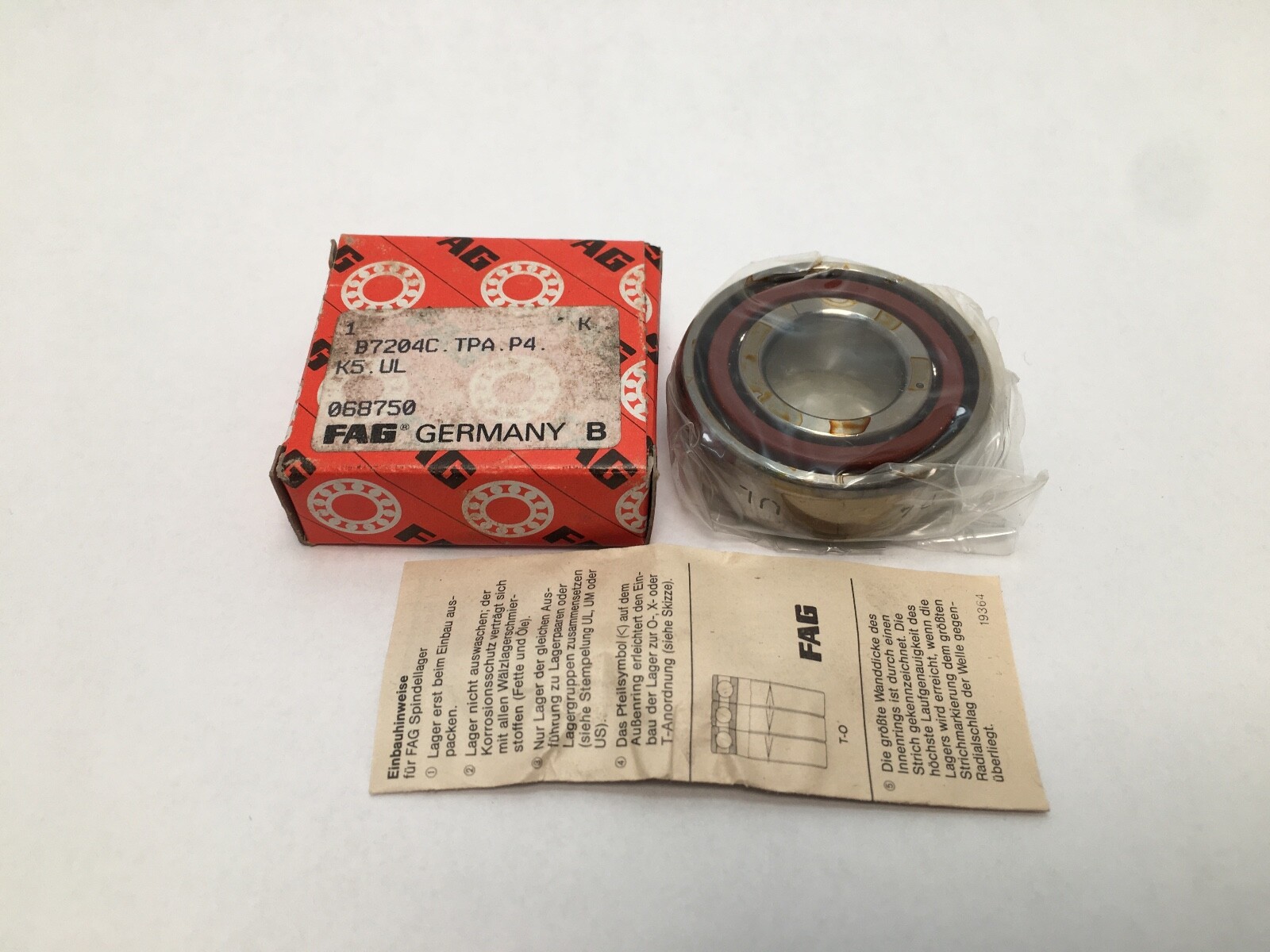

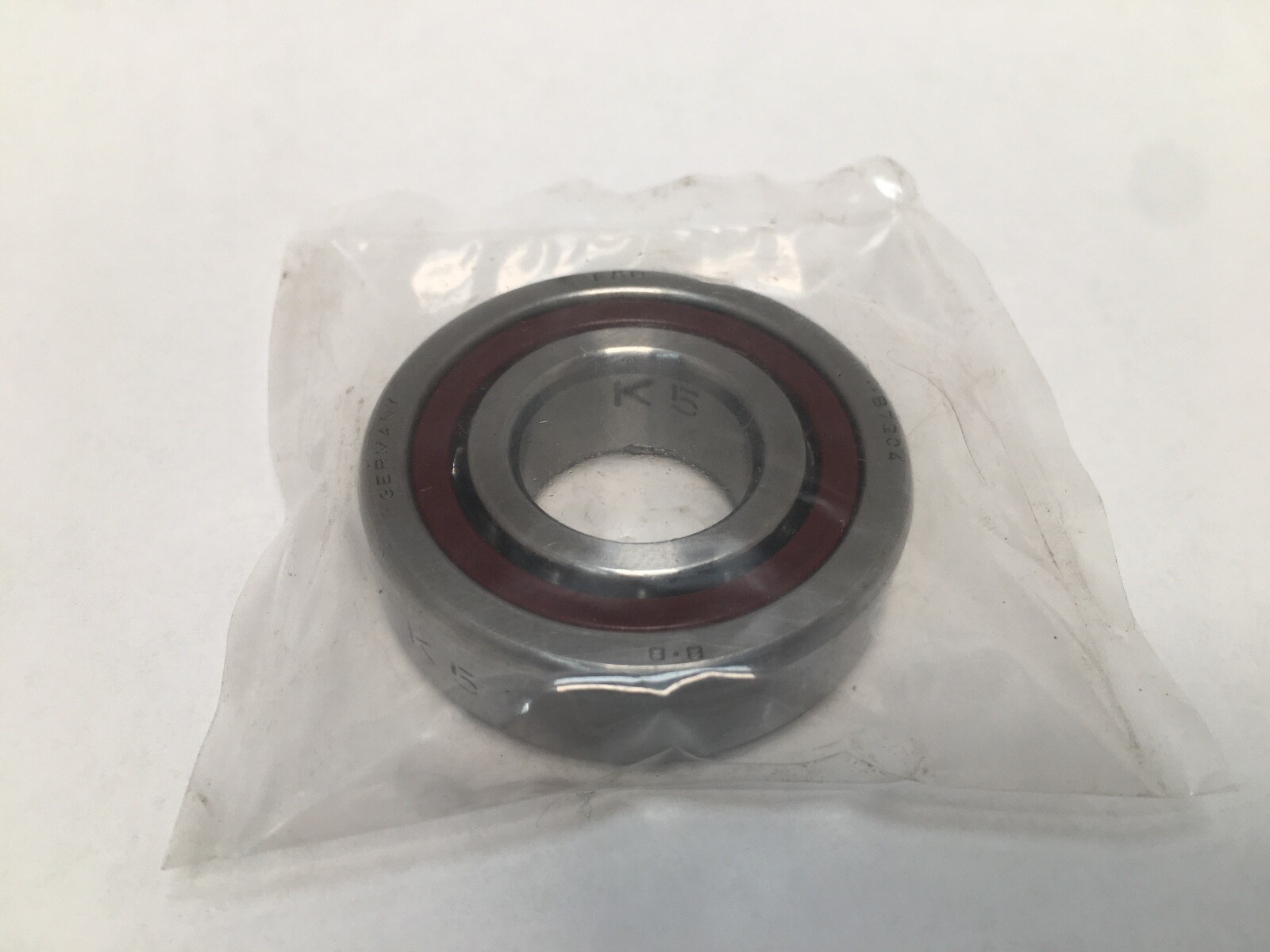

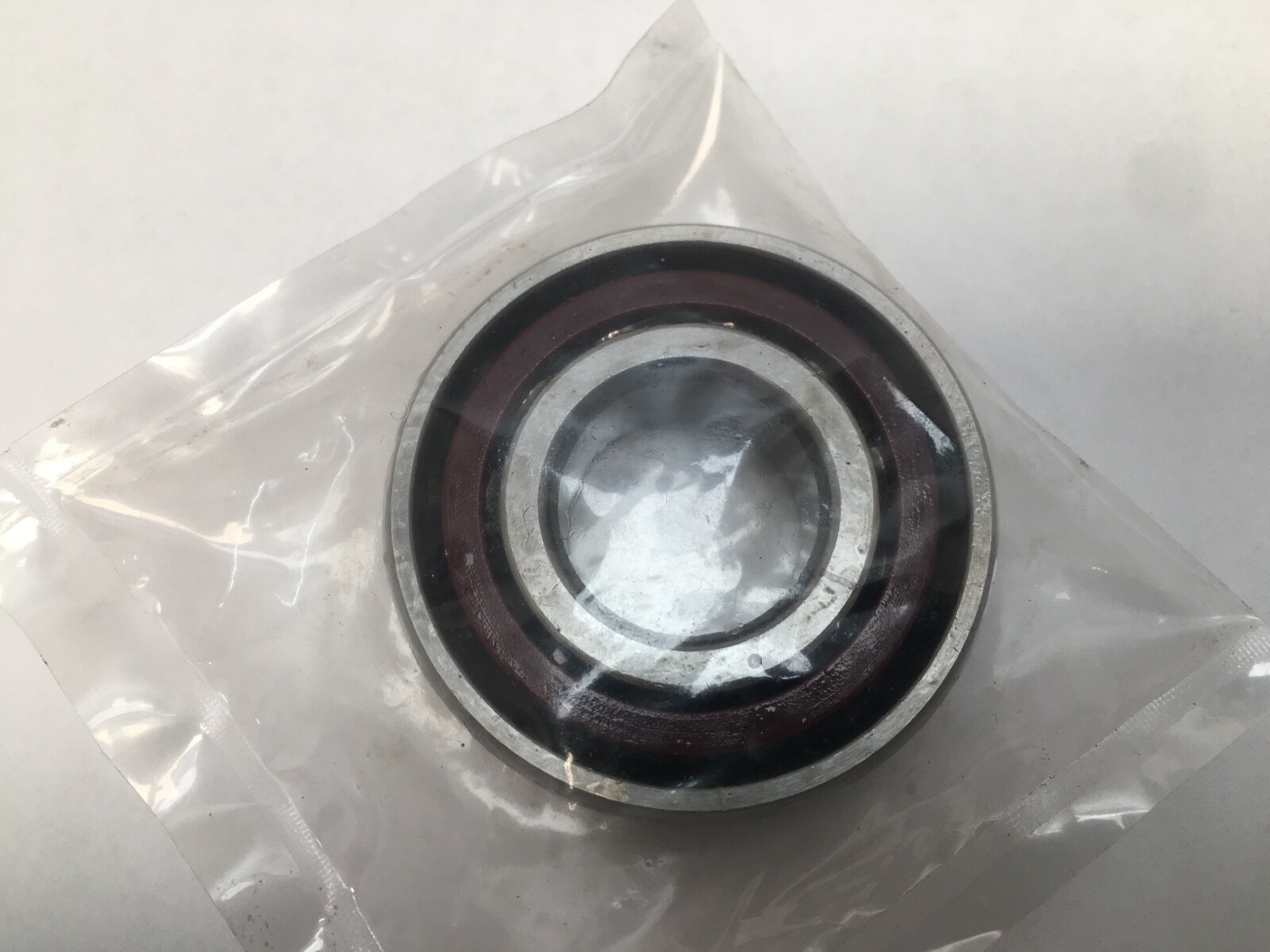

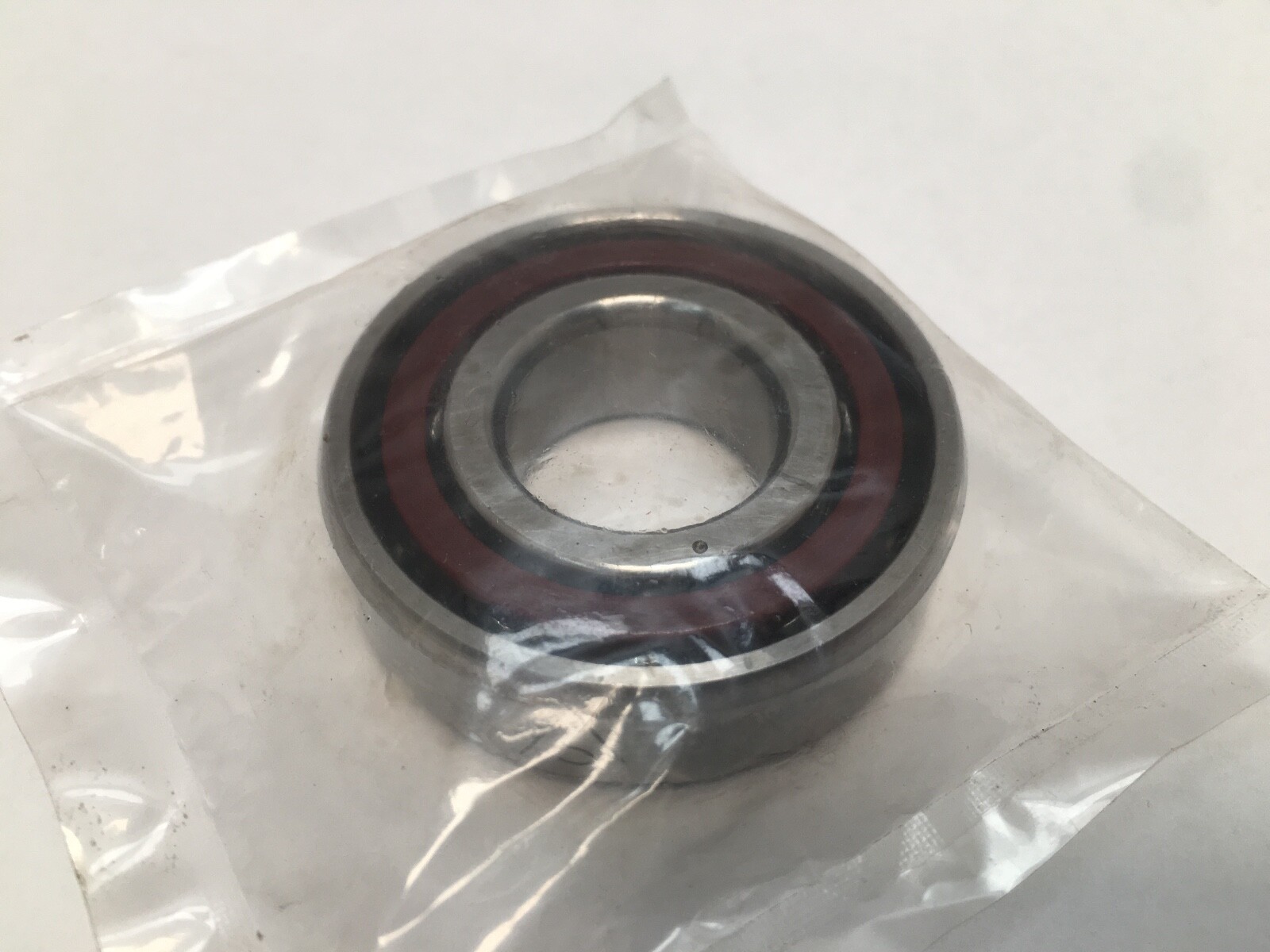

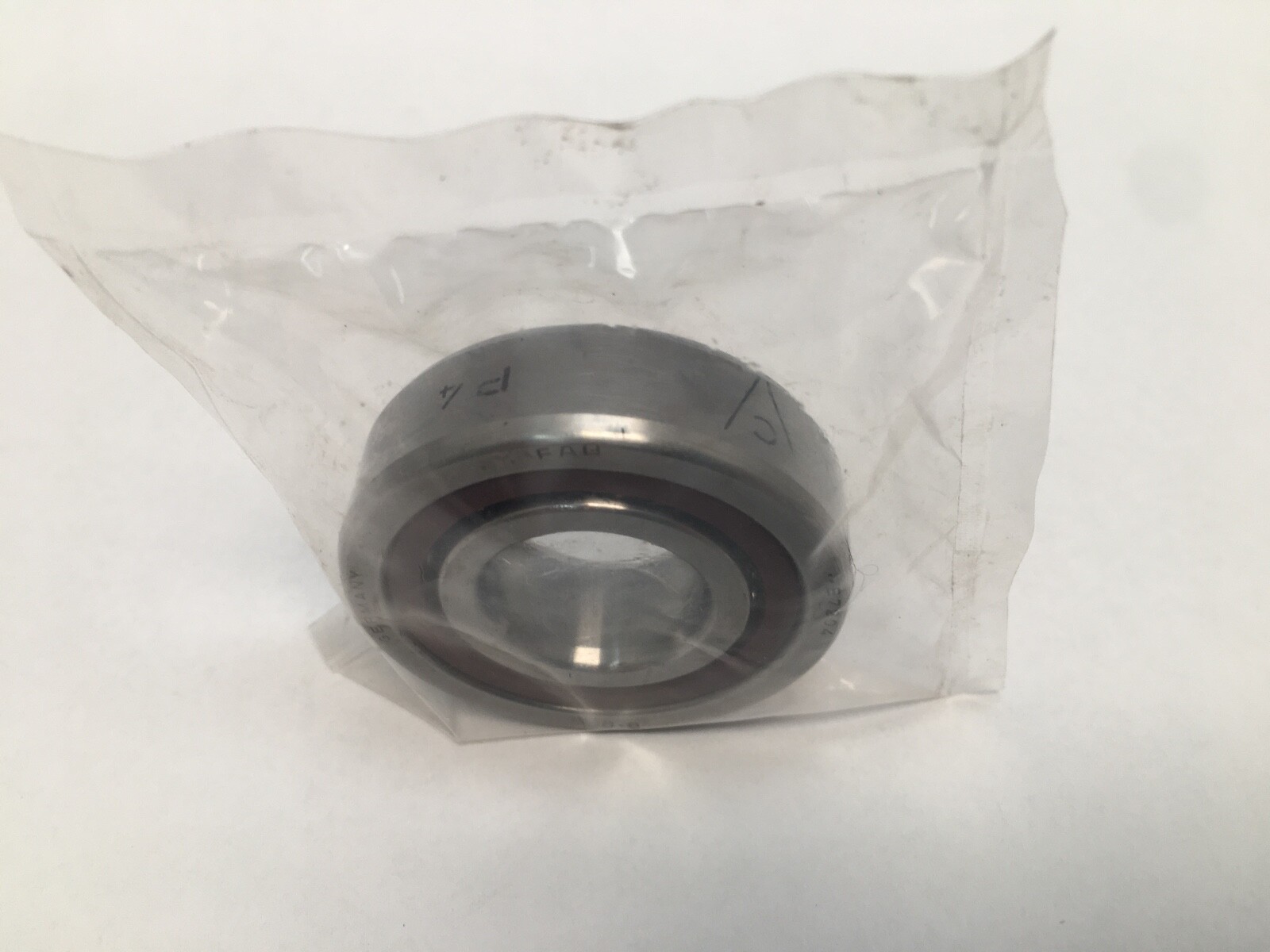

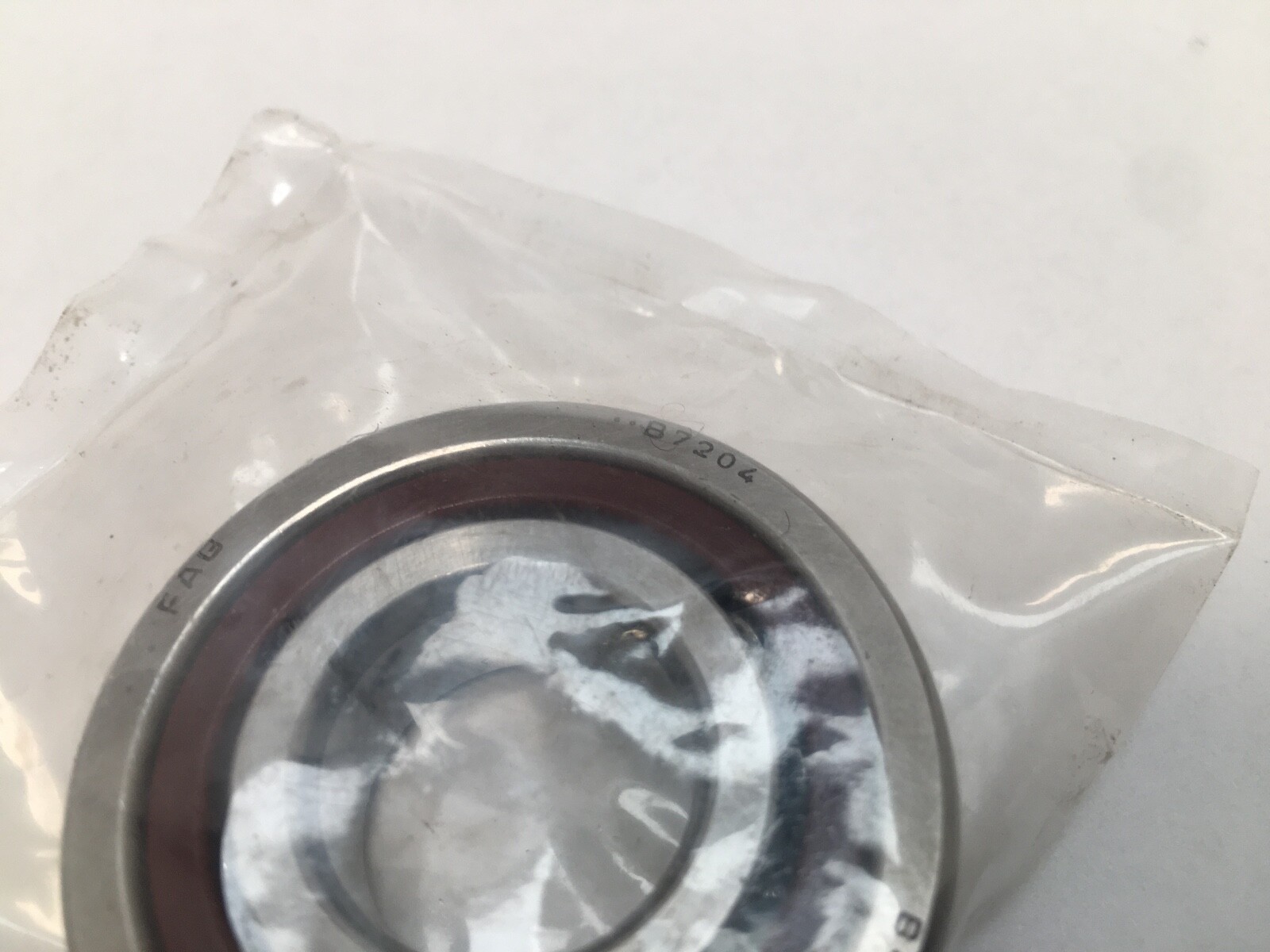

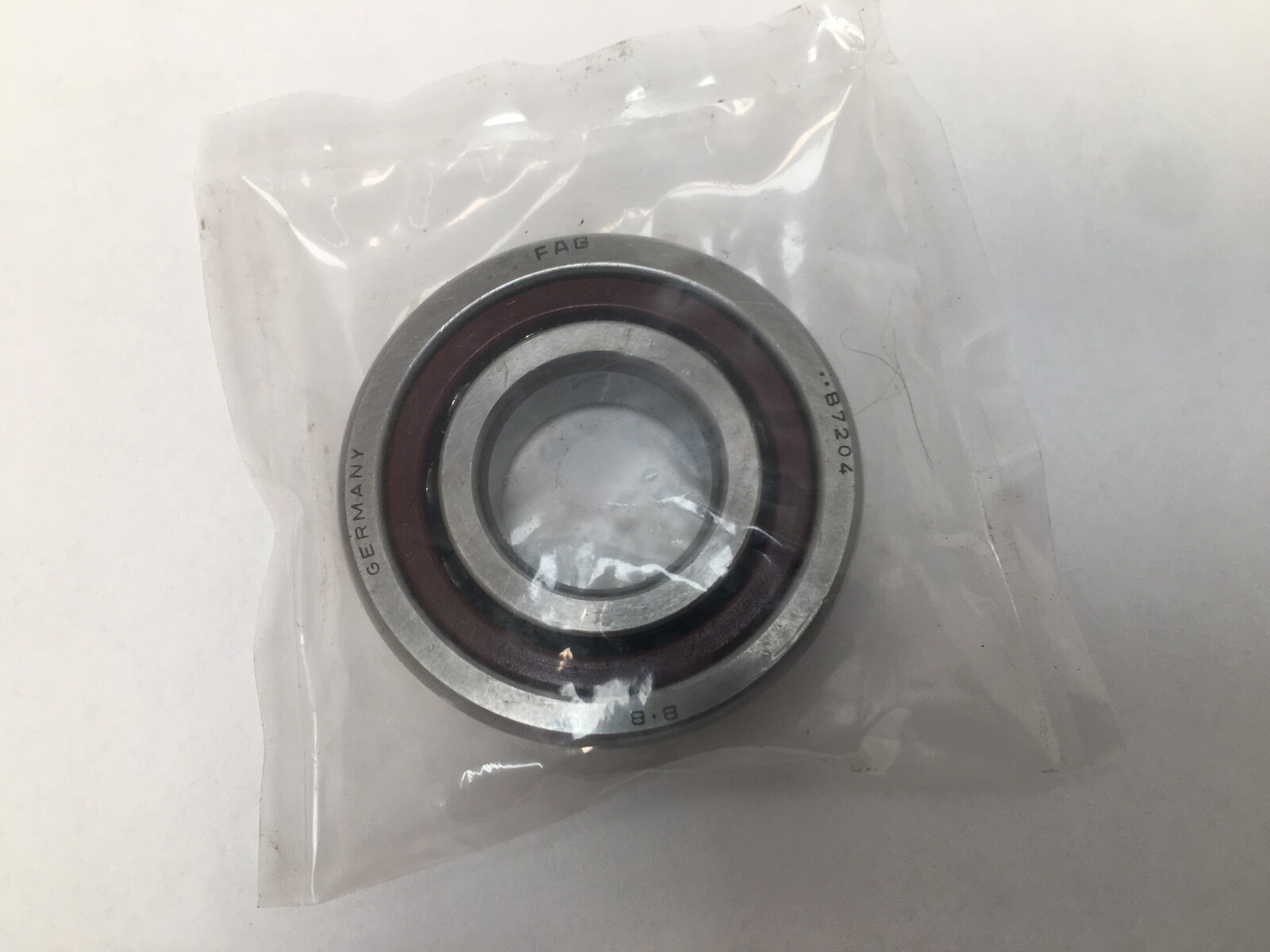

FAG B7204C.TPA.P4S.UL (Schaeffler B7204-C-T-P4S-UL) super-precision single-row angular contact ball bearing for machine tool spindles, B72 series, universally matchable. One piece. Bore: 20 mm. Outside Diameter: 47 mm. Overall Width: 14 mm.
B — Schaeffler spindle bearing range with large steel balls.
7204 — ISO series 02 envelope at a 20 mm bore.
C — 15° contact angle.
TPA — fabric-base laminate phenolic machined window cage. TPA is the older FAG code; Schaeffler now writes T.
P4S — precision grade above P4 on running accuracy.
UL — universally matchable, light preload.
Contact Angle: 15°. Precision Class: P4S (ABEC 7/9). Dynamic Load Rating: 17.2 kN (3,867 lbf). Static Load Rating: 8.0 kN (1,799 lbf). Limiting Speed: 32,000 rpm on grease; 48,000 rpm on minimal-quantity oil. Item Weight: 0.25 lb. Cage Material: Phenolic, fabric-base laminate. Cage Type: Machined window. Preload: Light. Lubricant: grease or oil. Number Of Rows: 1. Rolling Elements: Balls. Bearing Material: Bearing steel. Series: 7200. GTIN: 4012801152709. Country of Origin: Germany. Harmonization Code: 8482.10.50.28.
Bore Type: Straight. Closure Type: Open. Mounting Arrangement: universally matchable; any two bearings mount back-to-back, face-to-face or in tandem and reach the rated light preload when clamped, with no ground spacer. Unit Quantity: 1 Pc.
Cross-references: SKF 7204 CDGA/P4A, NSK 7204CTRSULP4Y, NTN 7204CVDUJ74, Timken Fafnir 2MM204WI-SUL. Current Schaeffler designation: B7204-C-T-P4S-UL.
Bore 20 mm, outside diameter 47 mm, width 14 mm.
15°, set by the C in the designation.
P4S is a precision grade above P4 on running accuracy. UL is universally matchable with light preload.
