SKFSquare 4-Bolt Flange Ball Bearing Unit 1-7/16″ Bore, Setscrew Locking, Seal and Flinger Both Sides

Product Description

What this part is

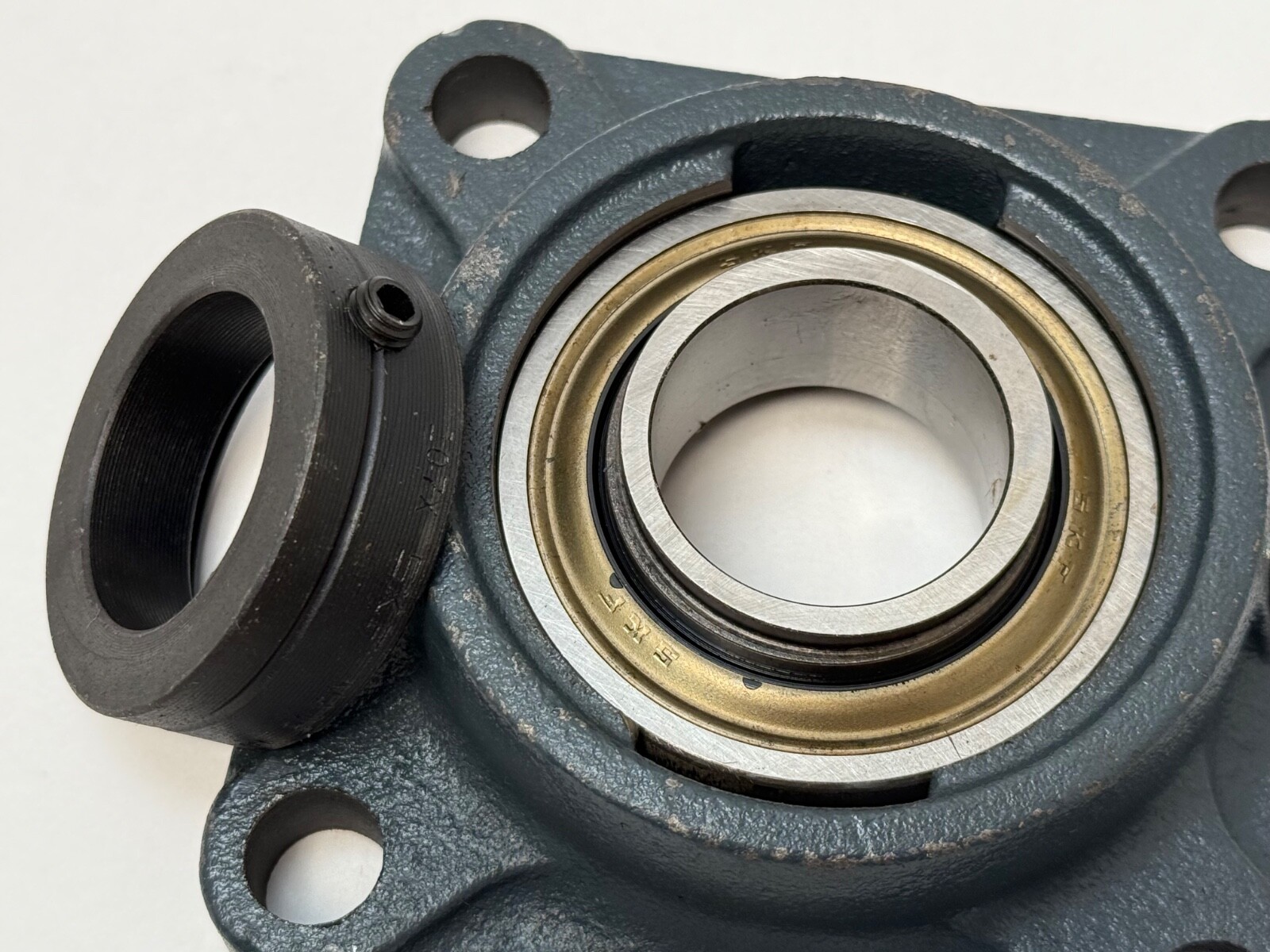

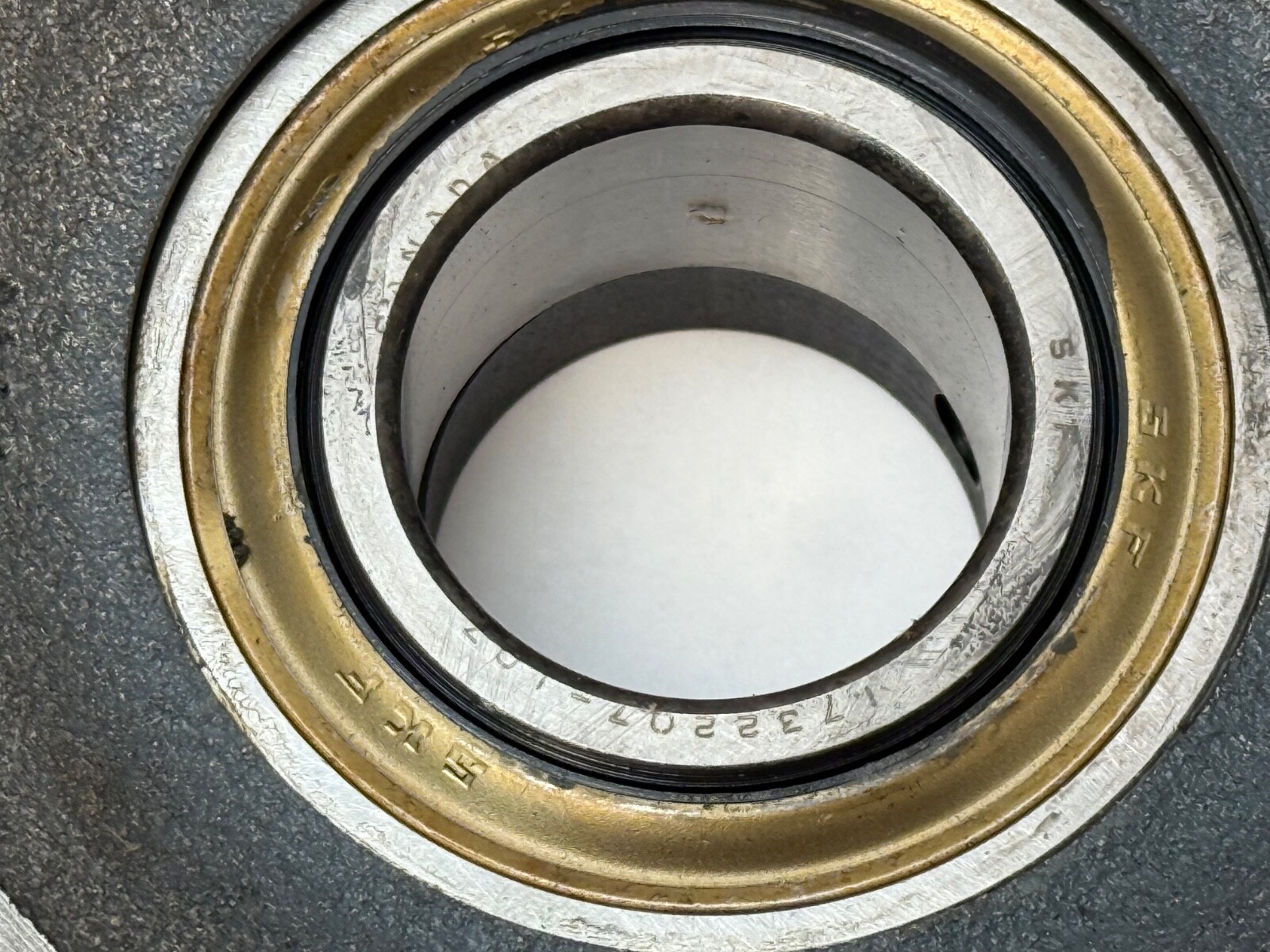

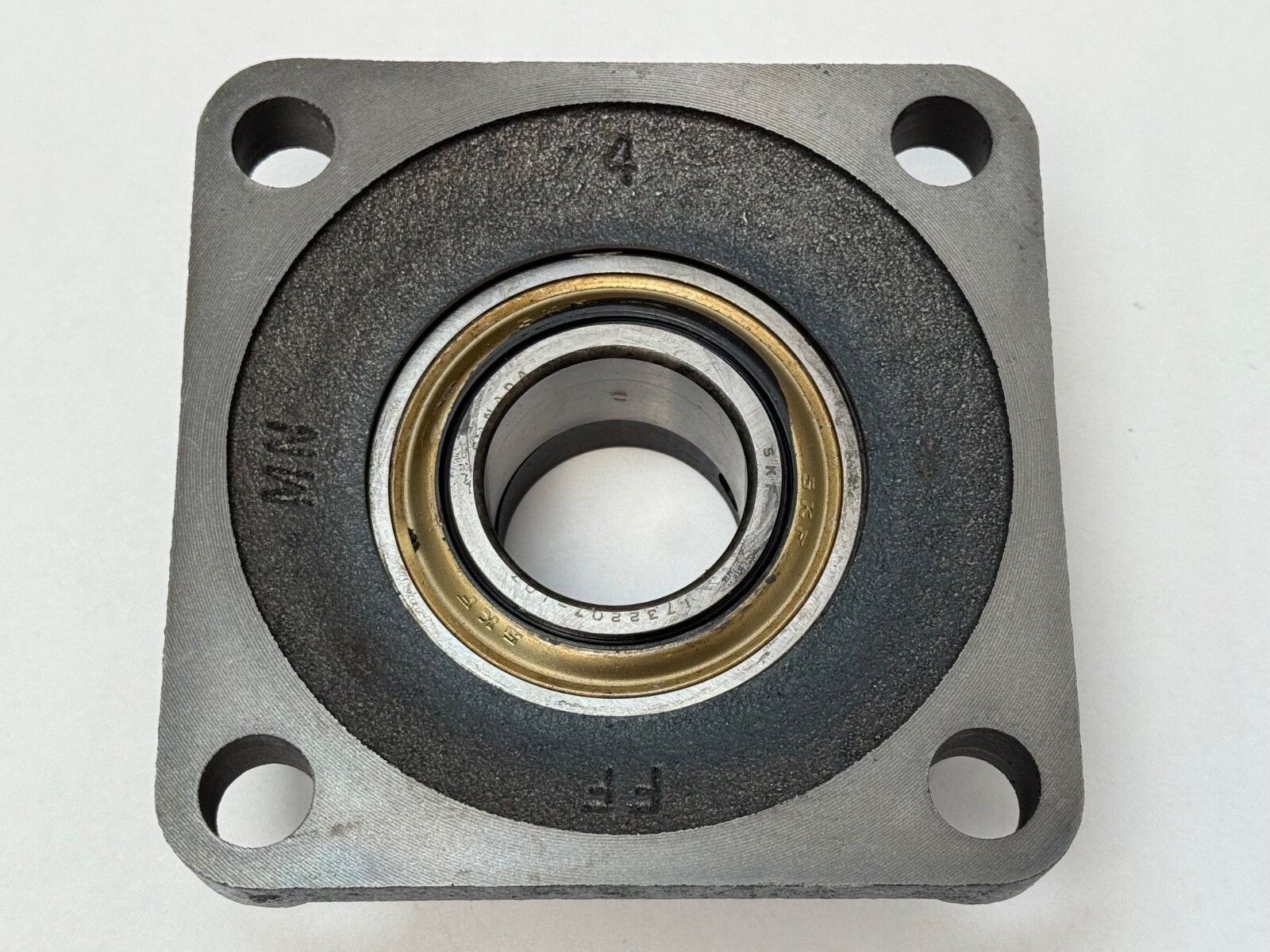

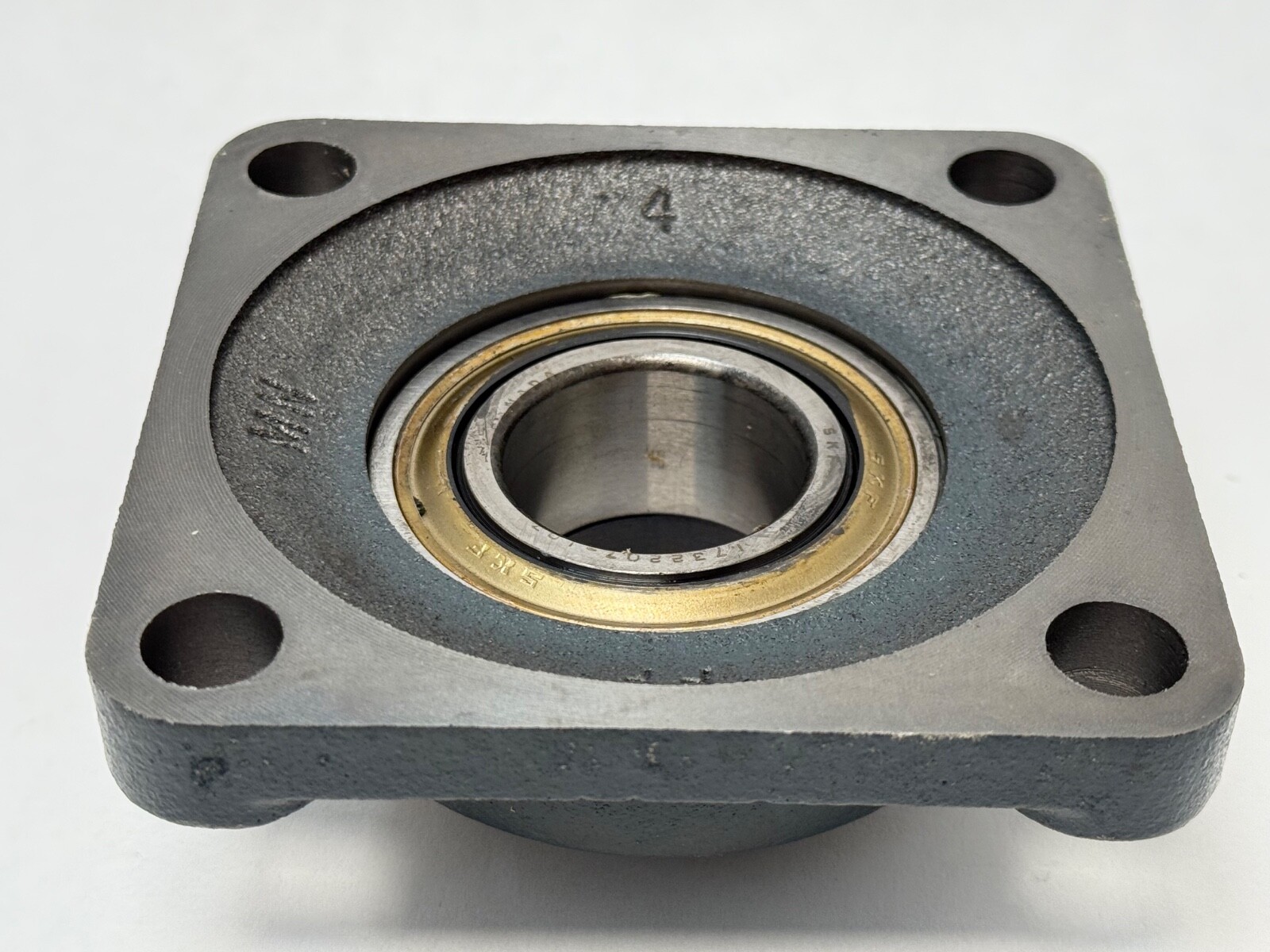

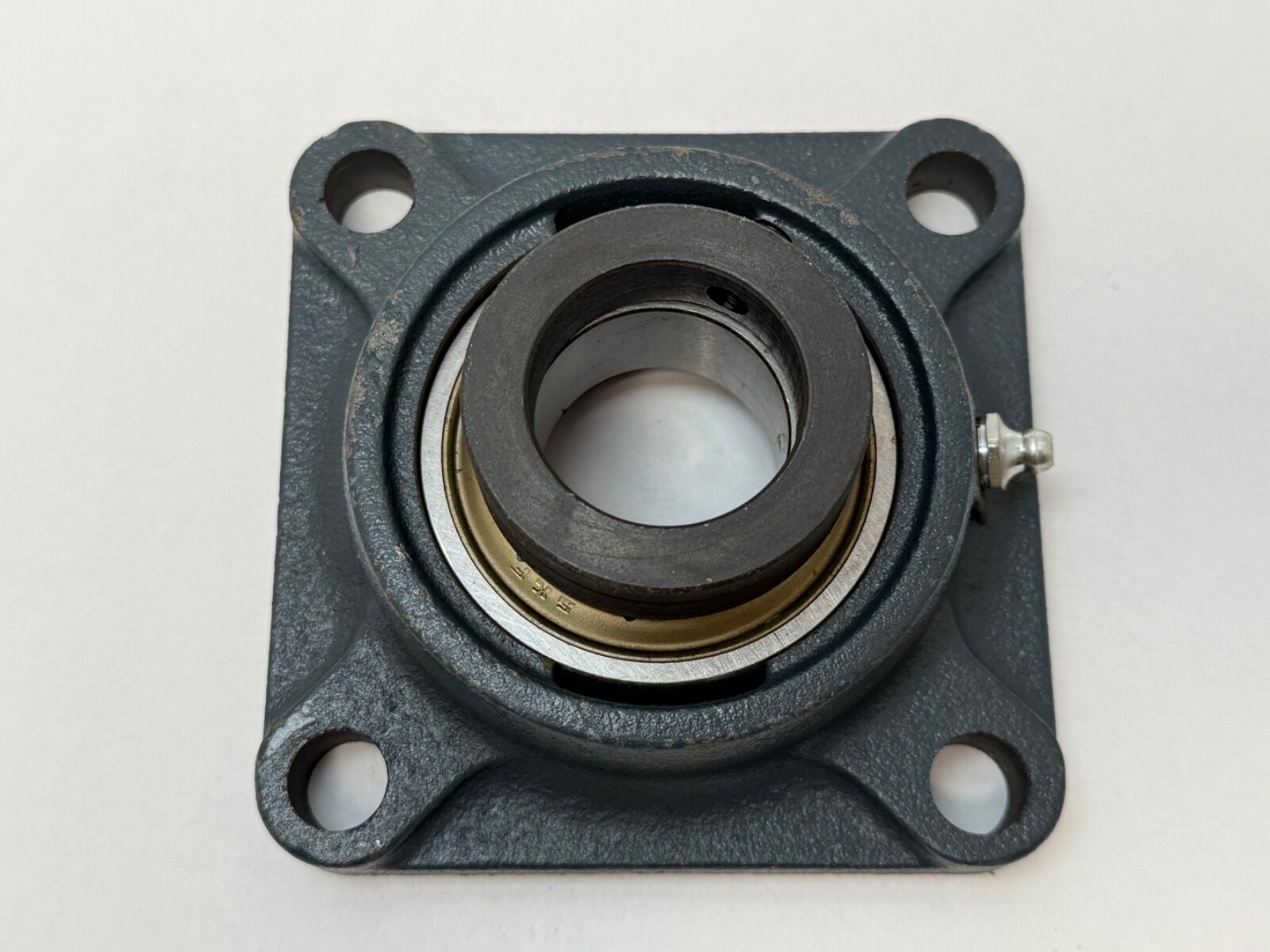

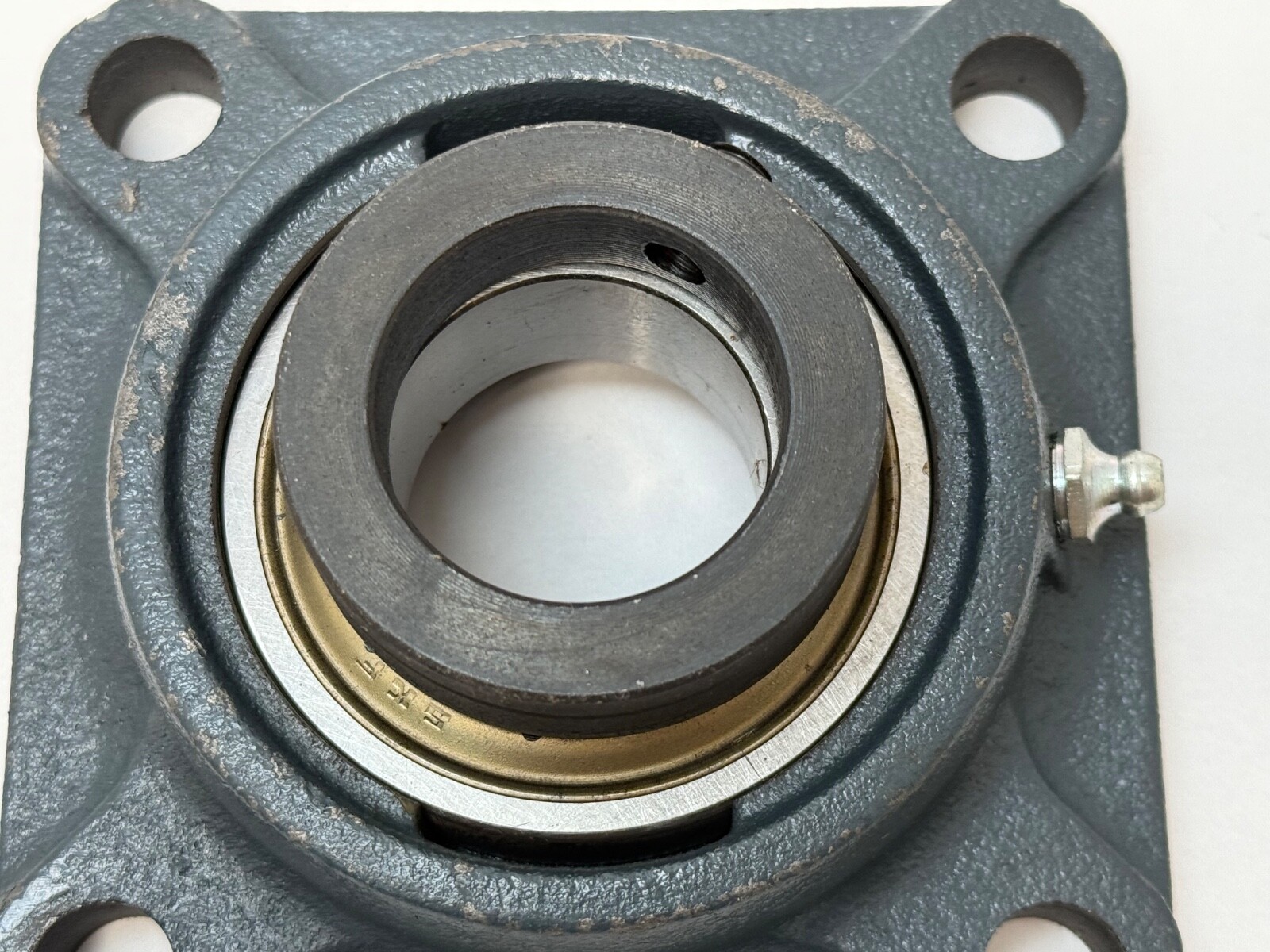

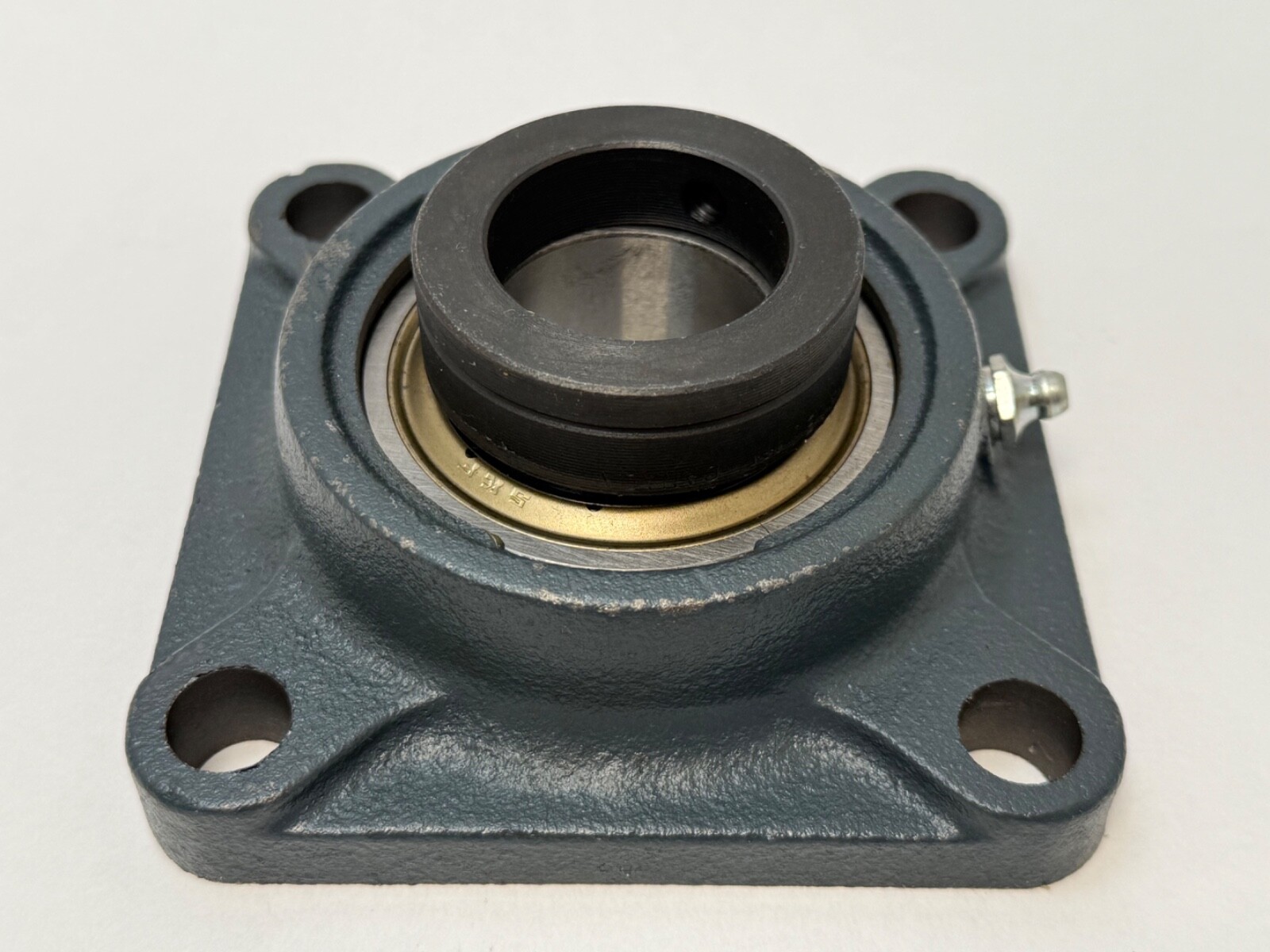

An SKF FY-series Y-bearing unit in the 1-7/16 inch inch-bore size — a square, four-bolt flange housing in cast iron carrying an insert ball bearing with an extended inner ring and setscrew locking. The insert seats spherically in the housing, so the unit accommodates moderate initial misalignment. It bolts to a machine wall or frame through four plain holes.

Decoding the designation

FY = SKF square flanged ball bearing unit, four bolt holes. 107 = 1-7/16 inch bore, so the SKF catalogue form of the same size is FY 1.7/16.

Housing style, read this before ordering

Four bolts, square flange. This is not the SKF FYT two-bolt oval flange and it is not an SNL or SAF pillow block. Bolt count and pattern are part of the housing style, so count the holes on the housing you are replacing before ordering.

Published specifications

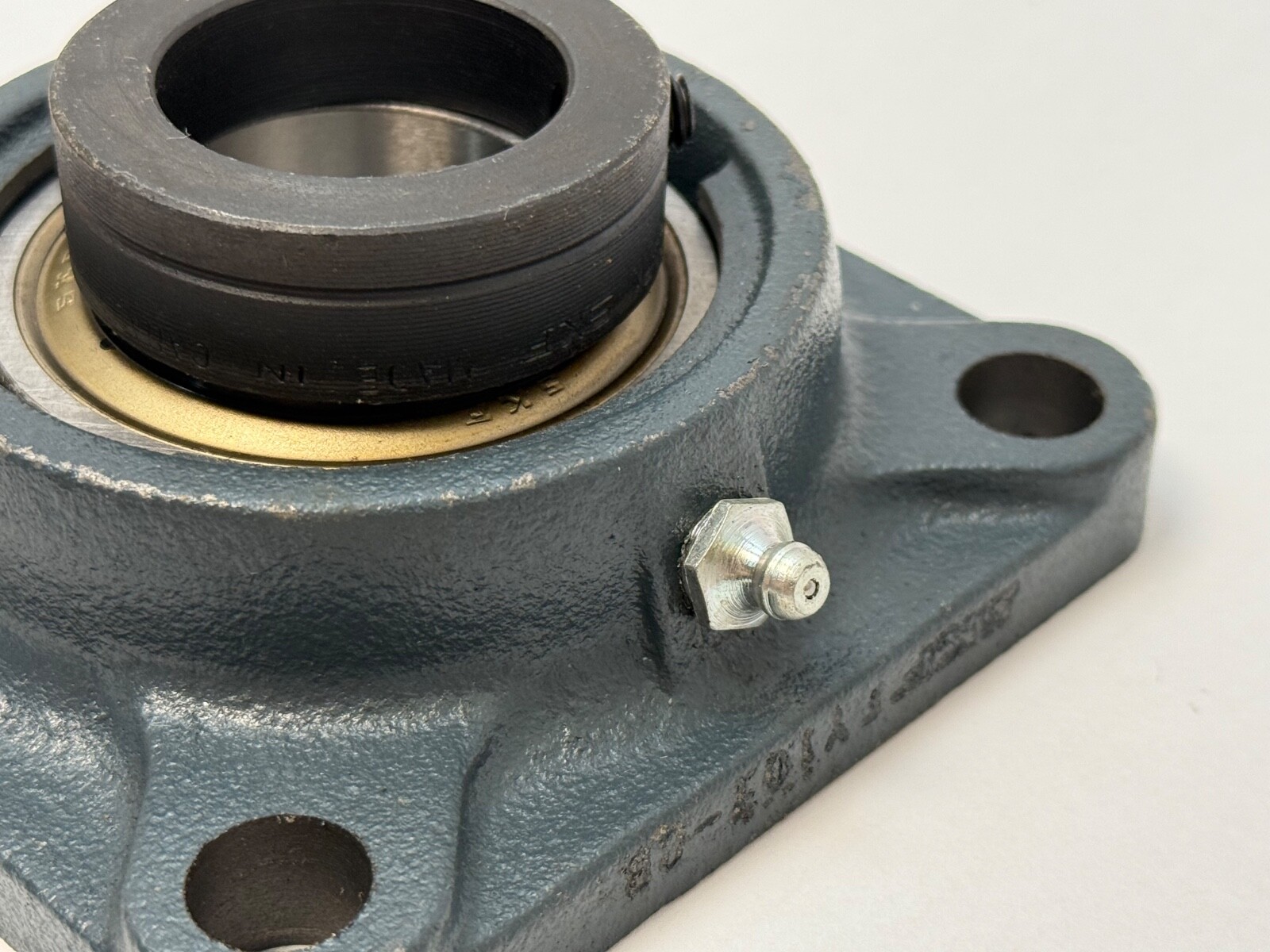

Housing style: square flanged unit, 4 plain bolt holes, cast iron. Bore / shaft size: 1-7/16 in (1.4375 in). Centre distance between bolt holes: 3.622 in. Attachment bolt diameter: 1/2 in. Housing overall width: 1.3583 in. Total width: 1.8268 in, bearing total width 1.689 in. Locking method: set screws in the extended inner ring. Sealing: seal and flinger both sides, contact type. Lubricant: grease, with relubrication hole and grease fitting fitted. Basic dynamic load rating: 5,733 lbf. Basic static load rating: 3,440 lbf. Limiting speed: 5,300 rpm (with shaft tolerance h6). Product net weight: 2.82 lb. Compliant with ISO dimensions. UNSPSC 31171536.

What these specs mean in practice

SKF rates this insert for constant or alternating direction of rotation, which is unusual for a setscrew unit and useful on reversing conveyors and shuttle drives — an eccentric collar unit is not a safe substitute there. The seal-plus-flinger arrangement on both sides is why these survive dusty and washdown-adjacent duty better than a plain shielded insert.

Ball bearing units accommodate moderate initial misalignment but normally do not permit axial displacement of the shaft, so treat this as a locating position and give the other end of the shaft somewhere to grow if it runs hot.

The 5,300 rpm limiting speed assumes an h6 shaft. On loose commercial shafting the insert can creep long before that figure, so size the shaft seat properly if you plan to run fast.

Quantity and configuration

Sold as 1 pc — one complete unit, cast iron housing with insert and setscrews fitted. Mounting bolts and end cover are not included.

Fitting notes

Bolt the flange to a flat, square face; a distorted mounting face preloads the spherical seat and eats the misalignment allowance. Position on the shaft, then torque both setscrews evenly. Spin the shaft by hand, then purge the grease path through the fitting before running.

Interchange guidance

Dimensionally an ISO square four-bolt flange unit, so it shares its role with NTN UCFU, SealMaster SF/SFT, Rexnord KF, Hub City FB and Dodge F4B units at 1-7/16 inch bore. Confirm the 3.622 in bolt centres and 1/2 in bolt size against your frame before treating any of them as a drop-in. Related, not interchangeable: SKF FYT 1.7/16 is the same bearing in a two-bolt oval flange, and FY 1.11/16 is the next bore size up.
