NTNUKFS309D1Four-Bolt Square Flange Mounted Ball Bearing Unit, Cast Iron, 45 mm Tapered-Bore Insert for 40 mm Shaft, Adapter Sleeve Mount

Condition: New

Availability:

3 in stock

Four-bolt square flange mounted ball bearing unit, cast iron housing, 45 mm tapered-bore insert for adapter sleeve mounting, relubricatable. Adapter sleeve H2309X not included. 1 Pc.

List Price

$76.42

3 in stock

Availability

3 in stock

On the Shelf & Ready to Ship

Free Shipping

On all orders

Free Returns

No Risk, No Hassle

Also Available From:

Specifications

Key Specifications

MFR / BrandNTN
MPNUKFS309D1
ModelUKFS-309-D1 UK-309
ID45 mm

Technical Specifications

ConditionNew
TypeFlanged Mount Bearing
RelubricationGrease fitting in housing
Base NumberUKFS309
Industry TermsFlange bearing unit; four bolt flange bearing; square flange block; adapter sleeve mounted unit; tapered bore insert bearing; mounted ball bearing
Common MisspellingsUKFS309DI; UKFS-309-D1; UKF S309D1; NTN UKSF309D1
Application TypesConveyor head and tail shafts; bulkhead and gearbox face mounting; fans and blowers; agricultural machinery; reversing and shock-loaded plain shafts
Bore Shaft SizeInsert tapered bore 45 mm (1:12 taper); shaft size 40 mm (1.5748 in) via adapter sleeve H2309X
Housing StyleFour-bolt square flange
Locking MethodAdapter sleeve on 1:12 taper, clamped by locknut
Replacement InsertUK309 (1:12 tapered bore, adapter sleeve type)
Mpn VariantsUKFS309D1; UKFS309; UKFS 309 D1; UKFS309D1+H2309X; UK309; UK309D1
Manufacturer StatusActive NTN mounted unit catalogue designation
Compatible With ReplacesAdapter sleeve H2309X with locknut and lockwasher, 40 mm shaft seat — not included
Bearing TypeMounted ball bearing unit, wide inner ring insert with spherical outer surface
Number Of Rows1

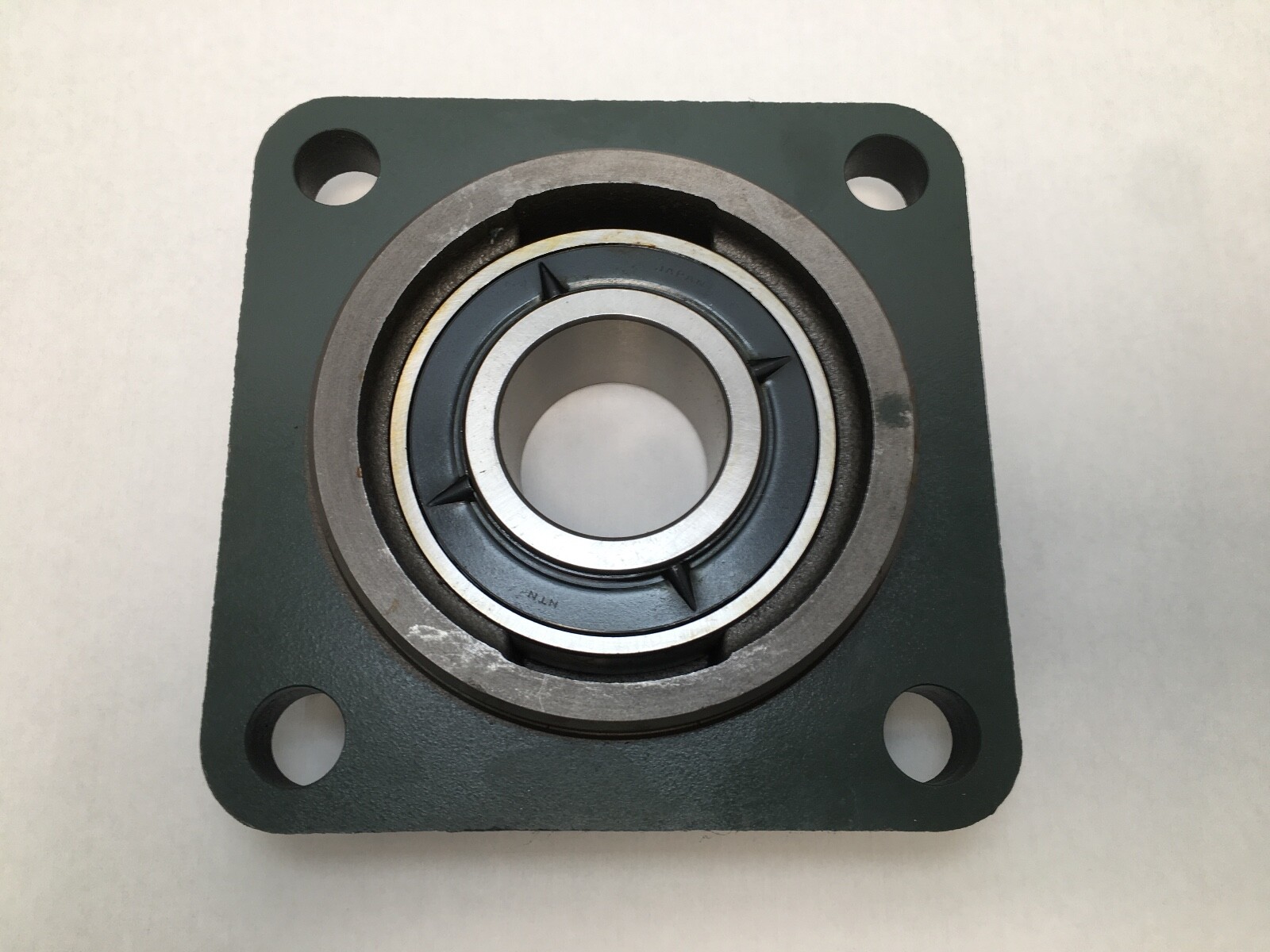

Mounting ArrangementFlange mounted to a face perpendicular to the shaft; spherical seat self-aligns on bolt-down
Design UnitsMetric
Part NumberUKFS309D1

Cross-References

Cross Reference 1UK309 (the insert designation, tapered bore adapter-sleeve type)
Cross Reference 2NSK UKFS309 (four-bolt square flange, adapter sleeve insert)
Cross Reference 3UKFS309D1+H2309X (unit supplied complete with adapter sleeve)
Cross Reference 4UCFS309 (related size, straight 45 mm bore insert with setscrew locking, fits a 45 mm shaft)
Cross Reference 6UKP309 (related size, pillow block housing)
Seller Part Number: B-BP6#E48QWO

Product Description

What this part is

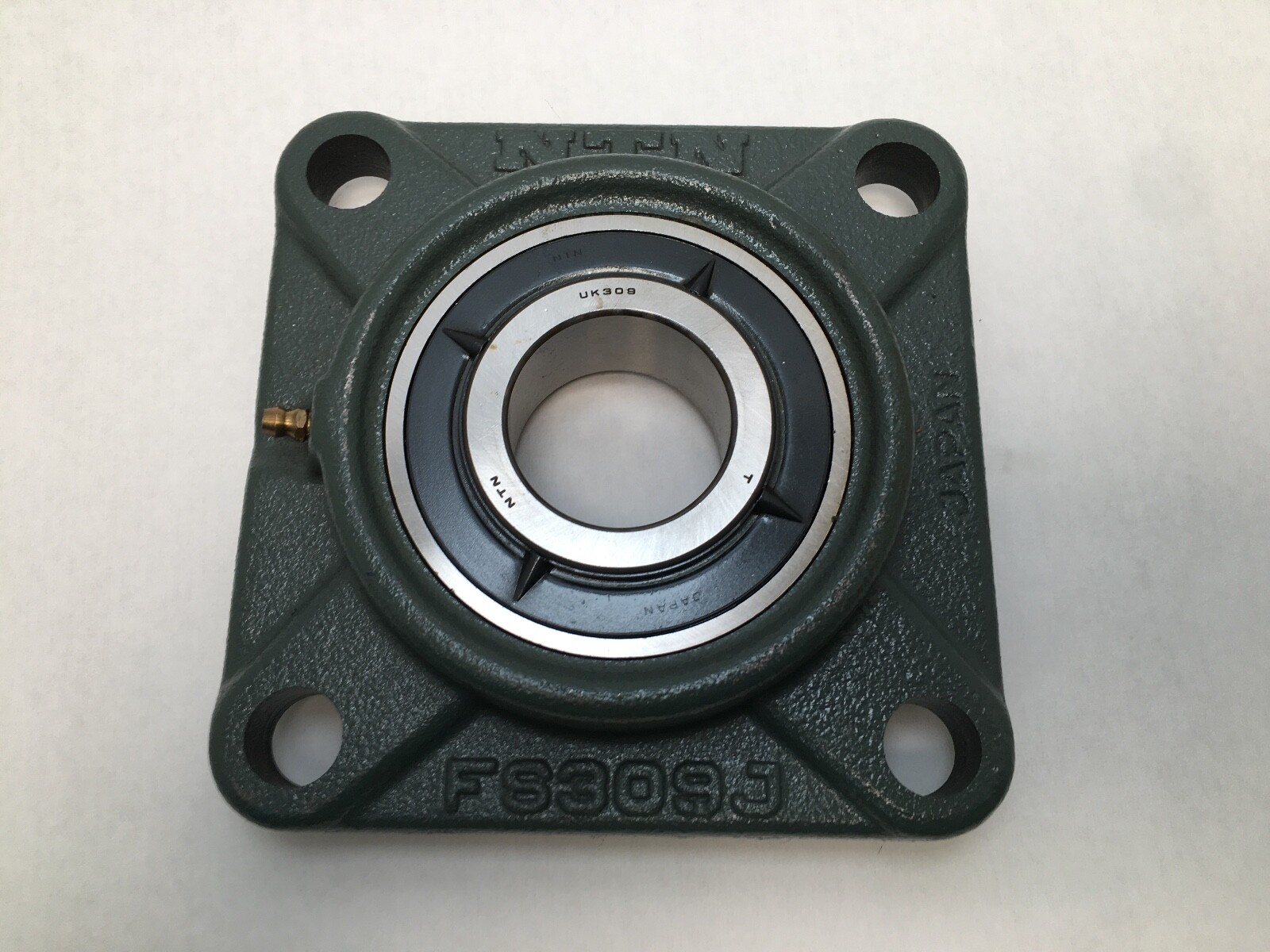

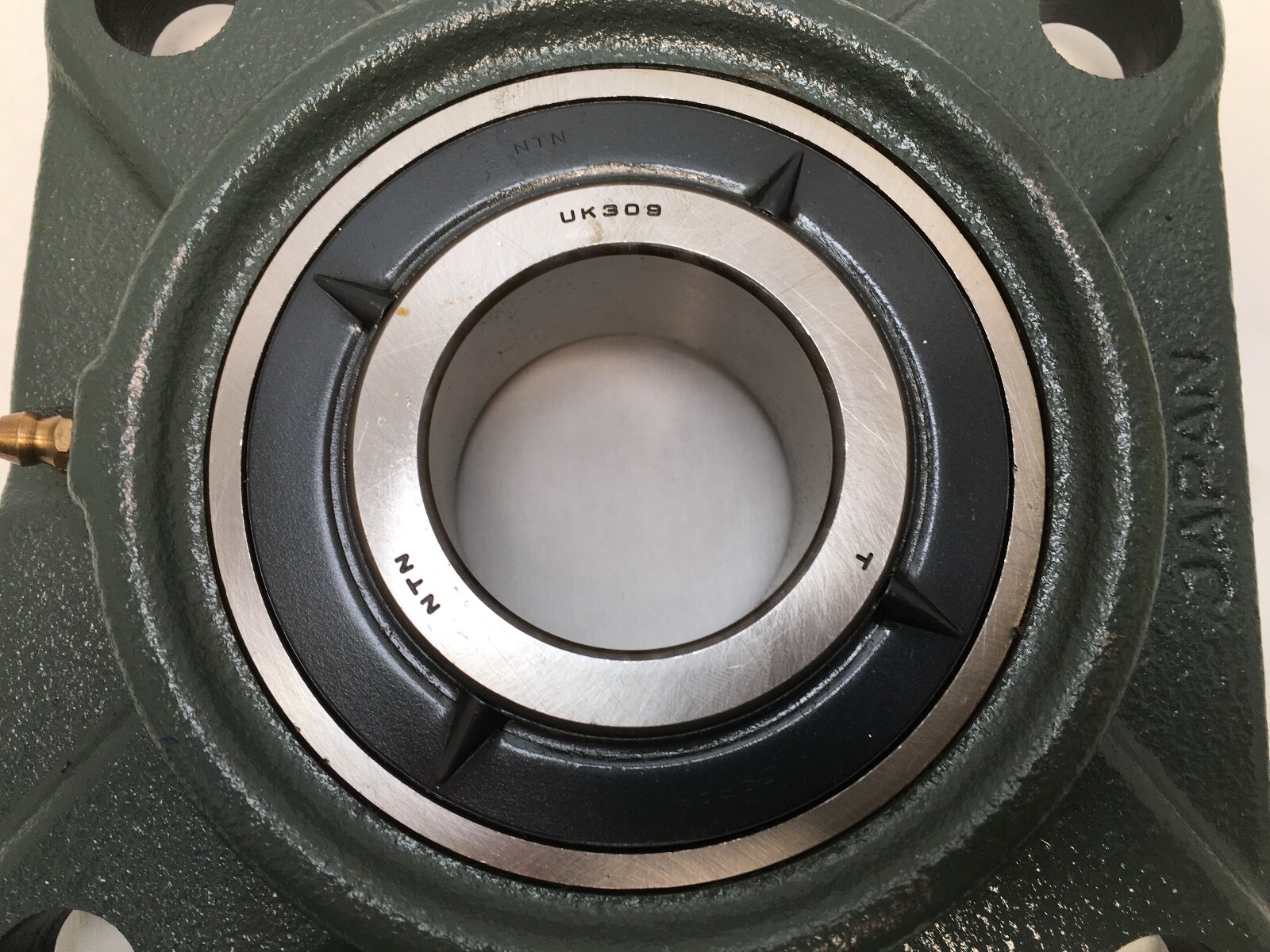

An NTN UKFS309D1 mounted ball bearing unit: a cast iron four-bolt square flange housing carrying a UK309 wide inner ring insert with a 1:12 tapered bore. The insert’s spherical outer surface seats in the housing’s matching spherical bore, so the bearing self-aligns to shaft-to-housing angular error as the unit is bolted down. The unit bolts to a machine face perpendicular to the shaft, with the shaft passing through the flange.

Housing style and bolt pattern

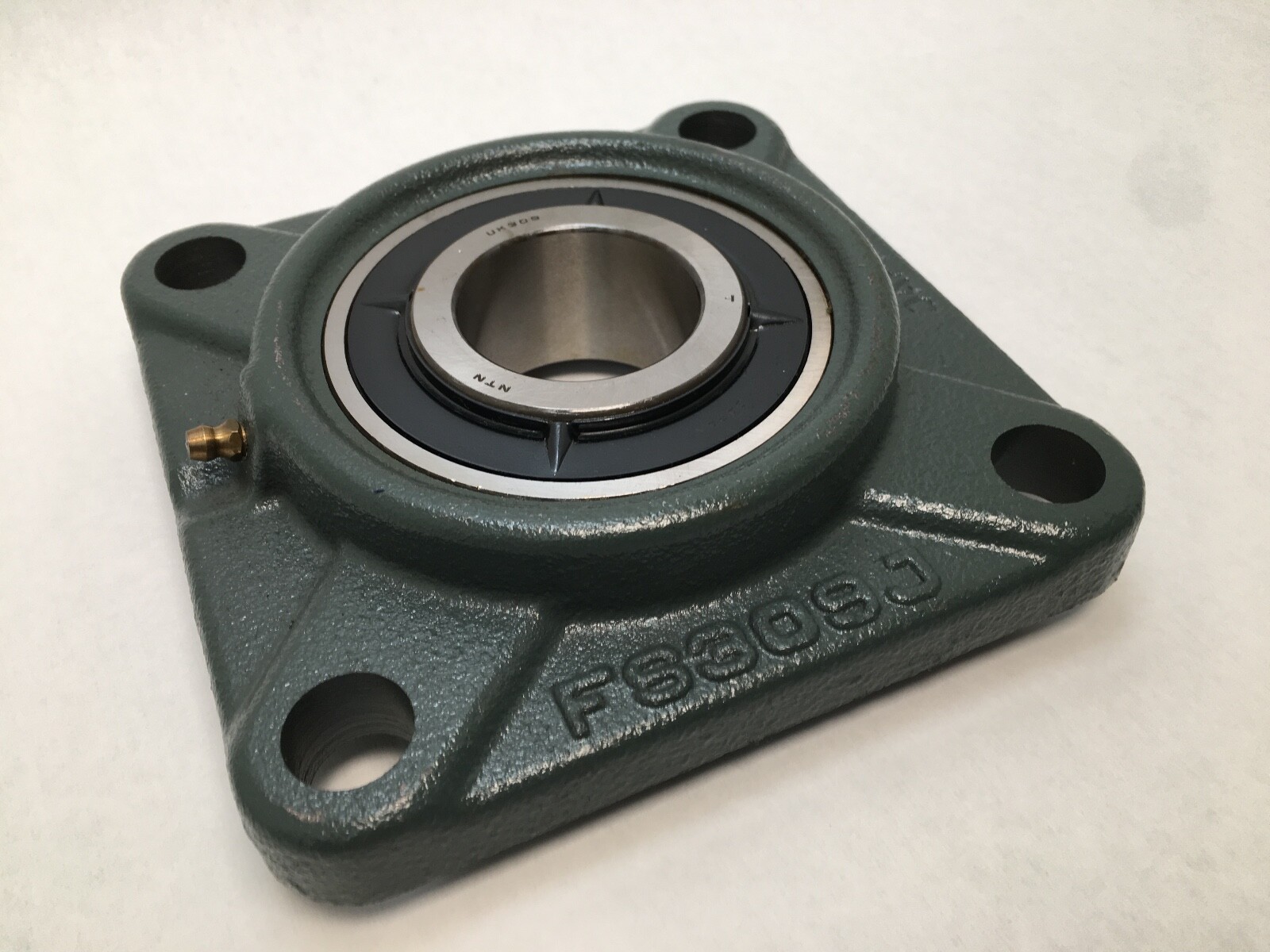

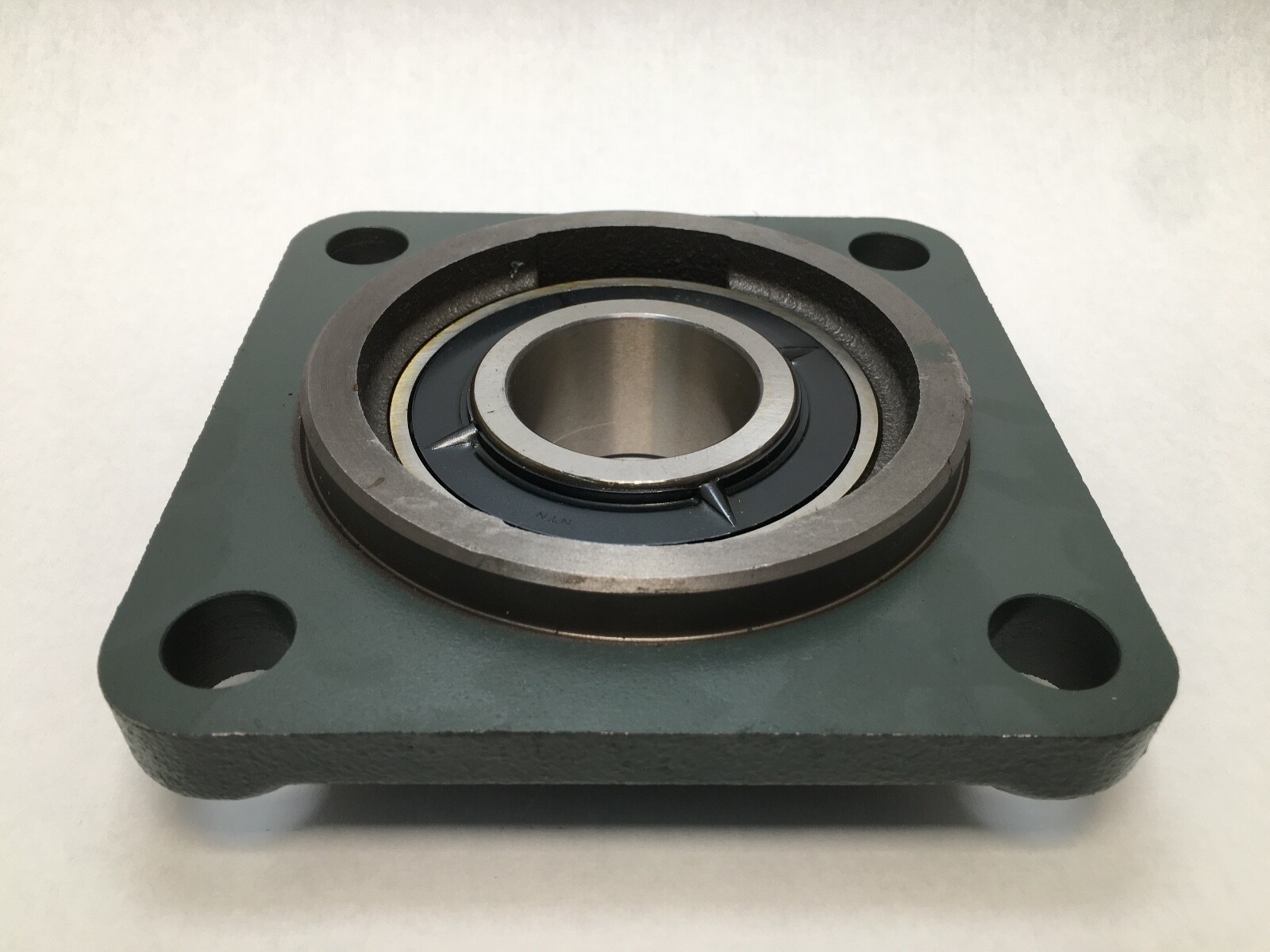

Four-bolt square flange, cast iron, in NTN’s heavy-section FS housing series. The four bolt holes sit at the corners of a square, so the unit resists moment load in every direction and is the usual choice where a shaft passes through a bulkhead or gearbox face. NTN’s other flange styles are separate parts on the same insert: FL is the two-bolt oval flange, FC is the piloted cartridge flange with a register spigot, and the pillow block styles bolt to a base parallel to the shaft.

Bore, shaft size and mounting hardware

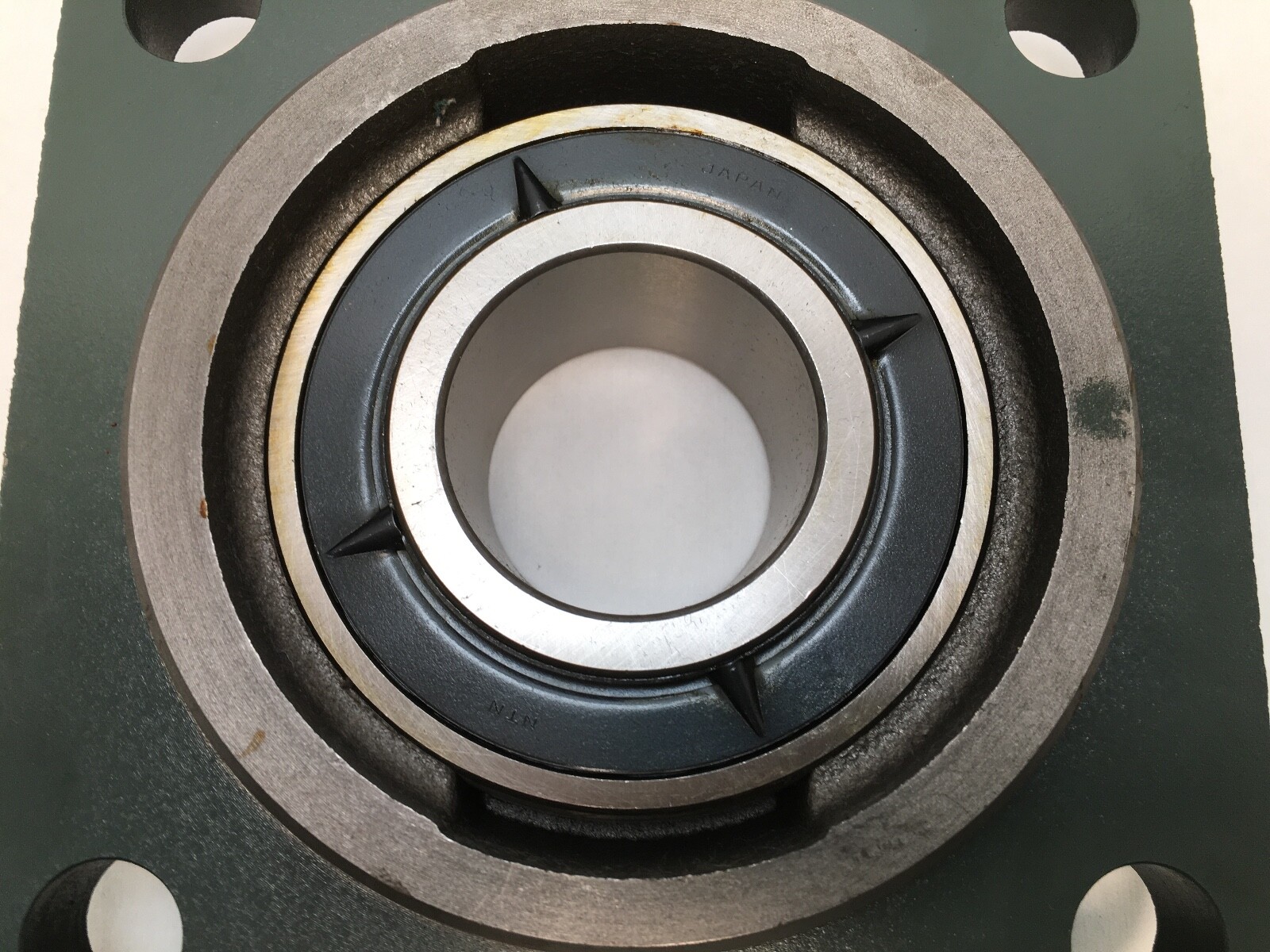

The UK insert has a 1:12 tapered bore of 45 mm nominal, and it mounts on an adapter sleeve rather than directly on the shaft. The sleeve for a UK309 is an H2309X, and its shaft seat is 40 mm — one bore-code step below the insert bore. So the tapered bore figure is 45 mm and the shaft the unit fits is 40 mm. Adapter sleeve H2309X, with its locknut and lockwasher, is not included. Drive-up along the sleeve taper both clamps the insert to the shaft and sets its internal clearance, which is why the adapter type grips a plain shaft harder than a setscrew insert and holds concentricity better.

What these specs mean in practice

An adapter sleeve mount is the choice for reversing duty, heavy shock and higher speed, because the clamp is a full 360° interference rather than two point loads from setscrews. It also allows the unit to be positioned anywhere along a plain shaft with no machined step, keyway or flat. The trade is assembly time and the extra part: setting the drive-up correctly is a measured operation rather than tightening two screws.

Quantity and configuration

1 Pc. Cast iron four-bolt square flange housing with its UK309 tapered-bore insert and seals. Supplied without adapter sleeve H2309X, without locknut and without lockwasher.

Fitting notes

The sleeve goes onto the plain shaft first, the insert is driven up the taper to its set position and locked, and the housing is then bolted to a flat rigid face, shimmed where the face is uneven. The bolts are brought up evenly so the spherical seat can find its alignment before final torque. Relubrication is through the grease fitting in the housing.

Interchange guidance

The interchange is another maker’s four-bolt square flange unit taking a UK309-pattern adapter-sleeve insert on a 40 mm shaft: NSK UKFS309 or the equivalent Asahi, FYH and SNR adapter-sleeve flange units at matching flange bolt centres. UCFS309 is a related size, not a substitution, because its insert has a straight 45 mm bore and setscrew locking, so it fits a 45 mm shaft directly. UKFL309 and UKF309 are the same insert in two-bolt oval and standard square flange housings, and UKP309 is the pillow block form — each a different housing.
