MB TBC25-1-5/8 tapped base pillow block, 1-5/8 in bore, cast iron housing, standard duty MB 25 Series ball bearing insert with contact seals.
List Price
$61.12
10 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MB |
|---|---|
| MPN | TBC25-1-5/8 |
| Model | TBC25 1-5/8 |
| ID | 1.625 in |
| Material | Cast Iron |
|---|---|
| Series | MB 25 Series |
| Type | Pillow Block |
| Lubricant | Grease |
| Number Of Bolt Holes | 2 |
| Number Of Bolt Holes For Fasteners | 2 |
| Closure Type | Contact seals both sides |
| Rolling Elements | Ball |
| Bearing Type | Pillow Block Unit, Tapped Base |
| Bore Type | Straight |
| Snap Ring Included | No |
| Duty Type | Standard Duty |
| Insert Outer Ring | Spherical |
| Harmonization Code | 8483.20.40.40 |
| Housing Material | Cast Iron |
| Expansion Type | Non-Expanding |
| Base Number | TBC25 |
| Industry Terms | tapped base pillow block, mounted ball bearing, housed bearing unit, plummer block |
| Common Misspellings | TBC251-5/8, TBC25158, TBC 25-1 5/8 |
| Application Types | Conveyors, fans, agricultural and general machinery shafts |
| Mpn Variants | TBC25-1-5/8, TBC25 1-5/8, TBC251-5/8, TBC25158, TBC-25-1-5/8, TBC 25 1-5/8 |
| Compatible With Replaces | MB TBC25 tapped base pillow block, 1-5/8 in shaft; insert MB25 1-5/8 |

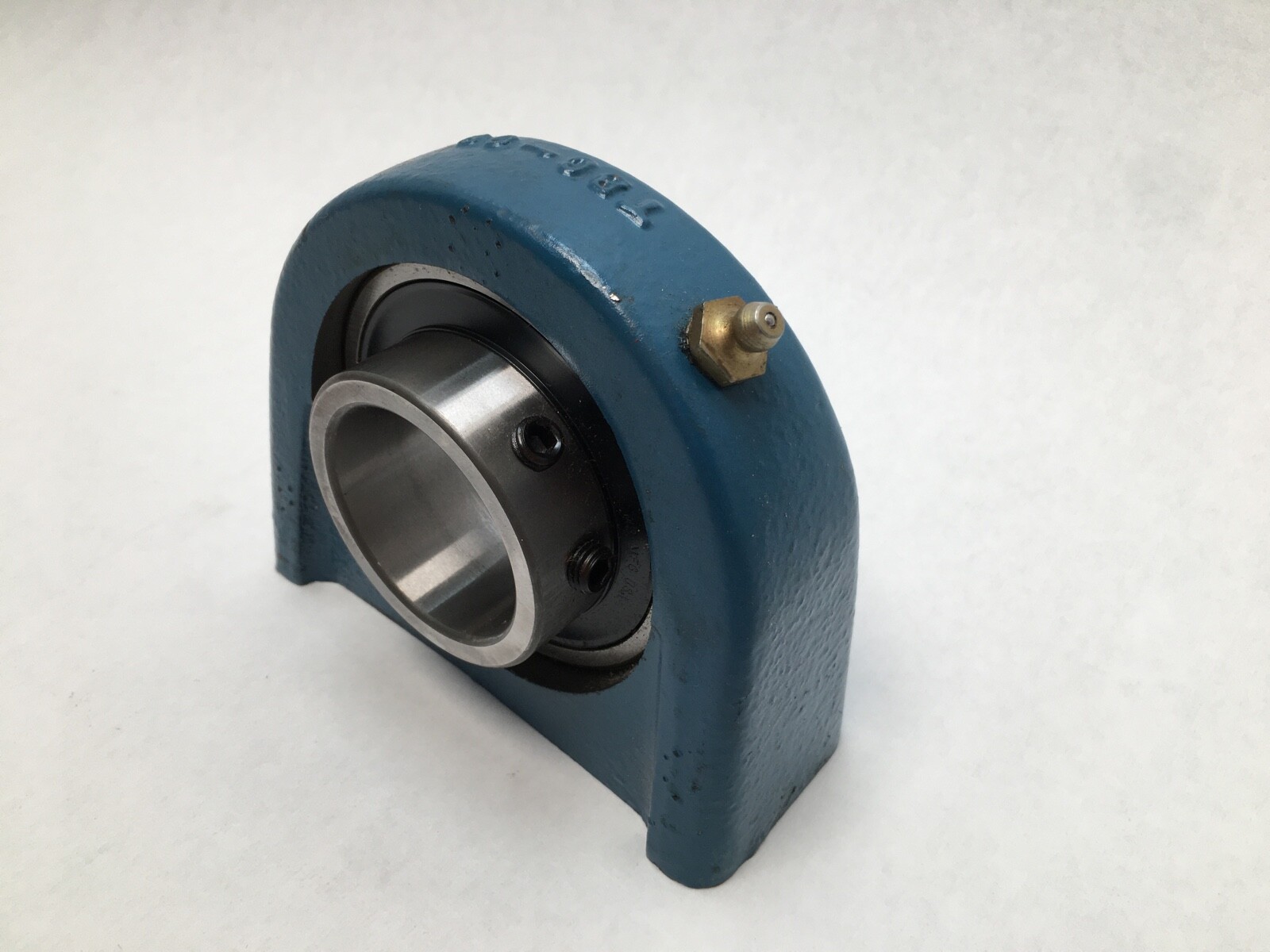

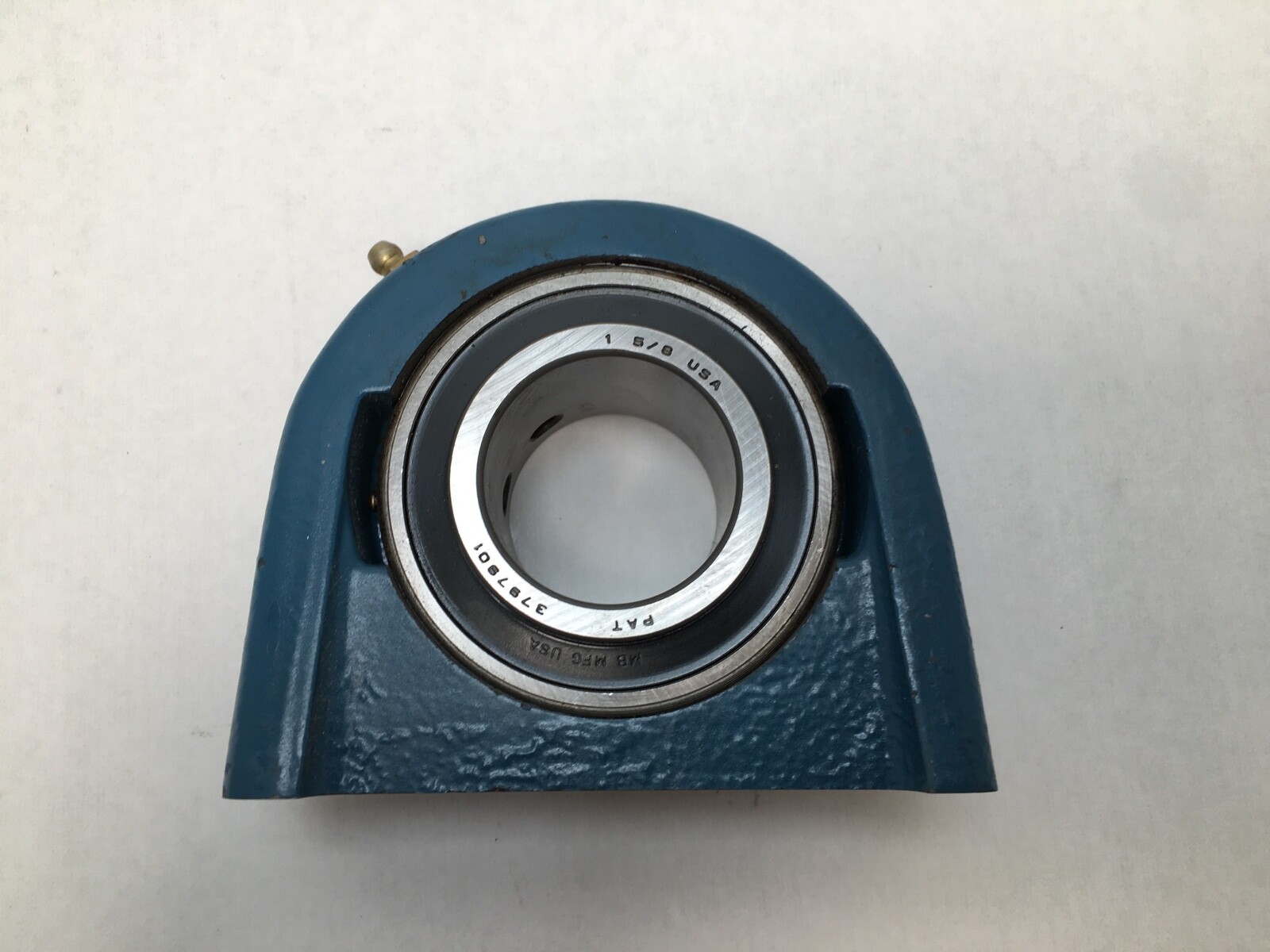

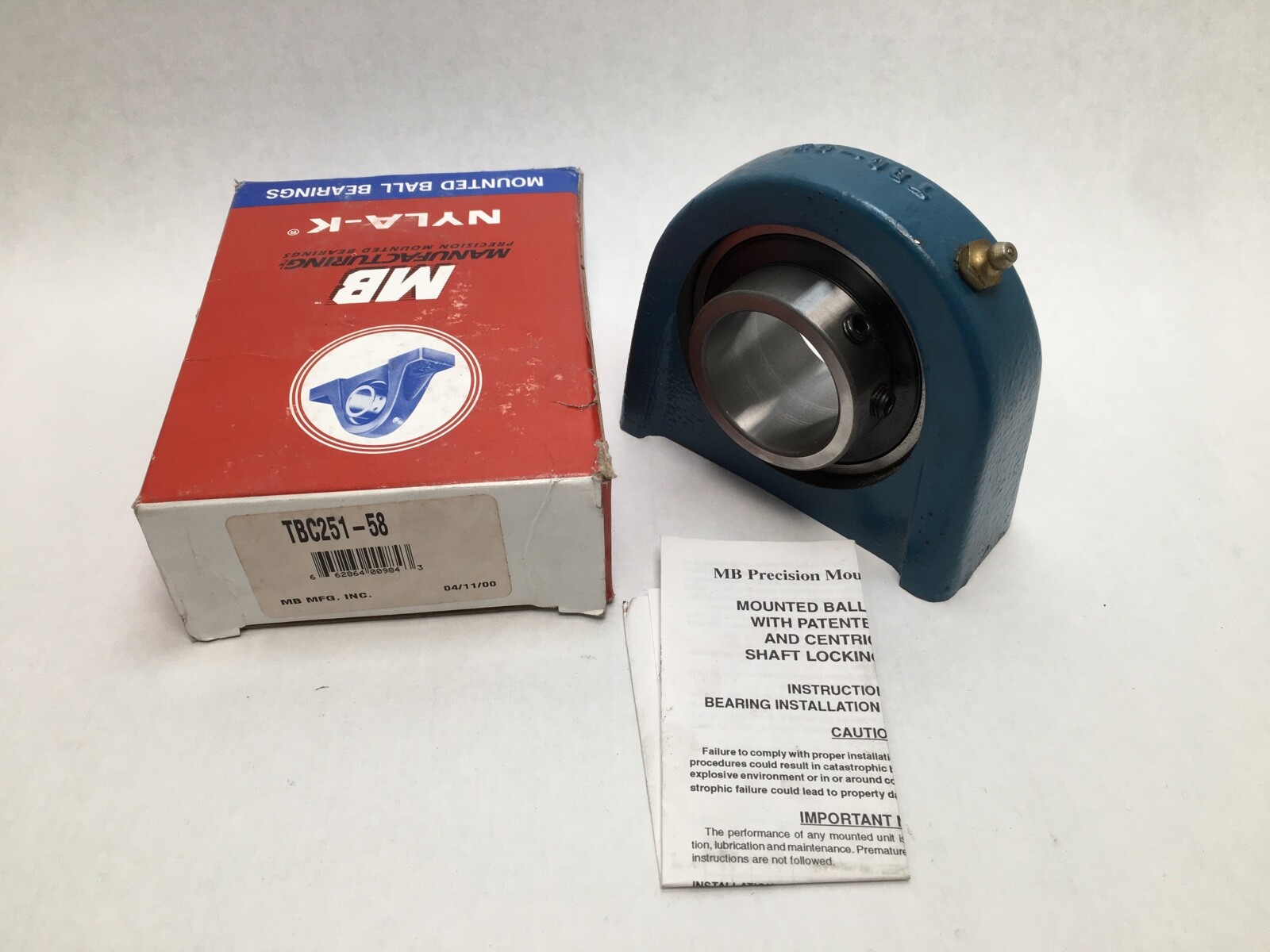

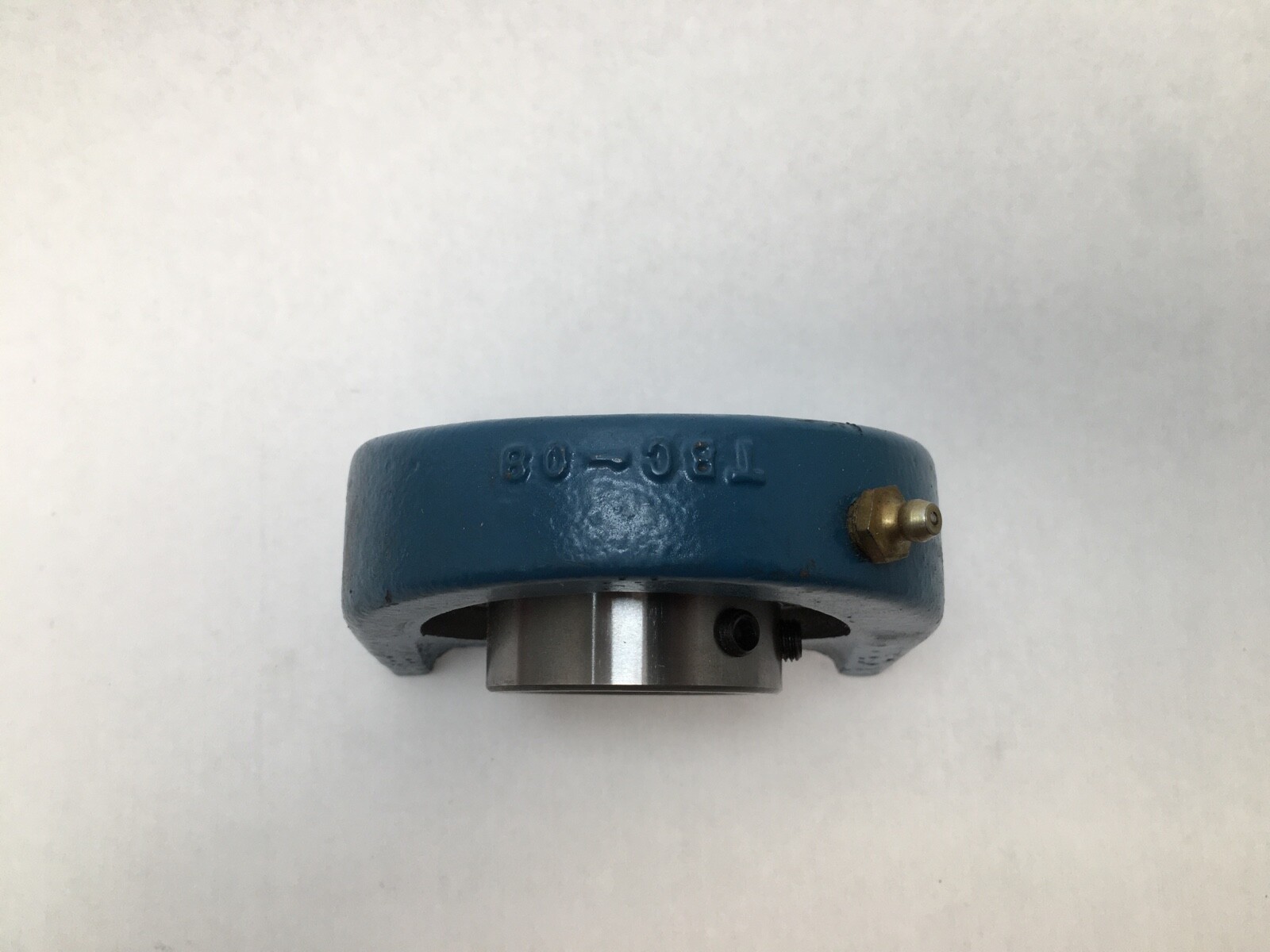

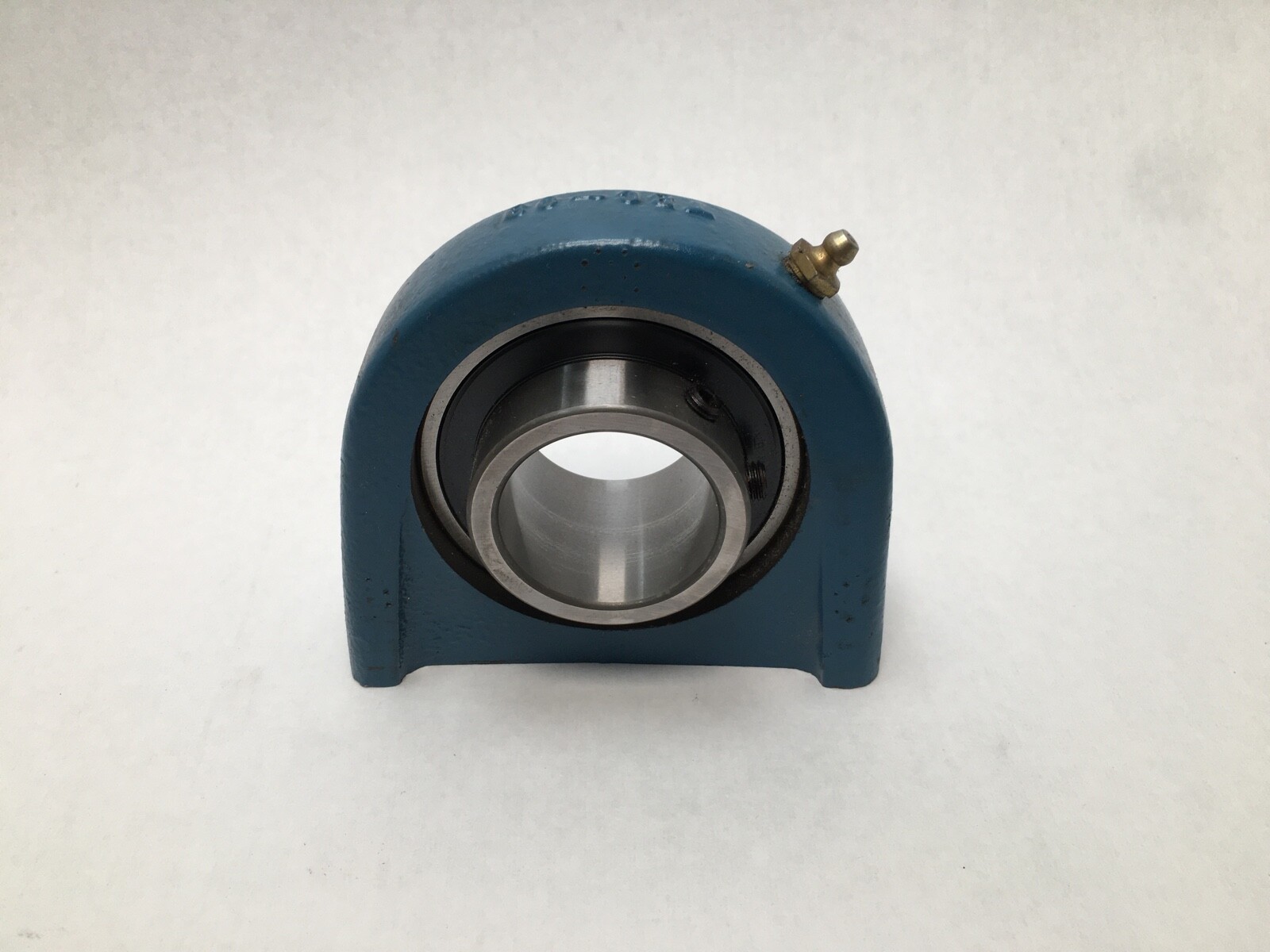

MB TBC25-1-5/8 tapped base ball bearing pillow block from the MB 25 Series (Rexnord Bearing Products): a one-piece cast iron housing with a spherically seated, standard duty ball bearing insert for a 1-5/8 in shaft. Unit Quantity: 1 Pc, complete housed unit.
TBC — MB pillow block, tapped base.
25 — MB 25 Series insert: narrow inner ring, standard duty.
1-5/8 — shaft diameter 1-5/8 in.
No suffix — standard single-lip contact seals.
Type: Pillow Block, Tapped Base. Bore Diameter: 1.6250 in (41.275 mm). Housing Material: Cast Iron. Rolling Elements: Ball. Duty Type: Standard Duty. Closure Type: Contact seals both sides (MB Type N steel-clad single-lip seals). Seal temperature range: −40°F to +225°F. Lubricant: Grease. Insert Outer Ring: Spherical. Number Of Bolt Holes: 2. Series: MB 25 Series. Harmonization Code: 8483.20.40.40. Country of Origin: United States.

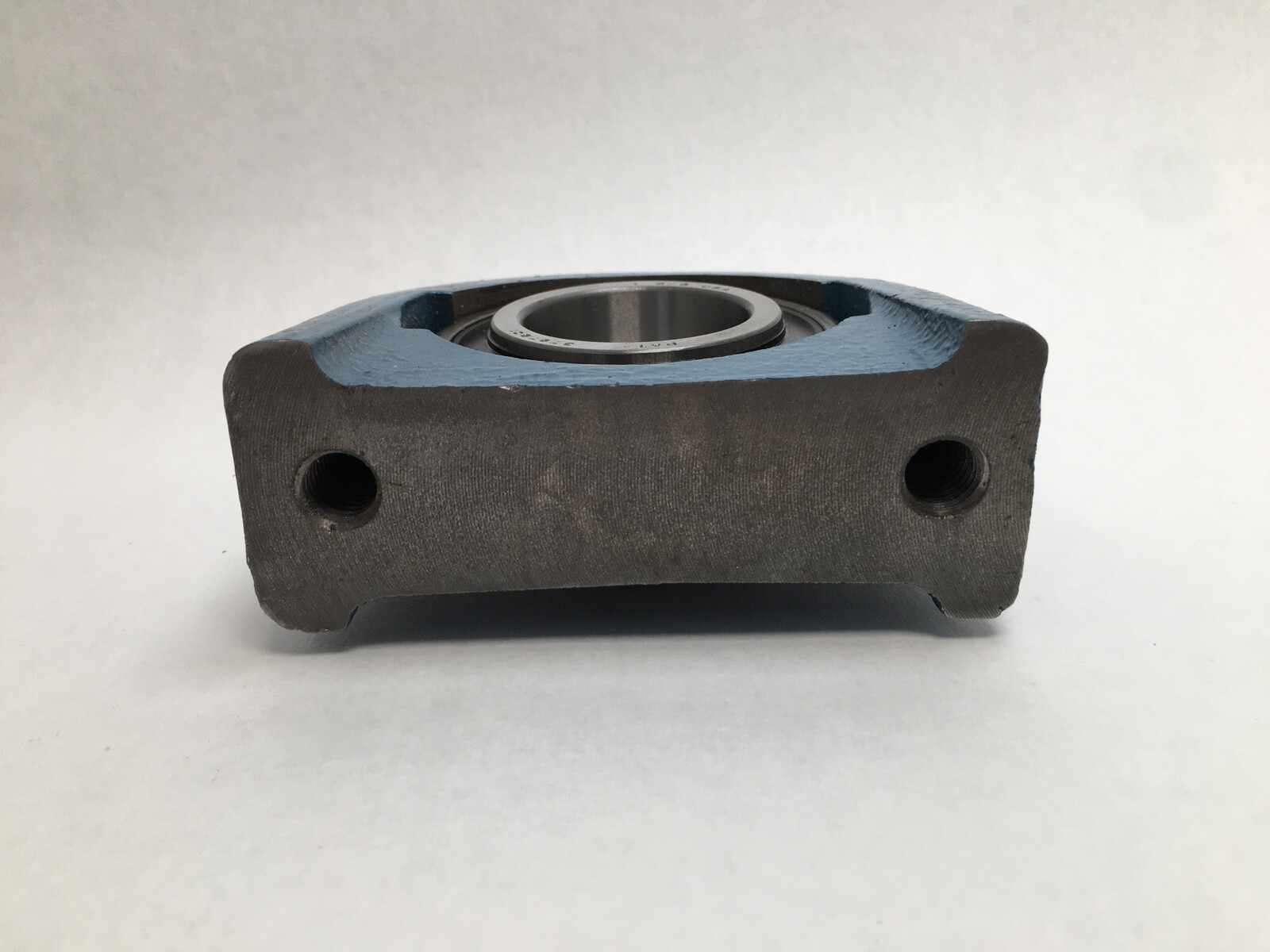

Bore Diameter: 1.6250 in (41.275 mm). Tapped base housing with 2 bolt holes.
1-5/8 in (1.6250 in, 41.275 mm) bore.
TBC is the MB pillow block with a tapped base; 25 is the MB 25 Series standard duty insert.
MB Type N steel-clad single-lip contact seals on both sides, rated −40°F to +225°F.
