Availability:
1 in stock

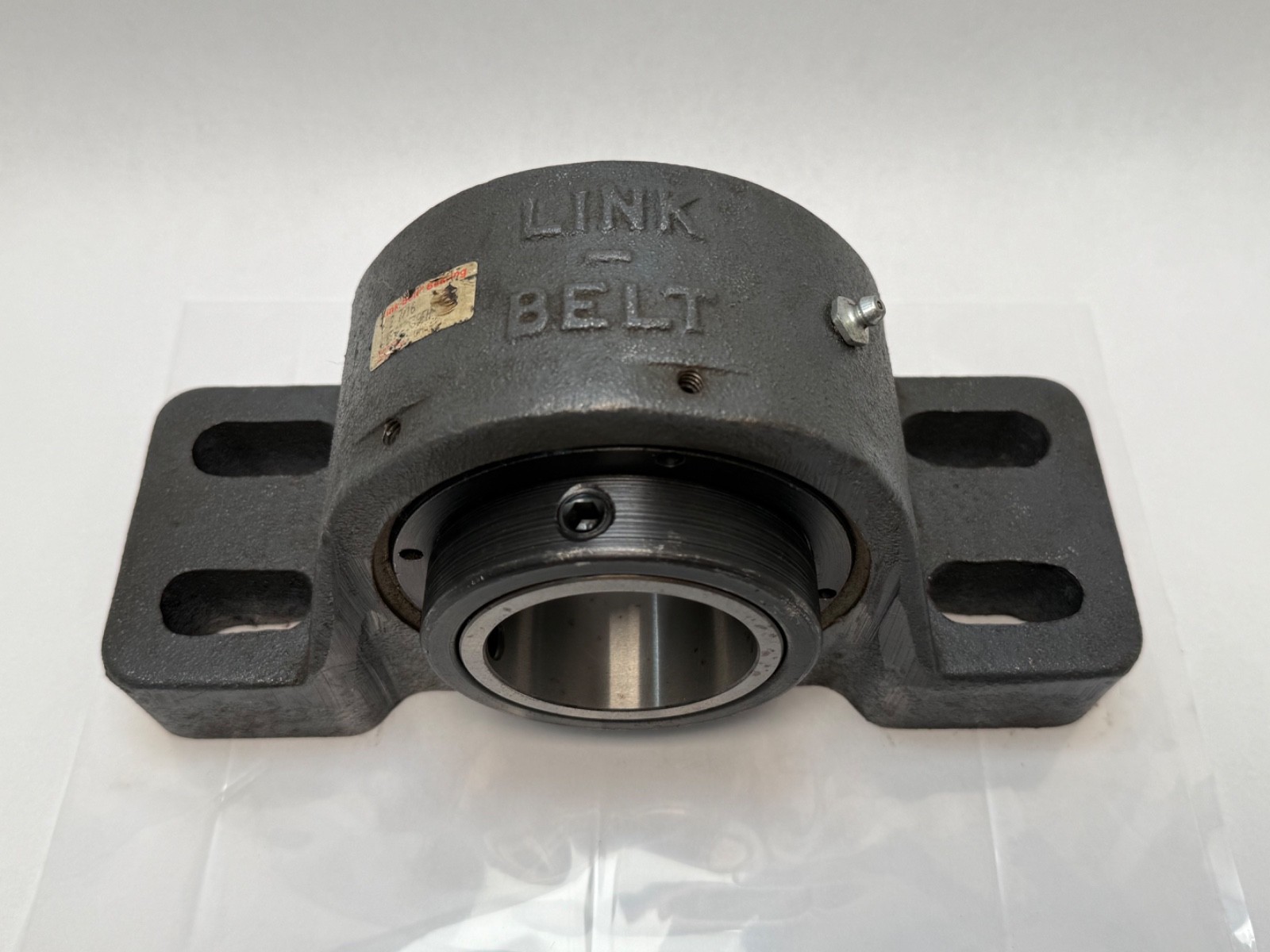

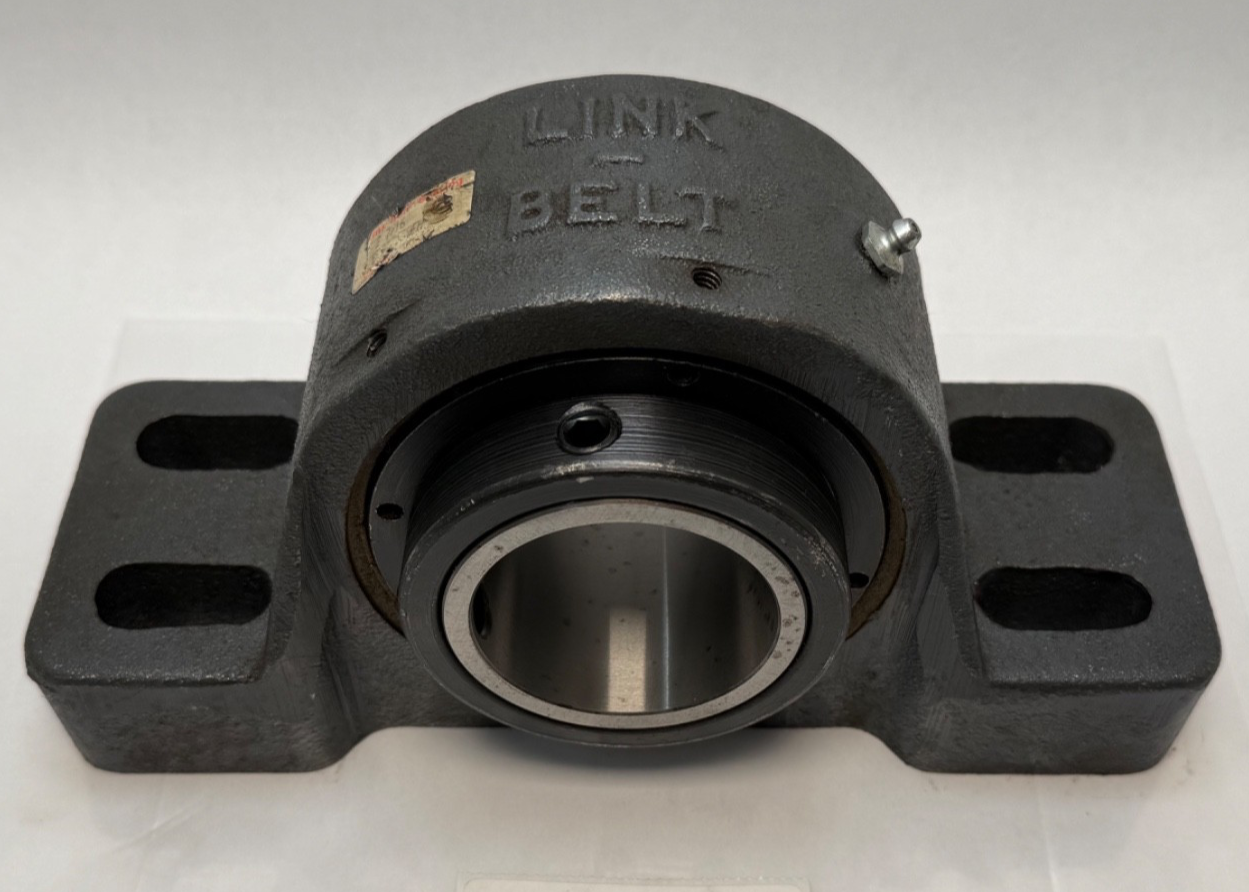

Link-Belt PEB22539FH two-bolt pillow block spherical roller bearing, 2-7/16 in (61.9 mm) bore, clearance labyrinth seal, double-setscrew collar, non-expansion, cast iron — new old stock.
List Price
$443.16
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | DODGE |
|---|---|
| MPN | PEB22539FH |
| Model | PEB 22539 FH |
| ID | 2-7/16 in |
| Material | Cast Iron |
|---|---|
| Condition | New – Open box |
| Type | Flanged Mount Bearing |
| Category Id | 35565 |
| Currency | USD |
| Condition Note | Made In USA, New Old Stock |
| Bearing Insert Type | Tapered Roller |

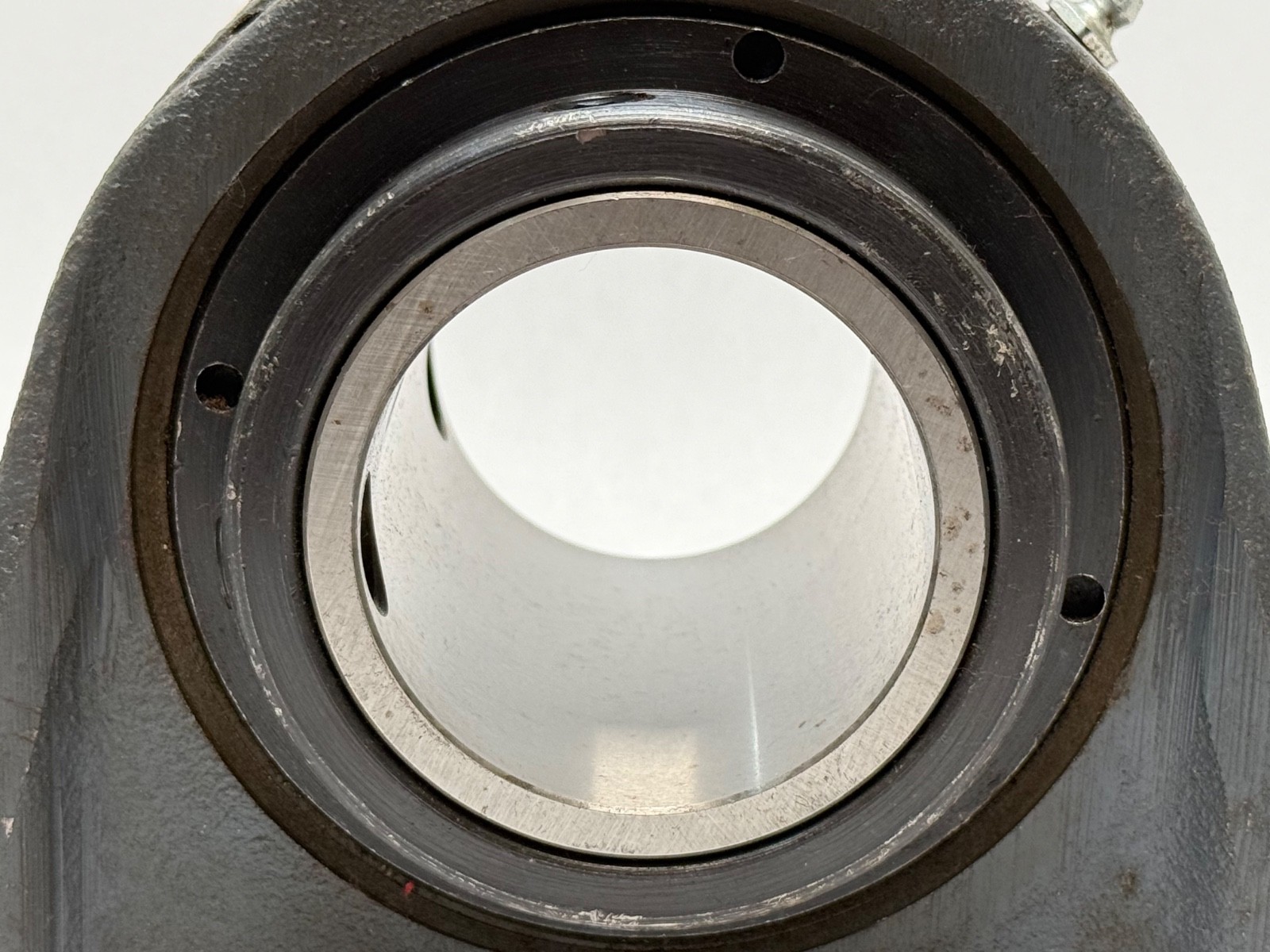

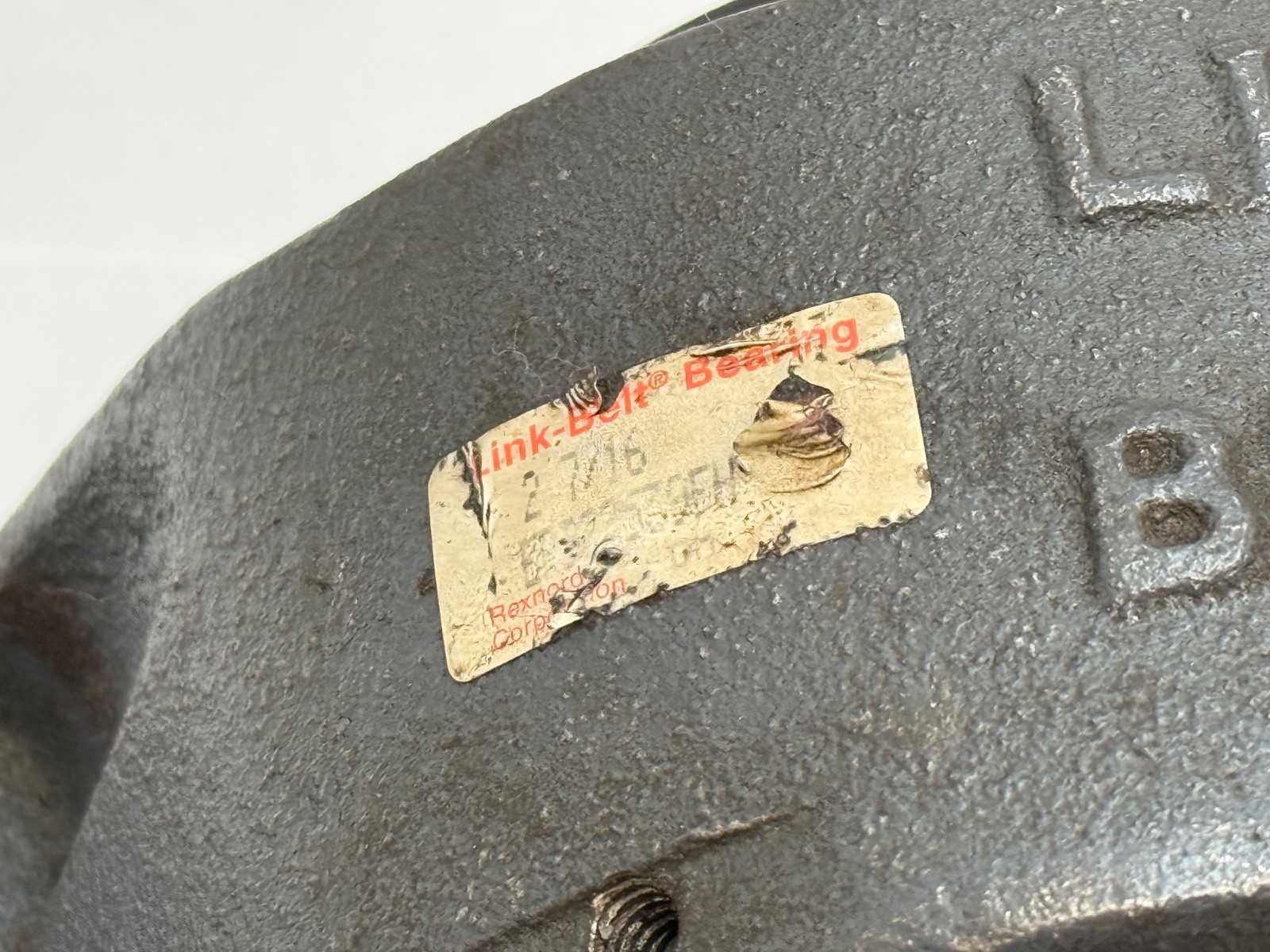

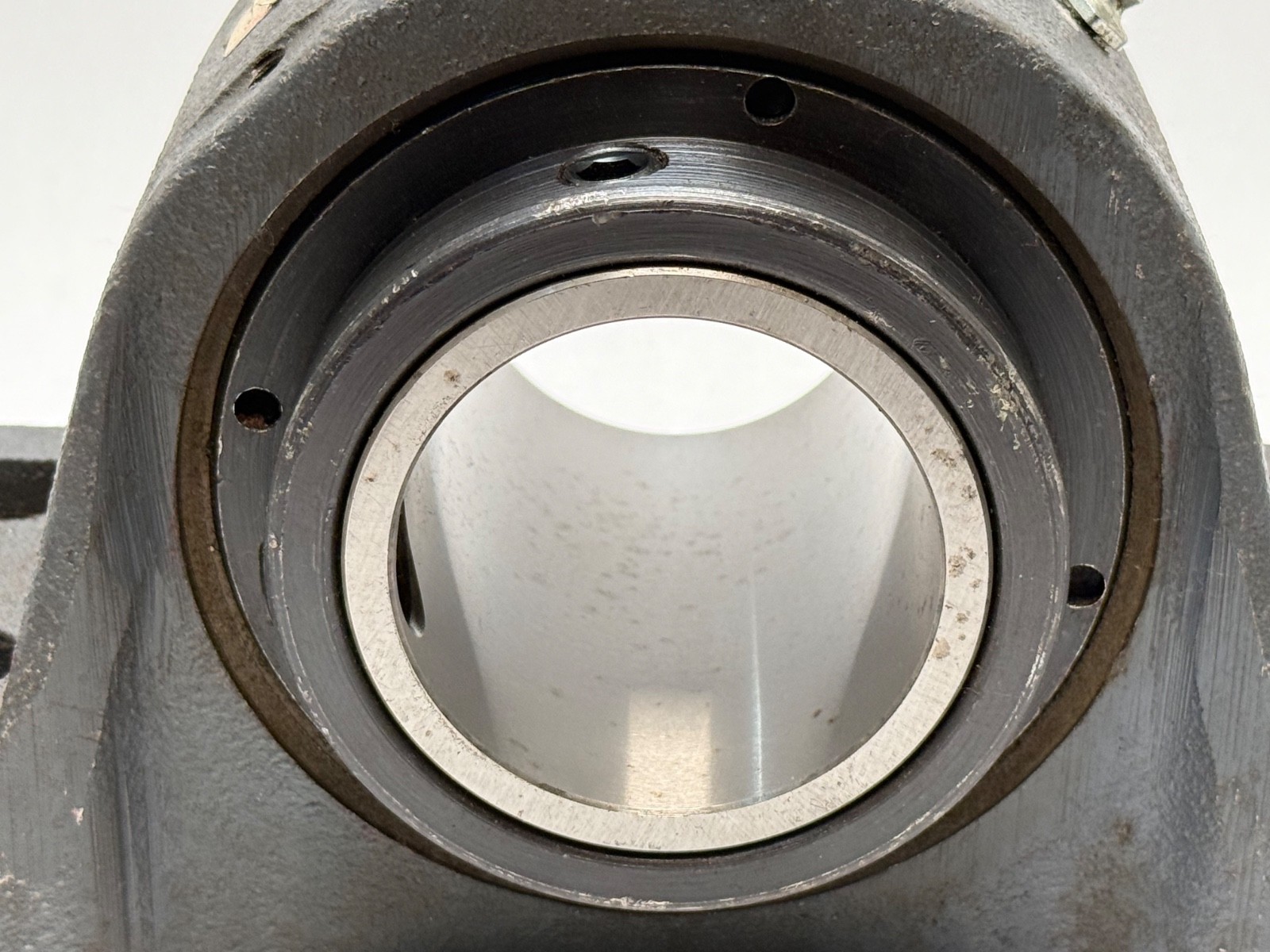

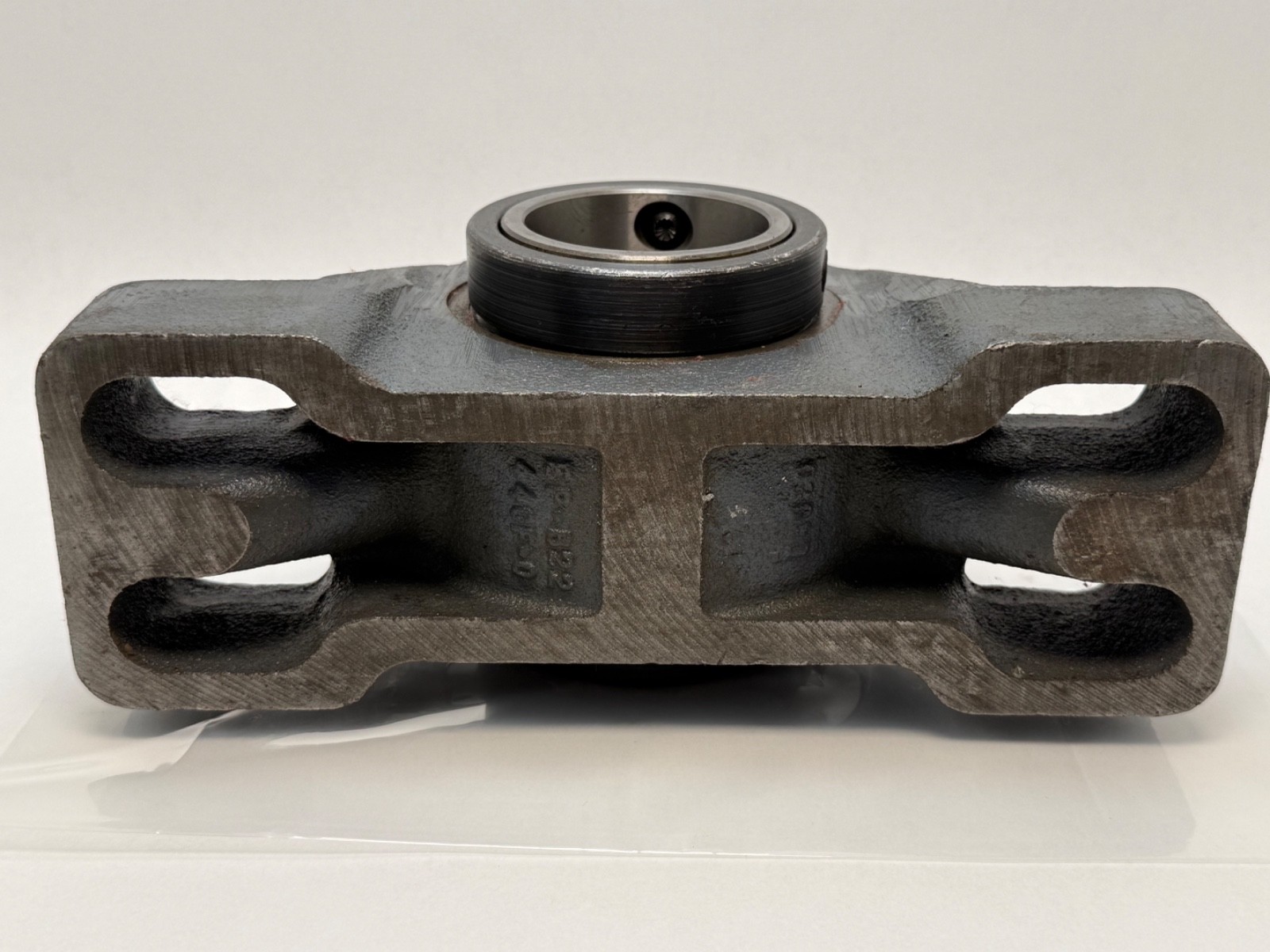

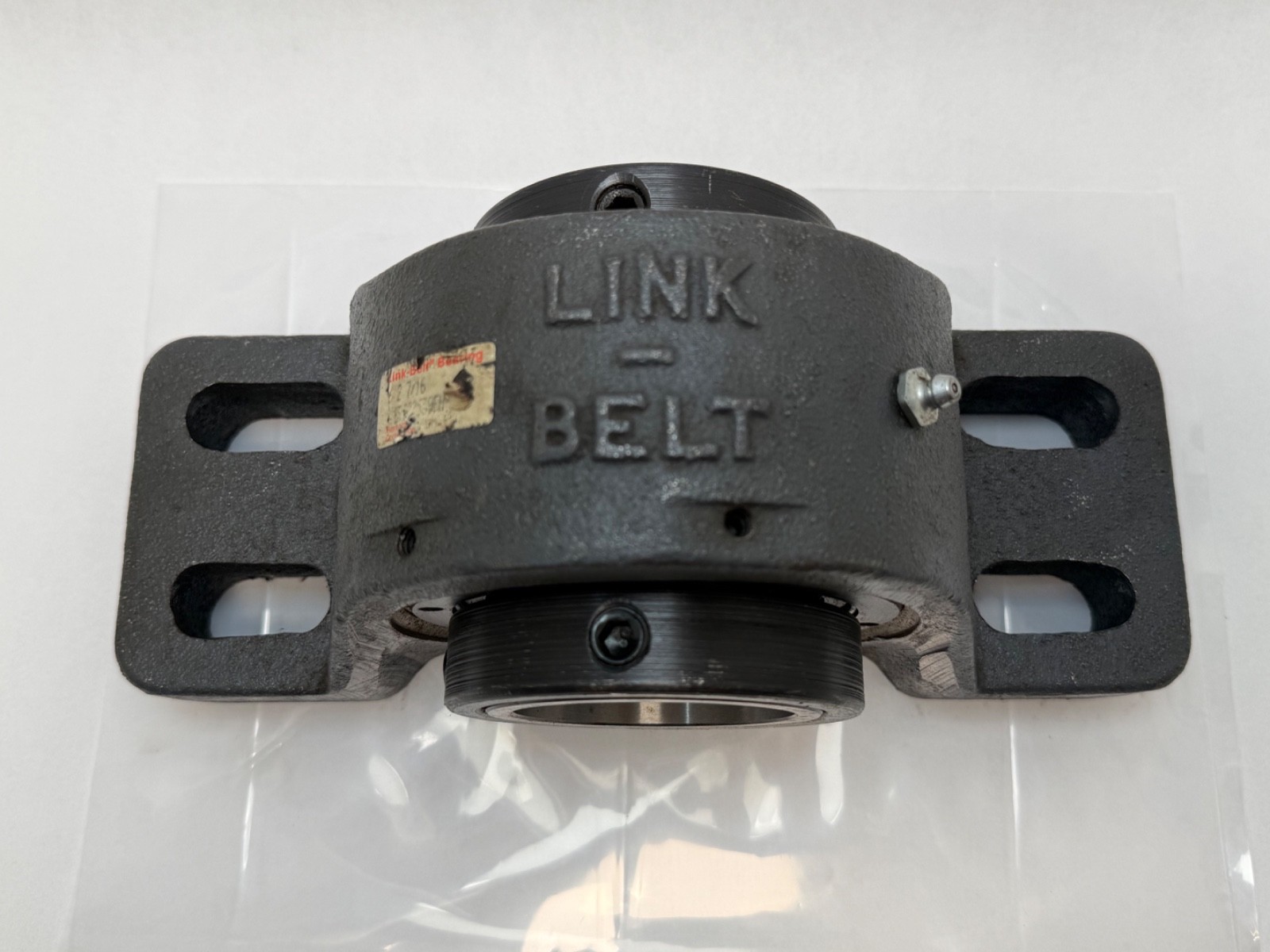

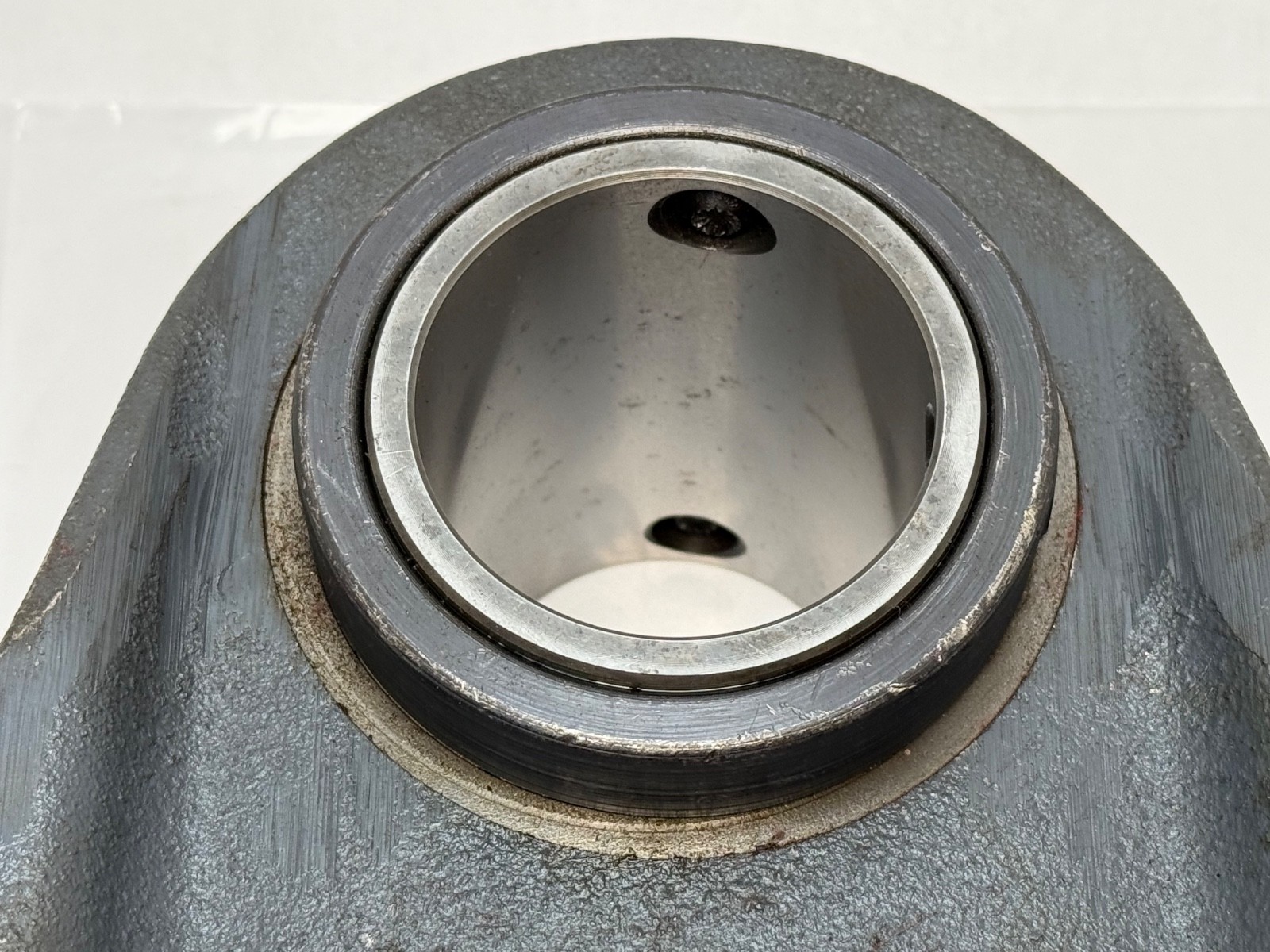

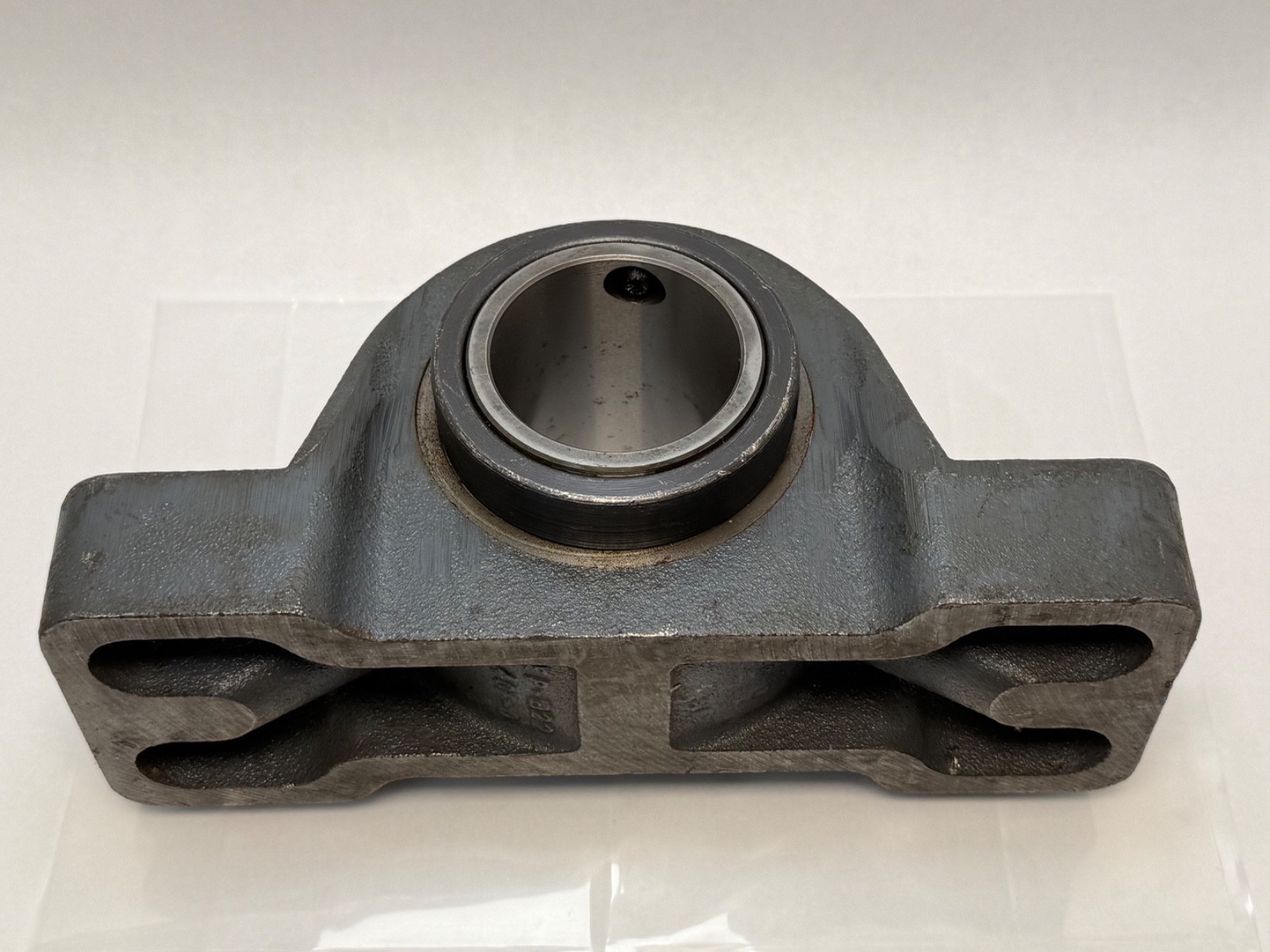

The Link-Belt PEB22539FH is a two-bolt solid-housed pillow block mounting a double-row spherical roller bearing insert with a 2-7/16 in (61.91 mm) bore in a cast iron housing. The 22539 insert is self-aligning (±2° misalignment). Link-Belt is a Rexnord (Regal Rexnord) brand.

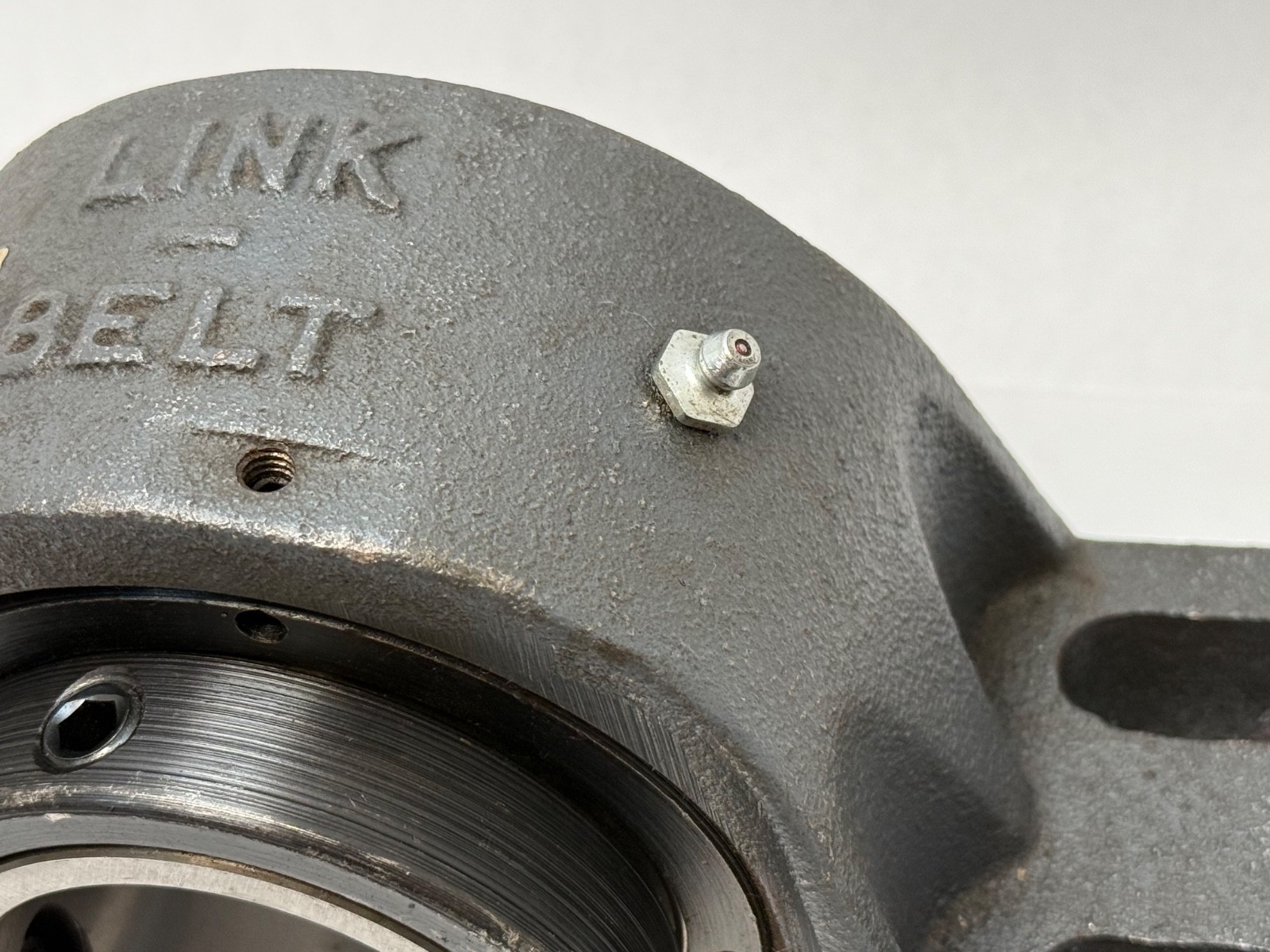

Shaft locking is by double-setscrew collar, the seal is a clearance/floating labyrinth (H) for cooler running at speed, and the unit is non-expansion (fixed) and relubricatable.
Dynamic load rating: 38,300 lbf (170.4 kN)
Static load rating: 53,500 lbf (238.0 kN)
Maximum speed: 2,300 rpm
Temperature rating: to 107 °C (225 °F)
Base-to-shaft centerline: 3 in (76.2 mm)
Bolt center spacing: 8-1/4 in (209.6 mm)
Overall length: 11-1/4 in (285.8 mm)
Overall height: 5-3/4 in (146.1 mm)
Unit weight: approx. 24 lb (10.9 kg)
Also written PEB-22539FH, PEB22539-FH; cross-references PB22539FH / PB22539H.
Common on fans, blowers, conveyors, and aggregate/process equipment.
