Dodge S-2000 two-bolt pillow block, 1-3/16 in bore, double-row spherical roller insert, TRIDENT triple-lip seal, non-expansion. 65° Springlok set screw collar, cast iron.
List Price
$159.87
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | P2B-S2-103R |
| Model | P2BS2103R |
| ID | 1.1875 in |
| Series | S-2000 |
|---|---|
| Type | Pillow Block Bearing |
| Base Number | P2B-S2-103 |
| Industry Terms | mounted spherical roller bearing; pillow block bearing; plummer block; S2000 |
| Common Misspellings | P2BS2103R; P2B-S2-103; P2B-S2103R |
| Application Types | conveyors; air handling; material handling |
| Number Of Bolt Holes | 2 |
| Number Of Bolt Holes For Fasteners | 2 |
| Bore Shaft Size | 1-3/16 in |
| Housing Style | Two-bolt pillow block |
| Locking Method | Set screw, 65° Springlok collar |
| Relubrication | Yes, 1/8-27 NPT hydraulic grease fitting |
| Mpn Variants | P2B-S2-103R; P2BS2103R; P2BS2103R/044609; P2B S2 103 R; 044609 |
| Additional Attributes | Dodge Part Number: 044609; Product Family: S-2000; Seal Code R: TRIDENT triple lip |
| Bearing Type | Double-row spherical roller |
| Harmonization Code | 8483.20.40 |
| Housing Material | Cast iron, ASTM A48 Class 30 |
| Expansion Type | Non-expansion |

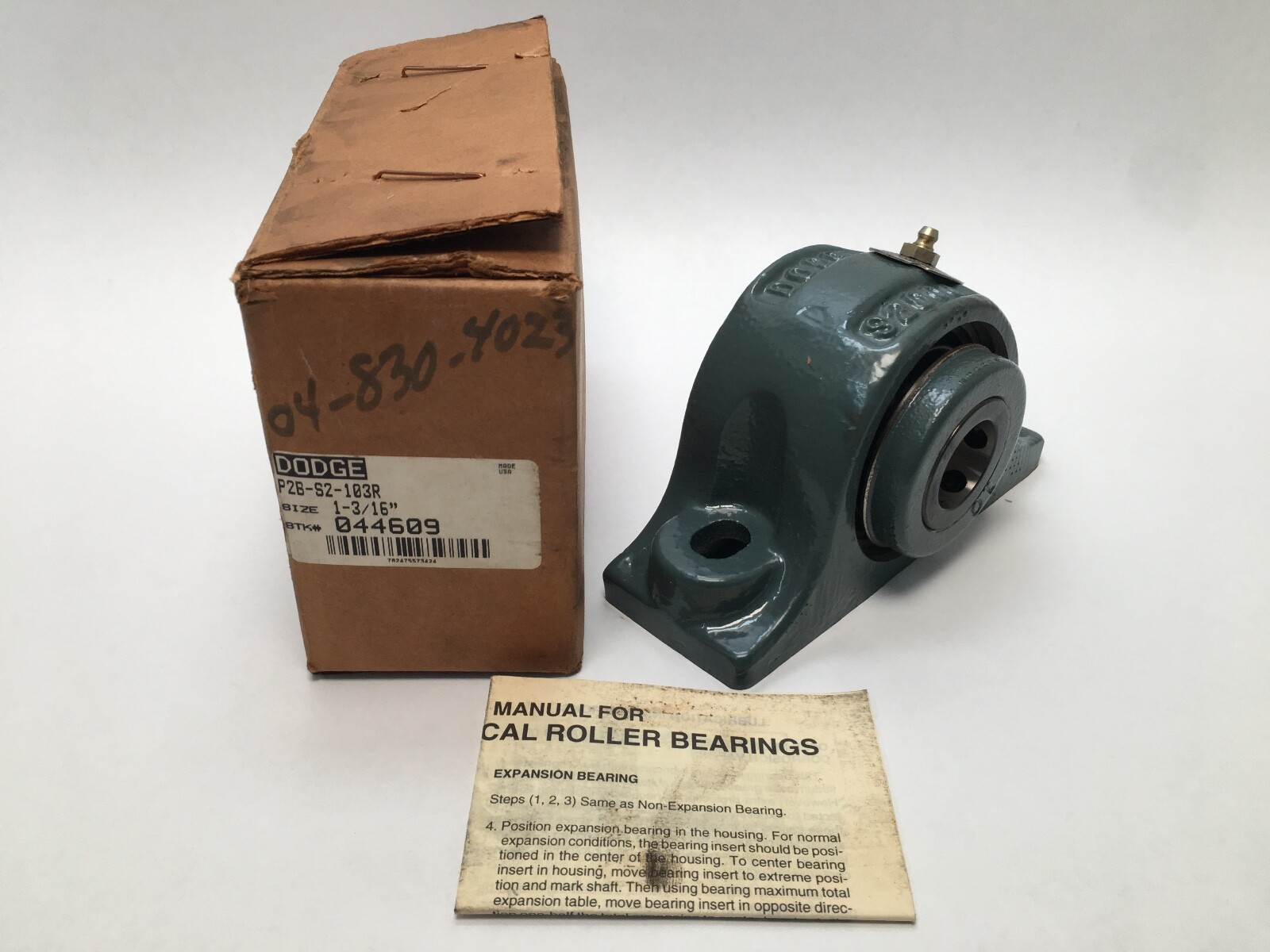

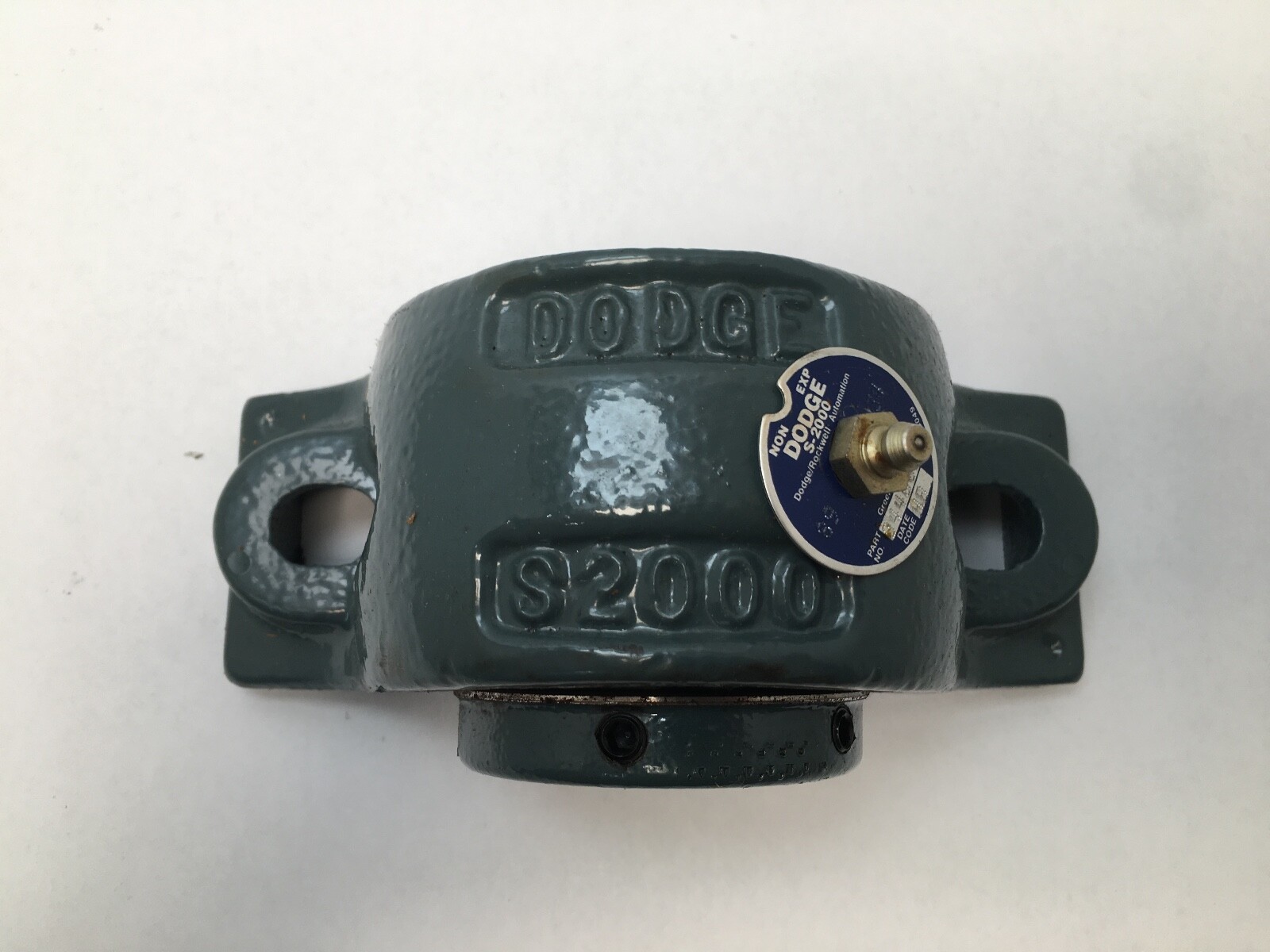

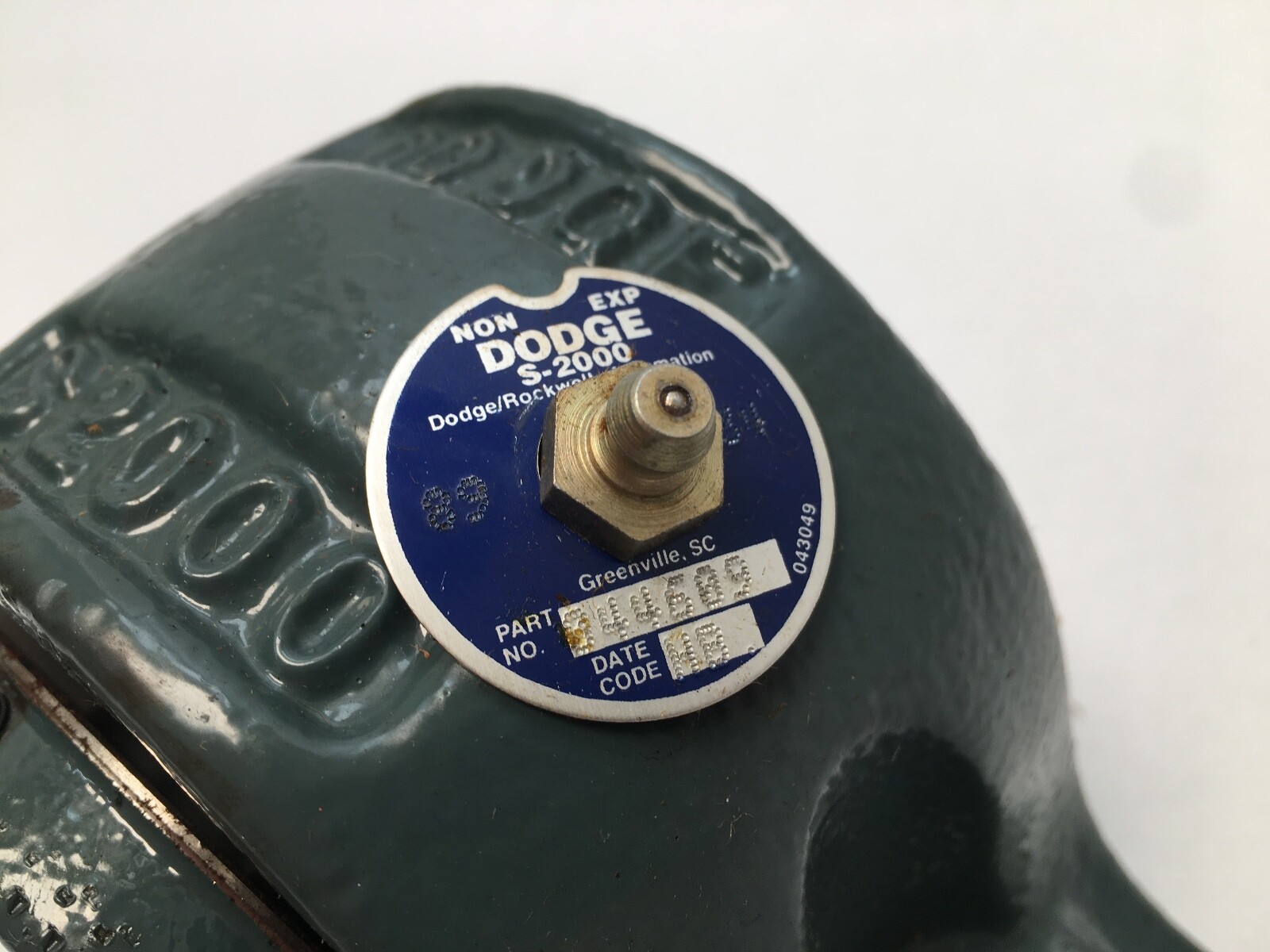

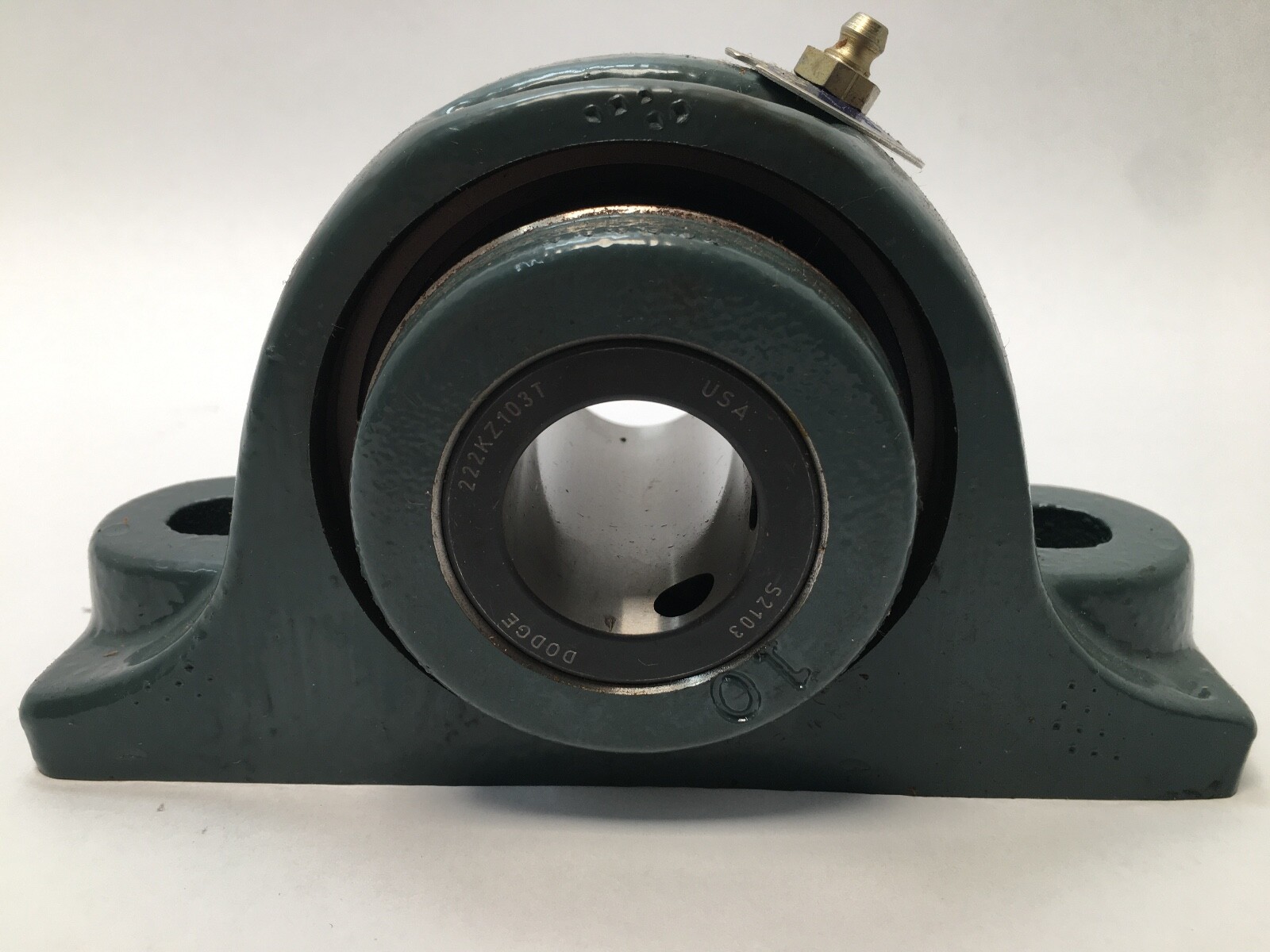

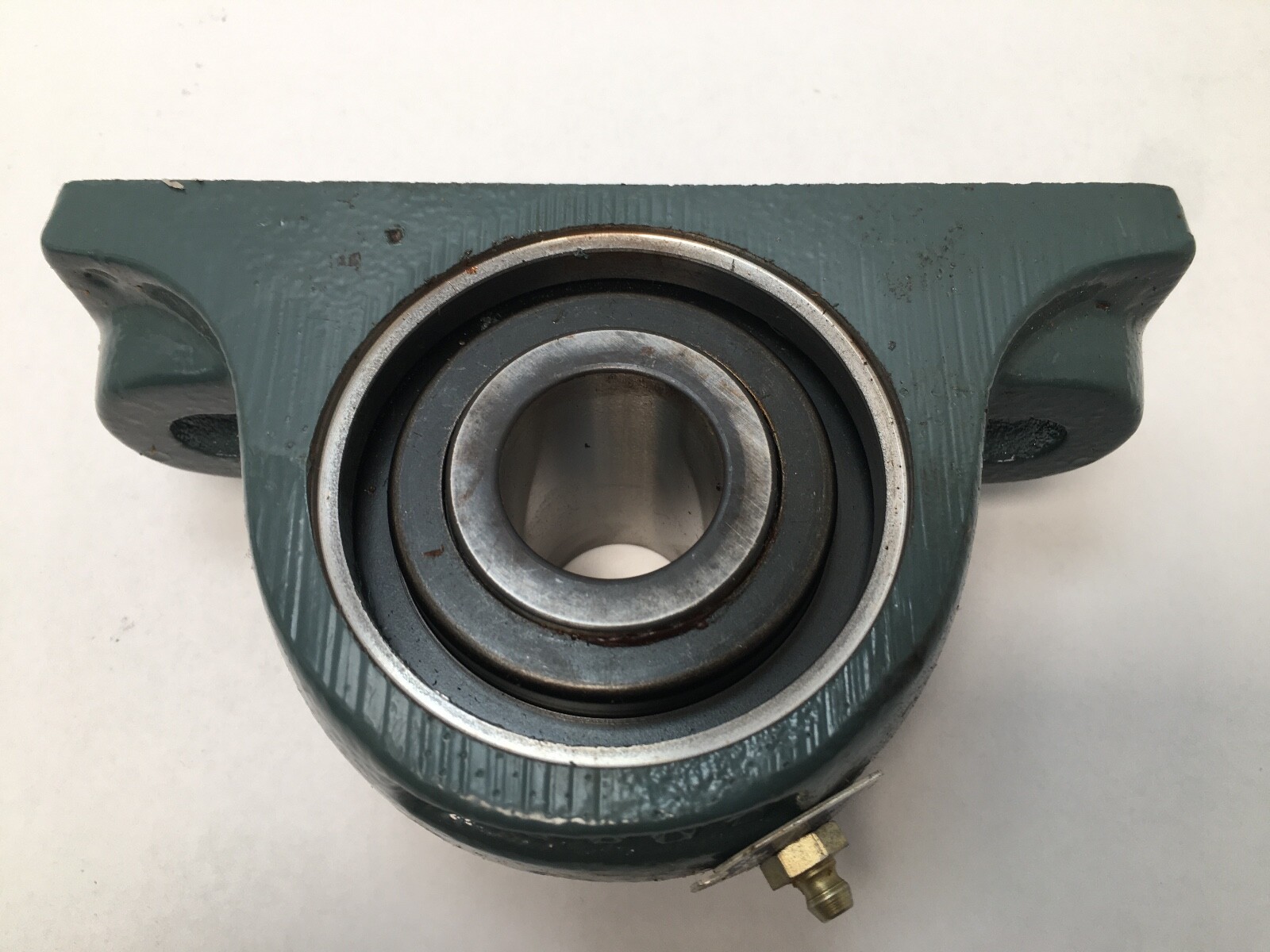

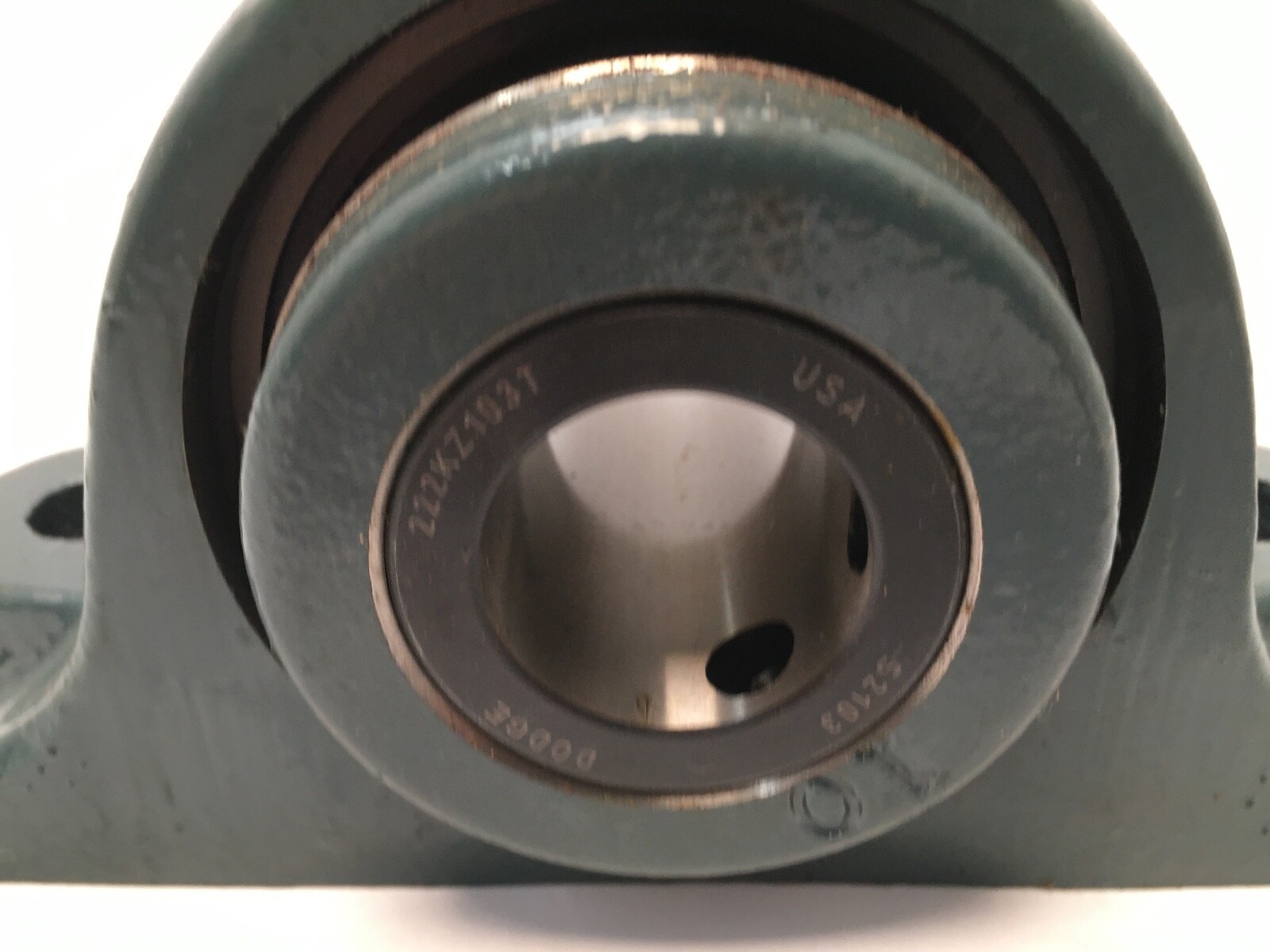

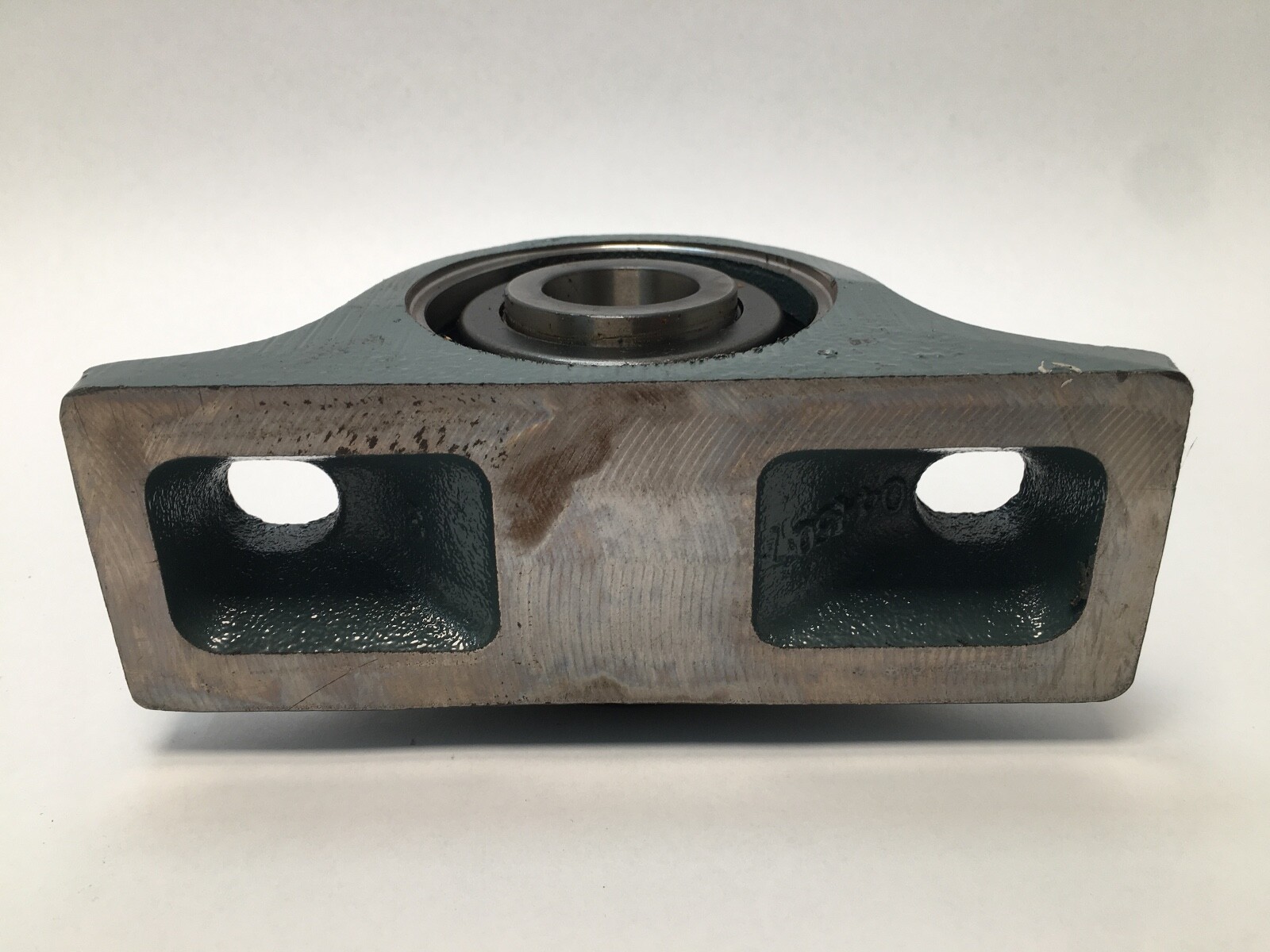

Dodge P2B-S2-103R is an S-2000 two-bolt pillow block carrying a double-row spherical roller insert for a 1-3/16 in shaft. Dodge part number: 044609. Housing Style: Two-bolt pillow block. Bore / Shaft Size: 1-3/16 in. Bearing Type: Double-row spherical roller. Housing Material: Cast iron, ASTM A48 Class 30.
P2B — pillow block, two-bolt base, cast iron.
S2 — S-2000 spherical roller bearing insert, inch sizes.
103 — 1-3/16 in shaft size.
R — TRIDENT triple-lip rubbing seal.
No E suffix — non-expansion unit. The insert is held axially in the housing and locates the shaft.

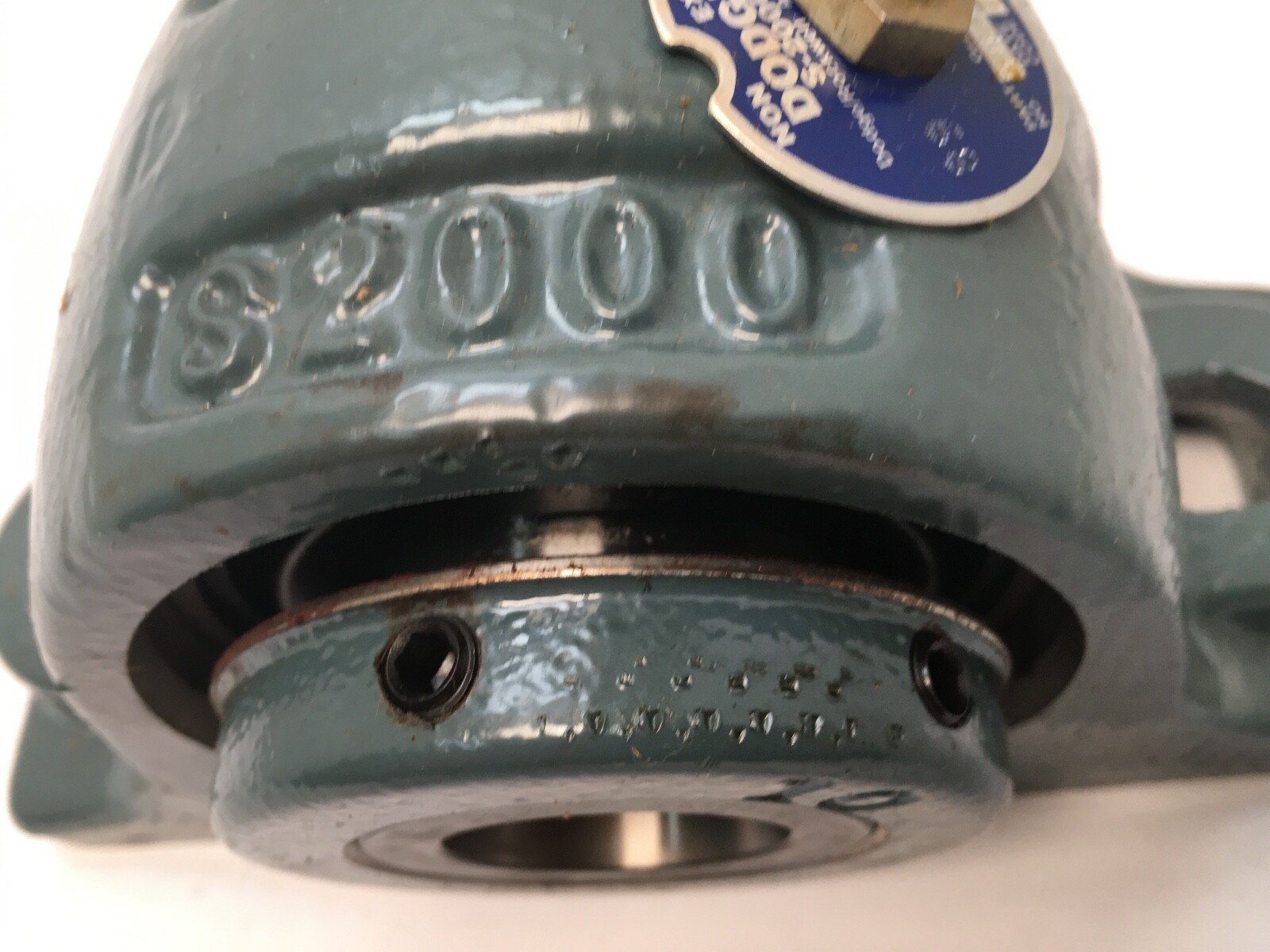

Locking Method: Set screw, Springlok collar with screws spaced 65° apart. The 65° spacing gives more holding power than 90° or 120° collars. Seal Type: TRIDENT triple-lip contact seal, for low to medium speeds. Expansion Type: Non-expansion. The double-row spherical rollers carry heavy radial loads and combined radial and thrust loads, and the insert self-aligns in the housing.
Number Of Bolt Holes: 2. Relubrication: 1/8-27 NPT hydraulic grease fitting. The unit is factory lubricated, sealed and adjusted.
