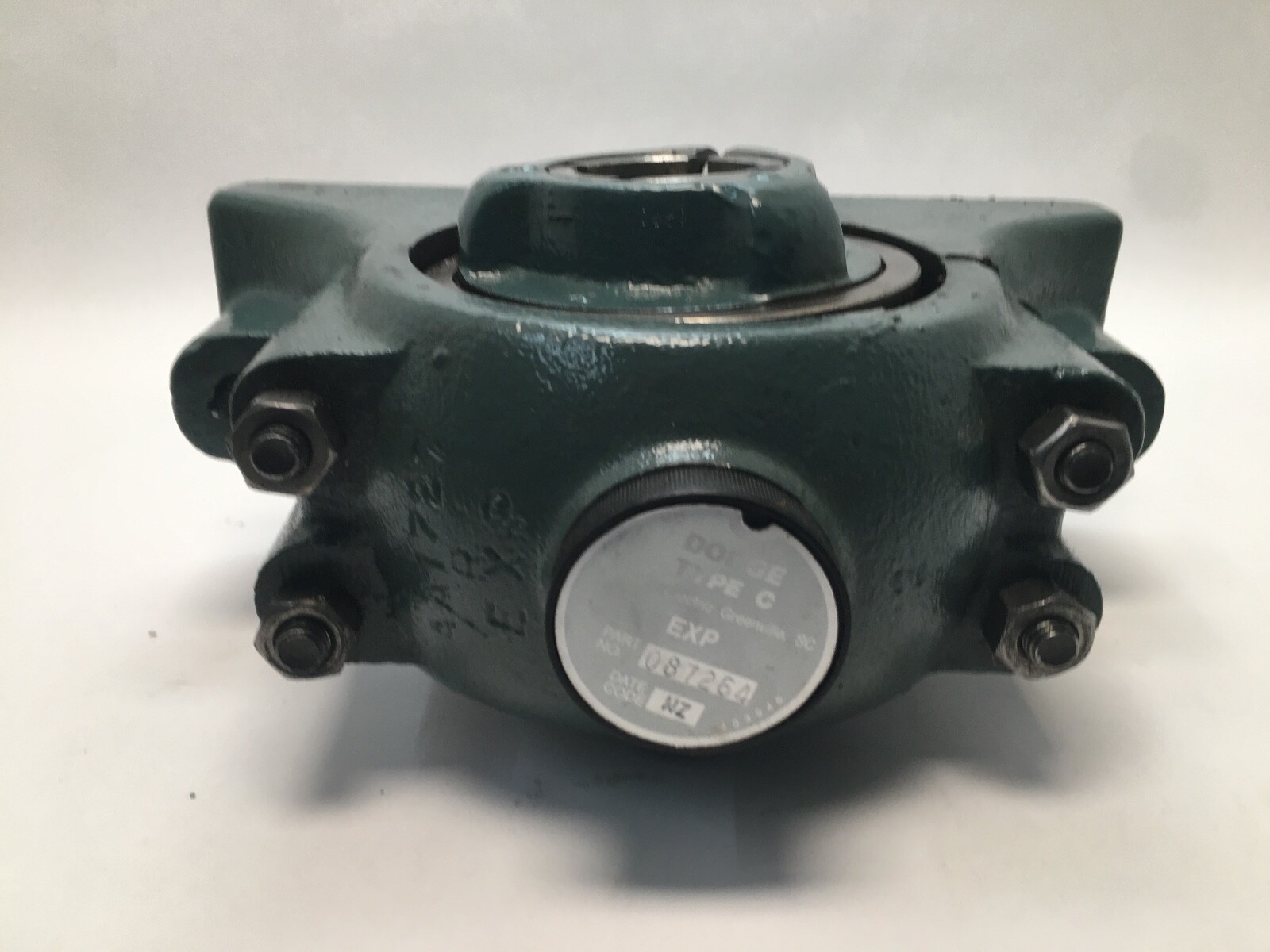

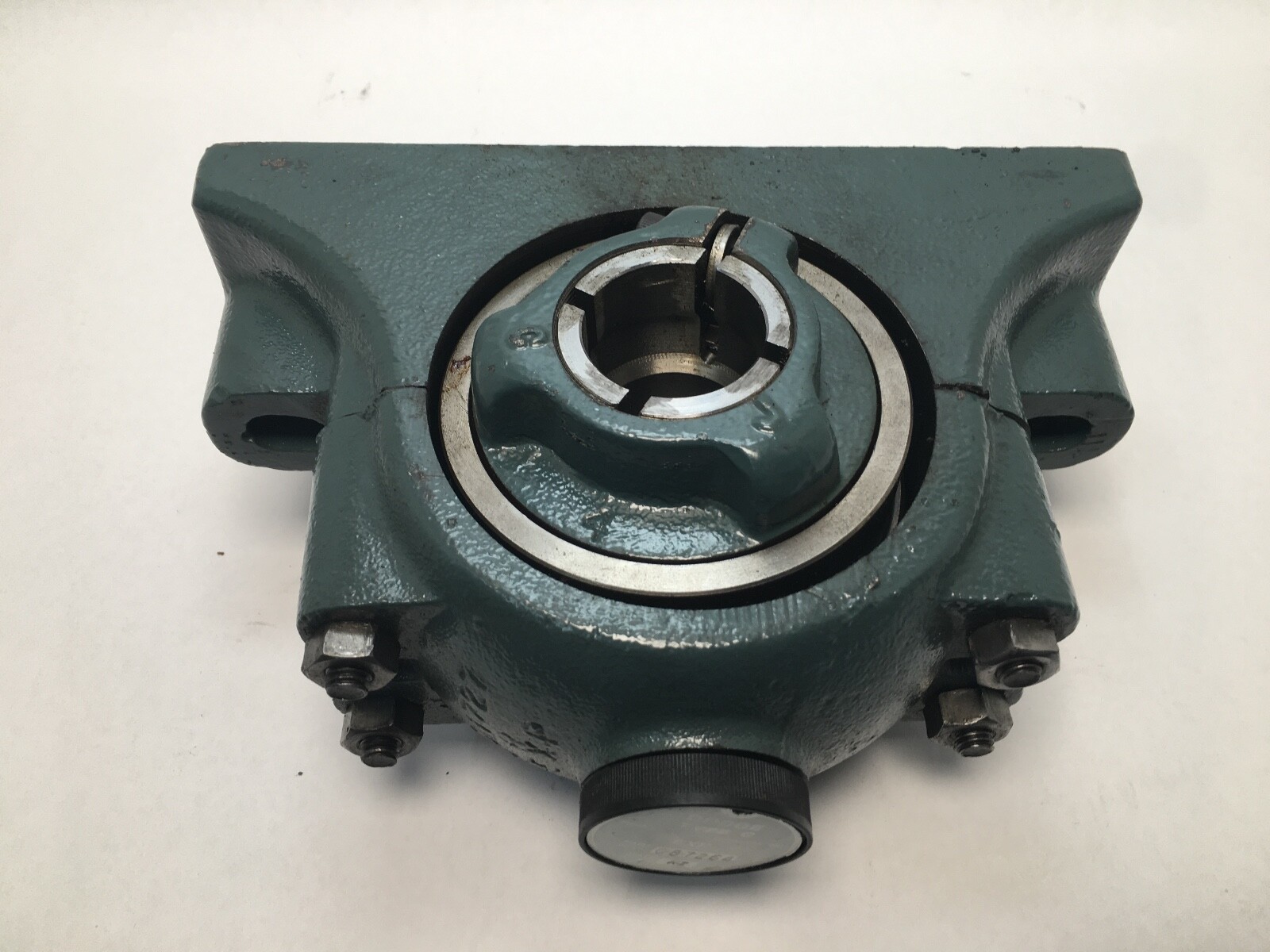

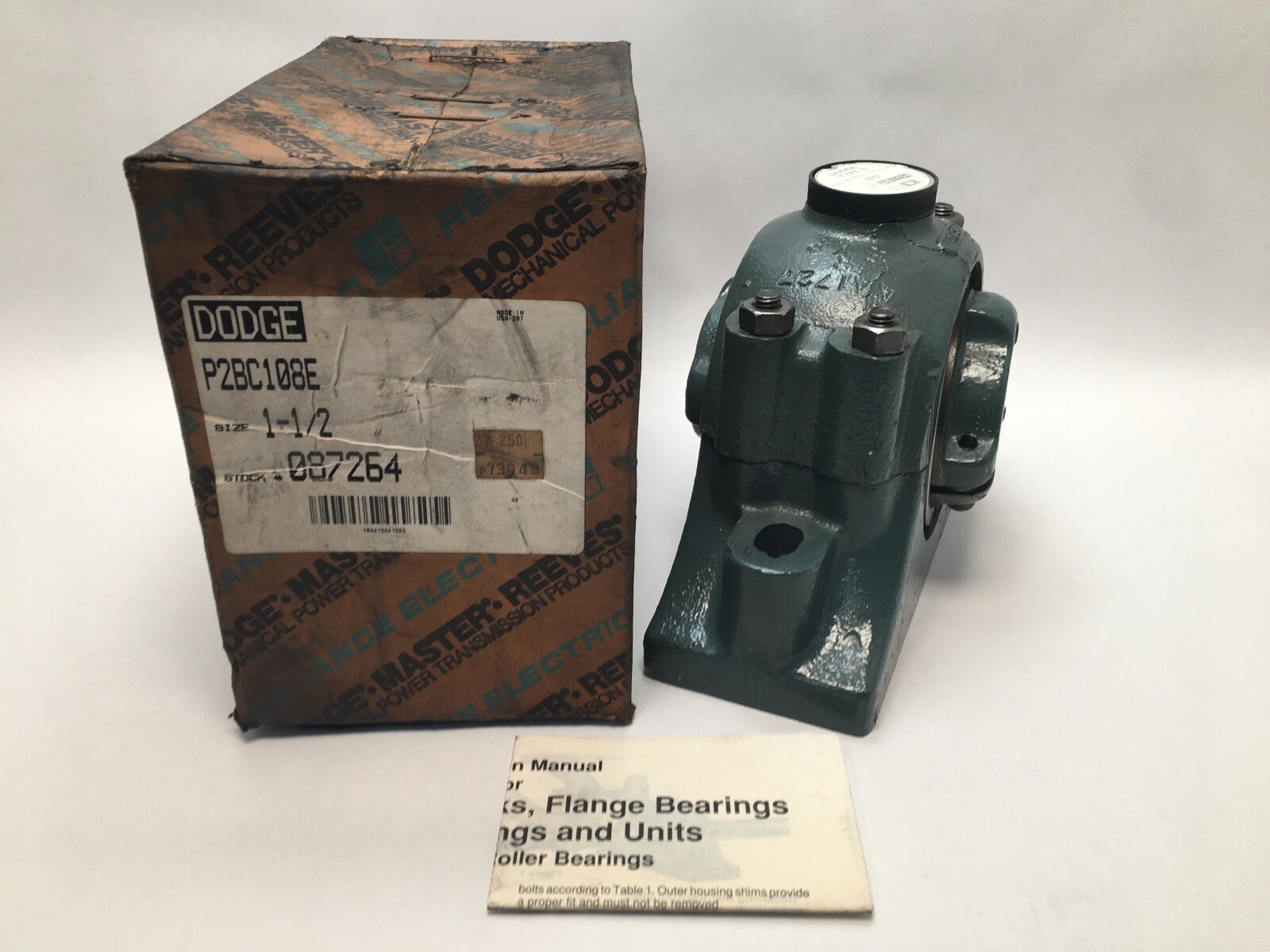

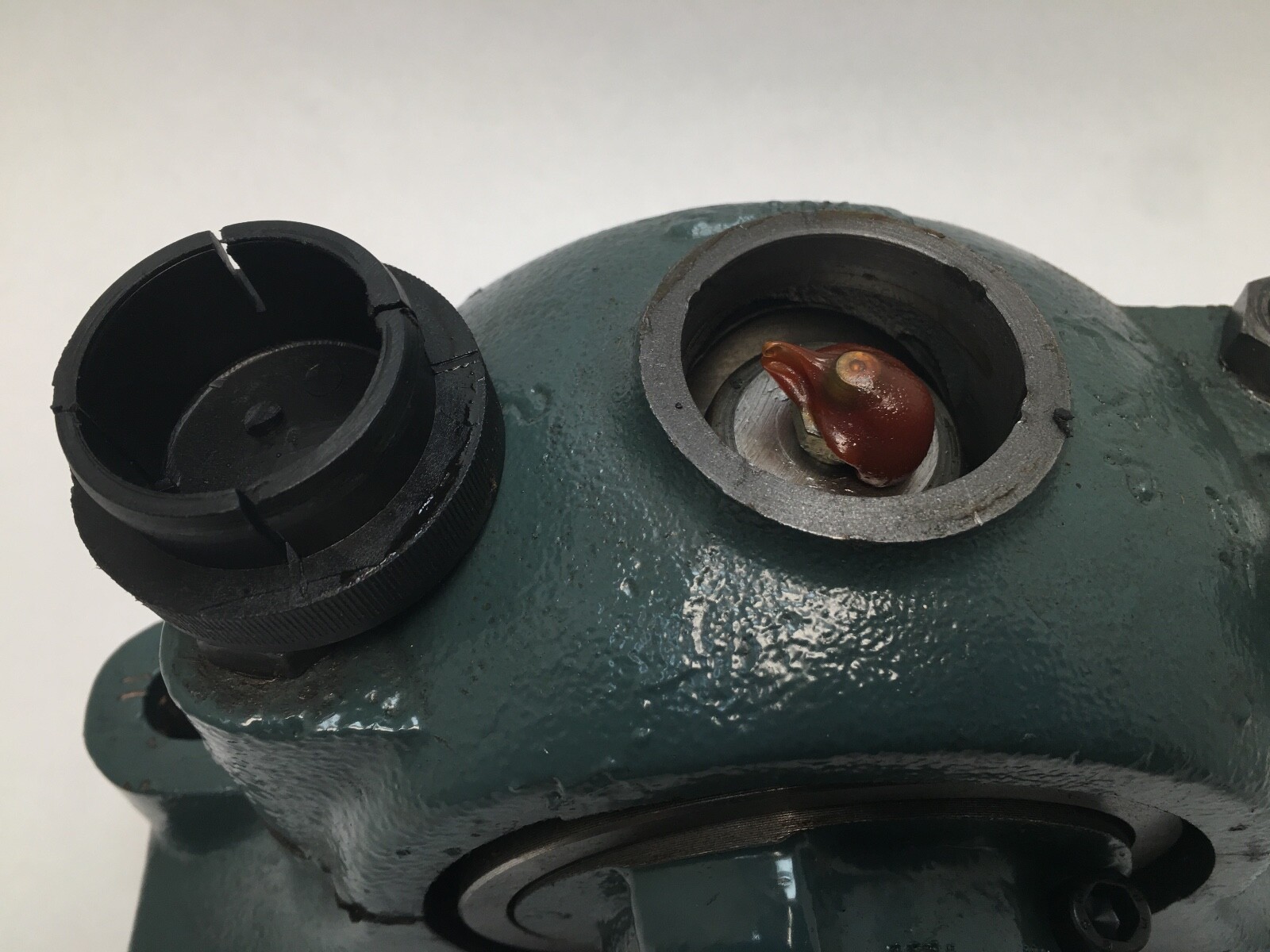

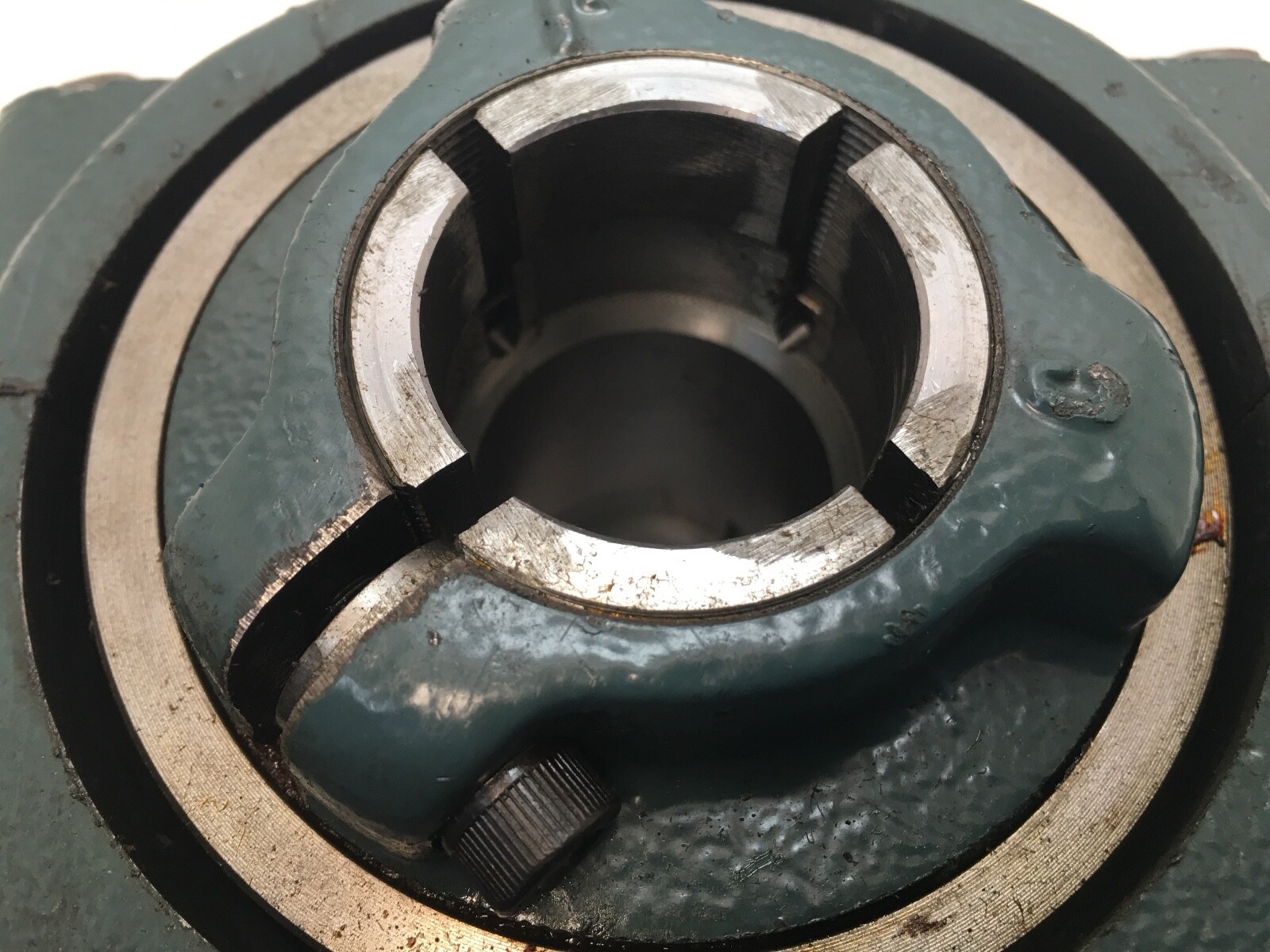

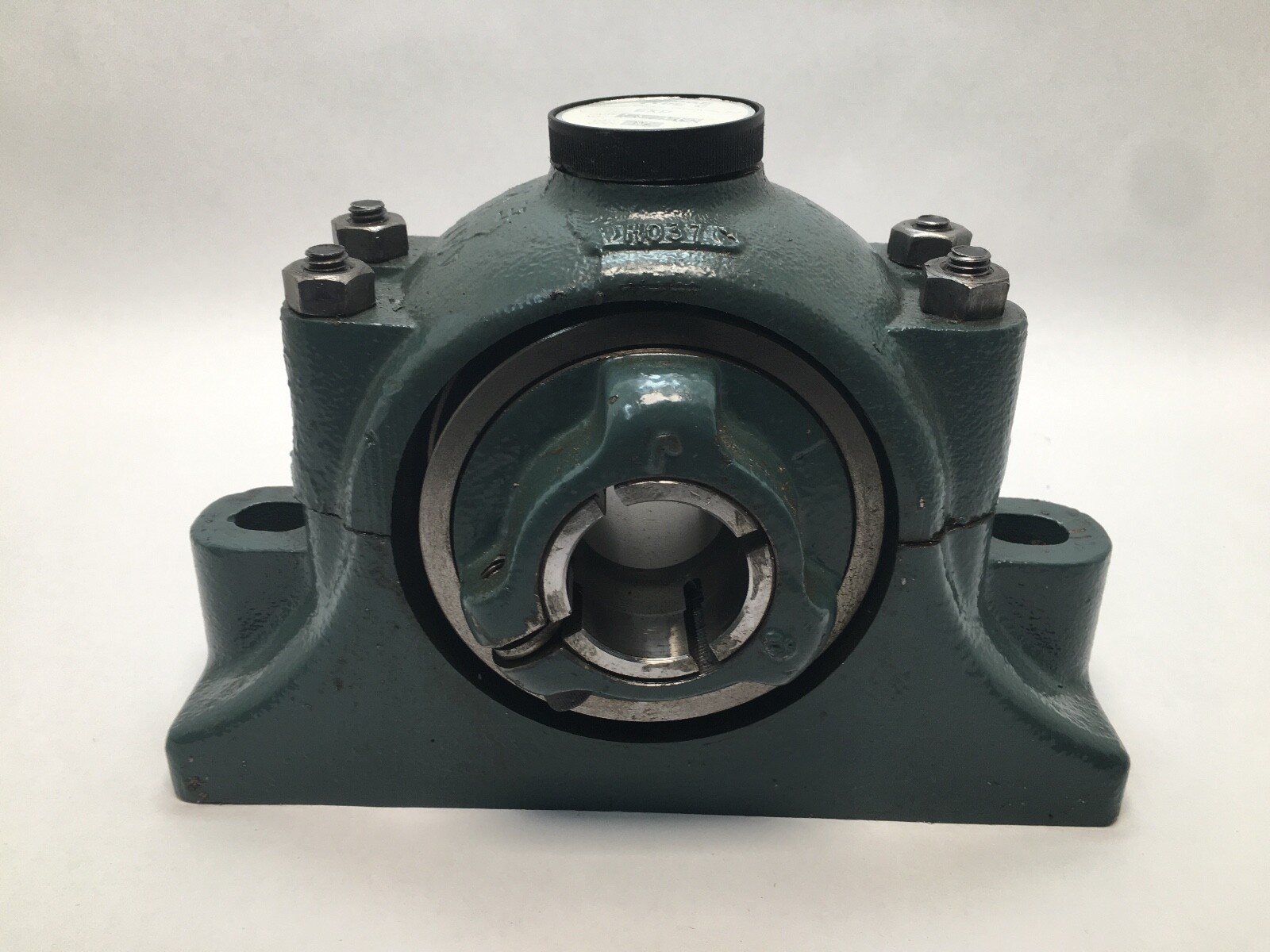

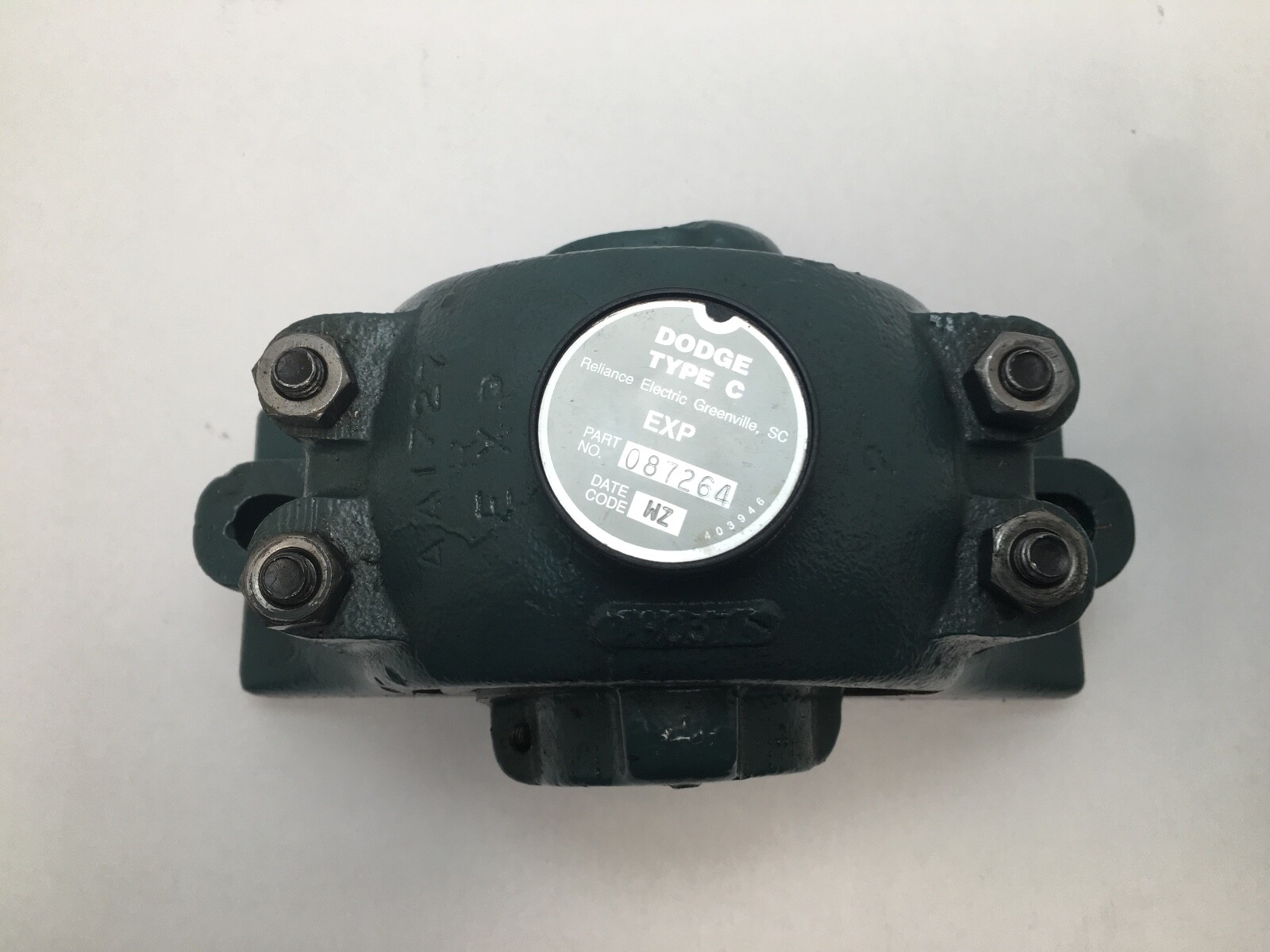

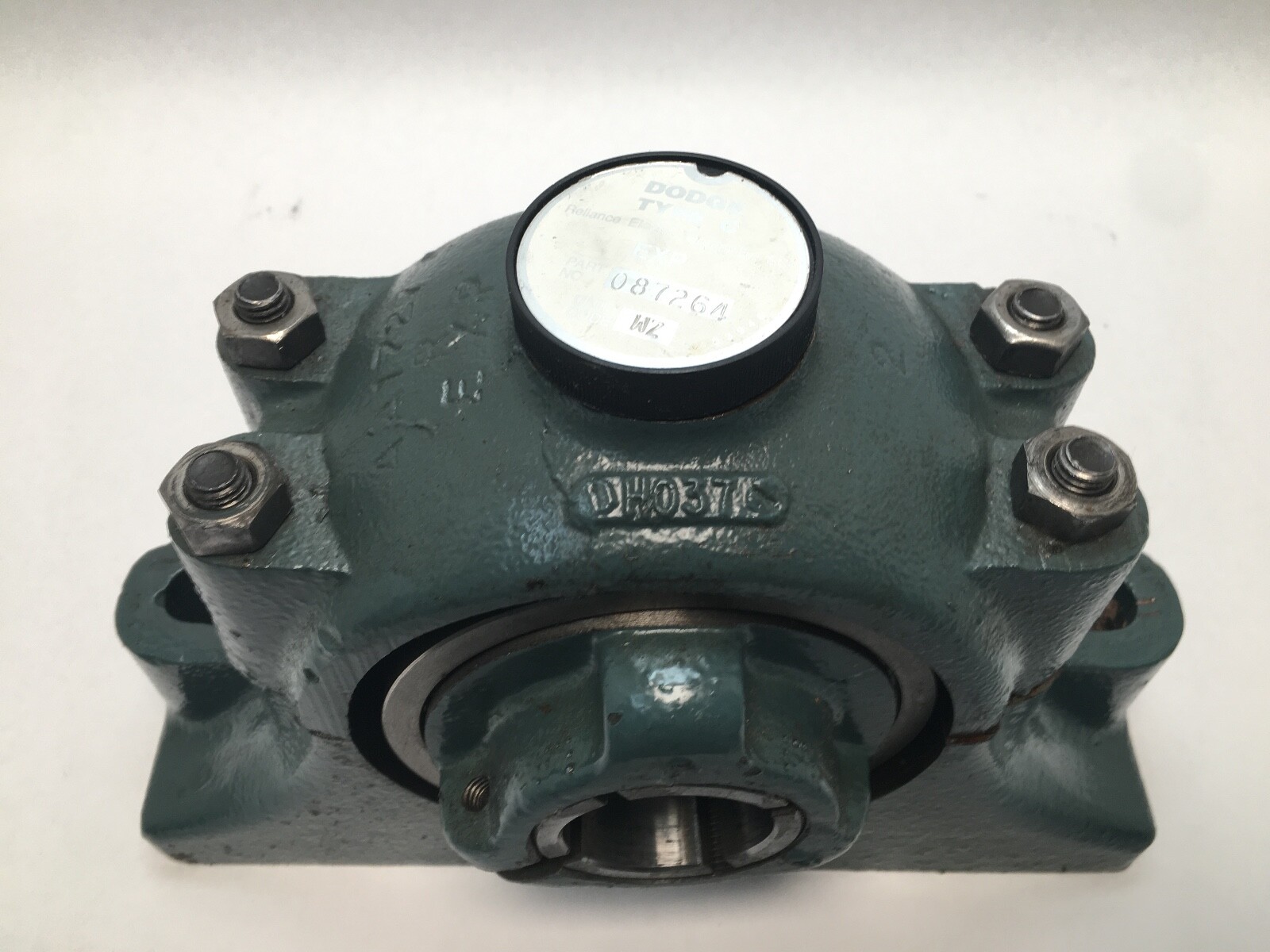

DODGEP2BC108E/087264Two-Bolt Pillow Block Unit – 1-1/2 in Bore, Cast Iron Housing, Type E Tapered Roller Bearing, Single Rubber Seal

Condition: New – Open box
Condition Note: Made In USA, New Old Stock

Availability:

6 in stock

Two-bolt cast iron pillow block, 1-1/2 in bore, Type E tapered roller bearing, single rubber seal, 7.38 to 8.13 in adjustable bolt centres.

Same day shipment

List Price

$684.00

6 in stock

Availability

6 in stock

On the Shelf & Ready to Ship

Free Shipping

On all orders

Free Returns

No Risk, No Hassle

Also Available From:

Specifications

Key Specifications

MFR / BrandDODGE
MPNP2BC108E/087264
GTIN782475041053
ModelP2B C 108 E
ID1-1/2 in

Technical Specifications

MaterialCast Iron
SeriesType E
ConditionNew – Open box
TypeFlanged Mount Bearing
Base NumberP2B-C-108-E
Industry TermsPillow block; Type E bearing; tapered roller pillow block; mounted bearing unit; conveyor pillow block
Application TypesBelt conveyor head and tail shafts; screw conveyors; bucket elevators; aggregate and bulk handling
Condition NoteMade In USA, New Old Stock
Bolt Center To Center7.38 to 8.13 in (slotted base)
Number Of Bolt Holes2
Bolt Center To Center Length7.38 to 8.13 in (slotted base)
Centre Height Base To Bore Centerlinepillow Block3.1 in
Number Of Bolt Holes For Fasteners2
Bore Shaft Size1-1/2 in (1.500 in, 38.10 mm)
Housing StyleTwo-bolt pillow block, one-piece
Mpn VariantsP2BC108E; P2B-C-108E; P2B-C-108-E; P2B C 108 E; P2BC108E/087264; 087264
Distributor Stock NumbersDodge / ABB part number 087264
Dynamic Load Rating22.1 kN (4,968 lbf)
Static Load Rating32.4 kN (7,284 lbf)
Rolling ElementsTapered rollers, single row
Bearing TypeTwo-Bolt Pillow Block Unit, Tapered Roller
Item Weight6.50 lb (2.95 kg)
Limiting Speed4000 rpm
Number Of Rows1
Bore TypeStraight, cylindrical
Snap Ring IncludedNot specified
Harmonization Code8483.20.40
Housing MaterialCast iron
Design UnitsInch
Part NumberP2BC108E / Dodge 087264

Cross-References

Cross Reference 1Dodge P2B-E-108R / 023011 (related size, same 1-1/2 in bore, Type E-Xtra execution)
Cross Reference 2Dodge P2B-SC-108 / 123814 (related size, 1-1/2 in bore, ball insert, set-screw lock, 5.18-5.88 in bolt centres)
Seller Part Number: BE7#ICJFOG

Product Description

What this part is

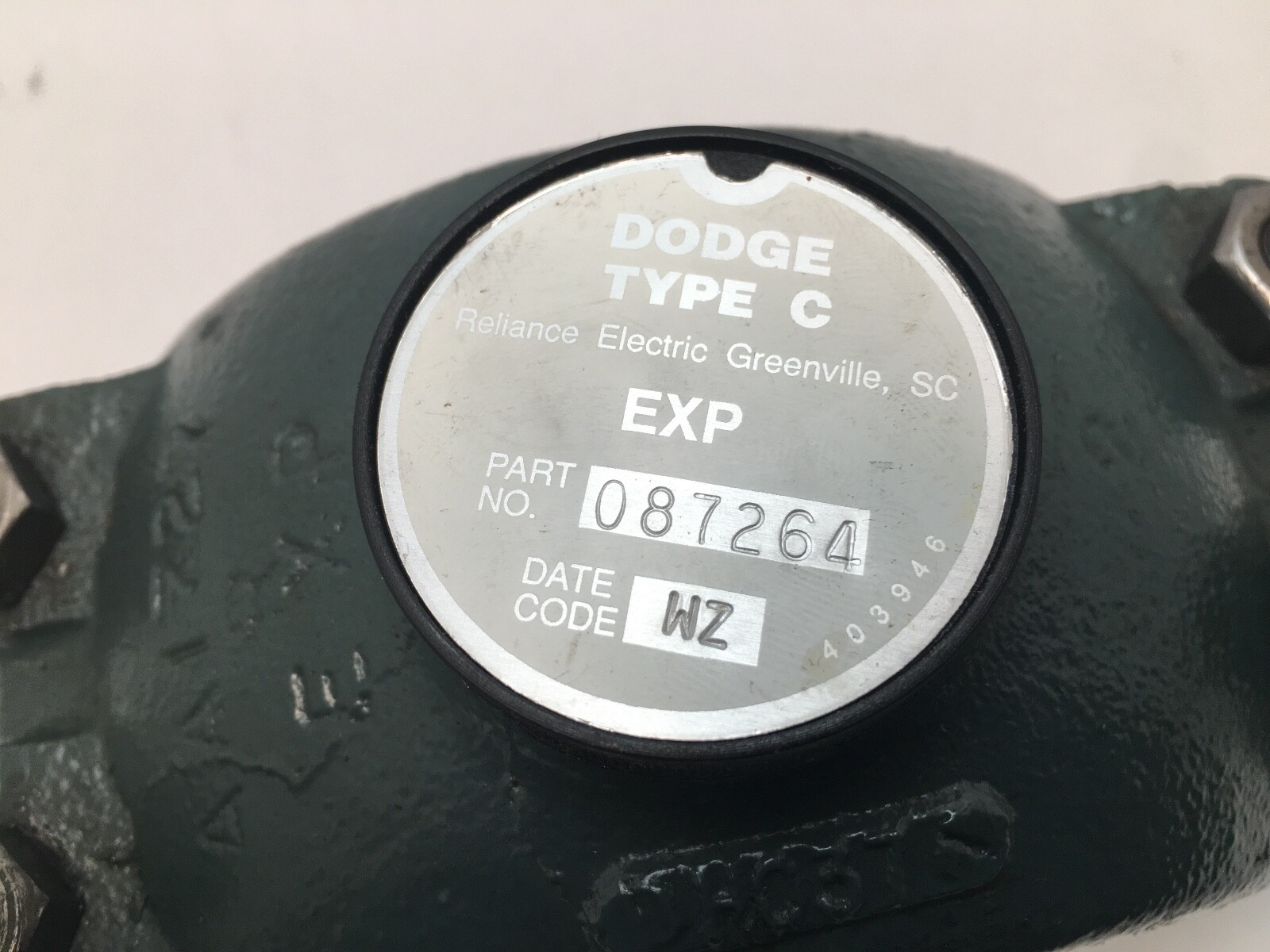

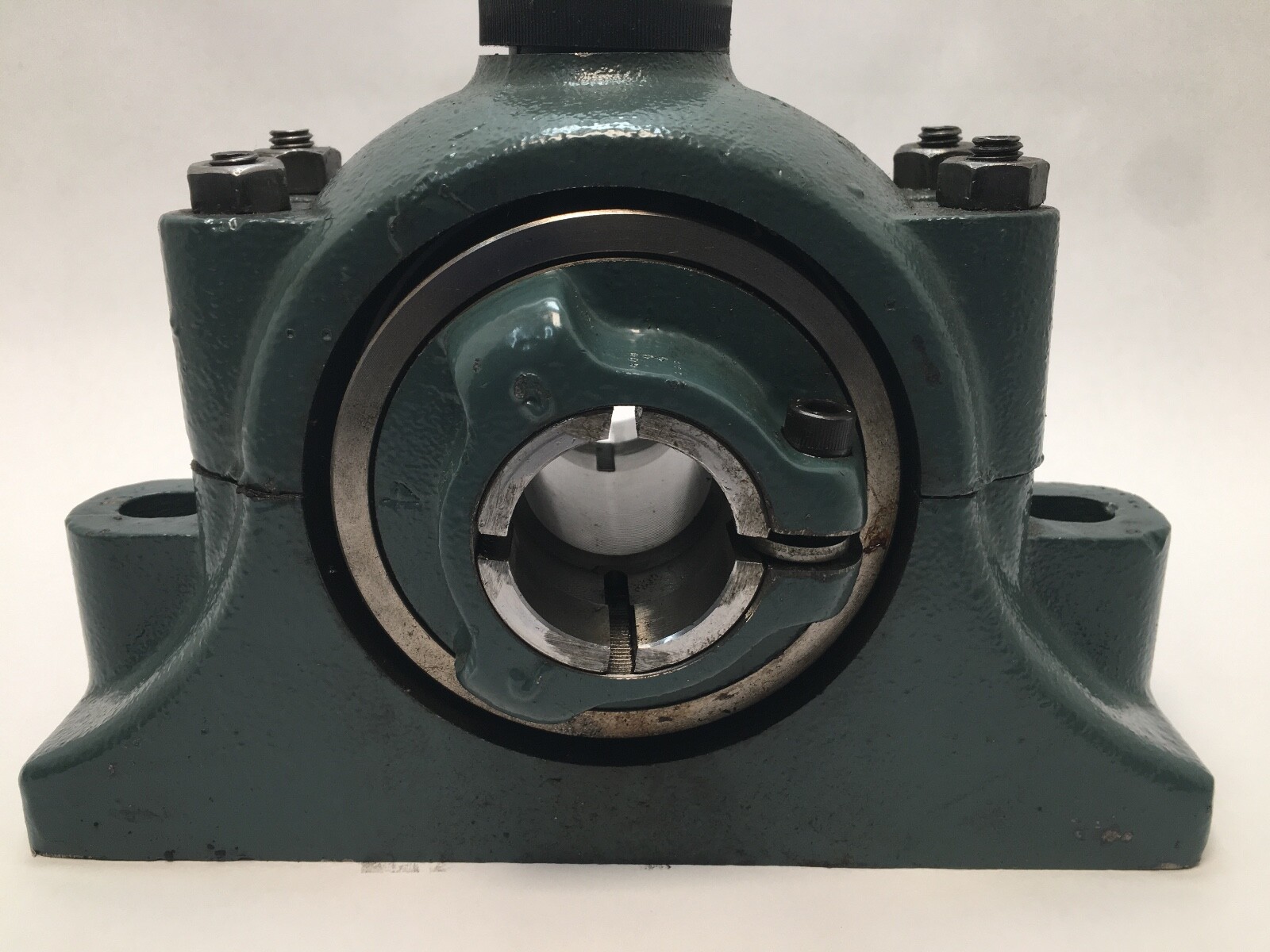

Dodge P2B-C-108-E two-bolt pillow block, Dodge part number 087264. A complete mounted unit: a single-row tapered roller bearing in a one-piece cast iron pillow block housing. Bore: 1-1/2 in, straight. Base to bore centreline: 3.1 in. Country of origin: United States.

Decoding the designation

P2B — two-bolt pillow block housing. 108 — bore code: 1-1/2 in. E — Dodge Type E, the tapered roller mounted bearing line. Searchable forms: P2BC108E, P2B-C-108E, P2B-C-108-E, P2B C 108 E, 087264.

Housing style and bolt pattern

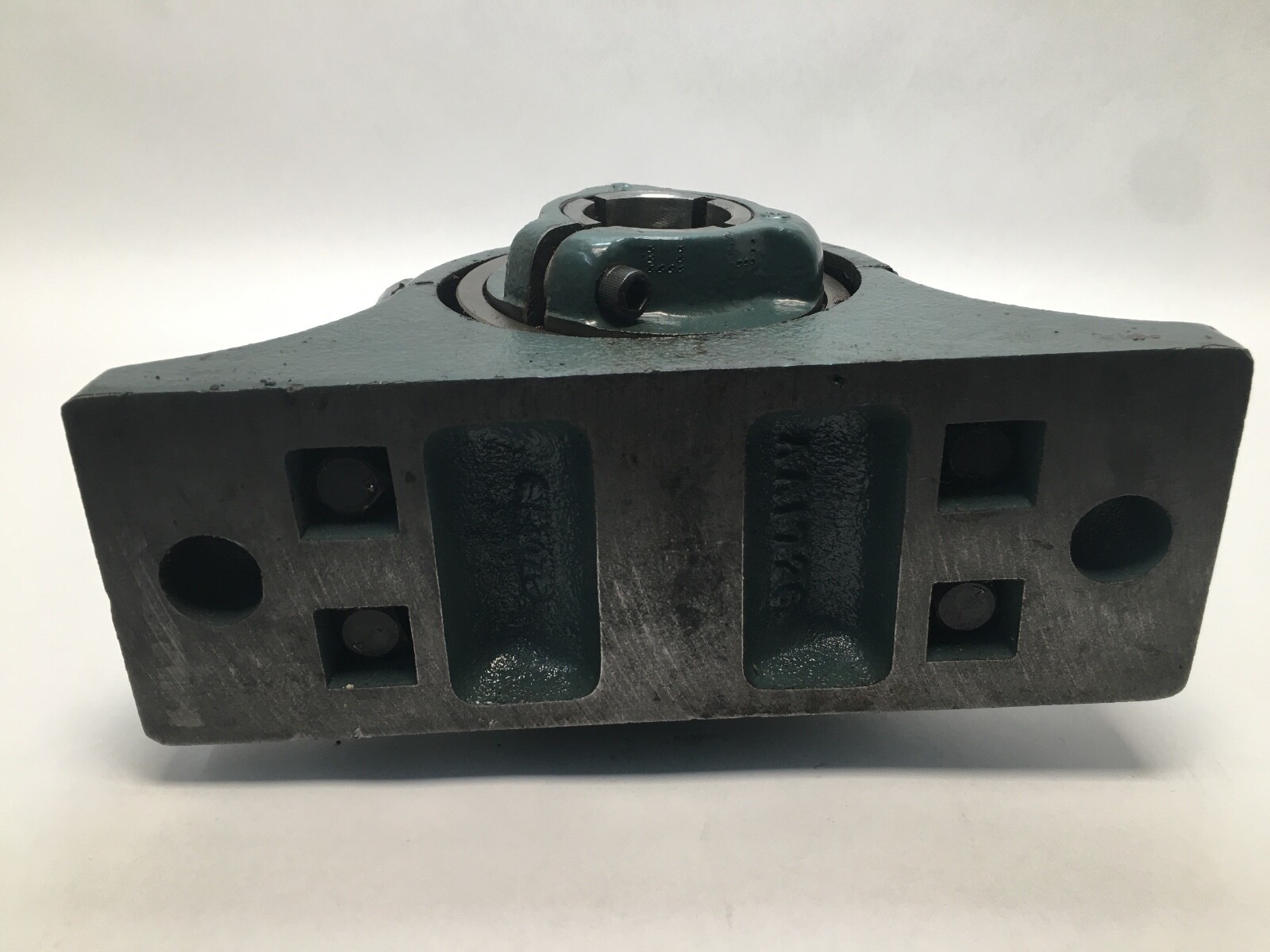

Two bolt holes in the base, slotted for adjustment. Bolt Centre To Centre: 7.38 to 8.13 in. Base to bore centreline: 3.1 in. Cast iron housing, one piece. Unit weight 6.50 lb.

What these specs mean in practice

A tapered roller mounted bearing takes heavy radial load together with substantial thrust in one direction, which is why the Dodge Type E line is specified on conveyor head and tail shafts, screw conveyors and bucket elevators where a ball insert would be marginal. Dynamic Load Rating: 22.1 kN (4,968 lbf). Static Load Rating: 32.4 kN (7,284 lbf). Limiting Speed: 4,000 rpm. Closure: single rubber lip seal.

Quantity and configuration

One complete pillow block per unit: housing, bearing and seal assembled together.

Fitting notes

Shaft: 1-1/2 in, plain and straight. The slotted base gives 0.75 in of bolt-centre adjustment for shaft alignment across a pair of blocks. Set the base to bore centreline of 3.1 in when calculating shaft height above the mounting surface.

Interchange guidance

Dodge P2B-E-108R is the same Type E tapered roller pillow block at the same 1-1/2 in bore in the E-Xtra execution, so it is a related size. Dodge P2B-SC-108 is a ball-insert two-bolt pillow block at the same bore with set-screw locking and different load ratings, and a different bolt-centre range of 5.18 to 5.88 in.
