DodgeF2B-SC-0102-Bolt Flange Bearing Unit, 5/8 in Bore, Cast Iron, Set Screw

Product Description

What this part is:

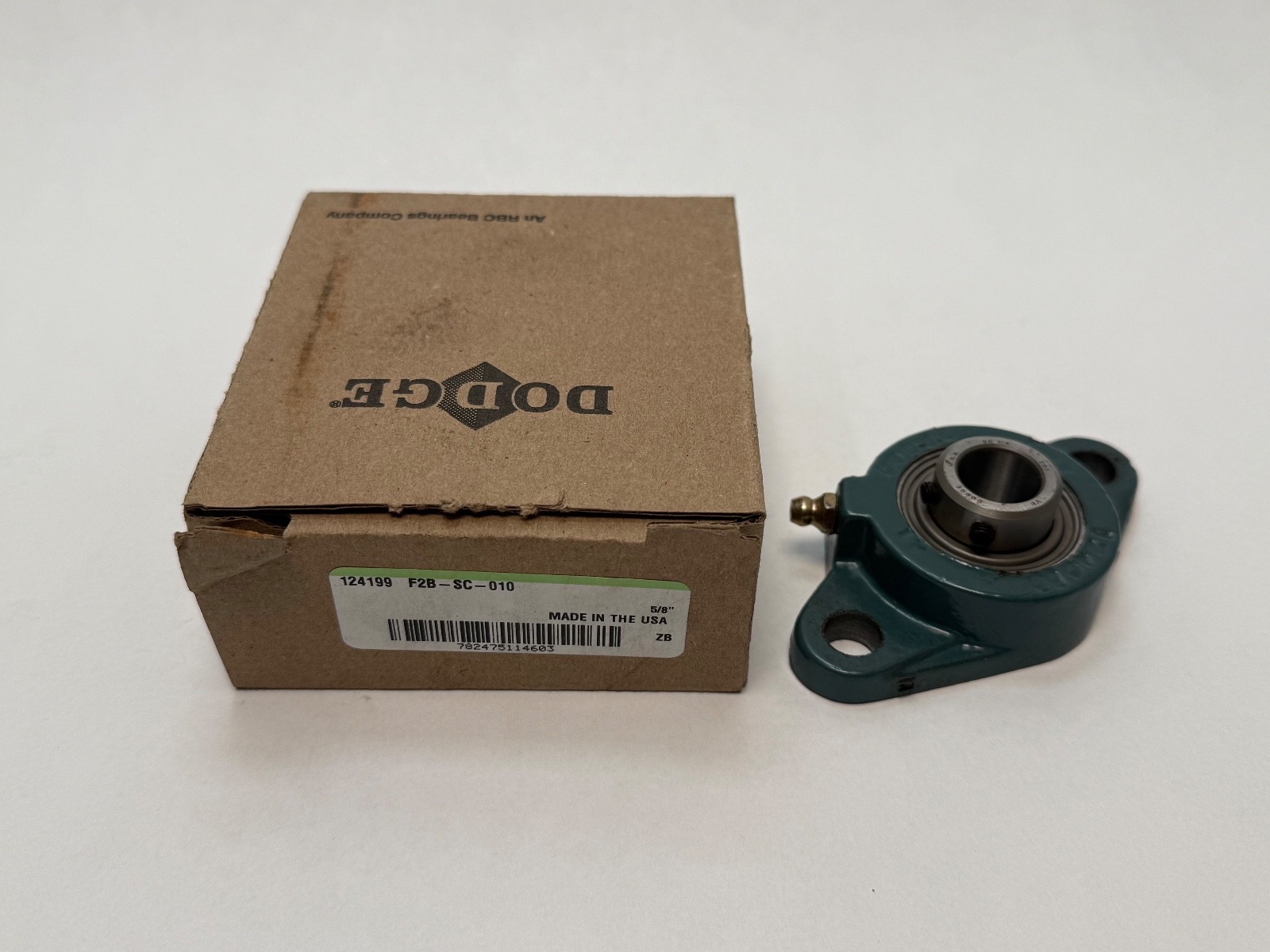

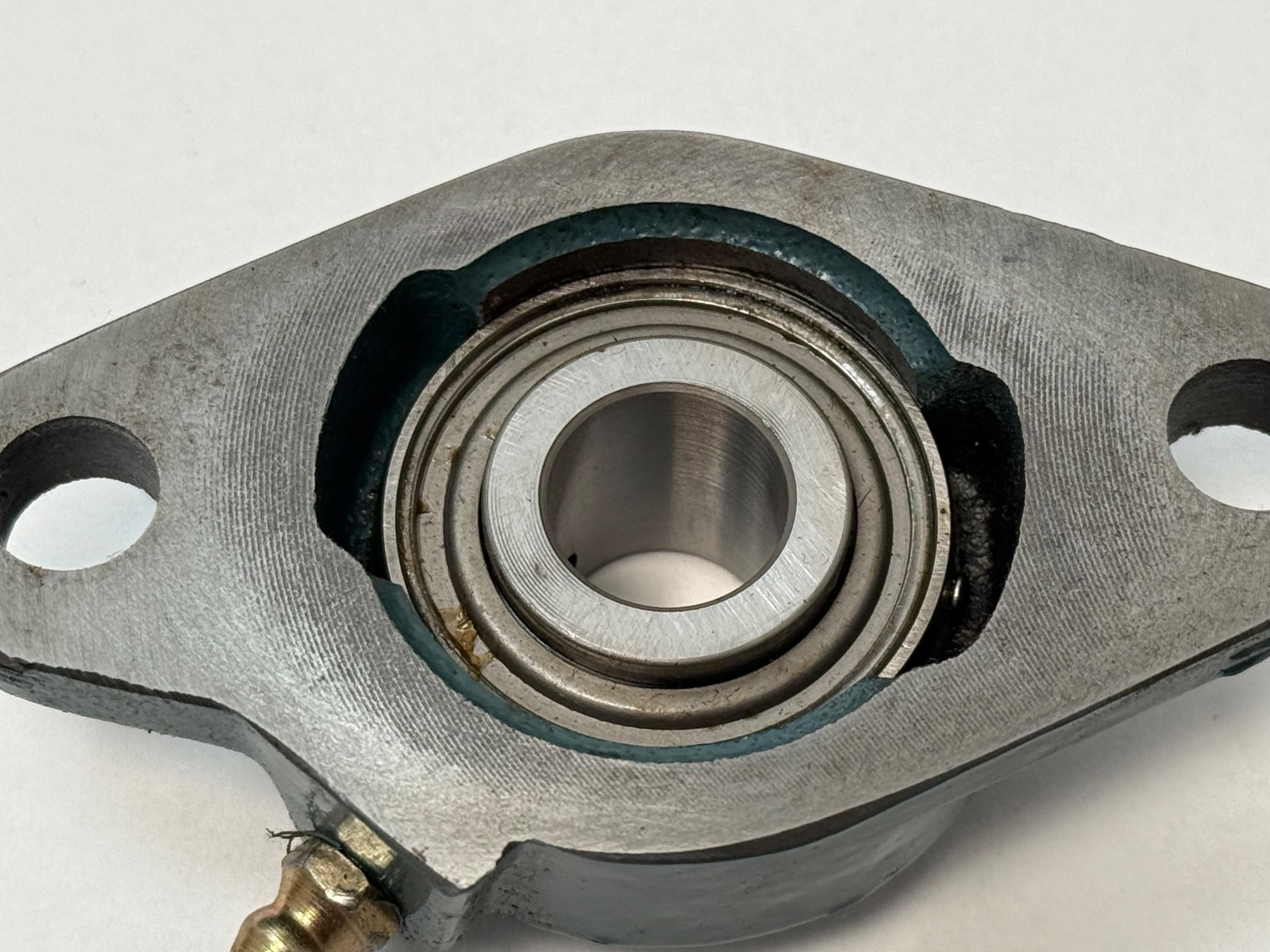

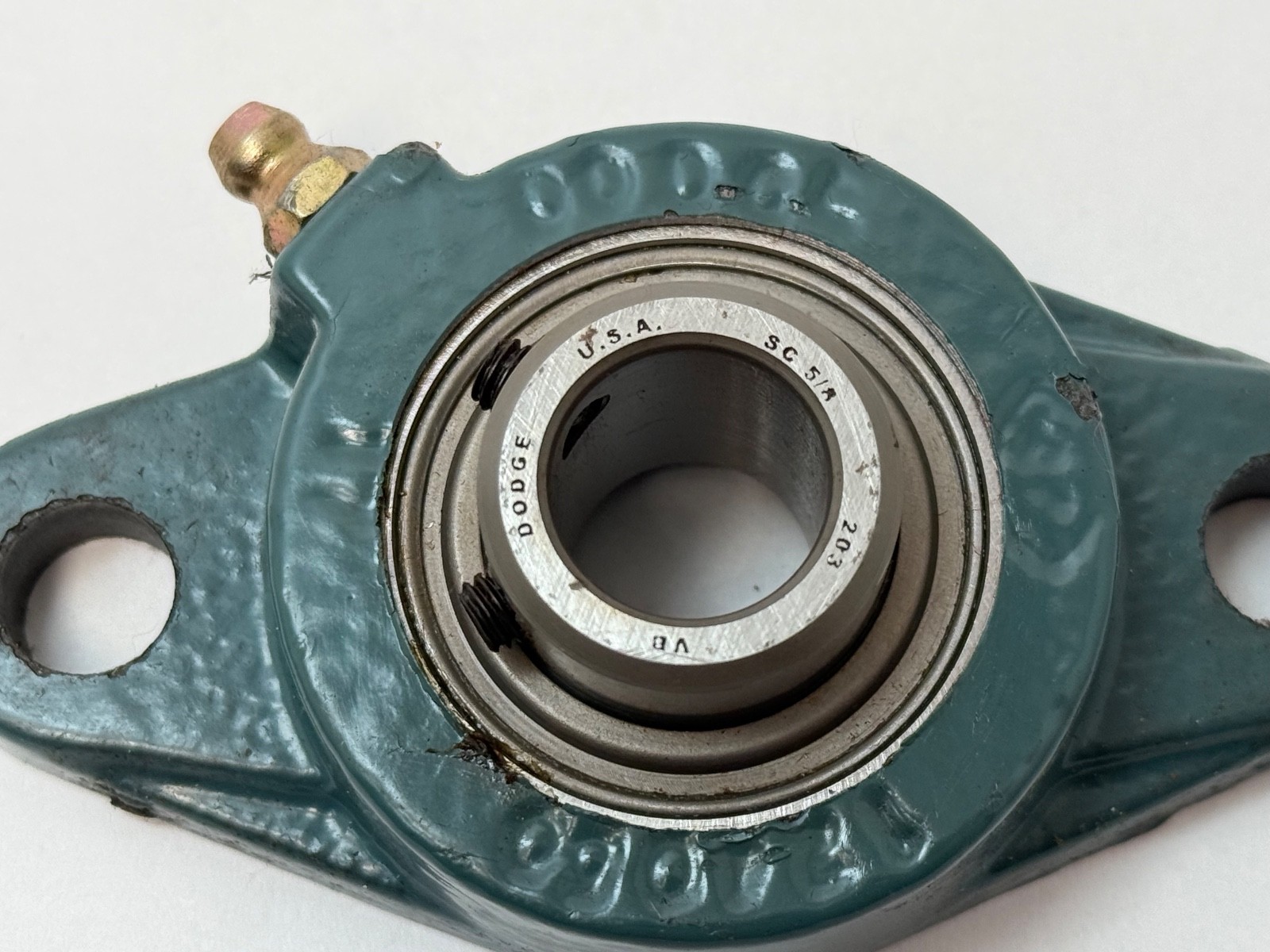

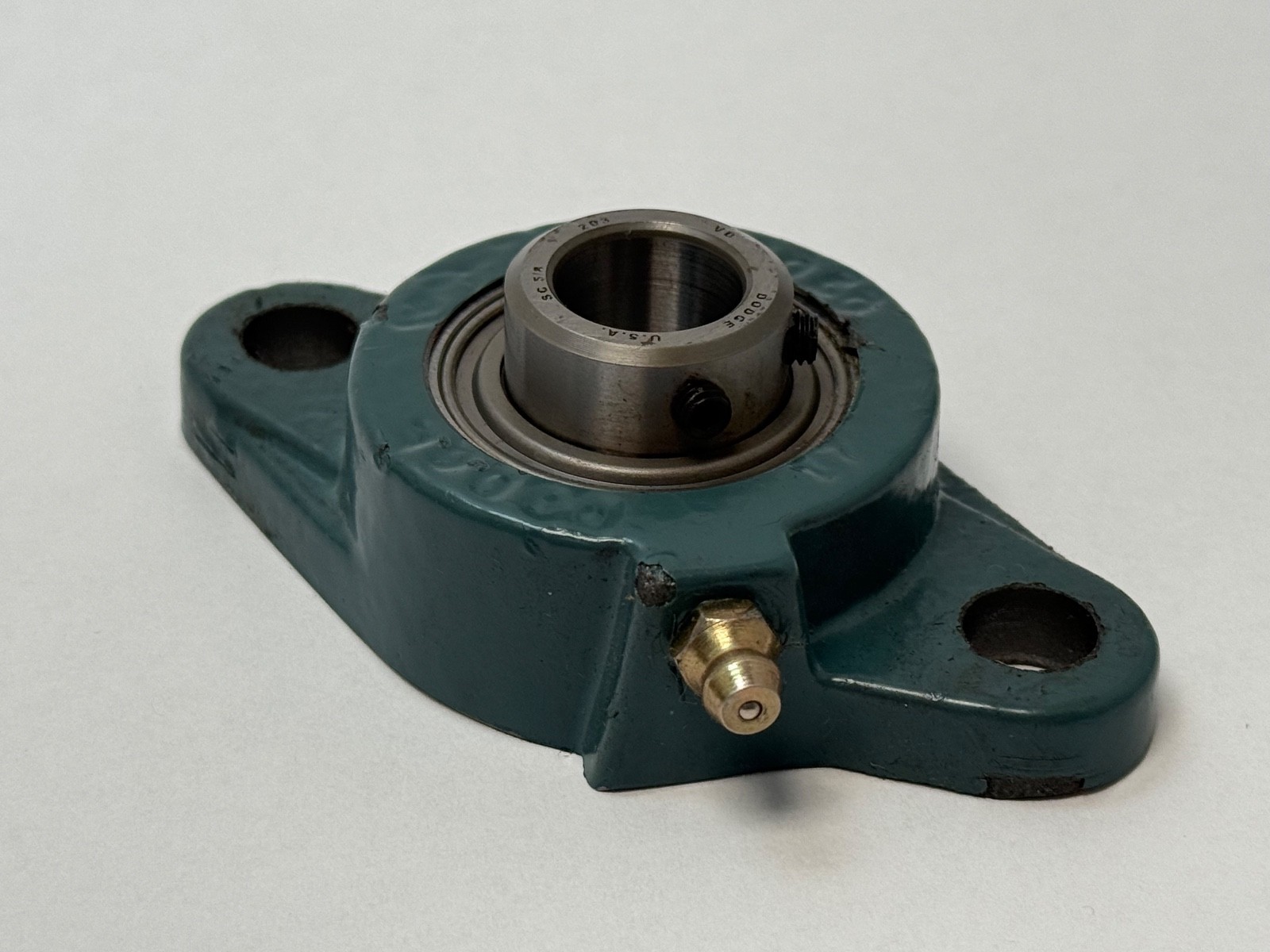

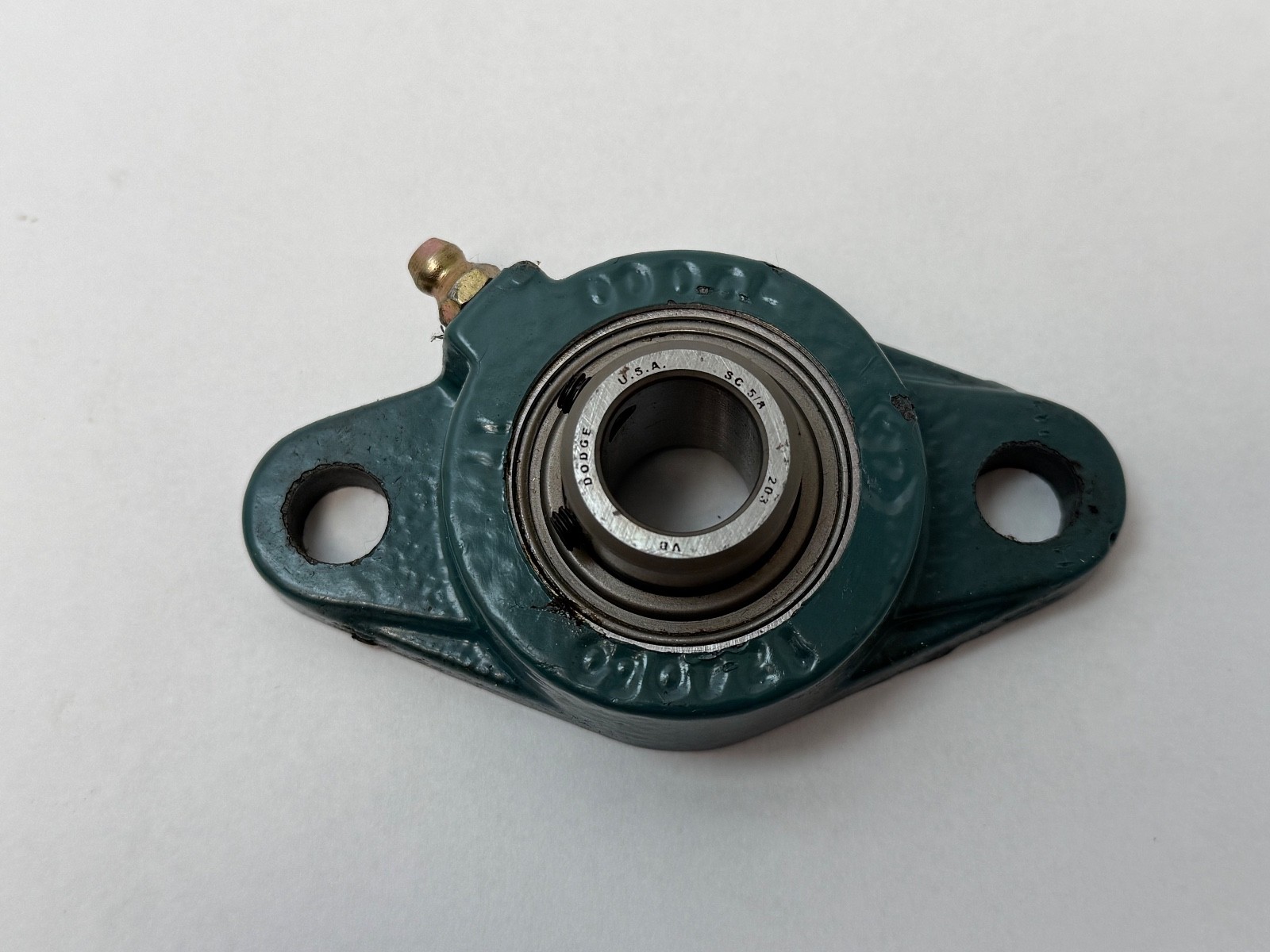

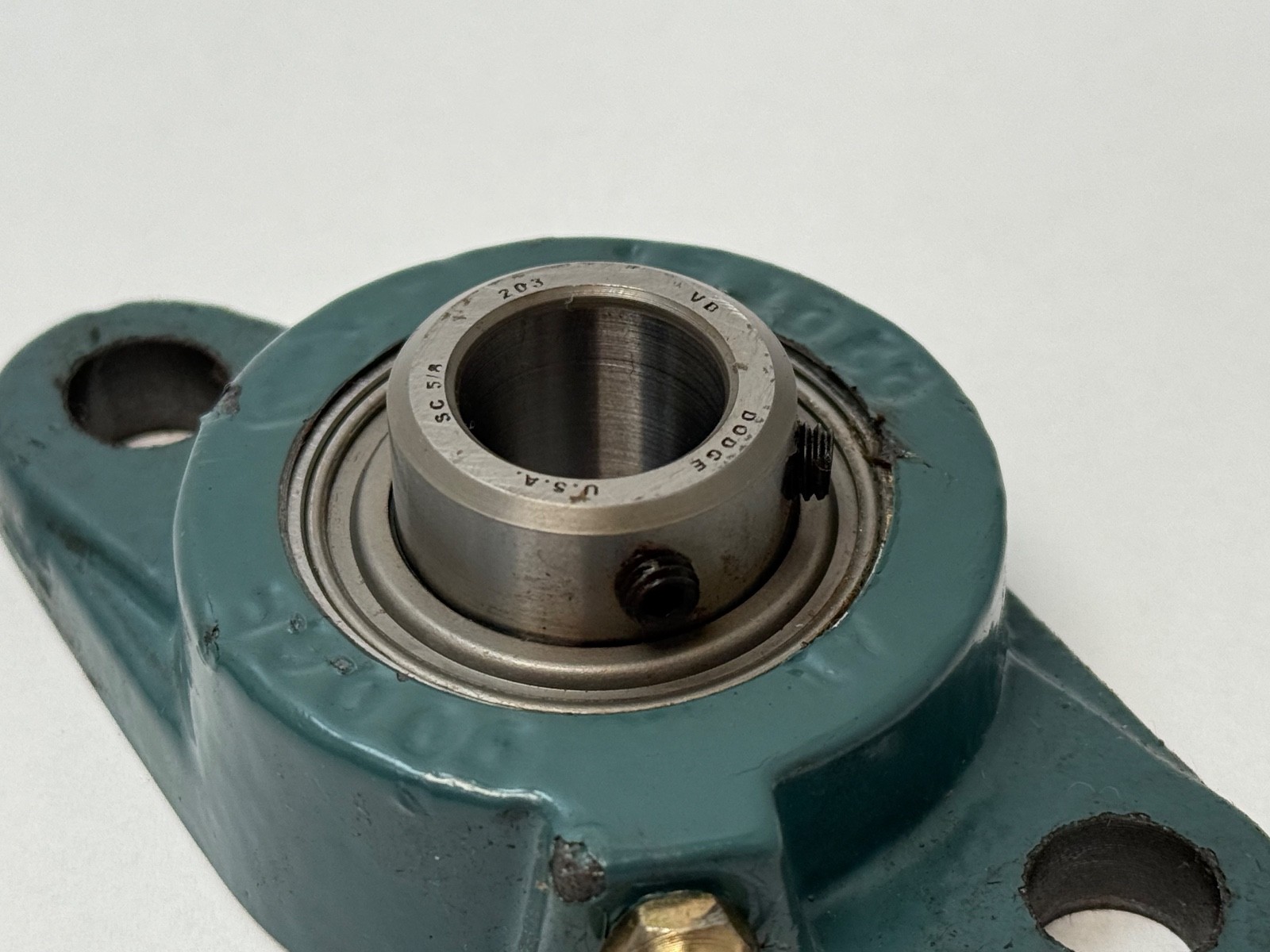

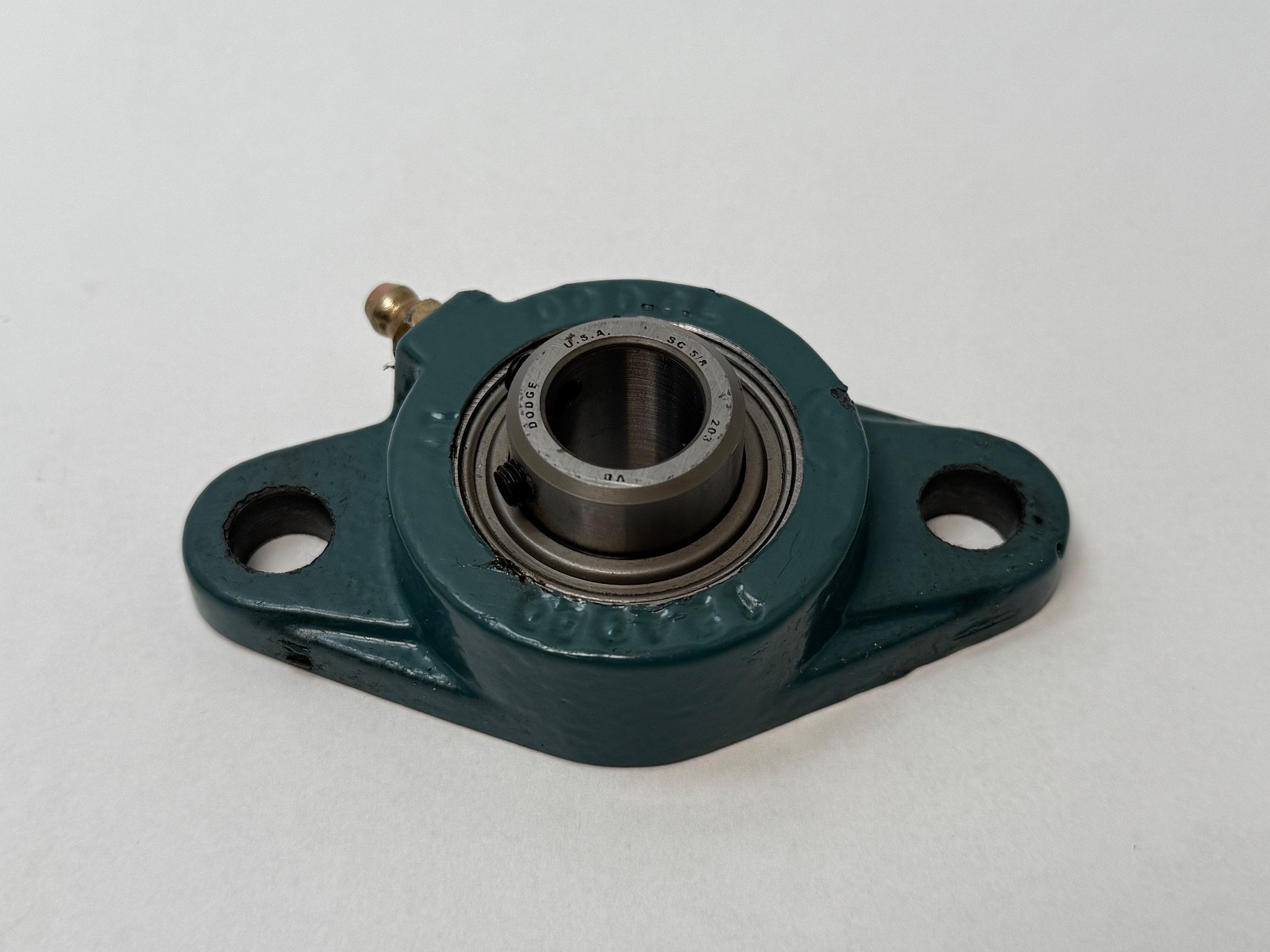

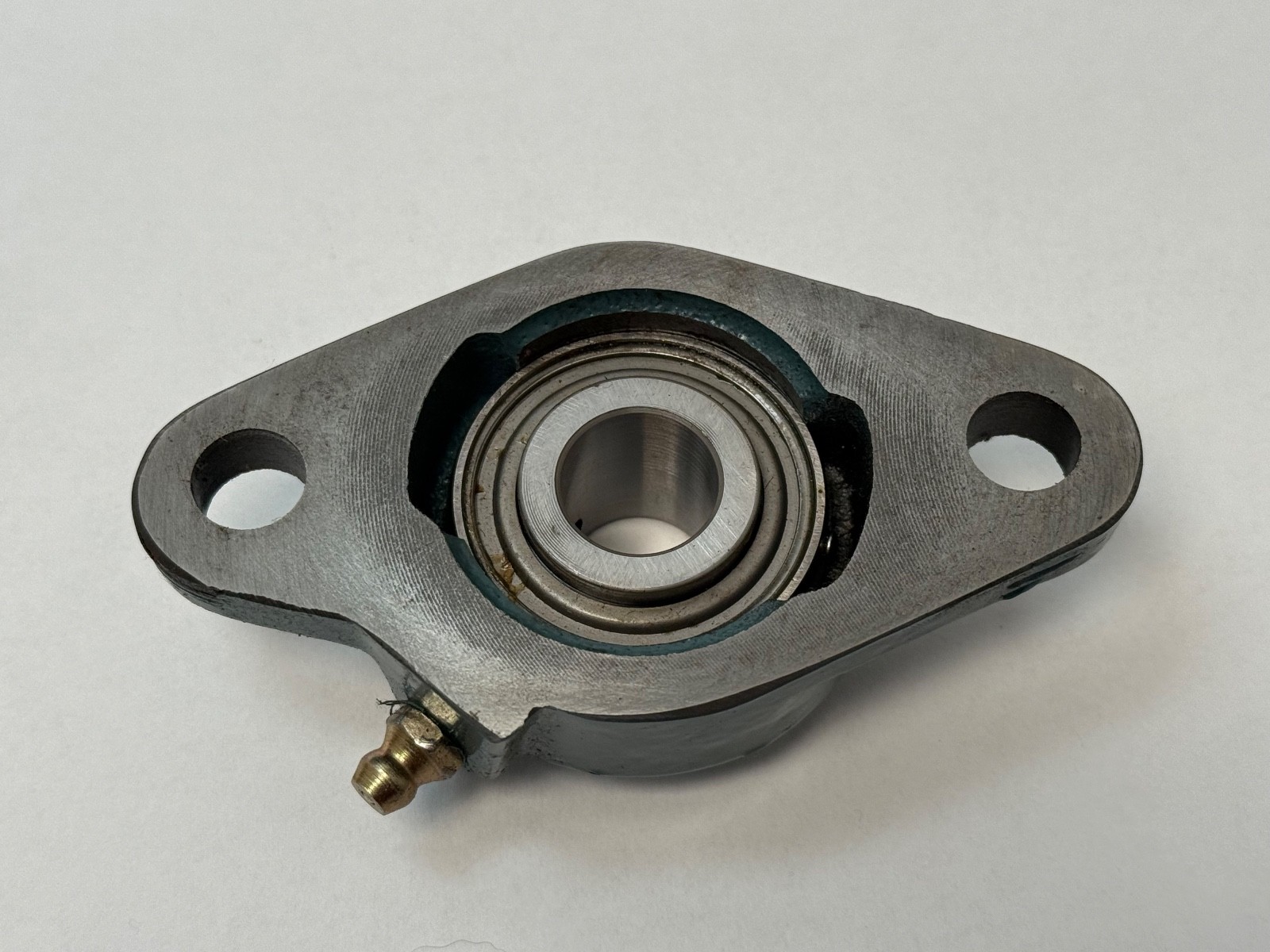

Dodge F2B-SC-010, part number 124199, complete two-bolt flange-mounted ball bearing unit with a 5/8 in bore. Cast iron flange housing with a ball bearing insert fitted. Set screw locking, standard duty, non-expansion (fixed). Unit Quantity: 1 Pc.

Decoding the designation:

F2B — Dodge two-bolt flange housing designation. F4B is the four-bolt square flange and P2B the two-bolt pillow block.

SC — Dodge set-screw ball bearing insert series.

010 — bore in sixteenths of an inch, 10/16 = 5/8 in.

124199 — Dodge stock number.

Specifications:

Bore Diameter: 5/8 in (0.625 in). Housing Style: Two-bolt flange. Housing Material: Cast iron. Duty Type: Standard duty. Locking Method: Set screw. Expansion Type: Non-expansion (fixed). Insert Type: Ball bearing. Insert Outer Ring: Spherical. Number Of Bolt Holes: 2. Seal Type: Double rubber seal. Lubricant: Grease. Item Weight: 0.70 lb. Harmonization Code: 8483.20.40.40. Country of Origin: United States.

Dimensions and mounting:

Bolt Center To Center: 3.00 in. Bolt Holes: 2. Flange mount with the bolts going into a surface perpendicular to the shaft.

Compatibility and replacement:

Related Dodge units: F4B-SC-010 (four-bolt square flange, same bore and insert series) and P2B-SC-010 (two-bolt pillow block, same bore and insert series). MPN Variants: 124199, F2B-SC-010, F2BSC010, F2B SC 010, F2B-SC-10, F2BSC10. Dodge brand history: Rockwell, Reliance, Baldor, ABB, now Dodge Industrial.

Frequently asked questions:

What bore does the Dodge F2B-SC-010 have?

5/8 in (0.625 in). The 010 in the designation is the bore in sixteenths of an inch.

Is the Dodge 124199 a complete unit?

Yes. It is a cast iron flange housing with the ball bearing insert fitted.

Is the F2B-SC-010 an expansion or non-expansion unit?

Non-expansion (fixed). The bearing outer ring is held axially in the housing.
