AMI BearingsUCF212AMI UCF212 4-Bolt Flange Mount Bearing 60mm ID Set Screw UCF-212 F212 UC212

Product Description

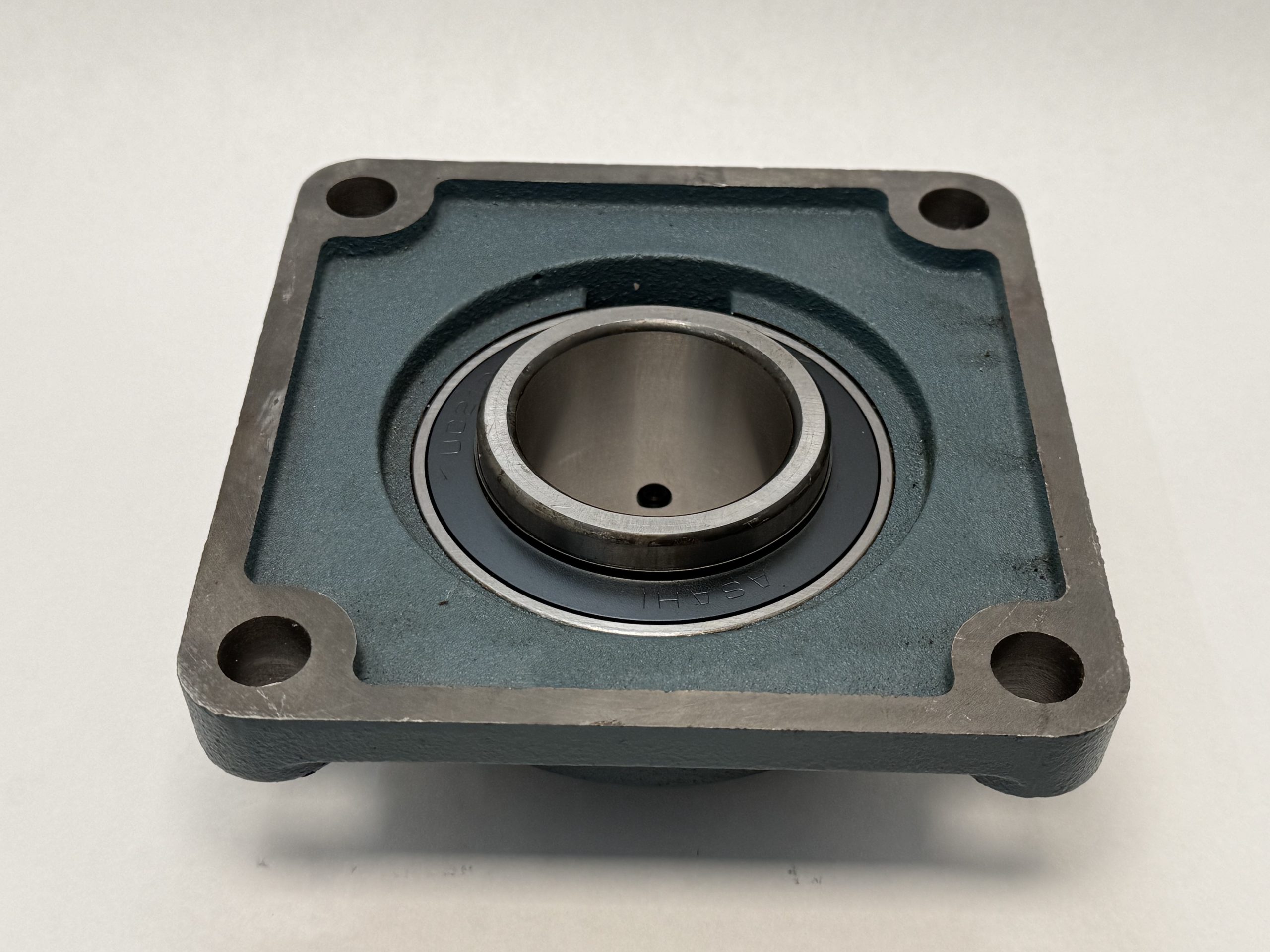

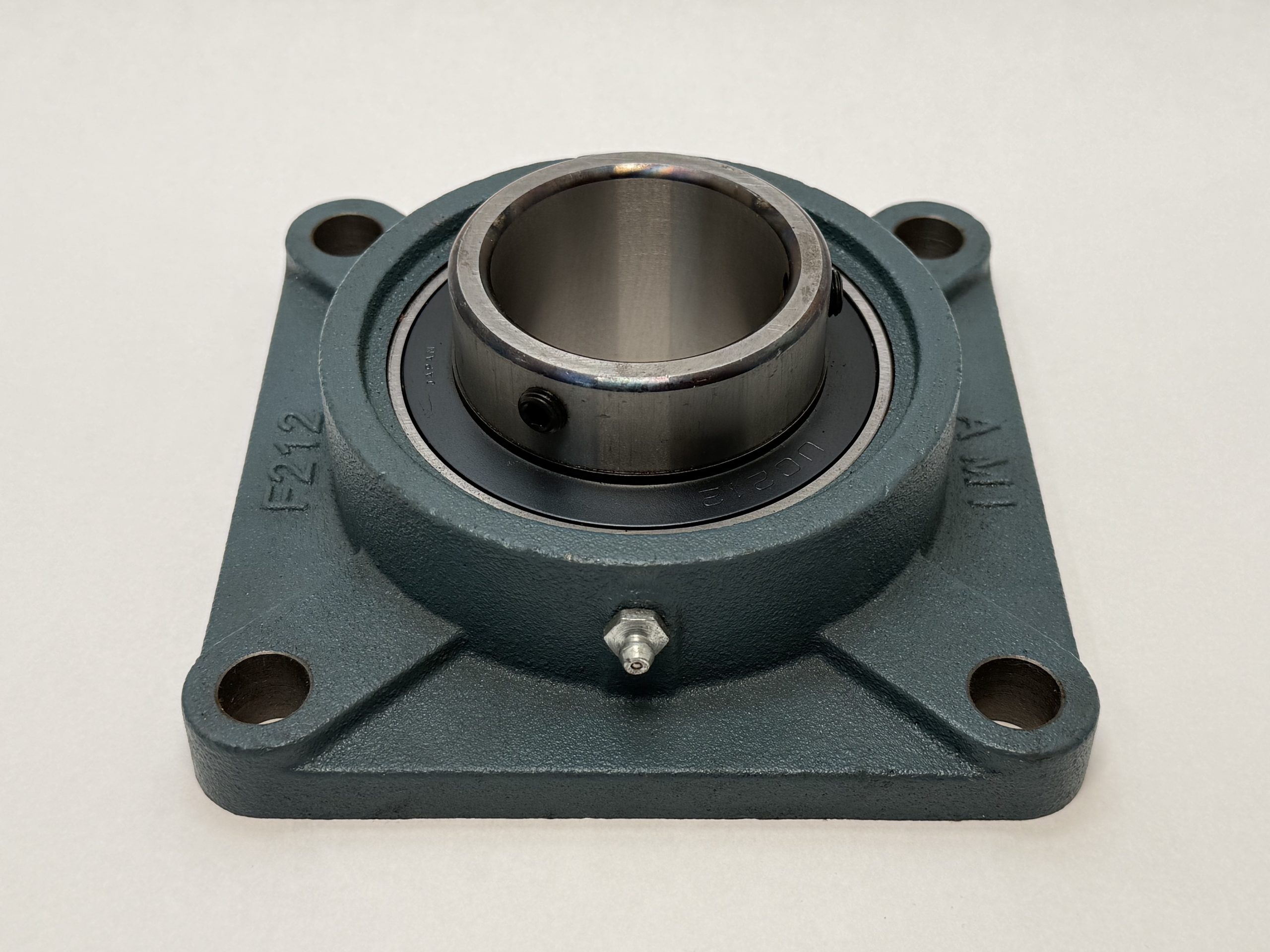

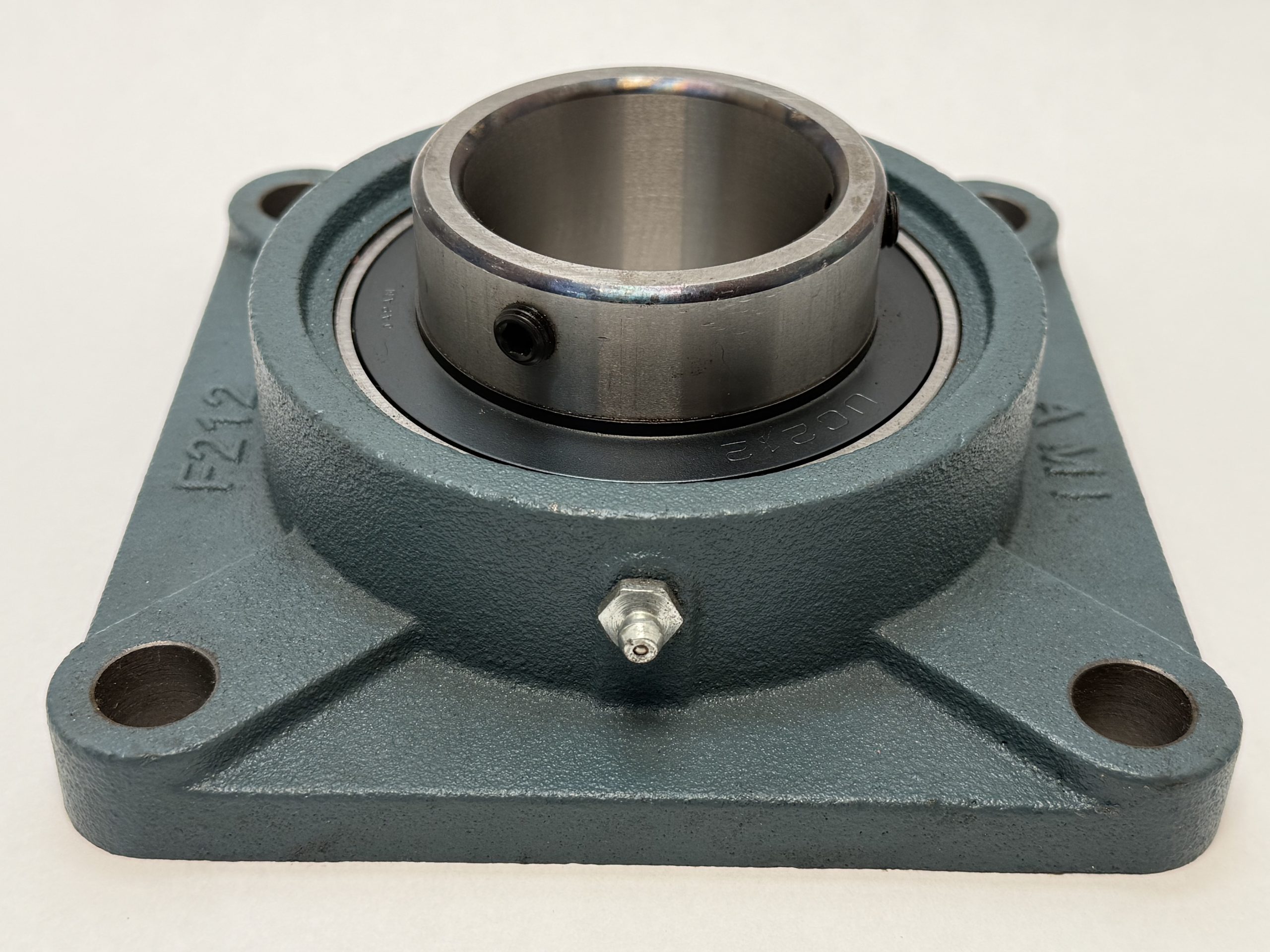

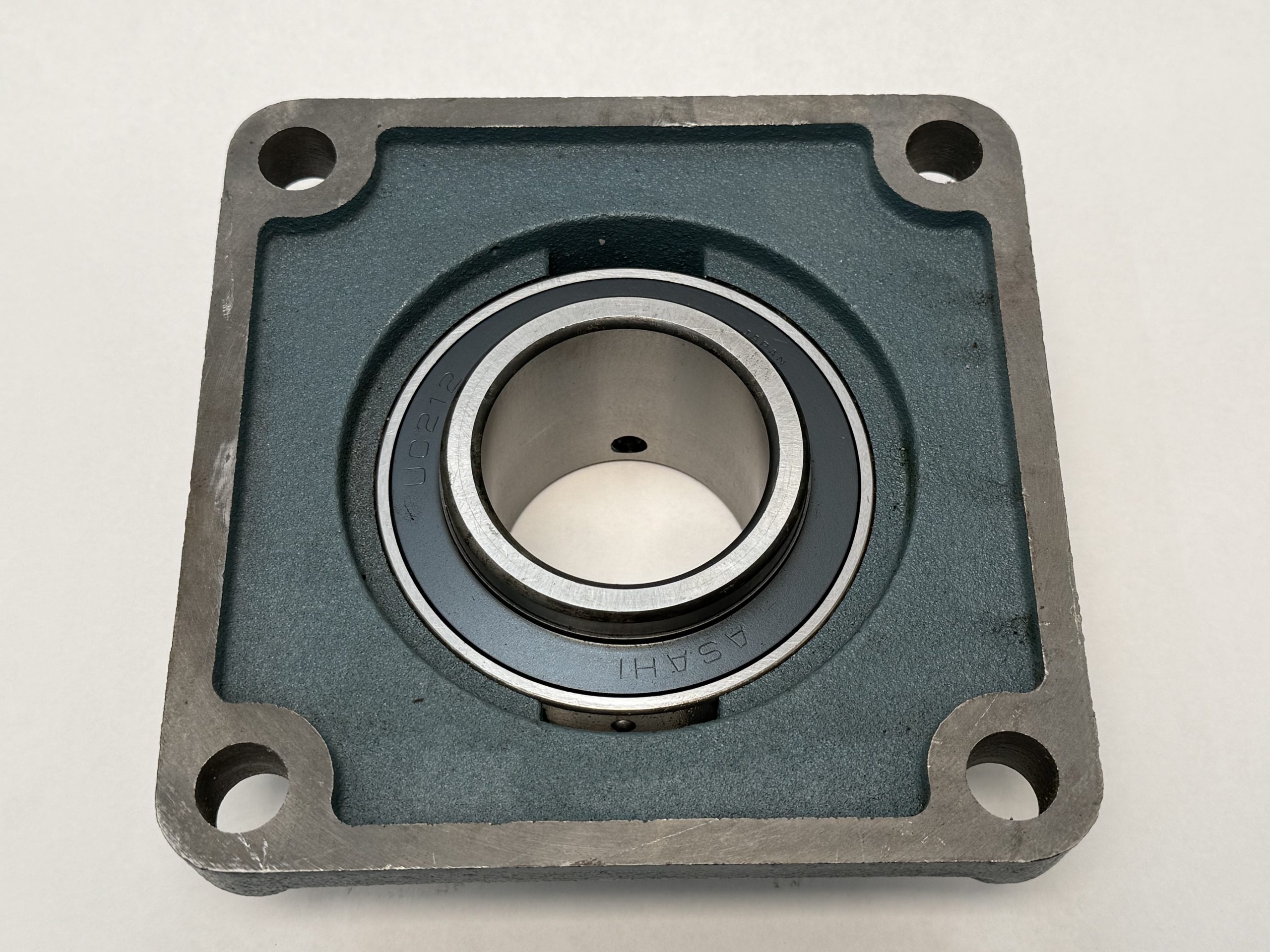

What this isOne (1) AMI UCF212 four-bolt square flange bearing unit for a 60 mm shaft — a cast iron F212 housing carrying a UC212 set screw ball bearing insert. The insert has an extended inner ring locked to the shaft by set screws and a spherical outside diameter, so it self-aligns in the housing. Regreasable through the fitted grease nipple.

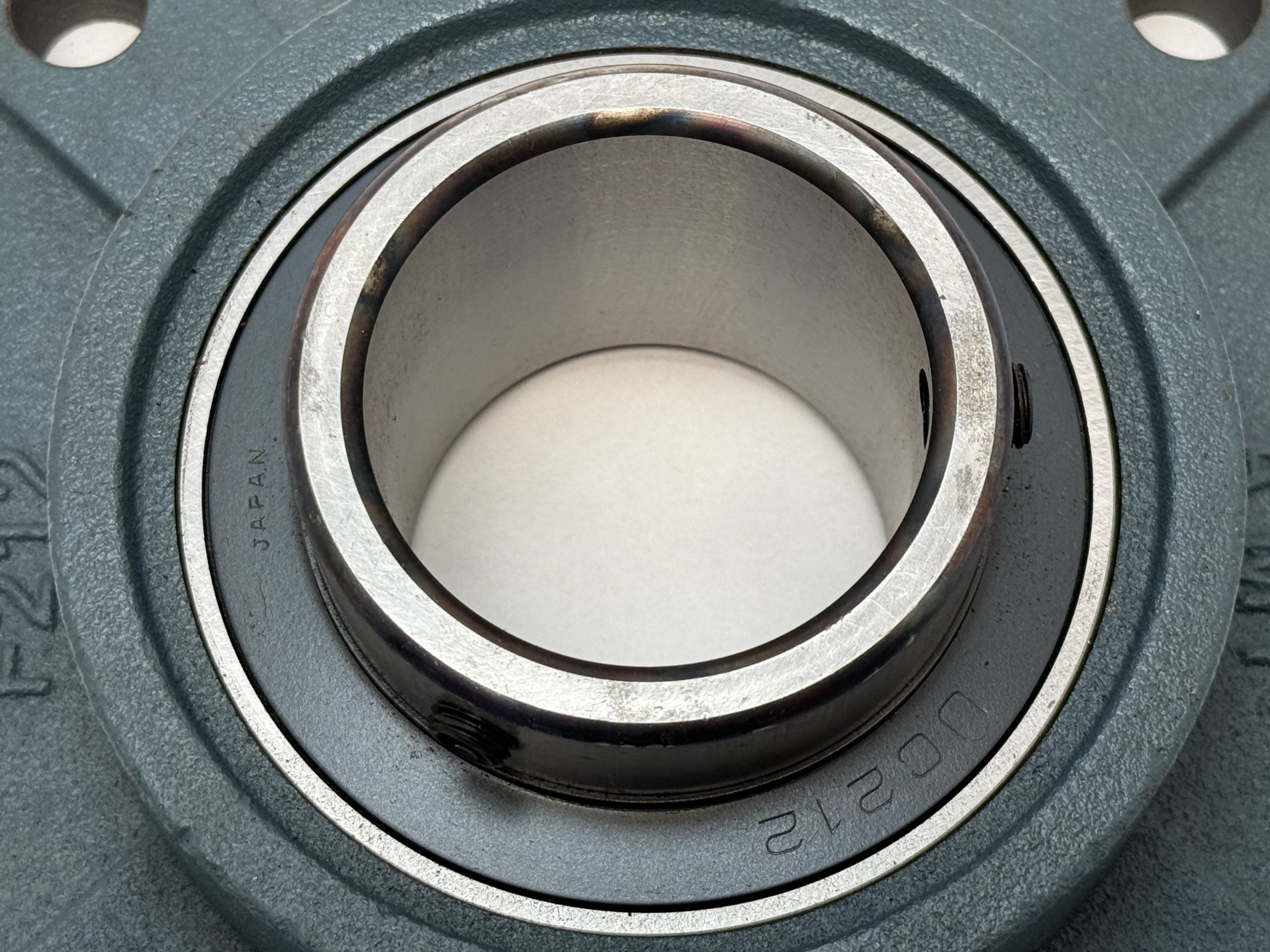

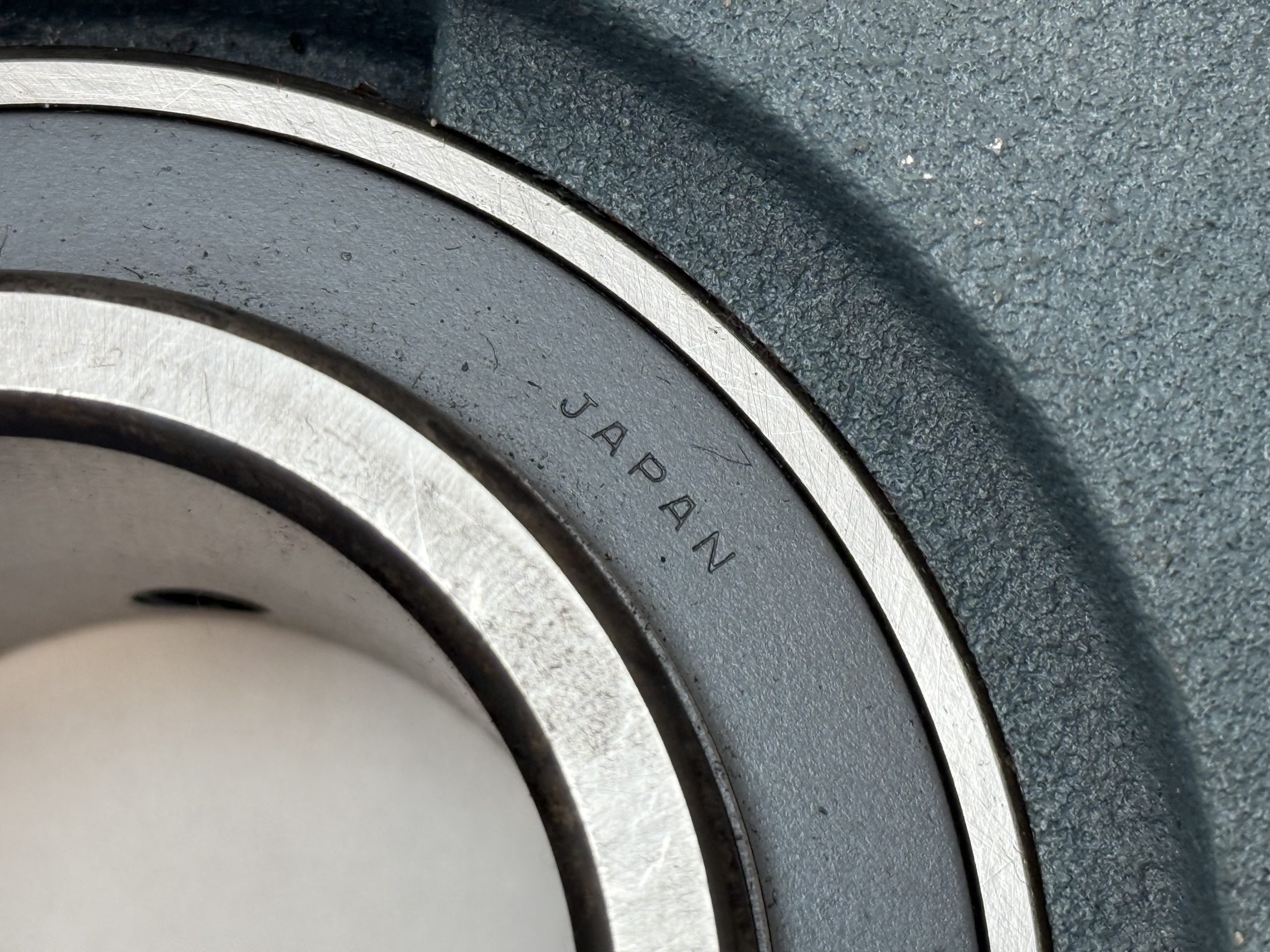

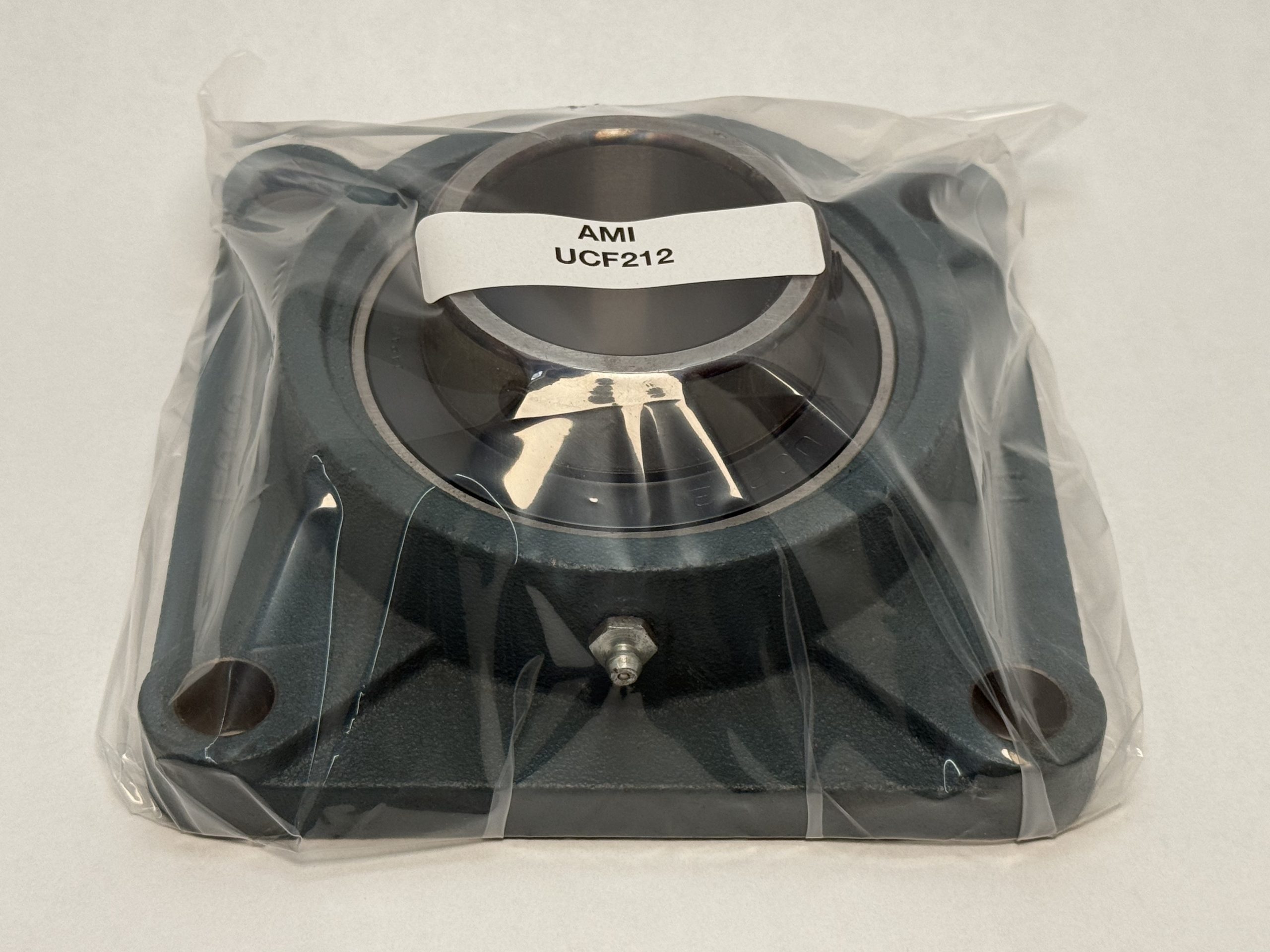

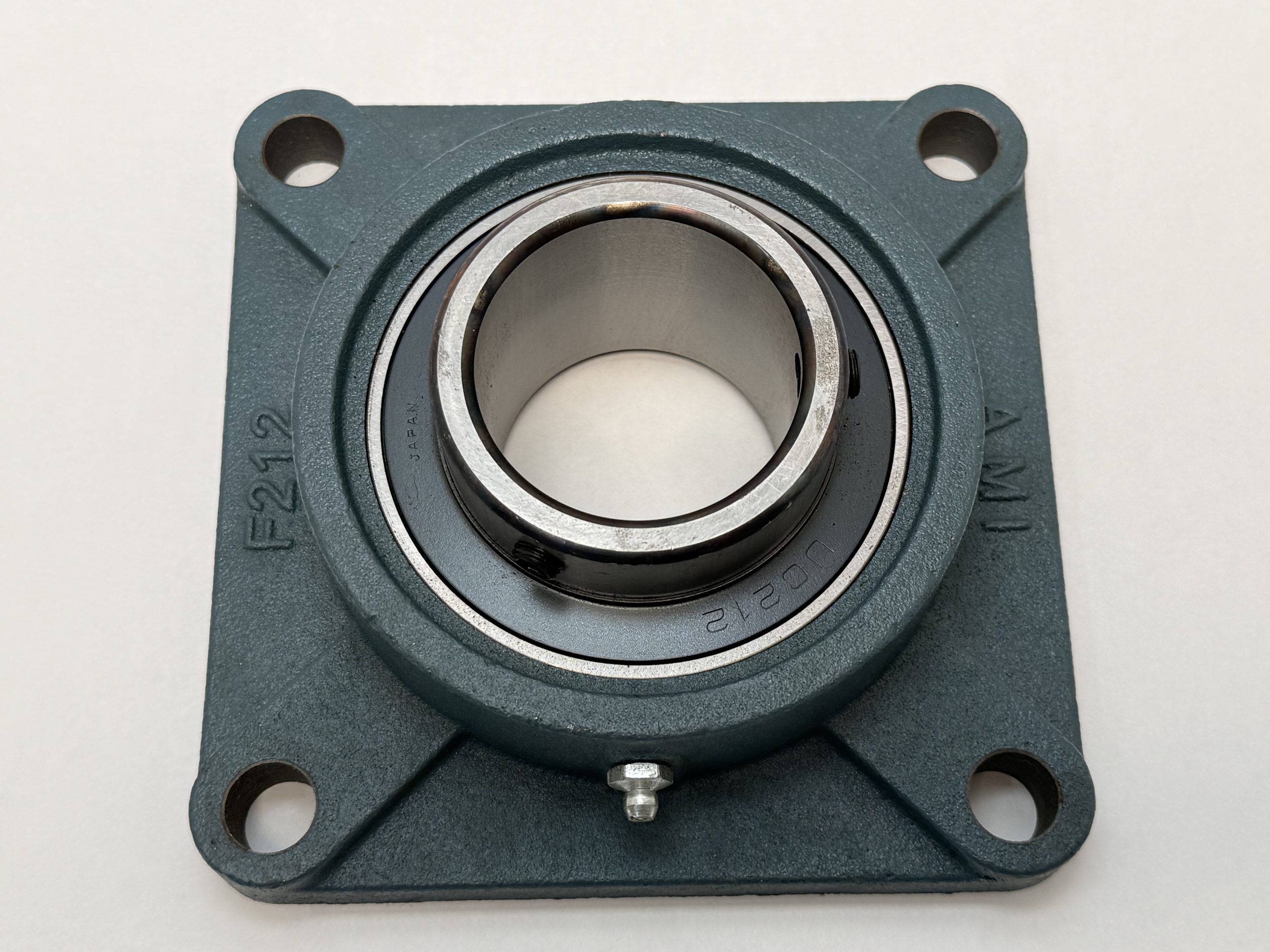

The insert is marked UC212 and JAPAN; the housing is cast F212 and AMI. Supplied bagged, without its original box.

How the part number breaks downUC — ball bearing insert with set screw locking and an extended inner ring.

F — four-bolt square flange housing.

212 — the 200 series, size 12. In metric the size times five gives the bore: 12 x 5 = 60 mm.

Also sold and searched as UCF-212, with the housing alone as F212 and the insert alone as UC212. The UCF212-36, -38 and -39 are inch-bore versions of the same frame (2-1/4″, 2-3/8″ and 2-7/16″); this one is the 60 mm metric bore.

Item SpecificationsBrand: AMI BearingsPart number: UCF212Type: Four-bolt square flange unitBore: 60 mmInsert: UC212, set screw locking, normal dutyHousing: F212, cast ironOverall square: 175 mmBolt spacing: 143 mmBolt size: M16Insert inner ring width: 65.1 mmOverall height: 68.7 mmLubrication fitting: 1/8-27 NPTInsert material: AISI 52100 steelWeight: 10.3 lbCountry of origin (insert): Japan
