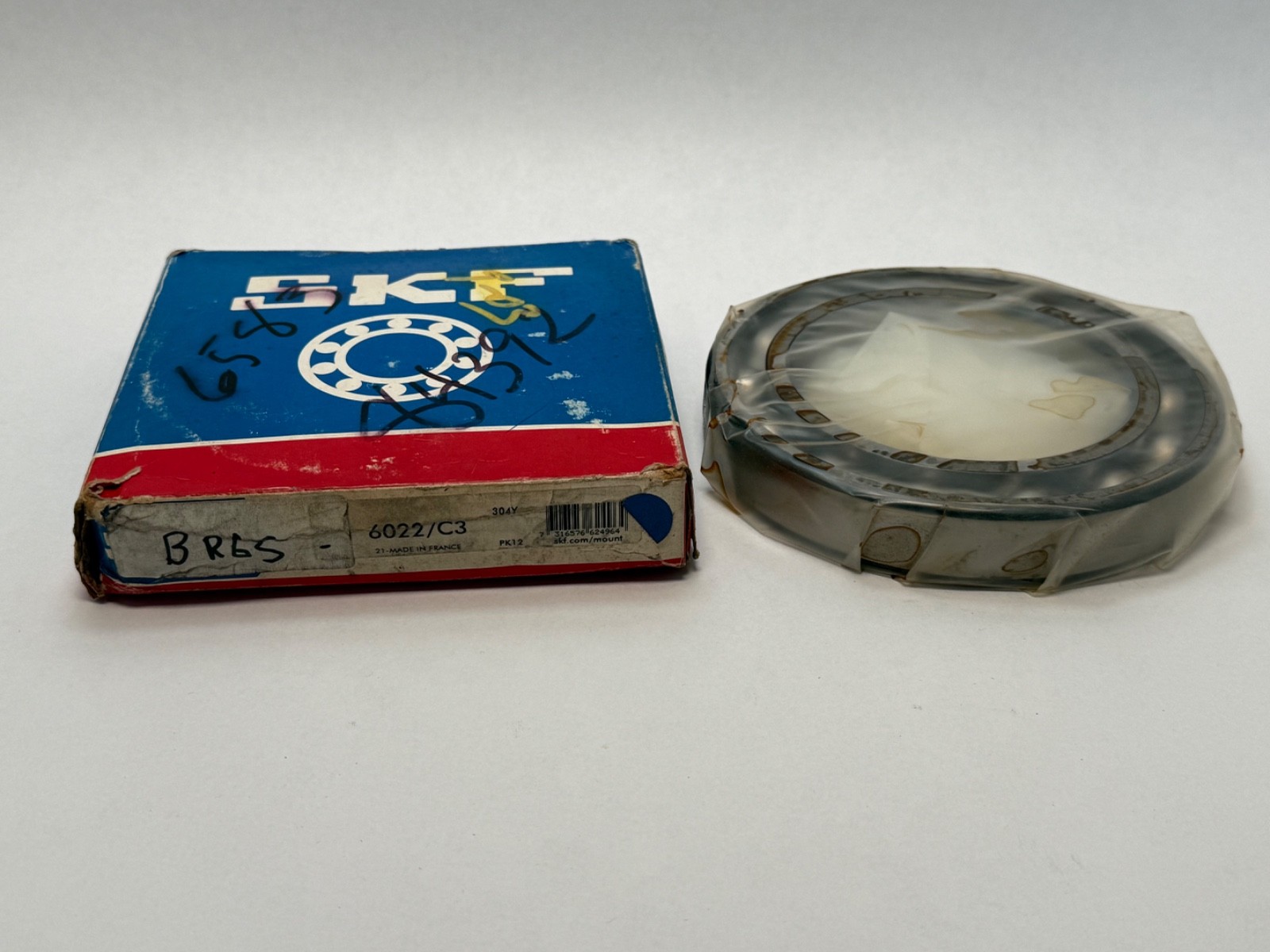

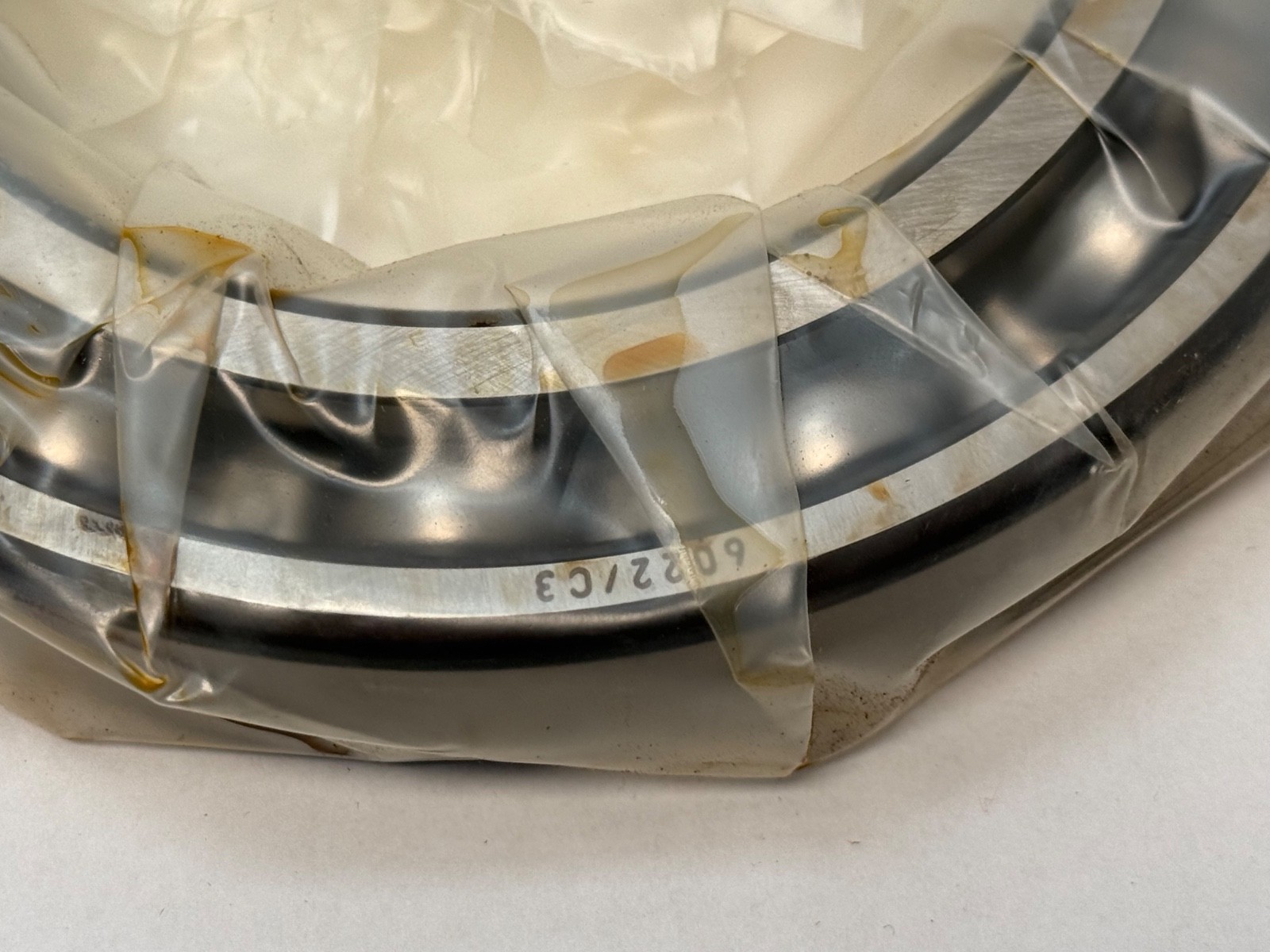

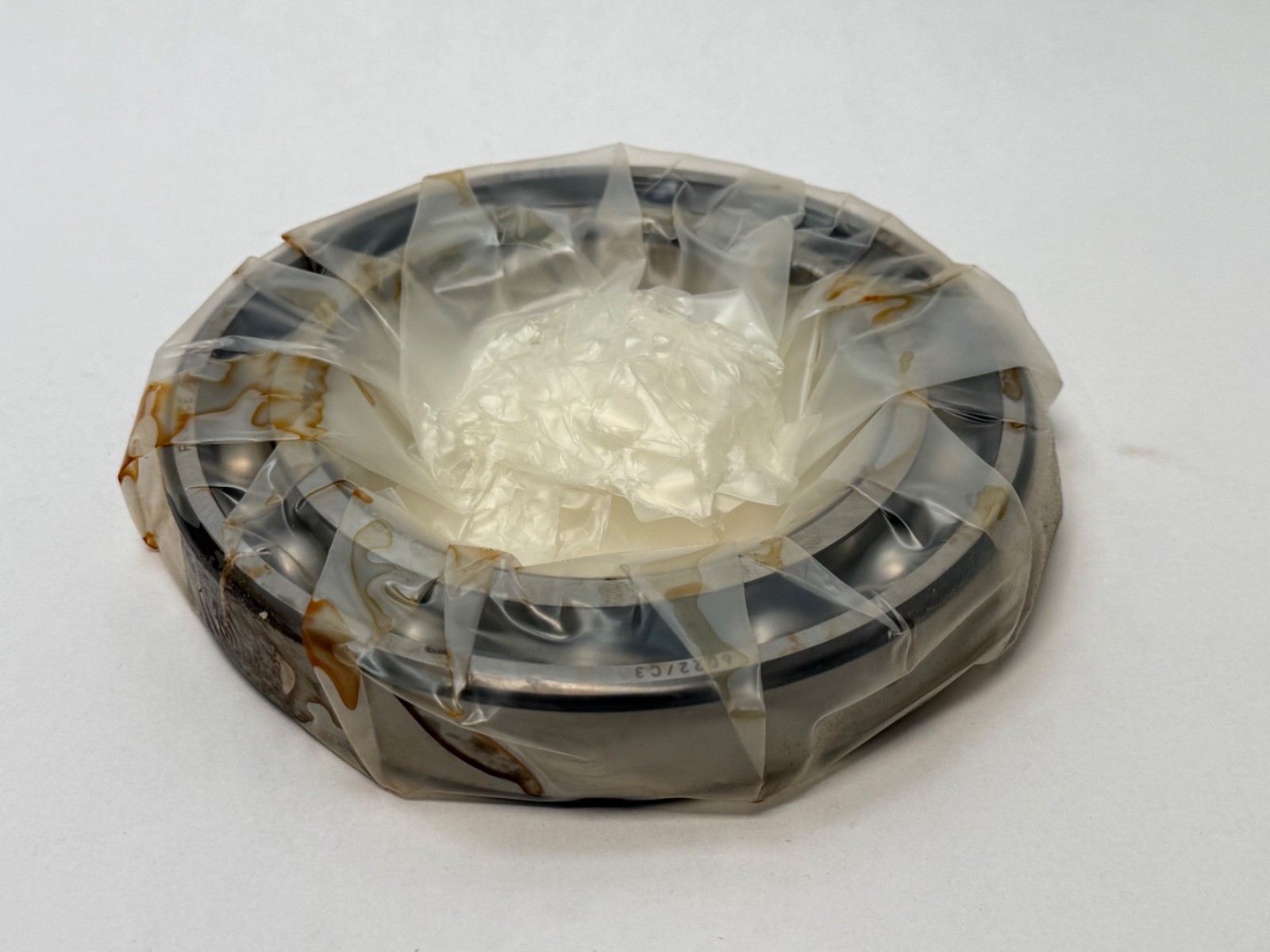

SKF6022/C3Deep Groove Ball Bearing – 110 mm Bore, 170 mm OD, 28 mm Width, Open, C3 Clearance, Pressed Steel Cage

Product Description

What this part is

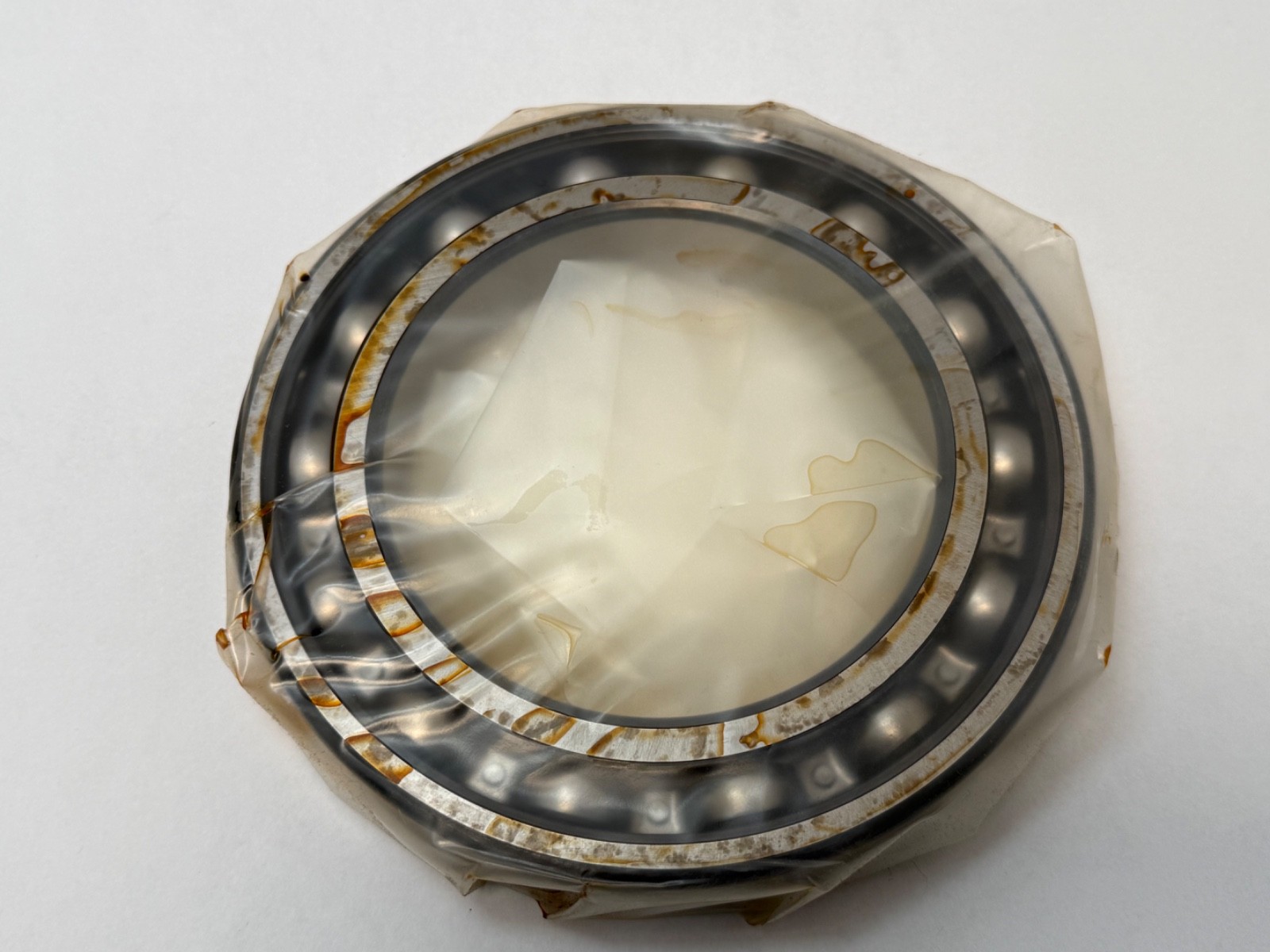

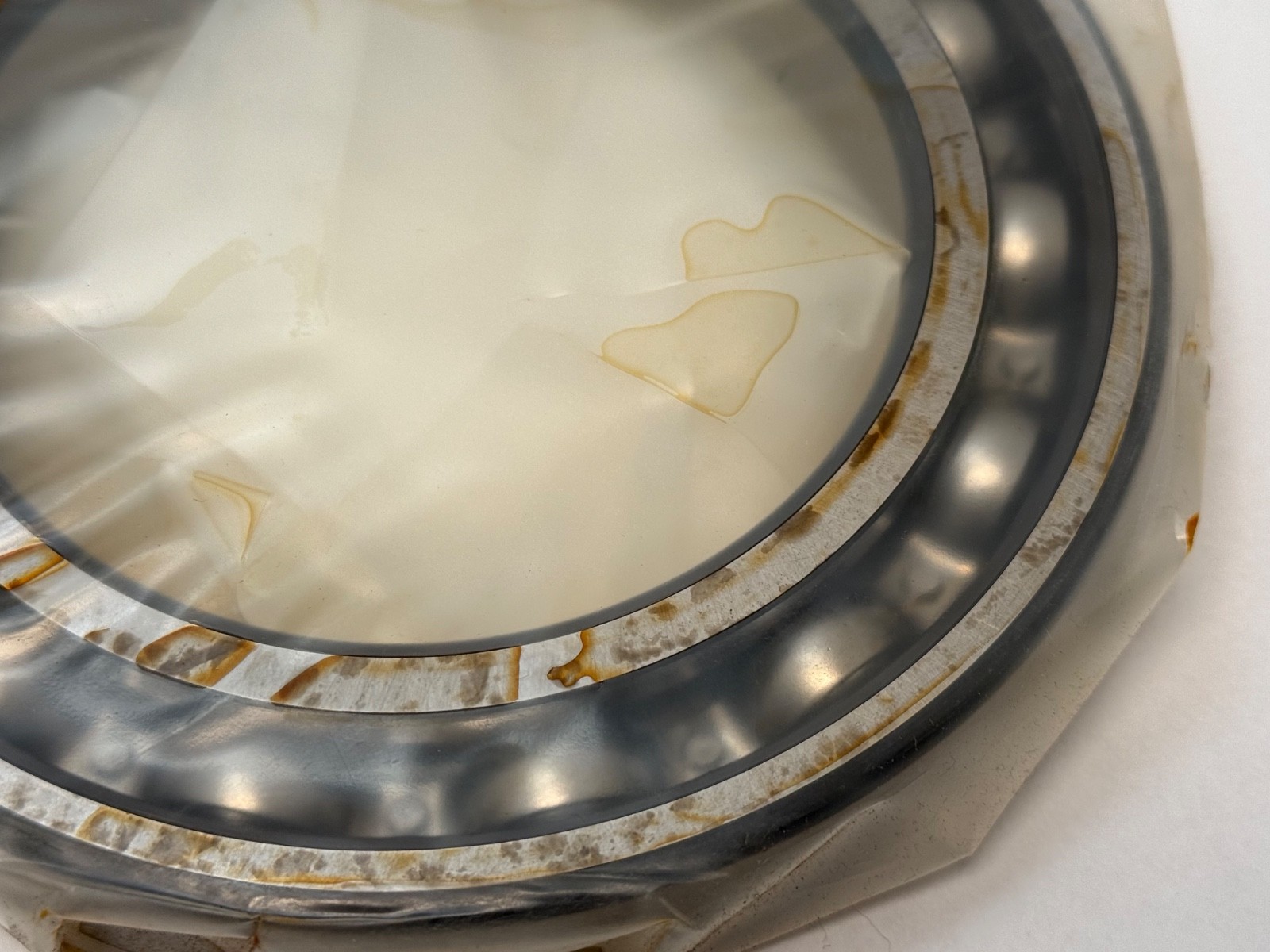

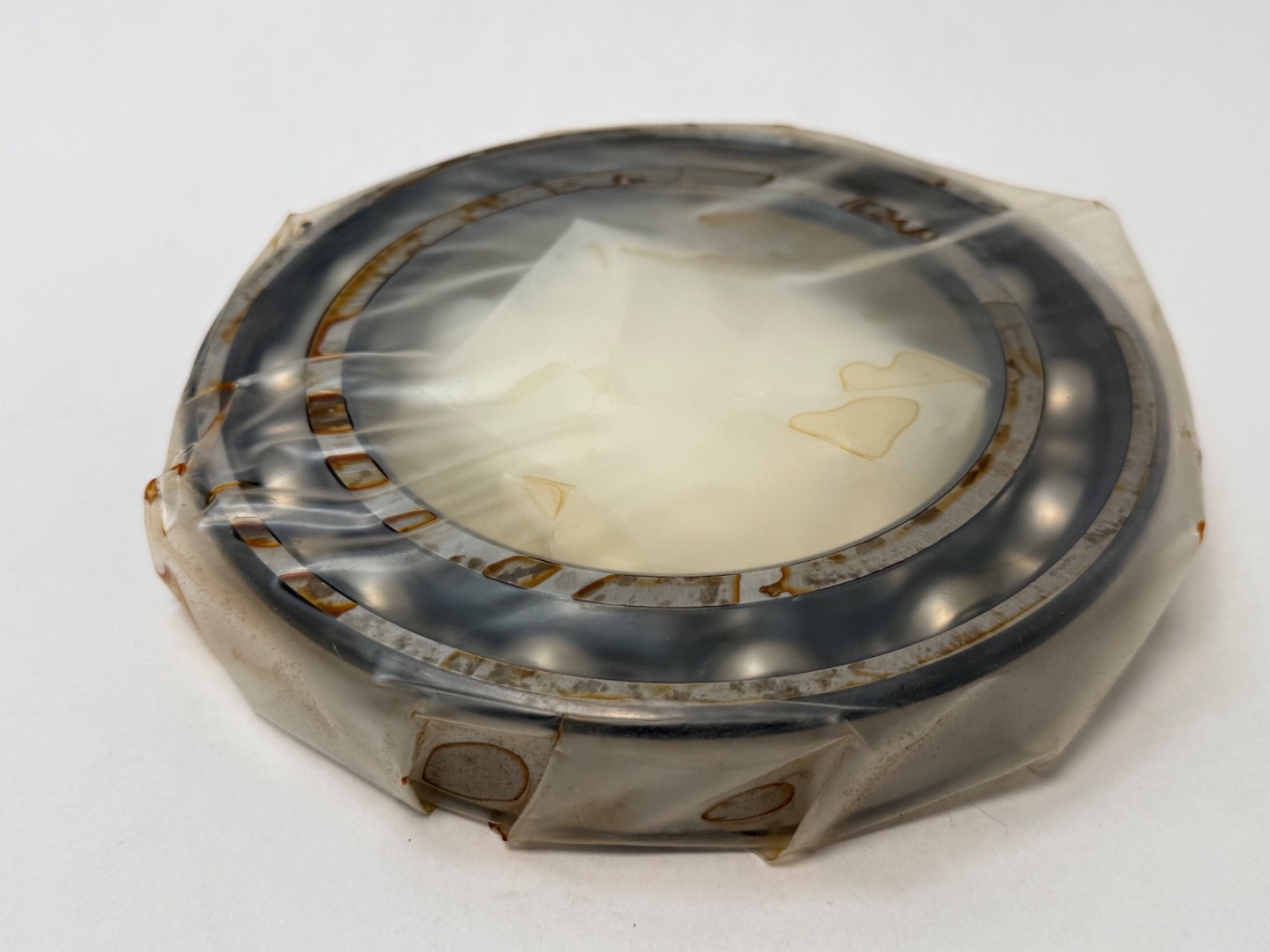

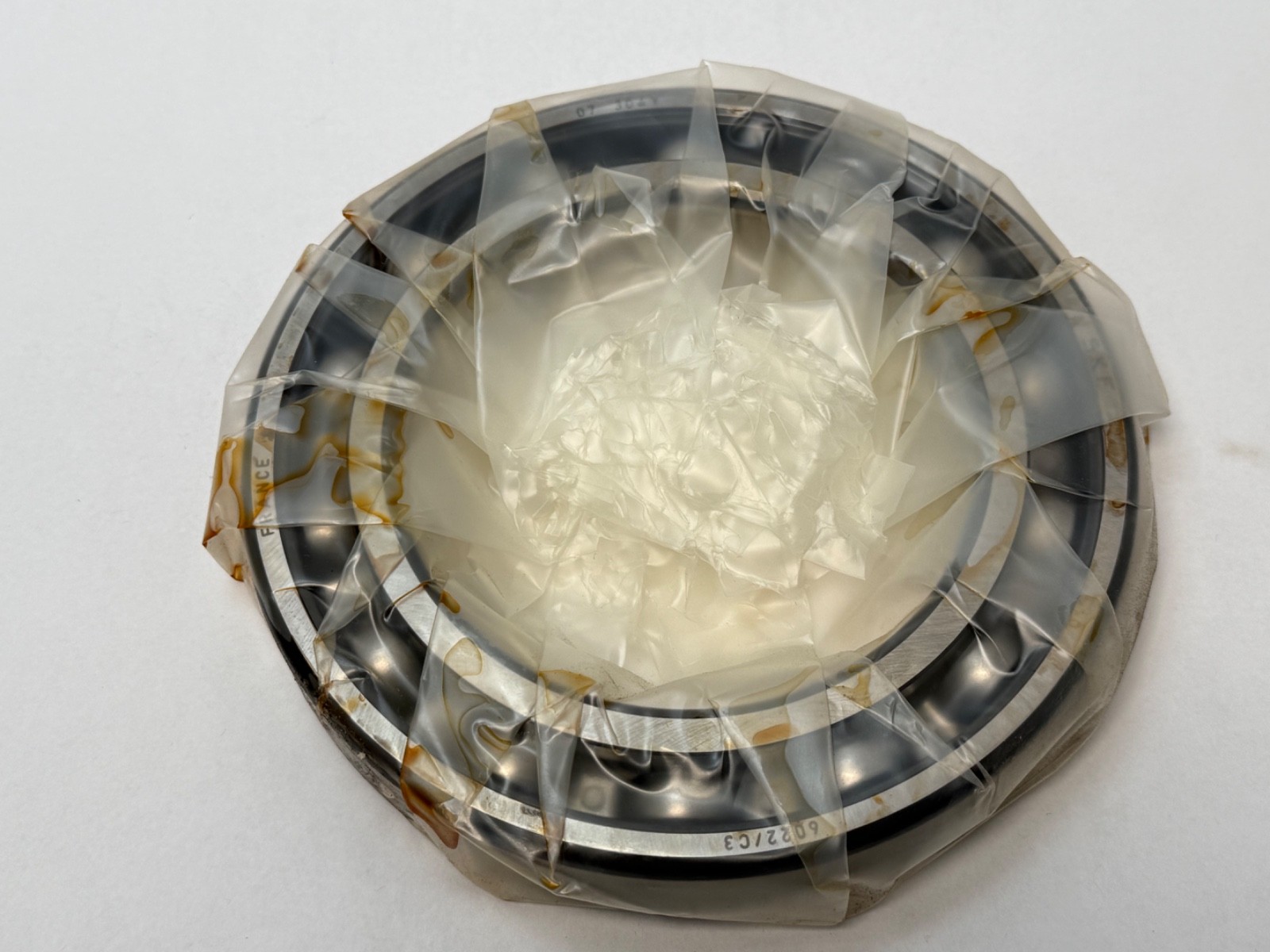

SKF 6022/C3 is a single-row deep groove ball bearing, open on both faces, with C3 internal clearance. Bore Diameter: 110 mm. Outside Diameter: 170 mm. Overall Width: 28 mm. Closure Type: Open. Internal Clearance: C3. Cage Material: Pressed steel. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Bearing Material: Chrome steel. Lubricant: Grease or oil. Item Weight: 1.95 kg (4.30 lb). Series: 60. Base Number: 6022. Unit Quantity: 1 Pc.

Decoding the designation

60 — ISO 60 dimension series, the light section of the deep groove range. At a 110 mm bore that gives a 170 mm outside diameter in a 28 mm width.

22 — bore code 22, which is 22 x 5, giving 110 mm.

C3 — internal radial clearance greater than normal.

What these specs mean in practice

Dynamic Load Rating: 85,200 N. Static Load Rating: 73,500 N. Limiting Speed: 5,000 rpm. Item Weight: 1.95 kg (4.30 lb). C3 clearance leaves more room in the ball path than a normal-clearance bearing, which keeps running clearance positive where the inner ring runs hotter than the housing, where the shaft fit is heavy, or where the bearing carries an interference fit on both rings. Open on both faces, so the bearing takes its lubricant from the housing and can be relubricated in service.

Mounting data

Bore Diameter: 110 mm. Outside Diameter: 170 mm. Overall Width: 28 mm. Both faces are plain, so the bearing seats against ordinary machined shoulders with no shield or seal projection to clear.

Quantity and configuration

Unit Quantity: 1 Pc. One complete open bearing.

Interchange guidance

The same bearing is written 6022/C3, 6022-C3, 6022 C3 and 6022C3.

Cross-Reference 1: SKF 6022/C3. Cross-Reference 2: FAG 6022-C3. Cross-Reference 3: NSK 6022C3. Cross-Reference 4: NTN 6022C3. Cross-Reference 5: Koyo 6022C3. Cross-Reference 6: Timken 6022-C3. Cross-Reference 7: INA 6022-C3. Cross-Reference 8: Nachi 6022C3. Cross-Reference 9: NTN-SNR 6022C3.

Every number above shares the 110 x 170 x 28 mm envelope, the open construction and C3 clearance. The normal-clearance form is written 6022, the shielded form 6022-2Z and the sealed form 6022-2RS1; all three fit the same shaft and housing and change either the clearance or the closure, so they are related sizes.
