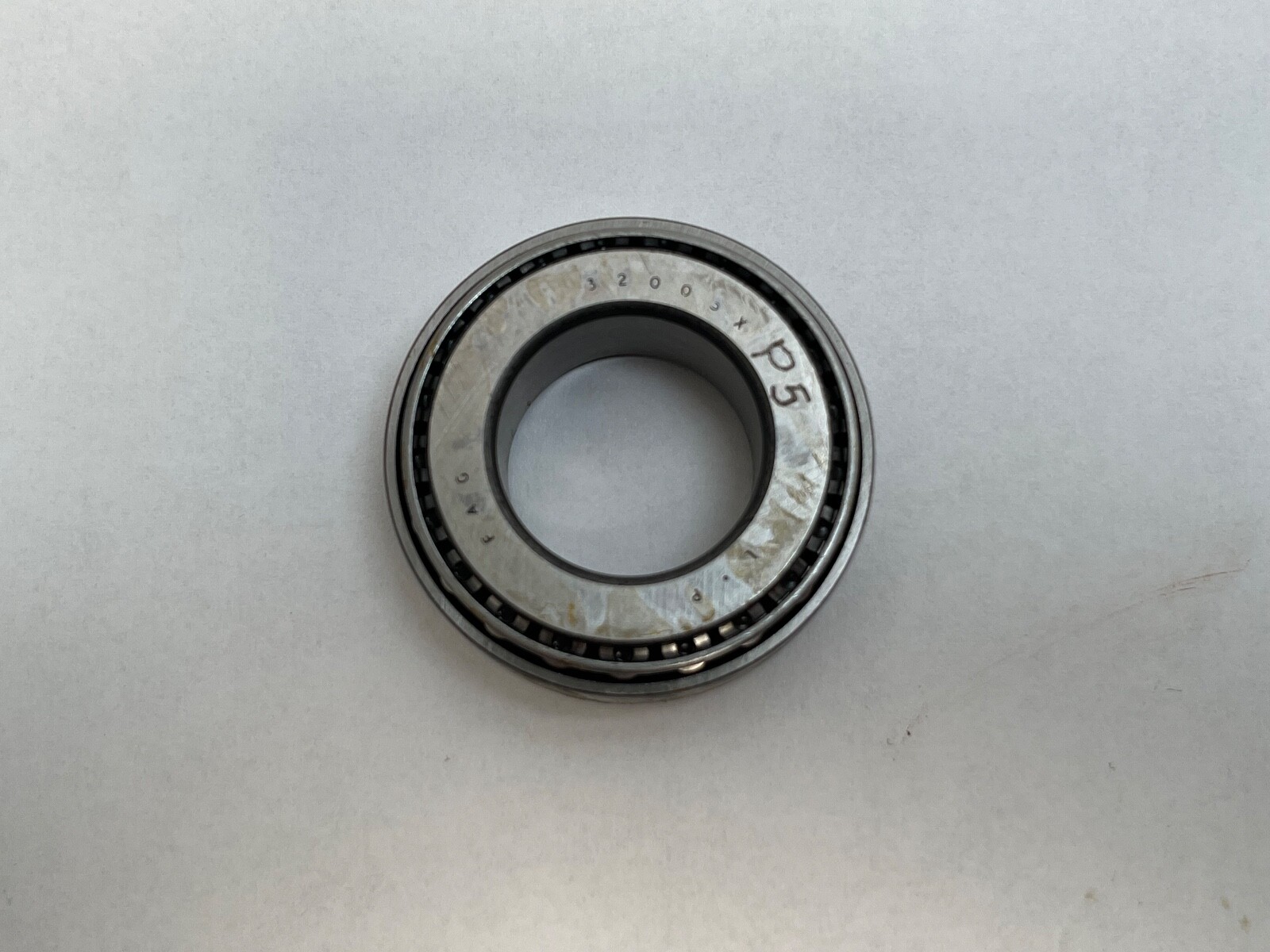

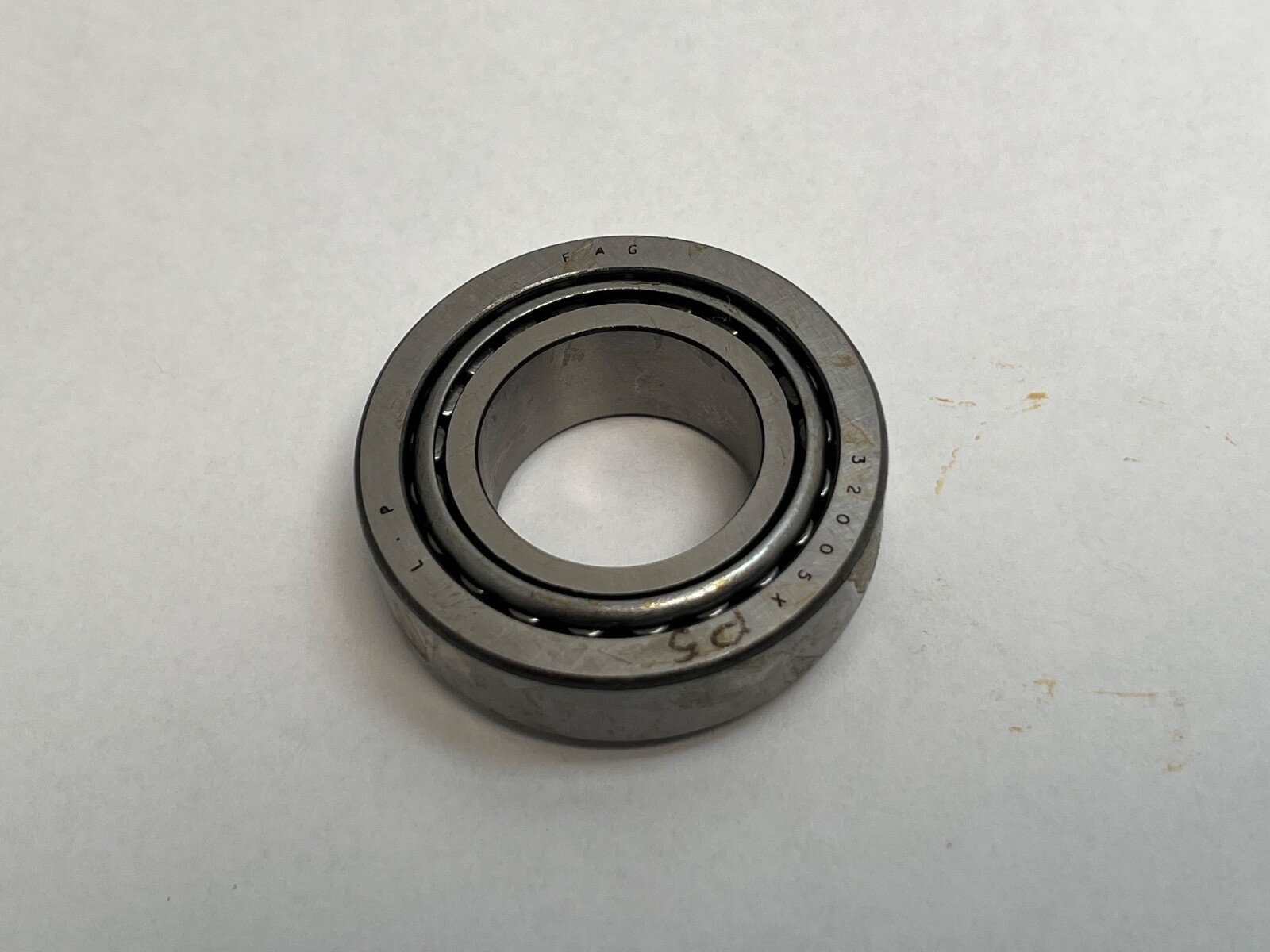

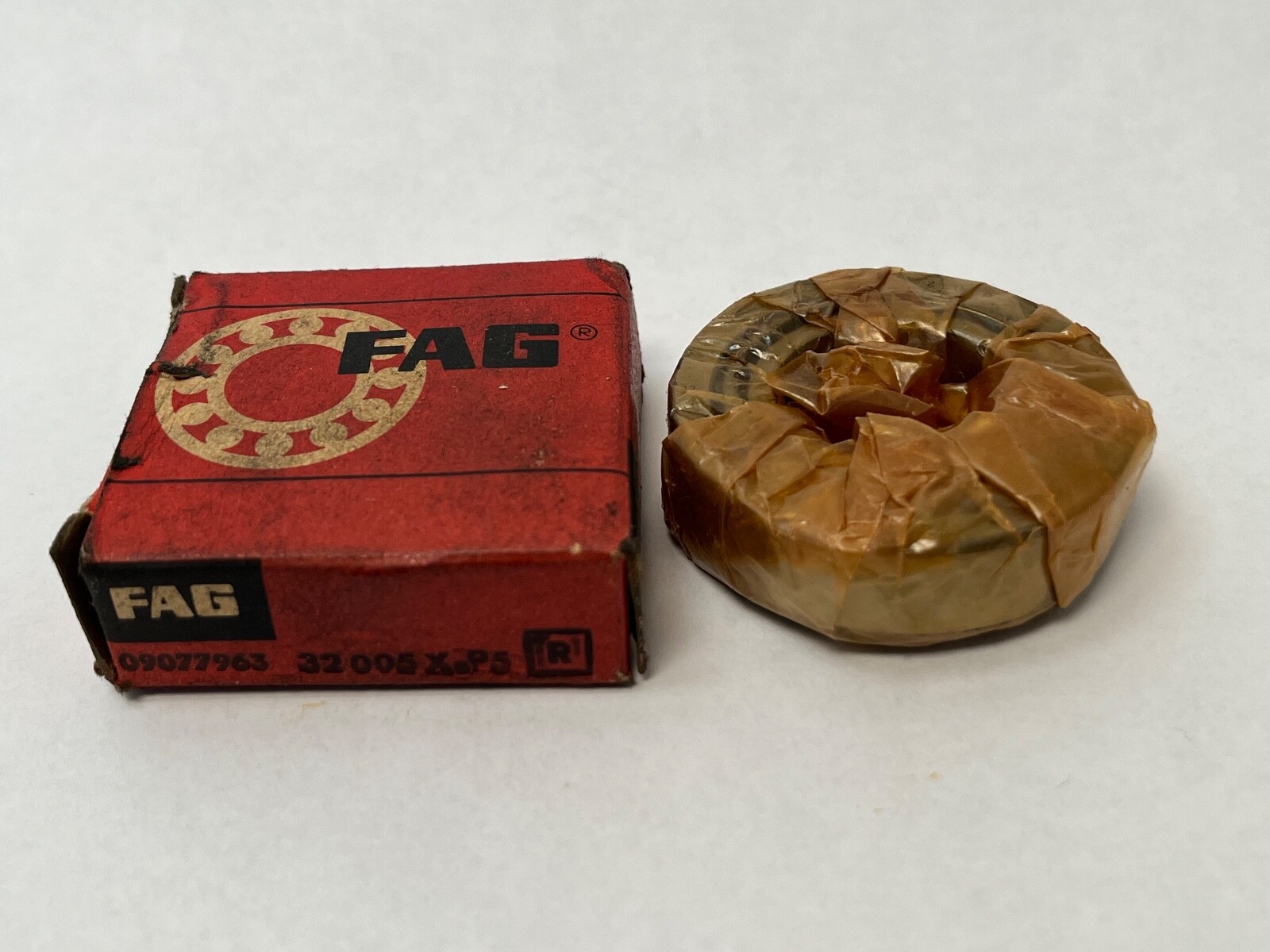

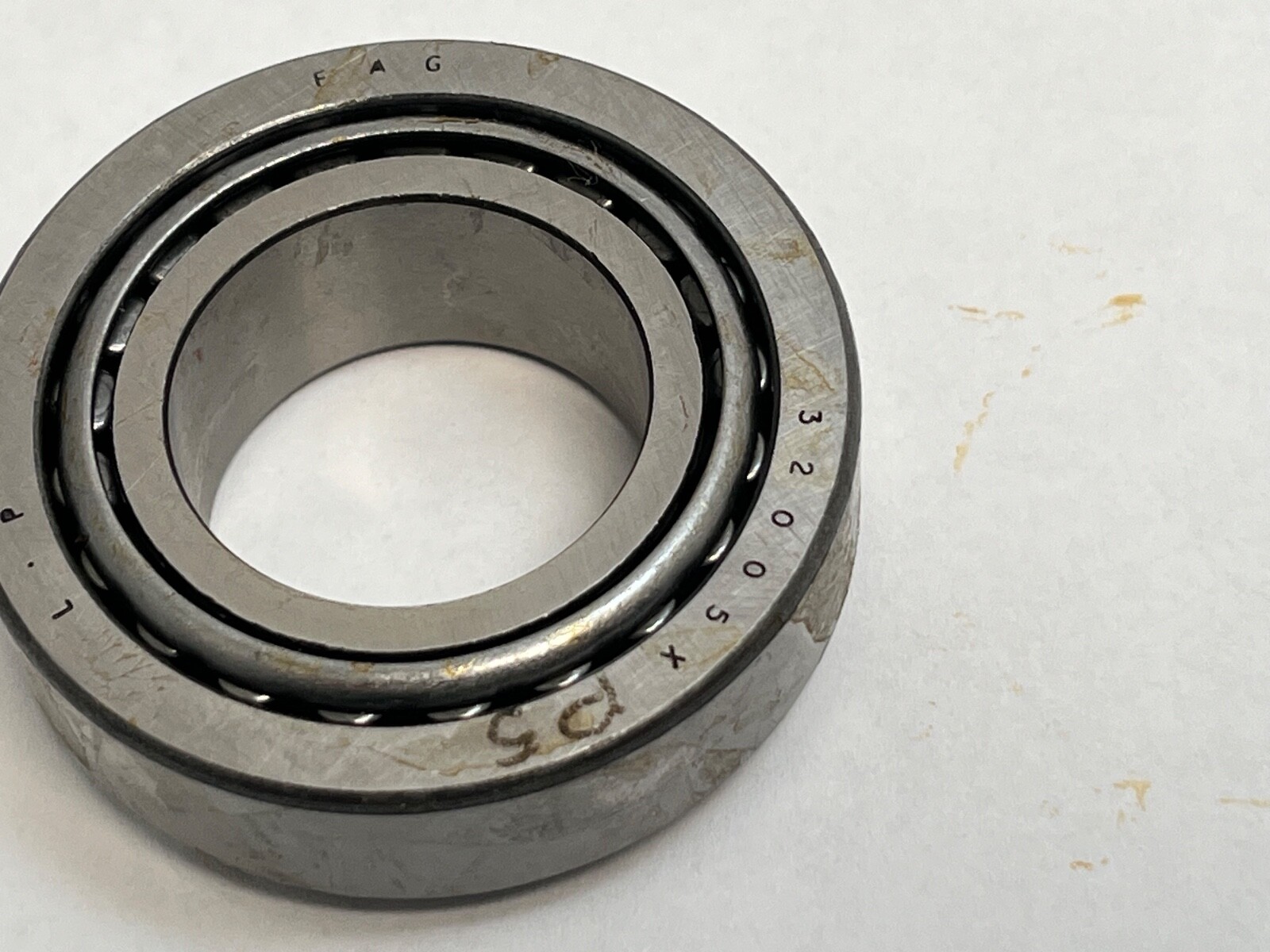

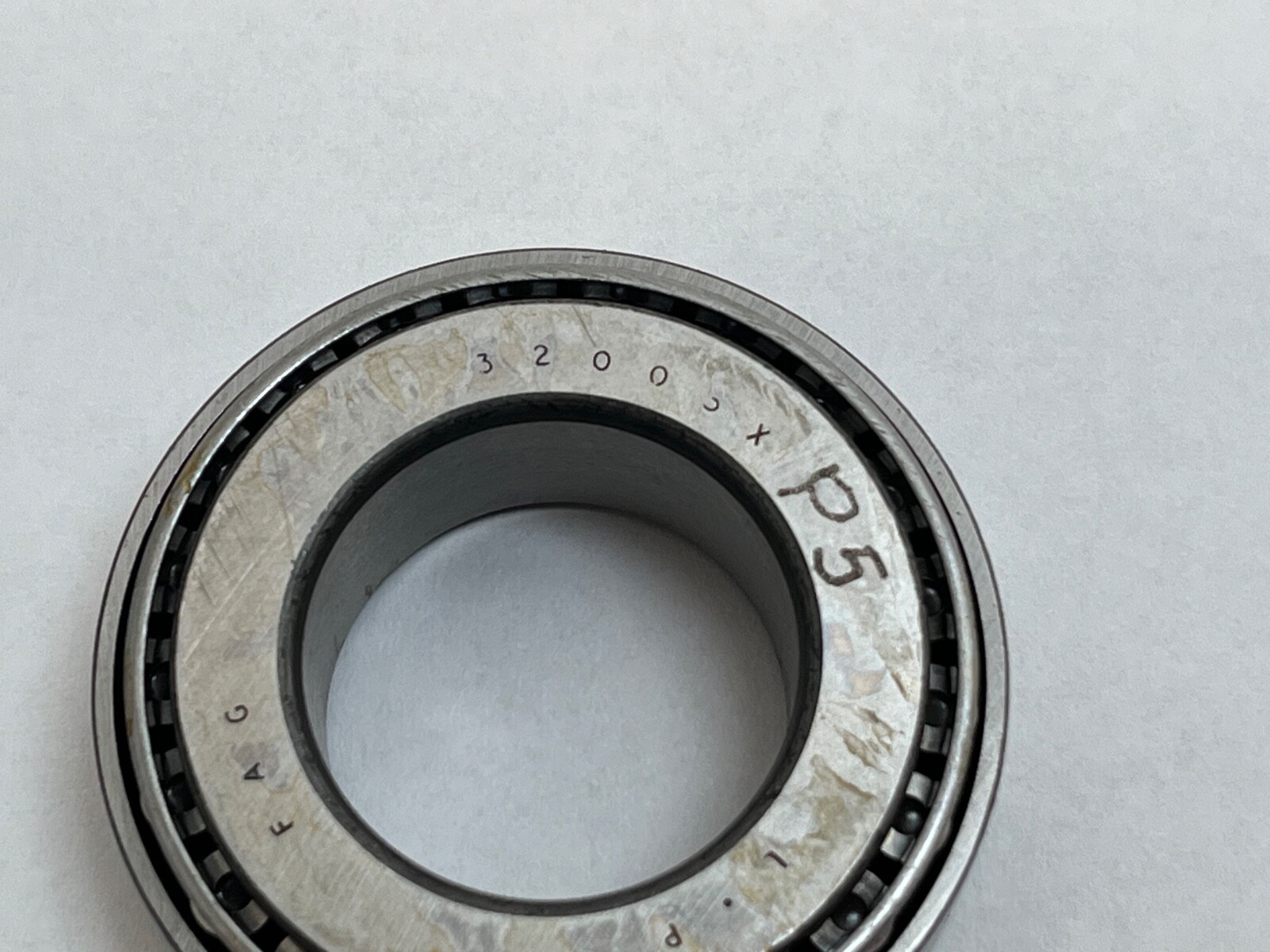

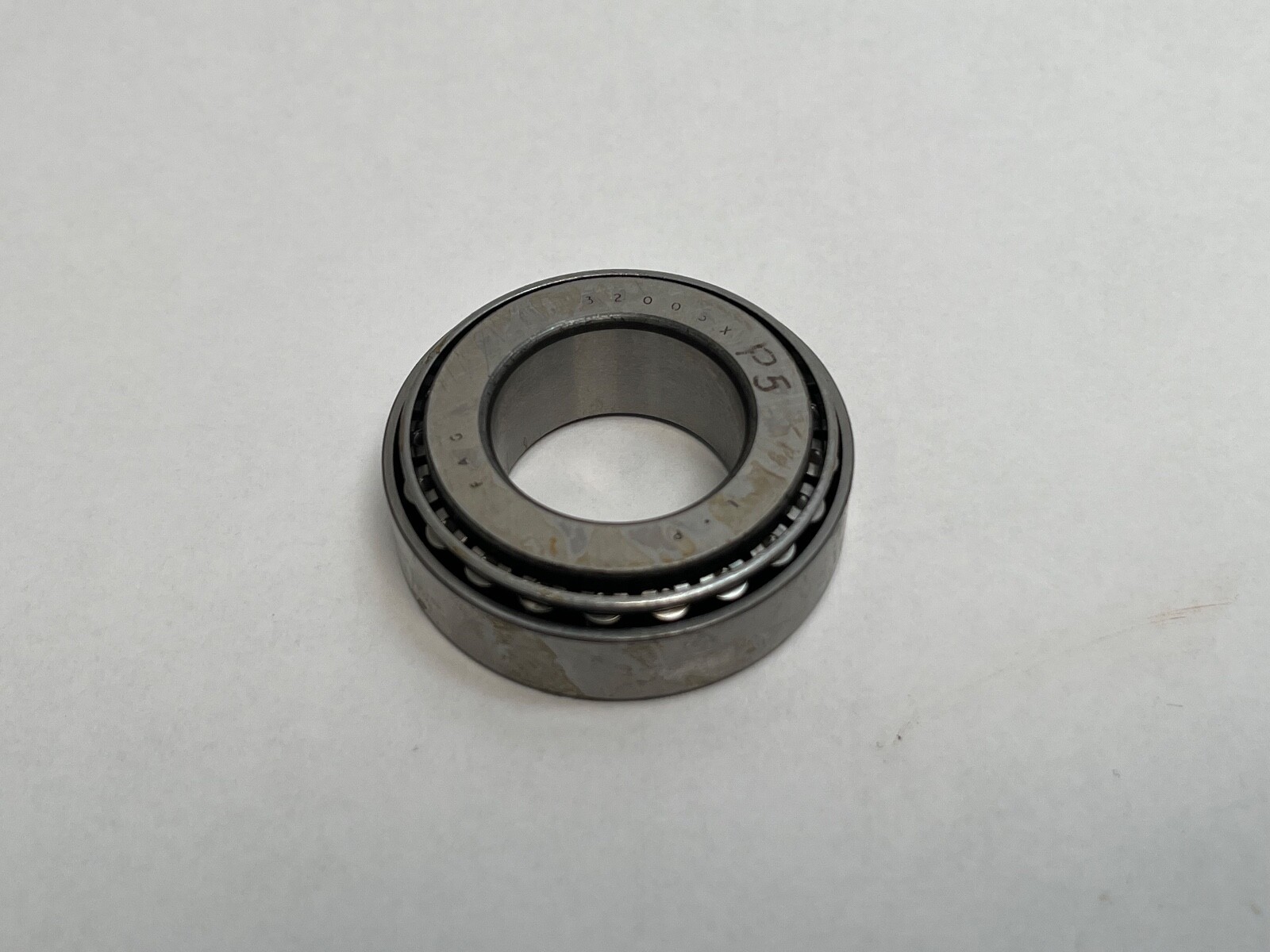

FAG32005X.P5Tapered Roller Bearing Set — 25 mm Bore, 47 mm OD, 15 mm Width, Cone and Cup, P5 Precision

Condition: New

Availability:

1 in stock

FAG 32005X.P5 tapered roller bearing, cone and cup, 25 mm bore x 47 mm OD x 15 mm wide, P5 precision class. Metric 320 series, ISO 355 T4CC025.

Same day shipment

List Price

$24.61

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFAG
MPN32005X.P5
Model32005-X-P5
Bearing TypeTapered Roller Bearing
ID25 mm
OD47 mm
Width15 mm

Technical Specifications

Base Number32005
Industry Termstapered roller bearing, metric taper bearing, precision tapered roller bearing, 320 series, T4CC025
Common Misspellings32005XP5 FAG, 32005-XP5, 3205X P5
Application Typesmachine tool spindles, gearboxes, precision drives
Total Width15 mm
Mpn Variants32005X.P5, 32005-X-P5, 32005XP5, 32005 X P5, 32005-X-XL-P5
Compatible With ReplacesCurrent designation FAG 32005-X-XL-P5
Precision ClassRBEC 5 / P5
Additional AttributesCone width 15 mm; cup width 11.5 mm; ISO 355 T4CC025.
Number Of Rows1
Bore TypeStraight
Closure TypeOpen

Cross-References

Cross Reference 1SKF 32005 X/Q - normal class, not P5
Cross Reference 2Timken 32005X - normal class, not P5
Cross Reference 3NSK HR32005XJ - normal class, not P5
Seller Part Number: B-AF3B2#LZFNTJ

Product Description

What this part is:

FAG 32005X.P5 single-row metric tapered roller bearing, cone and cup set, P5 tolerance class. The cone (inner ring with rollers and cage) and the cup mount independently. Unit Quantity: 1 Set (one cone and one cup).

Decoding the designation:

320 — tapered roller bearing series 320, main dimensions to DIN 720 (ISO 355 designation T4CC025).

05 — bore code; 05 × 5 = 25 mm bore.

X — ISO-conforming boundary dimensions.

P5 — ISO tolerance class 5, tighter dimensional and running accuracy than normal class.

Specifications:

Bore Diameter: 25 mm. Outside Diameter: 47 mm. Total Width: 15 mm. Cone width: 15 mm. Cup width: 11.5 mm. Rolling Elements: Tapered Roller. Precision Class: RBEC 5 / P5. Closure Type: Open. Series: 320. Base Number: 32005.

Dimensions and mounting:

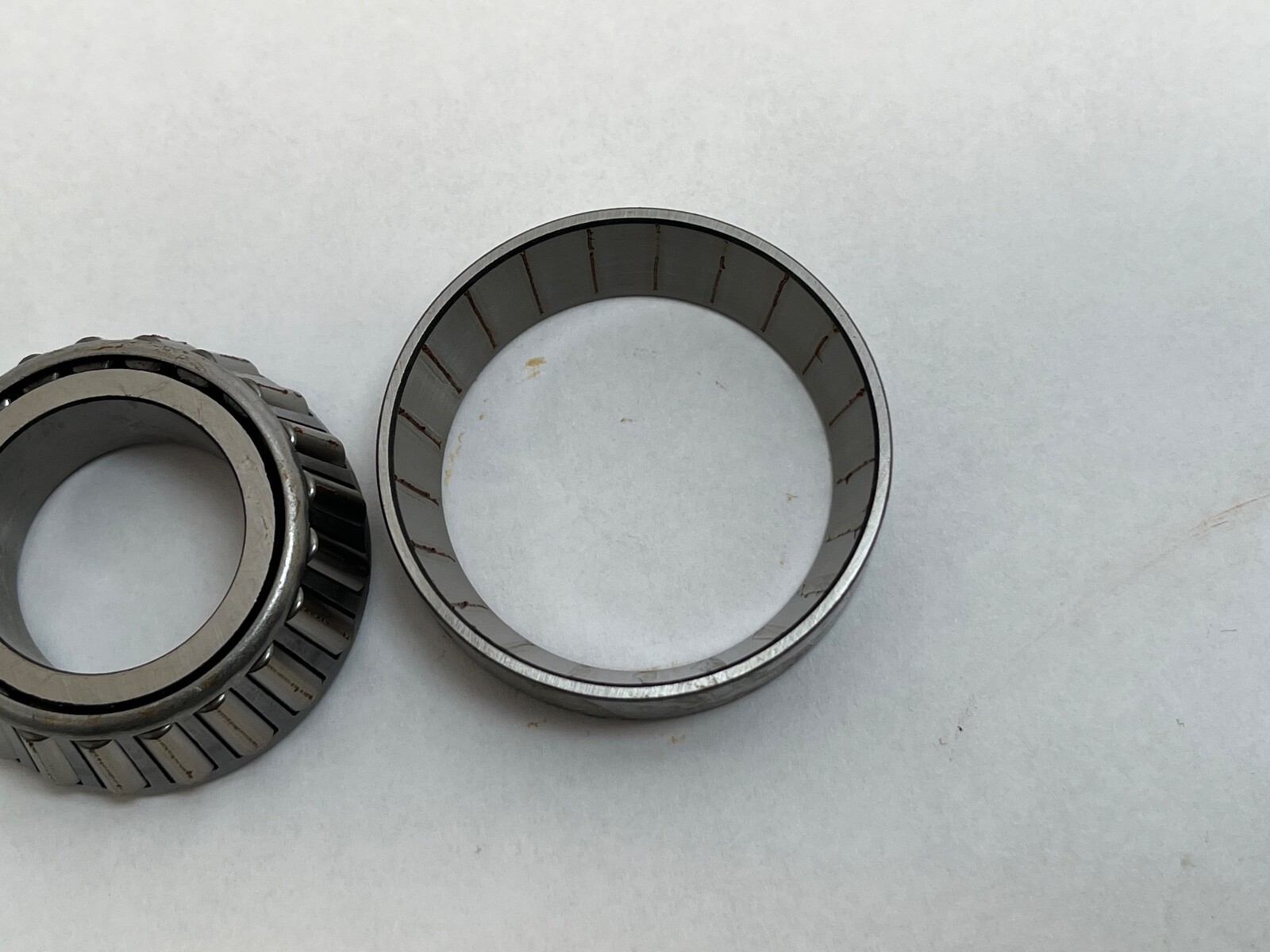

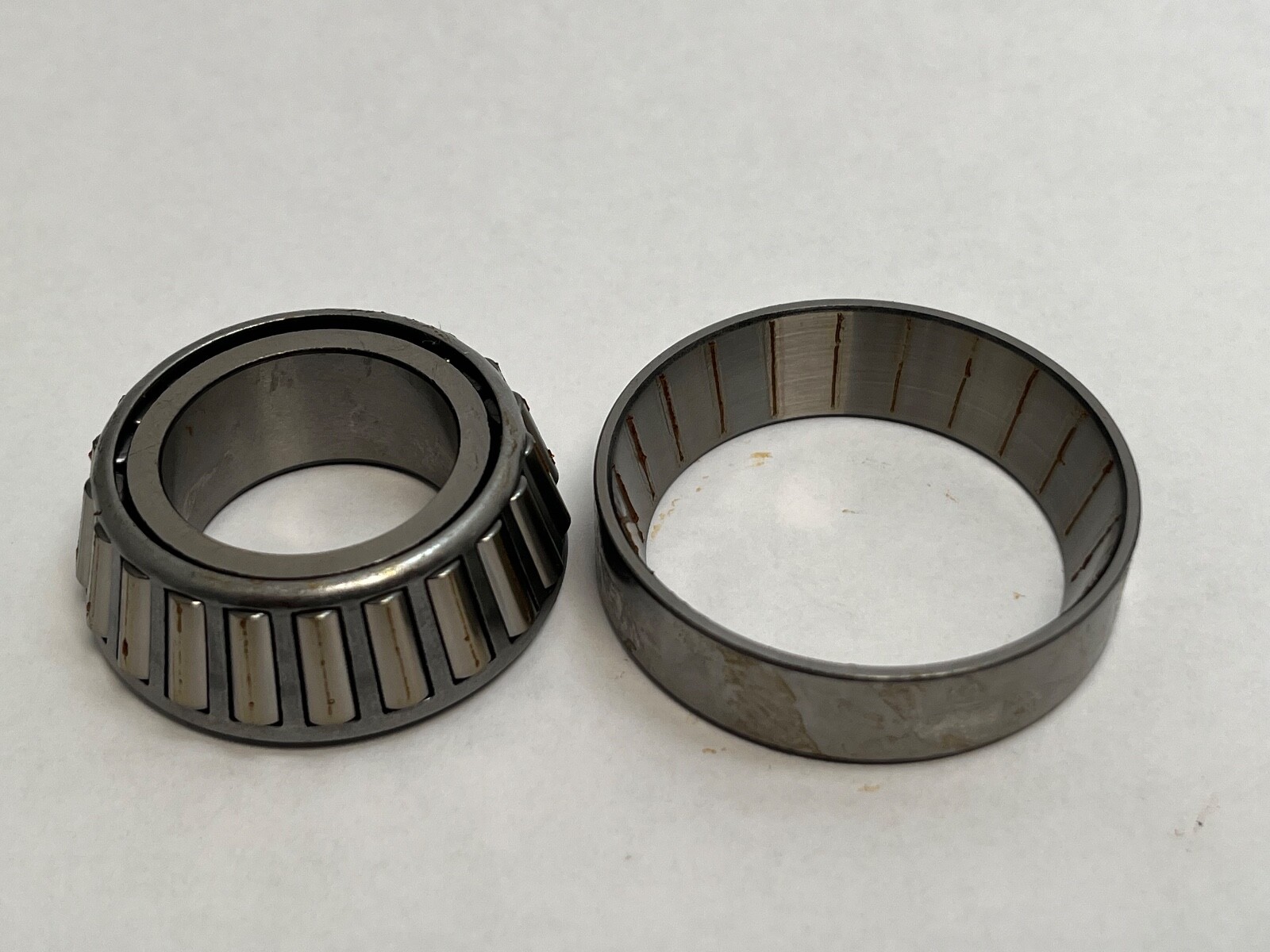

Separable design: cone and cup mount independently. Envelope 25 x 47 x 15 mm.

Compatibility and replacement:

Cross-references in the 25 x 47 x 15 mm envelope, all normal tolerance class rather than P5: SKF 32005 X/Q, Timken 32005X and NSK HR32005XJ. Schaeffler current designation: FAG 32005-X-XL-P5. Also written 32005-X-P5 and 32005XP5.

Frequently asked questions:

What are the dimensions of the FAG 32005X.P5?

25 mm bore, 47 mm outside diameter, 15 mm total width.

What precision class is the 32005X.P5?

P5 (ISO tolerance class 5).

What does the 32005X.P5 set contain?

One cone with rollers and cage, and one cup.
