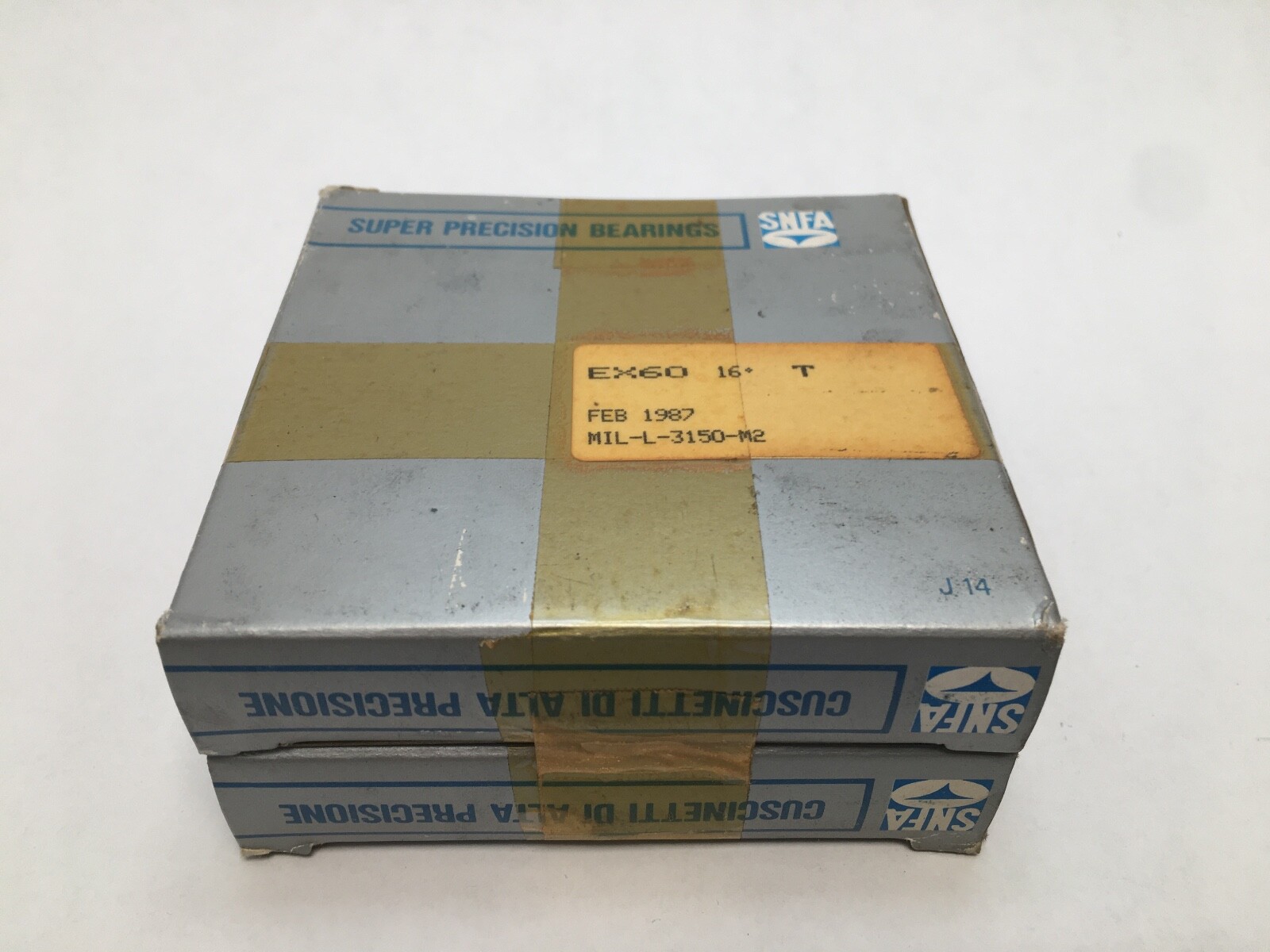

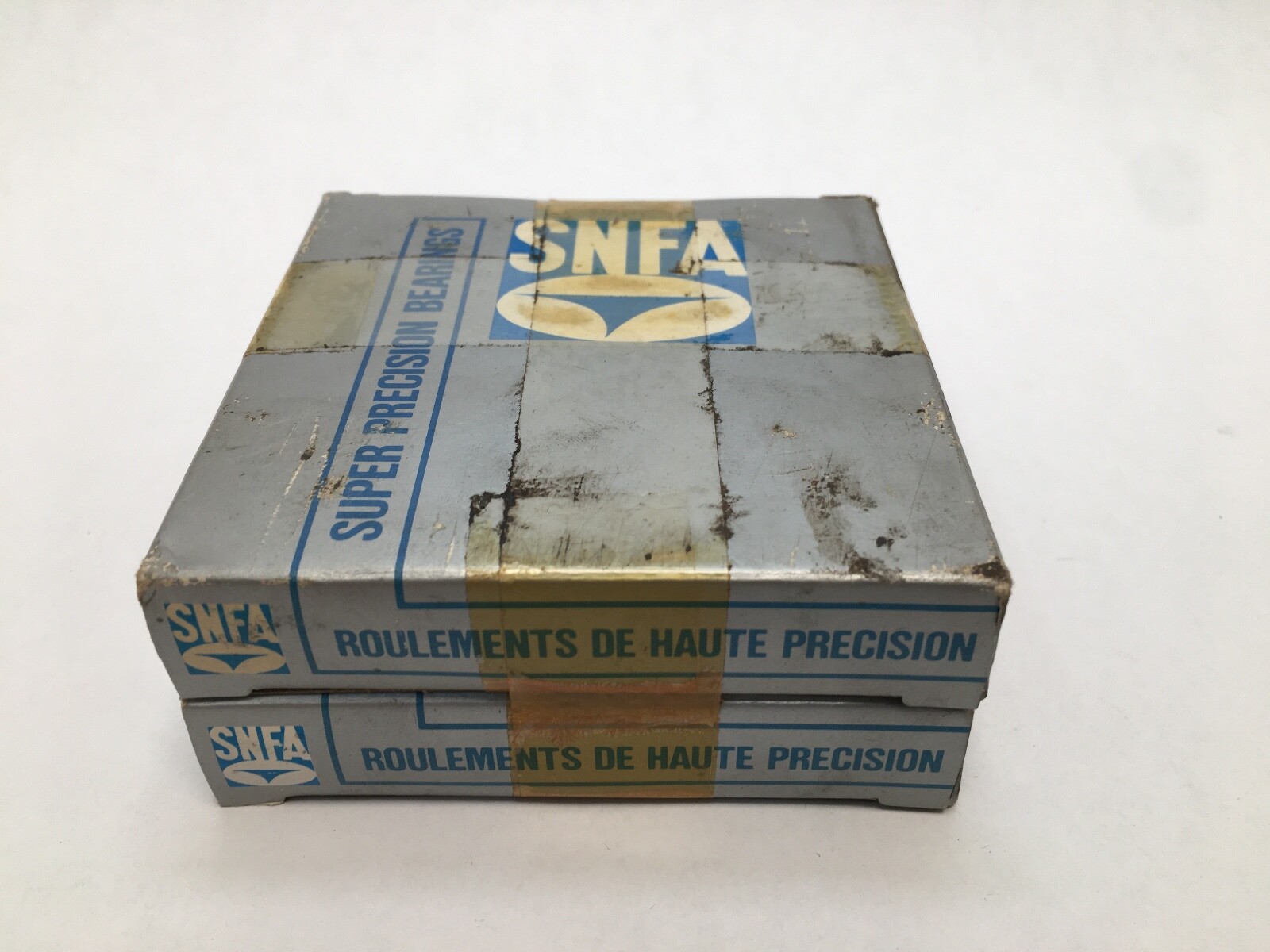

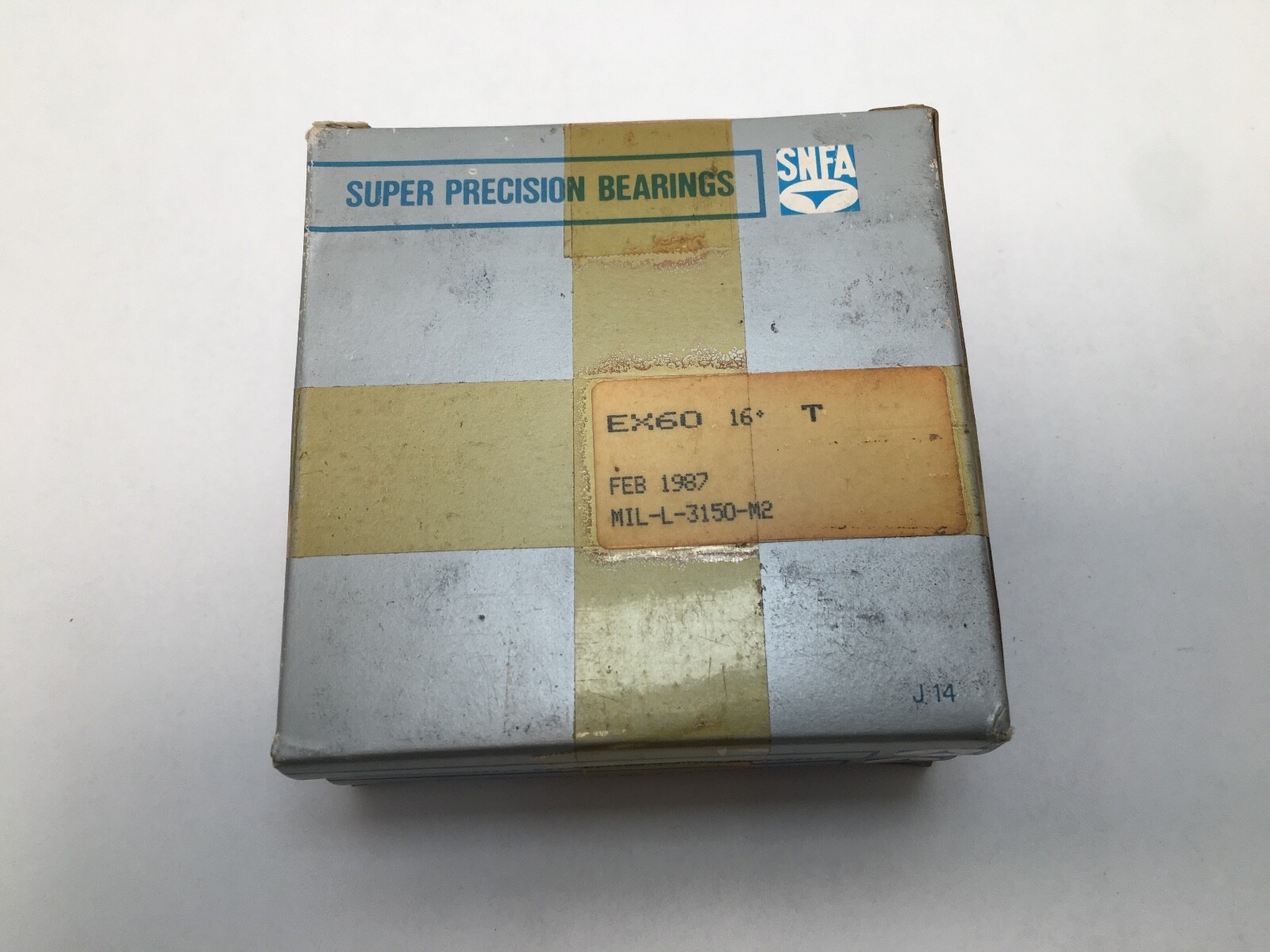

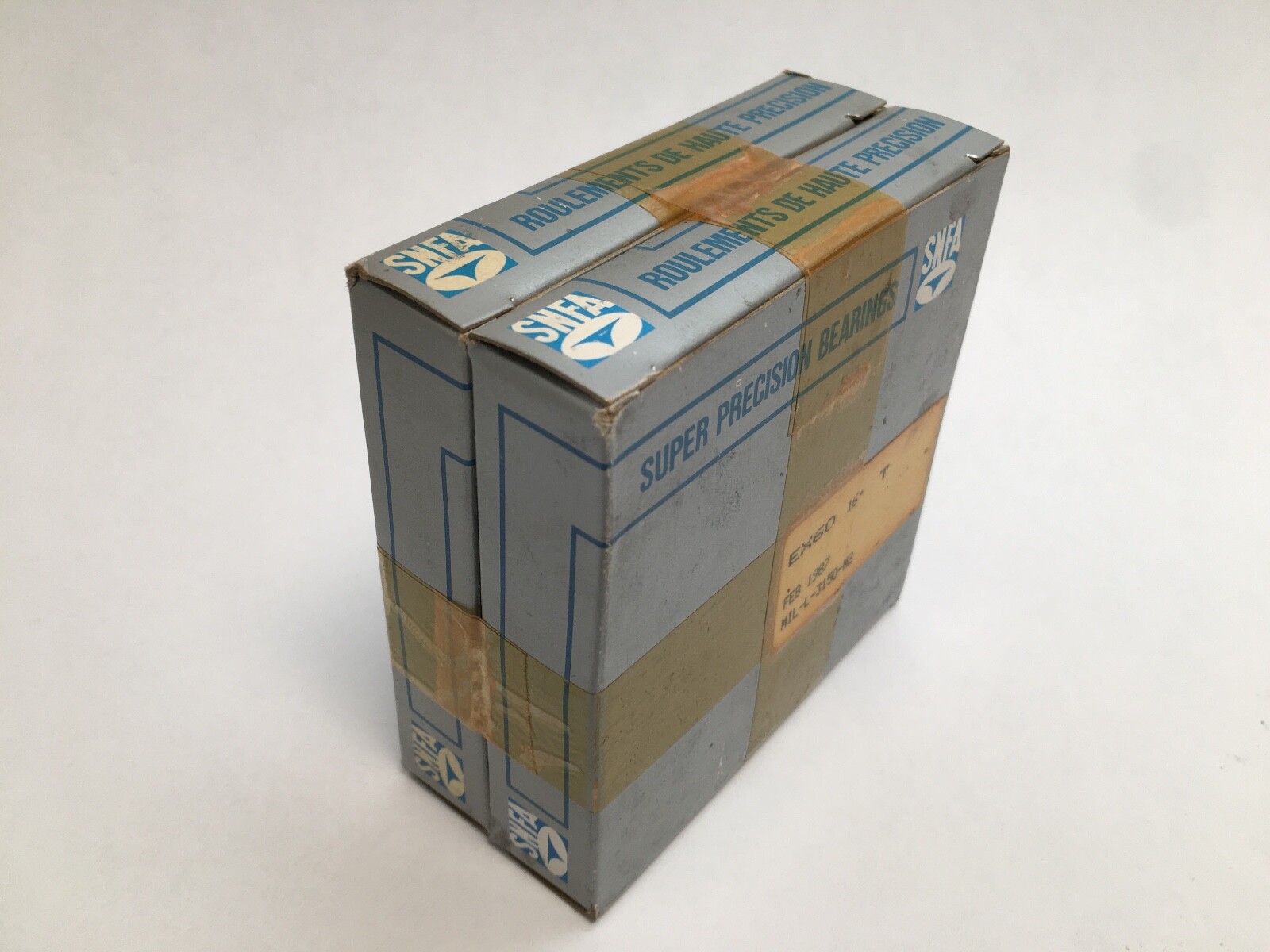

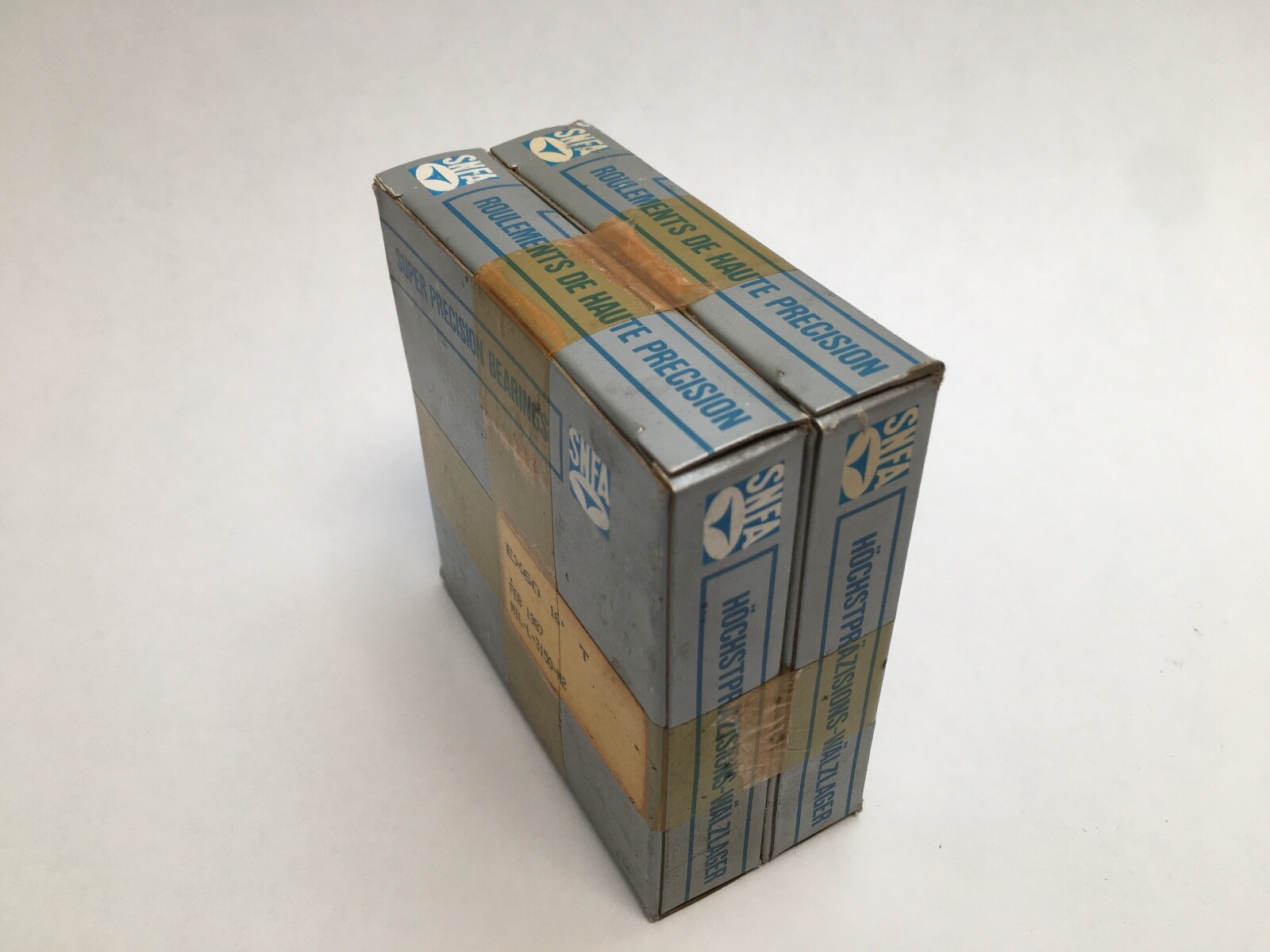

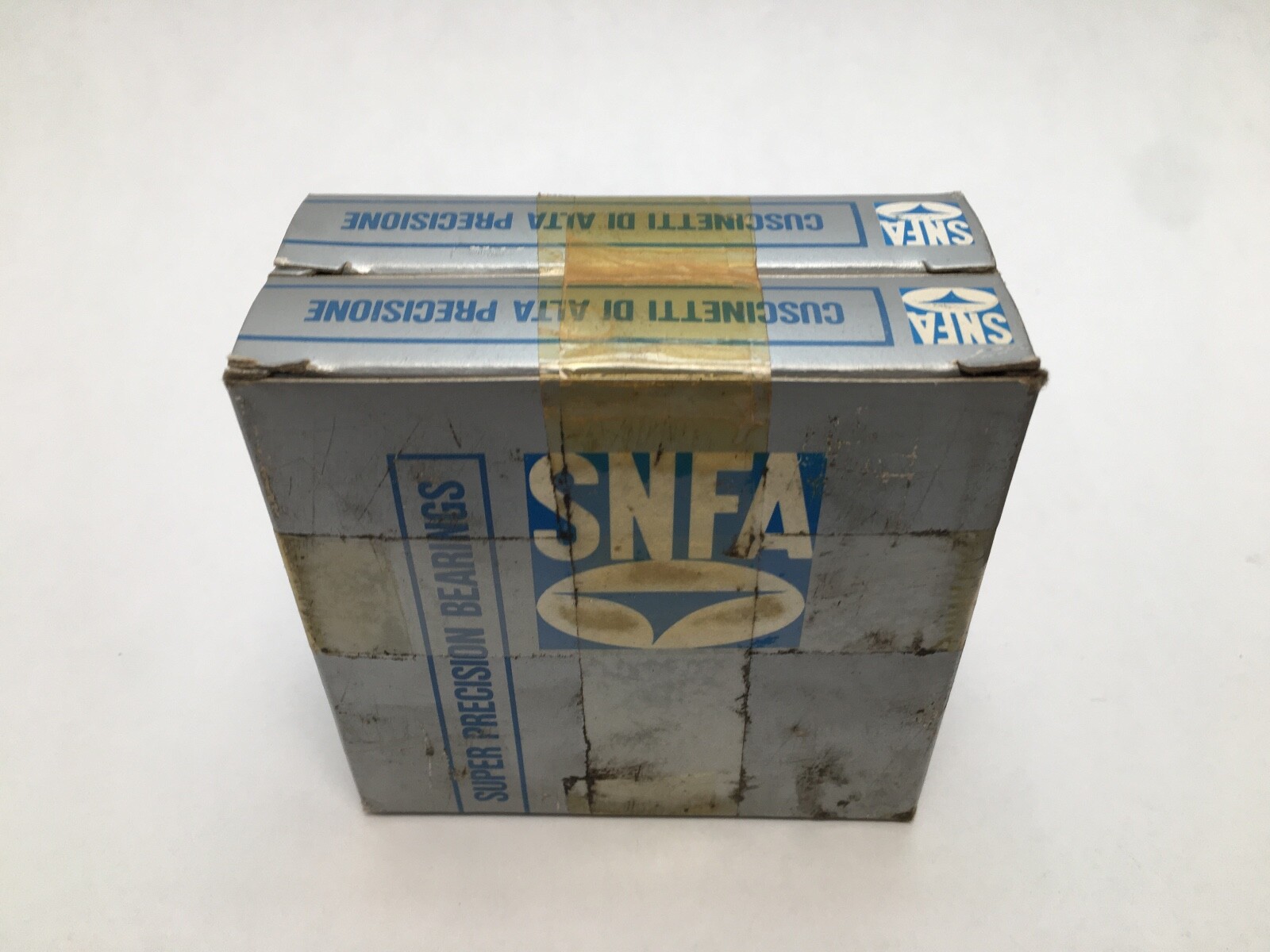

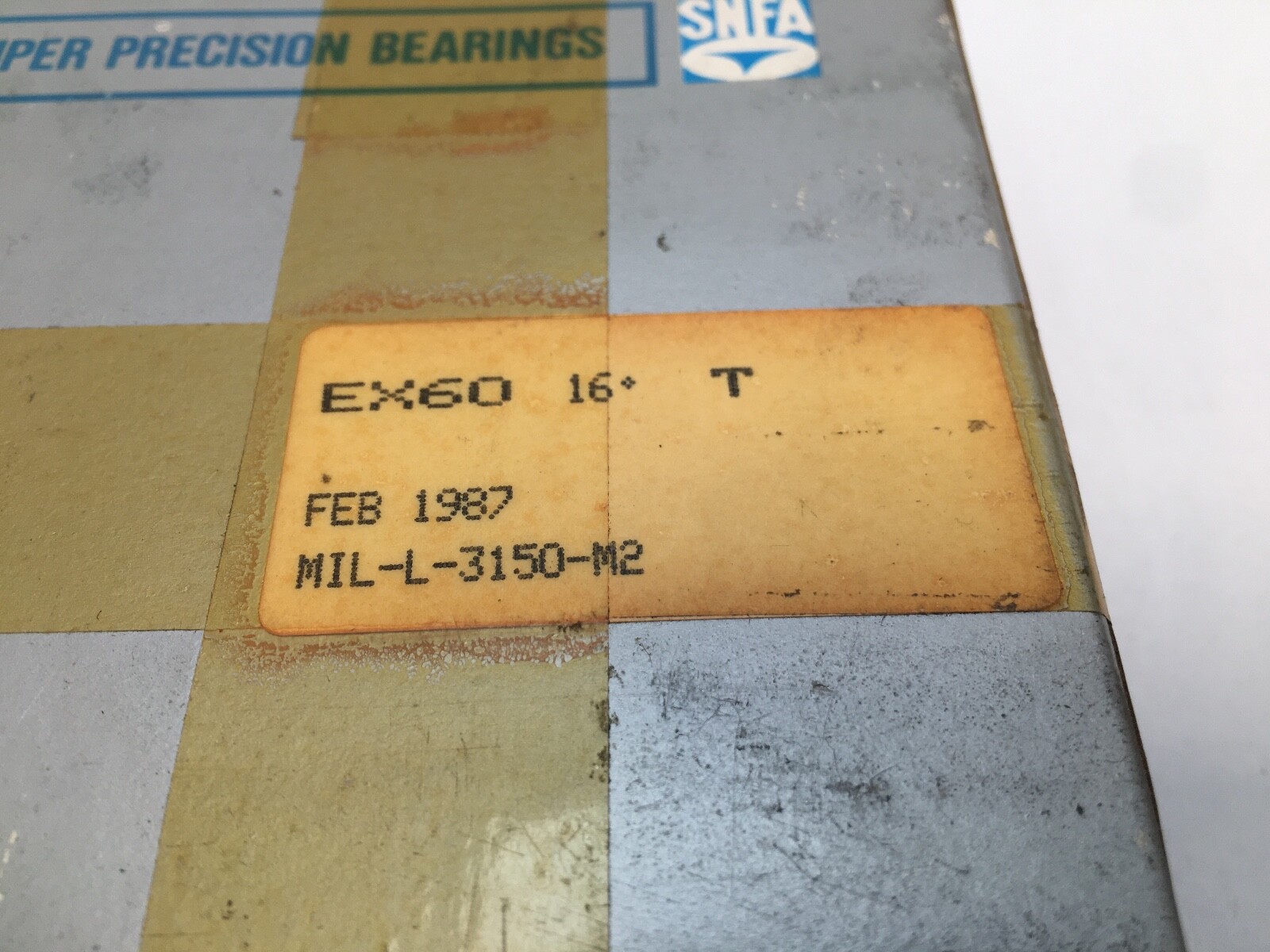

SNFA EX60-16°T angular contact ball bearing tandem set, 60 x 95 x 18 mm, 16° marked contact angle, ISO size 7012. Two bearings, EX series, open.
List Price
$324.96
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNFA |
|---|---|
| MPN | EX60-16°T |
| Model | EX60-16-T |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 95 mm |
| Width | 18 mm |
| Series | SNFA EX (ISO 10) |
|---|---|
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 16° |
| Base Number | 7012 |
| Overall Width | 18 mm |
| Mpn Variants | EX60-16°T, EX-60-16°-T, EX60-16-T, EX 60 16° T, 9112, 7012 |
| Arrangement Configuration | Tandem (T) |
| Additional Attributes | Minimum chamfer Rmin 1.1 mm; rmin 0.6 mm |
| Mounting Arrangement | Tandem |
| Closure Type | Open |
SNFA EX60-16°T is a matched set of two SNFA EX series angular contact ball bearings, ISO dimension series 10, size 7012. Unit Quantity: 2 Pcs. Bore Diameter: 60 mm. Outside Diameter: 95 mm. Overall Width: 18 mm. Contact Angle: 16° (actual angle as marked). Arrangement / Configuration: Tandem.
EX — SNFA EX series, ISO dimension series 10.
60 — bore diameter, 60 mm.
16° — actual measured contact angle marked on the set.
T — tandem set. Both bearings face the same direction and share the axial load in one direction.
Rolling Elements: Ball. Number Of Rows: 1 per bearing. Bore Type: Straight. Closure Type: Open. Contact Angle: 16°. Mounting Arrangement: Tandem. Series: SNFA EX (ISO 10). Base Number: 7012.
Bore Diameter: 60 mm. Outside Diameter: 95 mm. Overall Width: 18 mm. Minimum chamfer, outer ring (Rmin): 1.1 mm. Minimum chamfer, inner ring (rmin): 0.6 mm.
ISO size 7012, 60 x 95 x 18 mm. The same size appears as Fafnir 9112 and SKF 7012 in the angular contact 70 series.
16°, the actual measured angle marked on the set.
T is a tandem set: both bearings face the same direction and share the axial load in one direction.
60 mm bore, 95 mm outside diameter, 18 mm width (ISO size 7012). Two bearings as a matched tandem set.
