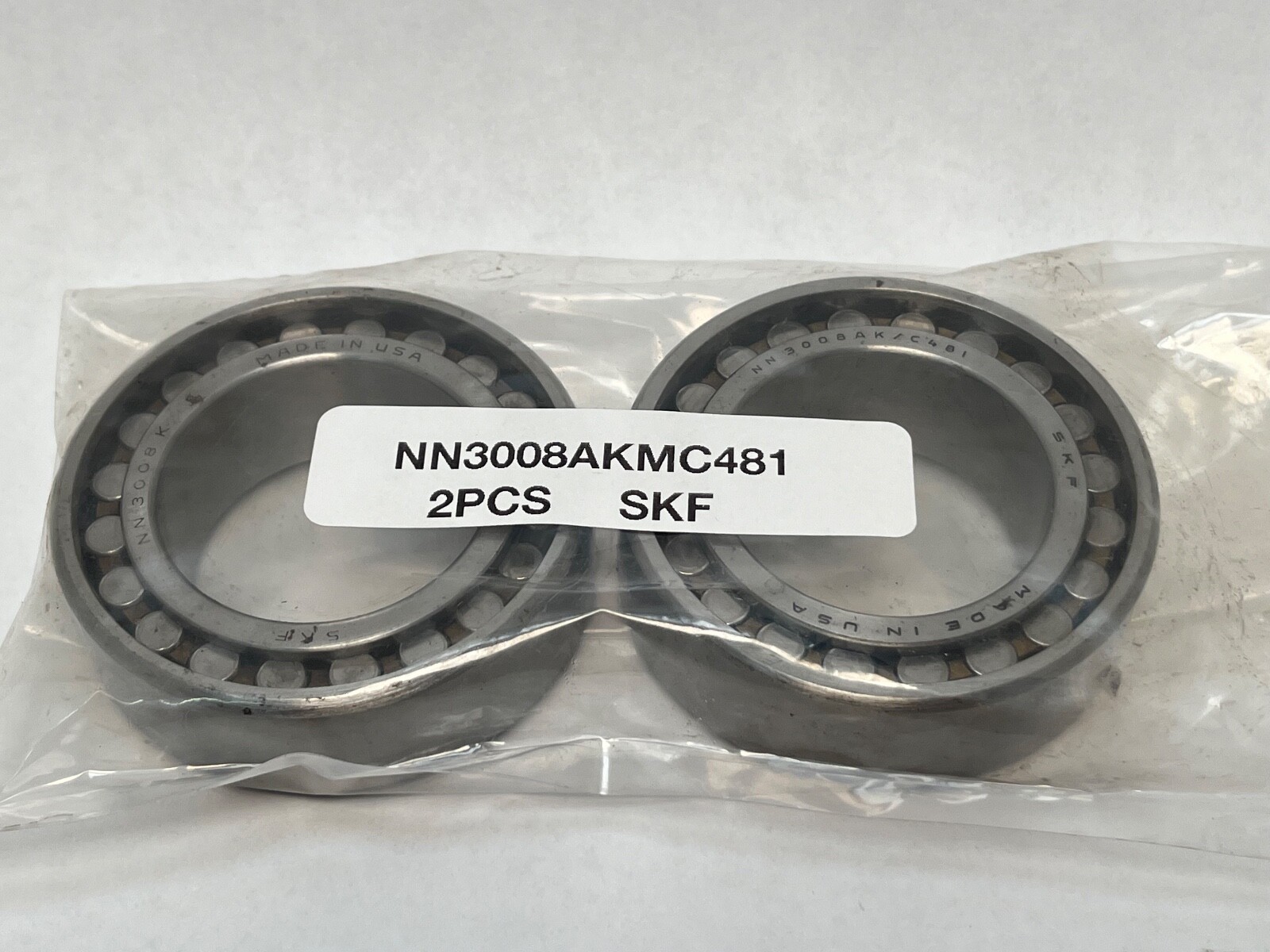

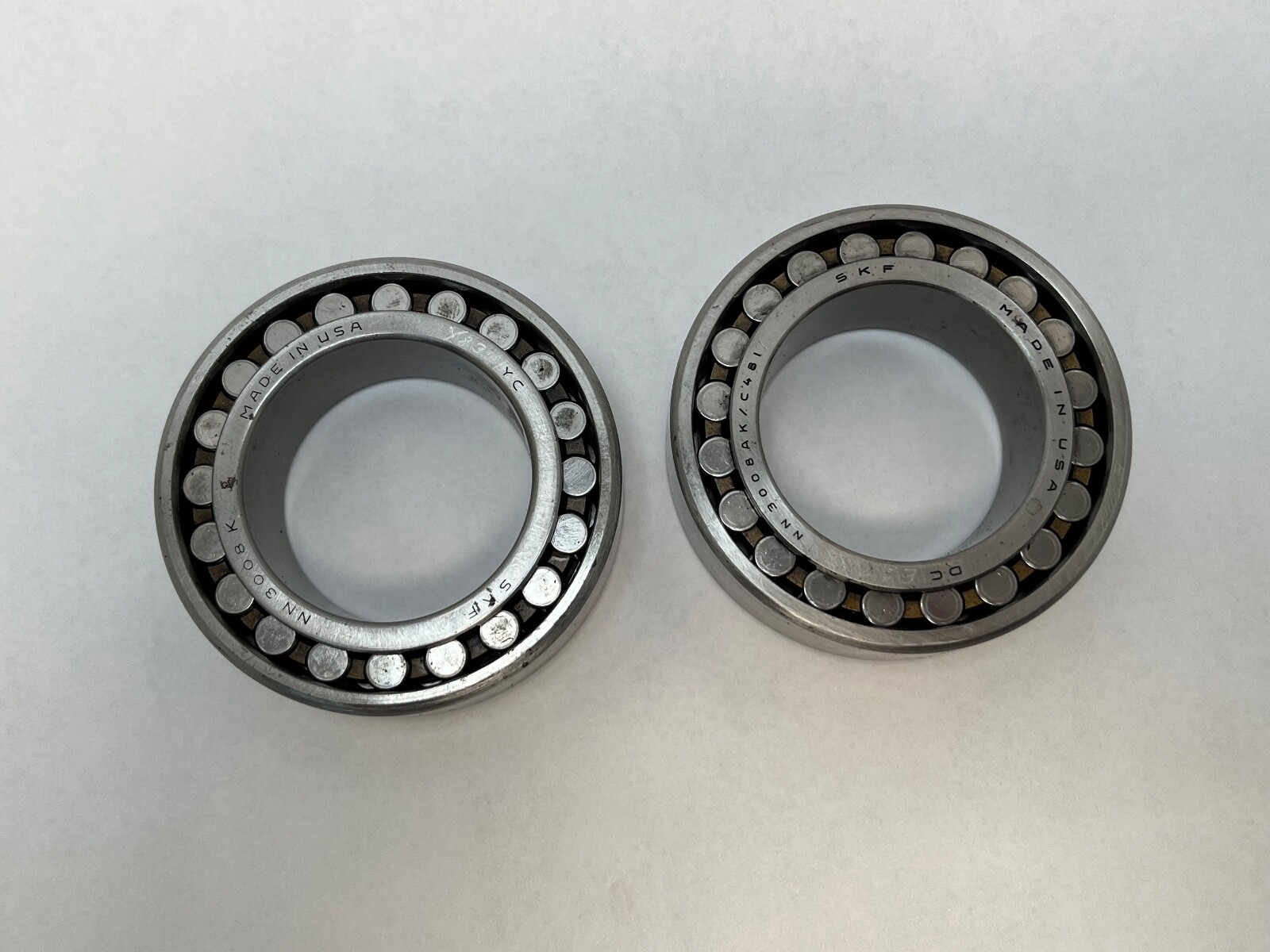

Double row cylindrical roller bearing, 40 x 68 x 21 mm, 1:12 tapered bore and machined brass cage. SKF NN 30 super-precision series, supplied as two pieces.
List Price
$121.45
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | NN 3008 AKMC/C481 |
| Model | NN 3008 A K M P5 C481 |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 40 mm |
| OD | 68 mm |
| Width | 21 mm |
| Material | Bearing Steel |
|---|---|
| Series | NN 30 |
| Base Number | NN 3008 |
| Industry Terms | Machine tool spindle bearing; precision double row cylindrical roller bearing; NN series spindle bearing; tapered bore cylindrical roller bearing |
| Common Misspellings | NN3008AKM; NN 3008 AKMC481; NN3008-AKM-C481; NN3008 AKM C481; NN-3008-AKM |
| Application Types | Machine tool spindles; grinding spindles; lathe headstocks; milling heads; boring mills; precision gearboxes |
| Overall Width | 21 mm |
| Mpn Variants | NN3008AKMC481; NN-3008-AKMC/C481; NN3008AKMC/C481; NN 3008 A K M C481; NN3008K; NN 3008 |
| Cage Type | Machined |
| Dynamic Load Rating | 42,900 N |
| Static Load Rating | 56,000 N |
| Rolling Elements | Cylindrical Roller |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.50.00.00 |
| Bearing Material | Bearing steel |
| Cross Reference 1 | FAG NN3008-AS-K-M-SP |
|---|---|
| Cross Reference 2 | NSK NN3008K |
| Cross Reference 3 | NTN NN3008K |
| Cross Reference 4 | Koyo NN3008K |
| Cross Reference 5 | NACHI NN3008K |
| Cross Reference 6 | SKF NN 3008 KTN9/SP - polyamide cage vs machined brass |

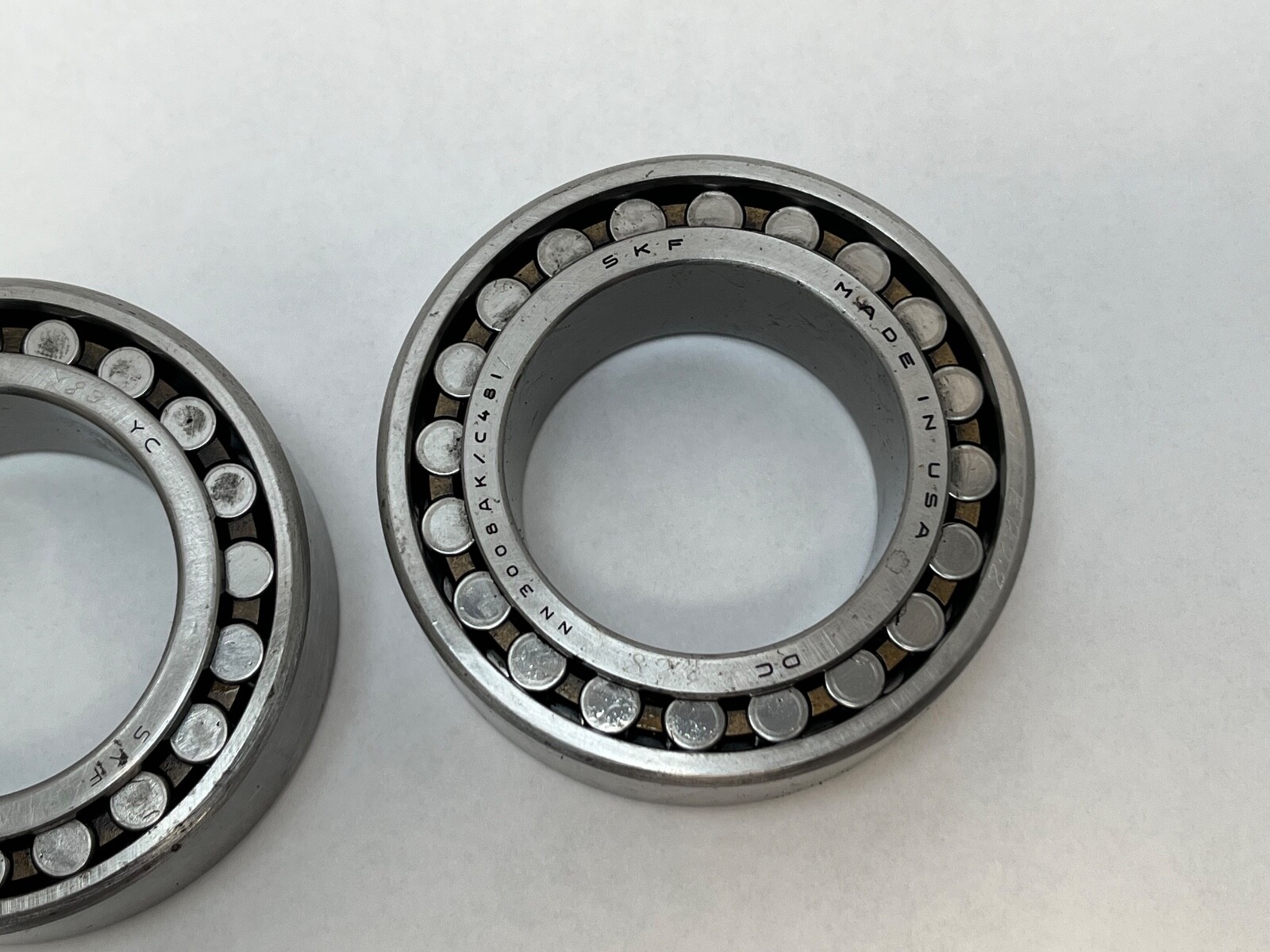

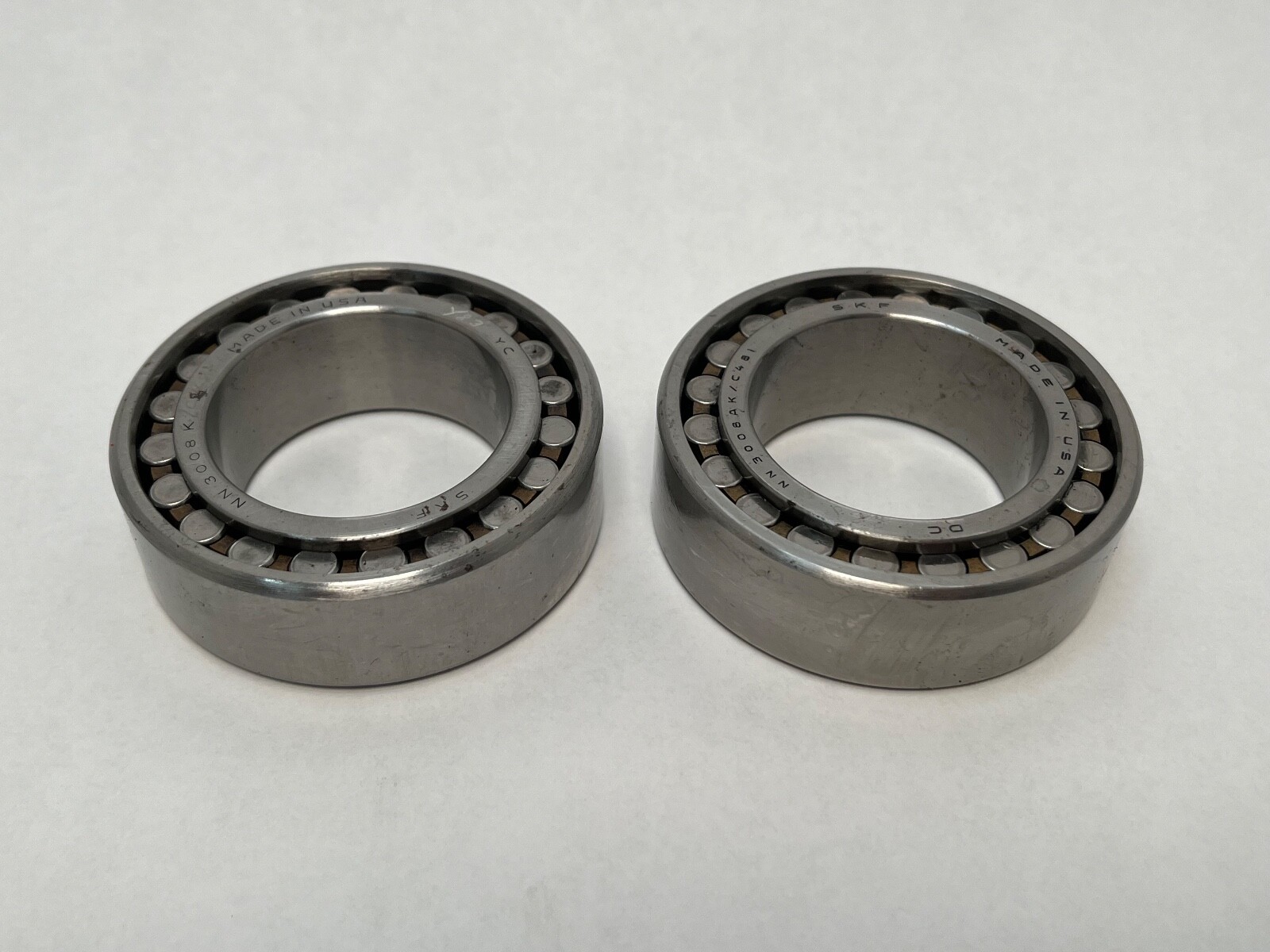

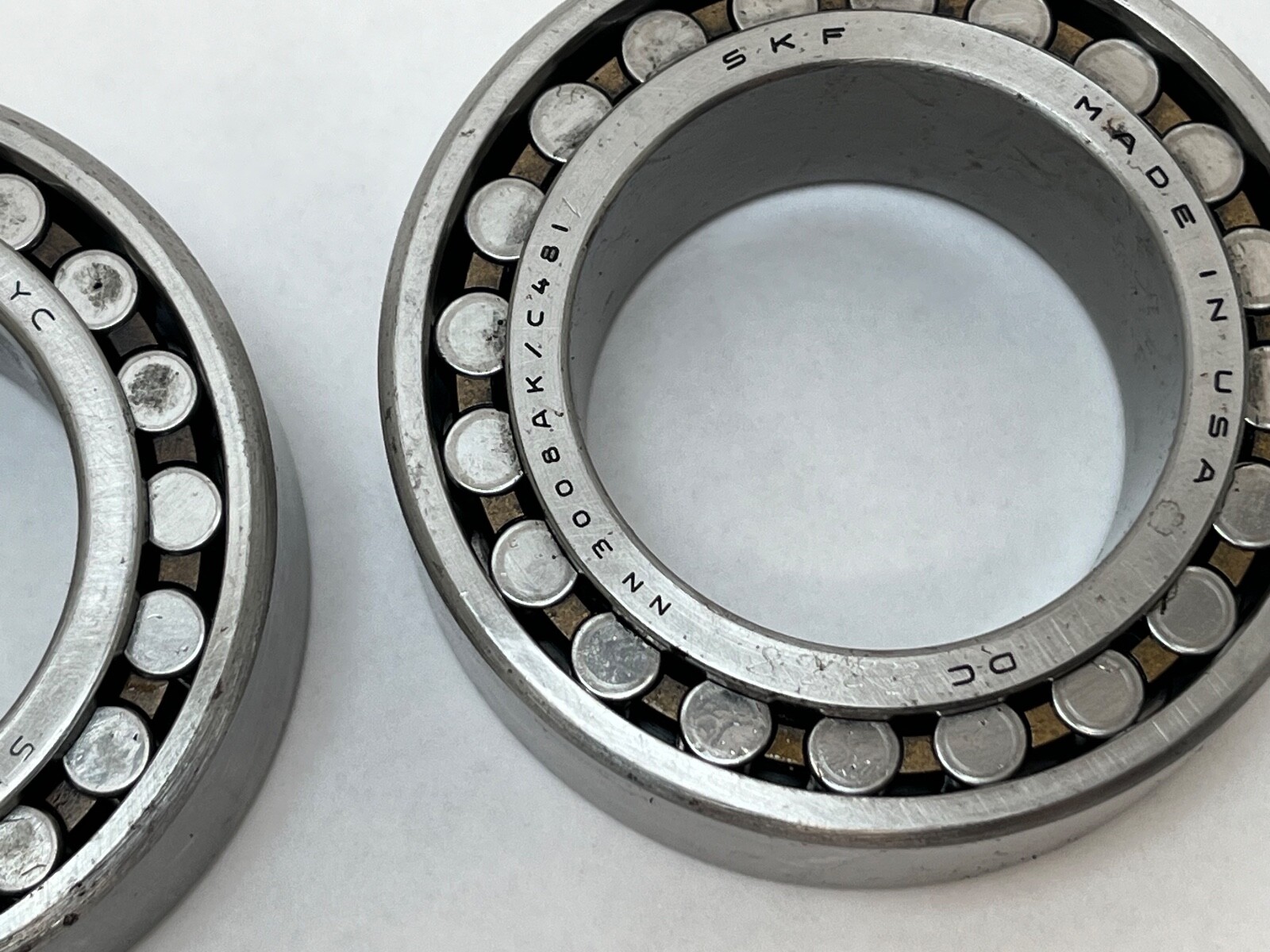

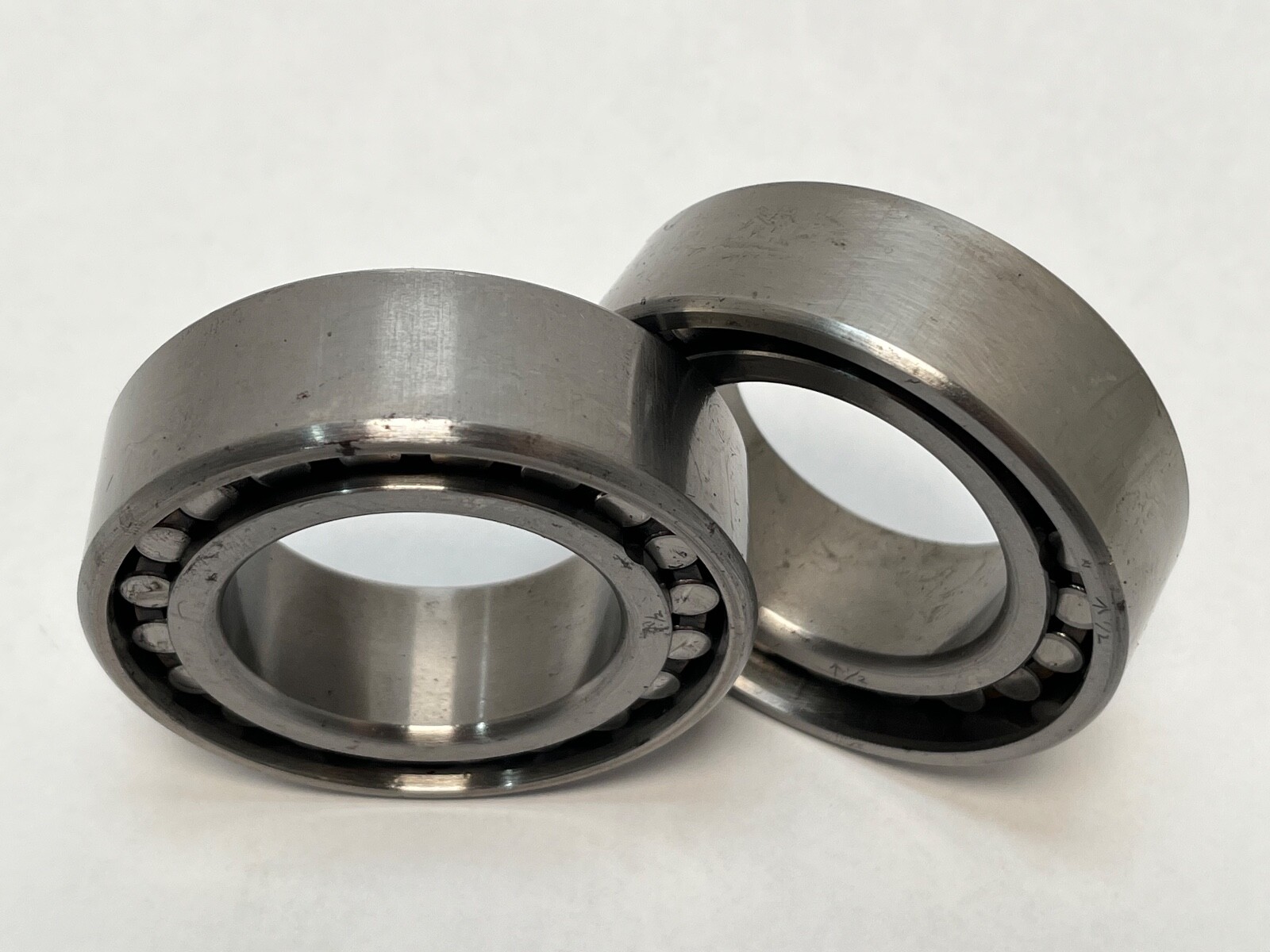

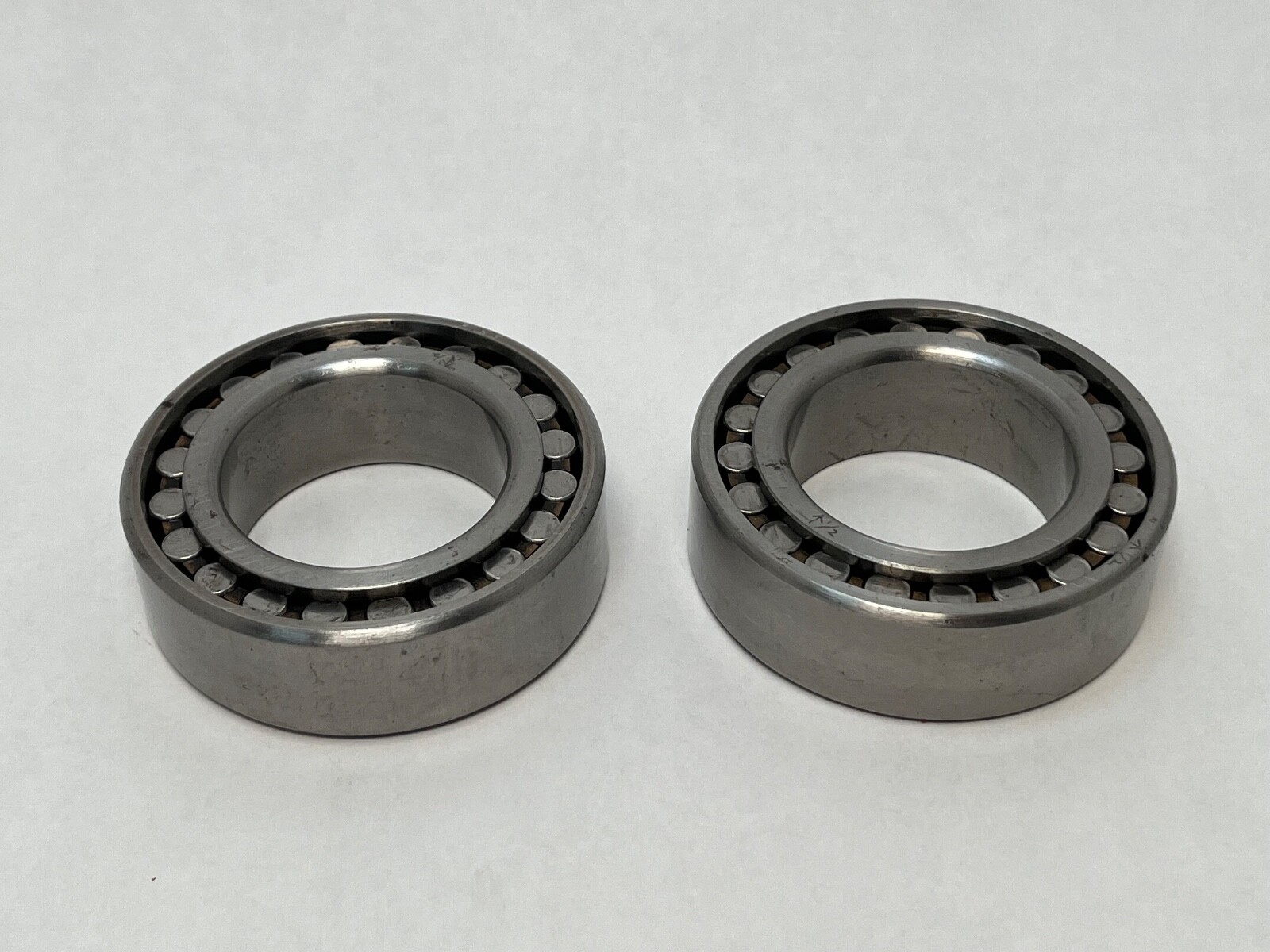

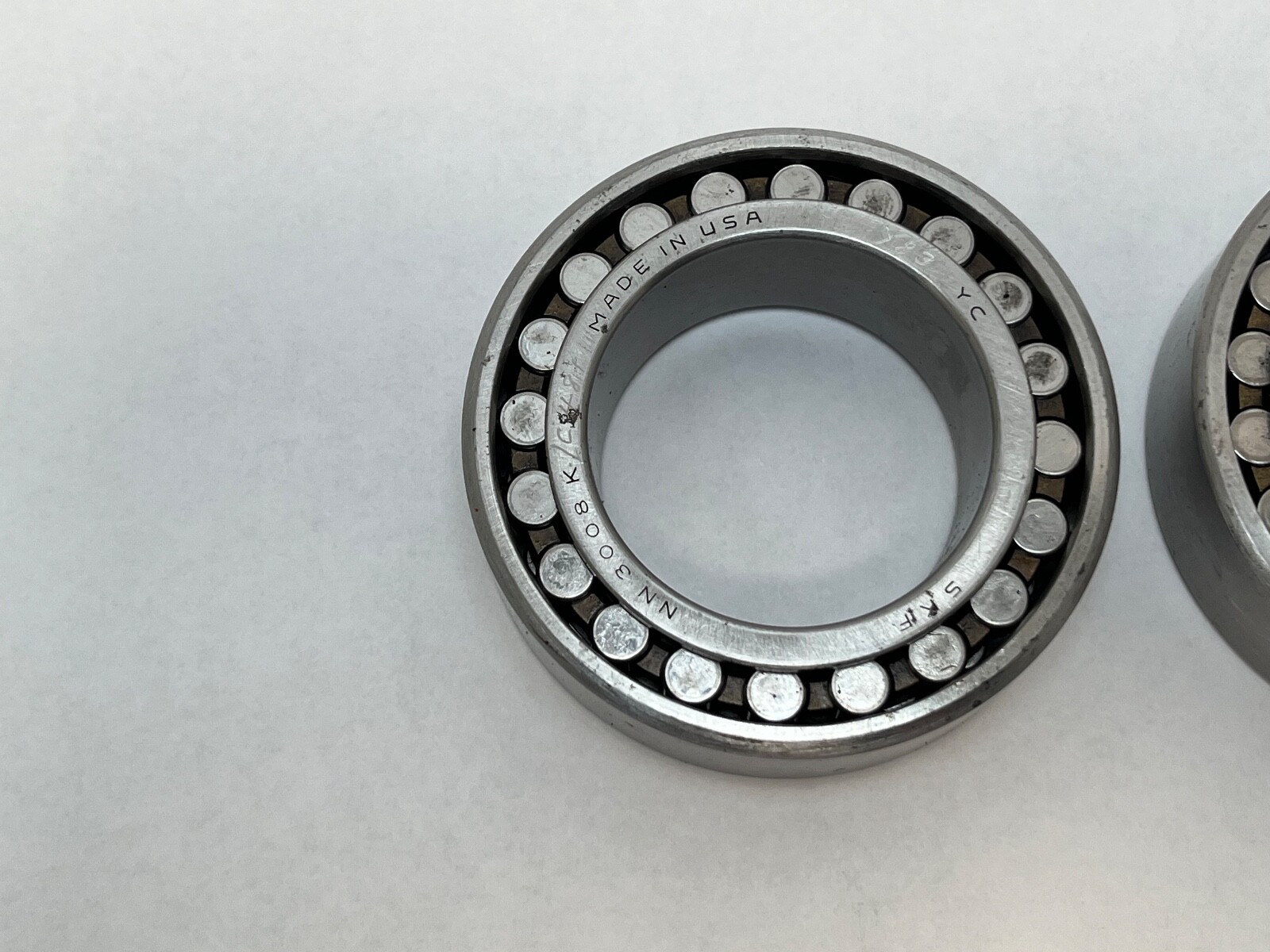

SKF NN 3008 AKMC/C481 is a double row cylindrical roller bearing from the SKF NN 30 super-precision series, for machine tool spindles and other assemblies that need high radial stiffness at speed. Bore Diameter: 40 mm. Outside Diameter: 68 mm. Overall Width: 21 mm. Number Of Rows: 2. Rolling Elements: Cylindrical Roller. Bore Type: Tapered 1:12. Cage Material: Machined brass. Cage Type: Machined. Closure Type: Open. Bearing Material: Bearing steel. Unit Quantity: 2 Pcs.
NN — double row cylindrical roller bearing. Two rows of rollers run on one inner ring and carry radial load.
3008 — NN 30 dimension series with bore code 08, the 40 x 68 x 21 mm envelope.
K — tapered bore, taper 1:12.
M — machined brass cage.

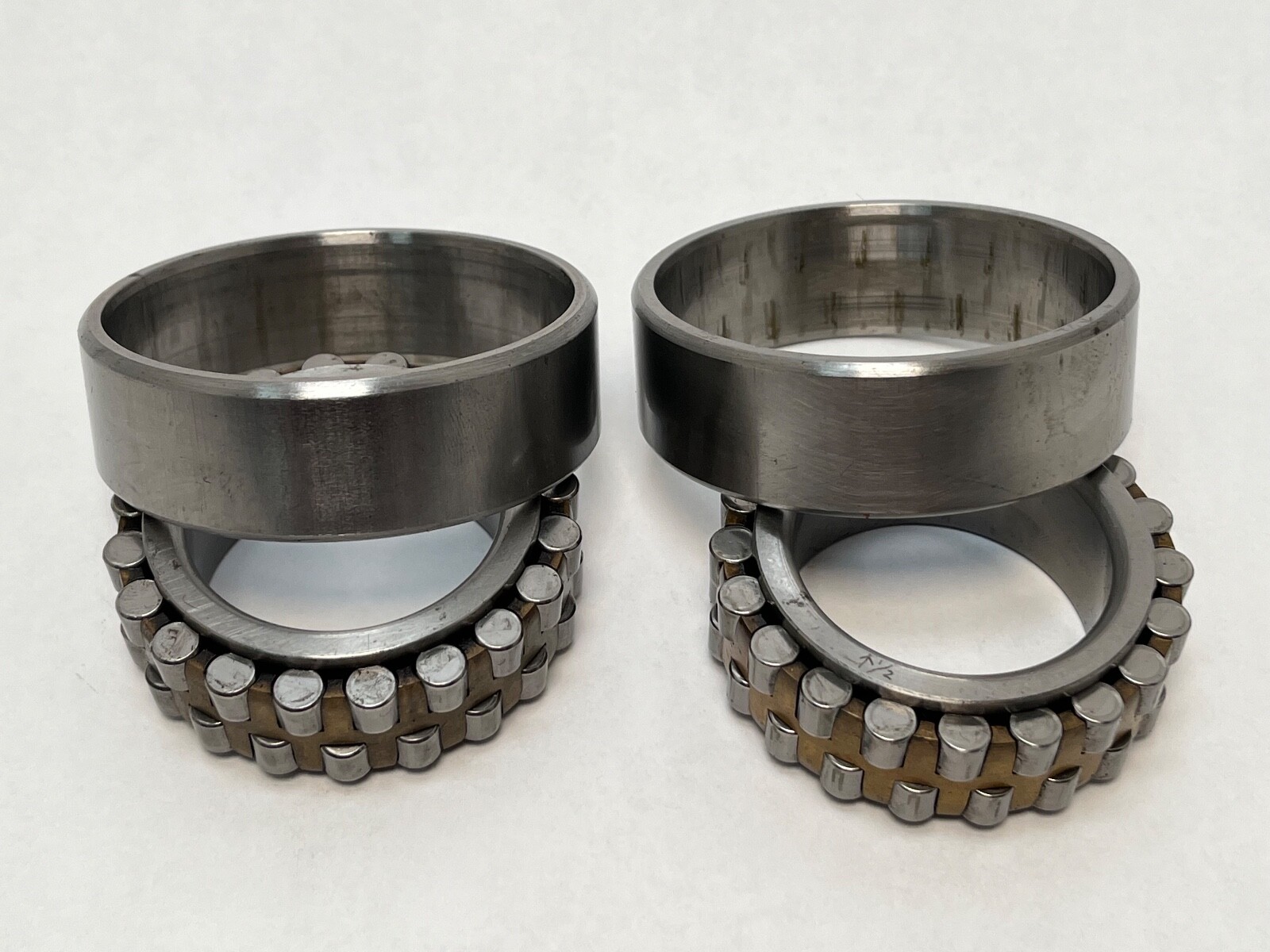

Inner Ring Flanges: 3. Outer Ring Flanges: 0. Separable: Yes. Dynamic Load Rating: 42,900 N. Static Load Rating: 56,000 N. Lubricant: Grease or oil. Snap Ring Included: No. Series: NN 30. Base Number: NN 3008. Harmonization Code: 8482.50.00.00. The flangeless outer ring separates from the inner ring and roller assembly.
Bore Diameter: 40 mm, at the small end of the 1:12 taper. Outside Diameter: 68 mm. Overall Width: 21 mm. Mounts directly on a tapered journal. Each piece is a complete bearing: inner ring with rollers and cage, plus its outer ring.
NN 30 boundary dimensions are standardised across makers. FAG NN3008-AS-K-M-SP, NSK NN3008K, NTN NN3008K, Koyo NN3008K and NACHI NN3008K carry the same 40 x 68 x 21 mm envelope. SKF NN 3008 KTN9/SP is the current-production execution at this size, with a polyamide cage.
40 mm bore, 68 mm outside diameter, 21 mm width.
A tapered bore, taper 1:12.
A machined brass cage.
