NSK NN3008MBKRCC1P4 double-row cylindrical roller bearing, 40 x 68 x 21 mm, 1:12 tapered bore, machined brass cage, P4 / ABEC 7 precision, open.
List Price
$172.55
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | NN3008MBKRCC1P4 |
| Model | NN 3008 MB K R CC1 P4 / NN3008 ASK M P4 |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 40 mm |
| OD | 68 mm |
| Width | 21 mm |
| Material | Bearing Steel |
|---|---|
| Series | NN3000 |
| Base Number | NN3008 |
| Industry Terms | double row cylindrical roller bearing, NN bearing, tapered bore roller bearing, machine tool spindle bearing, super precision roller bearing, brass cage roller bearing, adjustable clearance bearing |
| Common Misspellings | NSK NN 3008 MBKR CC1 P4, NN3008MBKRCC1P-4, NSKNN3008MBKRCC1P4, NN3008 MB KR CC1P4, NKS NN3008MBKRCC1P4, NNU3008MBKRCC1P4 |
| Application Types | Machine-tool spindles, precision boring and grinding heads, high-speed gearboxes, rotary tables |
| Bore Shaft Size | 40 mm (1.5748 in), 1:12 tapered bore |
| Mpn Variants | NN3008MBKRCC1P4, NN-3008-MB-K-R-CC1-P4, NN 3008 MB K R CC1 P4, NN3008MBKP4, NN3008K |
| Precision Class | ABEC 7 / ISO P4 |
| Cage Type | Machined |
| Precision Rating | ABEC 7 / ISO P4 |
| Rolling Elements | Cylindrical Roller |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Harmonization Code | 8482.50.00 |
| Part Number | NN3008MBKRCC1P4 |
| Closure Type | Open |
| Cross Reference 1 | SKF NN3008KTN9/SP - polyamide cage |
|---|---|
| Cross Reference 2 | FAG NN3008-AS-K-M-SP - lube groove, brass cage |
| Cross Reference 3 | NTN NN3008K - standard tolerance, not P4 |

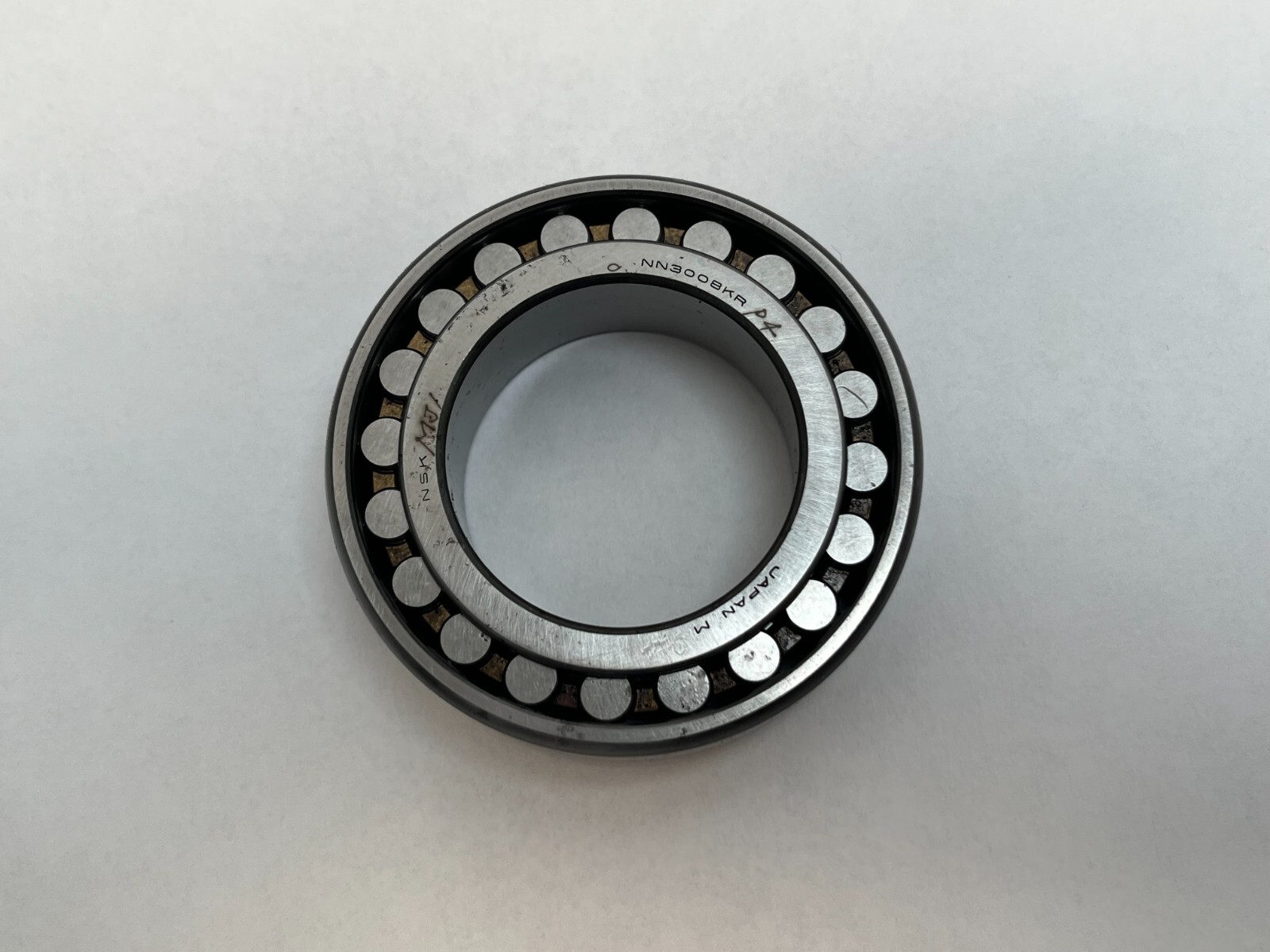

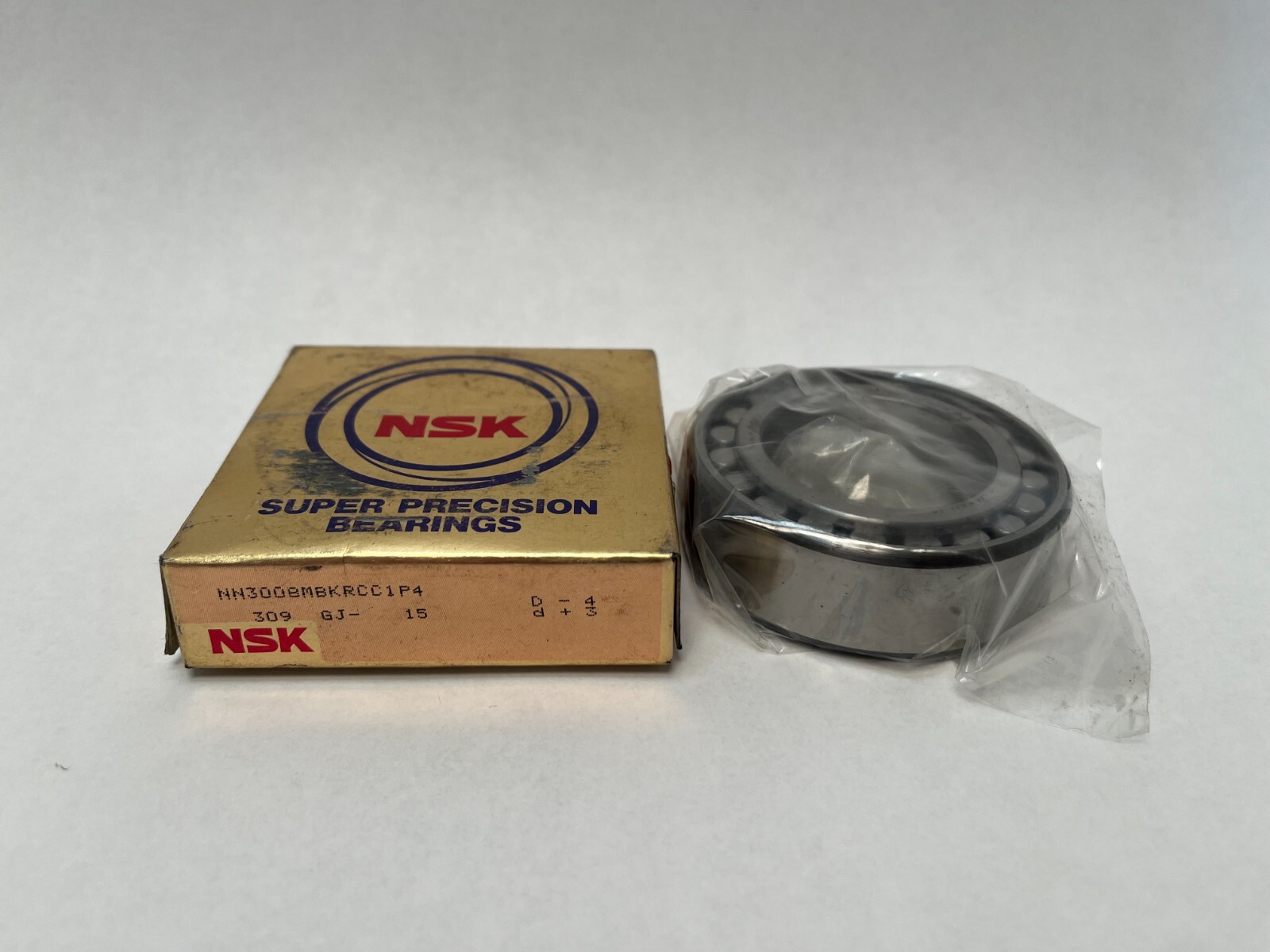

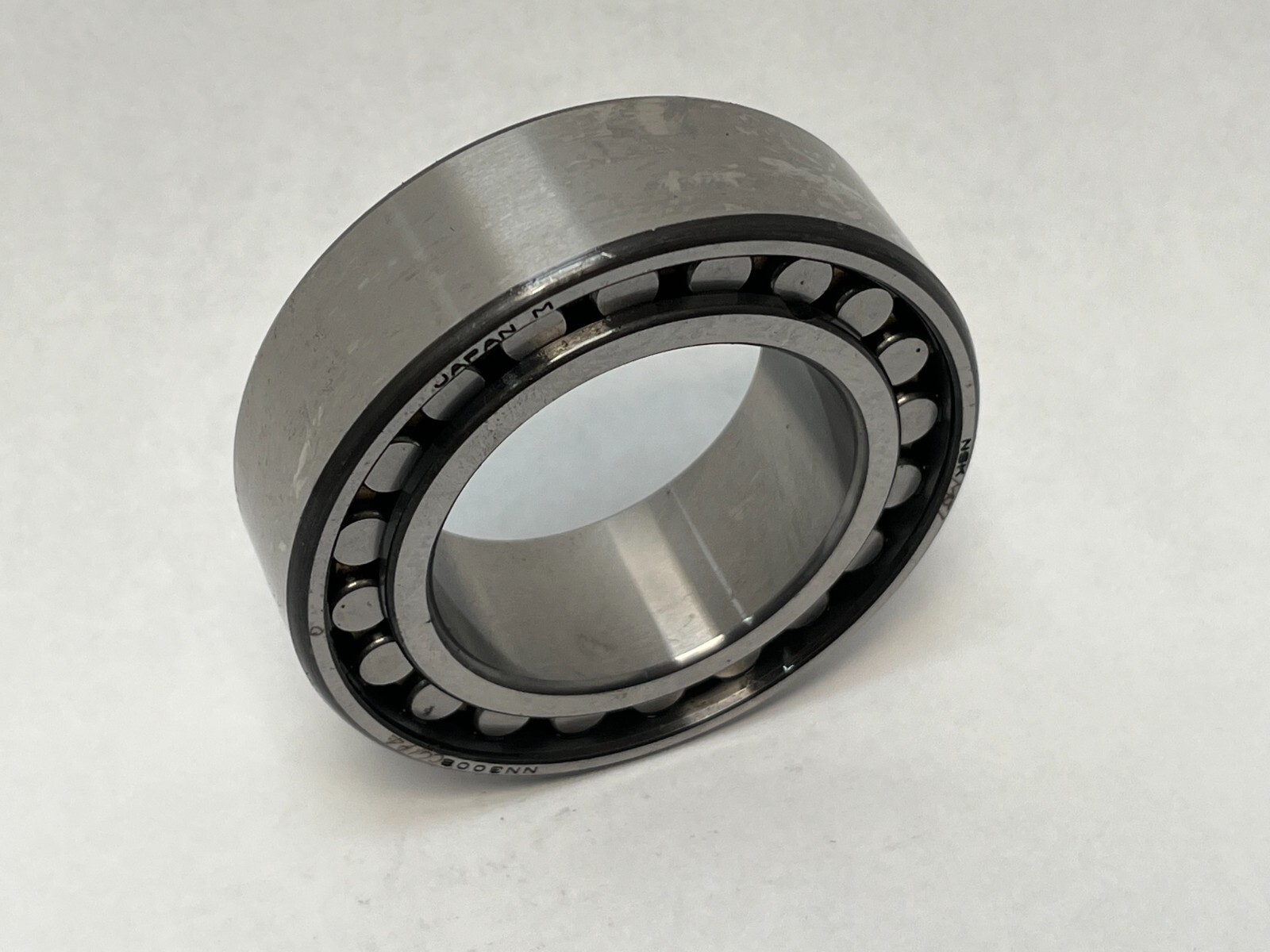

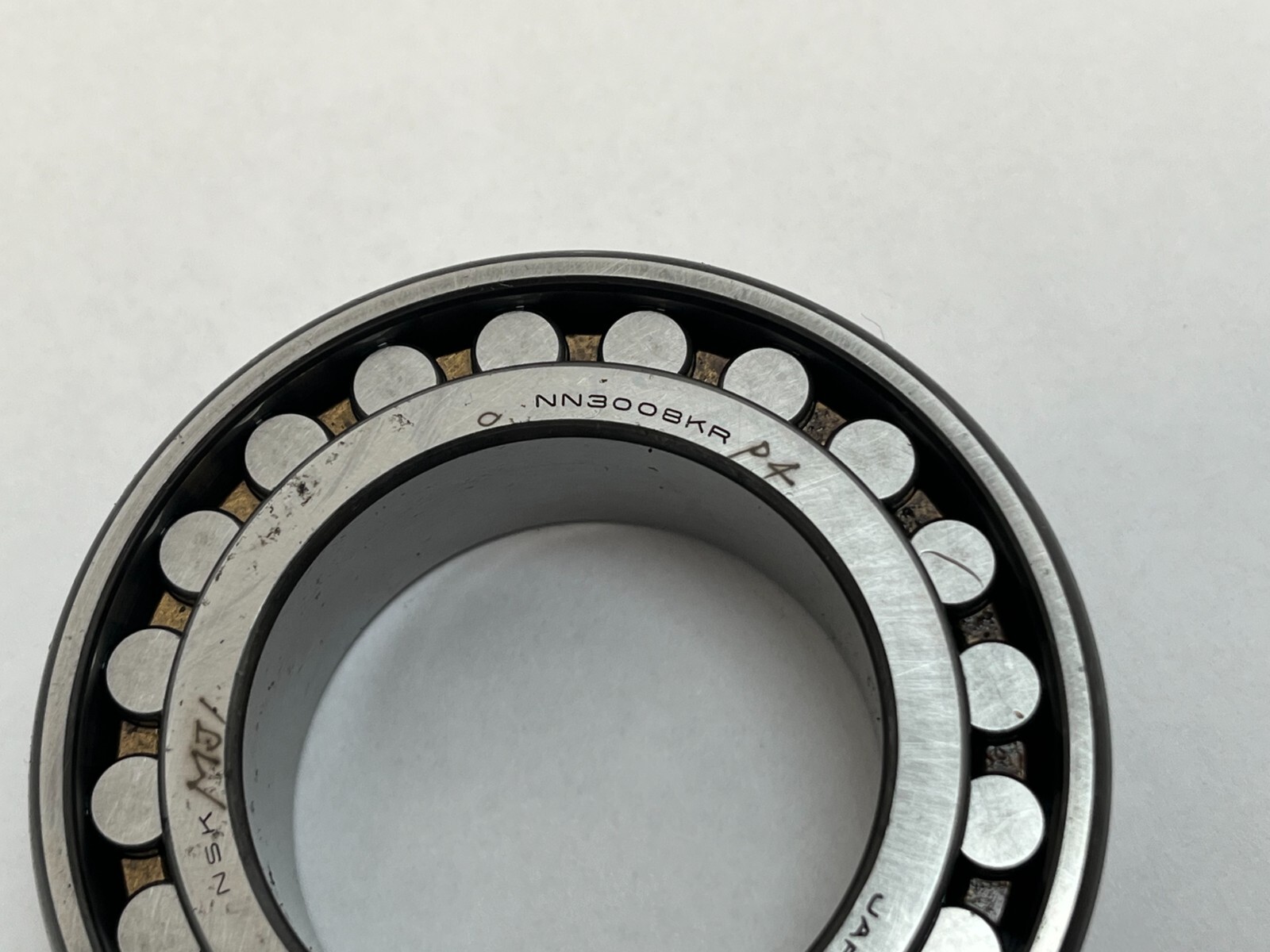

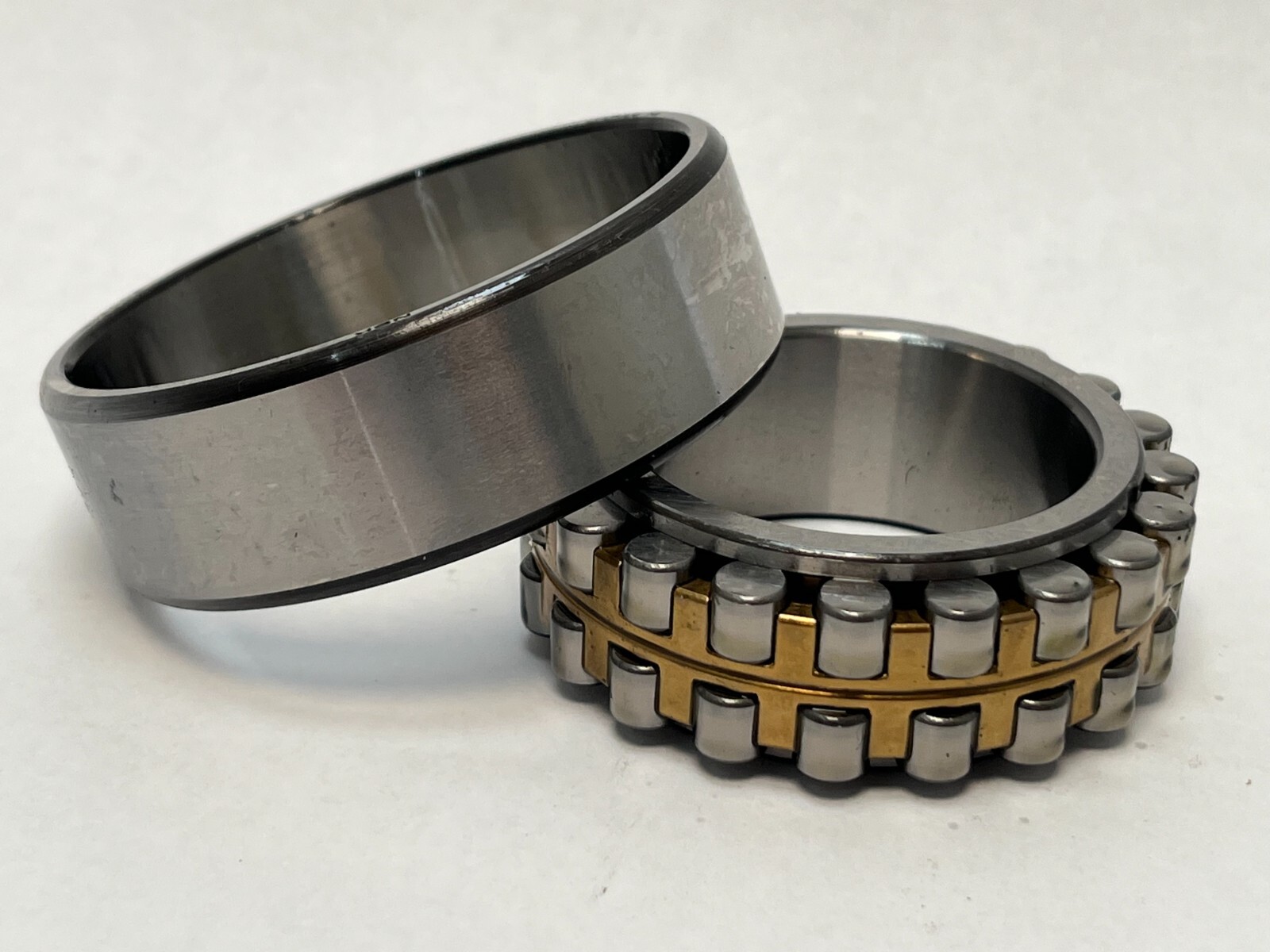

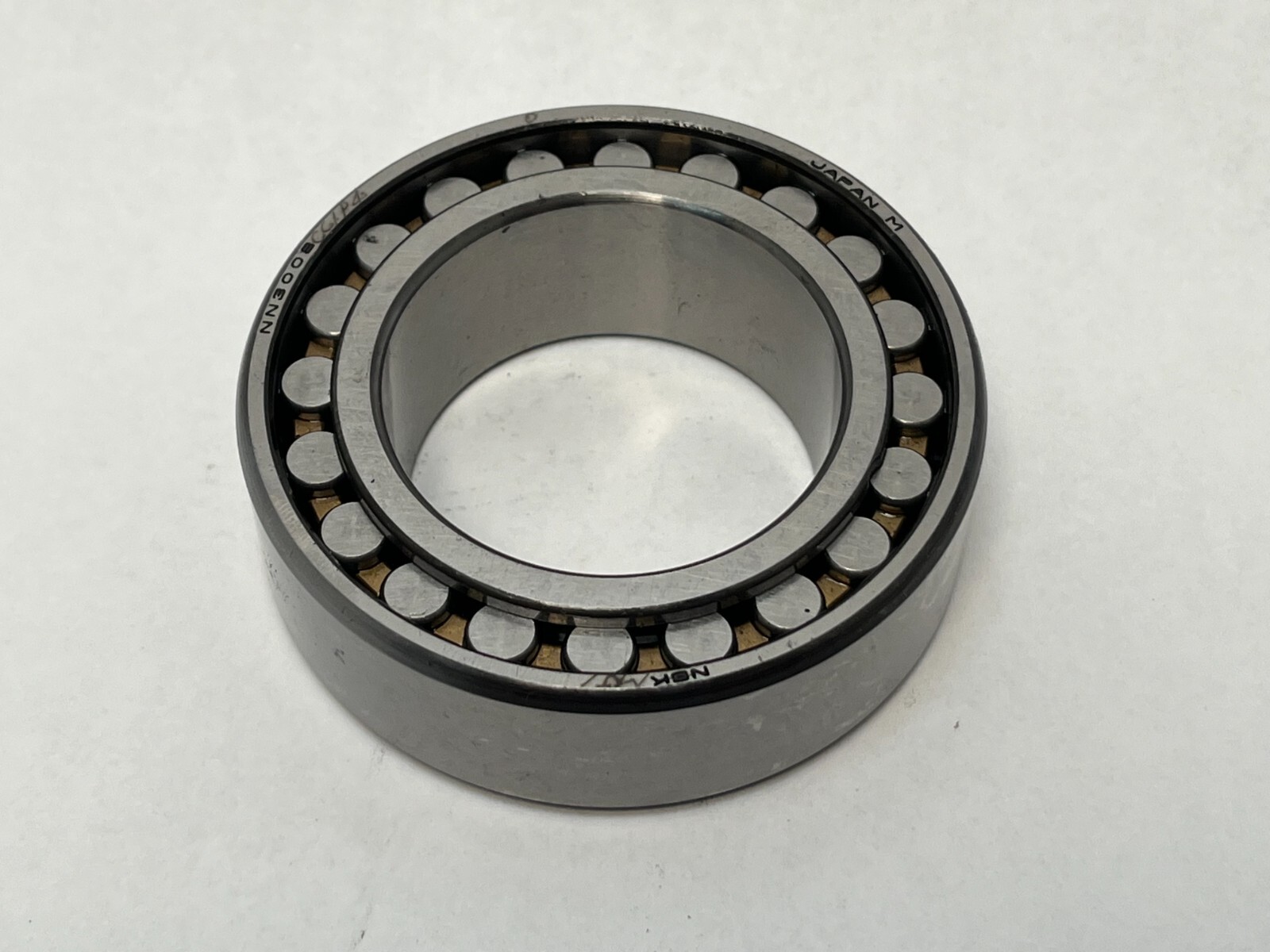

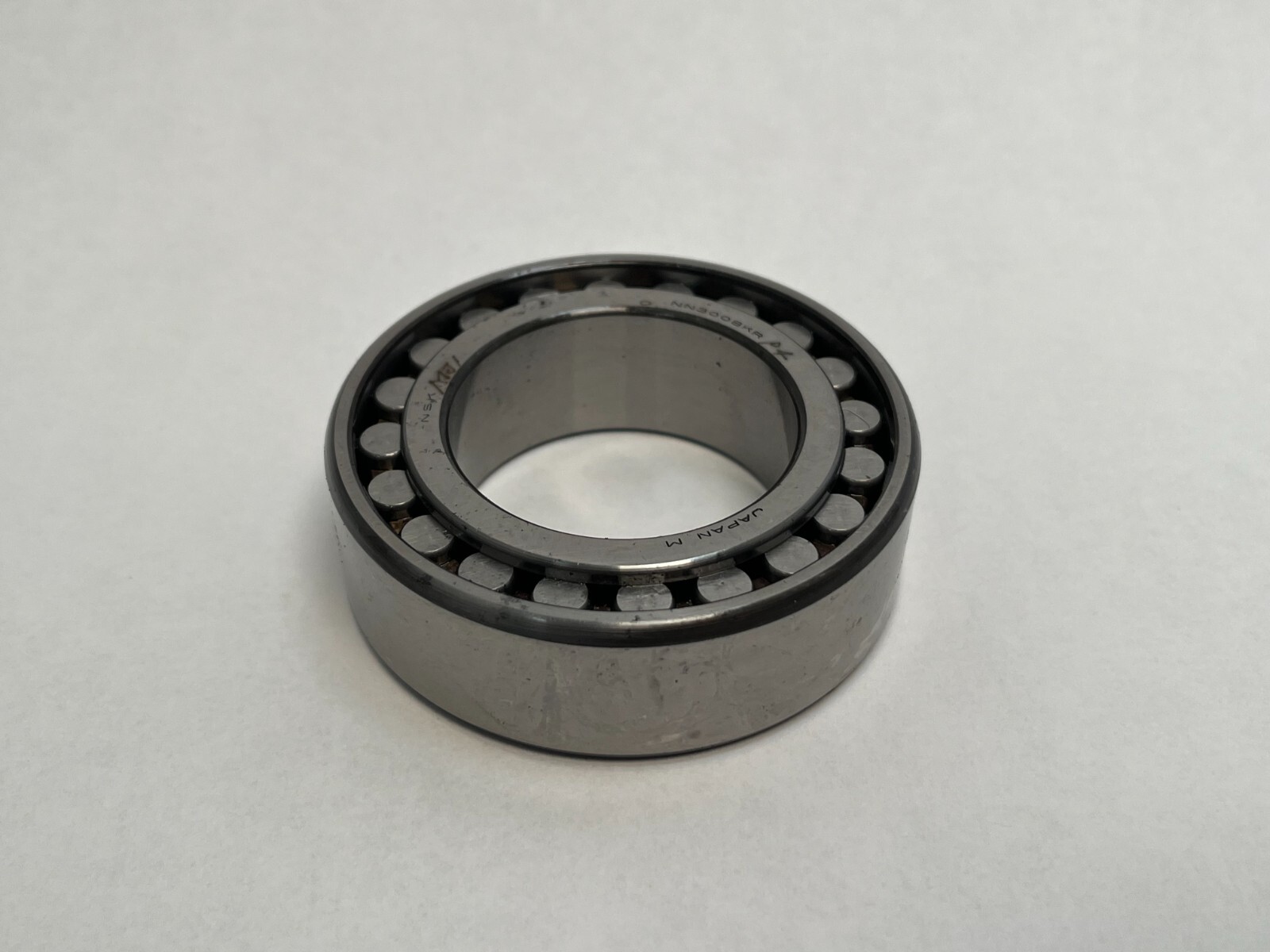

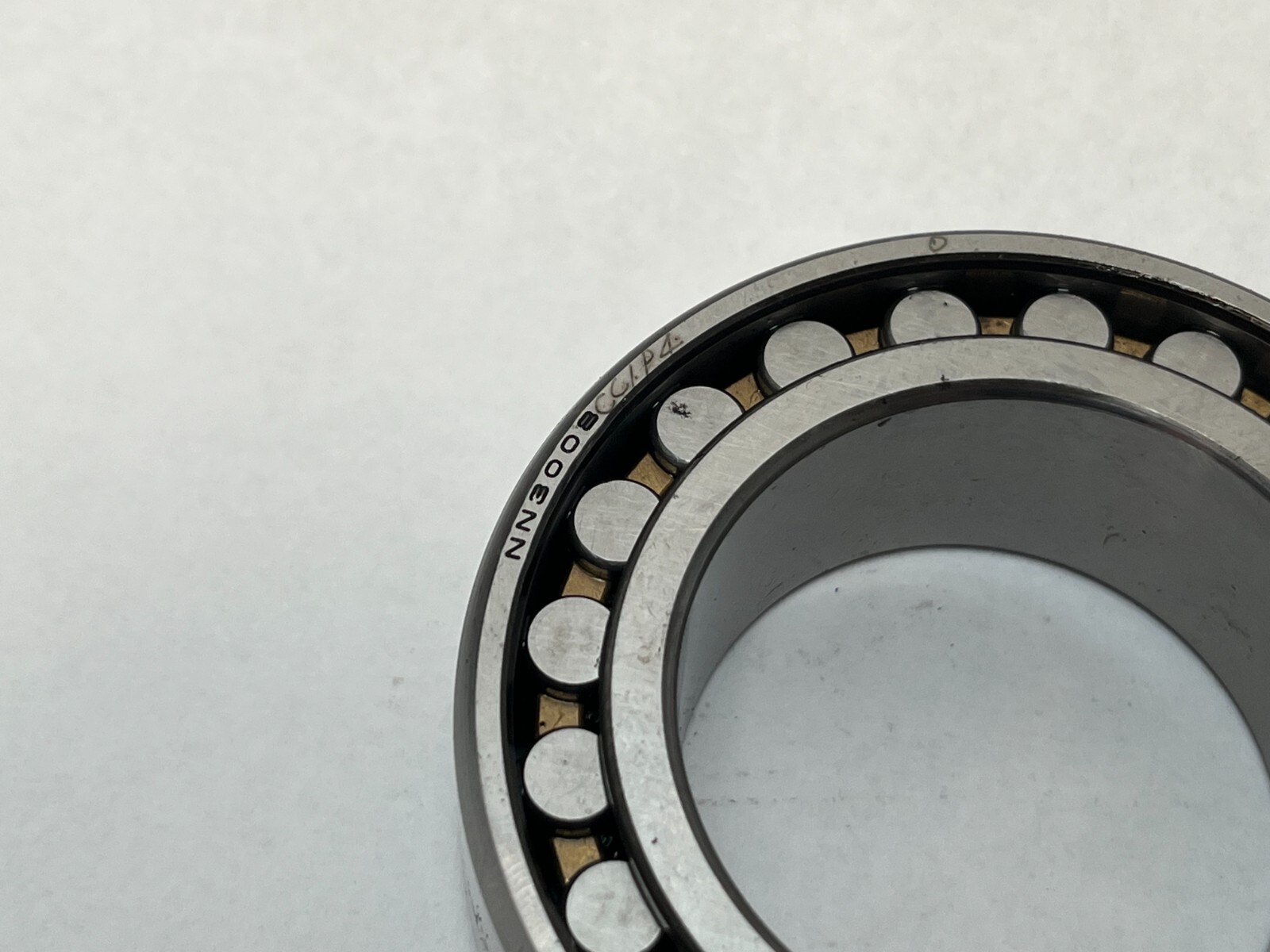

NSK NN3008MBKRCC1P4 is a double-row cylindrical roller bearing in the ISO NN3008 size: 40 mm bore, 68 mm outside diameter, 21 mm width. Two rows of cylindrical rollers, machined brass cage, 1:12 tapered bore, P4 precision (ABEC 7), open design. Unit Quantity: 1 Pc: one complete bearing with inner ring, outer ring, both roller rows and cage.
NN — double-row cylindrical roller bearing; the guiding ribs are on the inner ring.
30 — dimension series 30.
08 — bore code, 08 x 5 = 40 mm.
MB — machined solid brass cage.
K — 1:12 tapered bore.
P4 — ISO P4 precision class, equivalent to ABEC 7.
Bore Diameter: 40 mm (1.5748 in). Outside Diameter: 68 mm (2.6772 in). Overall Width: 21 mm (0.8268 in). Number Of Rows: 2. Rolling Elements: Cylindrical Roller. Cage Material: Machined brass. Bore Type: Tapered 1:12. Precision Class: ABEC 7 / ISO P4. Closure Type: Open. Series: NN30. Unit Quantity: 1 Pc.
The 1:12 tapered bore seats directly on a matching tapered spindle journal; no adapter sleeve applies to an NN cylindrical roller bearing. The NN design carries radial load and provides no axial location.
Cross-references, 40 x 68 x 21 mm with 1:12 tapered bore: SKF NN3008KTN9/SP (polyamide cage); FAG NN3008-AS-K-M-SP (lubrication groove, brass cage); NTN NN3008K (standard tolerance, not P4).
40 mm bore, 68 mm outside diameter, 21 mm width.
K is a 1:12 tapered bore that seats directly on a tapered spindle journal.
P4 precision (equivalent to ABEC 7) and a machined solid brass cage (MB).
