Double-row spherical roller bearing, 25 x 52 x 18 mm, 1:12 tapered bore for an H305 adapter sleeve. Outer-ring lube groove, polyamide cage, C3 clearance.
List Price
$32.29
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22205ESK.TVPB |
| Model | 22205ESKTVPBW33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 25 mm |
| OD | 52 mm (2.0472 in) |
| Width | 18 mm |
| Series | 22200 |
|---|---|
| Lubricant | Grease or oil |
| Bore | Taper Bore |
| Material | Bearing Steel (100Cr6) |
| Relubrication | Outer ring groove with three radial feed holes |
| Base Number | 22205 |
| Industry Terms | spherical roller bearing, self aligning roller bearing, tapered bore bearing, adapter sleeve bearing, 22205 bearing, W33 bearing |
| Common Misspellings | FAG 22205 ESK TVPB, 22205ESKTVPB, 22205-ES-K-TVPB, 22205 EKTVPB, 22205ESKC3, 2205ESK |
| Application Types | Conveyor pulleys, fans and blowers, crushers and screens, vibrating equipment, gearboxes, pumps |
| Overall Width | 18 mm (0.7087 in) |
| Bore Shaft Size | 25 mm, tapered 1:12 (adapter sleeve mount) |
| Locking Method | Adapter sleeve H305 on a 20 mm shaft |
| Mpn Variants | 22205ESK.TVPB, 22205-E-S-K-TVPB-C3, 22205ESKTVPBC3, 22205ESKTVPBW33, 22205 ES K TVPB, 22205ESK, 22205EK, 22205K, 22205 |
| Compatible With Replaces | Adapter sleeve H305 |
| Additional Attributes | Adapter sleeve H305 seats on a 20 mm shaft; W33-equivalent groove with three radial feed holes |
| Rolling Elements | Roller |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Internal Clearance | C3 (greater than normal) |
| Relubrication Feature | Outer ring groove with three radial feed holes (W33 equivalent) |
| Harmonization Code | 8482.30.0080 |
| Design Units | Metric |
| Bearing Material | Bearing steel (100Cr6) |
| Part Number | 22205ESK.TVPB |
| Closure Type | Open both faces |
| Cross Reference 1 | SKF 22205 EK/C3 W33 |
|---|---|
| Cross Reference 2 | NSK 22205EAKE4C3 |
| Cross Reference 3 | NTN 22205EAKD1C3 |
| Cross Reference 4 | Koyo 22205RHRKW33C3 |

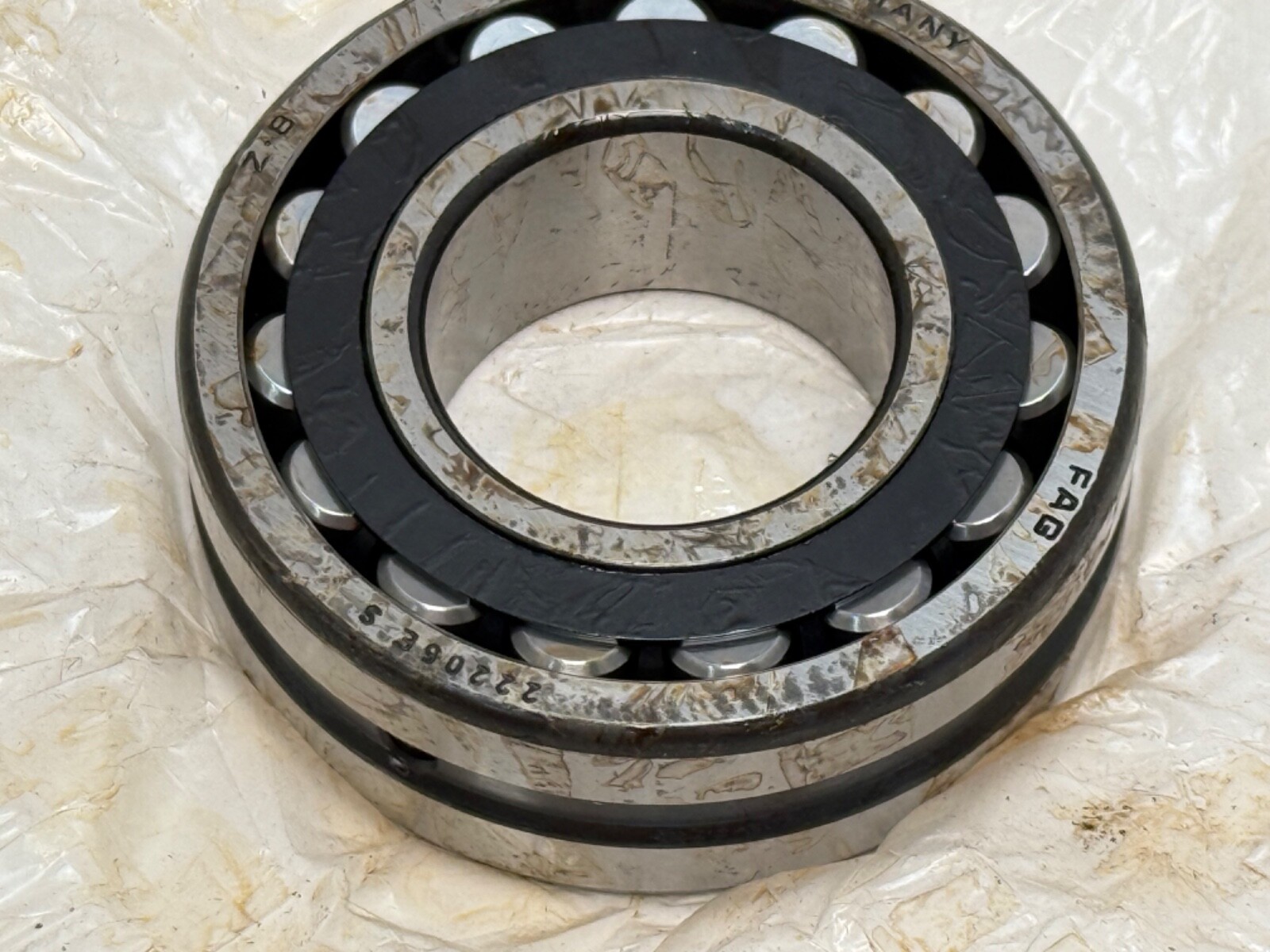

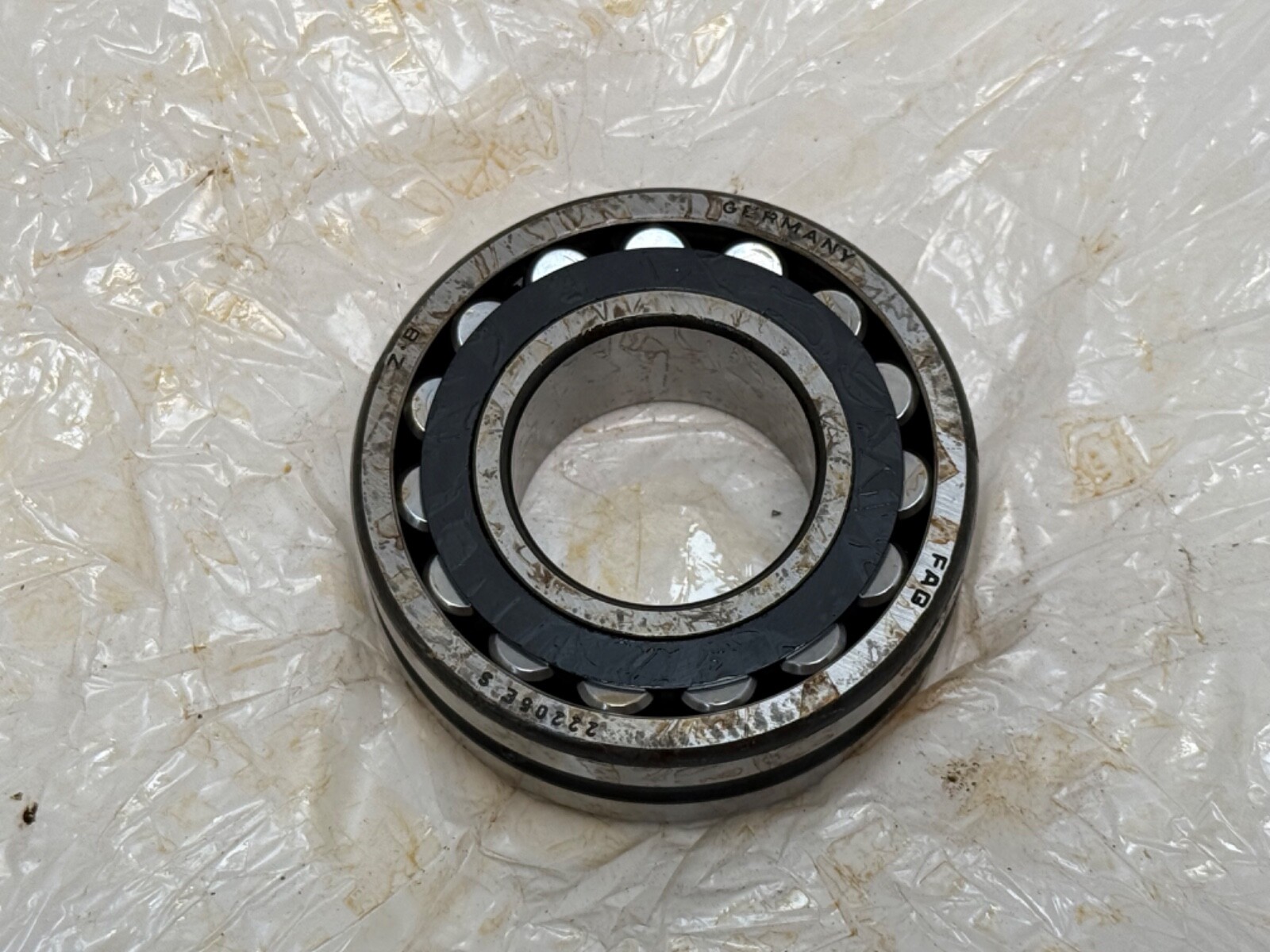

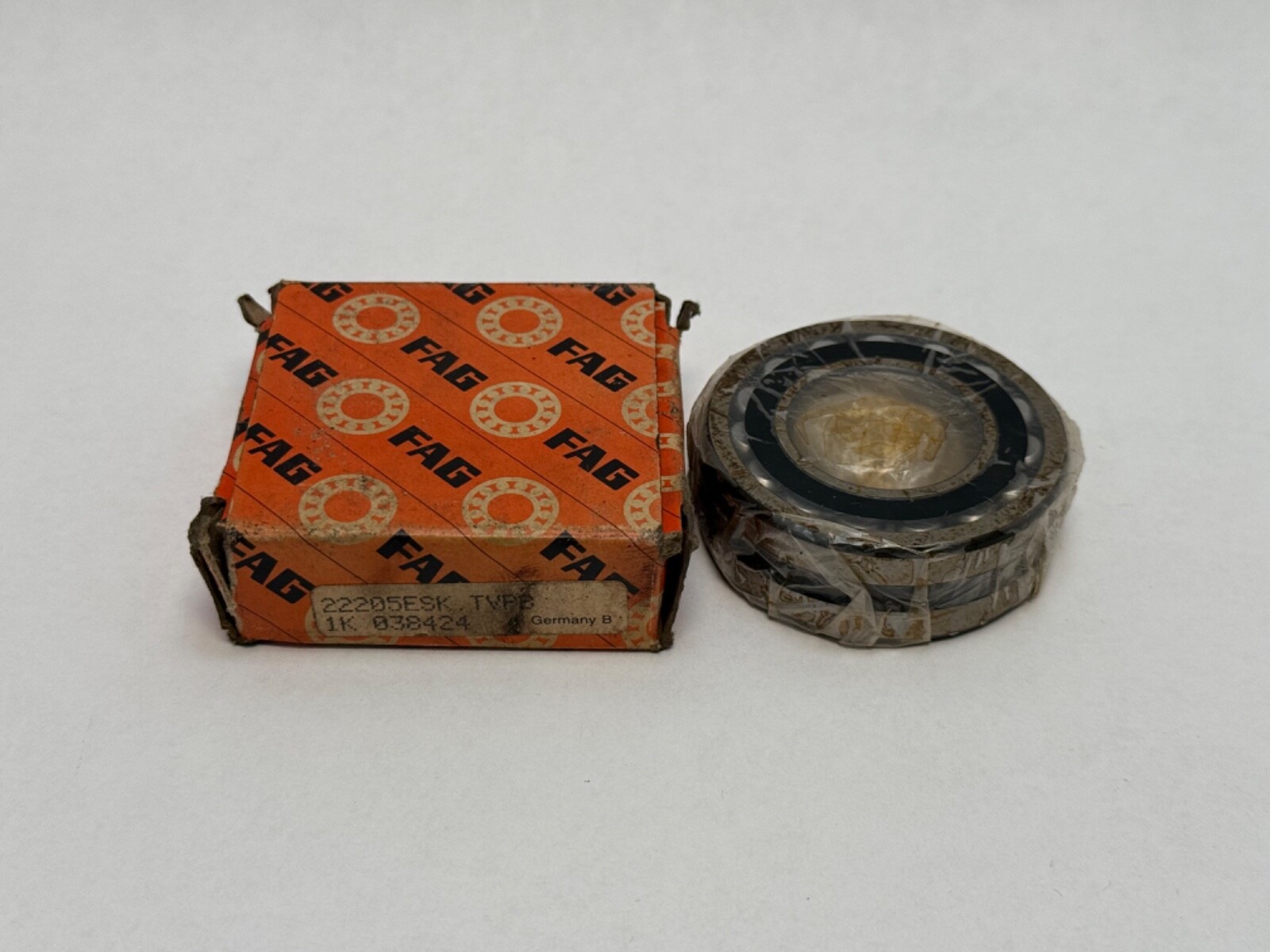

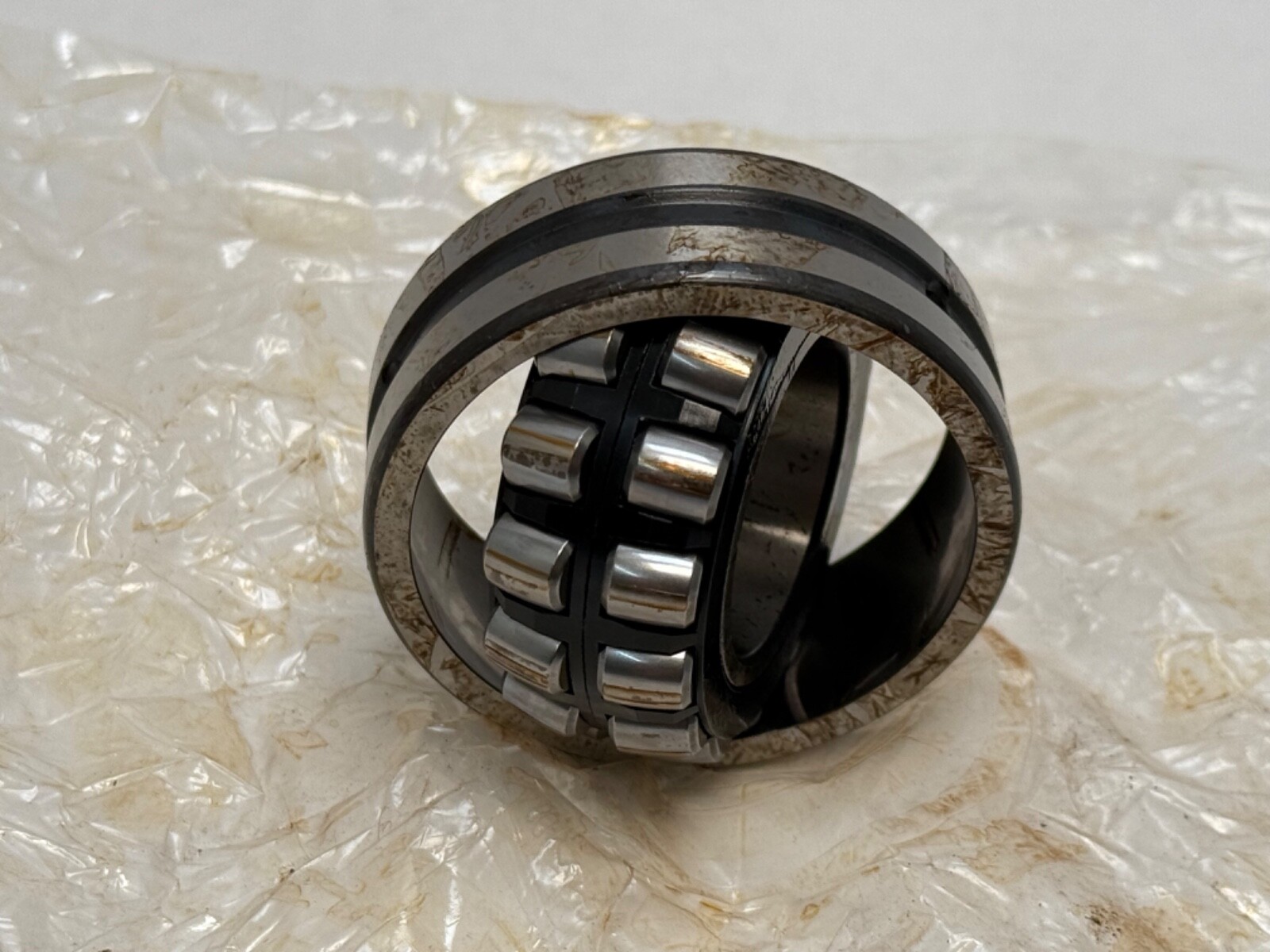

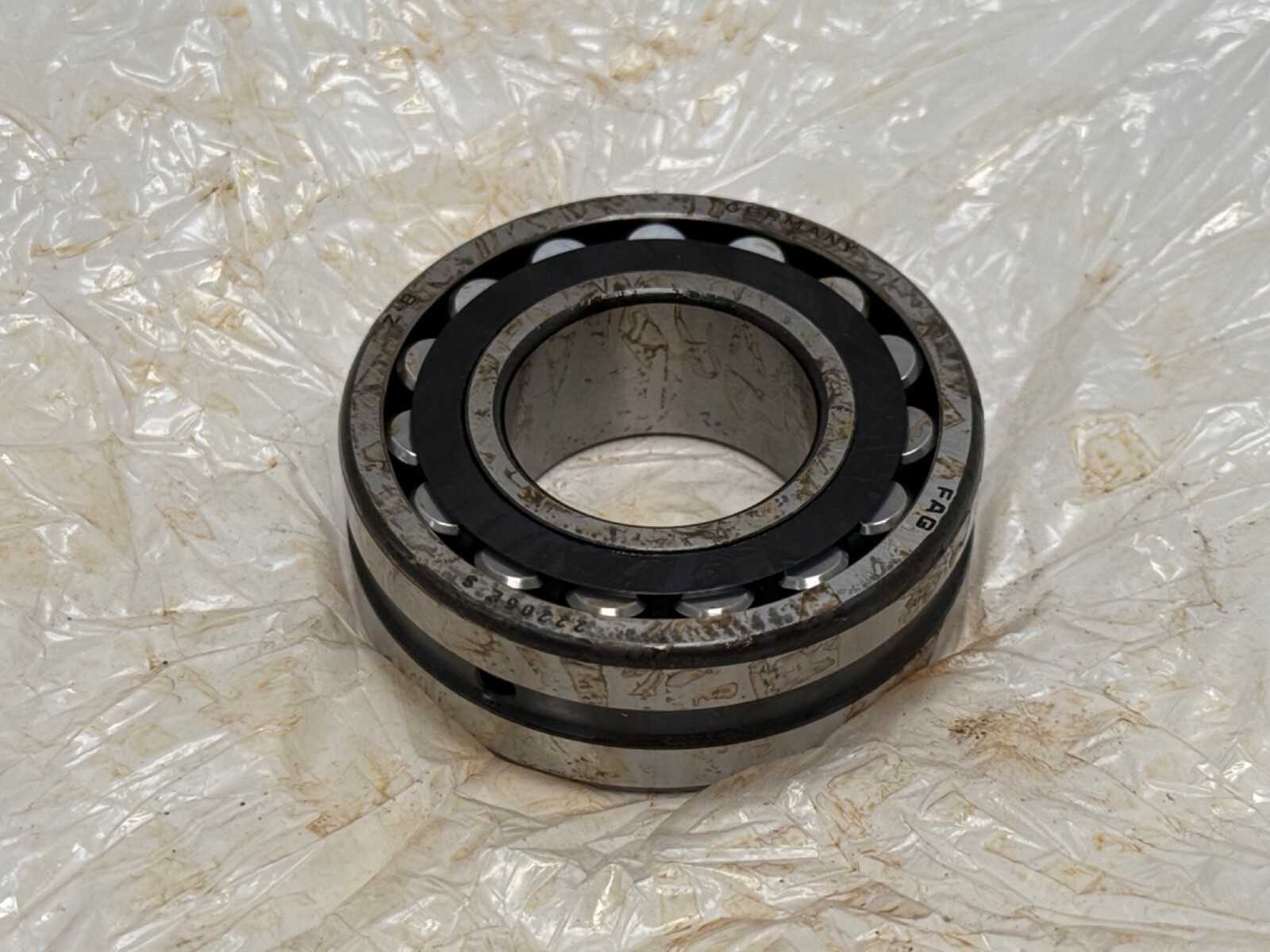

FAG 22205ESK.TVPB double-row spherical roller bearing: 25 mm tapered bore (1:12), 52 mm outside diameter, 18 mm width. Two rows of barrel-shaped rollers run in a common spherical outer raceway; the outer ring carries a lubrication groove with three feed holes. Mounts on an H305 adapter sleeve. Unit Quantity: 1 Pc.
22205 — double-row spherical roller bearing, 25 mm bore, 52 mm OD, 18 mm width.
E — reinforced design with increased load capacity over the base version.
S — lubrication groove in the outer ring plus three radial feed holes; the feature other makers mark W33.
K — 1:12 tapered bore.
TVPB — glass-fibre reinforced polyamide cage.
C3 — internal clearance greater than normal.
Bore Diameter: 25 mm, tapered 1:12. Outside Diameter: 52 mm (2.0472 in). Overall Width: 18 mm (0.7087 in). Number Of Rows: 2. Rolling Elements: Spherical roller. Cage Material: Glass-fibre reinforced polyamide. Internal Clearance: C3. Closure Type: Open both faces. Lubricant: grease or oil. Relubrication Feature: outer ring groove with three radial feed holes. Series: 22200. Base Number: 22205.
Tapered bore 1:12 for adapter sleeve H305, which seats on a 20 mm shaft. Outside Diameter: 52 mm. Overall Width: 18 mm.
Cross-references with tapered bore, W33 groove and C3 clearance: SKF 22205 EK/C3 W33, NSK 22205EAKE4C3, NTN 22205EAKD1C3, Koyo 22205RHRKW33C3. The straight-bore 22205-E-S-TVPB shares the envelope with a cylindrical bore. A 22205 with a brass cage or with normal clearance is a related version. MPN Variants: 22205ESK.TVPB, 22205-E-S-K-TVPB-C3, 22205ESKTVPBC3, 22205ESKTVPBW33, 22205 ES K TVPB, 22205ESK, 22205EK, 22205K, 22205.

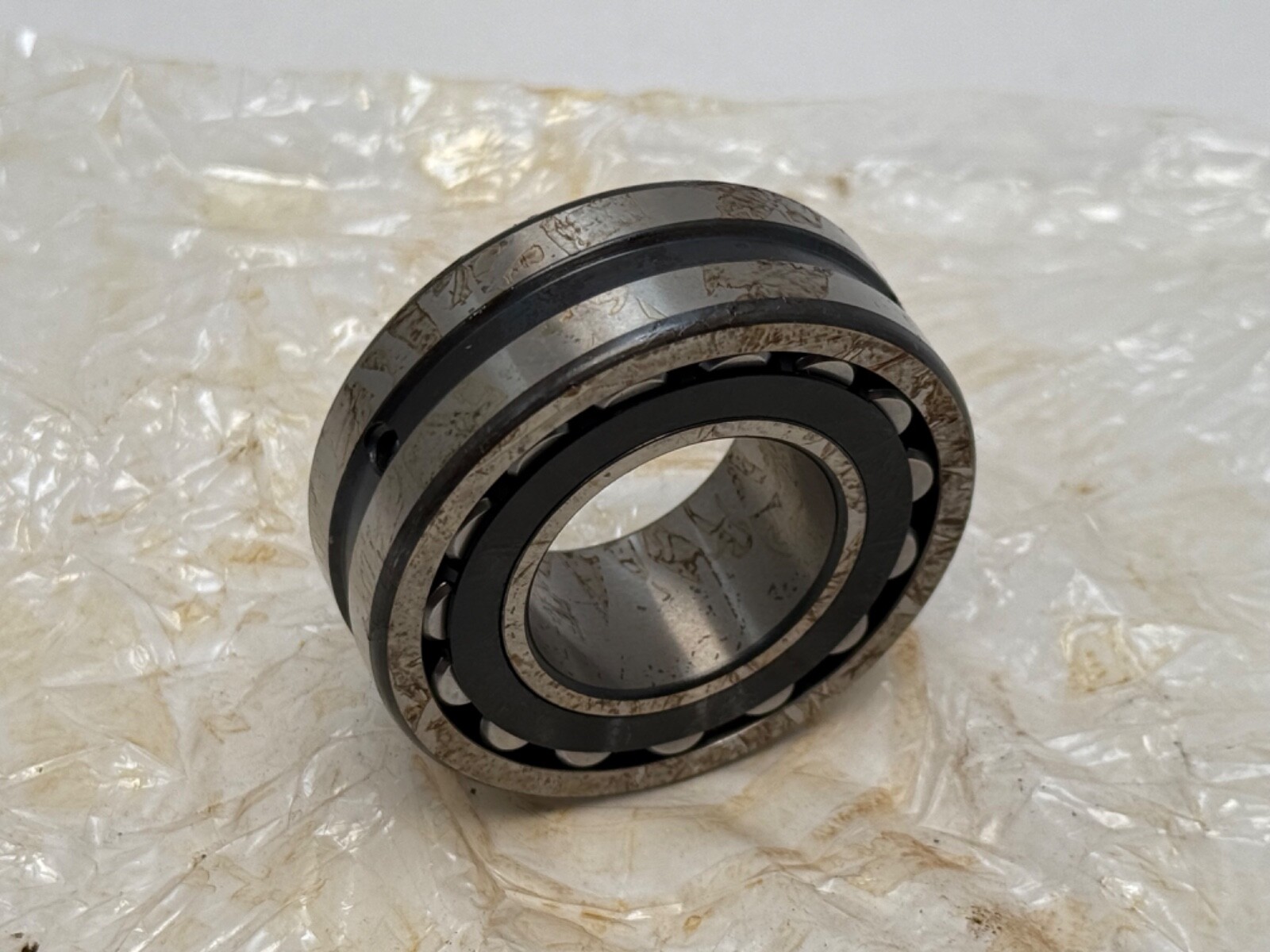

A lubrication groove in the outer ring with three radial feed holes, the same feature other makers mark W33.
The H305 adapter sleeve, which seats on a 20 mm shaft.
25 mm bore, 52 mm outside diameter, 18 mm width, with C3 internal clearance.
