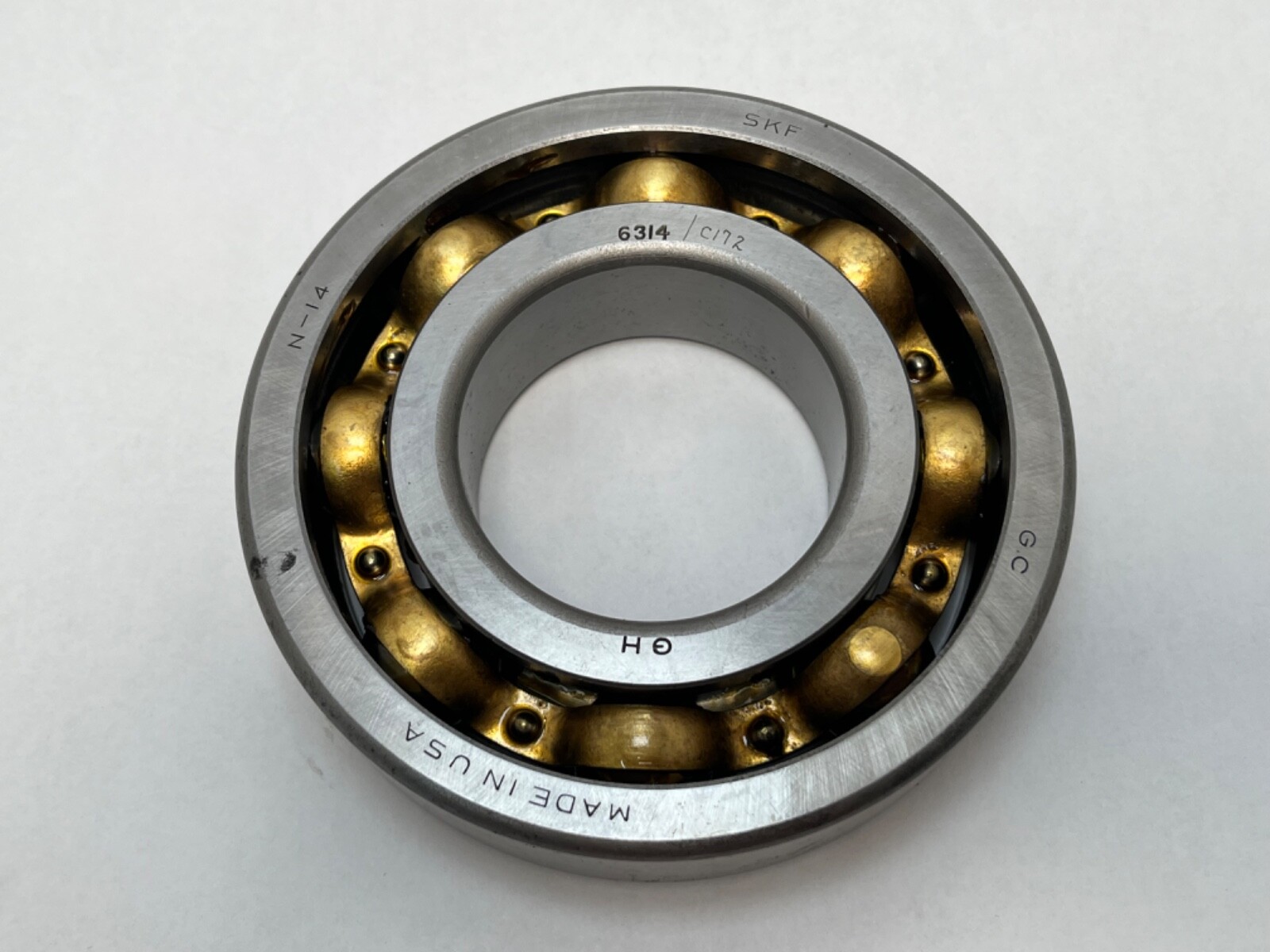

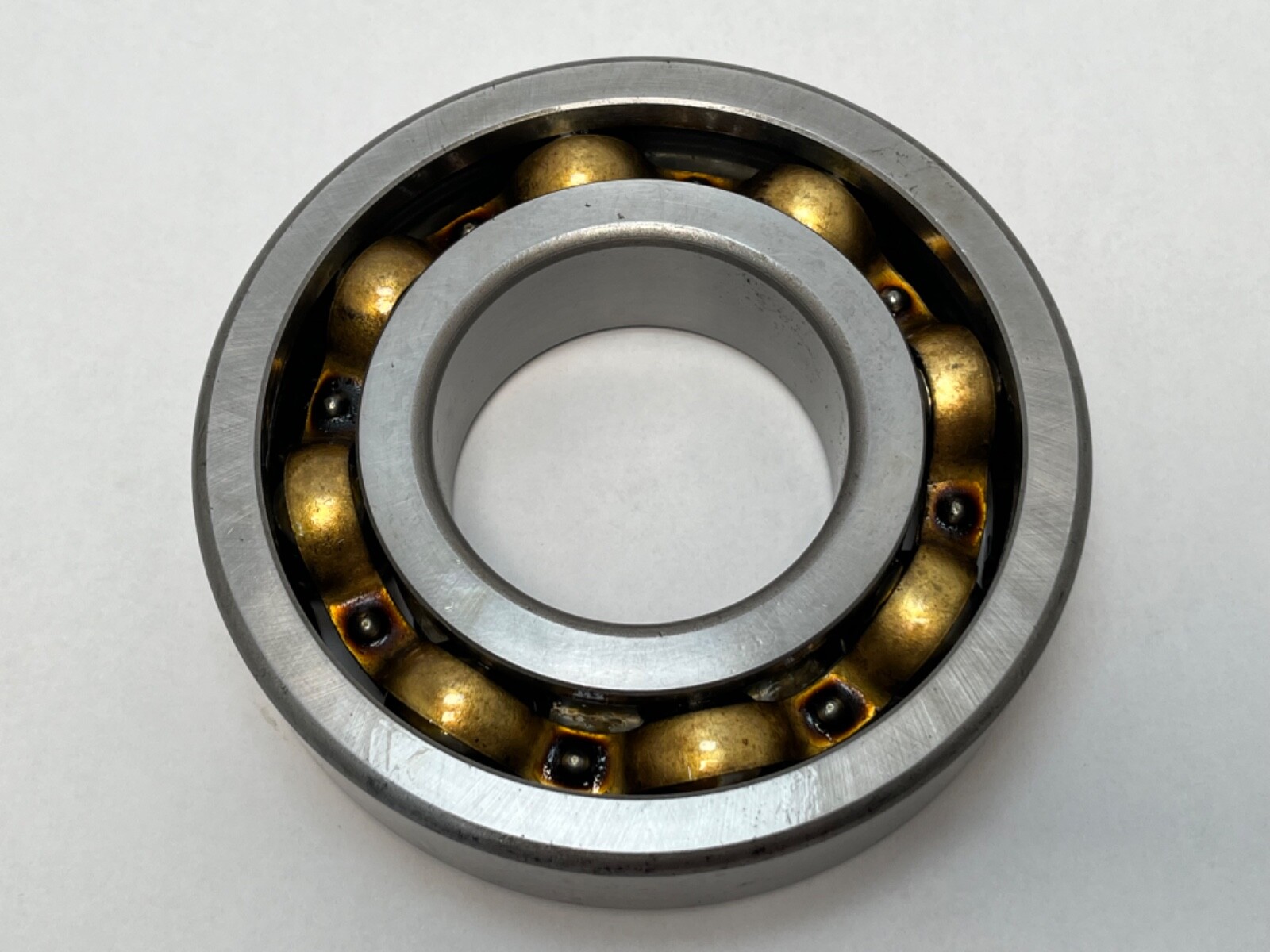

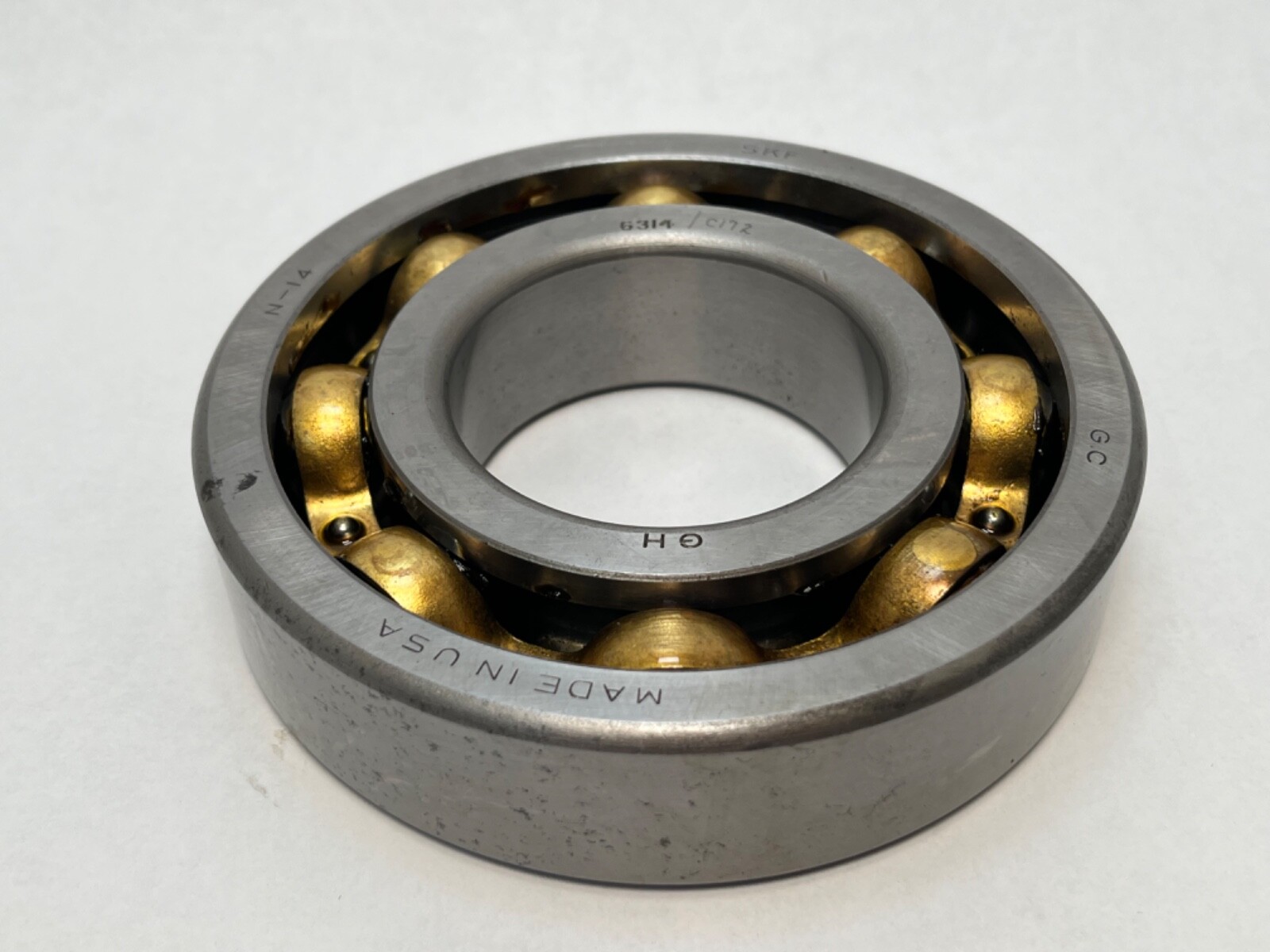

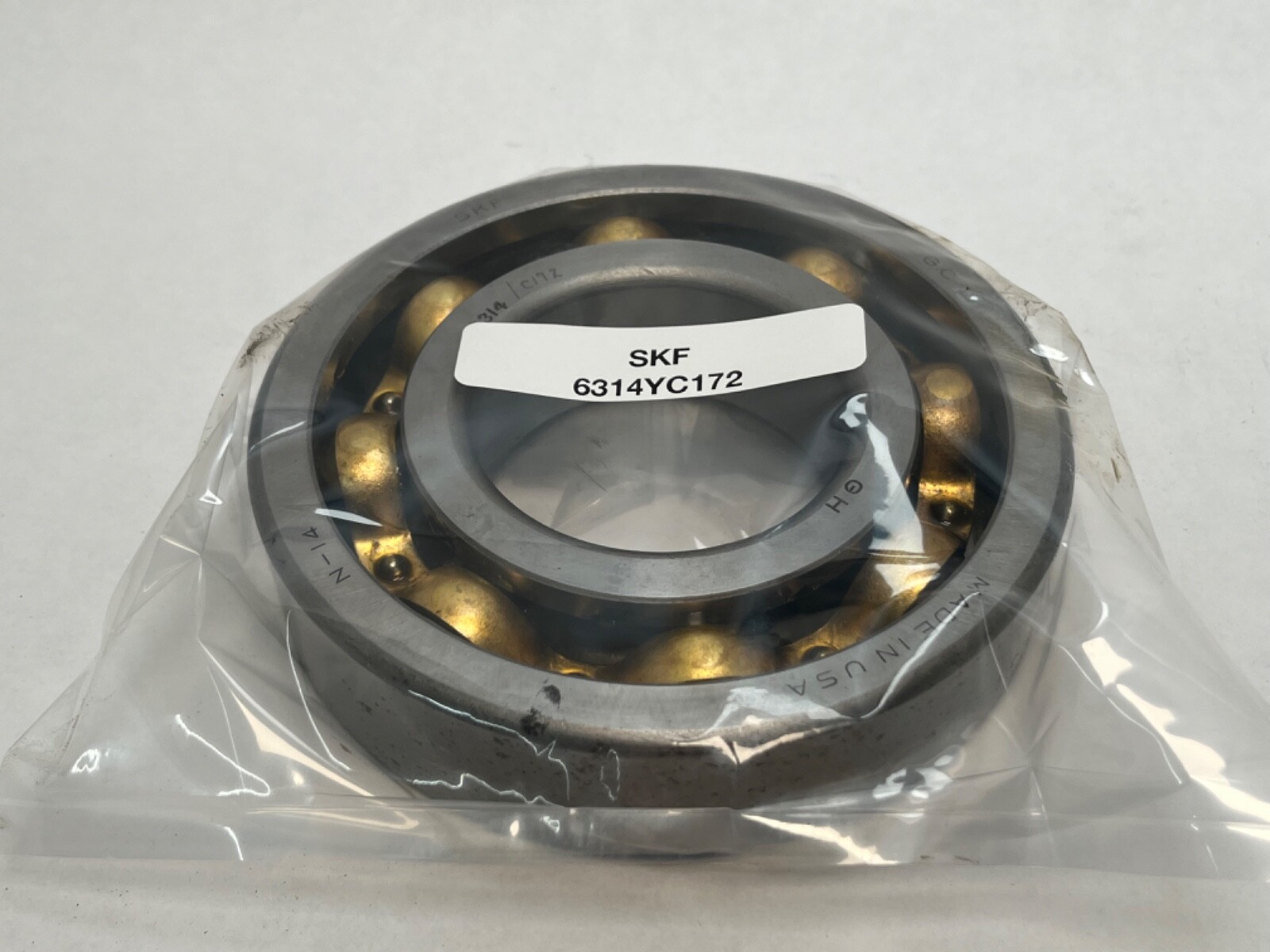

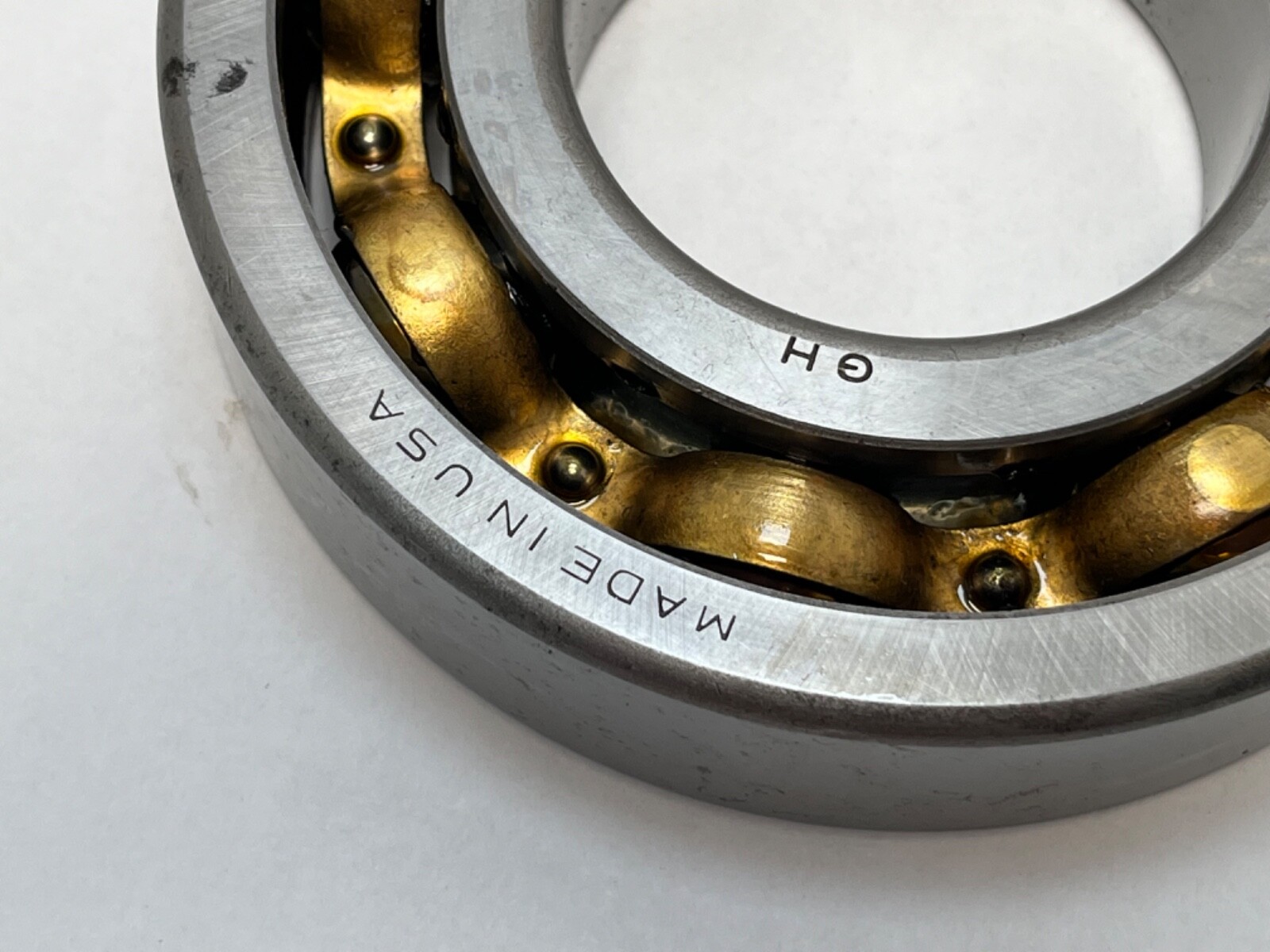

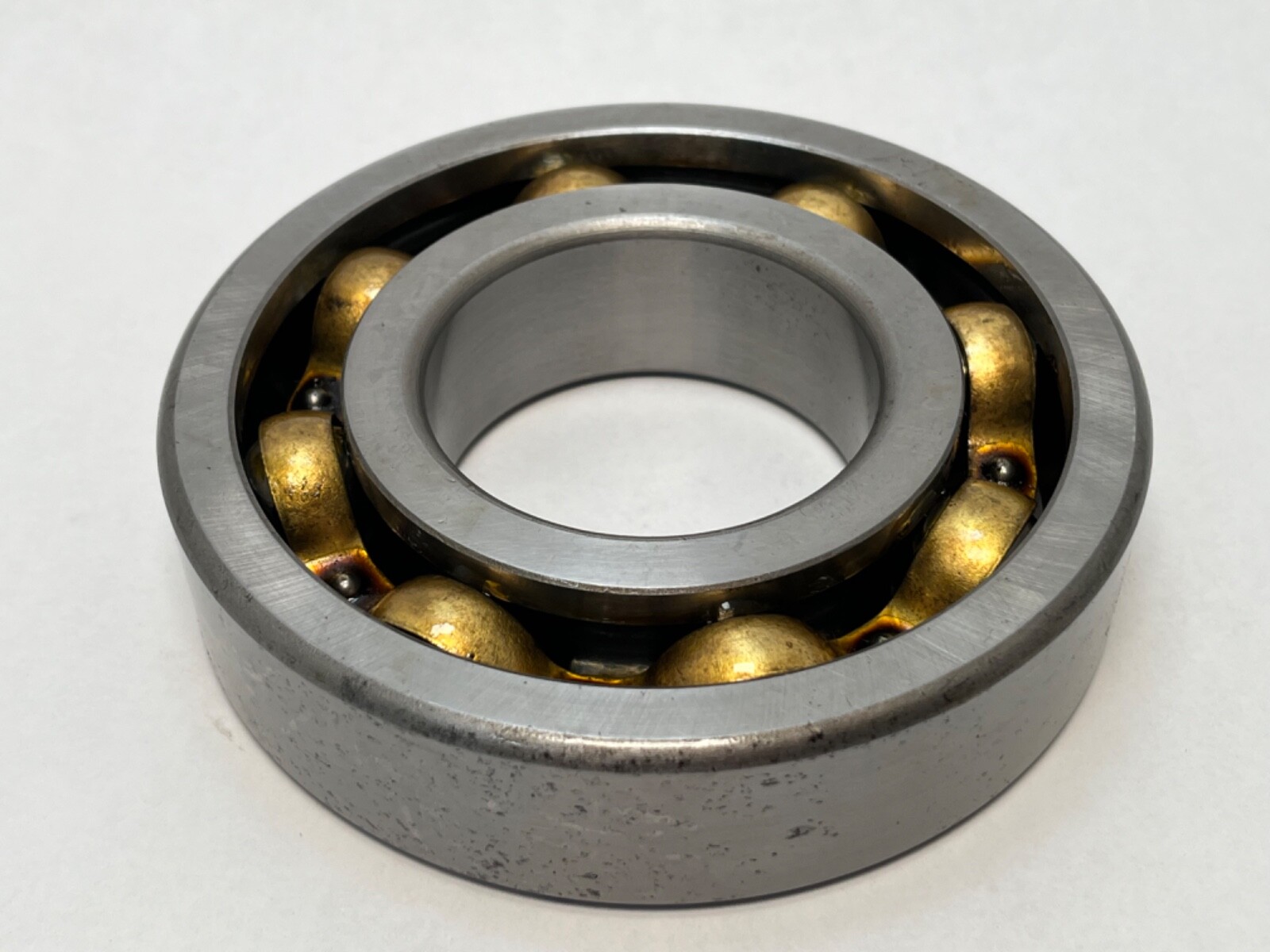

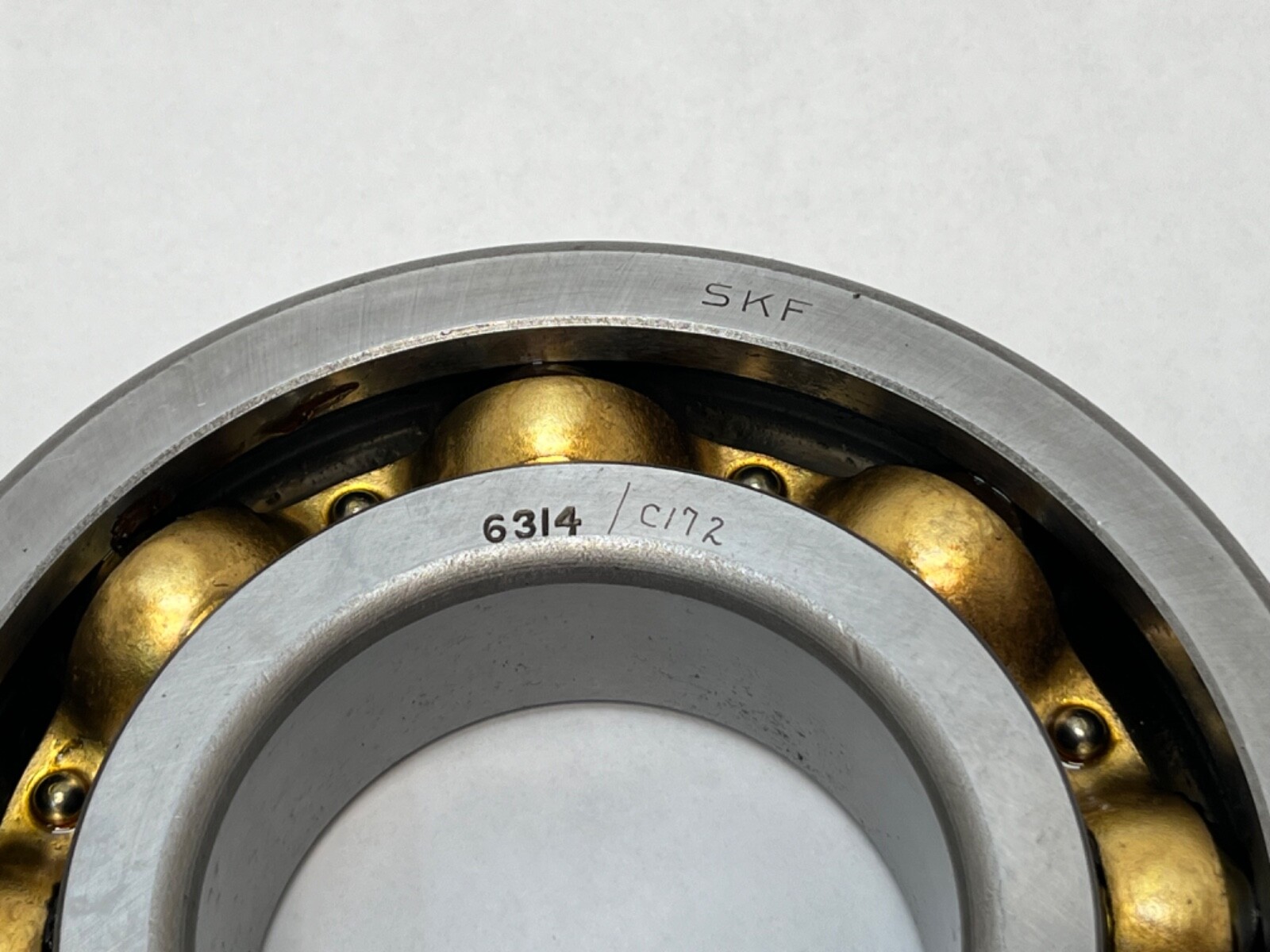

Deep Groove Ball Bearing - Straight Bore, 70 mm ID, 150 mm OD, 35 mm Width, Open, P4 Precision, C3 Clearance.$106.30| MFR / Brand | SKF |
|---|---|
| MPN | 6314YC172 |
| Model | 6314 Y C172 6314 YC172 |
| Bearing Type | Ball Bearing, Open |
| ID | 70 mm |
| OD | 150 mm |
| Width | 35 mm |
| Series | 6300 |
|---|---|
| Lubricant | Oil |
| Material | Bearing Steel |
| Min Temp | -30°C |
| Cage Type | Pressed |
| Dynamic Load Rating | 111 kN / 24953 lbf |
| Static Load Rating | 68 kN / 15287 lbf |
| Precision Rating | ABEC 5 / P5 |
| Rolling Elements | Ball |
| Max Temp | 150°C |
| Item Weight | 5.60 lbs |
| Cage Material | Steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.1 |
| Internal Clearance | CN |
| Limiting Speed | 8000 rpm |
| Cross Reference 1 | FAG 6314 |
|---|---|
| Cross Reference 2 | NTN 6314 |
| Cross Reference 3 | Timken 6314 |
Deep Groove Ball Bearing – Straight, 70 mm ID, 150 mm OD, 35 mm Width, Open, Without Snap Ring
