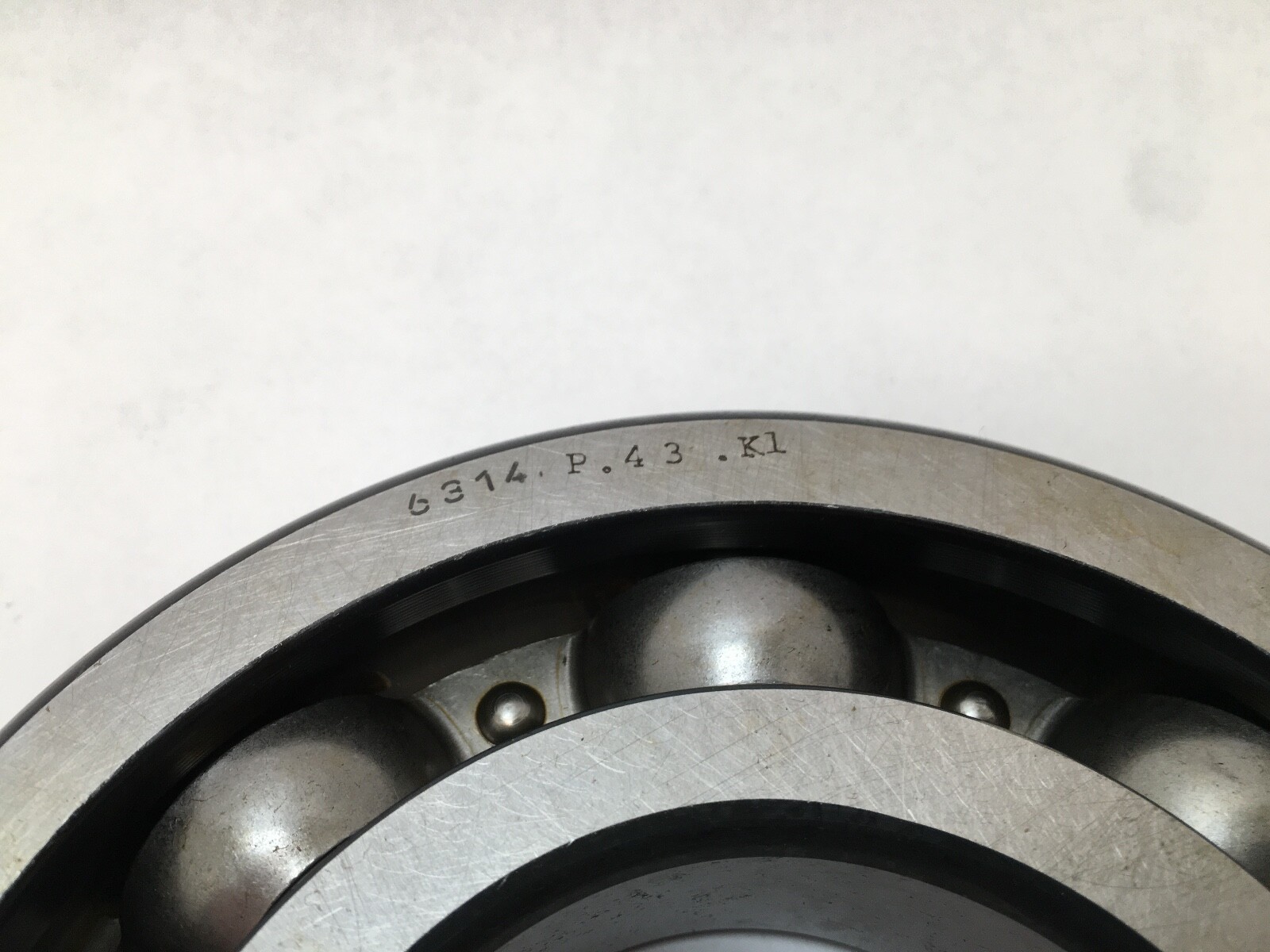

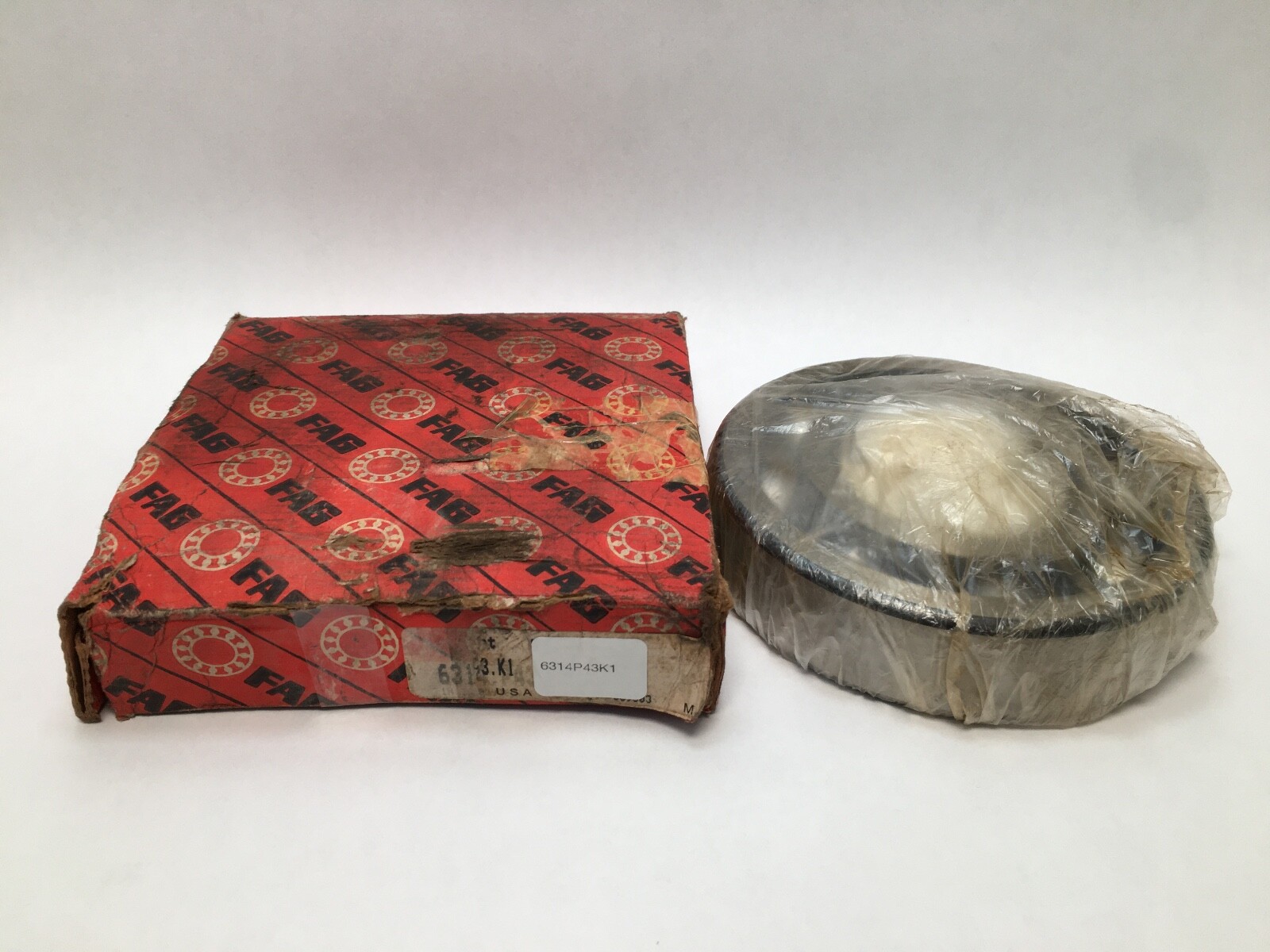

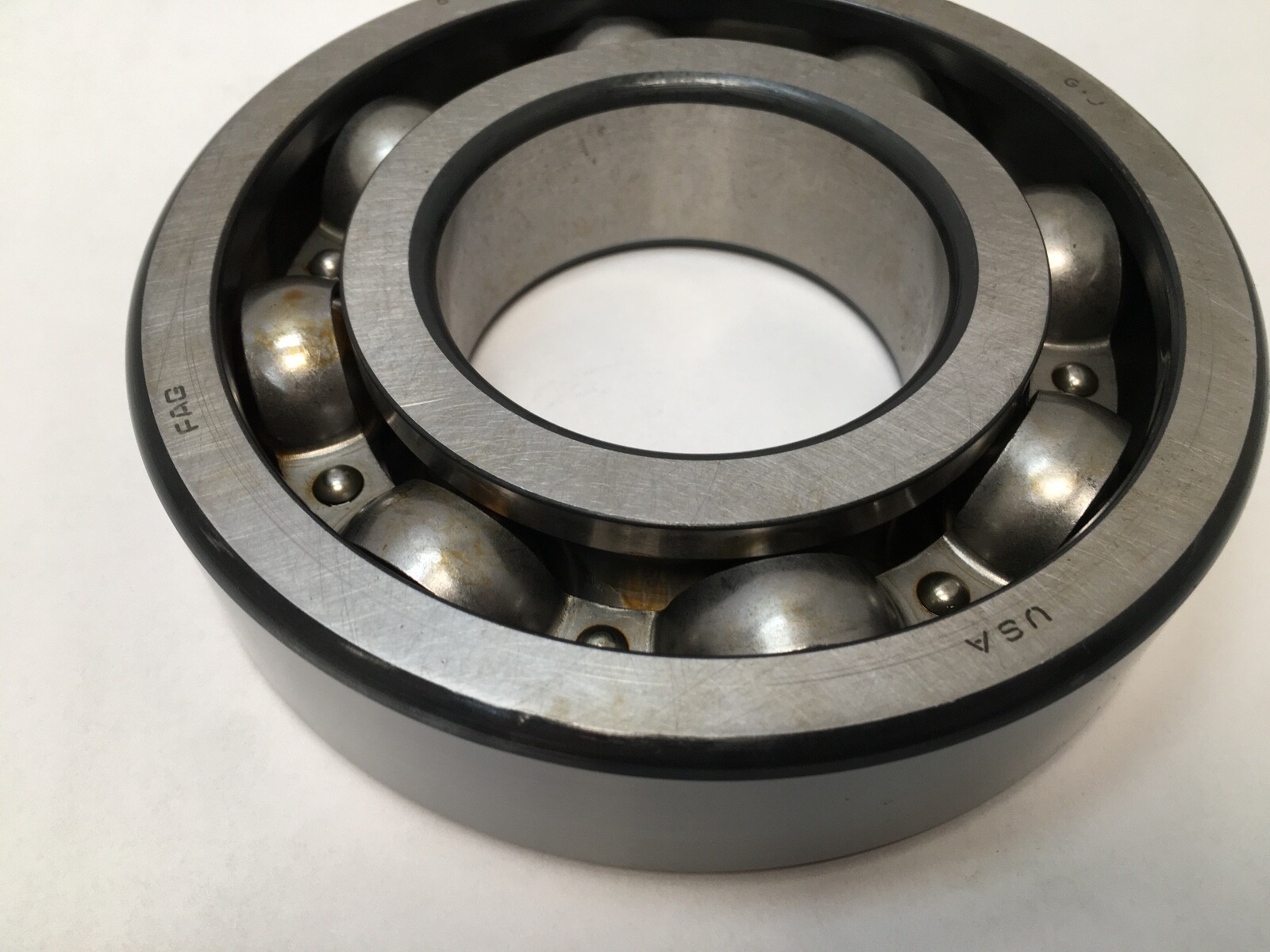

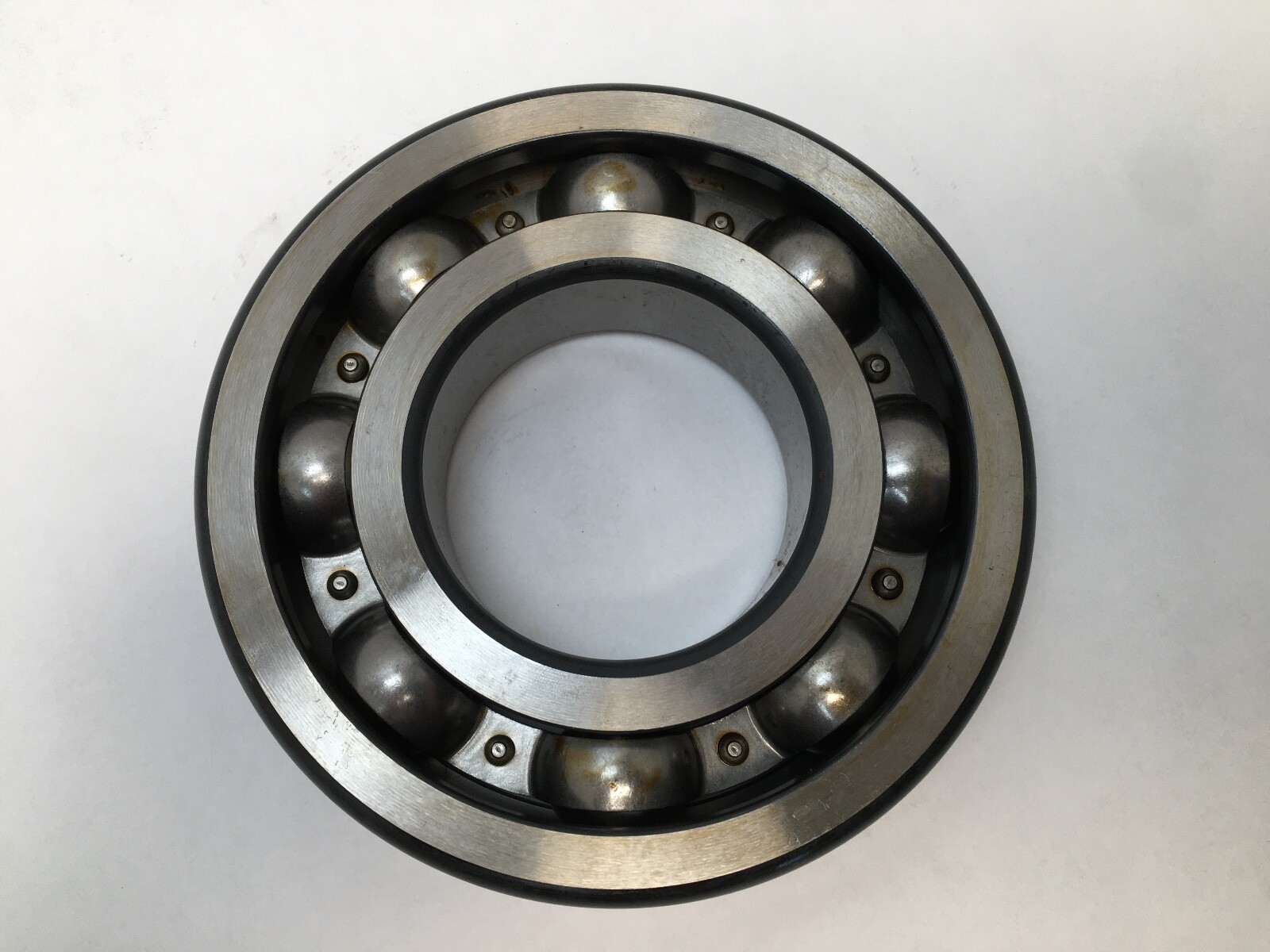

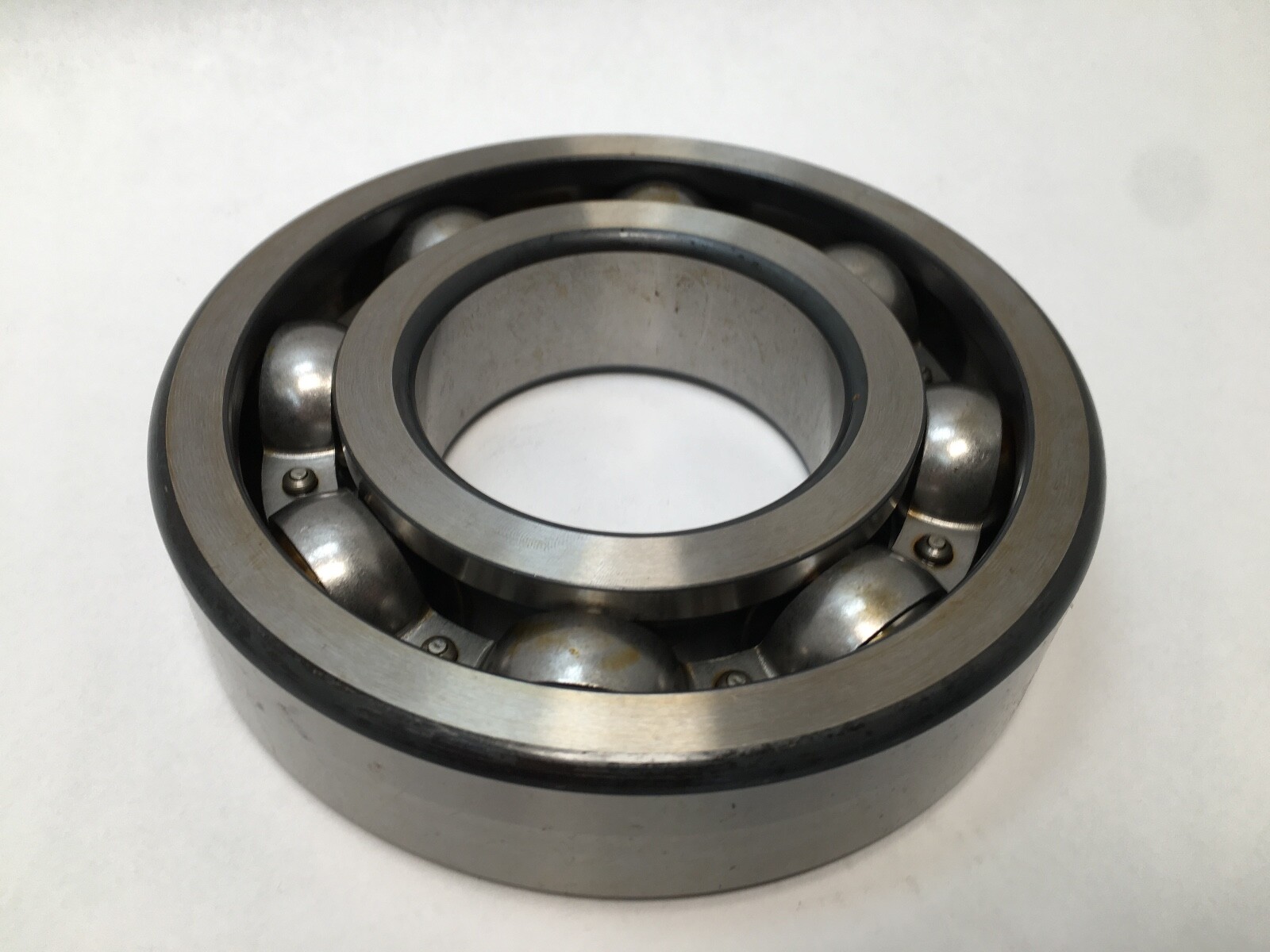

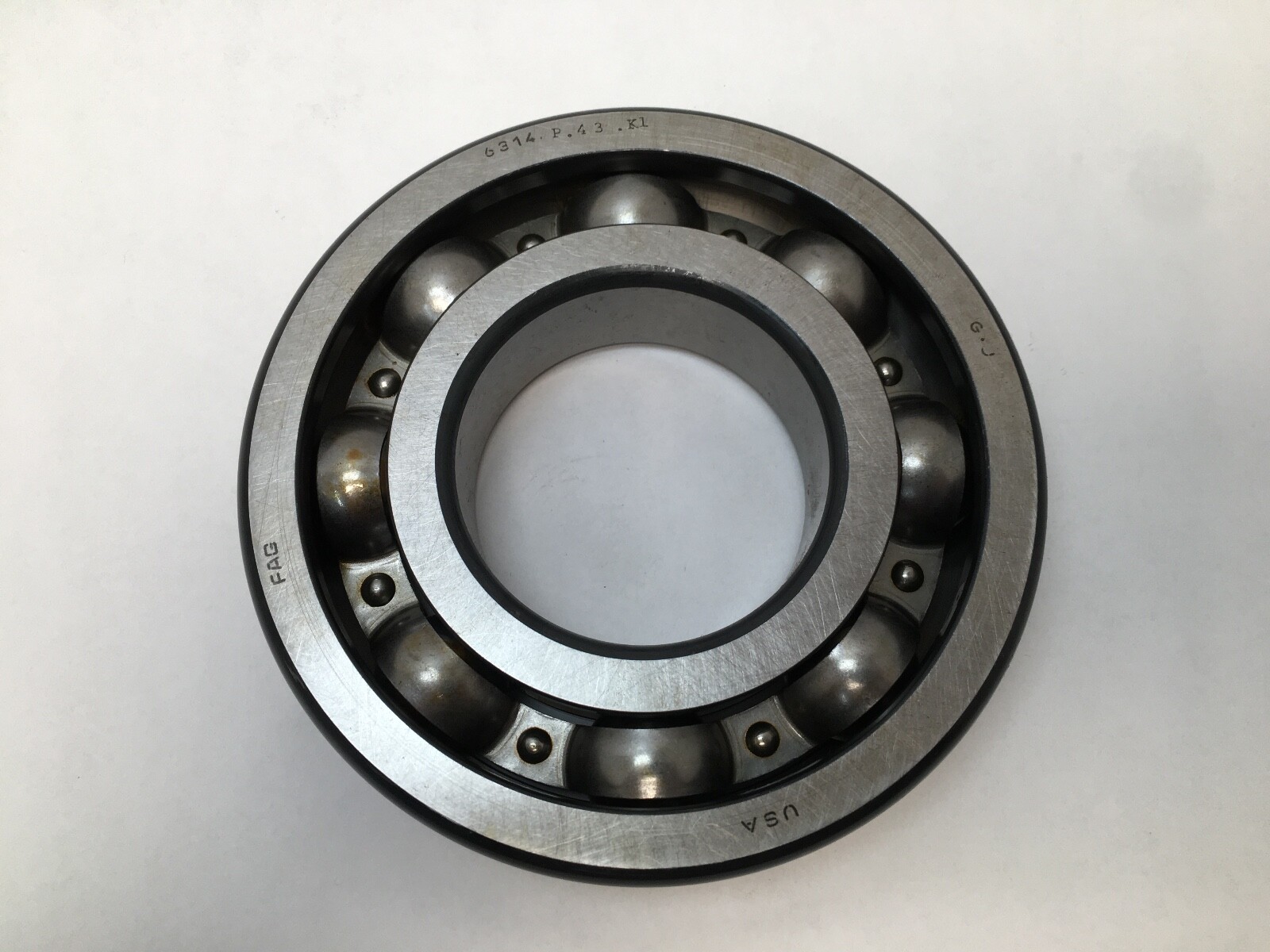

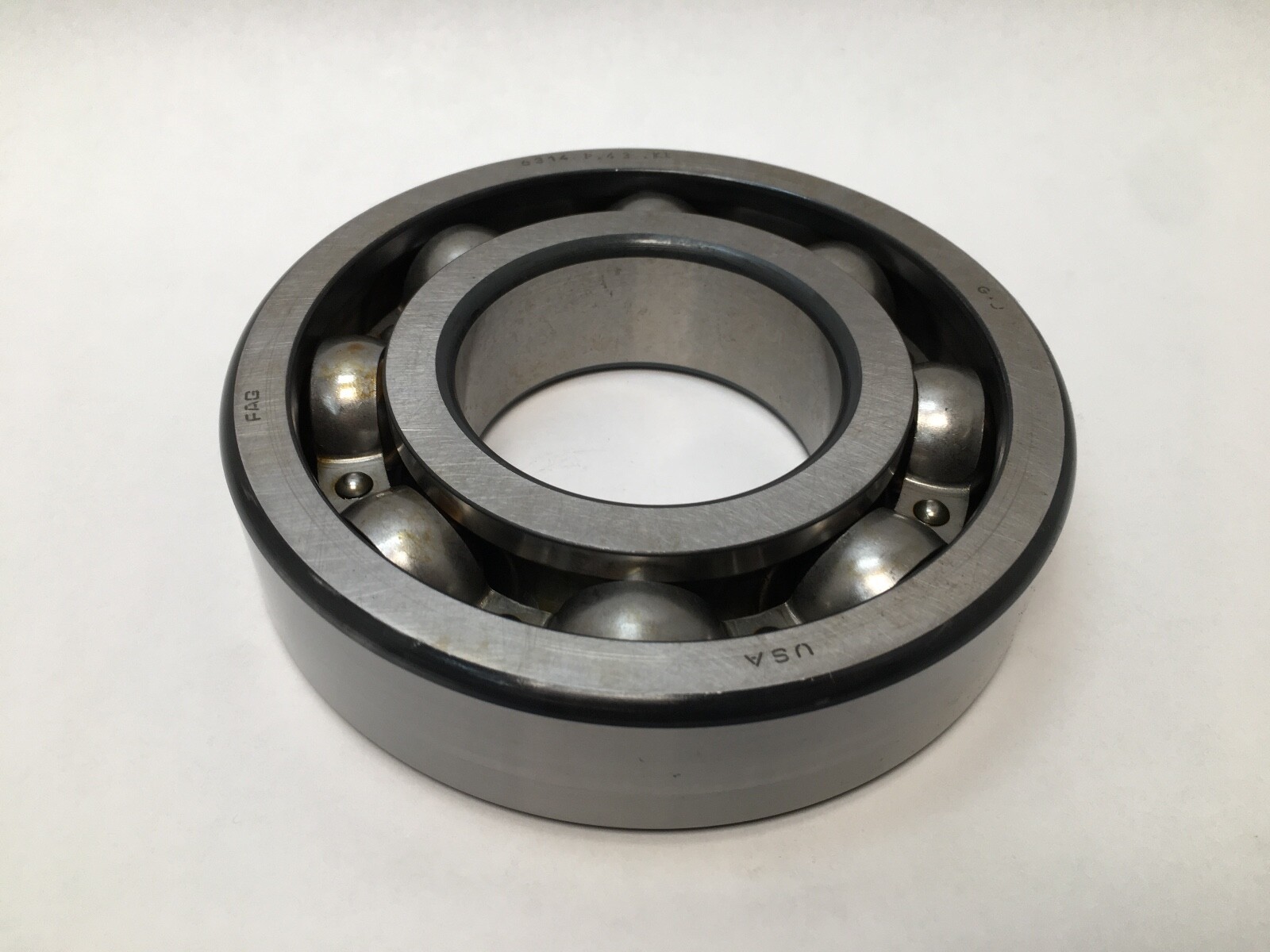

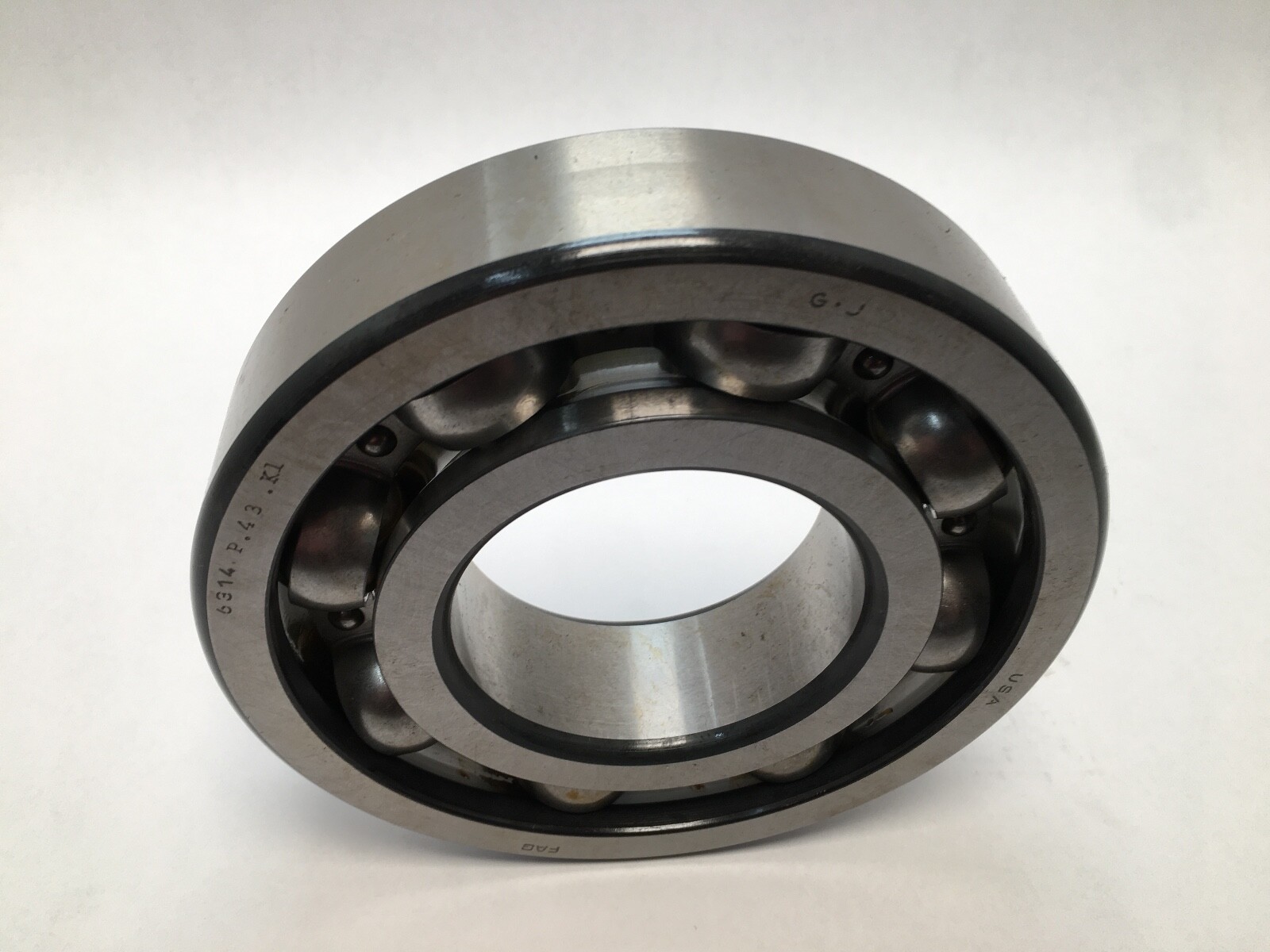

FAG 6314P43K1 single-row deep groove ball bearing, 70 x 150 x 35 mm, open, ABEC 7 / P4, C3 clearance, pressed steel cage, 119,000 N dynamic rating.
List Price
$106.30
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 6314-P43-K1 |
| Model | 6314 P43 K1 |
| Bearing Type | Ball Bearing, Open |
| ID | 70 mm |
| OD | 150 mm |
| Width | 35 mm |
| Material | Bearing Steel |
|---|---|
| Series | 6300 |
| Precision Class | ABEC 7 / P4 |
| Dynamic Load Rating | 119,000 N |
| Static Load Rating | 76,500 N |
| Rolling Elements | Ball |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | C3 |
| Harmonization Code | 8482.10.50.68 |
| Bearing Material | Bearing Steel |
FAG 6314P43K1 single-row deep groove ball bearing, open, with a pressed steel cage. Unit Quantity: 1 Pc. Envelope 70 mm bore, 150 mm outside diameter, 35 mm width.
6314 — deep groove ball bearing, 63 series, bore code 14 = 70 mm.
P43 — FAG combined precision and clearance code: ABEC 7 / P4 precision with C3 internal clearance.
Bore Diameter: 70 mm. Outside Diameter: 150 mm. Overall Width: 35 mm. Series: 6300. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Seal Type: Open. Precision Class: ABEC 7 / P4. Internal Clearance: C3. Dynamic Load Rating: 119,000 N. Static Load Rating: 76,500 N. Cage Material: Pressed steel. Bearing Material: Bearing Steel.
Bore Diameter: 70 mm. Outside Diameter: 150 mm. Overall Width: 35 mm.
Also written 6314-P43-K1 and 6314 P43 K1.
Bore Diameter 70 mm, Outside Diameter 150 mm, Overall Width 35 mm.
FAG combined code for ABEC 7 / P4 precision with C3 internal clearance.
Dynamic Load Rating is 119,000 N and Static Load Rating is 76,500 N.
