Availability:
Out of stock
Deep groove ball bearing, 65 x 140 x 33 mm, steel shield one side, ABEC 7 / P4 precision, 103,000 N dynamic rating. NTN 6313ZP4, pressed steel cage.
List Price
$48.77
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Ball Bearing — 65 mm ID, 140 mm OD, 33 mm Width, Single Shield$67.18
Spindle Deep Groove Ball Bearing - Straight Bore, 65 mm ID, 140 mm OD, 33 mm Width, Open, ABEC 5 / P5, Phenolic Cage$74.02
Sealed Deep Groove Ball Bearing – 65 mm ID x 100 mm OD x 18 mm, Contact Seals Both Sides, Snap Ring and Groove$42.06
Deep Groove Ball Bearing — 65 mm ID, 120 mm OD, 23 mm Width, ABEC 5, Open, CN Clearance$45.69| MFR / Brand | NTN |
|---|---|
| MPN | 6313ZP4 |

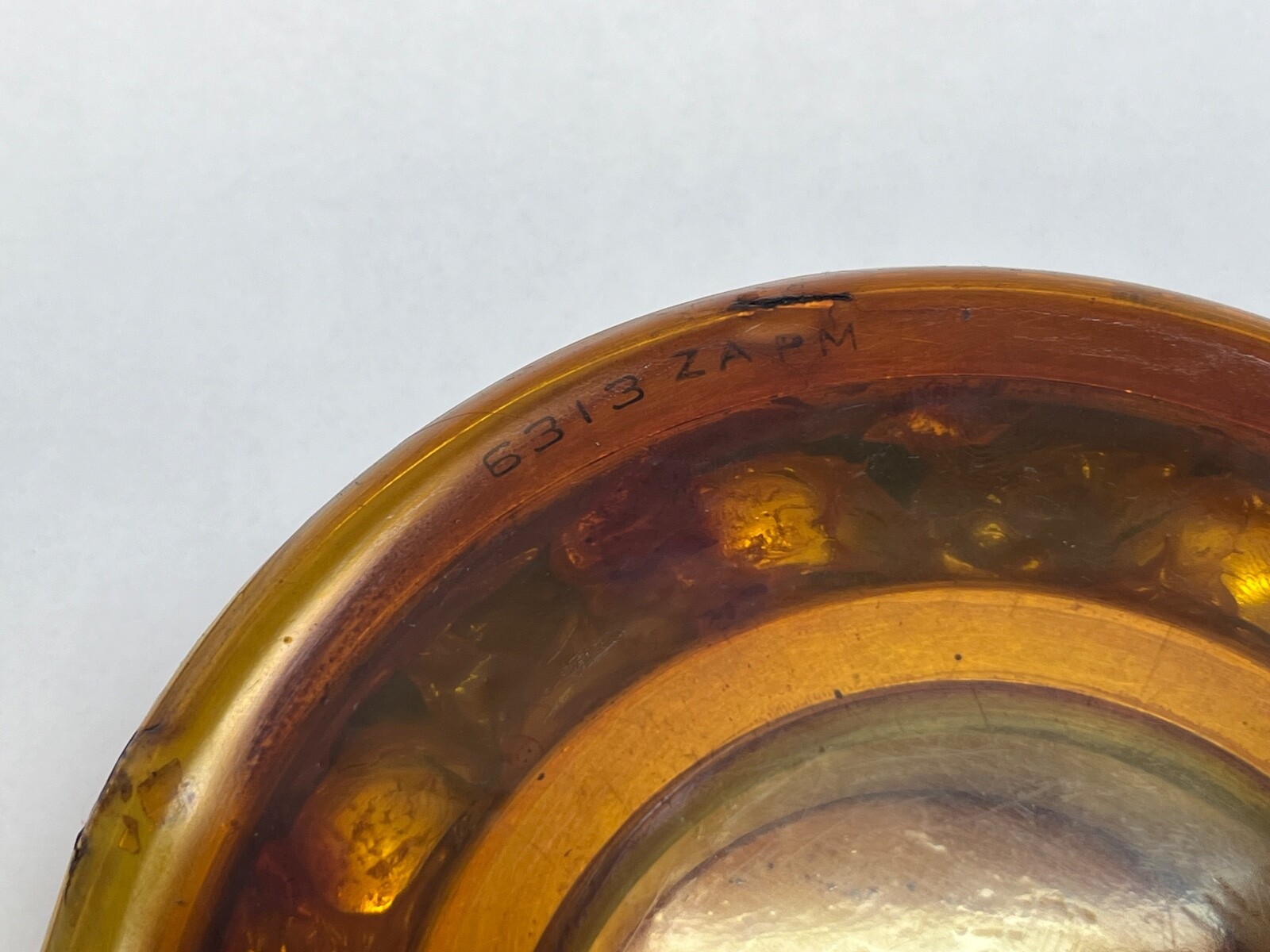

| Model | 6313 ZA PM |
| Bearing Type | Ball Bearing, Shield one side |
| ID | 65 mm |
| OD | 140 mm |
| Width | 33mm |
| Series | 6300 |
|---|---|
| Lubricant | Grease |
| Material | Bearing Steel |
| Mpn Variants | 6313ZP4, 6313-Z-P4, 6313Z P4, 6313-ZA-PM, 6313Z |
| Precision Class | ABEC 7 / P4 |
| Min Temp | -40 °C |
| Cage Type | Pressed |
| Dynamic Load Rating | 103,000 N |
| Static Load Rating | 60,000 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 2.074 kg (4.572 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 4,900 rpm grease; 5,800 rpm oil |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50 |
| Cross Reference 1 | SKF 6313-Z (standard precision) |
|---|---|
| Cross Reference 2 | FAG 6313-Z (standard precision) |
| Cross Reference 3 | NSK 6313Z (standard precision) |
| Cross Reference 4 | Koyo 6313Z (standard precision) |

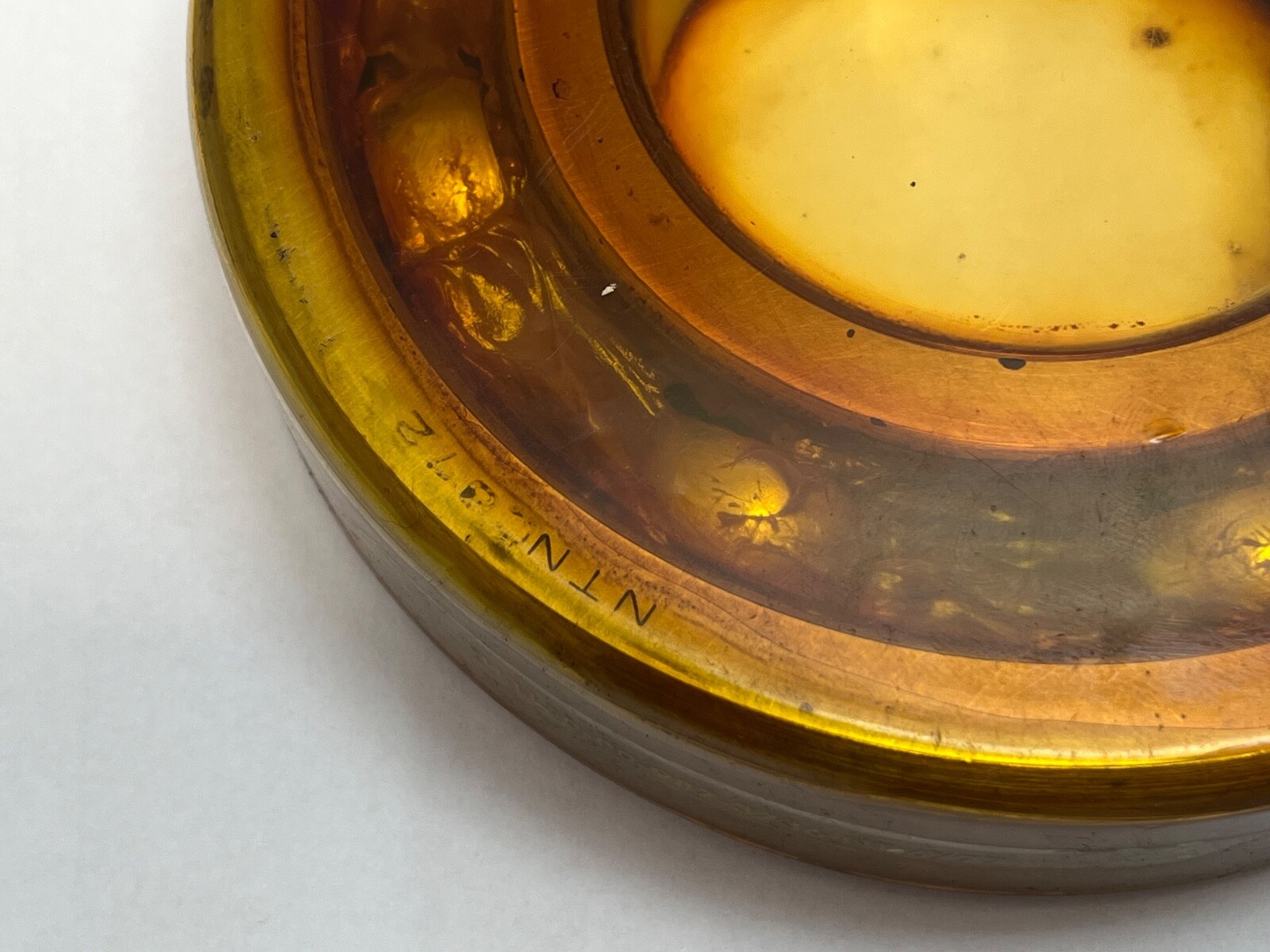

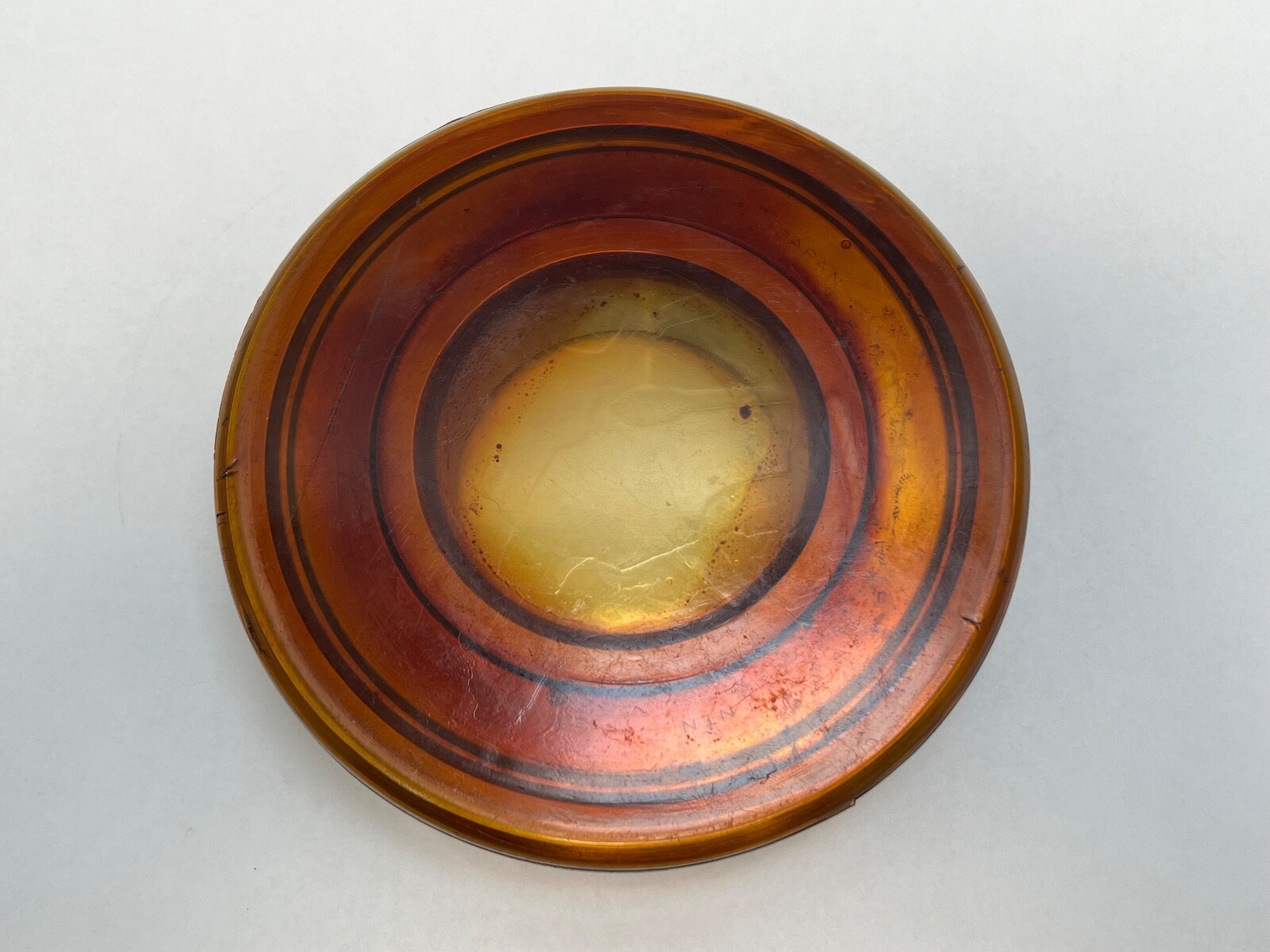

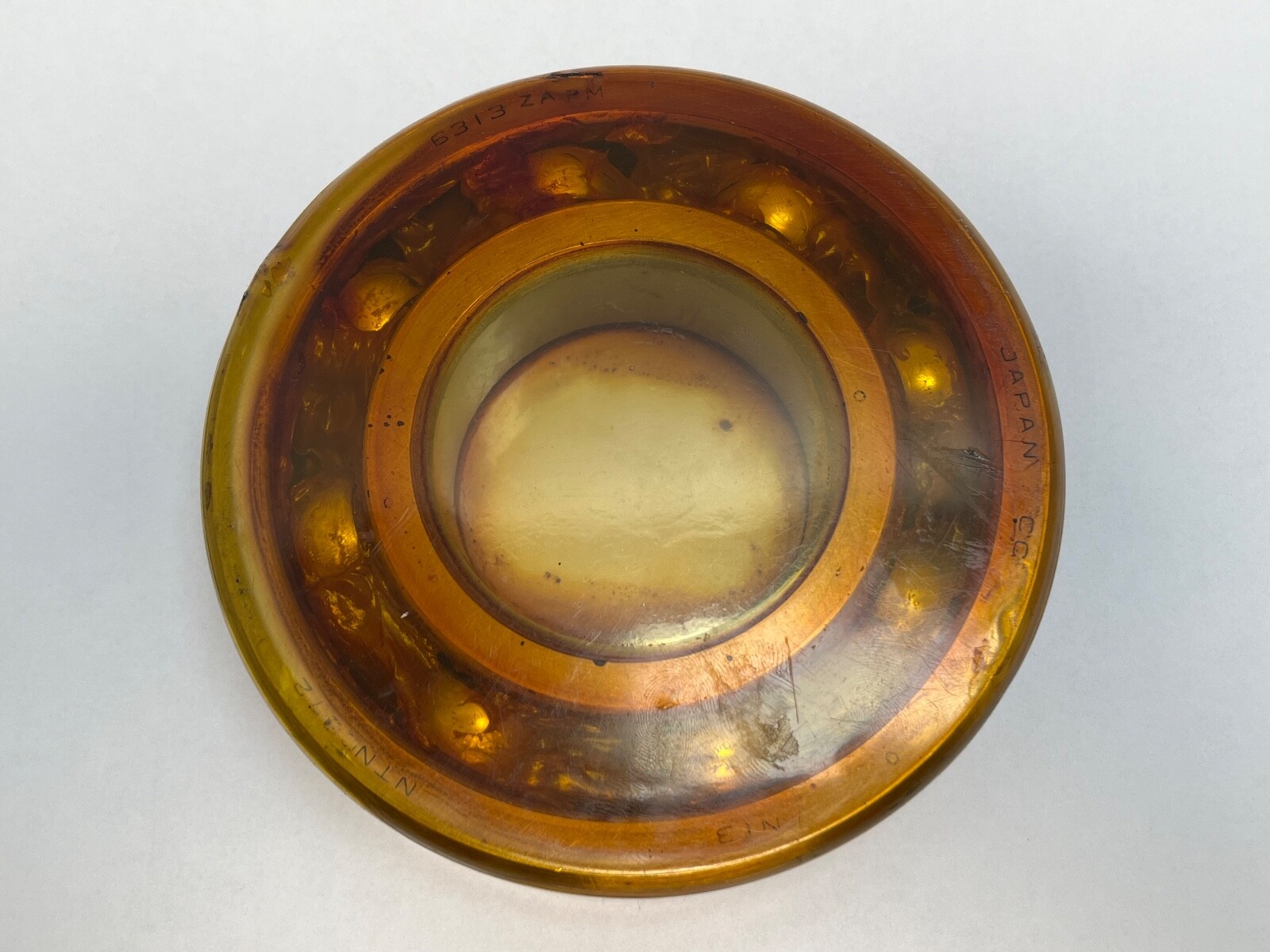

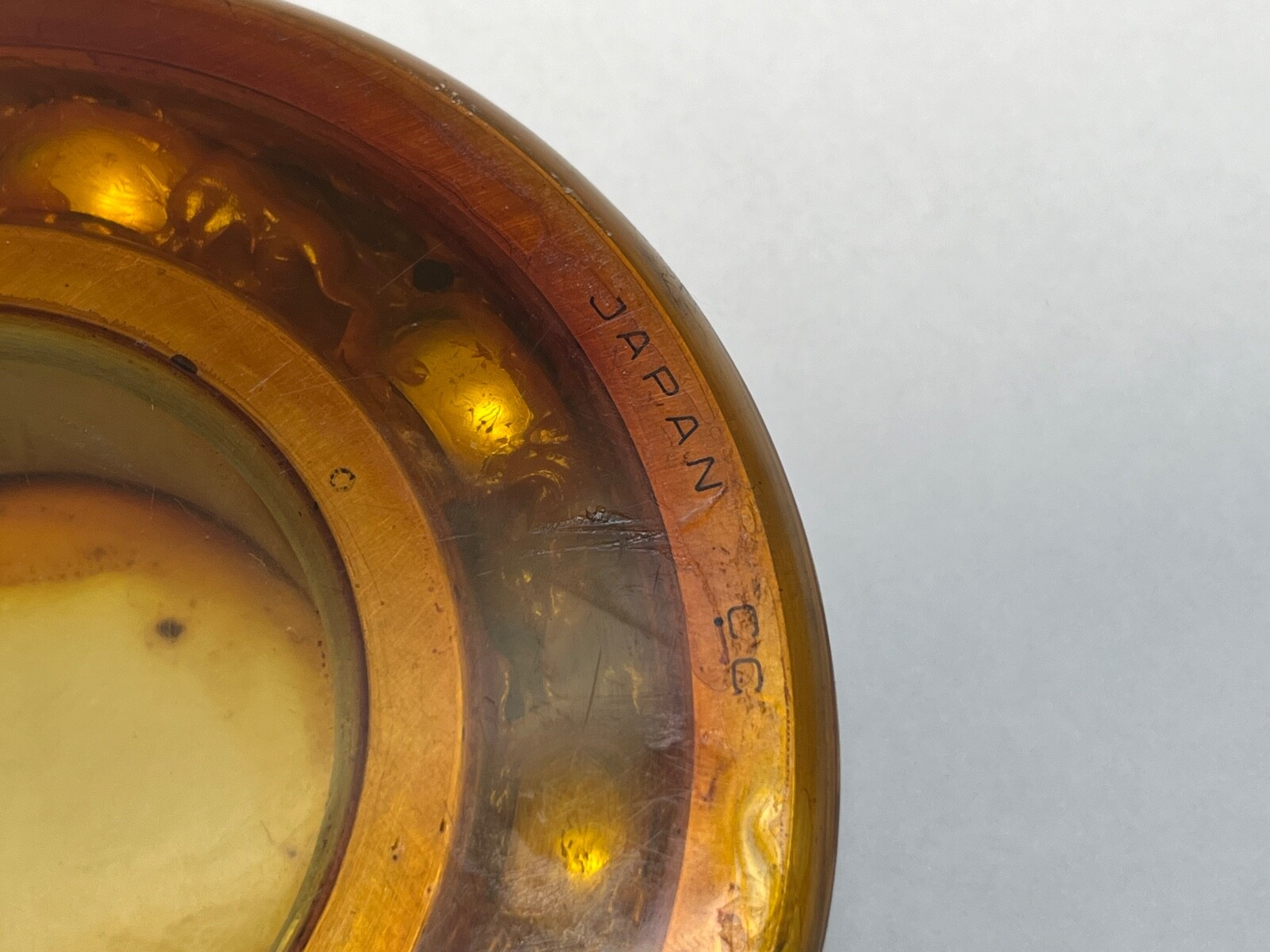

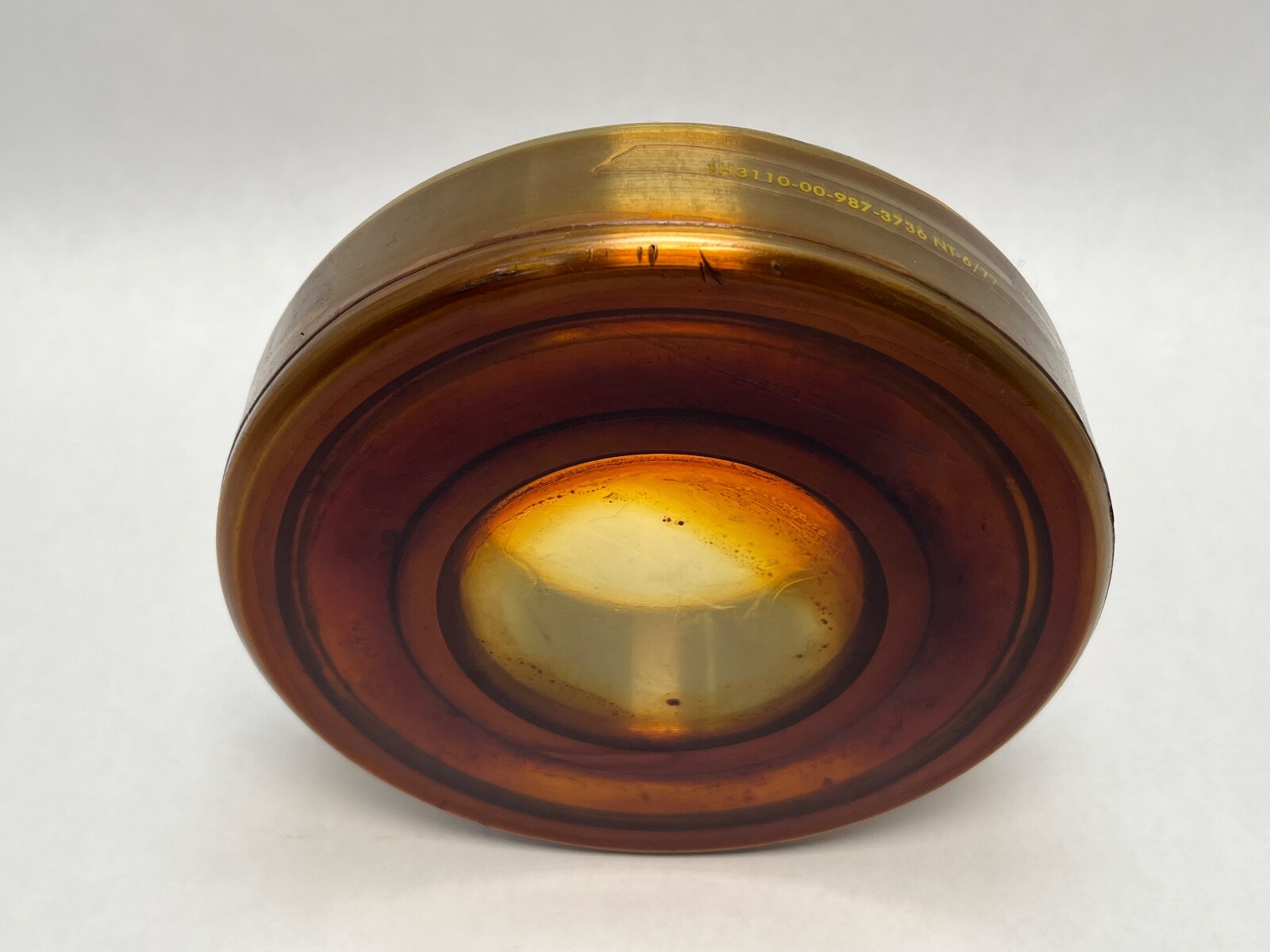

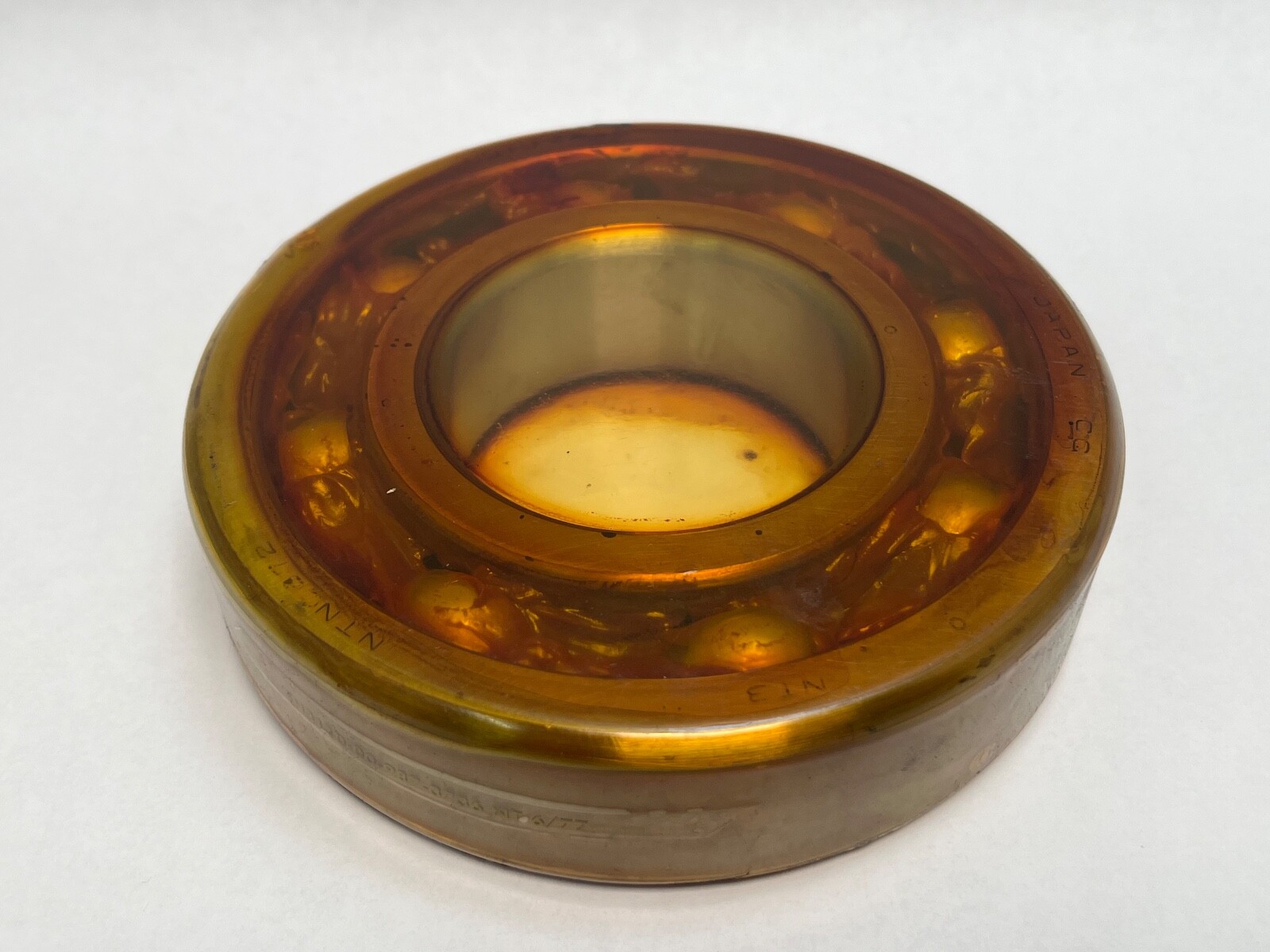

NTN 6313ZP4 is a single-row deep groove ball bearing with one steel shield, made to ISO P4 precision. Bore Diameter: 65 mm. Outside Diameter: 140 mm. Width: 33 mm. Precision Class: ABEC 7 / P4. Cage Material: Pressed steel. Item Weight: 2.074 kg (4.572 lb).
63 — deep groove ball bearing, medium 03 diameter series.
13 — bore code, 13 x 5 = 65 mm.

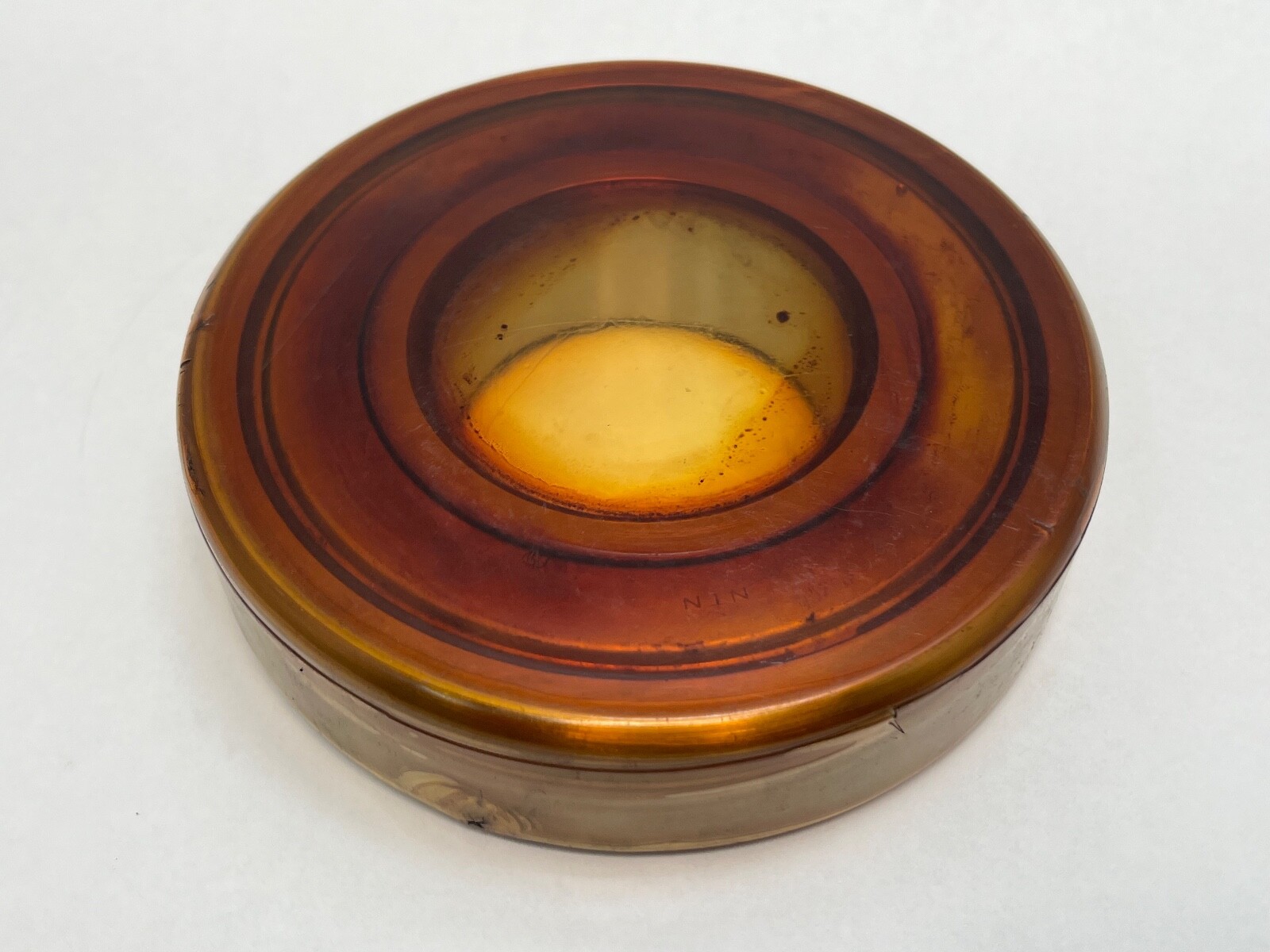

Z — one steel shield; the opposite face is open.
P4 — ISO tolerance class 4, equivalent to ABEC 7. Tighter dimensional and running tolerances than the standard class 0 bearing.
Dynamic Load Rating: 103,000 N. Static Load Rating: 60,000 N. Limiting Speed: 4,900 rpm grease; 5,800 rpm oil. Internal Clearance: CN. Operating Temperature Range: -40 to 120 °C. The P4 tolerance class reduces radial and axial runout for spindle, test and precision drive duty.
Chamfer Dimension r min: 2.1 mm (shielded side 0.5 mm). Shaft Abutment Diameter da: 76 mm min, 86 mm max. Housing Abutment Diameter Da max: 129 mm. Fillet Radius ras max: 2.0 mm.
Unit Quantity: 1 Pc. Single bearing.
Envelope and closure match the ISO 6313-Z, which interchanges dimensionally with SKF 6313-Z, FAG 6313-Z, NSK 6313Z and Koyo 6313Z in standard precision; the P4 class of this bearing is tighter than those standard-class parts.
