Availability:
7 in stock
Sealed deep groove ball bearing, 65 x 100 x 18 mm, contact seals both sides, snap ring and groove in the outer ring, straight bore.
List Price
$42.06
7 in stock
7 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Fafnir |
|---|---|
| MPN | 9113PPG |
| Model | 6013RS NR |
| Bearing Type | Ball Bearing, Contact seals both sides |
| ID | 65 mm |
| OD | 100 mm |
| Width | 18 mm |
| Material | Bearing Steel |
|---|---|
| Series | 9100 Series |
| Condition | New |
| Lubricant | Grease |
| Base Number | 9113 |
| Industry Terms | sealed ball bearing; snap ring bearing; deep groove ball bearing with retaining ring; 2RS NR bearing |
| Common Misspellings | Fafner 9113PPG; Faffnir 9113PPG; 9113 PG; 9113PPJ |
| Bore Shaft Size | 65 mm |
| Mpn Variants | 9113PPG; 9113-PPG; 9113 PPG; 60132RSNR; 6013-2RS-NR; 6013 2RS NR |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Snap ring and groove in outer ring |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50 |
| Design Units | Metric |
| Bearing Material | Chrome steel |
| Part Number | 9113PPG |
| Cross Reference 1 | SKF 6013-2RS1NR |
|---|---|
| Cross Reference 2 | FAG 6013-2RSR-NR |
| Cross Reference 3 | NSK 6013DDUNR |
| Cross Reference 4 | NTN 6013LLUNR |
| Cross Reference 5 | Koyo 6013-2RSNR |
| Cross Reference 6 | 6013-2RS (related, no snap ring) |
| Cross Reference 7 | 6013 (related, open, Conrad type) |
Fafnir 9113PPG deep groove ball bearing. Series: 9100K. Base Number: 9113. Bore Diameter: 65 mm. Outside Diameter: 100 mm. Overall Width: 18 mm. Bore Type: Straight. Closure Type: Contact seals both sides. Rolling Elements: Ball. Number Of Rows: 1. Bearing Material: Chrome steel. Design Units: Metric.
9113 — the Fafnir 9100K light dimension series, bore code 13, 65 mm bore, on the ISO 6013 envelope.
PP — elastomer contact seals on both faces.
G — snap ring groove machined into the outside diameter of the outer ring.
Closure Type: Contact seals both sides. A lipped elastomer seal running on the inner ring keeps the factory grease charge in and washdown, dust and fine abrasive out, which is why this execution is chosen where a shielded bearing would be re-greased.

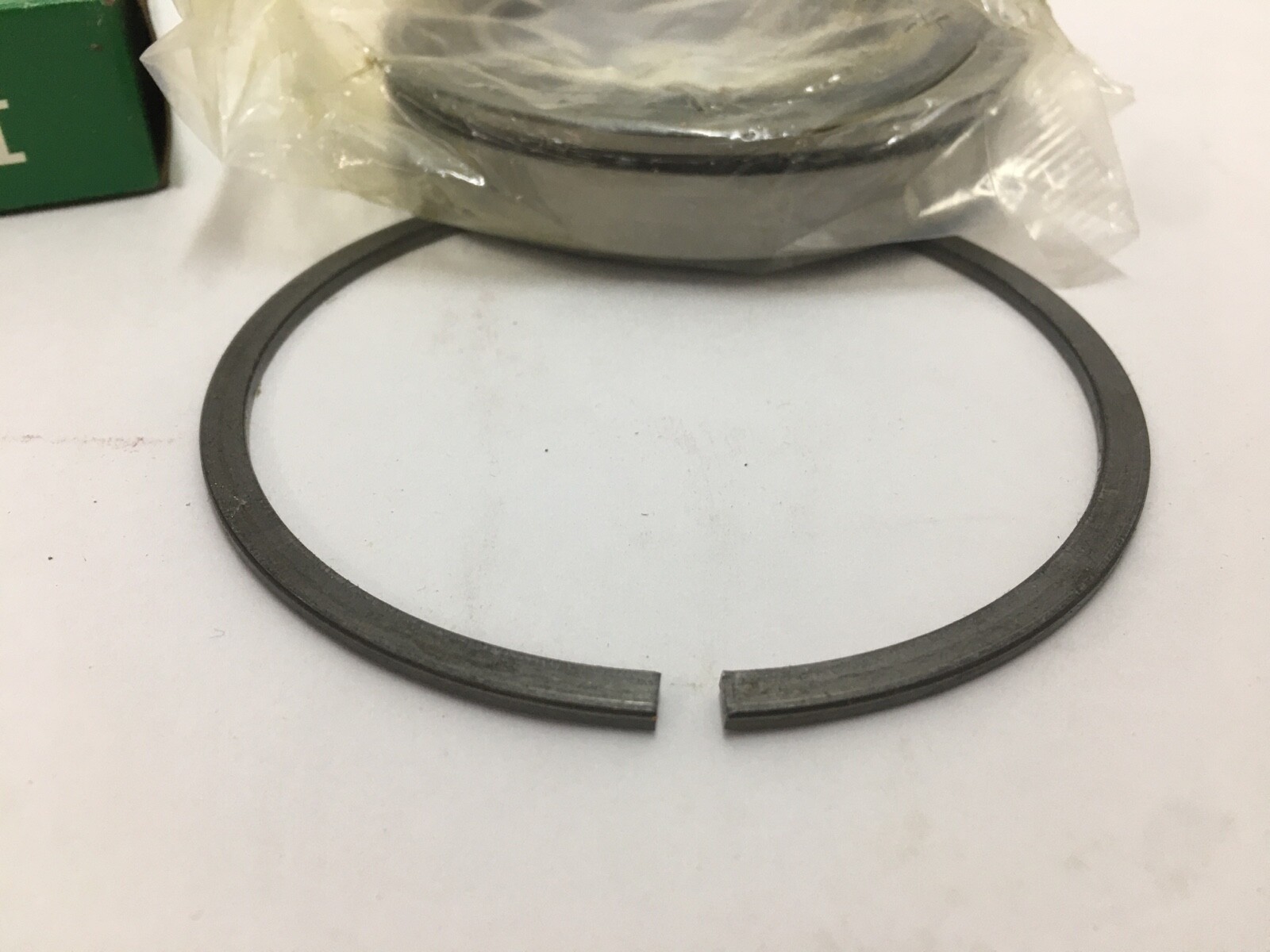

Snap Ring Included: Snap ring and groove in the outer ring. The ring seats in the machined groove and locates the outer ring axially against a plain housing bore, so no housing shoulder or end cover is needed on that side.
Bore Type: Straight. Bore Diameter: 65 mm. Outside Diameter: 100 mm. Overall Width: 18 mm.
Rolling Elements: Ball. Number Of Rows: 1. Lubricant: Grease. Internal Clearance: CN.
The snap ring groove sits on the outside diameter of the outer ring, so the housing bore is machined straight through and the ring takes the axial location. Overall width across the ring is greater than the 18 mm bearing width.

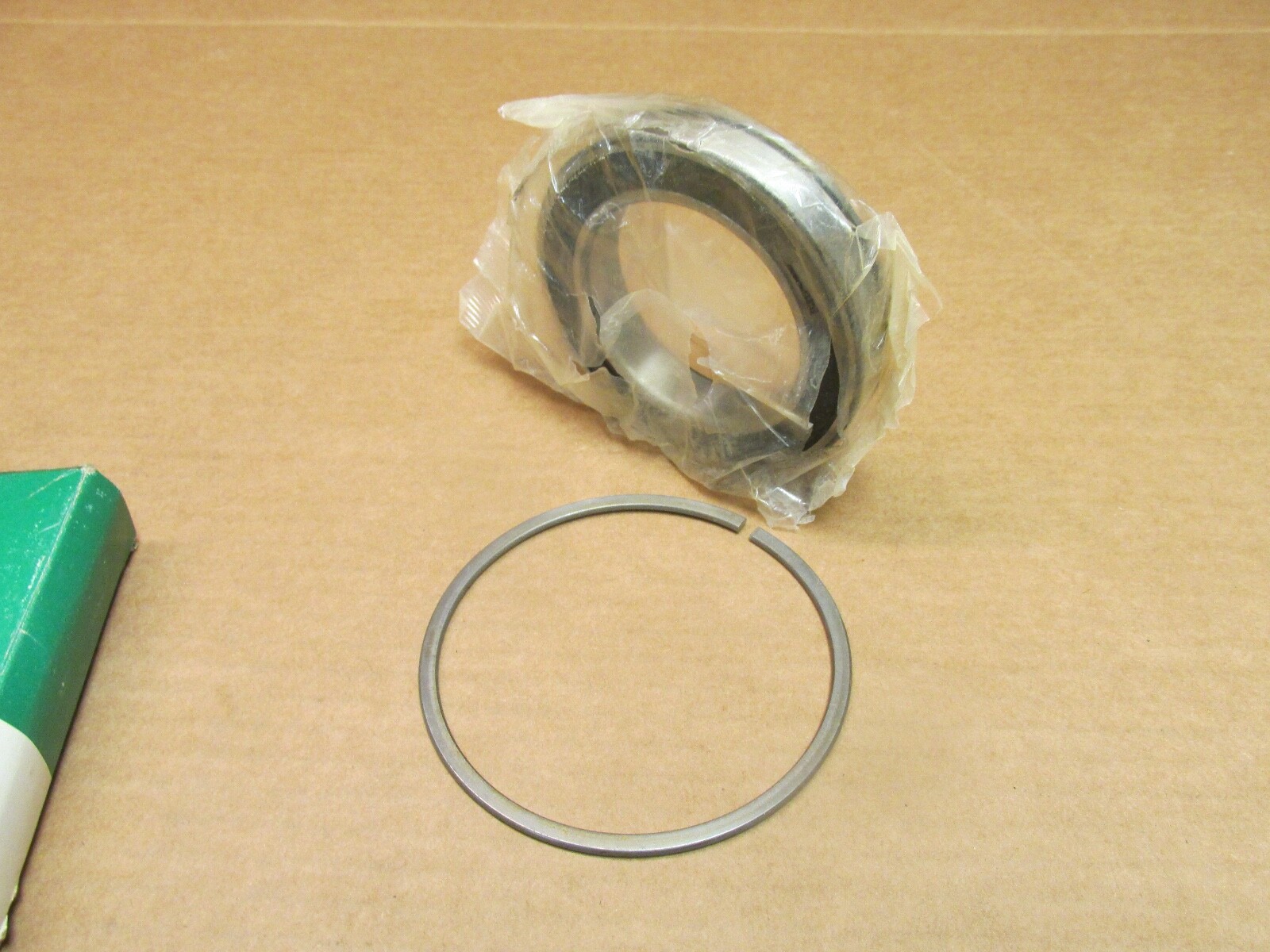

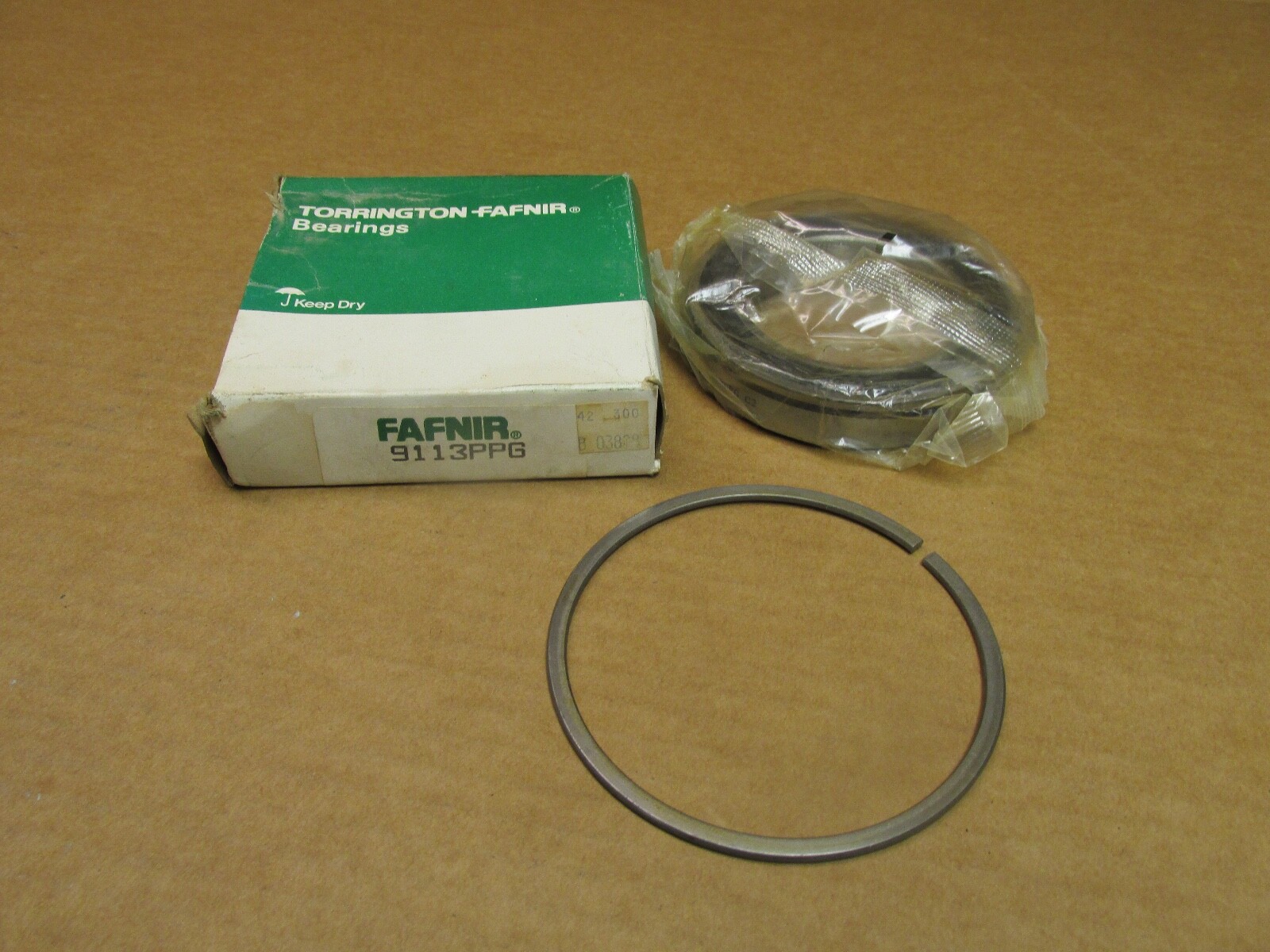

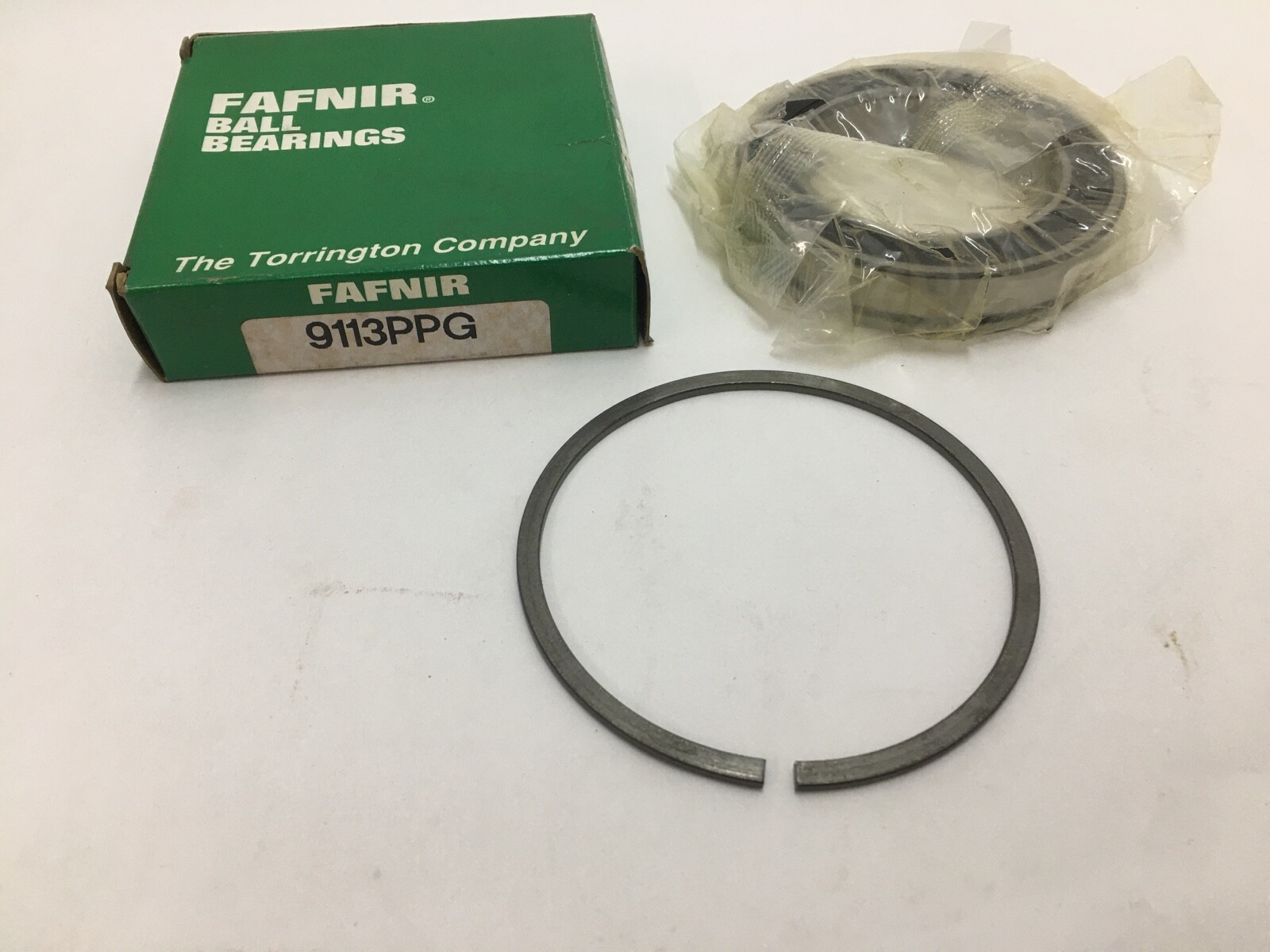

Unit Quantity: 1 Pc. Bearing with its seals and snap ring.
The cross-referenced parts are sealed 6013 bearings with a snap ring groove and ring on the same 65 x 100 x 18 mm envelope. A plain 6013 or a 6013-2RS without the ring shares the bearing envelope but not the axial location feature, so it is listed as a related size rather than a substitution.
