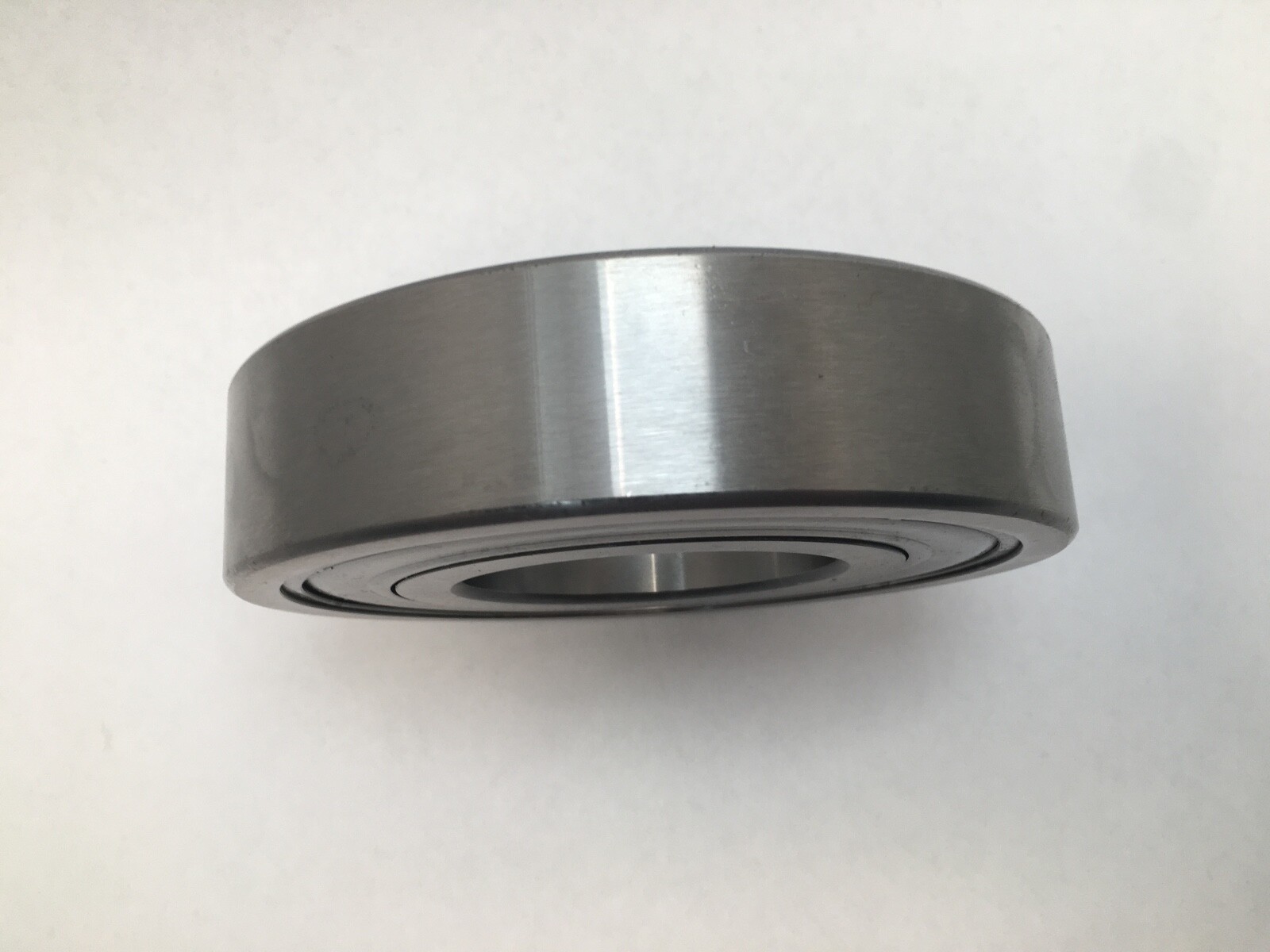

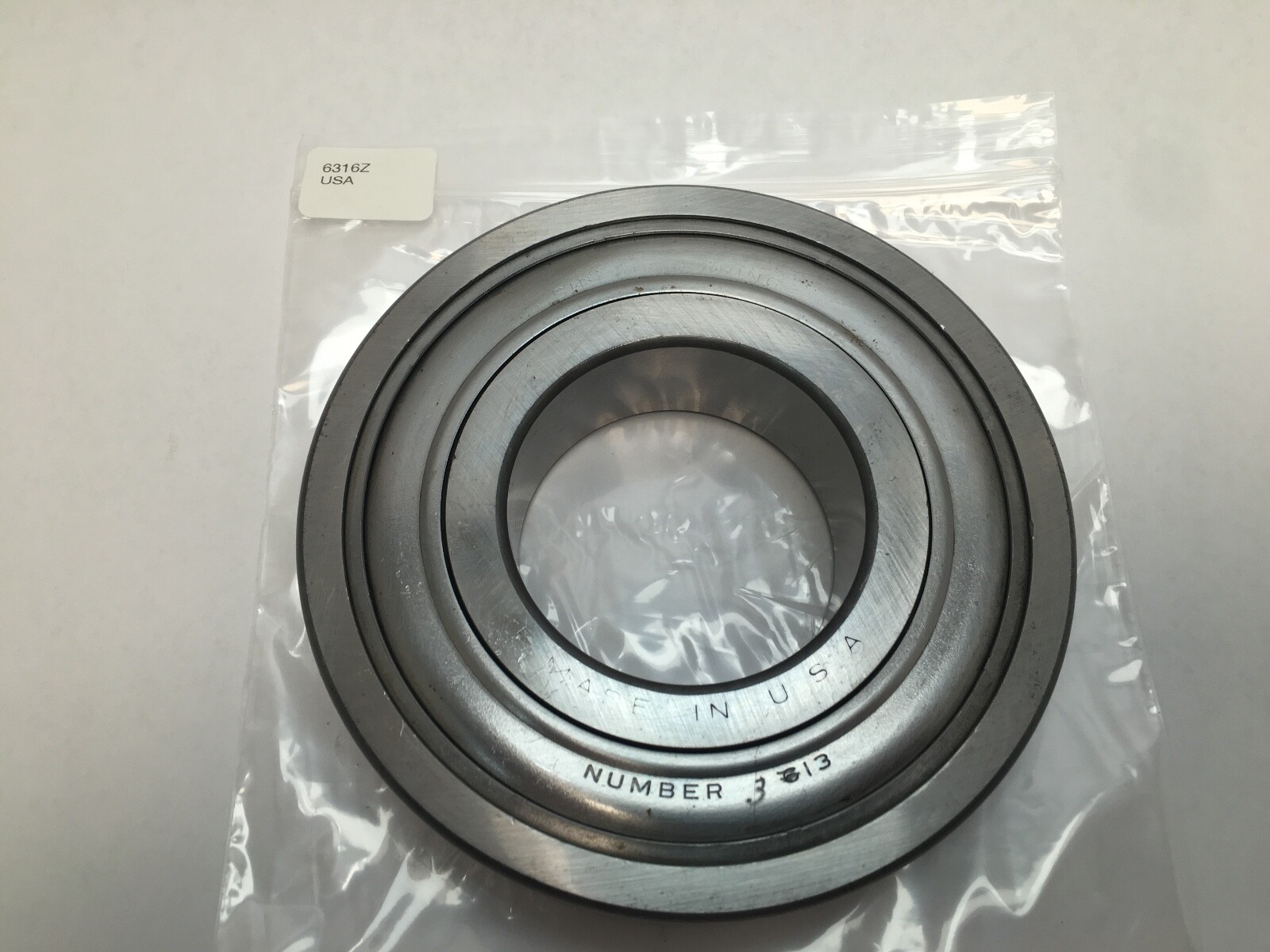

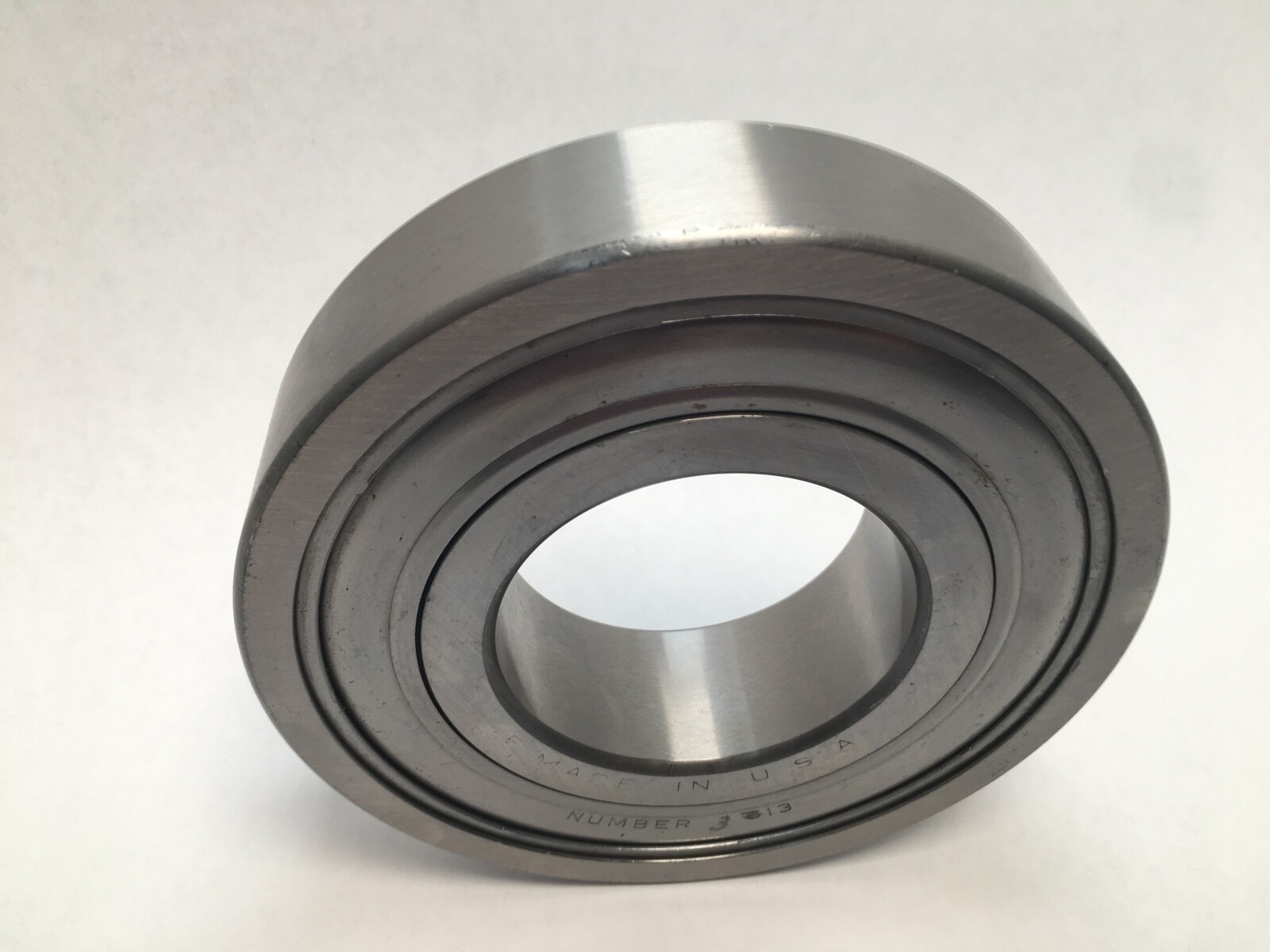

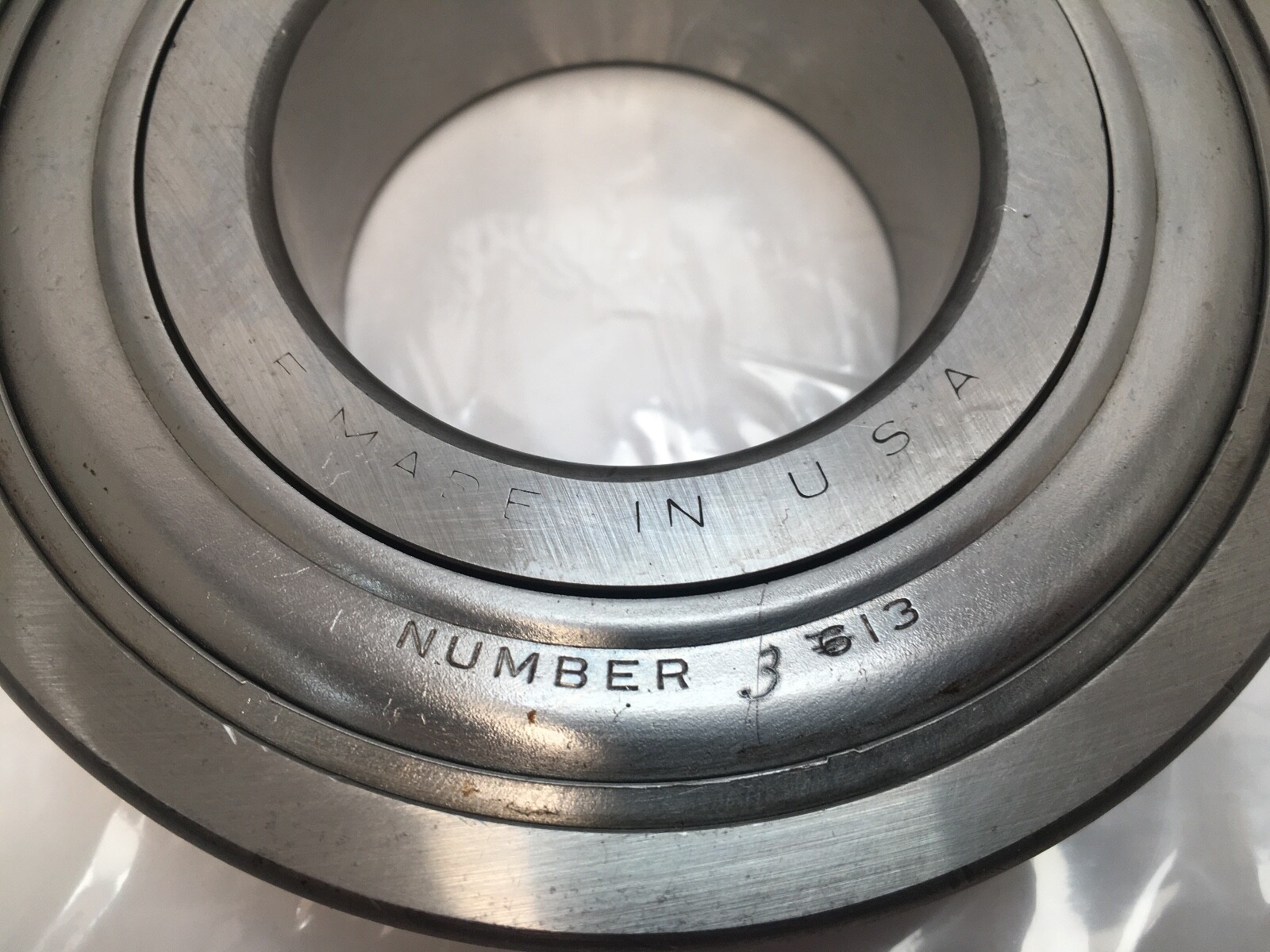

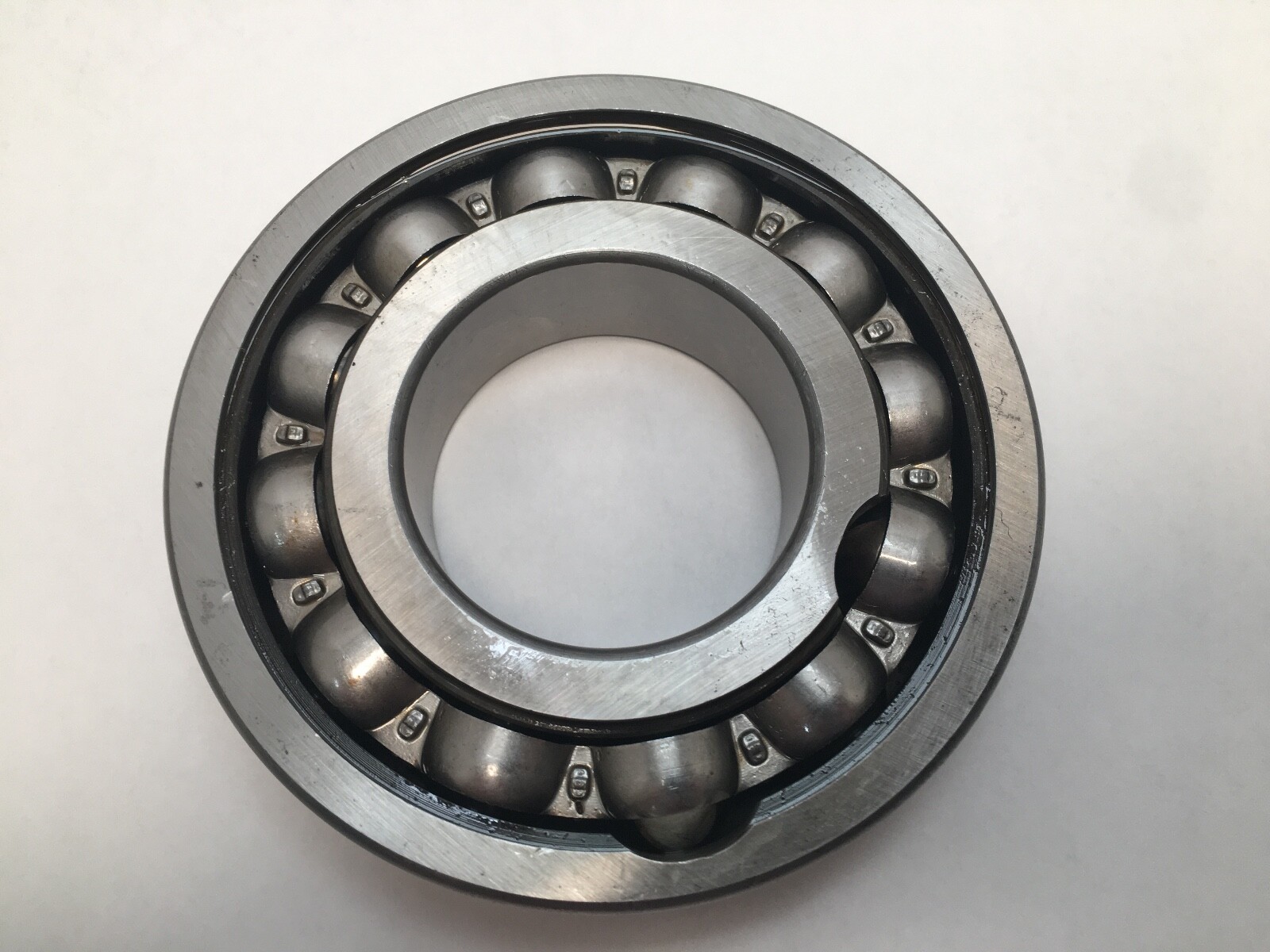

NDH 613Z single-row deep groove ball bearing, 65 x 140 x 33 mm (ISO 6313 size), one metal shield, open on the other face, New Departure Hyatt.
List Price
$67.18
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NDH |
|---|---|
| MPN | 613Z |
| Model | 6313Z |
| Bearing Type | Ball Bearing, Single Shield |
| ID | 65 mm |
| OD | 140 mm |
| Width | 33 mm |
| Series | 6300 |
|---|---|
| Lubricant | Grease |
| Rolling Elements | Balls |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Mpn Variants | 613Z, 613-Z, 613 Z, 6313Z |
| Additional Attributes | ISO 6313 envelope; one metal shield, opposite face open; New Departure Hyatt (NDH) |
| Industry Terms | Single shield ball bearing, deep groove ball bearing, one-side shielded bearing, 65mm bore ball bearing, 6313Z |
| Common Misspellings | NDH 613 Z; New Departure 613Z; NDH 6l3Z; Hyatt 613Z |
| Application Types | Electric motors; gearboxes; pumps; general industrial shafts |
| Cross Reference 1 | SKF 6313-Z |
|---|---|
| Cross Reference 2 | NSK 6313Z |
| Cross Reference 3 | NTN 6313Z |
| Cross Reference 4 | FAG 6313-Z |
NDH 613Z is a single-row deep groove ball bearing (New Departure Hyatt) with a metal shield on one side and the opposite face open. Bore Diameter: 65 mm. Outside Diameter: 140 mm. Overall Width: 33 mm. Unit Quantity: 1 Pc.
613 — NDH size equal to ISO 6313, 65 x 140 x 33 mm.
Z — one metal shield.
Bore Diameter: 65 mm. Outside Diameter: 140 mm. Overall Width: 33 mm. Closure Type: Shield one side. Bore Type: Straight. Rolling Elements: Balls. Number Of Rows: 1. Series: 6300.
ISO 6313 envelope, 65 x 140 x 33 mm, straight bore. The shield retains grease on one face; the other face is open.
Cross-Reference 1: SKF 6313-Z. Cross-Reference 2: NSK 6313Z. Cross-Reference 3: NTN 6313Z. Cross-Reference 4: FAG 6313-Z. Designation forms: 613Z, 613-Z, 613 Z, 6313Z.
Bore Diameter: 65 mm. Outside Diameter: 140 mm. Overall Width: 33 mm.
One metal shield on one face; the opposite face is open.
The ISO 6313 envelope, Series: 6300.
