Deep groove ball bearing, 85 x 150 x 28 mm, open both sides, pressed steel cage. 92 kN dynamic, 64 kN static, 5,000 rpm on oil.
List Price
$53.46
8 in stock
8 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | NTN |
|---|---|
| MPN | 6217PM/3W |
| Model | 6217 PM 3W |
| Bearing Type | Ball Bearing, Open |
| ID | 85 mm |
| OD | 150 mm |
| Width | 28 mm |
| Material | Chrome Steel |
|---|---|
| Series | 6200 |
| Condition | New – Open box |
| Lubricant | Oil |
| Base Number | 6217 |
| Total Width | 28 mm |
| Condition Note | Made In USA, New Old Stock, Sealed In Factory Wrapper |
| Bore Shaft Size | 85 mm |
| Mpn Variants | 6217PM/3W, 6217 PM 3W, 6217PM, 6217-3W, 6217 |
| Closure Type | Open |
| Cage Type | Pressed |
| Dynamic Load Rating | 92.0 kN (92,000 N) |
| Static Load Rating | 64.0 kN (64,000 N) |
| Rolling Elements | Ball |
| Item Weight | 1.79 kg (3.946 lb) |
| Cage Material | Steel |
| Limiting Speed | 5,000 rpm (oil) / 4,200 rpm (grease) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Part Number | 6217PM/3W |
| Cross Reference 1 | SKF 6217 |
|---|---|
| Cross Reference 2 | FAG 6217 |
| Cross Reference 3 | NSK 6217 |
| Cross Reference 4 | Koyo 6217 |

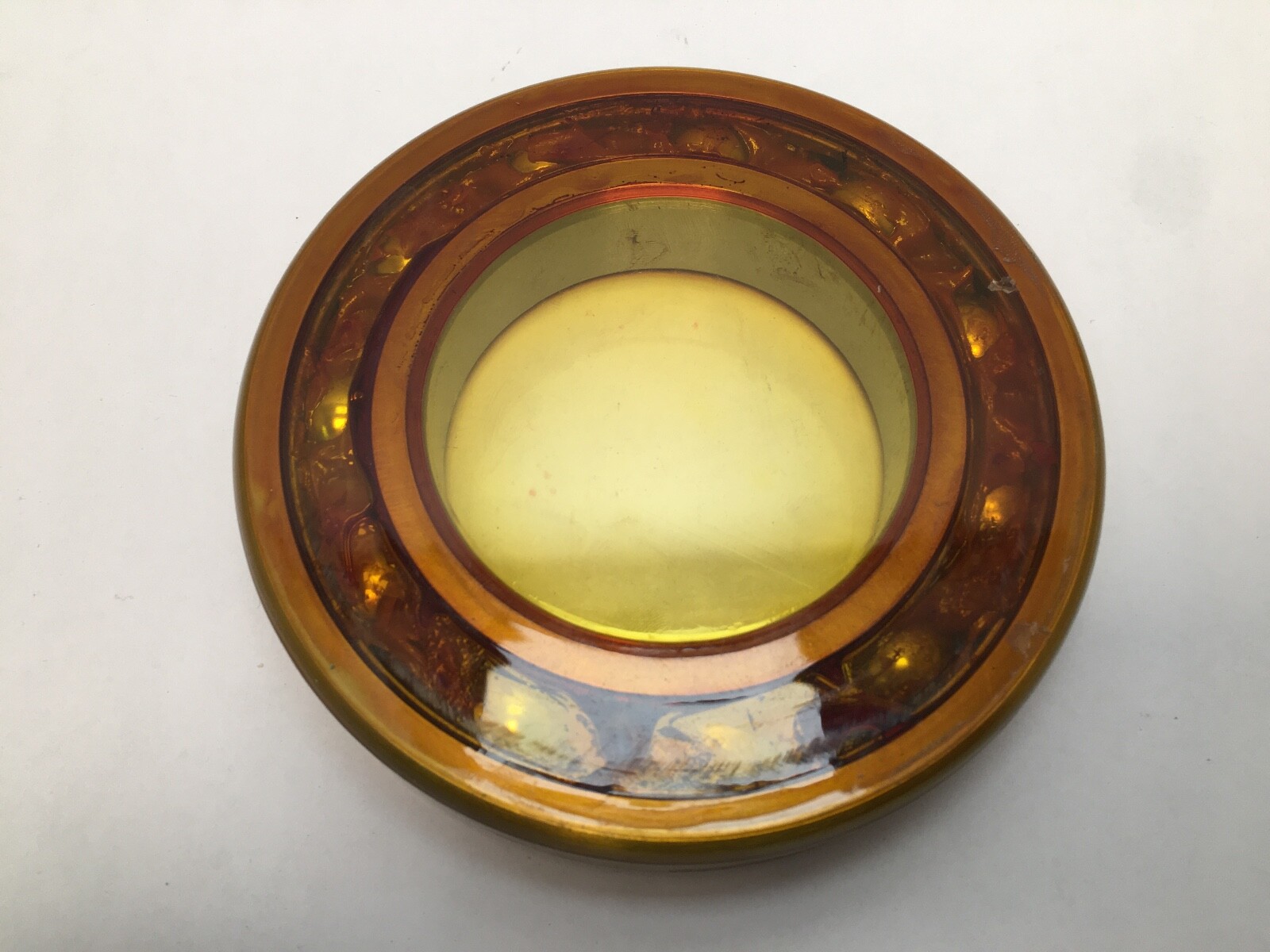

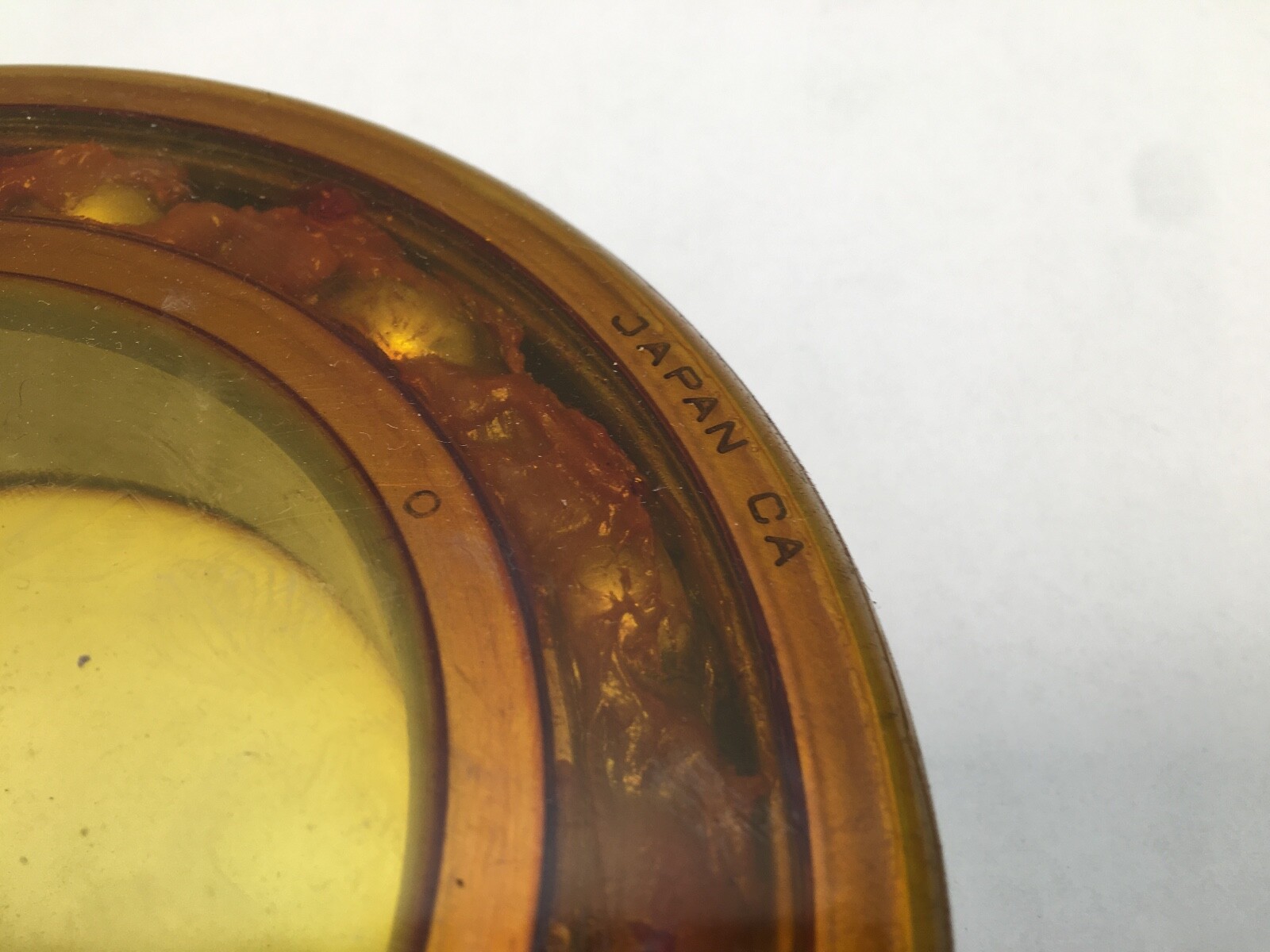

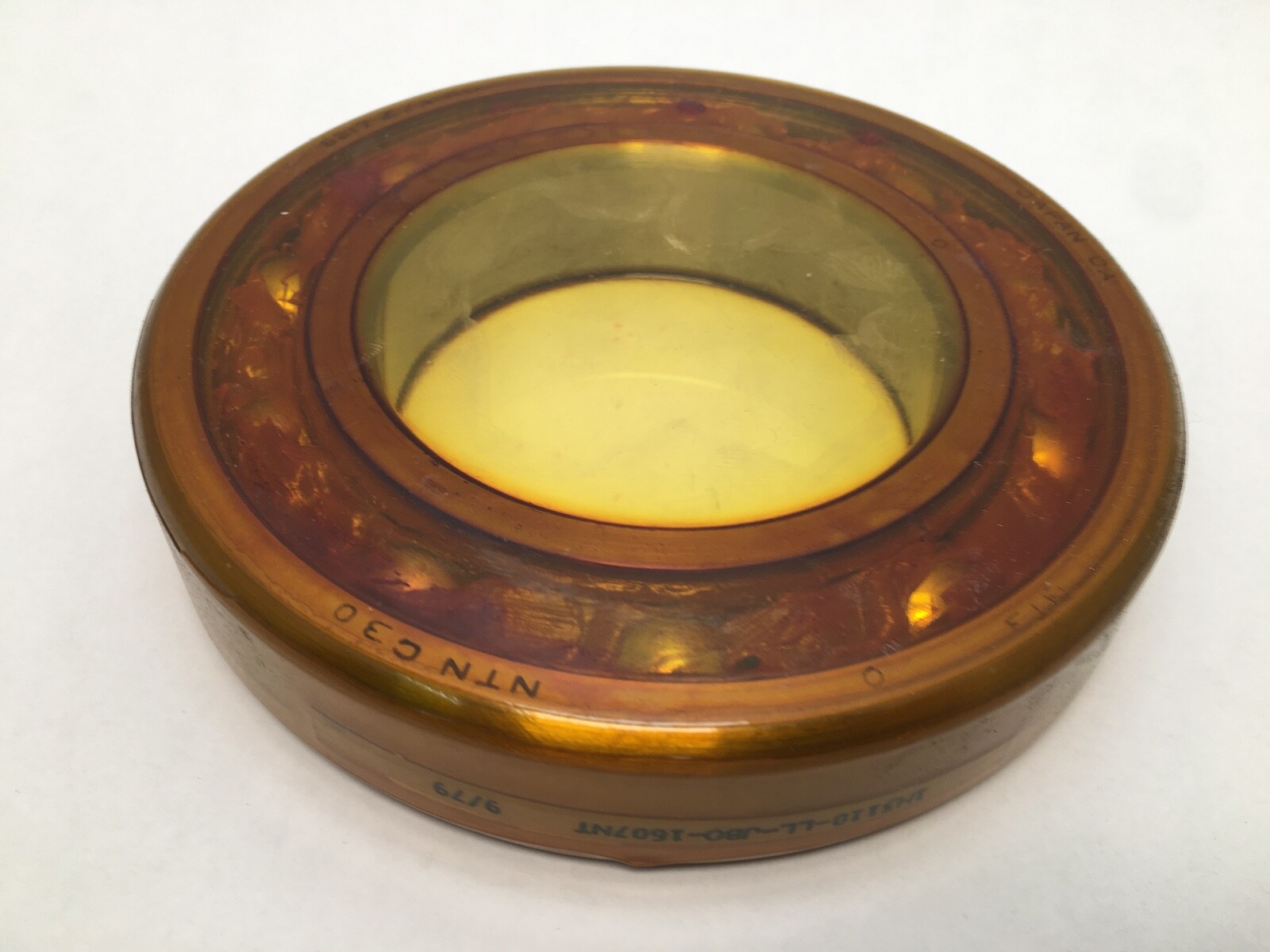

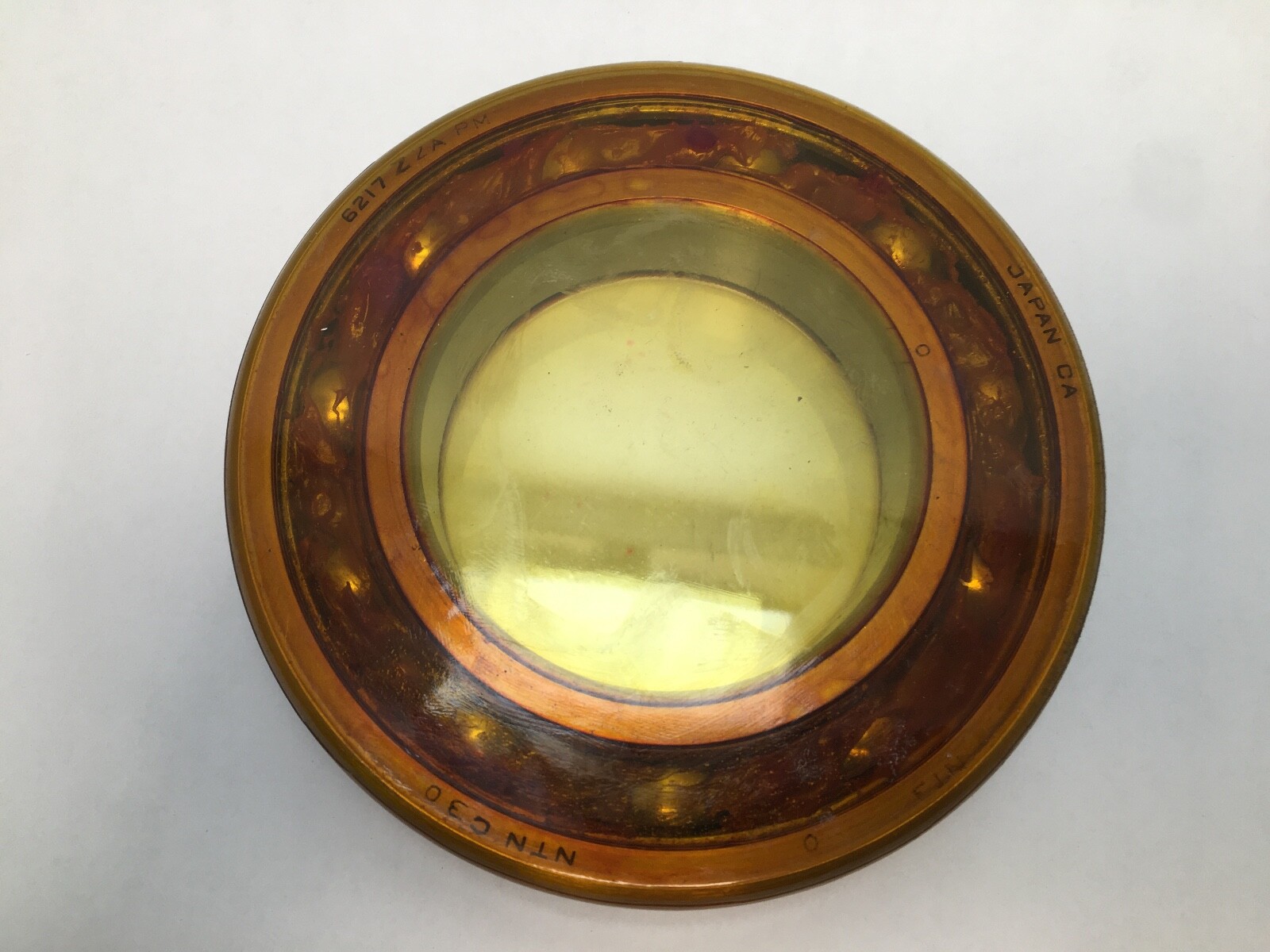

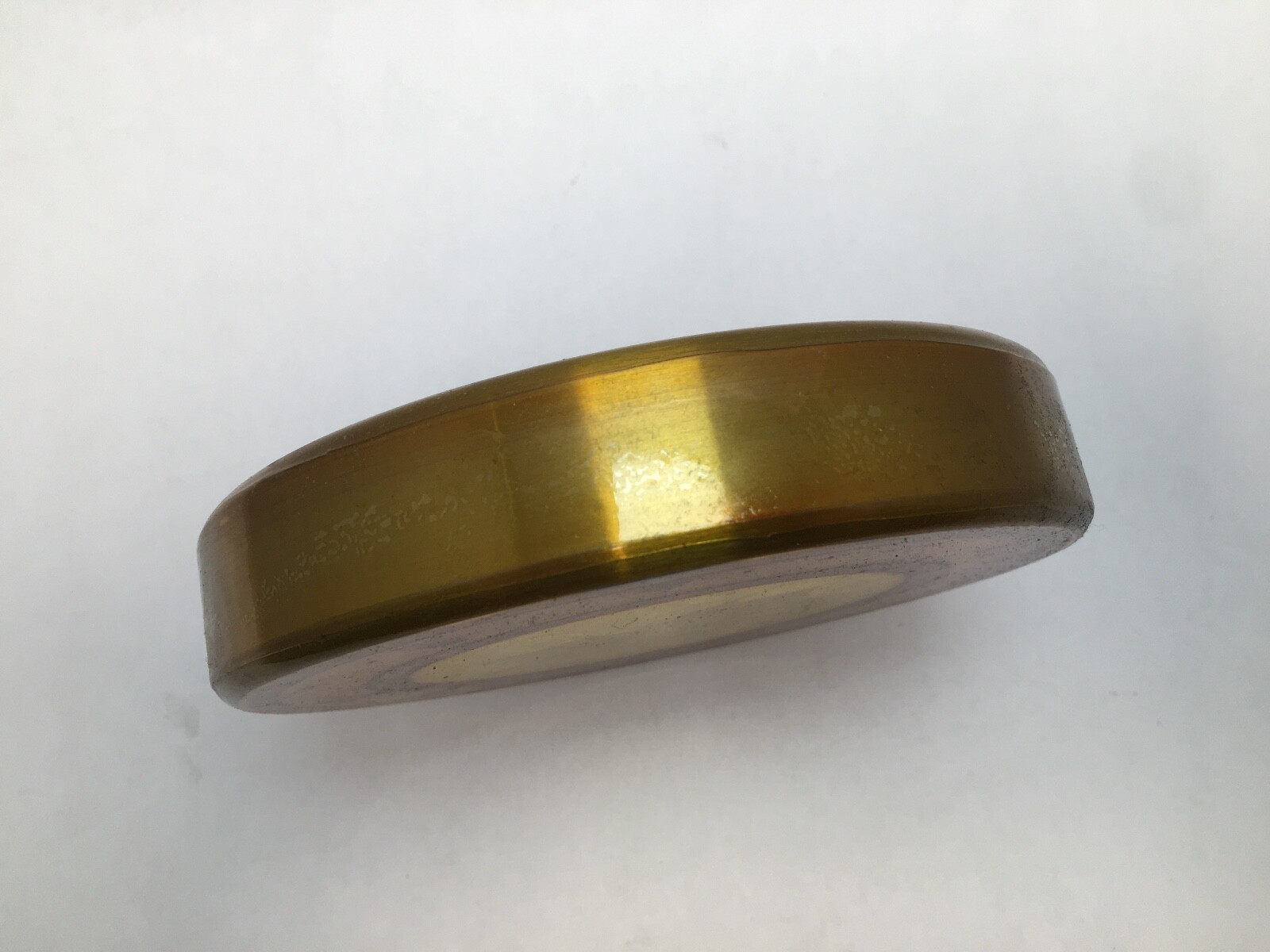

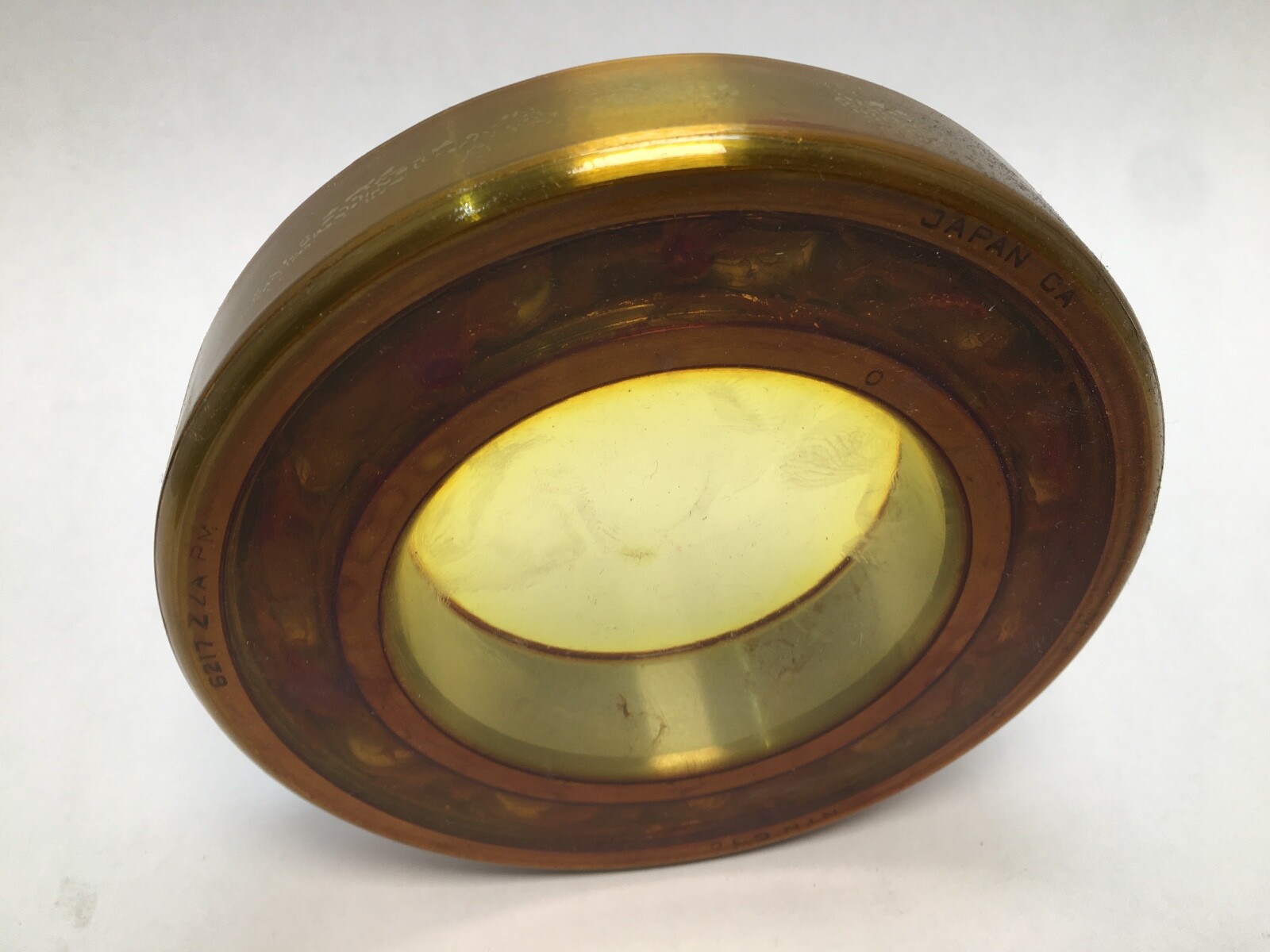

NTN 6217 single-row deep groove ball bearing, open both sides. Series: 6200. Bore: 85 mm. Outside Diameter: 150 mm. Width: 28 mm. Bore Type: Straight. Rolling Elements: Ball. Closure Type: Open.

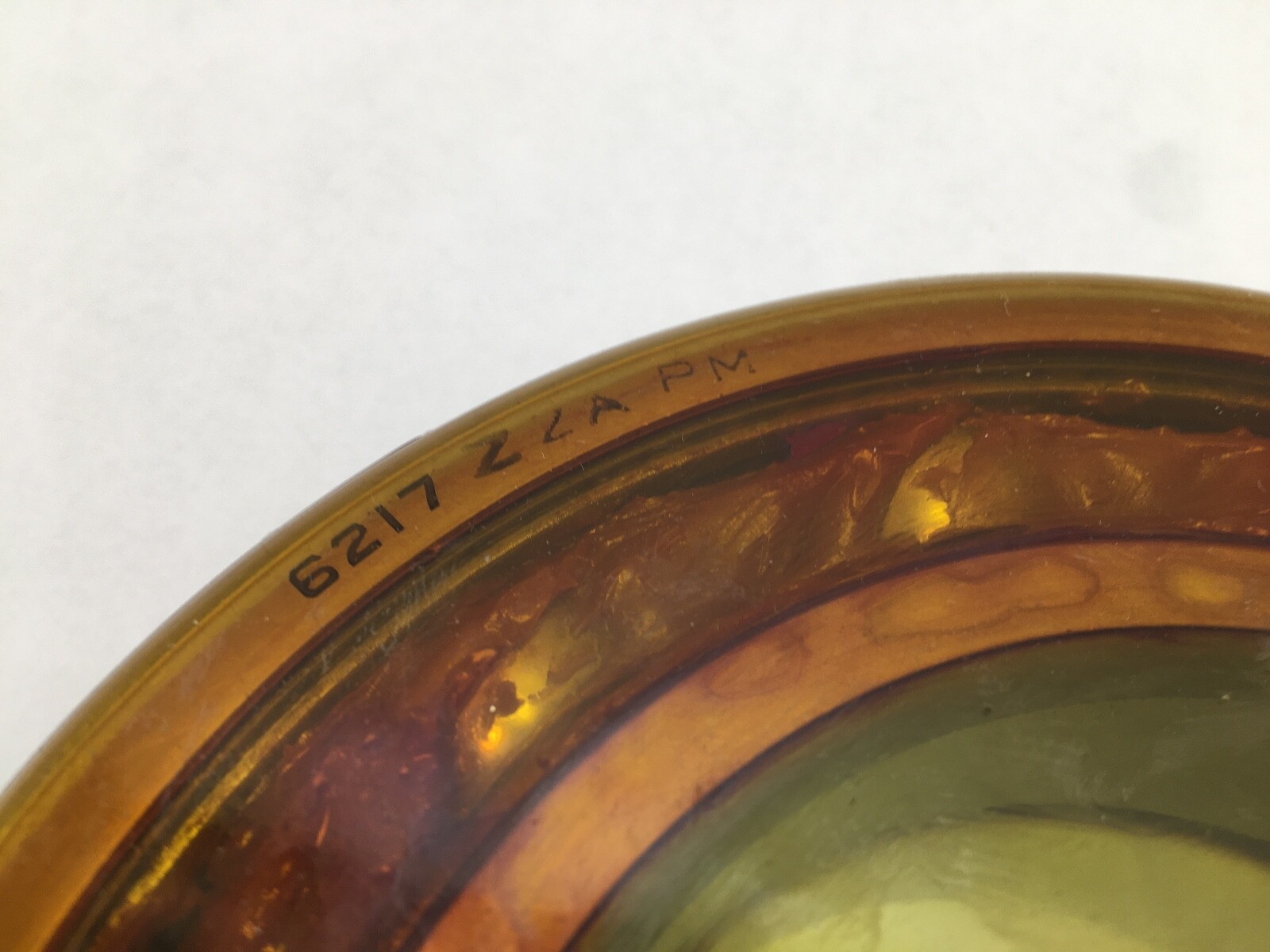

6217 — NTN’s number for the ISO 6217 size, 85 x 150 x 28 mm, medium 62 series.

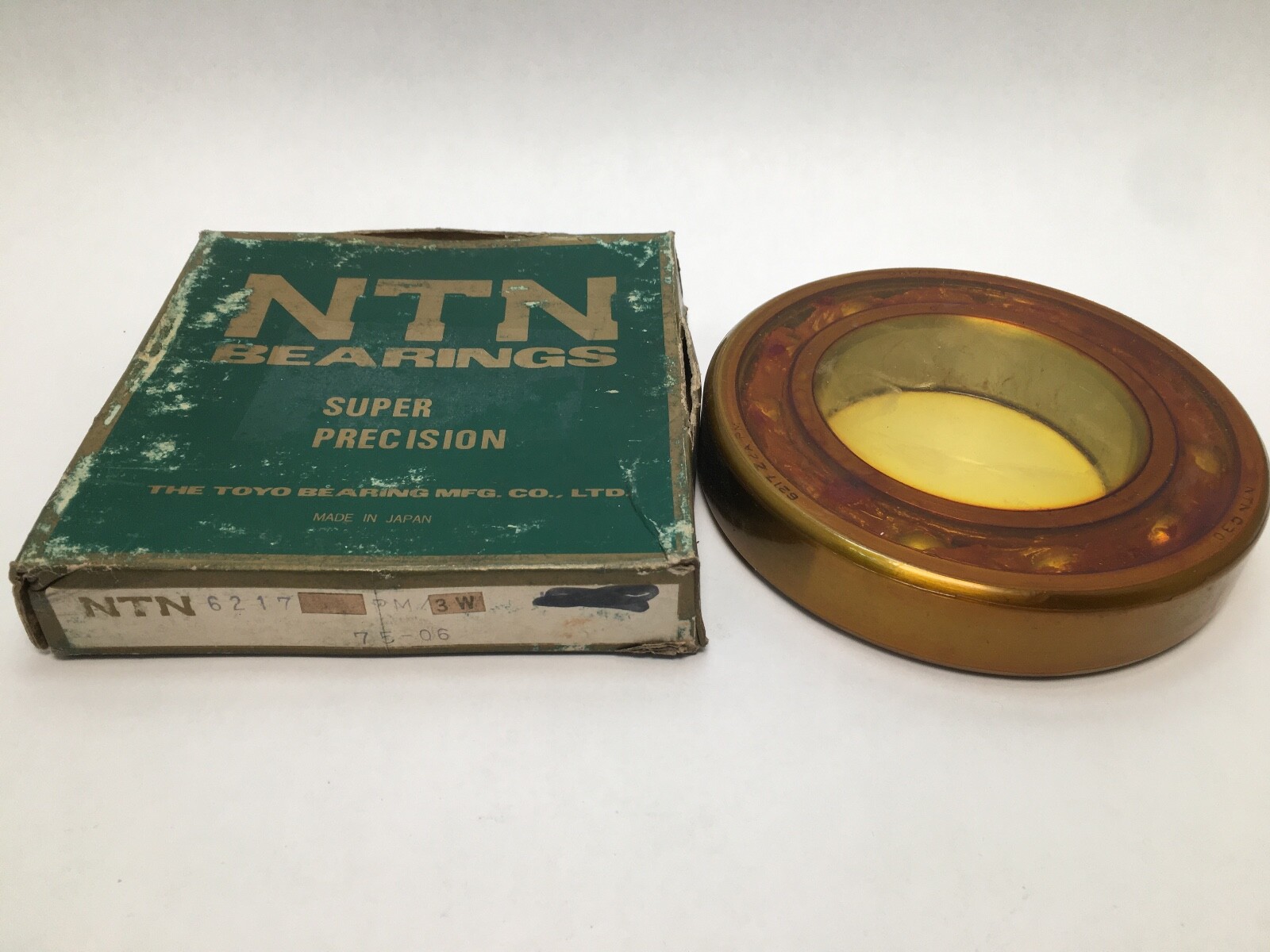

PM, 3W — order-code tokens carried on the carton, recorded as designation variants.
Dynamic Load Rating: 92,000 N (92.0 kN, 20,680 lbf). Static Load Rating: 64,000 N (64.0 kN, 14,380 lbf). Limiting Speed: 5,000 r/min on oil, 4,200 r/min on grease. Cage Material: Steel. Cage Type: Pressed. Chamfer r: 2 mm. Chamfer r1: 0.5 mm. Mass: 1.79 kg (3.946 lb).
The 62 medium series puts a heavier ball complement behind an 85 mm bore than the 60 light series does, so it carries 92 kN dynamic in a 150 mm outside diameter. Open both faces, the bearing takes its lubricant from the housing sump or a grease line rather than from a captive charge, which is what suits it to electric motors, pump drive ends and gearbox shafts where the whole assembly is lubricated together.
Shaft abutment diameter da: 94 mm minimum. Housing abutment diameter Da: 141 mm maximum. Shaft or housing fillet radius ras: 2 mm maximum.
Unit Quantity: 1 Pc.
Cross-references: SKF 6217, FAG 6217, NSK 6217, Koyo 6217, Timken 6217. Searchable variants of the designation: 6217PM/3W, 6217 PM 3W, 6217PM, 6217-3W, 6217. A 6217-2Z or 6217-2RS is the same size in a shielded or sealed execution and carries its own lubricant charge.
