Availability:
Out of stock

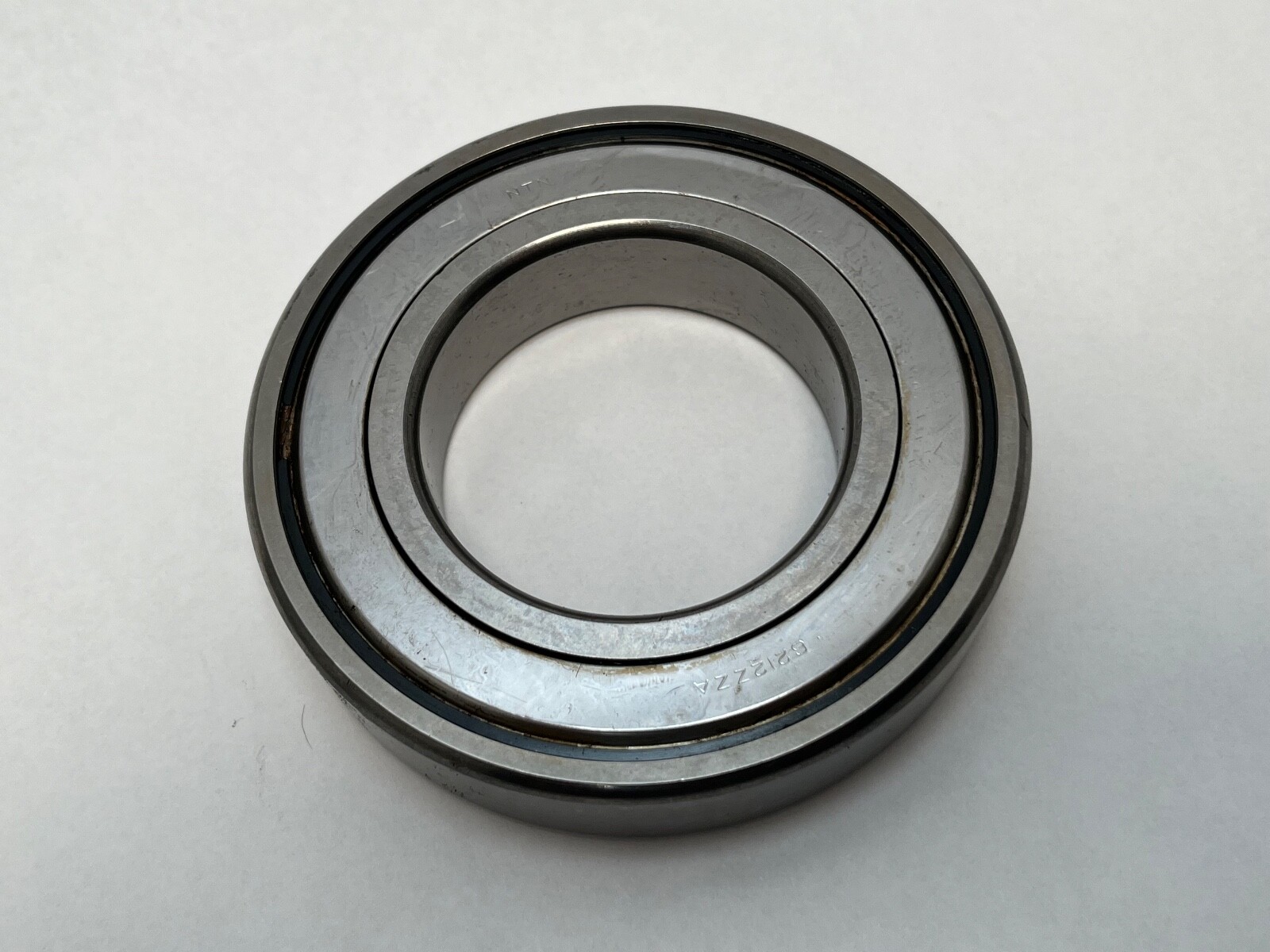

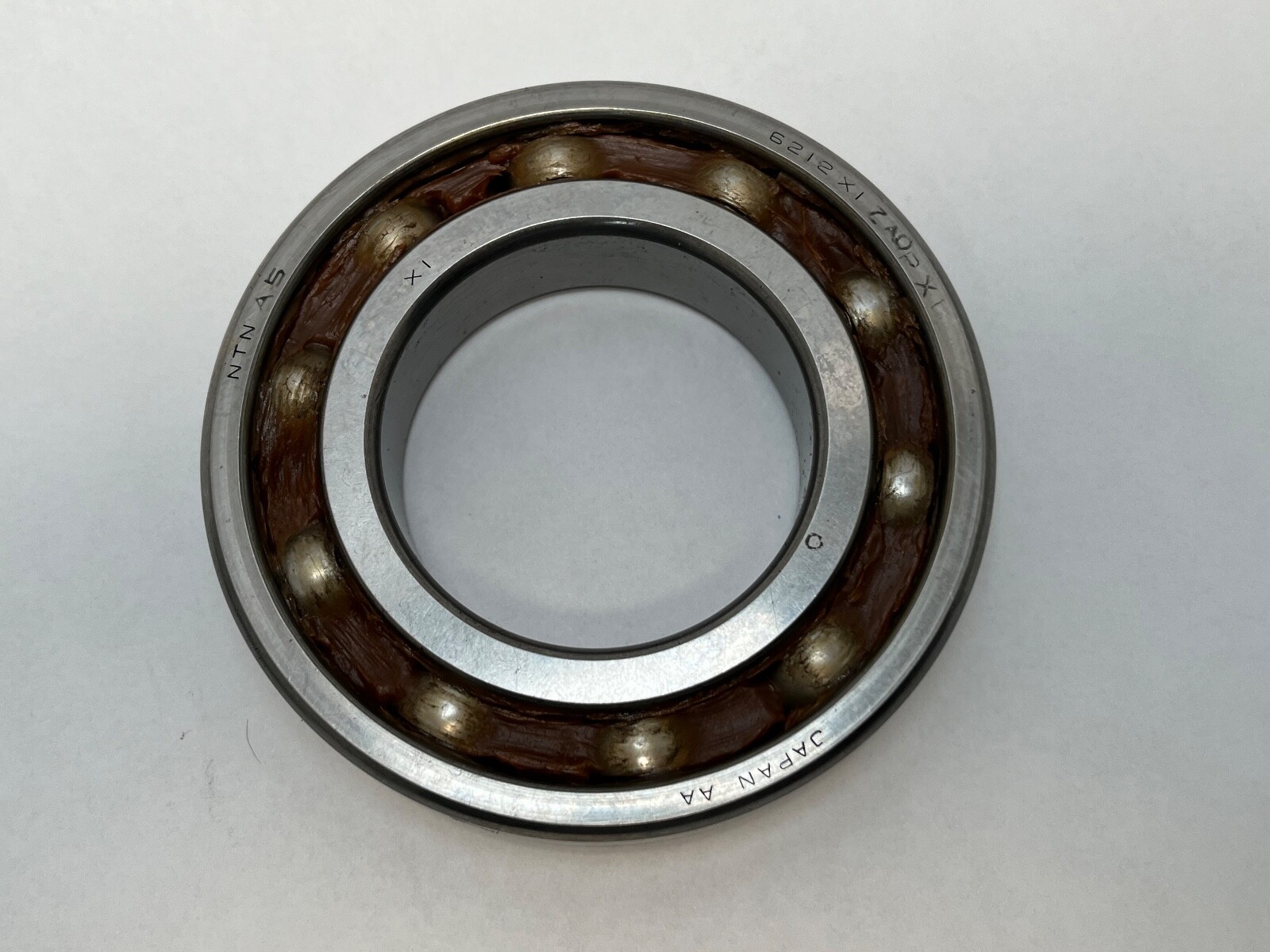

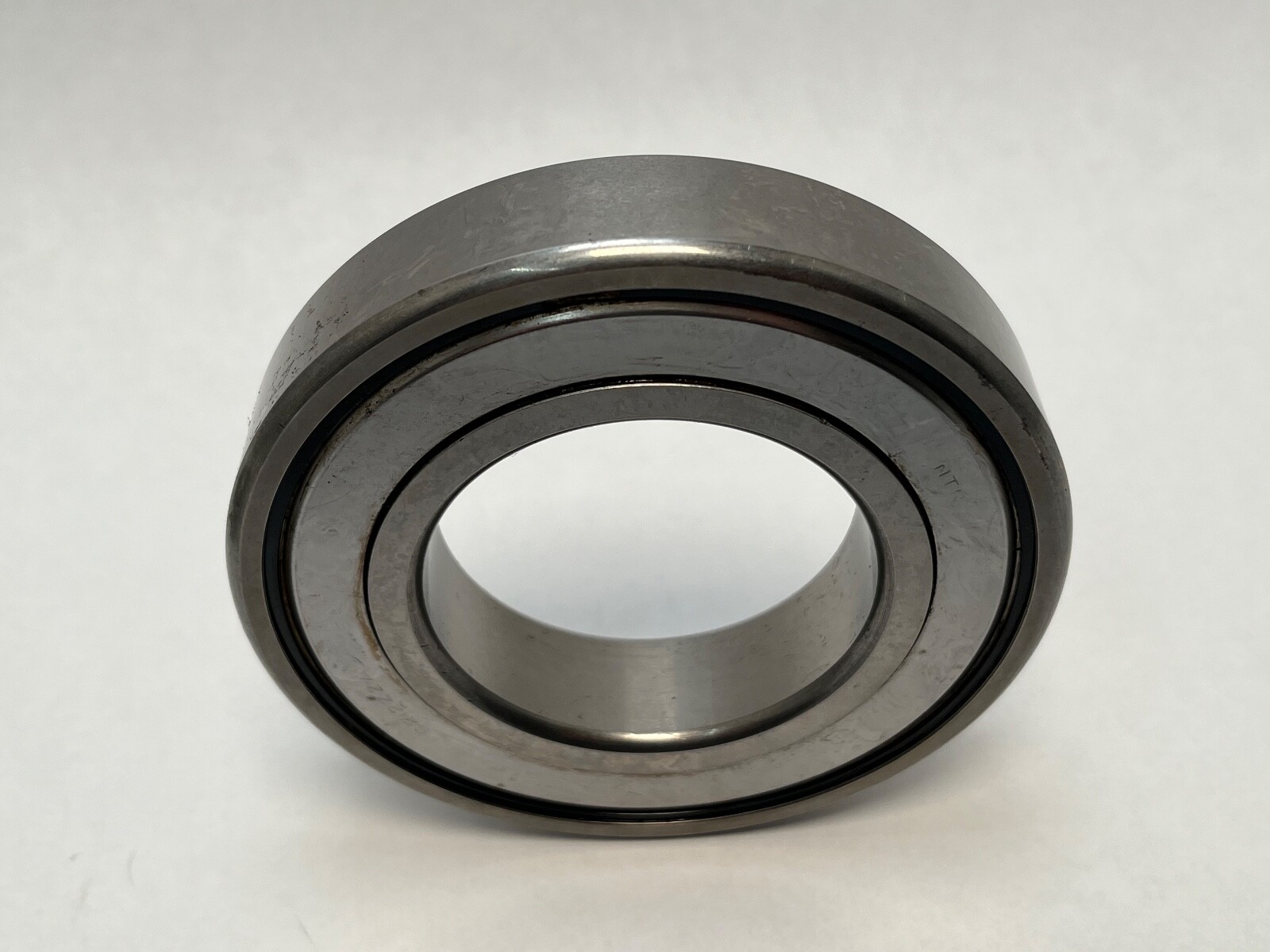

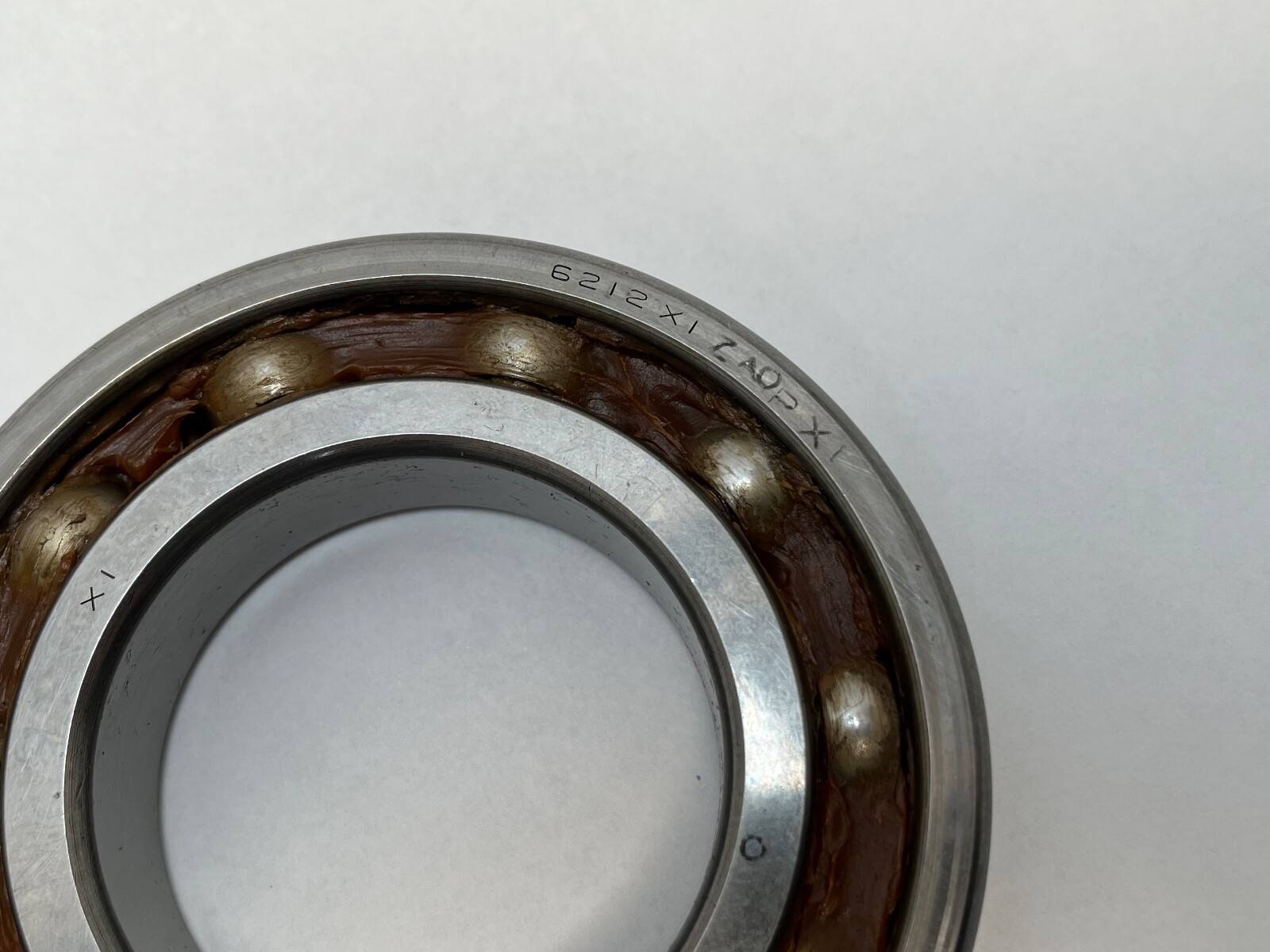

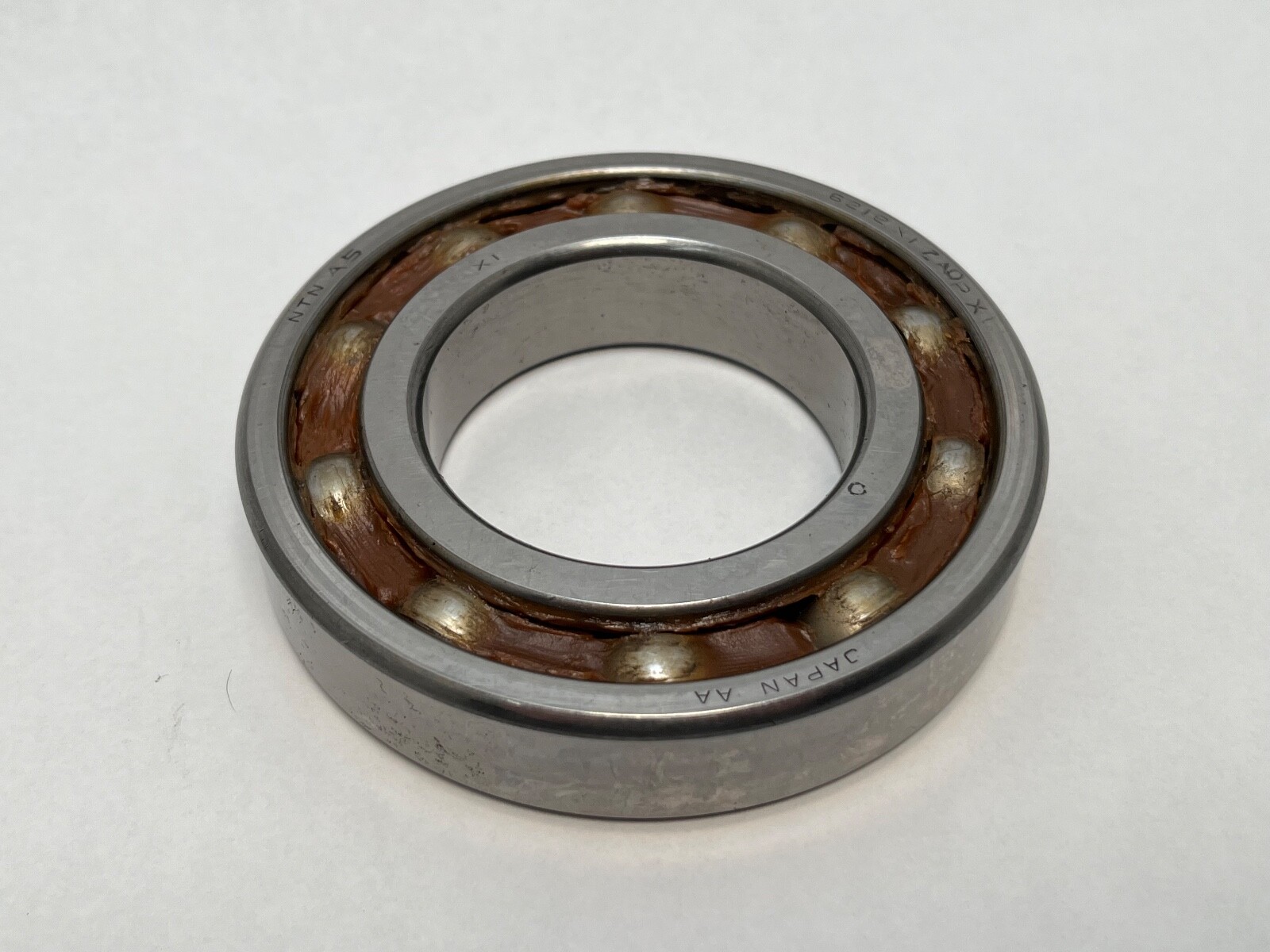

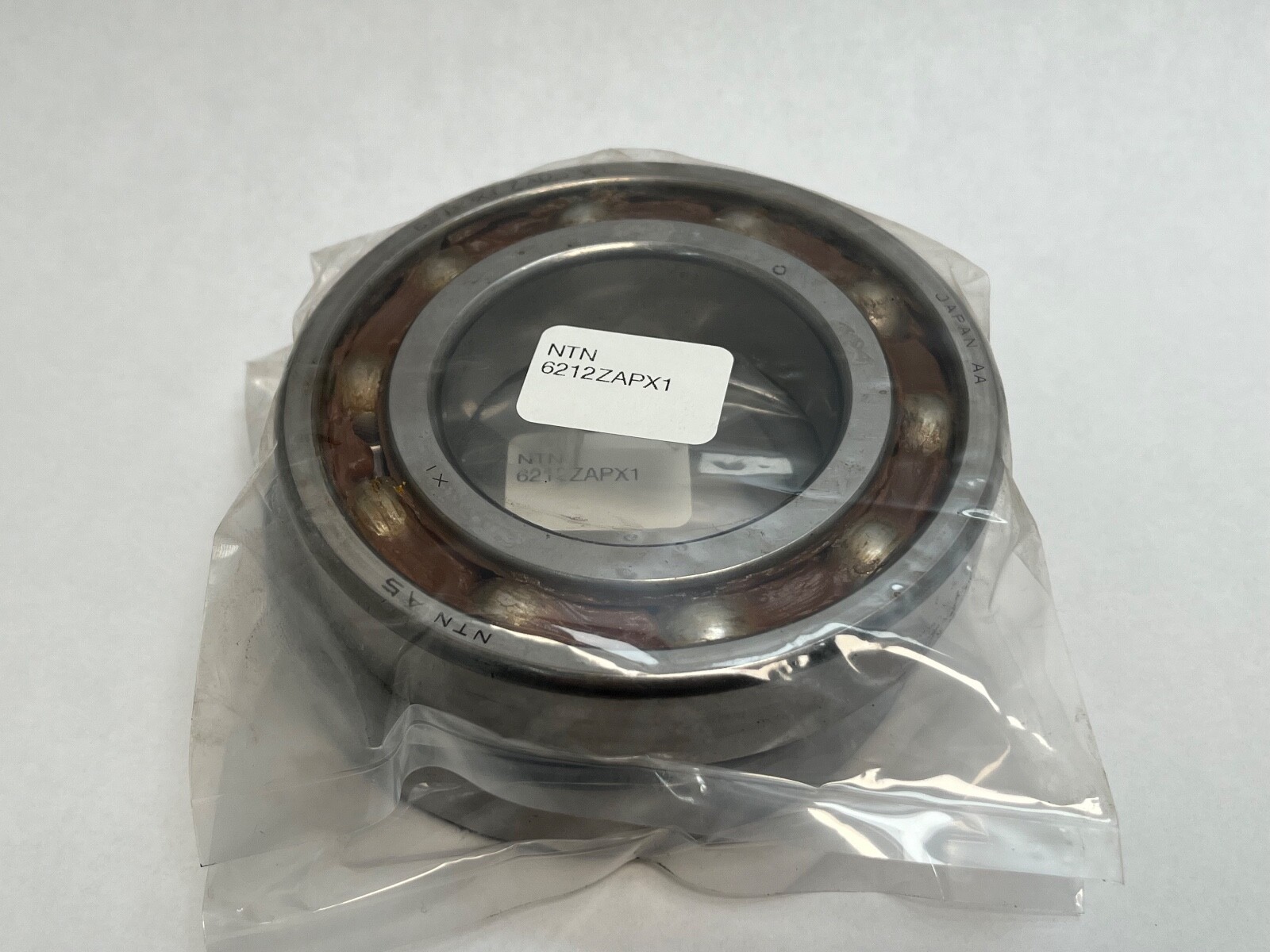

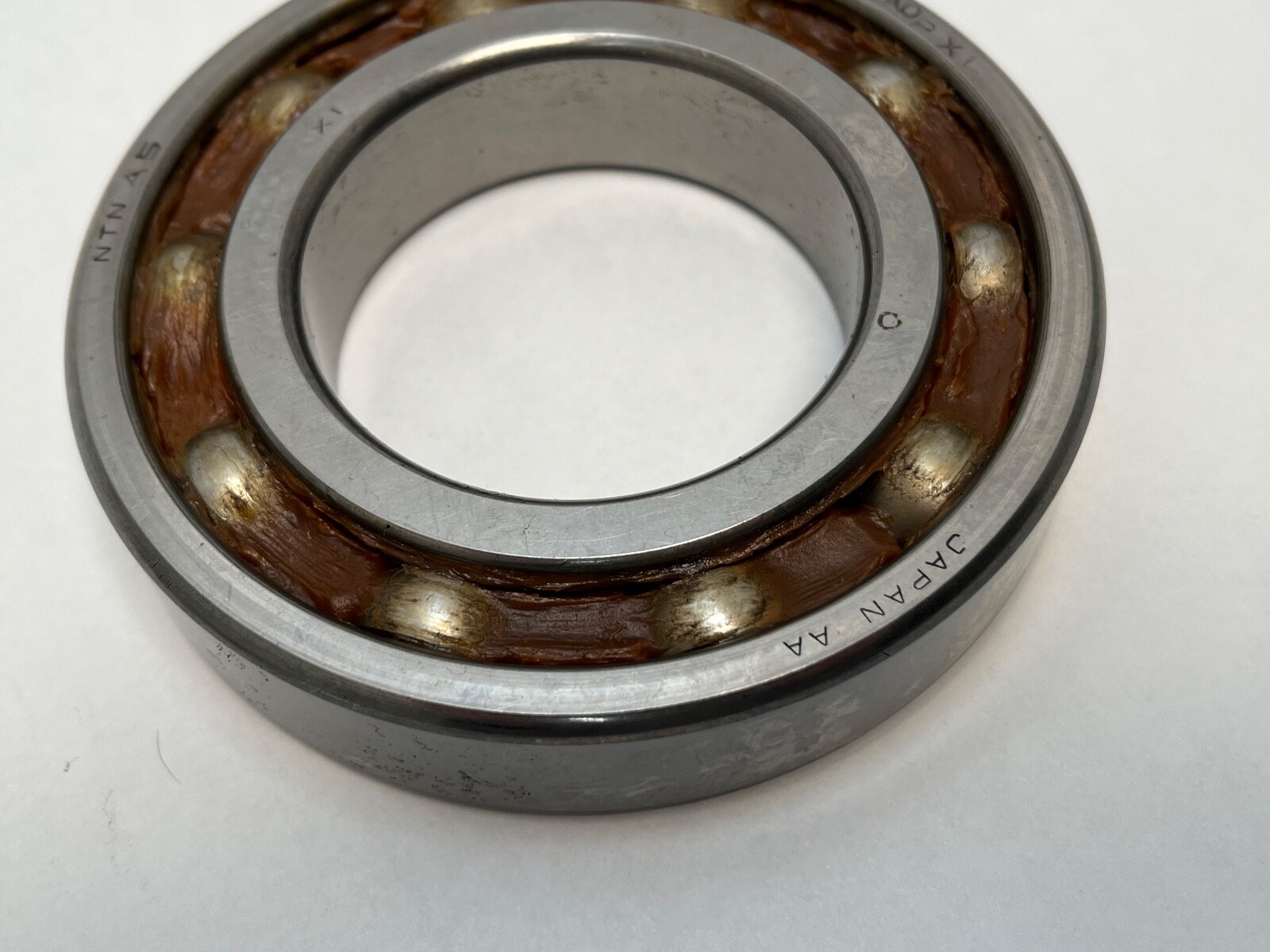

Deep groove ball bearing, 60 x 110 x 22 mm, removable steel shield one side, special chamfer and radial tolerance. NTN 6212X1ZAPX1, sold as 2 pieces.
List Price
$53.53
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Deep Groove Ball Bearing — 60 mm ID, 110 mm OD, 22 mm Width, Rubber Seals Both Sides, C3$33.98
Deep Groove Ball Bearing - 60 mm ID, 110 mm OD, 22 mm Width, Open, Pressed Steel Cage$35.80
Deep Groove Ball Bearing - 60 mm ID, 110 mm OD, 22 mm Width, Open, Phenolic Cage, ABEC 5 / P5$49.05
Deep Groove Ball Bearing — Filling-Notch Max Type, 60 mm ID, 110 mm OD, 22 mm Width, Single Shield, Snap Ring$40.26| MFR / Brand | NTN |
|---|---|
| MPN | 6212X1ZAPX1 |
| Model | 6212 X1 Z A PX1 |
| Bearing Type | Ball Bearing, Shield one side |
| ID | 60 mm |
| OD | 110 mm |
| Width | 22 mm |
| Material | Chrome Steel |
|---|---|
| Series | 6200 |
| Lubricant | Grease |
| Mpn Variants | 6212X1ZAPX1, 6212-X1-ZA-PX1, 6212 X1 ZA PX1, 6212ZA, 6212Z |
| Precision Class | Special radial tolerance (PX1) |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Cross Reference 1 | SKF 6212-Z |
|---|---|
| Cross Reference 2 | NSK 6212Z |
| Cross Reference 3 | FAG 6212-Z |
| Cross Reference 4 | Koyo 6212Z |
The NTN 6212X1ZAPX1 is a single-row deep groove ball bearing in the ISO 6212 size with one removable steel shield, a special chamfer and a special radial tolerance. Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm. Seal Type: Shield one side. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight.
62 — NTN 02 dimension series, the light-series deep groove section.
12 — bore code: 12 x 5 = 60 mm bore.
X1 — NTN special chamfer dimension.
ZA — one removable steel shield; the opposite face is open.
PX1 — NTN special radial tolerance.
A single shield protects one face from contamination while the open side takes lubricant from the surrounding assembly. The special chamfer and tolerance codes mark an OEM execution built to a customer drawing.
Unit Quantity: 2 Pcs.
Same 60 x 110 x 22 mm envelope with a single shield as SKF 6212-Z, NSK 6212Z, FAG 6212-Z and Koyo 6212Z, in standard chamfer and tolerance.
$33.98
11 in stock
$40.76
9 in stock
$23.33
10 in stock
$29.54
29 in stock
