Deep Groove Ball Bearing - 55 mm ID, 100 mm OD, 21 mm Width, Contact Seals Both Sides, C3 Clearance$30.40| MFR / Brand | NTN |
|---|---|

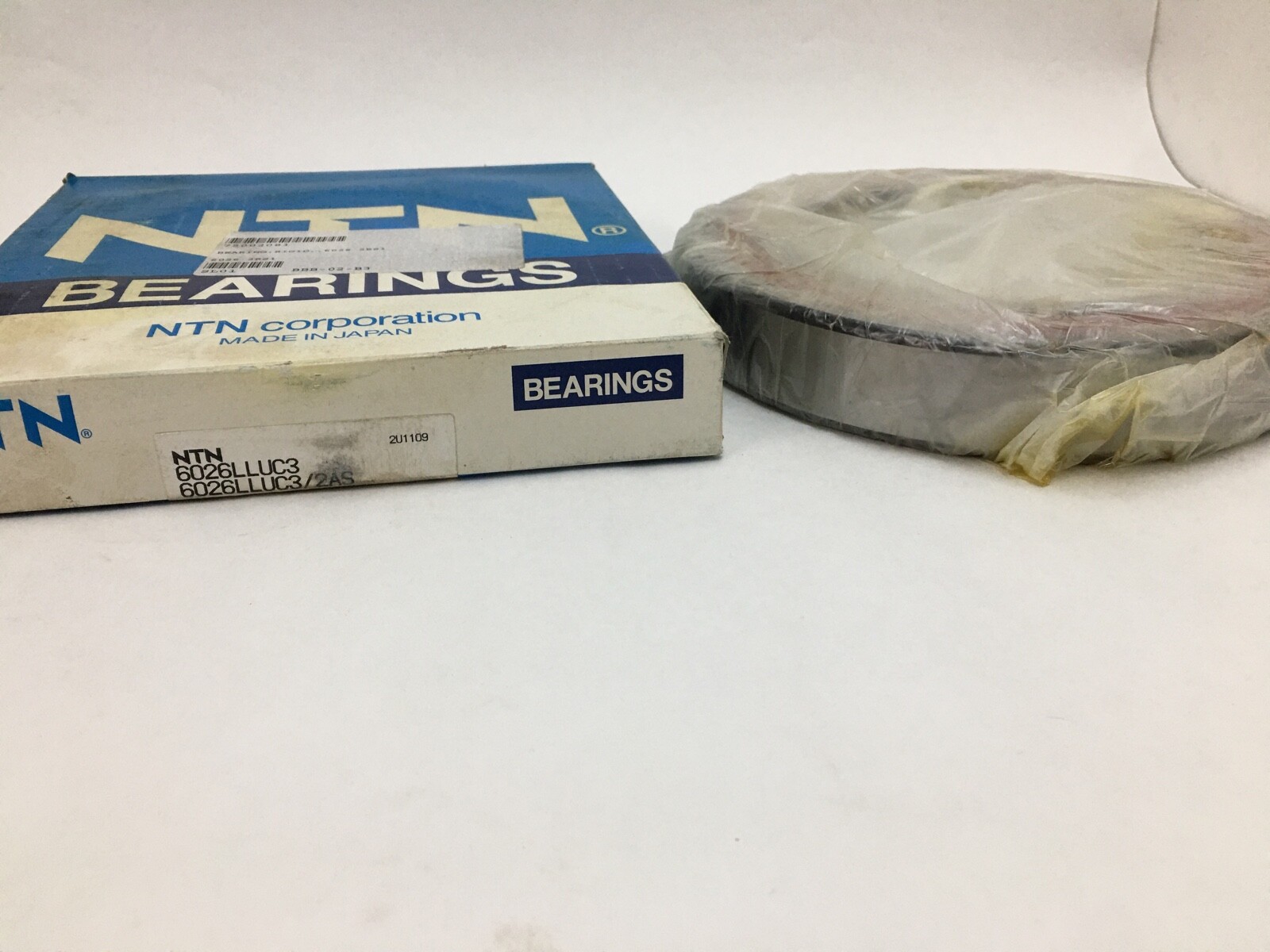

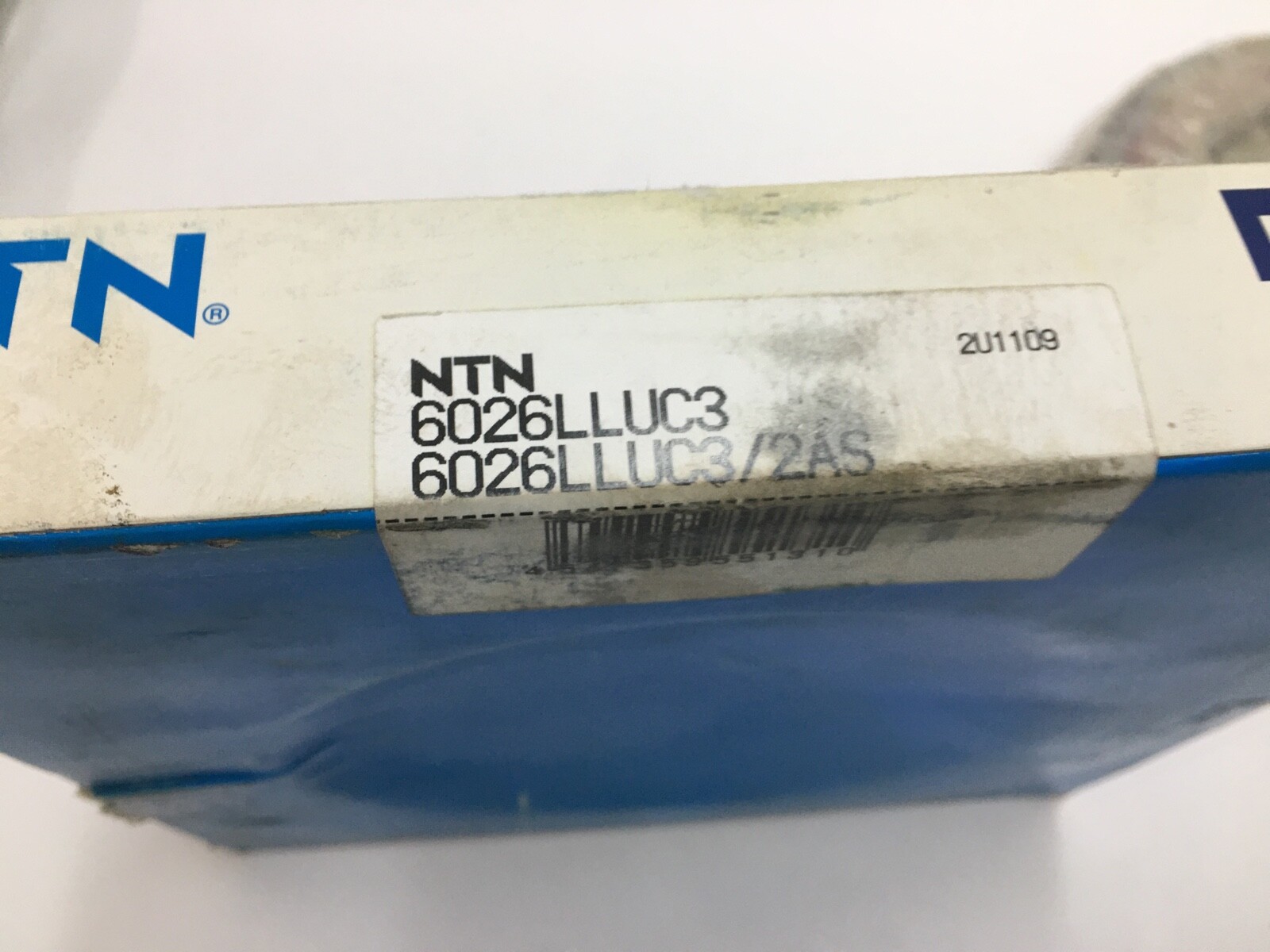

| MPN | 6026LLUC3 |
| Model | 60262RSC3 |
| Bearing Type | Ball Bearing, Double Rubber Seal |
| ID | 130 mm |
| OD | 200 mm |
| Width | 33 mm |
| Material | Bearing Steel |
|---|---|
| Series | 6000 |
| Min Temp | -25 °C |
| Cage Type | Stamped Steel |
| Dynamic Load Rating | 106 kN |
| Static Load Rating | 101 kN |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Max Temp | 110 °C |
| Item Weight | 7.41 lbs |
| Cage Material | Steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Internal Clearance | C3 |
| Limiting Speed | 2400 rpm |
| Cross Reference 1 | SKF 6026-2RS1/C3 |
|---|---|
| Cross Reference 2 | FAG 6026-2RSR-C3 |
| Cross Reference 3 | NSK 6026DDUC3 |
