A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Deep groove ball bearing, 30 x 62 x 16 mm, steel shields both sides, C3 clearance. 21,600 N dynamic rating, 11,000 rpm. Two pieces per purchase.
List Price
$23.59
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 6206ZZC3 |
| Model | 6206 ZZ C3 |
| Bearing Type | Ball Bearing, Shields both sides |
| ID | 30 mm |
| OD | 62 mm |
| Width | 16 mm |
| Material | Bearing Steel |
|---|---|
| Mpn Variants | 6206ZZC3, 6206-ZZ-C3, 6206-2Z, 6206 ZZ C3 |
| Precision Class | ABEC 1 / P0 |
| Dynamic Load Rating | 21,600 N |
| Static Load Rating | 11,300 N |
| Series | 6200 |
| Rolling Elements | Ball |
| Item Weight | 0.197 kg (0.434 lb) each |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 11,000 rpm grease |
| Internal Clearance | C3 |
| Cross Reference 1 | SKF 6206-2Z/C3 |
|---|---|
| Cross Reference 2 | FAG 6206-2Z-C3 |
| Cross Reference 3 | NSK 6206ZZC3 |
| Cross Reference 4 | Koyo 6206ZZC3 |

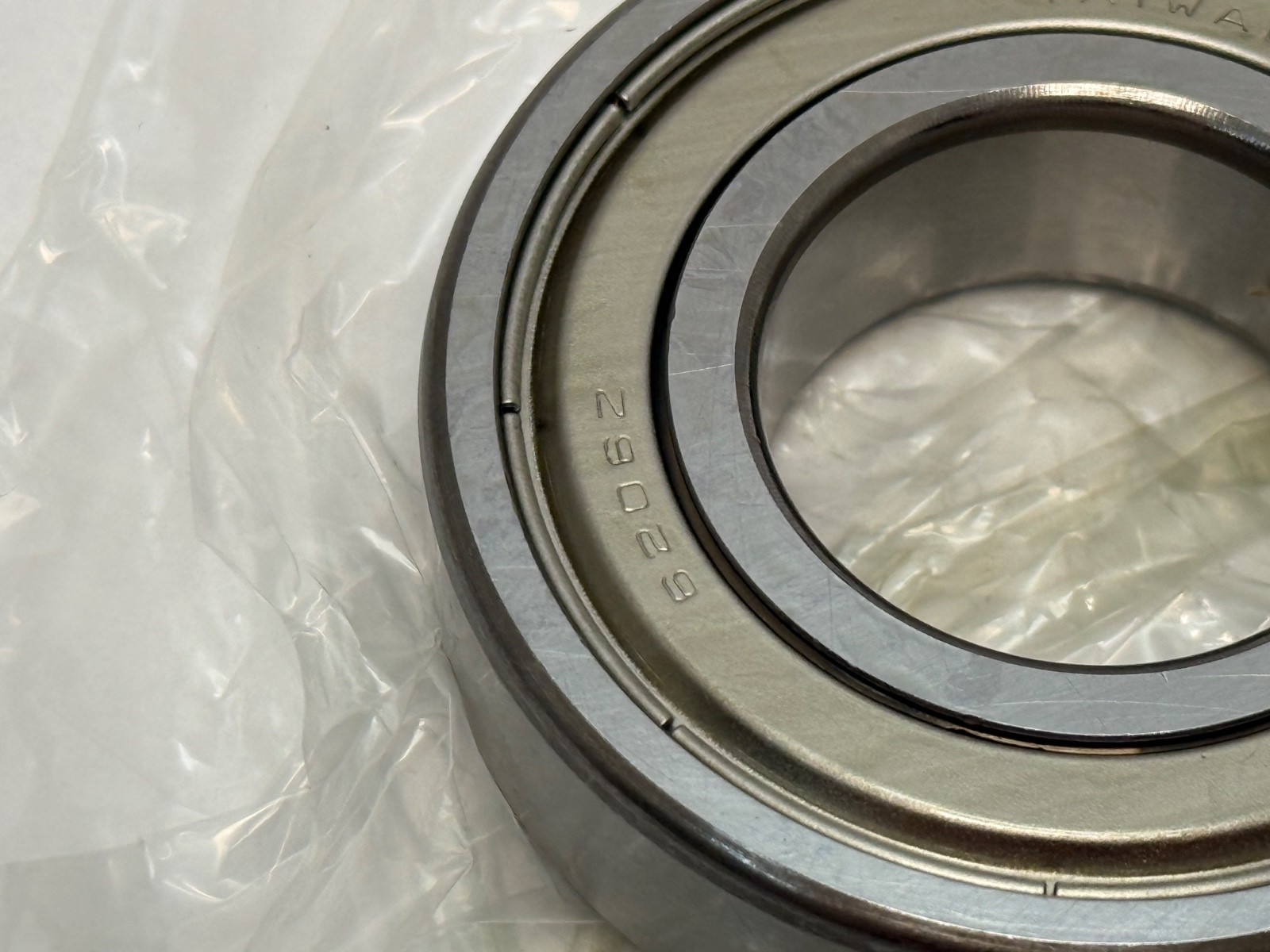

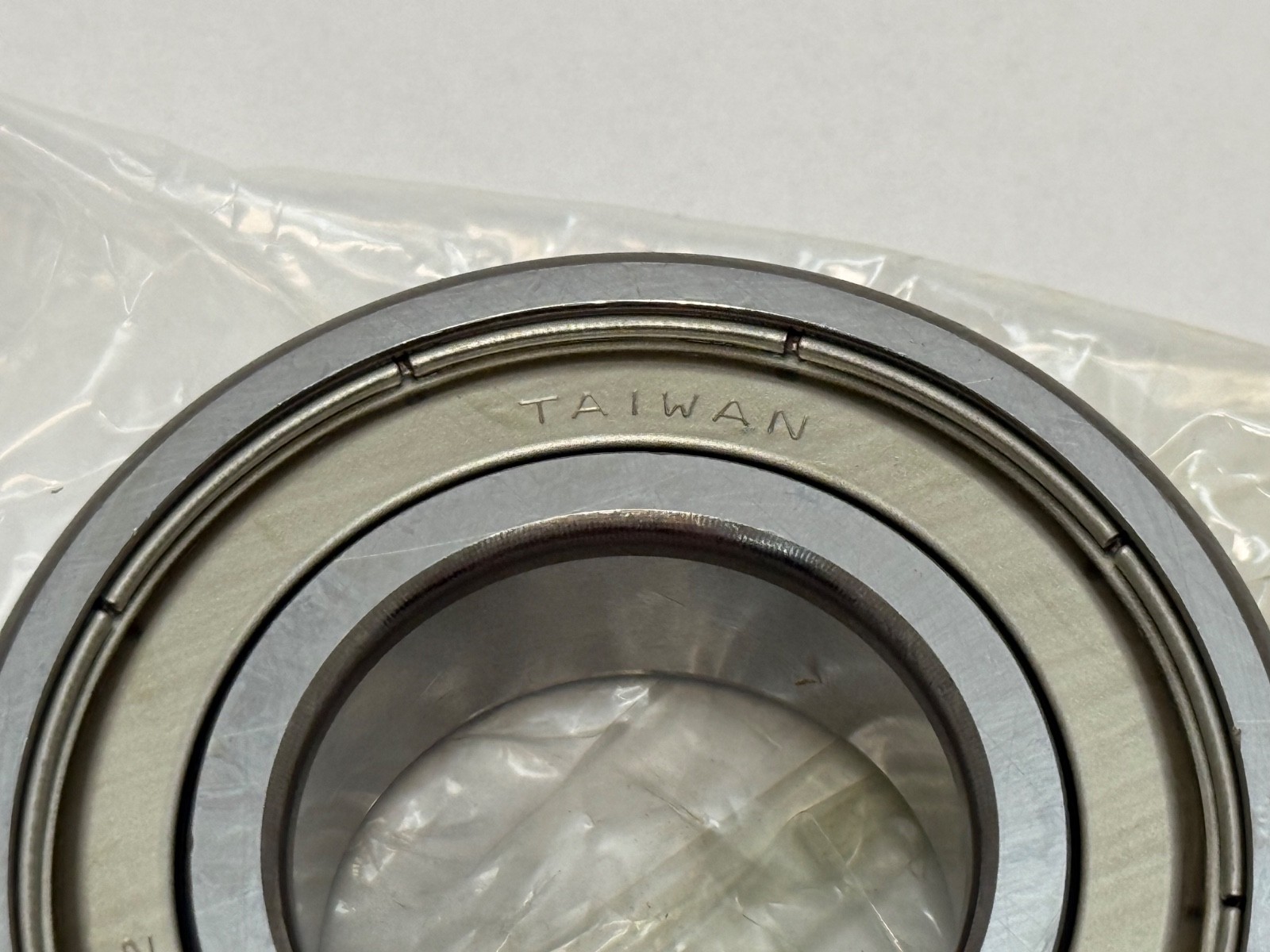

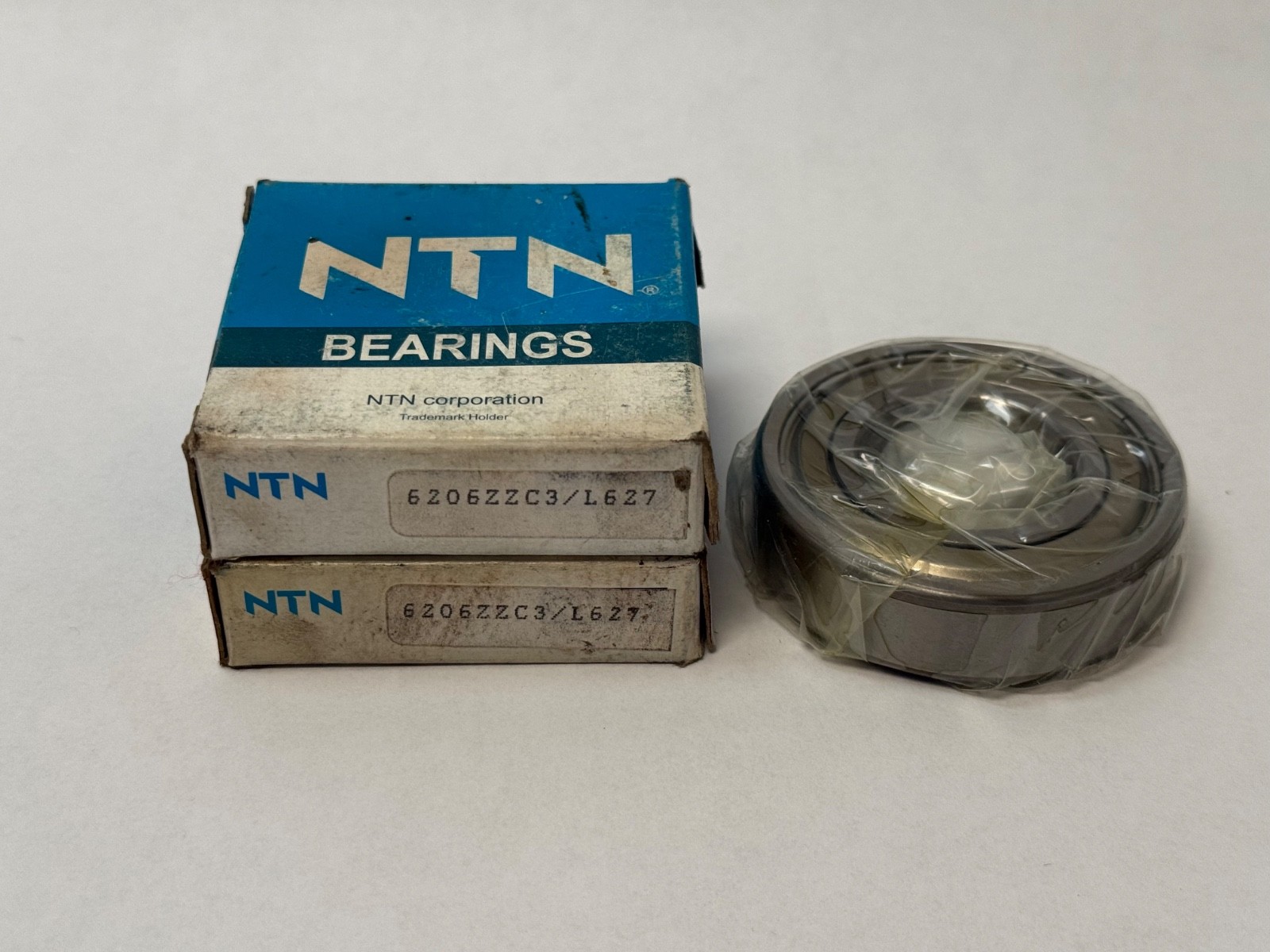

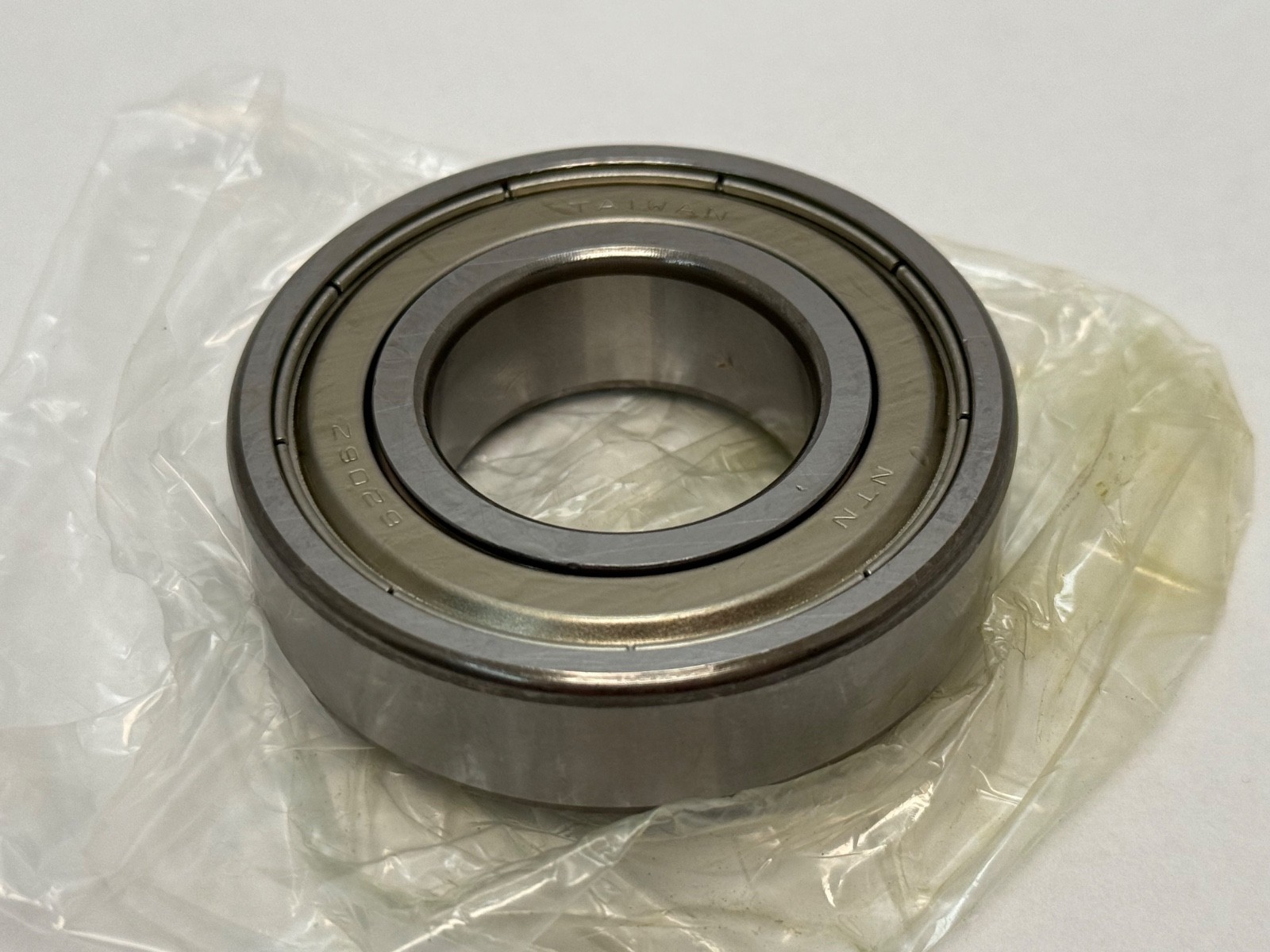

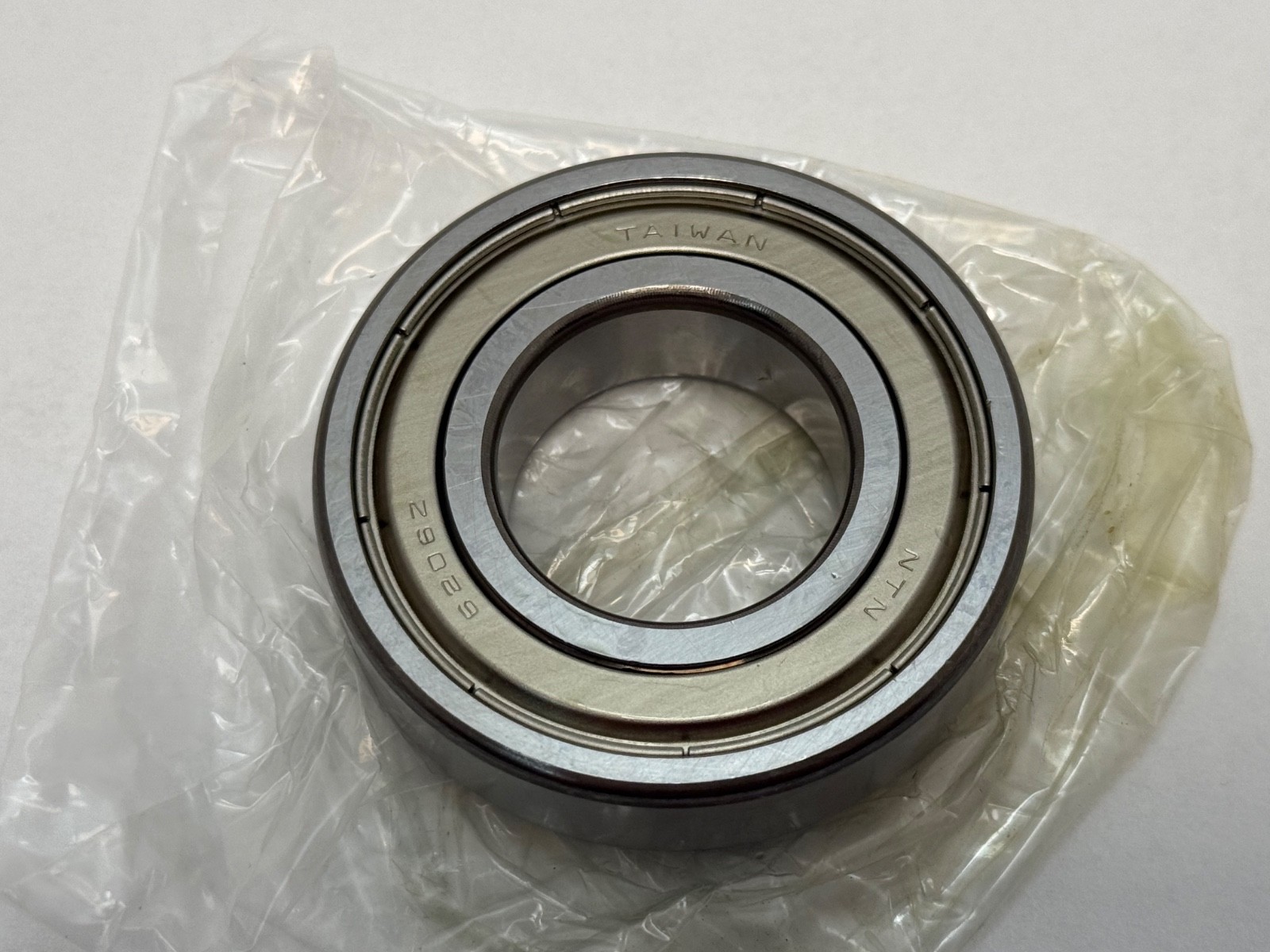

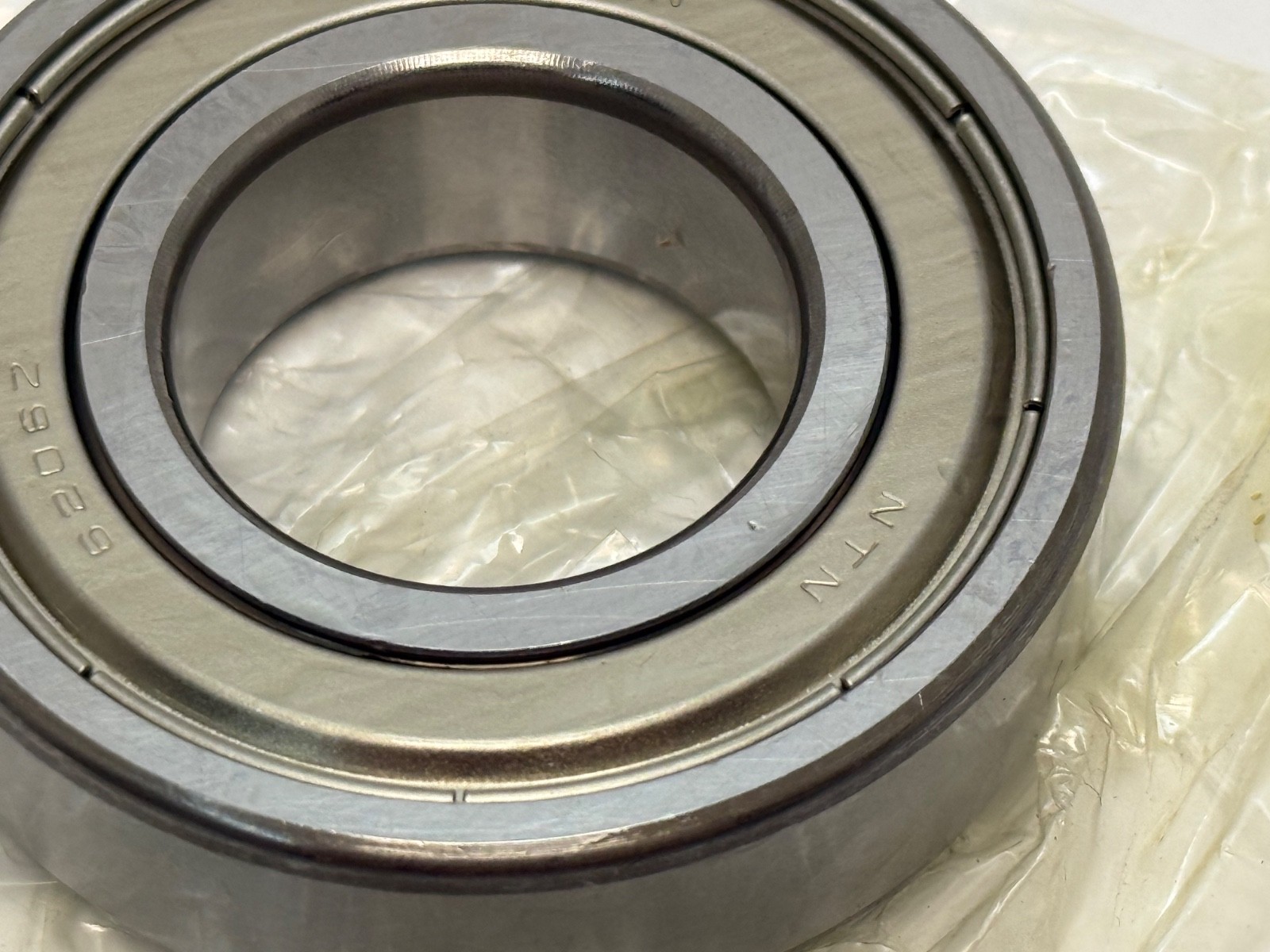

NTN 6206ZZC3 single-row deep groove ball bearing with steel shields on both sides. Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 16 mm. Seal Type: Shields both sides. Internal Clearance: C3. Precision Class: ABEC 1 / P0. Cage Material: Pressed steel. Rolling Elements: Ball.
6206 — single-row deep groove ball bearing, 02 dimension series, bore code 06: 30 x 62 x 16 mm.
ZZ — steel shields on both sides.
C3 — radial internal clearance greater than normal.
Dynamic Load Rating: 21,600 N. Static Load Rating: 11,300 N. Limiting Speed: 11,000 rpm grease. Item Weight: 0.197 kg (0.434 lb) each. Non-contact shields retain grease with no seal drag, so the bearing runs at higher speed than a contact-sealed version. C3 clearance takes up thermal expansion and tight fits in motors, pumps and gearboxes.
Fillet Radius r min: 1.0 mm. Shaft Abutment Diameter da min: 35 mm. Housing Abutment Diameter Da max: 57 mm. Max Abutment Fillet ras: 1.0 mm.
Unit Quantity: 2 Pcs. Two identical bearings per purchase.
Same 30 x 62 x 16 mm envelope, double shields and C3 clearance: SKF 6206-2Z/C3, FAG 6206-2Z-C3, NSK 6206ZZC3, Koyo 6206ZZC3.
