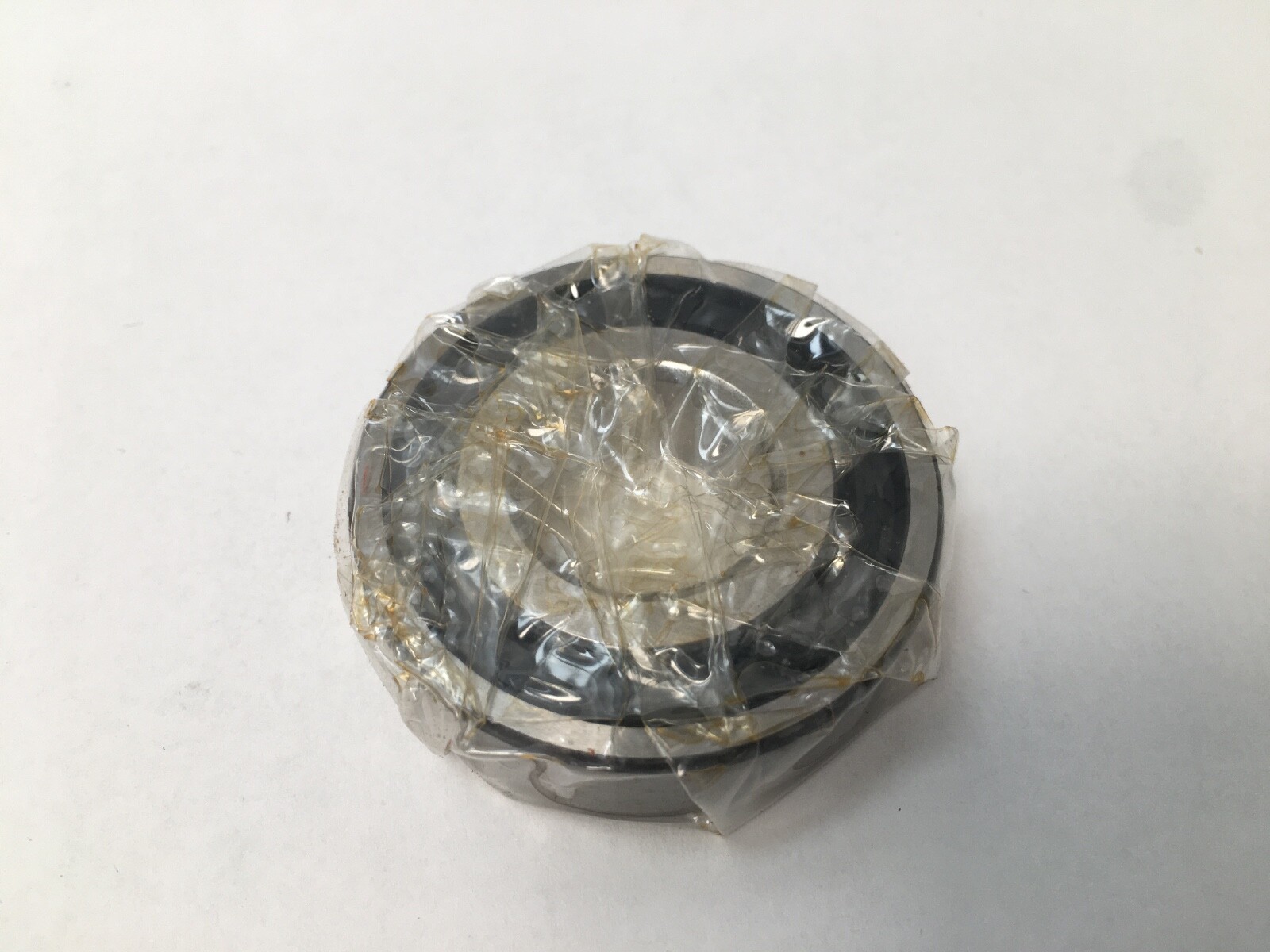

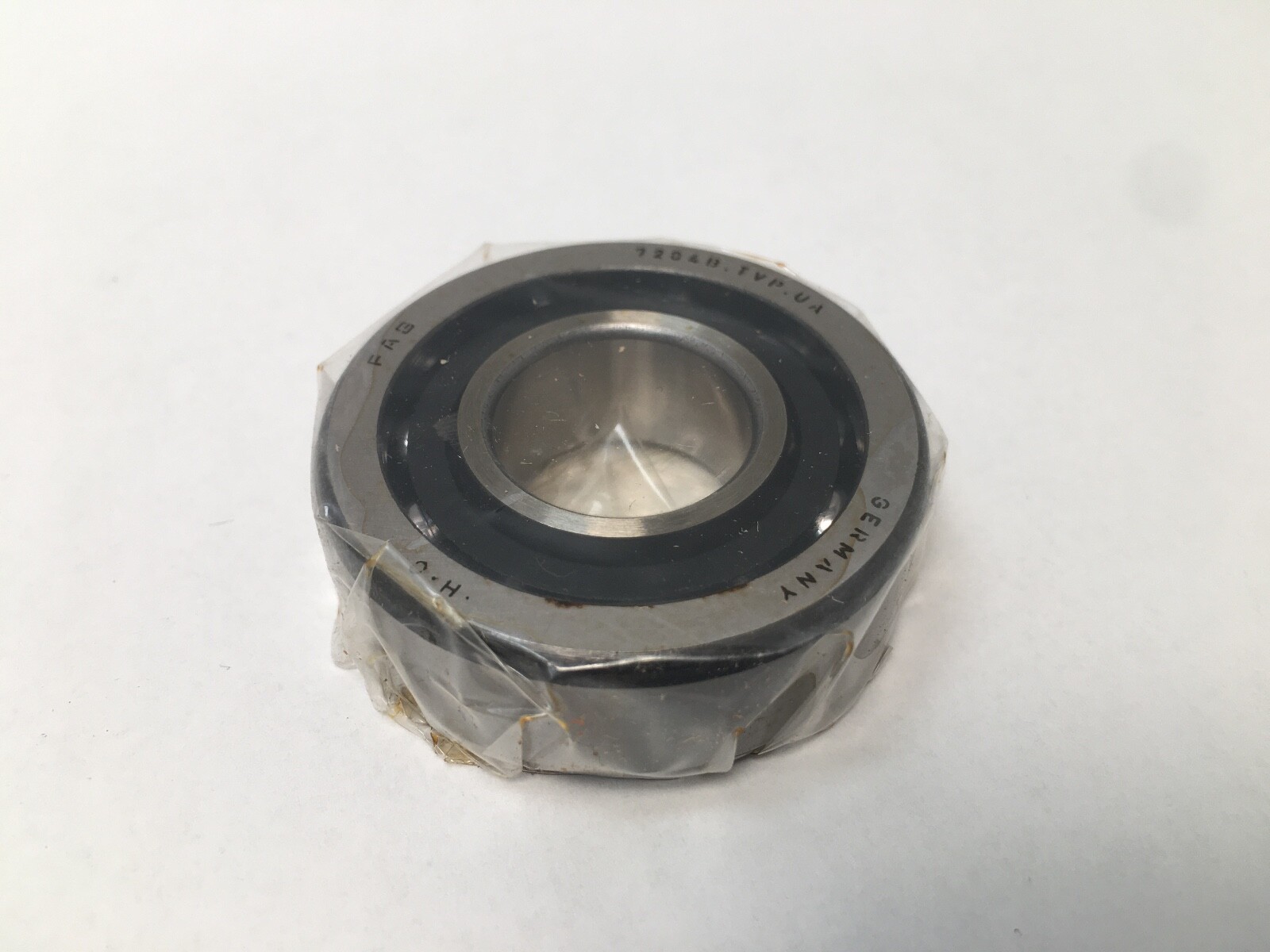

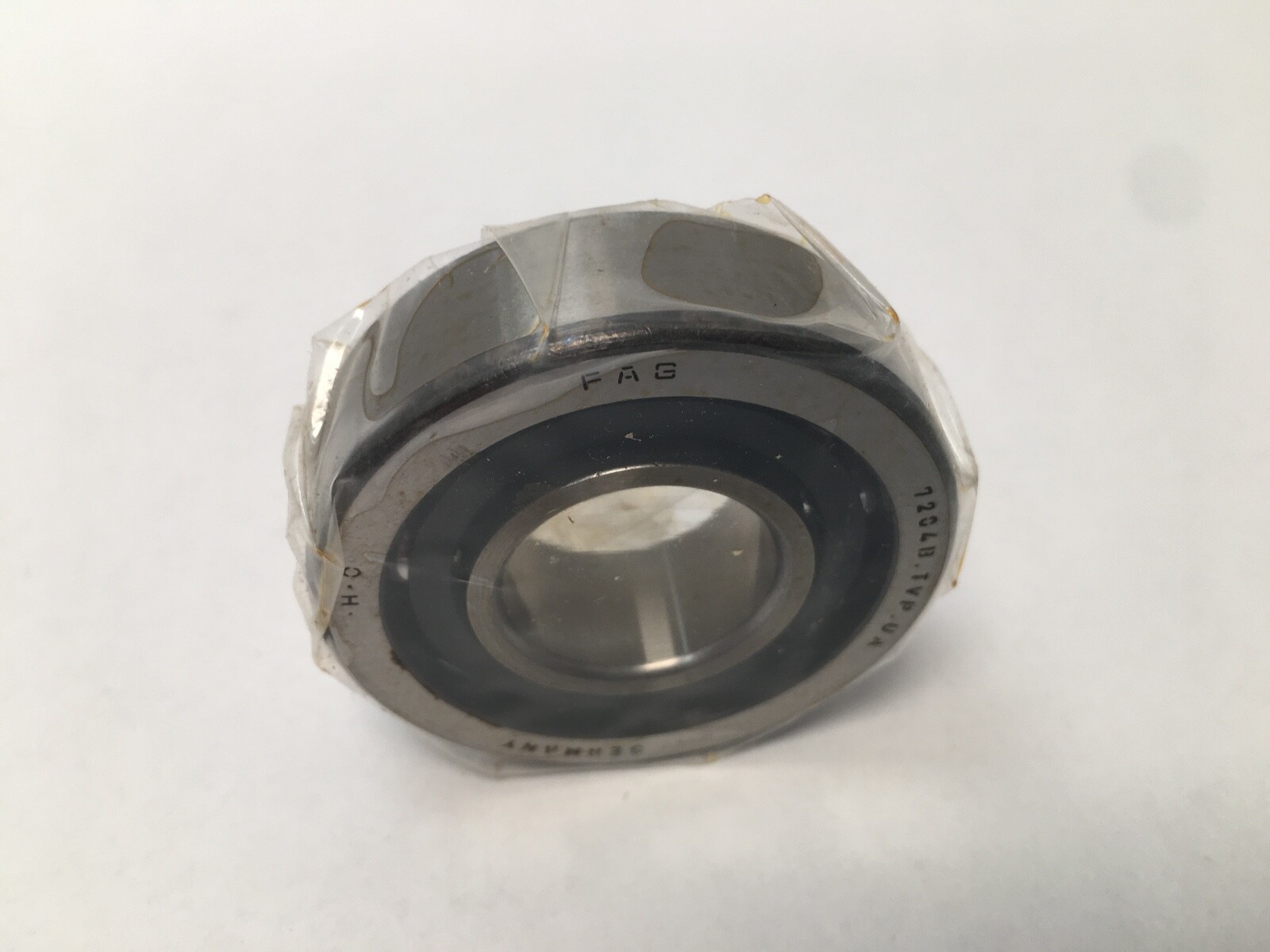

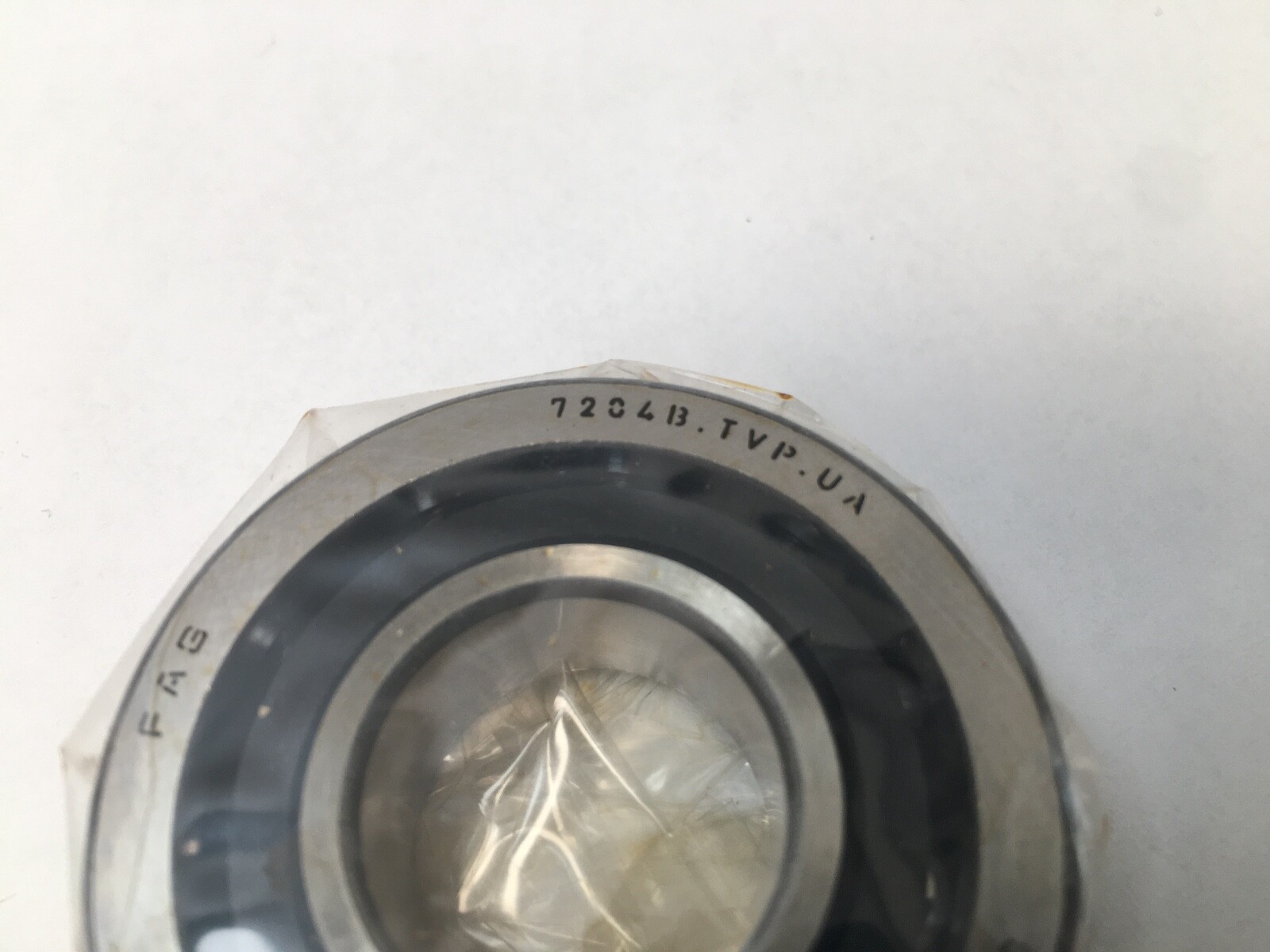

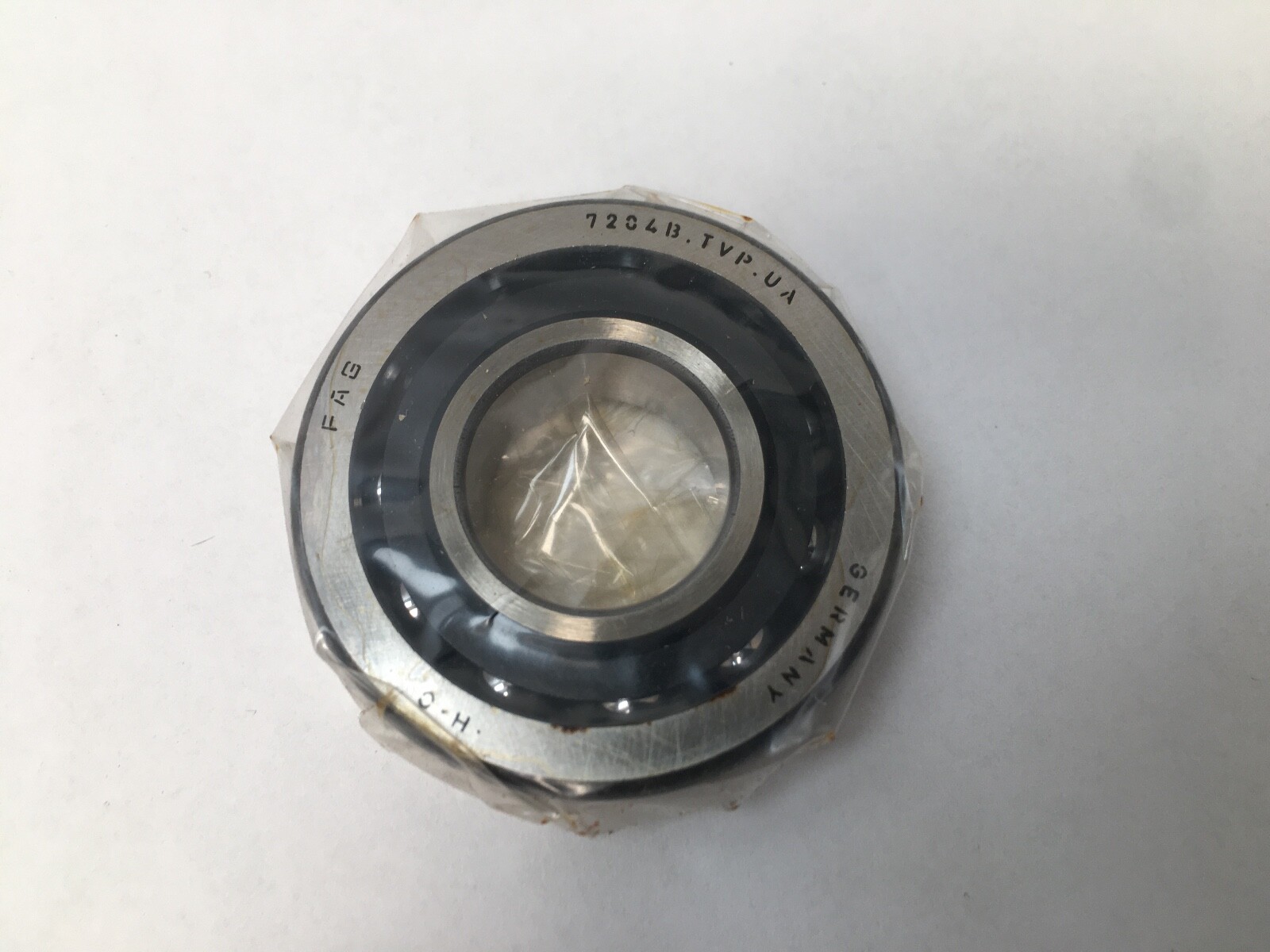

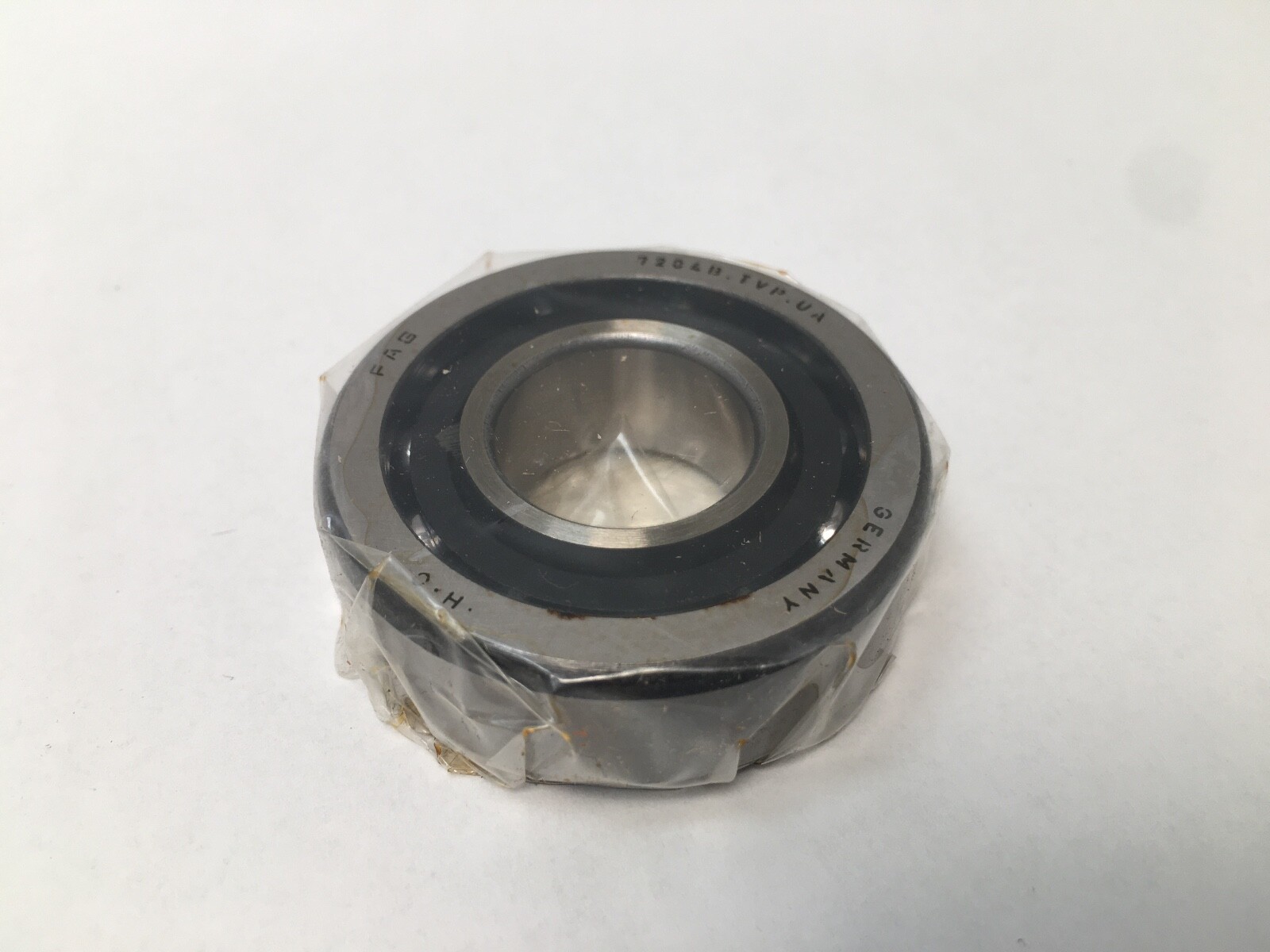

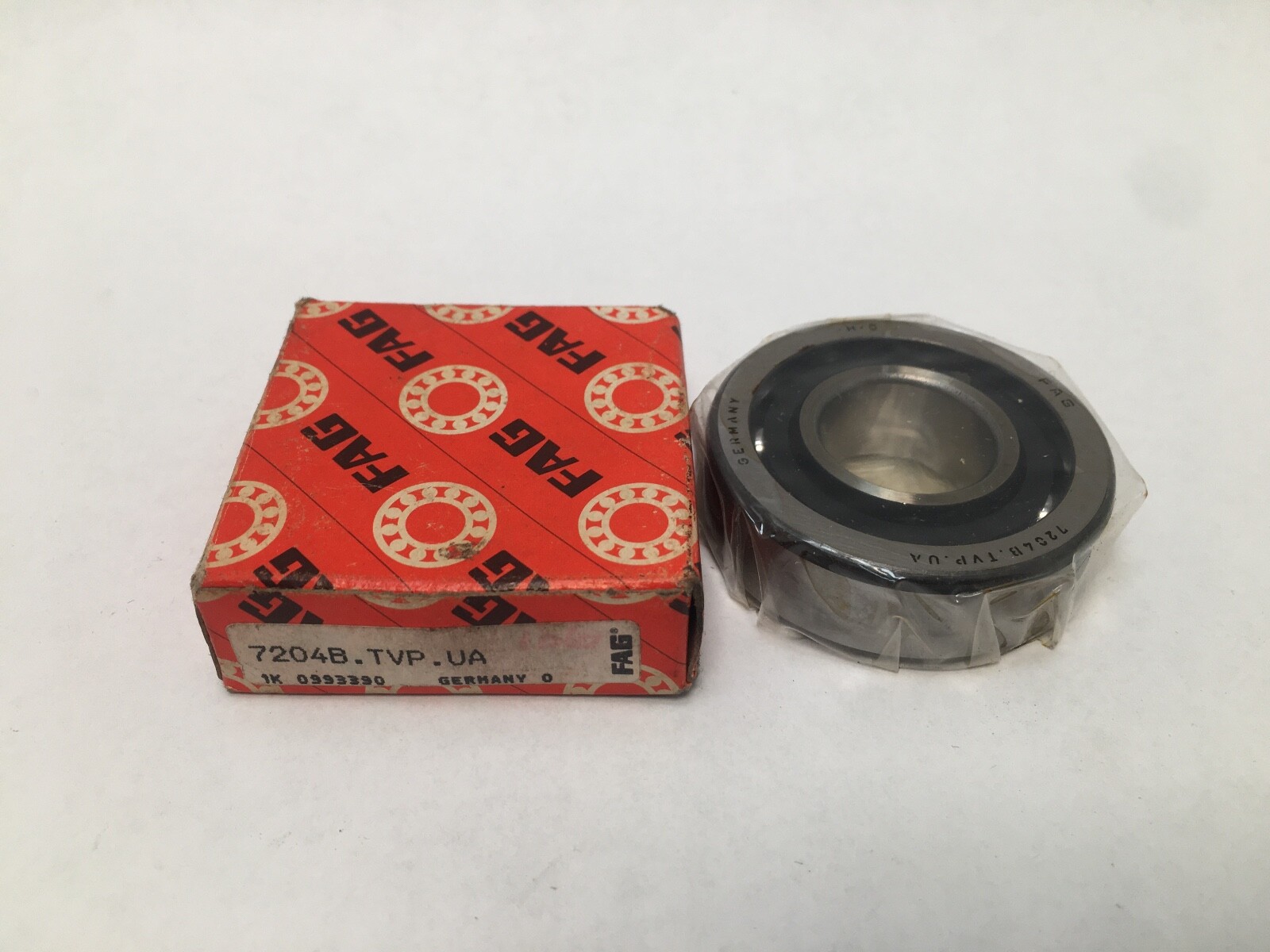

Single-row angular contact ball bearing, 20 x 47 x 14 mm, 40° contact angle, universal design, open, polyamide window cage. FAG 7204-B-TVP-UA.
List Price
$74.00
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 7204-B-TVP-UA |
| GTIN | 4012801262361 |
| Model | 7204 B TVP UA / 7204 B/BG/BEG/BECBY |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 47 mm |
| Width | 14 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7200 |
| Base Number | 7204 |
| Industry Terms | angular contact bearing; 40 degree angular contact; universal bearing; spindle bearing; matched pair bearing; thrust ball bearing; 20mm angular contact |
| Common Misspellings | 7204BTVPUA; 7204 B TVPUA; 7204-B-TVPUA; FAG 7204BTVP; 7204B TVP AU; angular contact ball baering |
| Application Types | Machine tool spindles; pumps; gearboxes; worm-gear drives; blowers; electric motors; vertical shafts carrying combined loads |
| Bore Shaft Size | 20 mm (0.7874 in) |
| Mpn Variants | 7204B.TVP.UA; 7204-B-TVP-UA; 7204BTVPUA; 7204 B TVP UA; 7204-B-XL-TVP-UA; 7204B.TVP.UA.L |
| Cage Type | Solid window cage |
| Dynamic Load Rating | 13,400 N |
| Static Load Rating | 7,650 N |
| Rolling Elements | Ball |
| Item Weight | 0.104 kg (0.23 lb) |
| Cage Material | Polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight cylindrical |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 40° |
| Part Number | 7204-B-TVP-UA |
| Limiting Speed | 18,000 rpm |
| Closure Type | Open |
| Cross Reference 1 | NTN 7204B - 40 deg, not universally matchable |
|---|---|
| Cross Reference 2 | FAG 7204-B-XL-TVP-UA - current X-life version |
FAG 7204-B-TVP-UA single-row angular contact ball bearing, 20 mm bore, 47 mm outside diameter, 14 mm wide, open on both faces, with a 40° contact angle and a solid window cage of glass-fibre reinforced polyamide. Universal design: any two bearings can be set against each other without a ground spacer. Unit Quantity: 1 Pc. Country of Origin: Germany. GTIN: 4012801262361.
72 — light dimension series, ISO dimension series 02.
04 — 20 mm bore.
B — 40° contact angle.
TVP — one-piece glass-fibre reinforced polyamide window cage.
UA — universal design, small axial internal clearance across a matched pair.
Bore Diameter: 20 mm. Outside Diameter: 47 mm. Overall Width: 14 mm. Contact Angle: 40°. Dynamic Load Rating: 13,400 N. Static Load Rating: 7,650 N. Fatigue Limit Load: 0.53 kN. Reference Speed: 18,000 rpm. Limiting Speed: 18,000 rpm. Item Weight: 0.104 kg. Cage Material: Polyamide. Closure Type: Open. Number Of Rows: 1. Rolling Elements: Ball. Unit Quantity: 1 Pc.
Bore Diameter: 20 mm (0.7874 in). Outside Diameter: 47 mm. Overall Width: 14 mm. Bore Type: Straight cylindrical. Pairs mounted back-to-back, face-to-face or in tandem need no spacer or shimming.
Cross-Reference 1: NTN 7204B — 40°, not universally matchable. Cross-Reference 2: FAG 7204-B-XL-TVP-UA — current X-life version. FAG 7204-B-TVP-UO has zero axial clearance across the pair. FAG 7204-B-TVP is the standard single, not universally ground.
Bore 20 mm, outside diameter 47 mm, width 14 mm.
Dynamic load rating 13,400 N and static load rating 7,650 N. Reference and limiting speed are 18,000 rpm.
UA is the universal design: bearings can be paired in any arrangement without a spacer, with a small axial internal clearance across the pair.
