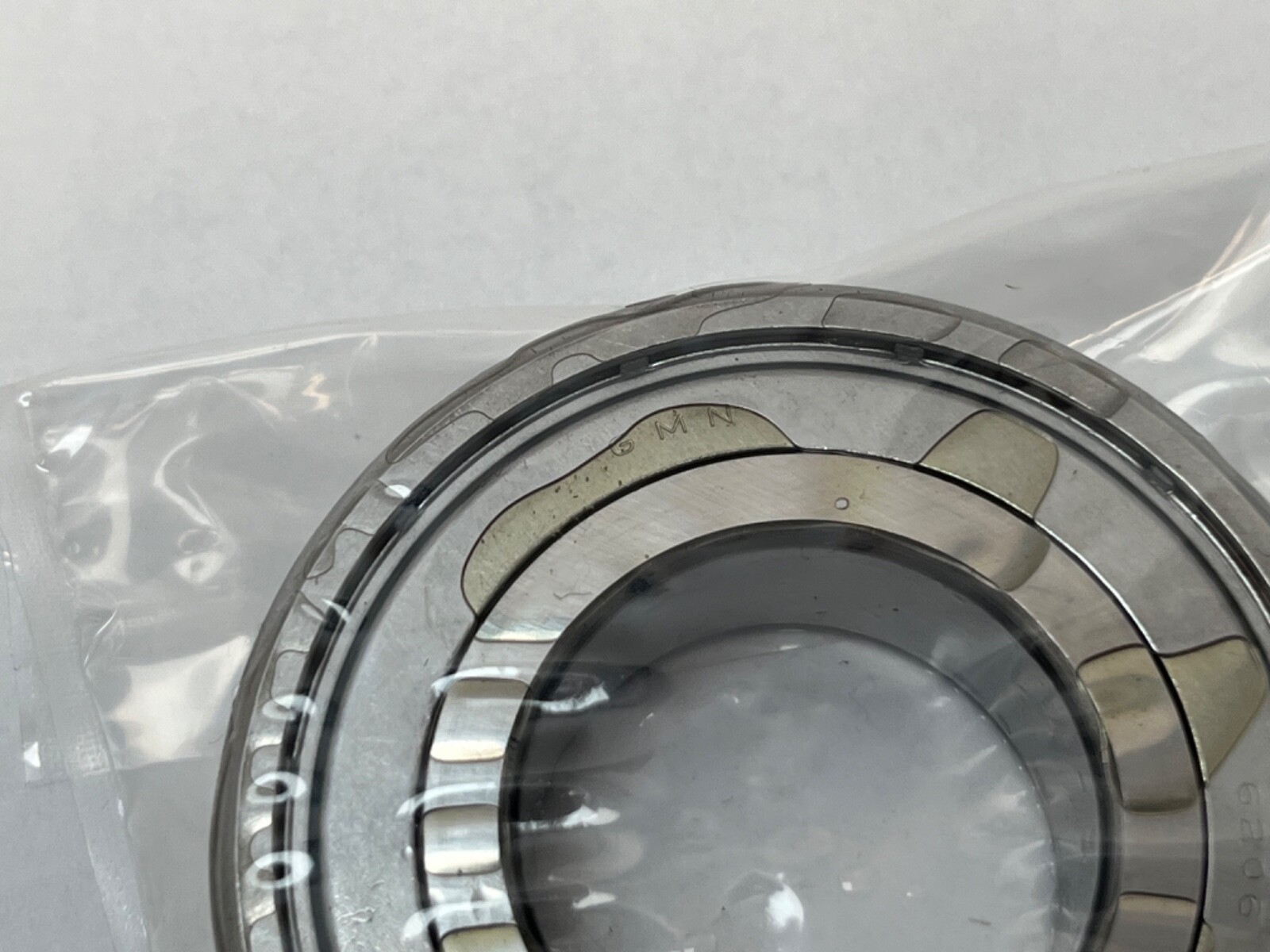

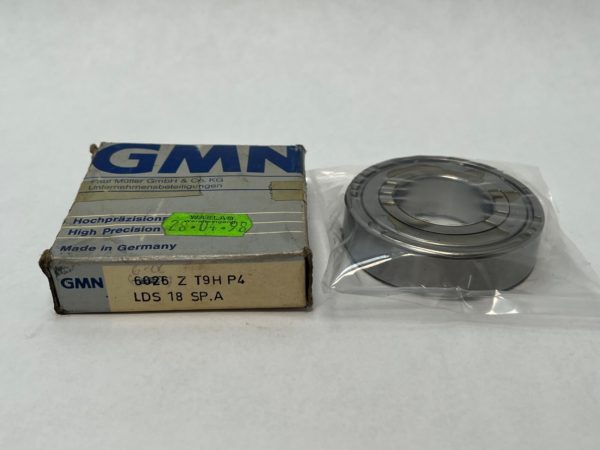

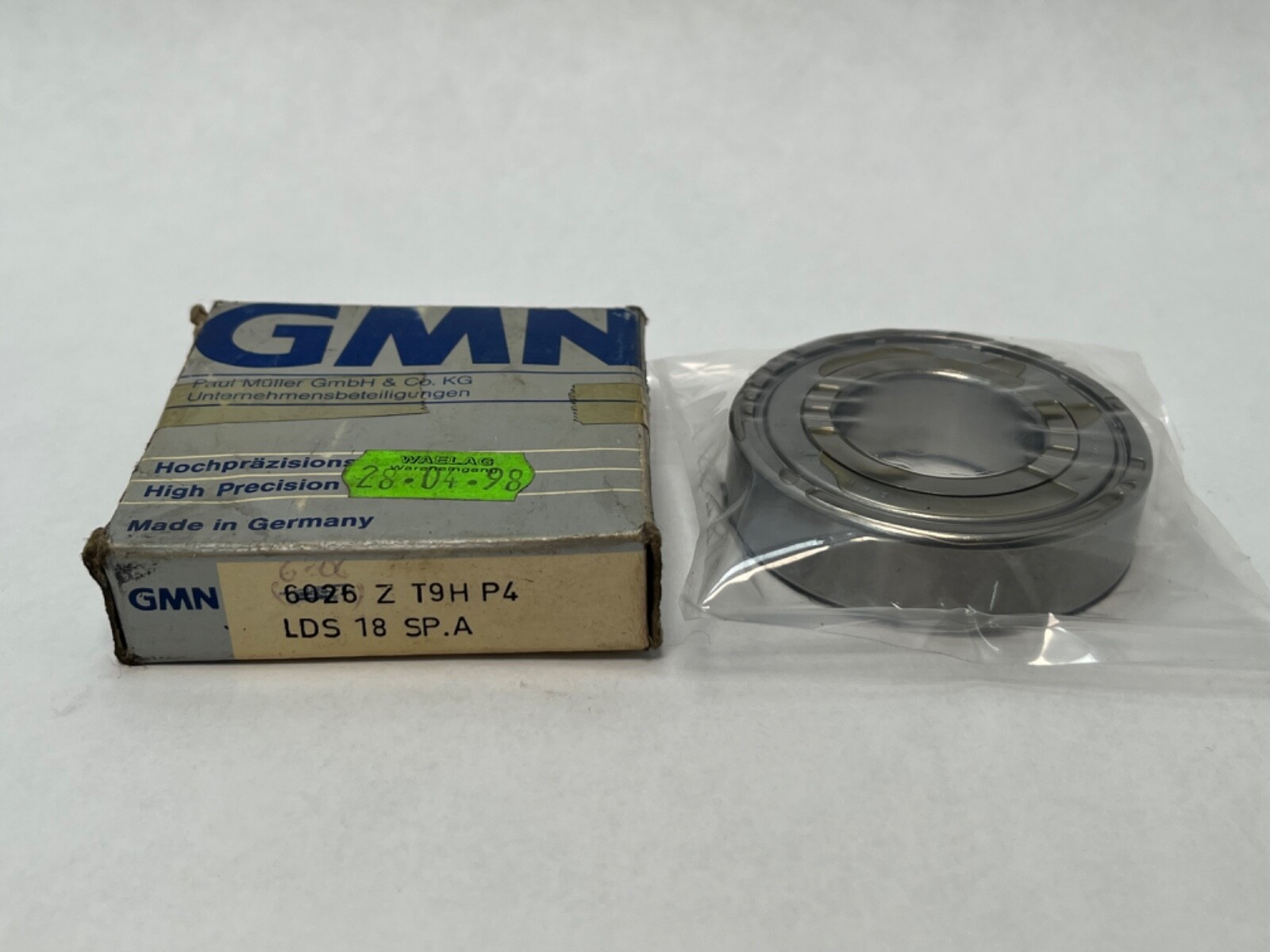

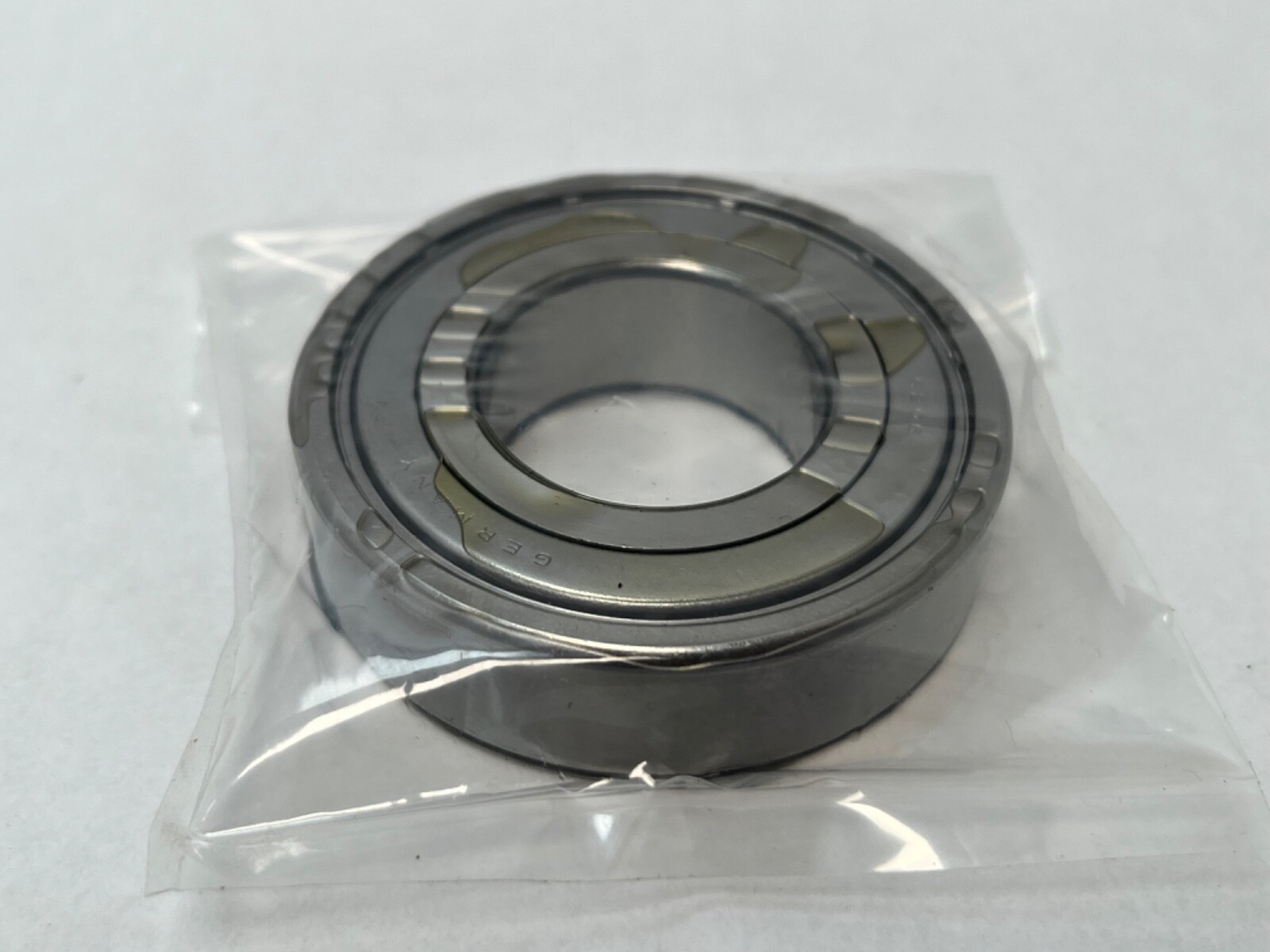

High precision deep groove ball bearing, 30 mm bore x 62 mm OD x 16 mm, one shield, polyamide T9H cage, P4 tolerance, CN clearance. GMN 6206 Z T9H P4.
List Price
$76.29
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | GMN |
|---|---|
| MPN | 6206 Z T9H P4 |
| Model | 6206ZT9HP4 |
| Bearing Type | Ball Bearing, Shield one side |
| ID | 30 mm |
| OD | 62 mm |
| Width | 16 mm |
| Material | Chrome Steel |
|---|---|
| Series | 62 |
| Cage Type | T9H, one-piece crown cage, ball-guided |
| Dynamic Load Rating | 20,000 N |
| Static Load Rating | 11,800 N |
| Precision Rating | P4 |
| Rolling Elements | Ball |
| Item Weight | 0.199 kg (0.44 lb) |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Internal Clearance | CN |
| Overall Width | 16 mm |
| Mpn Variants | 6206ZT9HP4, 6206 Z T9H P4, 6206-Z-T9H-P4 |
| Precision Class | P4 |
| Additional Attributes | Balls: 9 x 9.525 mm; cage rated 140 °C; snap-ring shield |
| Closure Type | Shield one side |
| Cross Reference 1 | Fafnir MM206K - closure and cage differ |
|---|---|
| Cross Reference 2 | NSK 6206 P4 - open, no shield |
GMN 6206 Z T9H P4 high precision deep groove ball bearing with one shield. Unit Quantity: 1 Pc.
6206 — deep groove ball bearing, dimension series 02, bore code 06: 30 x 62 x 16 mm.
Z — shield on one side, held by a snap ring; the opposite face is open.
T9H — one-piece crown cage of glass-fibre reinforced polyamide, ball-guided, rated to 140 °C.
P4 — tolerance class P4.
Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 16 mm. Cage Material: Glass-fibre reinforced polyamide. Cage Type: Crown cage, ball-guided. Precision Class: P4. Internal Clearance: CN. Closure Type: Shield one side. Rolling Elements: Ball, 9 x 9.525 mm. Number Of Rows: 1. Dynamic Load Rating: 20,000 N. Static Load Rating: 11,800 N. Item Weight: 0.199 kg (0.44 lb). Snap Ring: No.
Dimension series 02. Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 16 mm. Straight bore. The deep groove takes radial load and moderate axial load in both directions.
Fafnir MM206K — 30 x 62 x 16 mm precision deep groove; closure and cage differ. NSK 6206 P4 — open, no shield.
Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 16 mm.

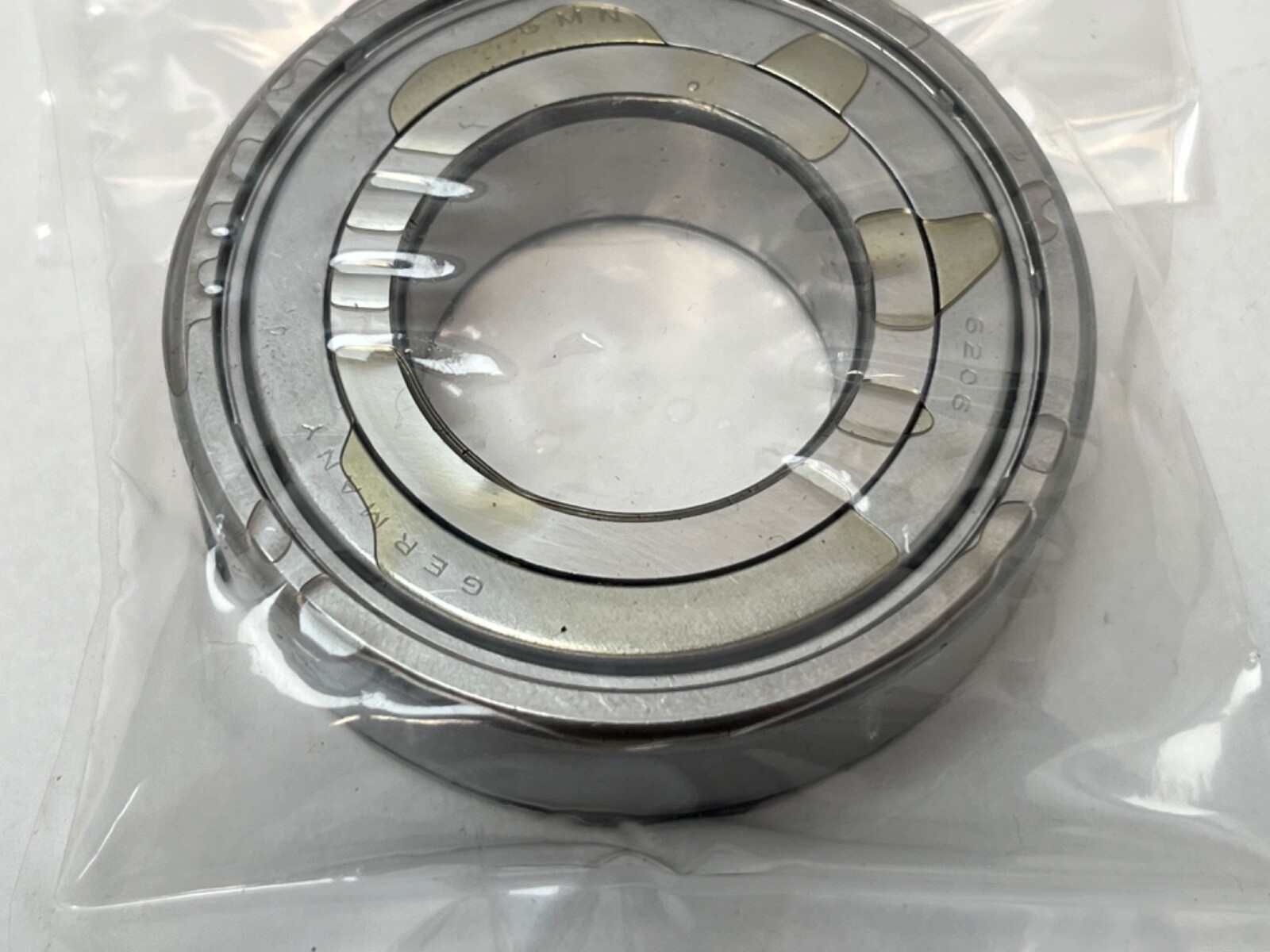

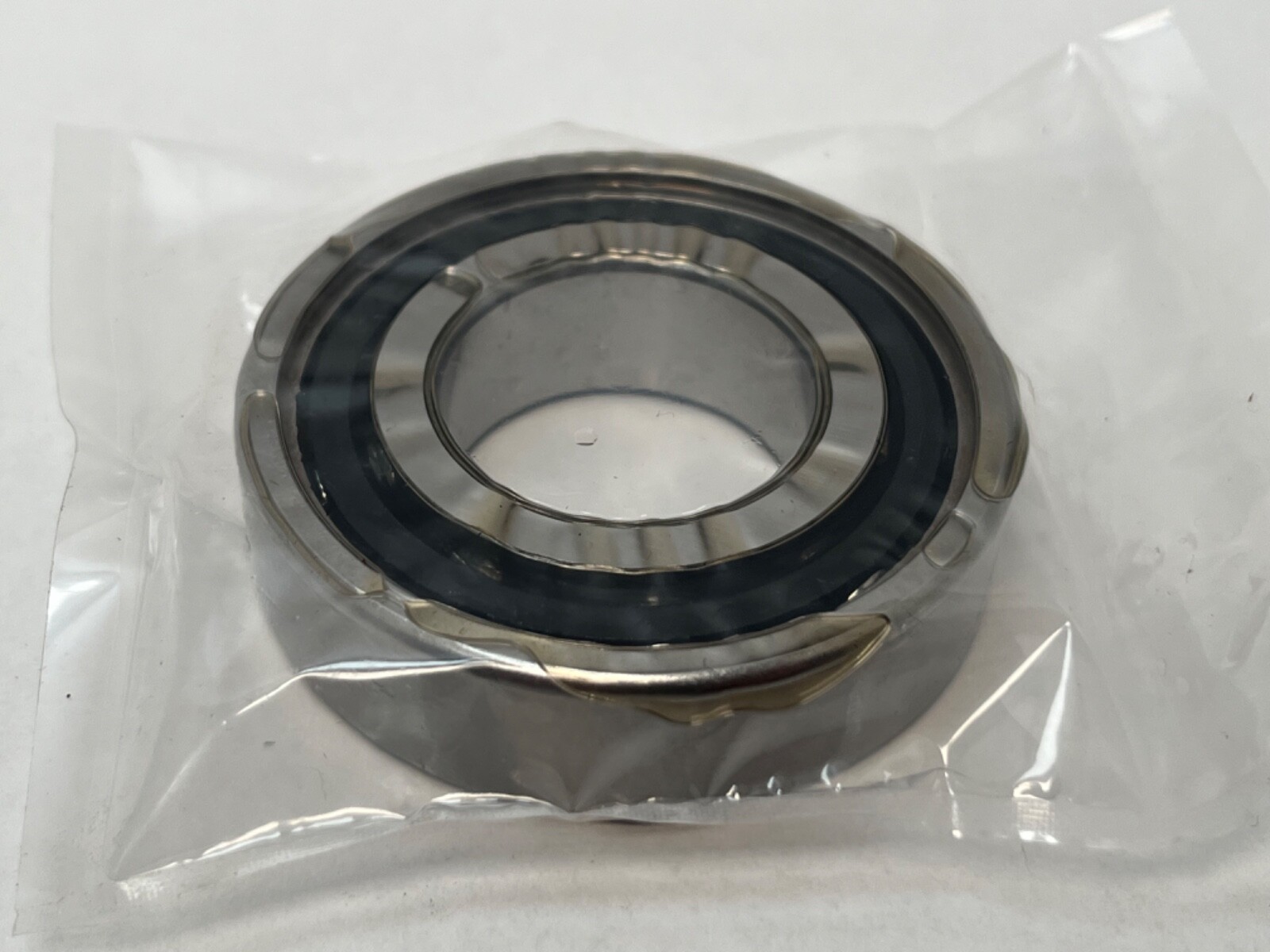

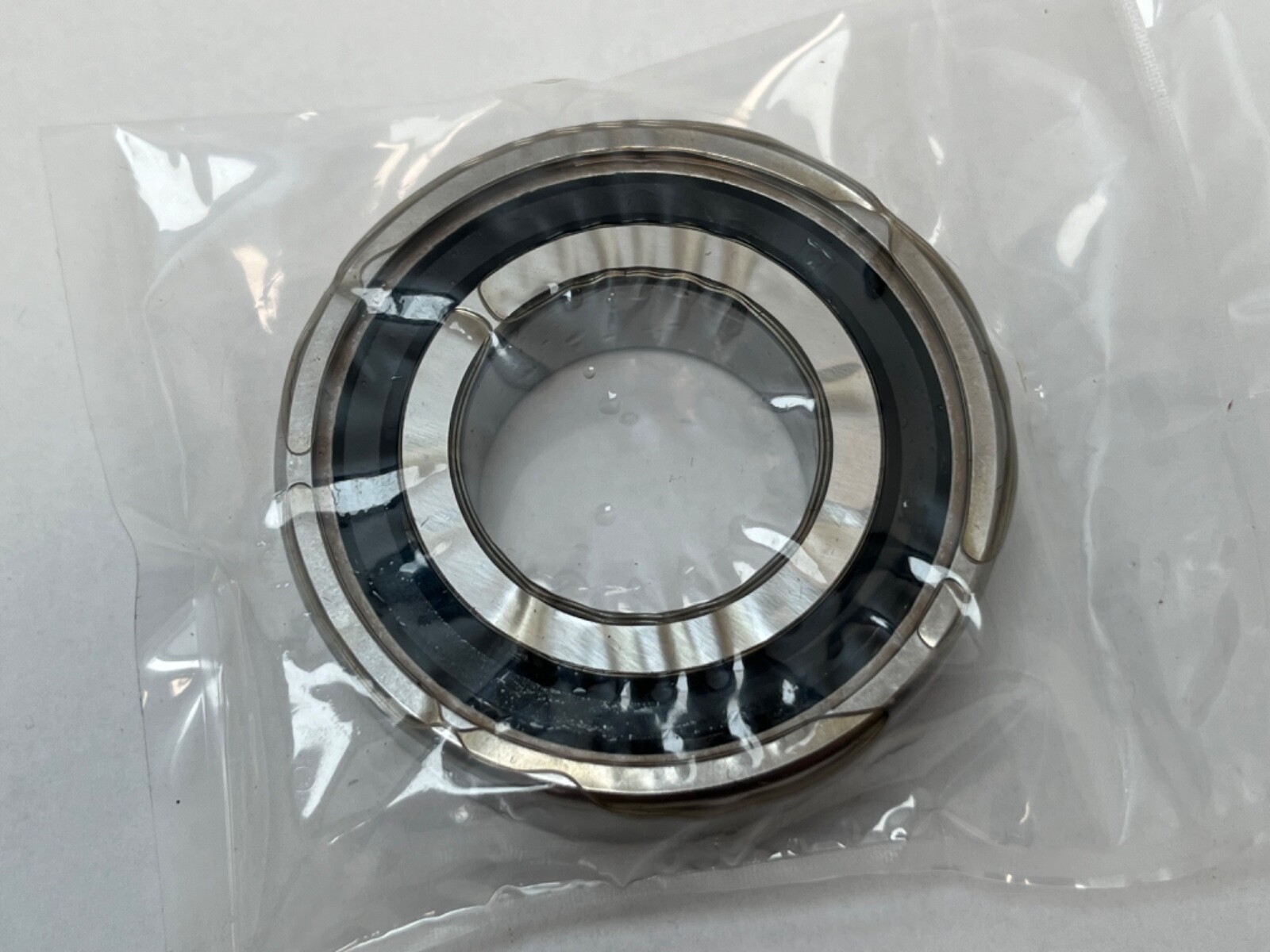

Z is a shield on one side, held by a snap ring; the opposite face is open.
The T9H cage is a one-piece crown cage of glass-fibre reinforced polyamide, ball-guided. Precision Class: P4.
