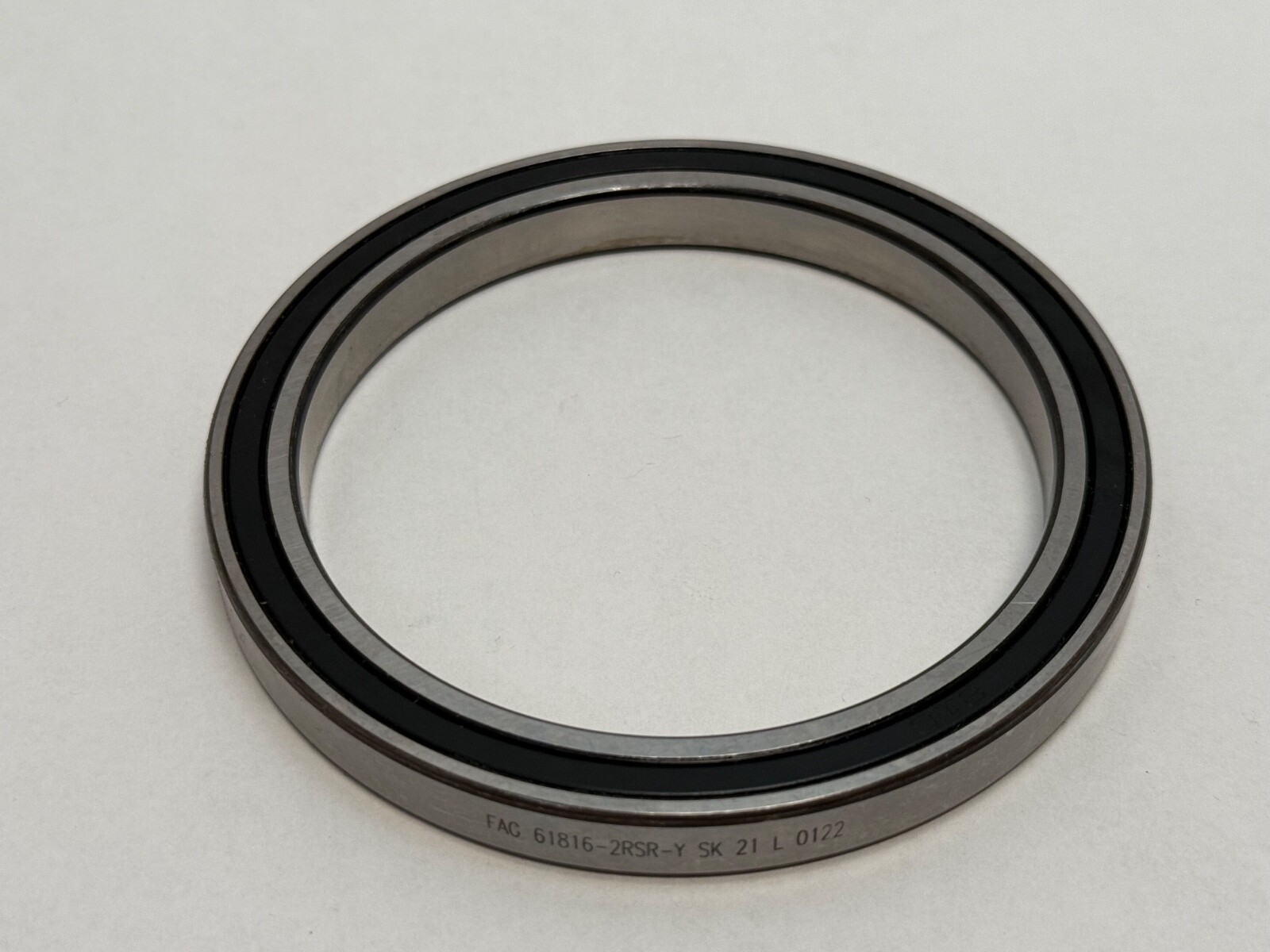

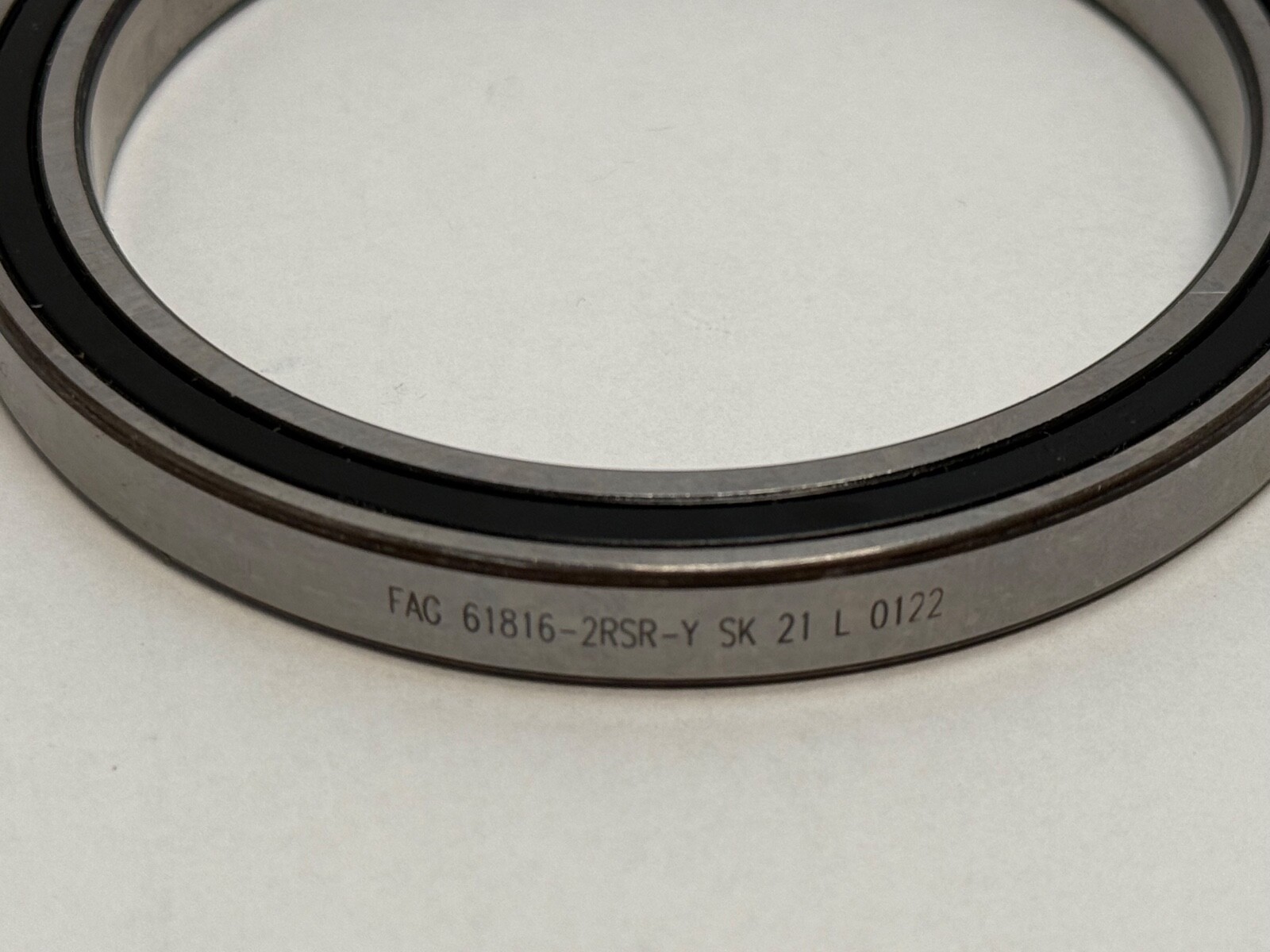

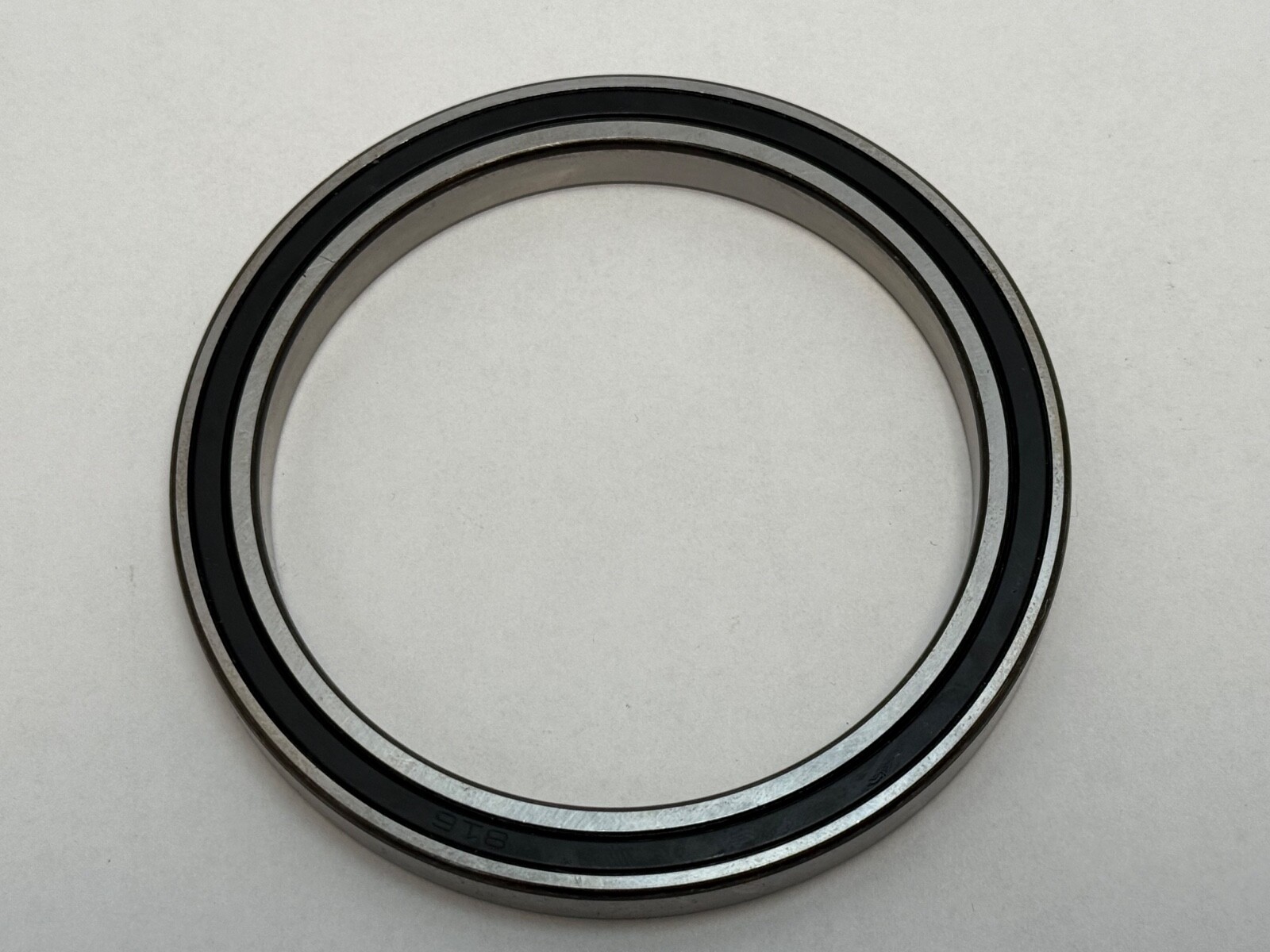

FAG61816-2RSR-YThin-Section Deep Groove Ball Bearing – 80 mm ID, 100 mm OD, 10 mm Width, Contact Seals Both Sides, Brass Cage

Product Description

What this part is

FAG 61816-2RSR-Y single-row deep groove ball bearing with lip seals on both faces. Bore Diameter: 80 mm. Outside Diameter: 100 mm. Overall Width: 10 mm. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Contact lip seals both sides. Dynamic Load Rating: 13,800 N. Static Load Rating: 13,800 N. Limiting Speed: 3,100 rpm. Cage Material: Pressed brass. Internal Clearance: CN. Precision Class: ABEC 1 / P0. Item Weight: 0.157 kg (0.35 lb). Bearing Material: Chrome steel. Lubricant: Grease. Series: 618. Base Number: 61816. Unit Quantity: 1 Pc.

Decoding the designation

618 — single-row deep groove ball bearing, ISO dimension series 18. The thinnest standard radial section, chosen where the housing bore is fixed and the shaft has to be as large as possible.

16 — bore code. Bore Diameter: 80 mm.

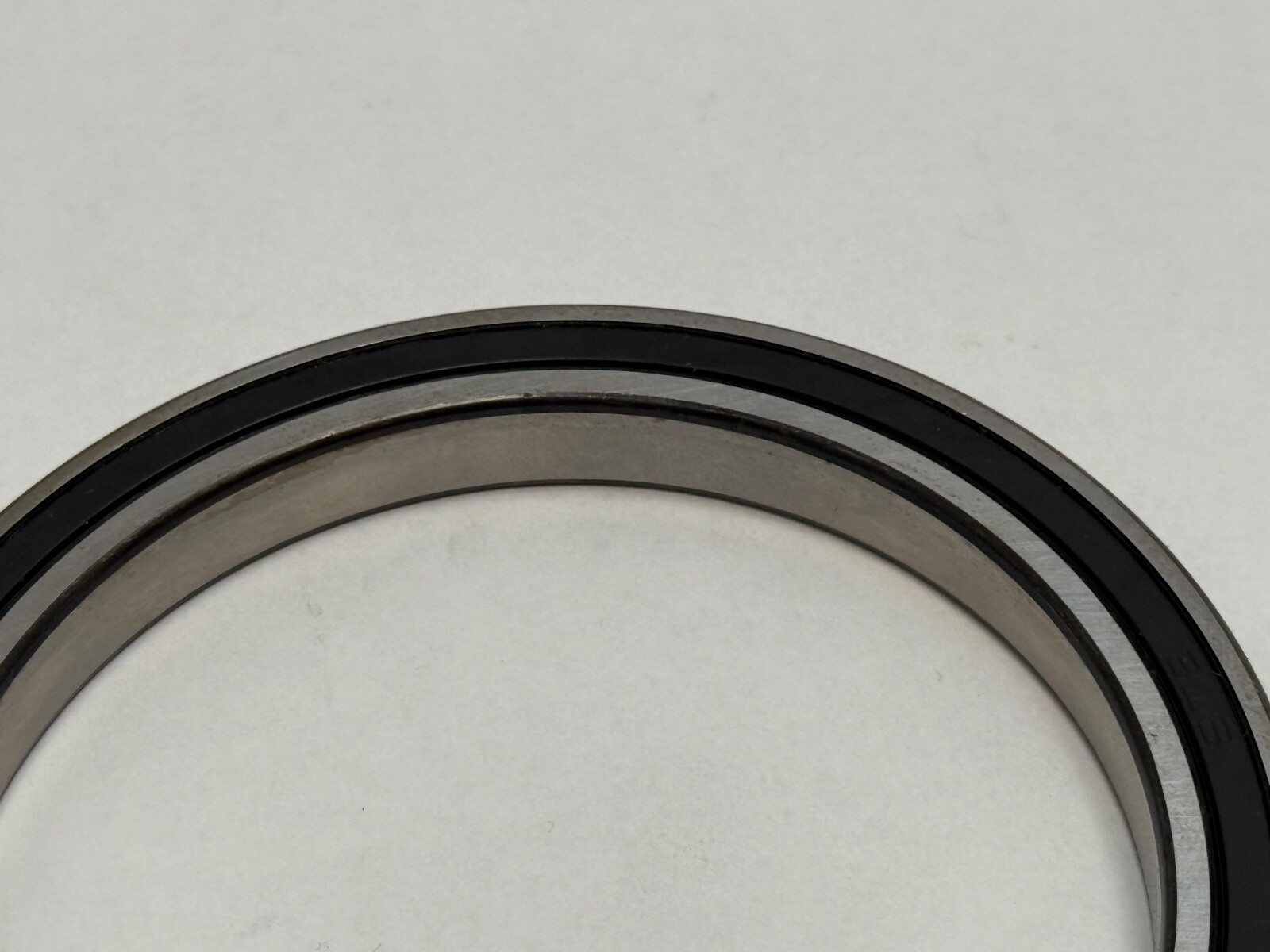

2RSR — contact lip seals on both faces, running on the inner ring. The bearing is grease filled for life.

Y — sheet brass cage.

Searchable forms of the designation: 61816-2RSR-Y, 618162RSRY, 61816-2RSR, 61816 2RSR Y, 6816-2RS, 6816.

What these specs mean in practice

Dynamic Load Rating: 13,800 N. Static Load Rating: 13,800 N. Fatigue load limit: 930 N. A 10 mm radial section limits how large the balls can be, so this series trades load capacity for a compact cross-section and a large bore.

Limiting Speed: 3,100 rpm. Contact lip seals hold grease in and contamination out, which is what sets the speed ceiling on a sealed bearing.

Closure Type: Contact lip seals both sides. The bearing arrives grease filled and runs for life with no relubrication path.

Operating temperature range published by Schaeffler: −20 °C to +100 °C. Calculation factor f0: 16.

A deep groove ball bearing carries radial load and axial load in both directions, and has no contact angle.

Mounting data

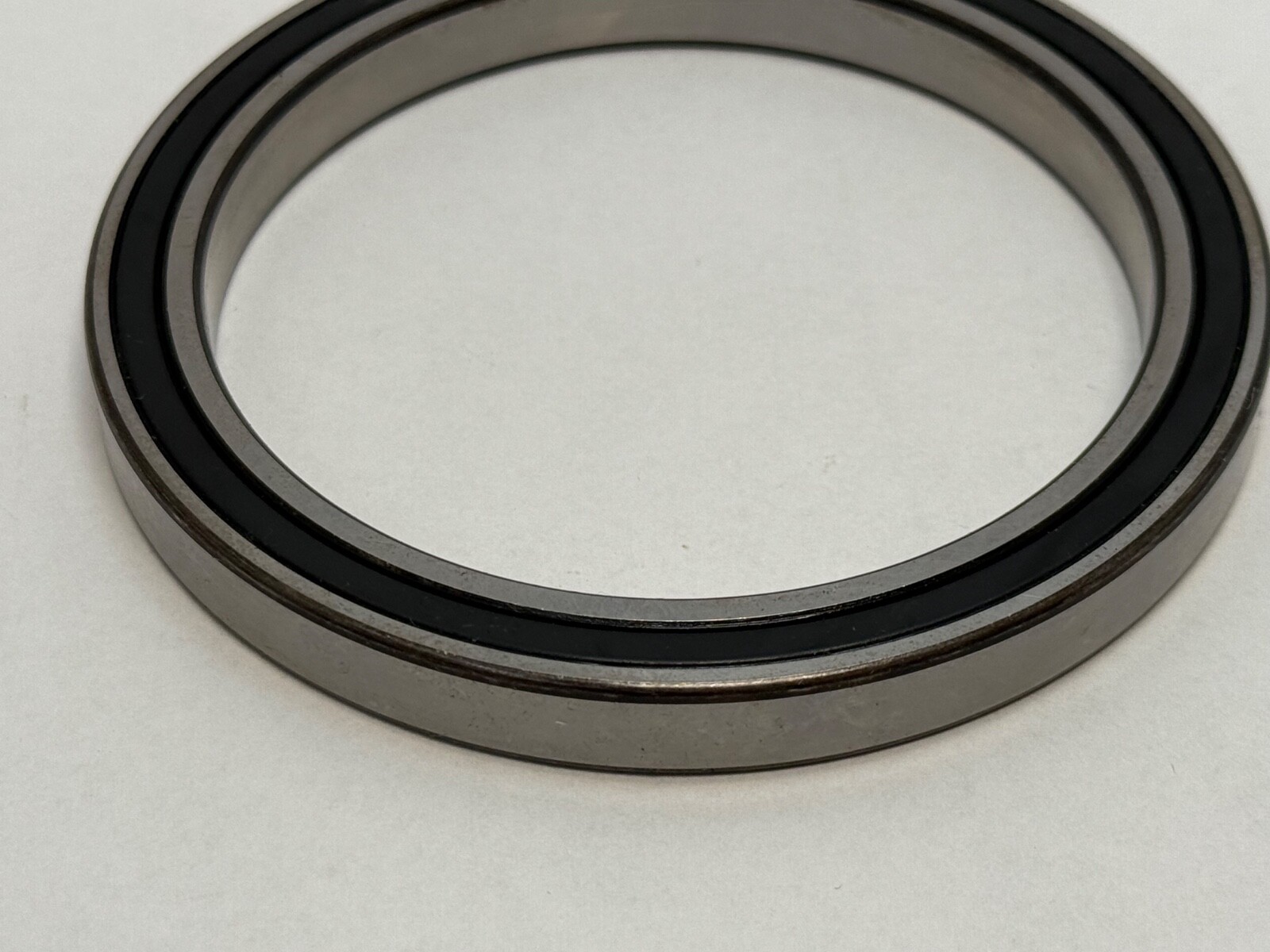

Bore Diameter: 80 mm, straight. Outside Diameter: 100 mm. Overall Width: 10 mm. Shaft shoulder diameter da 83.2 mm minimum. Housing shoulder diameter Da 96.8 mm maximum. Maximum fillet radius ra 0.6 mm. Minimum chamfer dimension r 0.6 mm. Inner ring shoulder diameter d1 86.6 mm. Outer ring shoulder diameter D1 93.57 mm, caliber diameter D2 95.5 mm.

Quantity and configuration

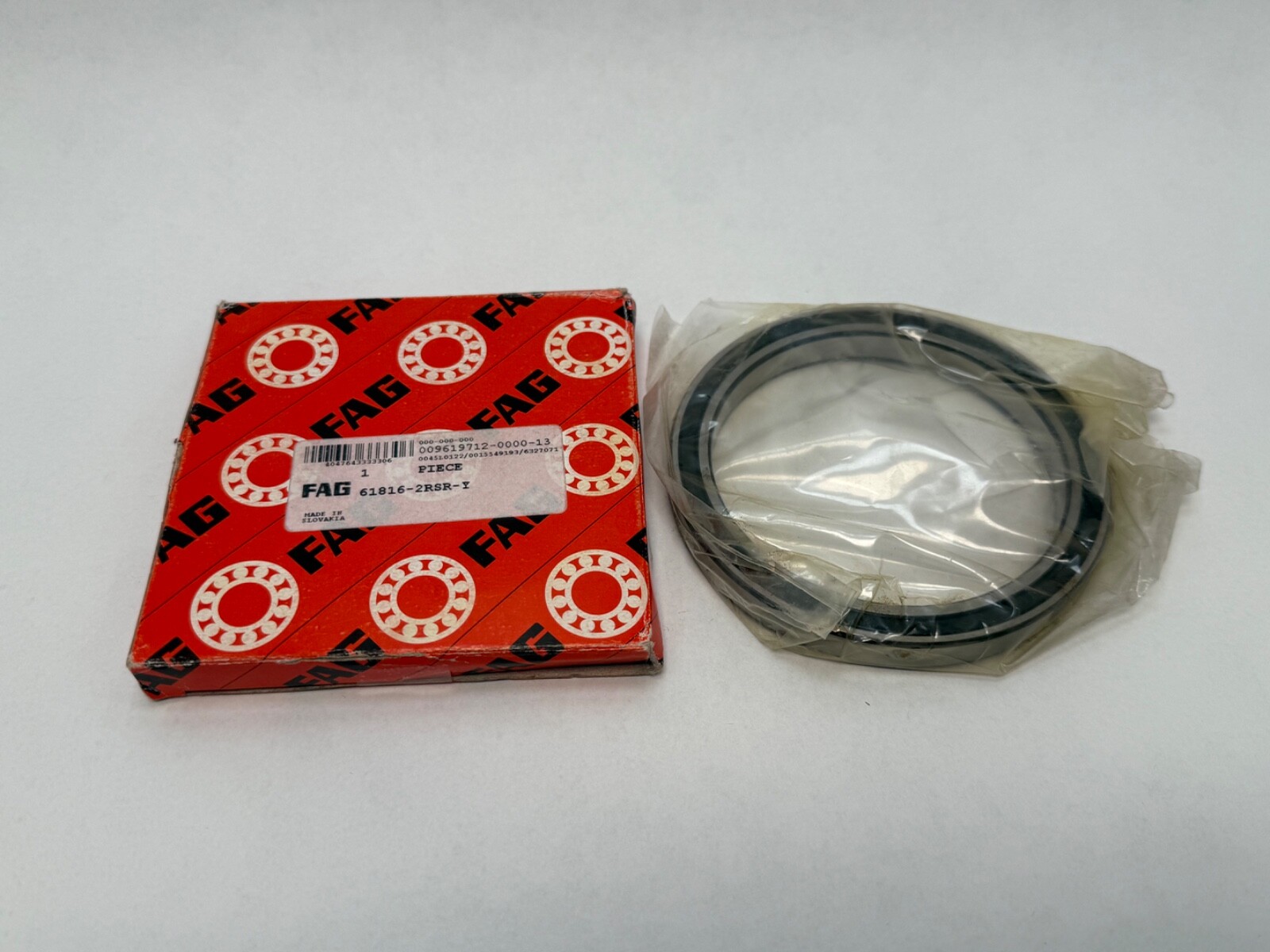

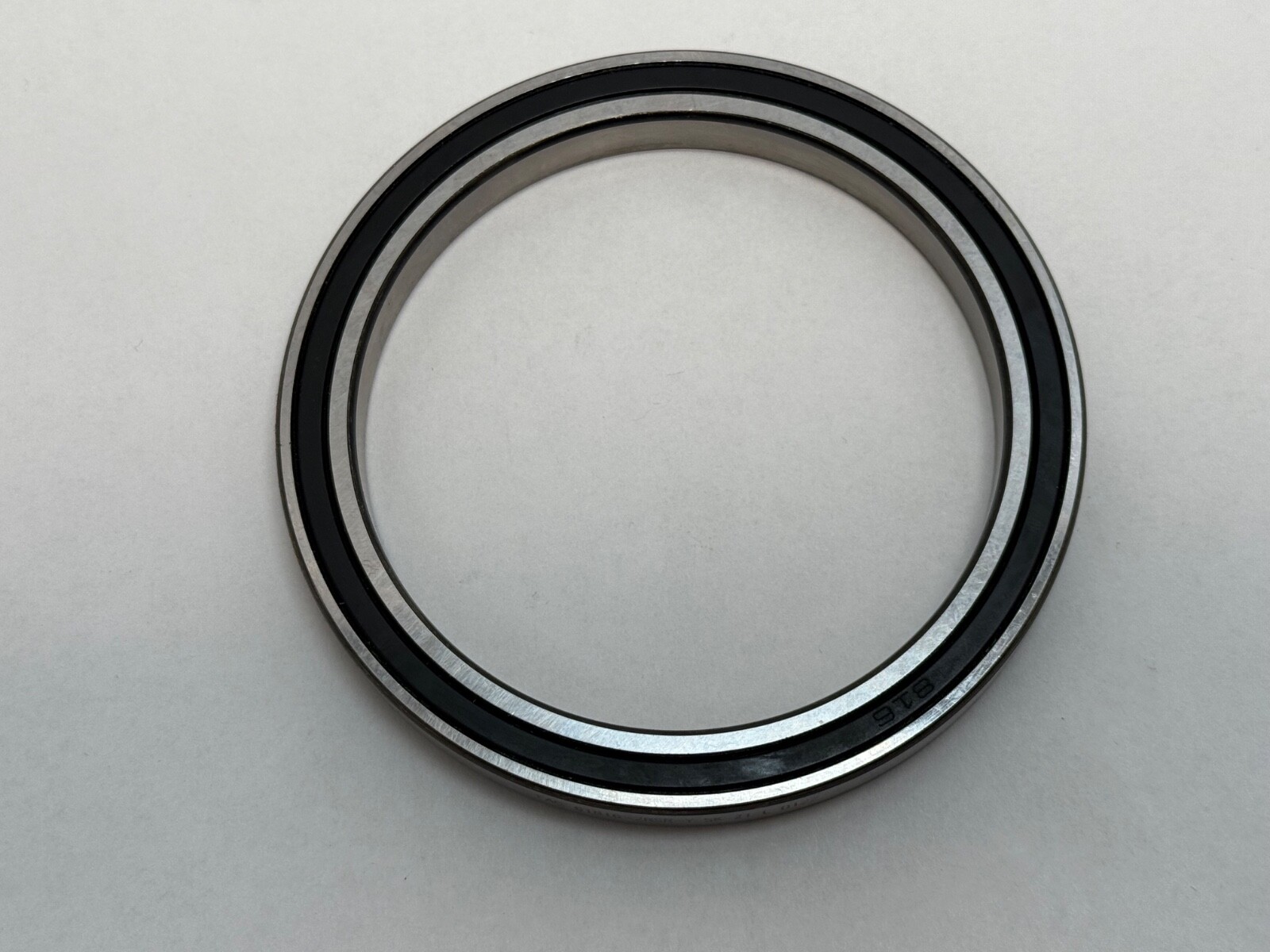

Unit Quantity: 1 Pc. One complete bearing, sealed on both faces.

Interchange guidance

Cross-Reference 1: FAG 61816-2RSR. Cross-Reference 2: SKF 61816-2RS1. Cross-Reference 3: NSK 6816DDU. Cross-Reference 4: NTN 6816LLU. Cross-Reference 5: Timken 61816-2RS. Cross-Reference 6: RHP 61816-2RS. Cross-Reference 7: Koyo 6816-2RS. Cross-Reference 8: Nachi 6816-2RS. Cross-Reference 9: SNR 61816EE.

All nine share the 80 x 100 x 10 mm envelope of ISO series 618 and carry contact seals on both faces, so they are direct substitutions.
