Link-Belt UG212HL 200 series ball bearing insert, 3/4 in bore, set screw locking, 1.8504 in OD, steel clearance seal, 2,870 lbf dynamic rating, 10,000 rpm.
List Price
$41.45
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Link Belt |
|---|---|
| MPN | UG212HL |
| GTIN | 662327149239 |
| Model | UG-212HL |
| ID | 3/4 in |
| OD | 1.8504 in |
| Width | 0.5906 in (outer ring) |
| Type | Ball Bearing Insert |
|---|---|
| Additional Attributes | Size code 204; Set screw thread #1/4-28; Set screw torque 85 in-lb; Bore length 1-9/32 in; Inner ring hub diameter 1.121 in; Short hub length 0.5313 in; Long hub face to set screw centerline 0.19 in; Bearing centerline to lube hole centerline 0.176 in; Service instructions BR3-007; Vibration frequencies (per rpm): FTF 0.0063, BPFI 0.0825, BPFO 0.0508, BSF 0.0332 |
| Dynamic Load Rating | 2,870 lbf |
| Static Load Rating | 1,480 lbf |
| Max Temp | 107 °C (225 °F) |
| Item Weight | 0.45 lb |
| Cage Material | Nylon |
| Limiting Speed | 10,000 rpm grease |
| Internal Clearance | C3 |
| Industry Terms | bearing insert, insert bearing, set screw insert, replacement insert, UC204-12 size |
| Common Misspellings | Linkbelt UG212HL, Link Belt UG 212 HL, UG212H |
| Bearing Insert Type | Ball |
| Mpn Variants | UG212HL, UG-212-HL, UG-212HL, UG212 HL |
| Compatible With Replaces | Link-Belt 200 series 204 size housings, 3/4 in shaft |
| Series | Link-Belt 200 Series Ball |
| Lubricant | Exxon Ronex MP grease |
| Locking Device | Set Screw |
| Application Types | Pillow blocks; flange units; conveyors; agricultural machinery; general industrial machinery |

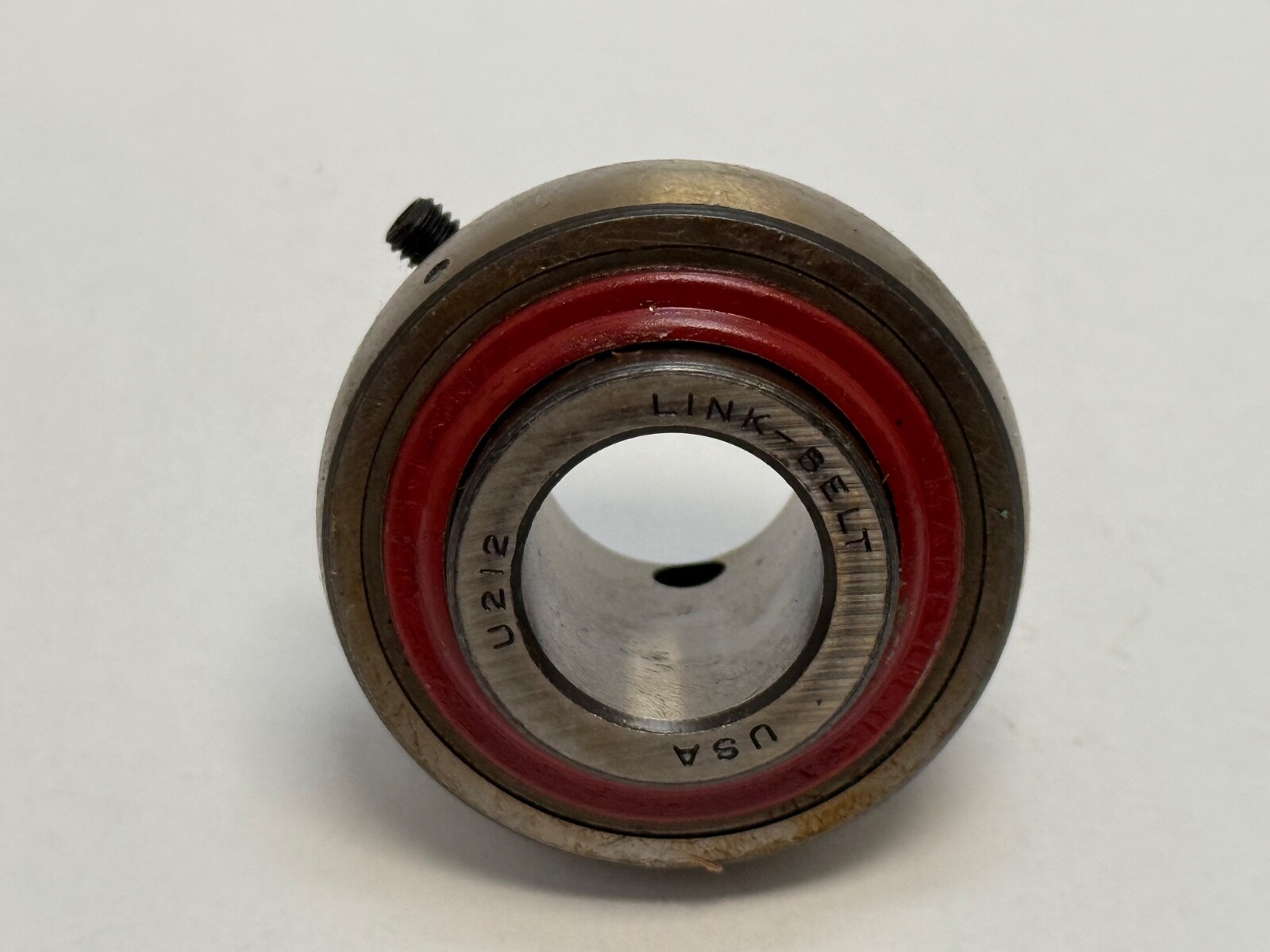

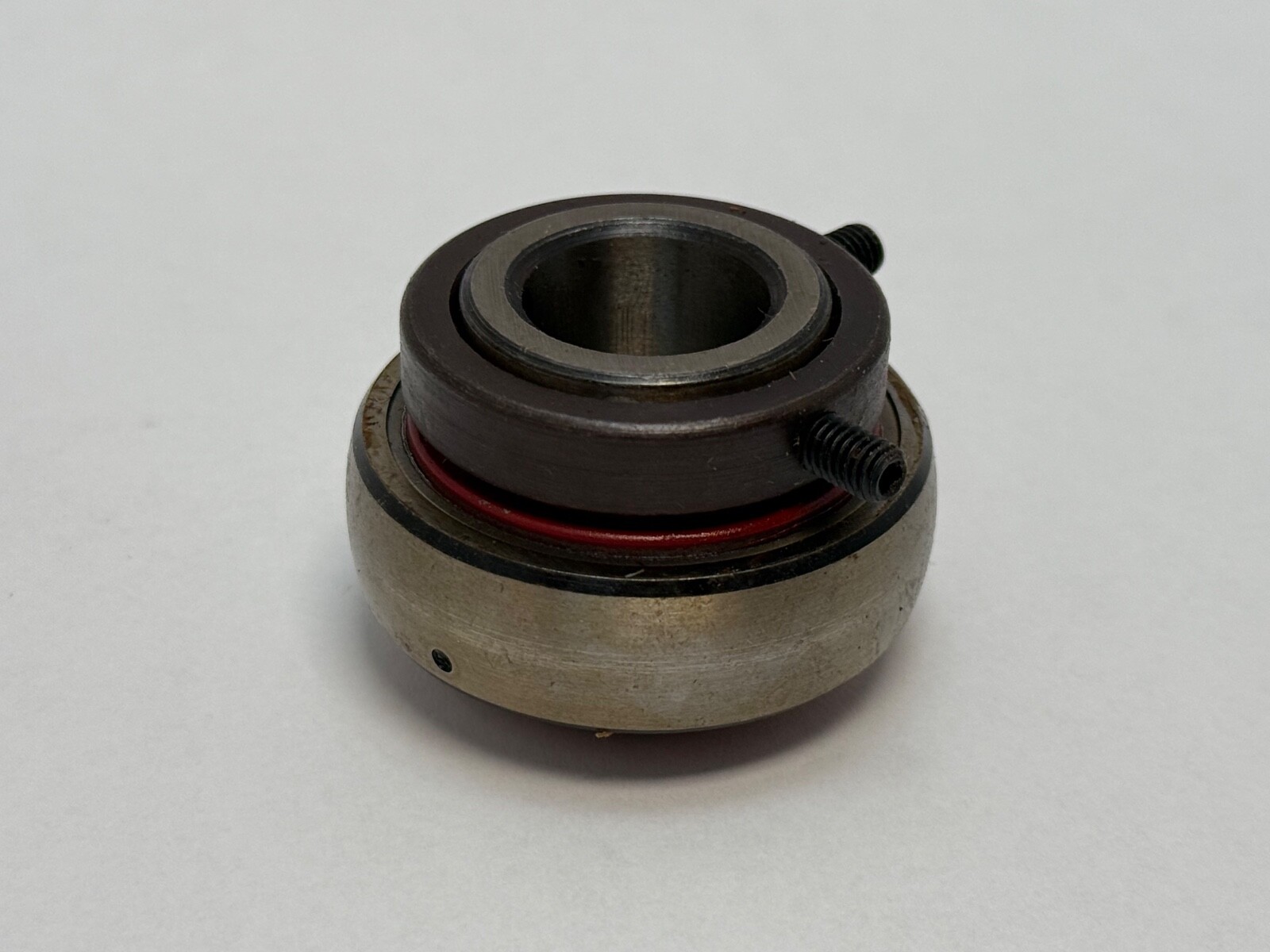

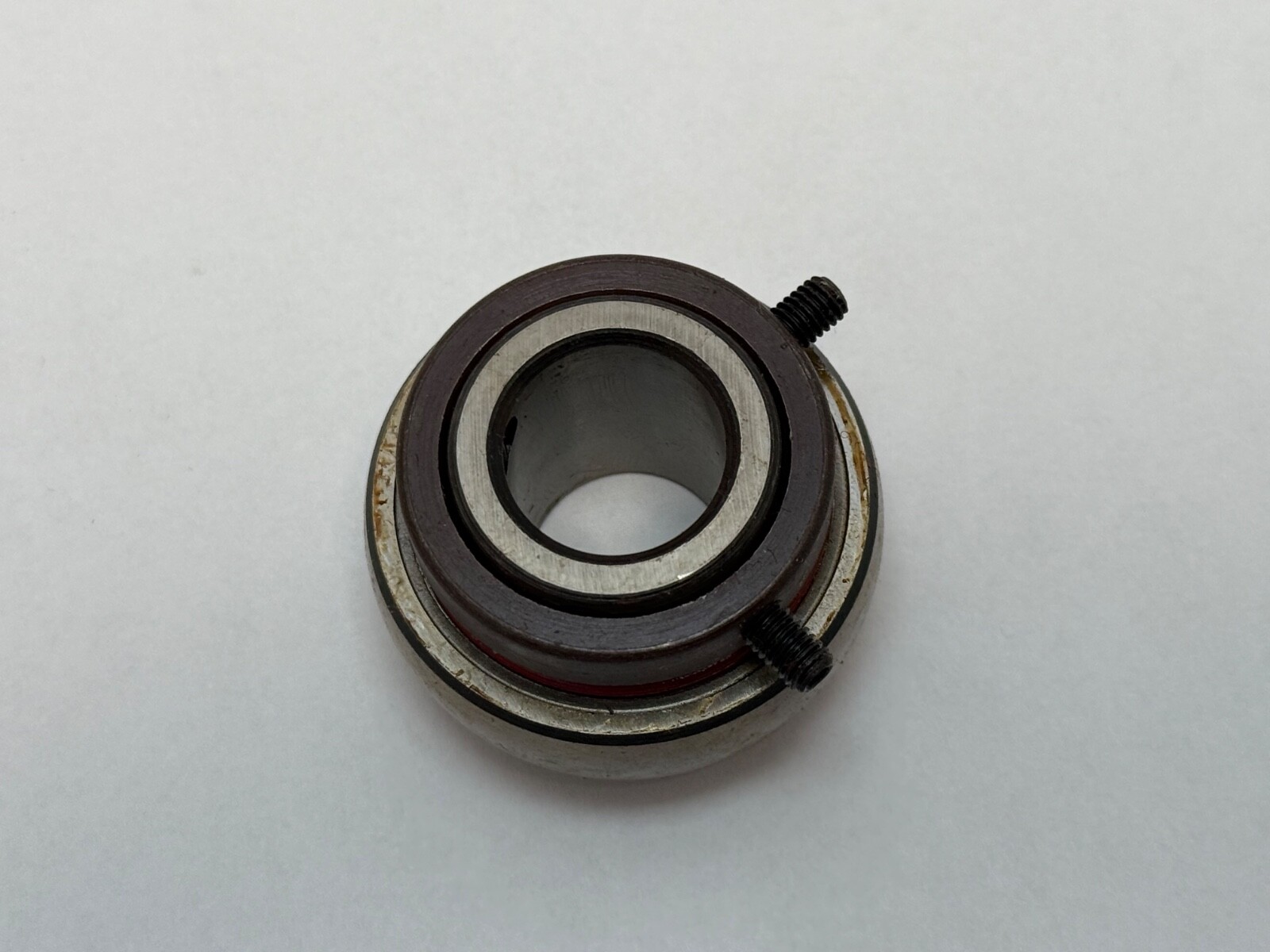

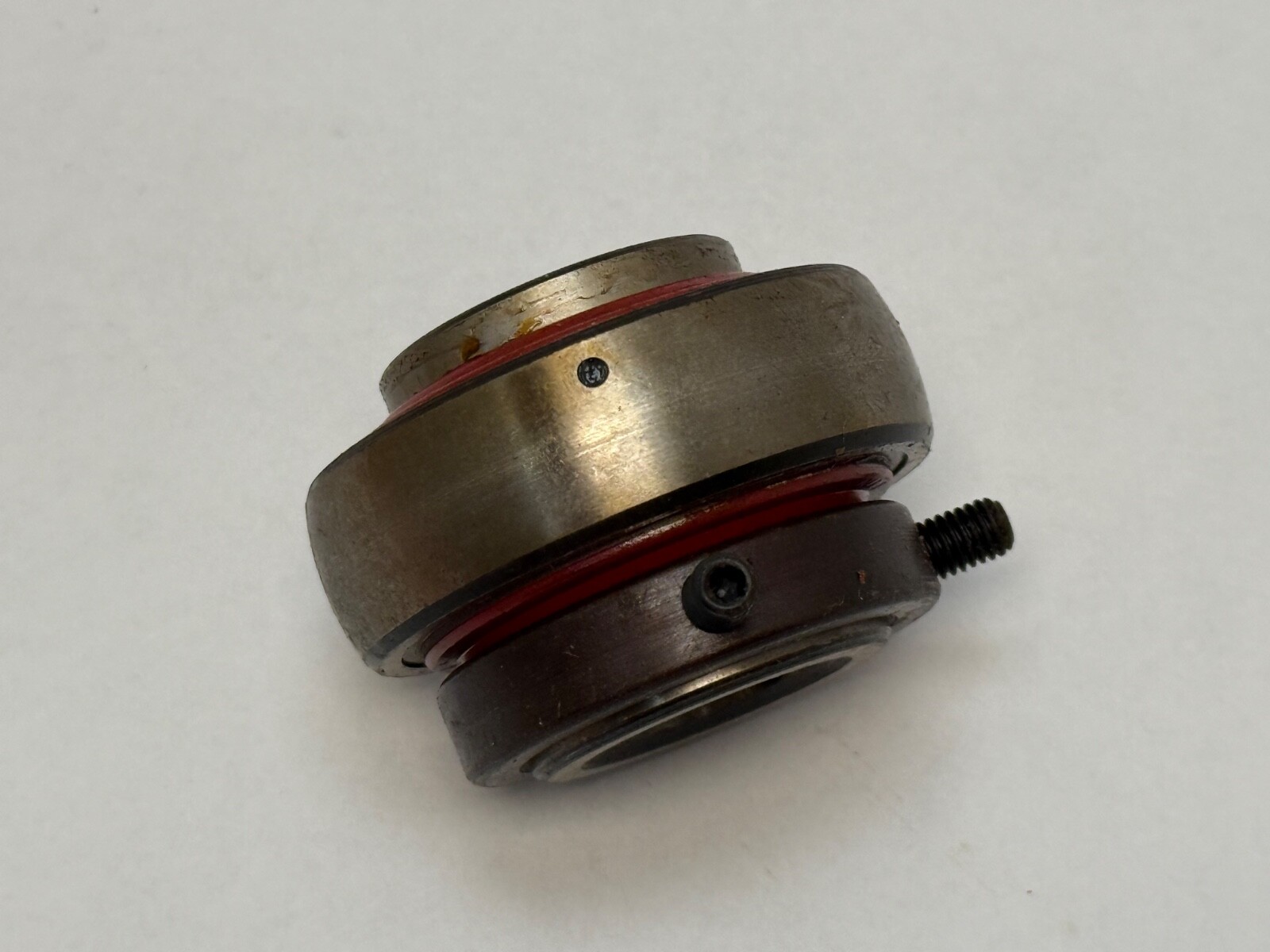

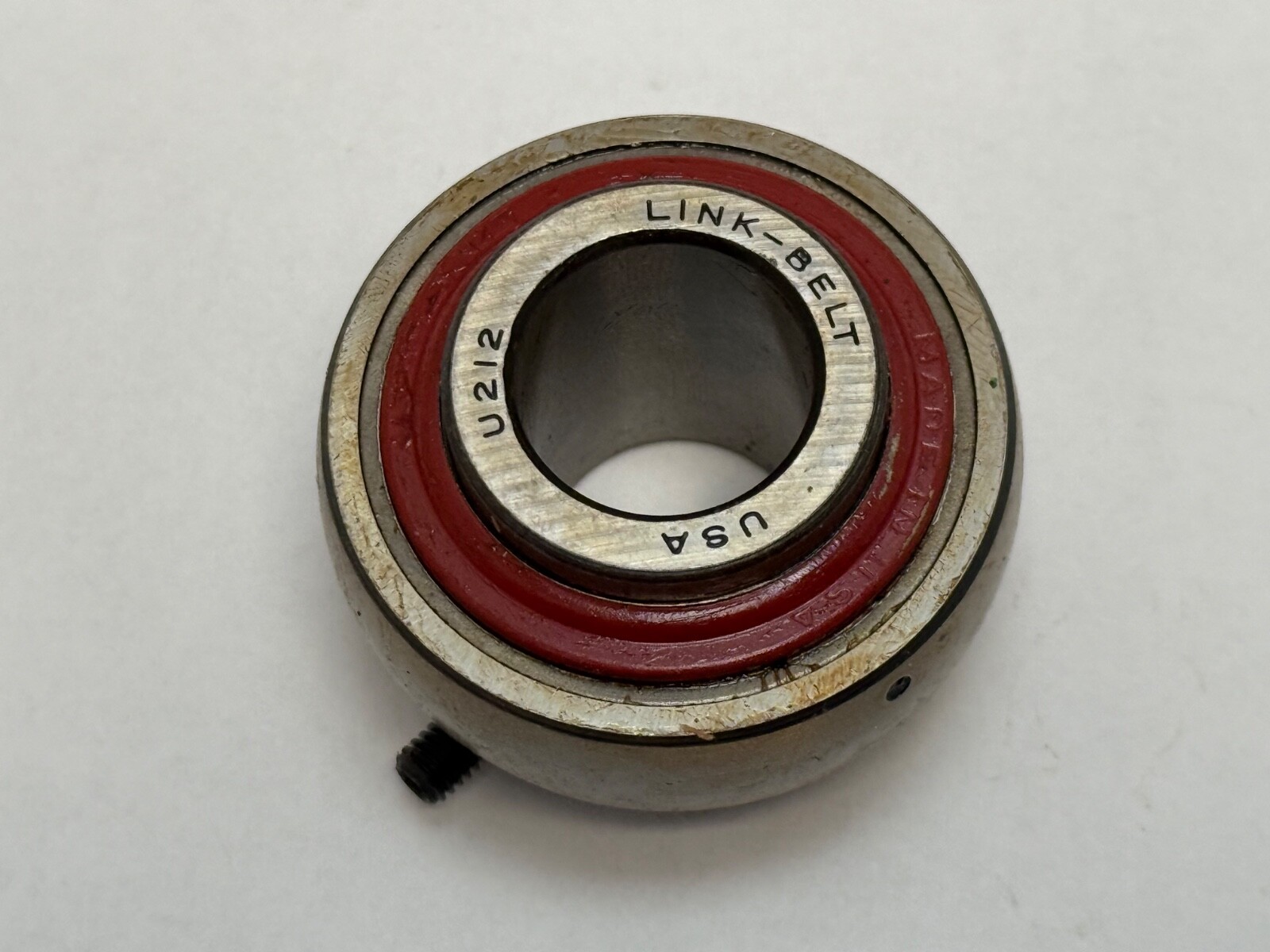

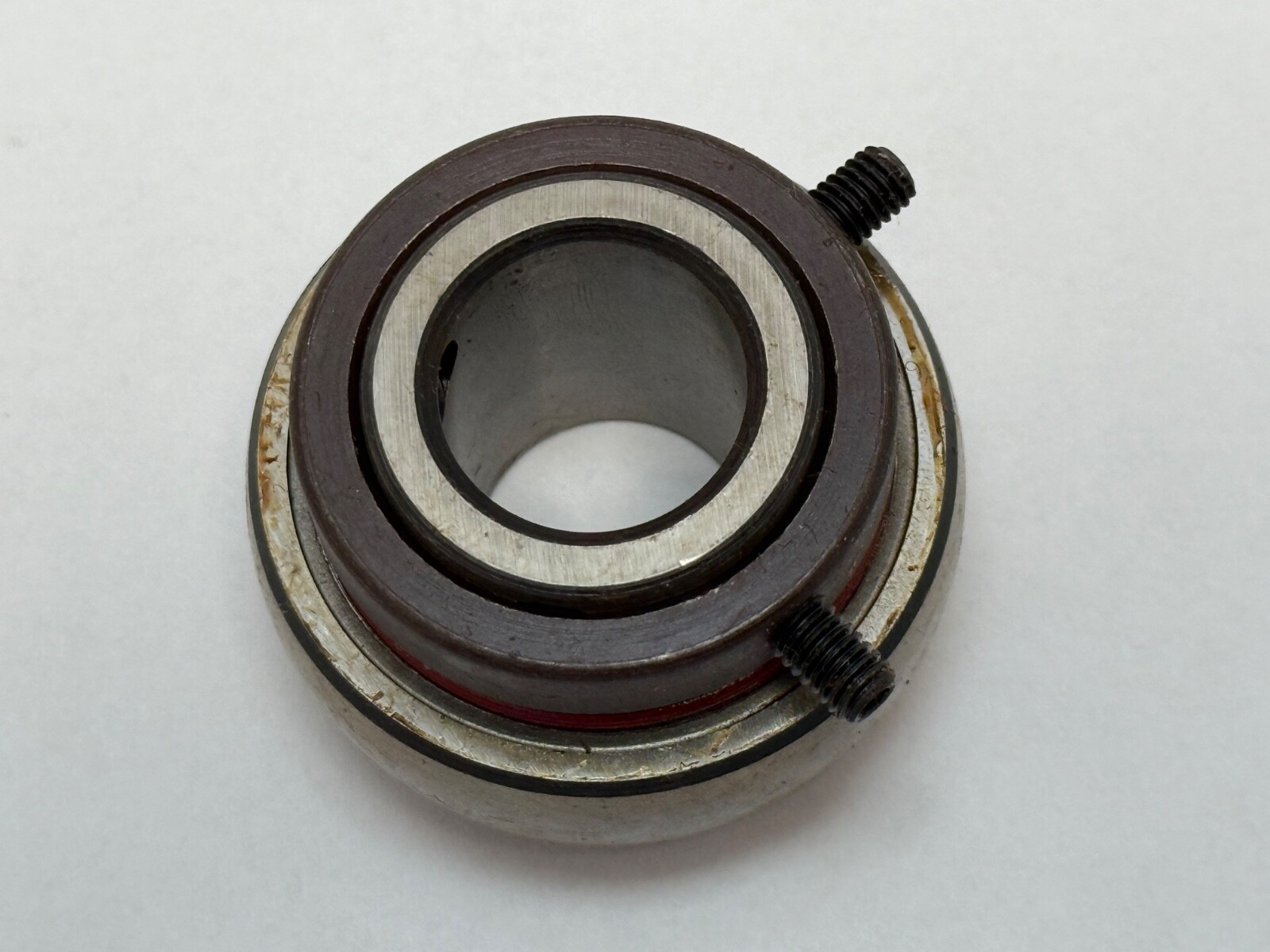

The Link-Belt UG212HL is a 200 series ball bearing insert with a 3/4 in bore and set screw locking, size code 204. It is the unmounted replacement insert for Link-Belt 200 series pillow blocks and flange units of the same size.
UG2 — Link-Belt 200 series ball bearing insert.
12 — bore in sixteenths of an inch, 12/16 = 3/4 in.
H — labyrinth seal.
Bore Diameter: 3/4 in (0.75 in). Outside Diameter: 1.8504 in. Outer Ring Width: 0.5906 in. Size Code: 204. Shaft Locking: Set screw, #1/4-28 thread. Primary Seal: Steel clearance seal. Cage Material: Nylon. Radial Clearance: C3. Dynamic Load Rating: 2,870 lbf. Static Load Rating: 1,480 lbf. Maximum Speed: 10,000 rpm. Lubricant: Exxon Ronex MP. Maximum Temperature: 107 °C (225 °F). Weight: 0.45 lb.
Bore Length: 1-9/32 in. Inner Ring Hub Diameter: 1.121 in. Short Hub Length: 0.5313 in. Inner Ring Long Hub Face to Set Screw Centerline: 0.19 in. Bearing Centerline to Lube Hole Centerline: 0.176 in. Set Screw Torque: 85 in-lb.
Also written UG-212-HL and UG-212HL. Fits Link-Belt 200 series 204-size housings for a 3/4 in shaft. GTIN: 662327149239. CAD model and data sheet: available from Regal Rexnord (regalrexnord.com).
3/4 in bore and 1.8504 in outside diameter.
With set screws, #1/4-28 thread, tightened to 85 in-lb.
2,870 lbf dynamic and 1,480 lbf static.
