Super-precision angular contact spindle bearing, 50 x 80 x 16 mm, open, 7010 envelope. 1 Pc.
List Price
$52.25
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing — 50 mm ID, 80 mm OD, 16 mm Width, 15° Contact Angle, ABEC 7, Light Preload$274.55
Angular Contact Ball Bearing — 50 mm ID, 80 mm OD, 16 mm Width, 15° Contact Angle, ABEC 7, PEEK Cage, Universal Light Preload$47.53
Super-Precision Angular Contact Ball Bearing Pair – 50 mm Bore, 80 mm OD, 16 mm Width, 15°, Medium Preload$53.53
Super-Precision Angular Contact Ball Bearing - 50 mm ID, 90 mm OD, 20 mm Width, Open, 15° Contact Angle, Light Preload, ABEC 7, PEEK Cage$61.12| MFR / Brand | SNFA |
|---|---|
| MPN | EX50 |
| Model | 7010 / EX 50 |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 50 mm |
| OD | 80 mm |
| Width | 16 mm |
| Base Number | EX50 |
|---|---|
| Industry Terms | spindle bearing; super precision bearing; angular contact ball bearing; machine tool spindle bearing; SNFA EX series |
| Common Misspellings | SFNA EX50; SNFA EX-5O; EX50 bearing |
| Application Types | Machine tool spindles; grinding spindles; high-speed precision rotating assemblies |
| Bore Shaft Size | 50 mm (1.9685 in), straight bore |
| Mpn Variants | EX50; EX-50; EX 50; SNFAEX50 |
| Manufacturer Status | SNFA brand absorbed into the SKF group |
| Additional Attributes | Same-envelope related sizes, not confirmed interchanges: SKF 7010 CD/P4A, FAG B7010-C-T-P4S and NSK 7010CTRP4 are 50 x 80 x 16 mm but publish a 15° contact angle and a stated precision class |
| Number Of Rows | 1 |
| Design Units | Metric |
| Part Number | EX50 |
| Cross Reference 1 | 7010 |
|---|---|
| Cross Reference 2 | EX series prefix |

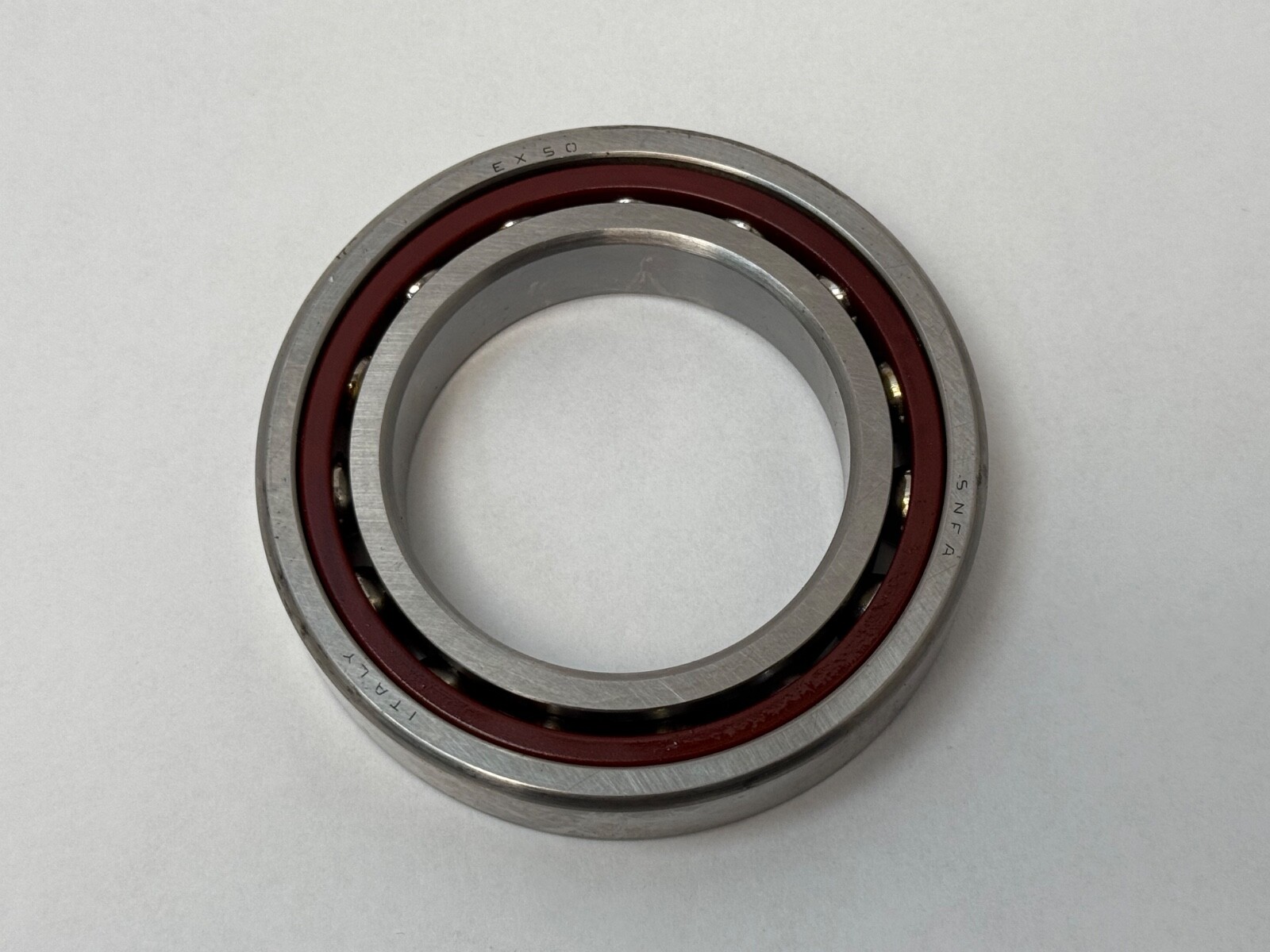

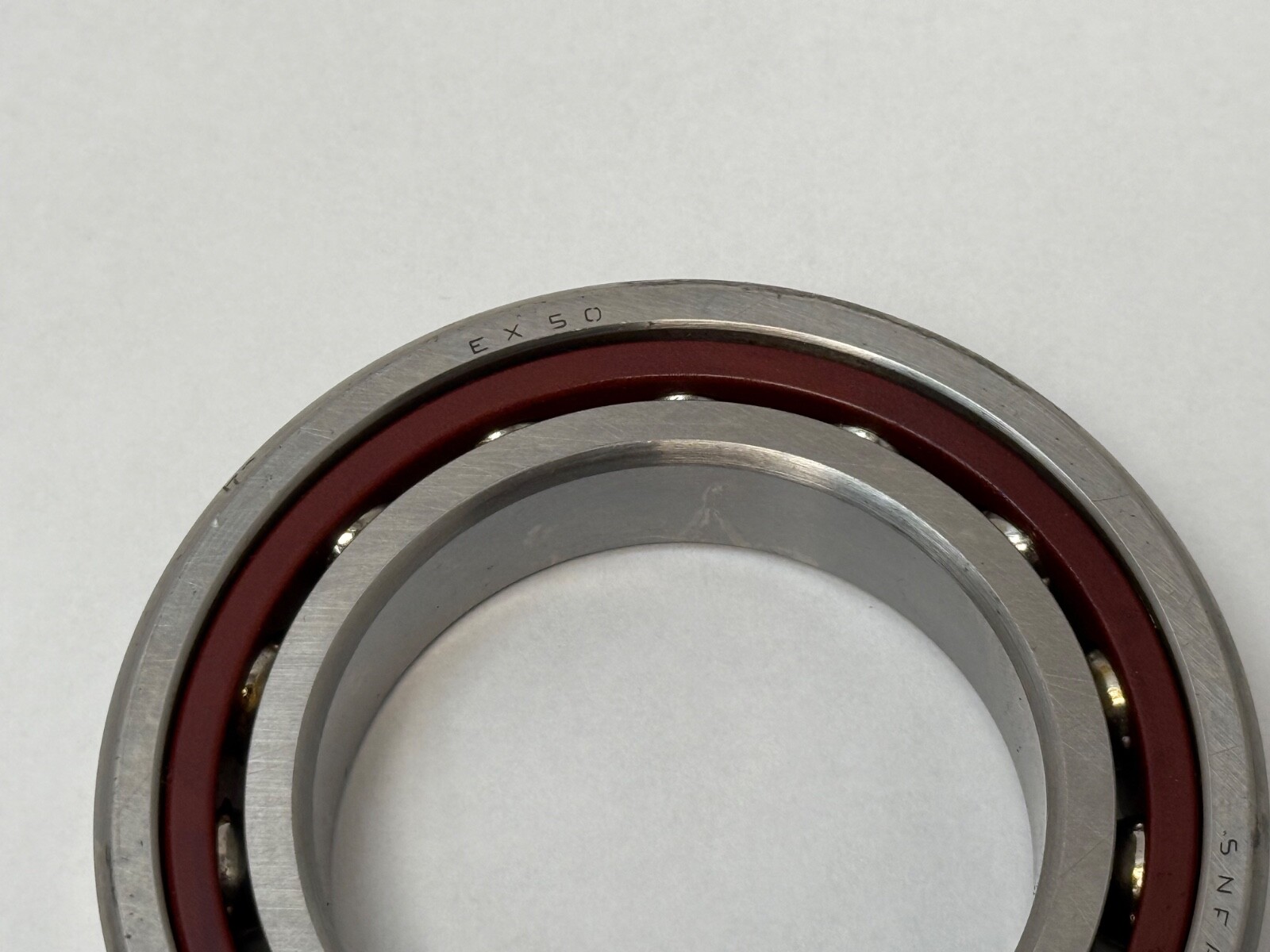

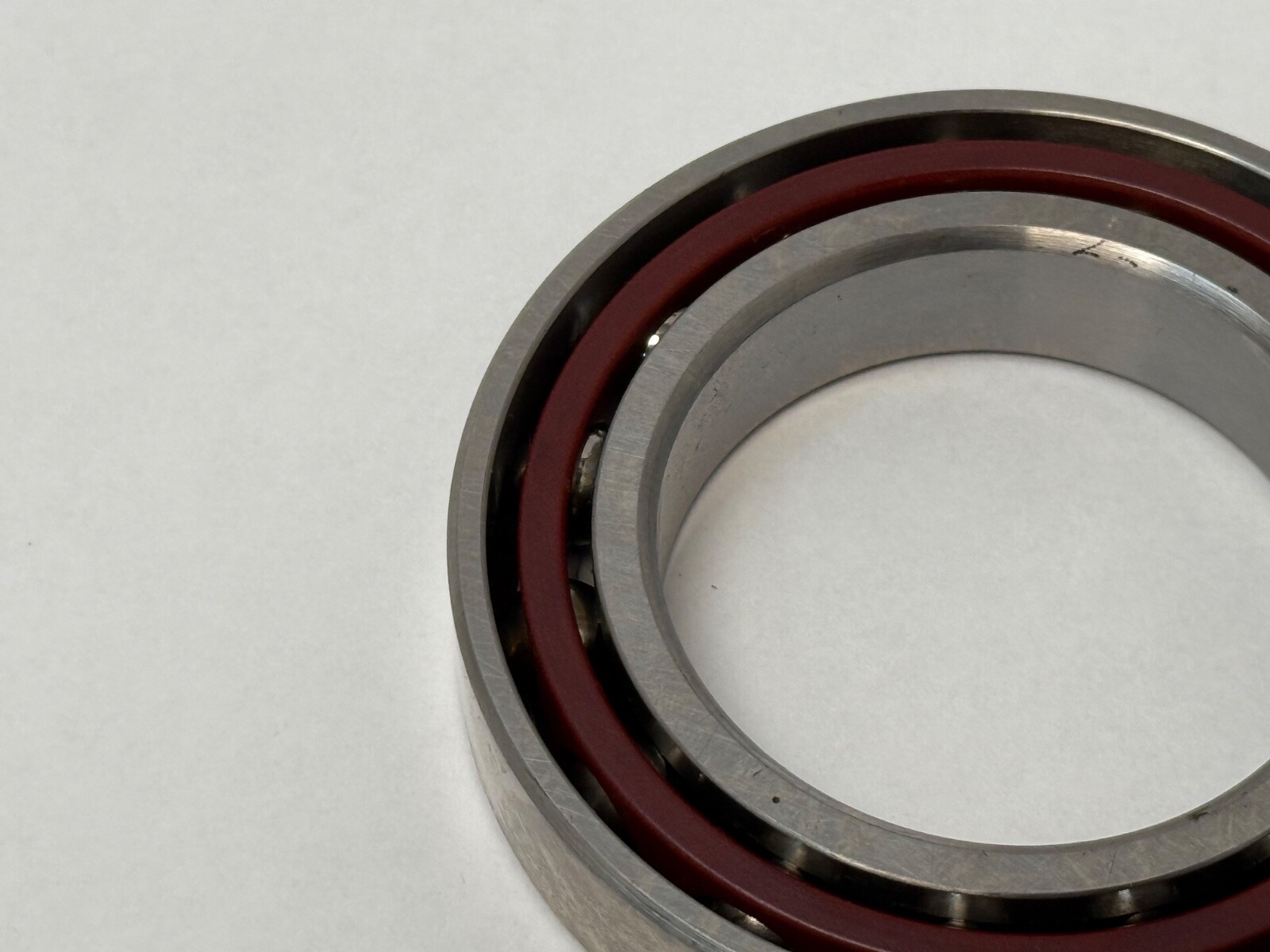

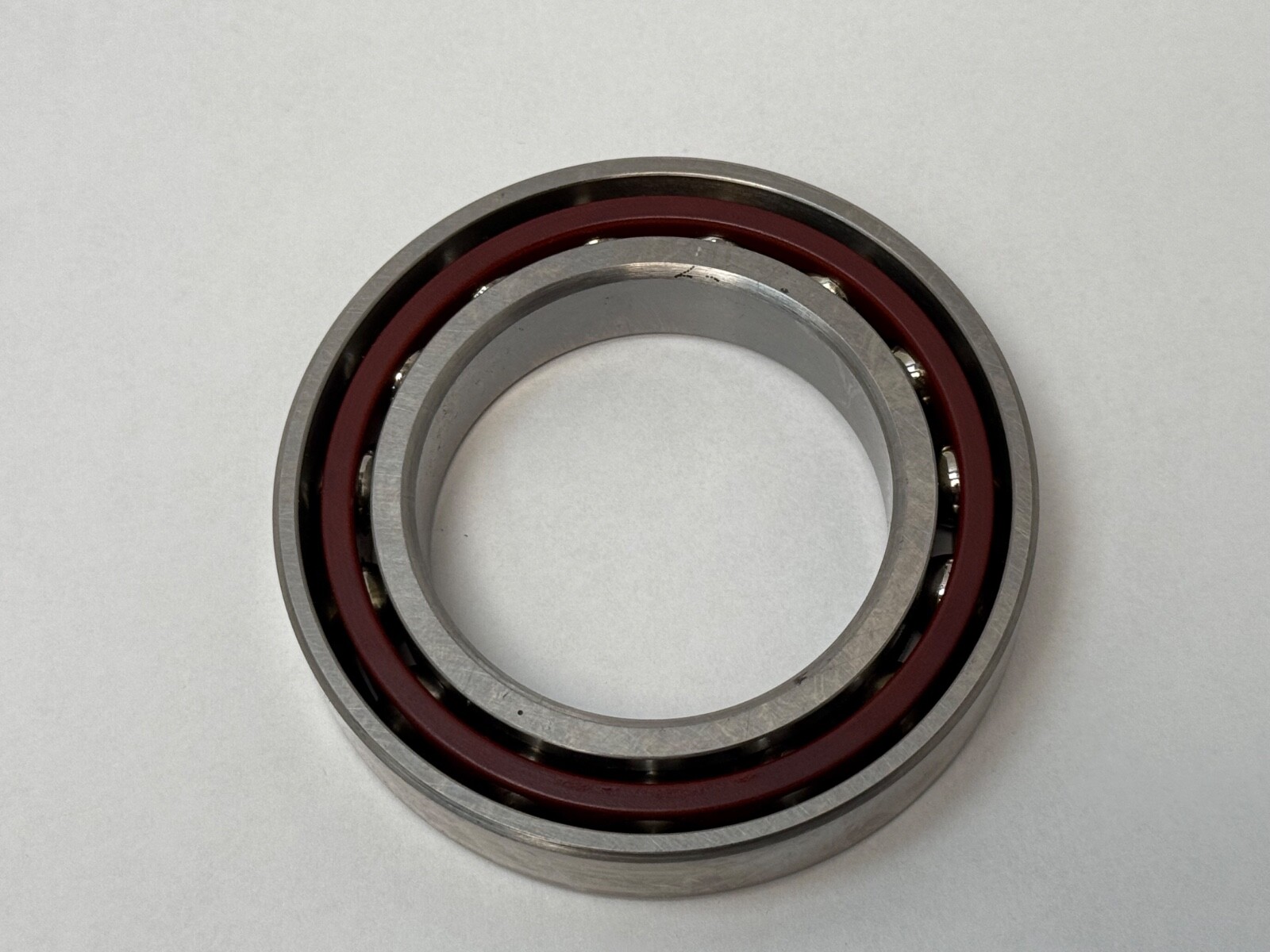

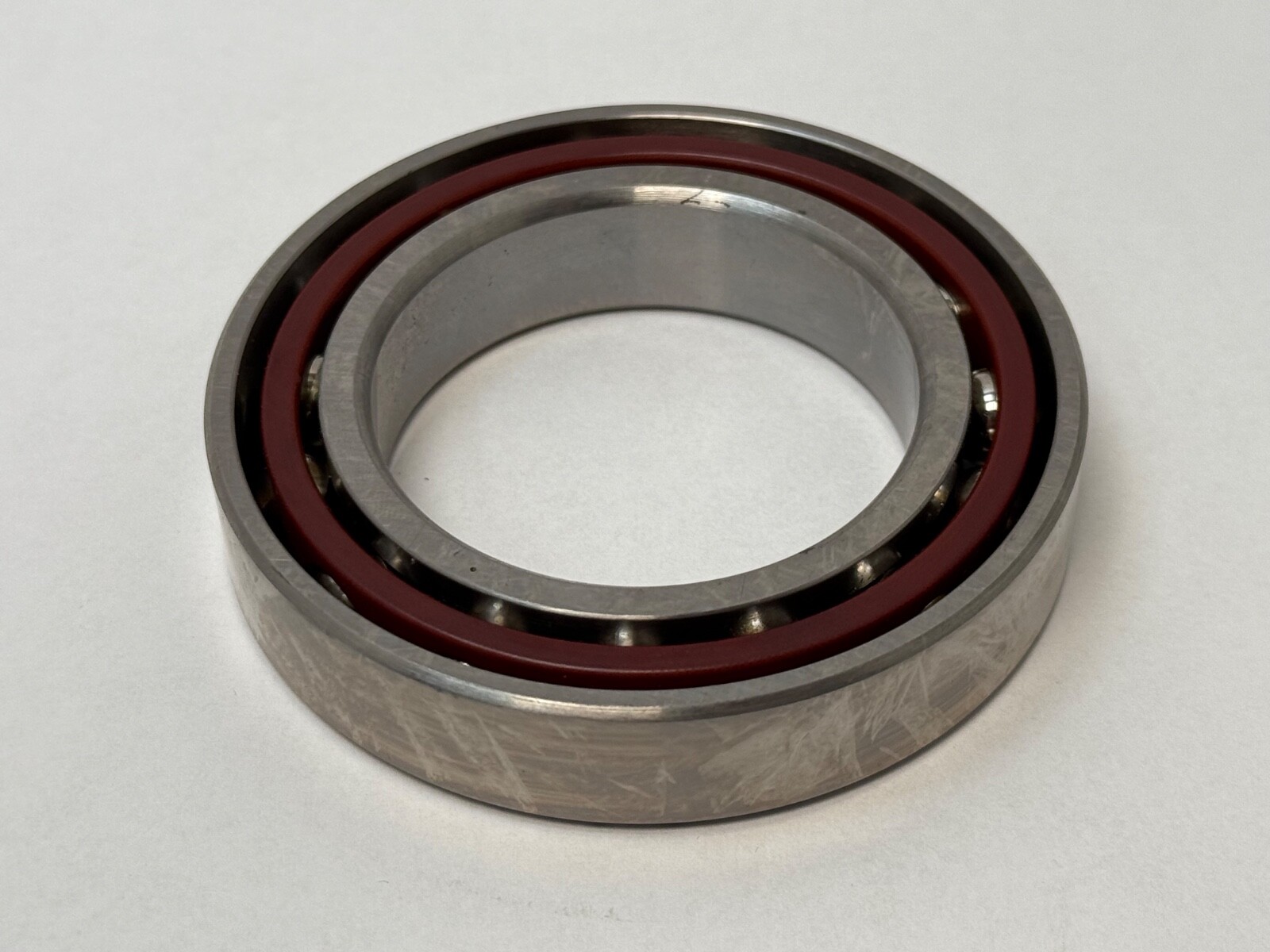

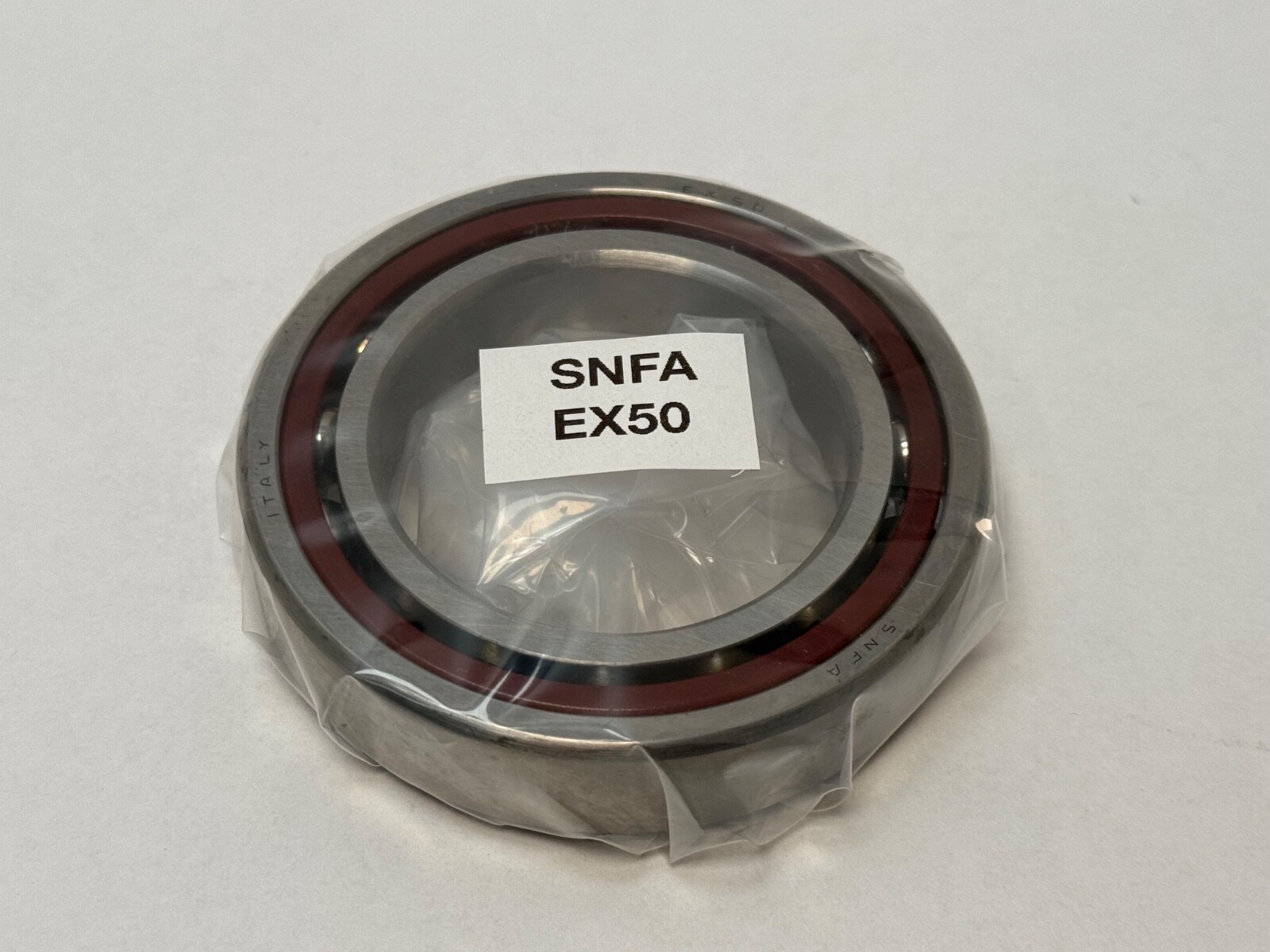

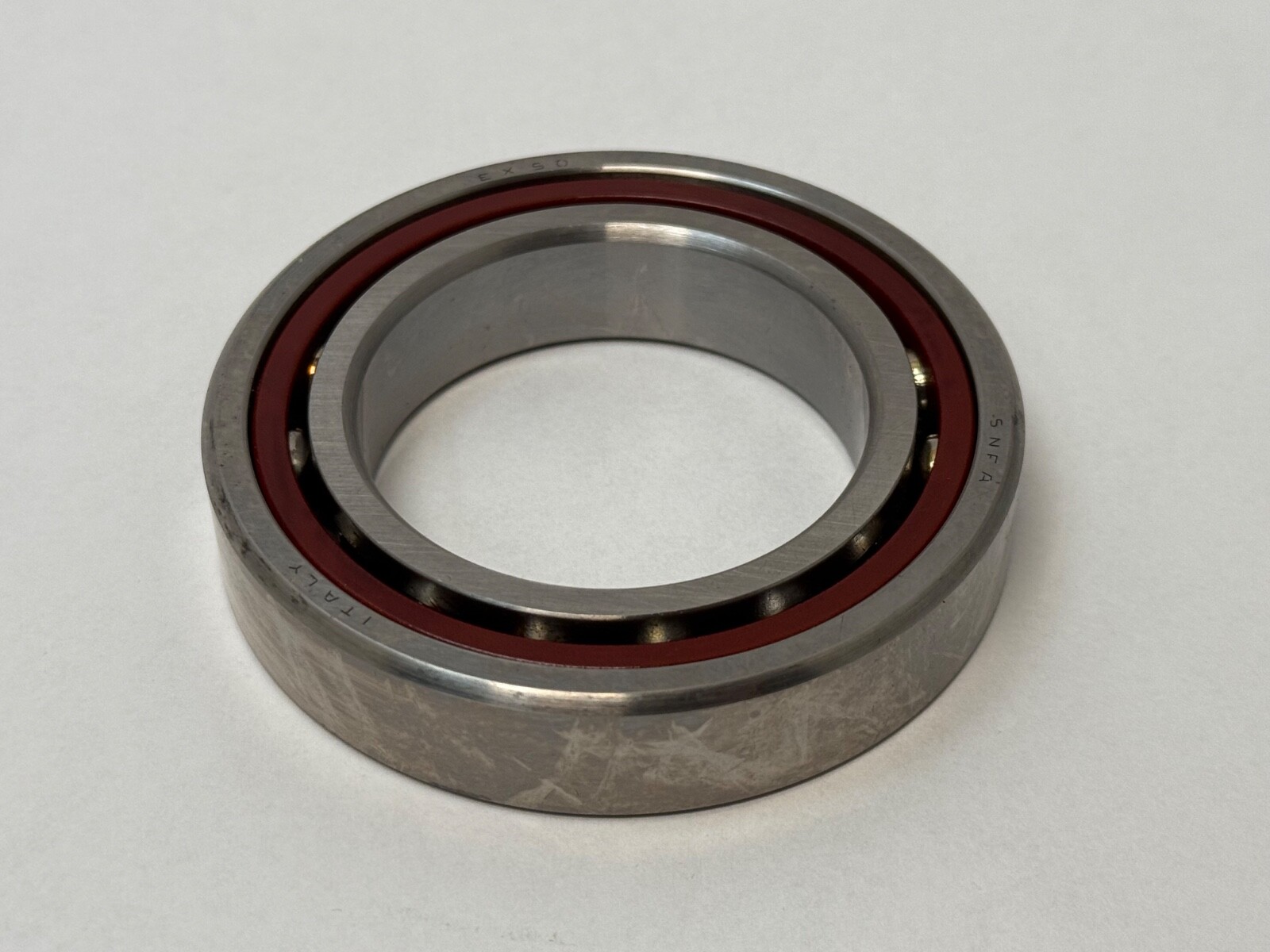

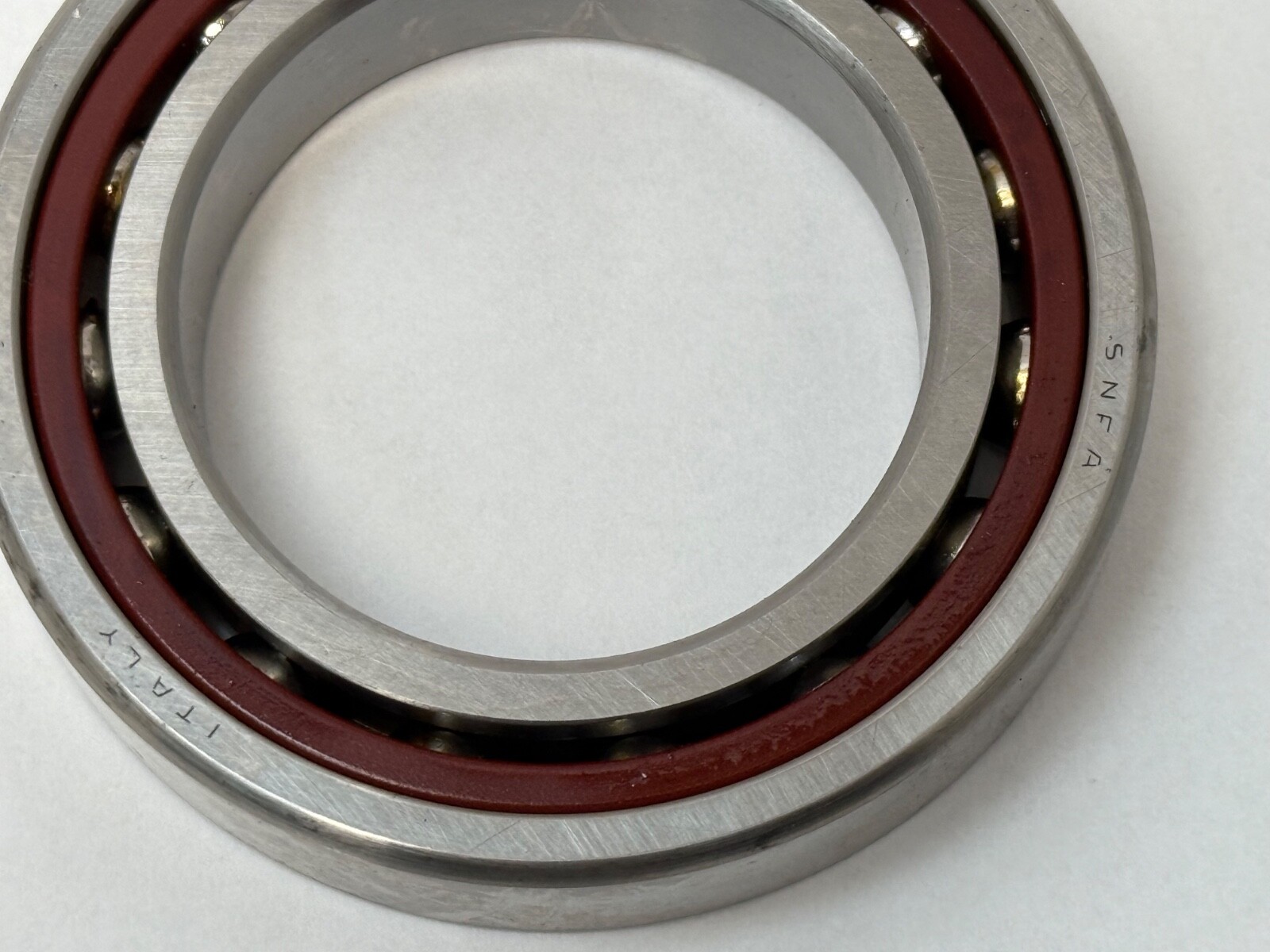

This is an SNFA EX50 super-precision angular contact ball bearing with a 50 mm bore, 80 mm outside diameter and 16 mm width, open on both faces. SNFA is a French super-precision bearing maker, now part of the SKF group, building bearings for machine tool spindles and other high-speed precision rotating assemblies.
EX is SNFA’s series prefix and the 50 is the bore in millimetres. The 50 x 80 x 16 mm envelope corresponds to the ISO 7010 size in the 70 light dimension series, which is why the bearing is commonly cross-listed as a 7010.
An angular contact ball bearing takes thrust in one direction along with radial load, and a single row must be opposed by a second bearing to locate a shaft in both directions. The light 70 series keeps the outside diameter and width compact for a 50 mm shaft, which is what makes this envelope common in spindle noses where housing space is fixed by the surrounding design. Super-precision bearings of this family are selected for running accuracy and speed rather than for maximum load capacity.
Single bearing, 1 Pc. Straight bore, mounting directly onto a cylindrical shaft seat.
Bearings of this class expect a ground and dimensionally controlled shaft and housing seat, and are handled clean. Mounting is done without heating or impact, with force applied through the ring being fitted rather than across the balls. The rings have a distinct wide face and narrow face, and the direction they are fitted determines which way the bearing takes thrust.
The genuine interchange is another SNFA EX50. The 7010 envelope is shared by SKF 7010 CD/P4A, FAG B7010-C-T-P4S and NSK 7010CTRP4, all 50 x 80 x 16 mm, but those designations publish a 15° contact angle and a stated precision class where this one does not, so they are same-envelope related sizes rather than confirmed substitutions.
$137.64
92 in stock
