Availability:
1 in stock
Super-precision angular contact ball bearing pair, 50 x 80 x 16 mm, 15° contact angle, ABEC 7 / P4, light preload. SKF 7010 CD/P4ADGA is a close match at extra light preload.
List Price
$274.55
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNFA |
|---|---|
| MPN | EX50-7CE1DUL |
| Model | EX-50-7-CE-1-DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 80 mm |
| Width | 16 mm |
| Material | Bearing Steel |
|---|---|
| Series | EX (ISO 10) |
| Preload | Light |
| Mpn Variants | EX50-7CE1DUL, EX 50 7CE1 DUL, EX-50-7-CE-1-DUL, EX 50-7 CE 1 DUL |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Outer-ring guided |
| Dynamic Load Rating | 29,600 N |
| Static Load Rating | 24,000 N |
| Rolling Elements | Ball |
| Item Weight | 0.249 kg (0.55 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 17,000 rpm grease; 28,000 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal matched pair (back-to-back, face-to-face or tandem) |
| Cross Reference 1 | NSK 7010CTRDULP4 |
|---|---|
| Cross Reference 2 | Fafnir 2MM9110WICRDUL – P4S tolerance |
| Cross Reference 3 | FAG B7010-C-T-P4S-UL – single bearing, P4S |
| Cross Reference 4 | SKF 7010 CD/P4ADGA – extra light preload |
| Cross Reference 5 | SKF 7010 CDGA/P4A – single, extra light preload |

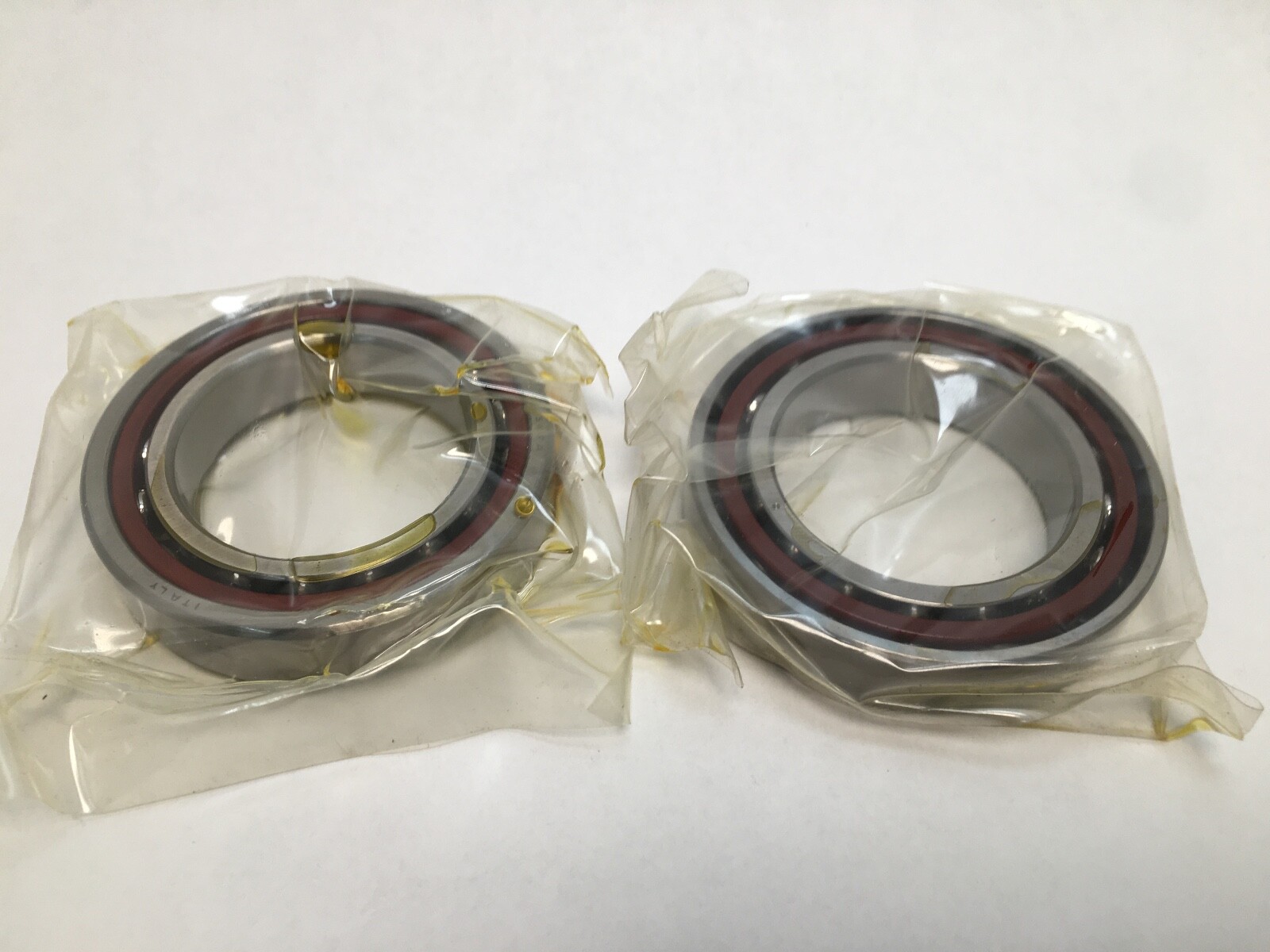

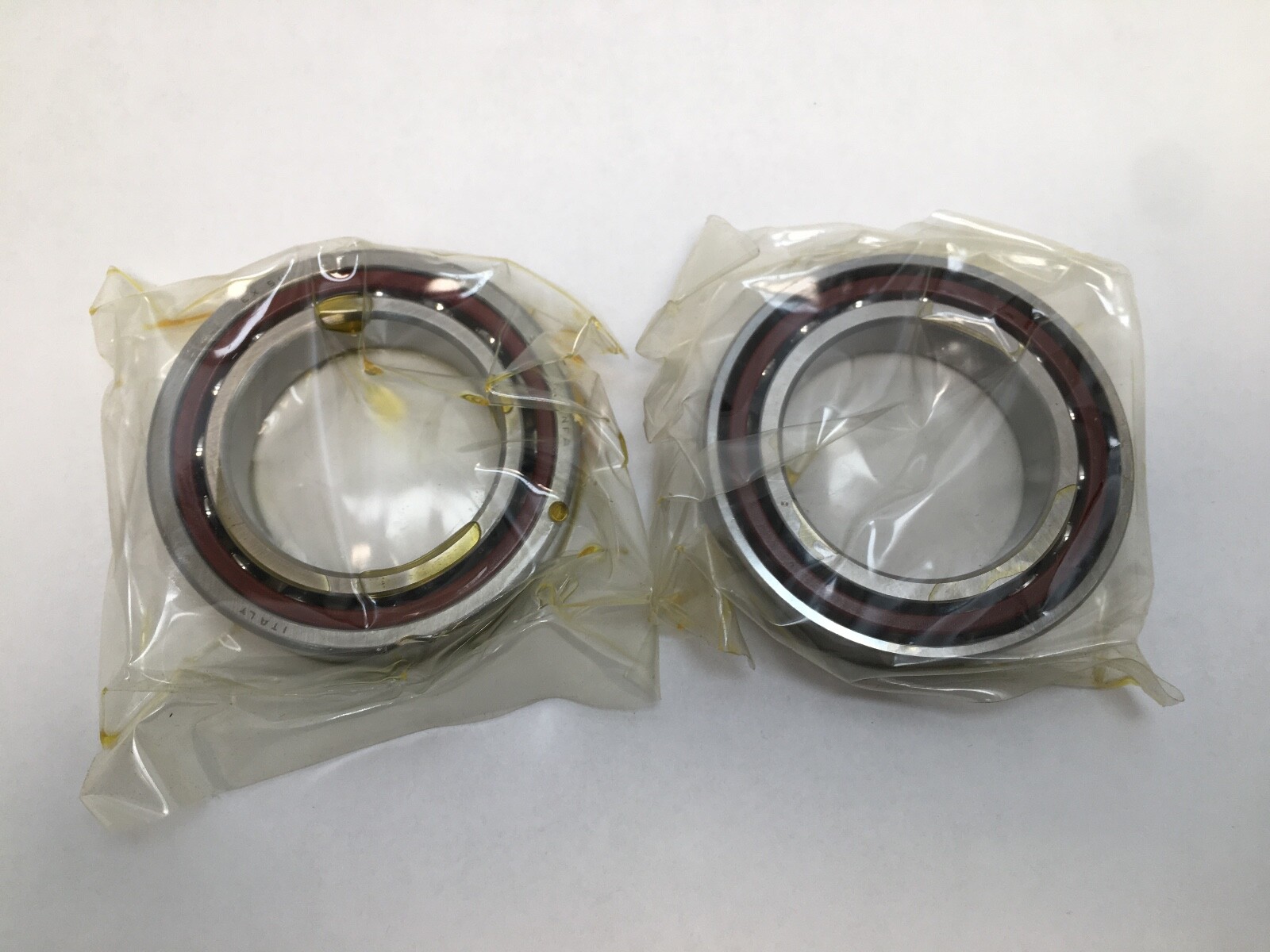

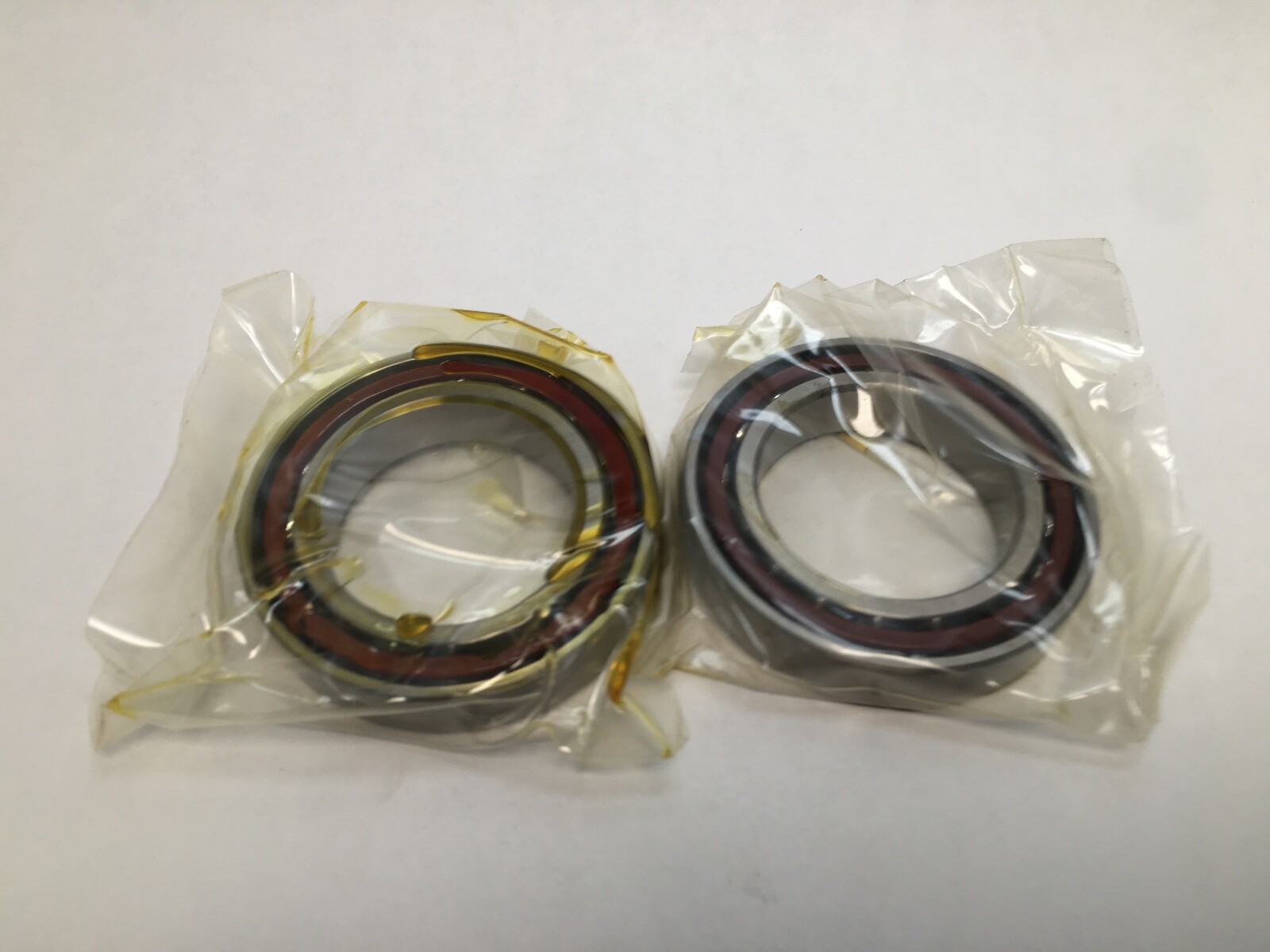

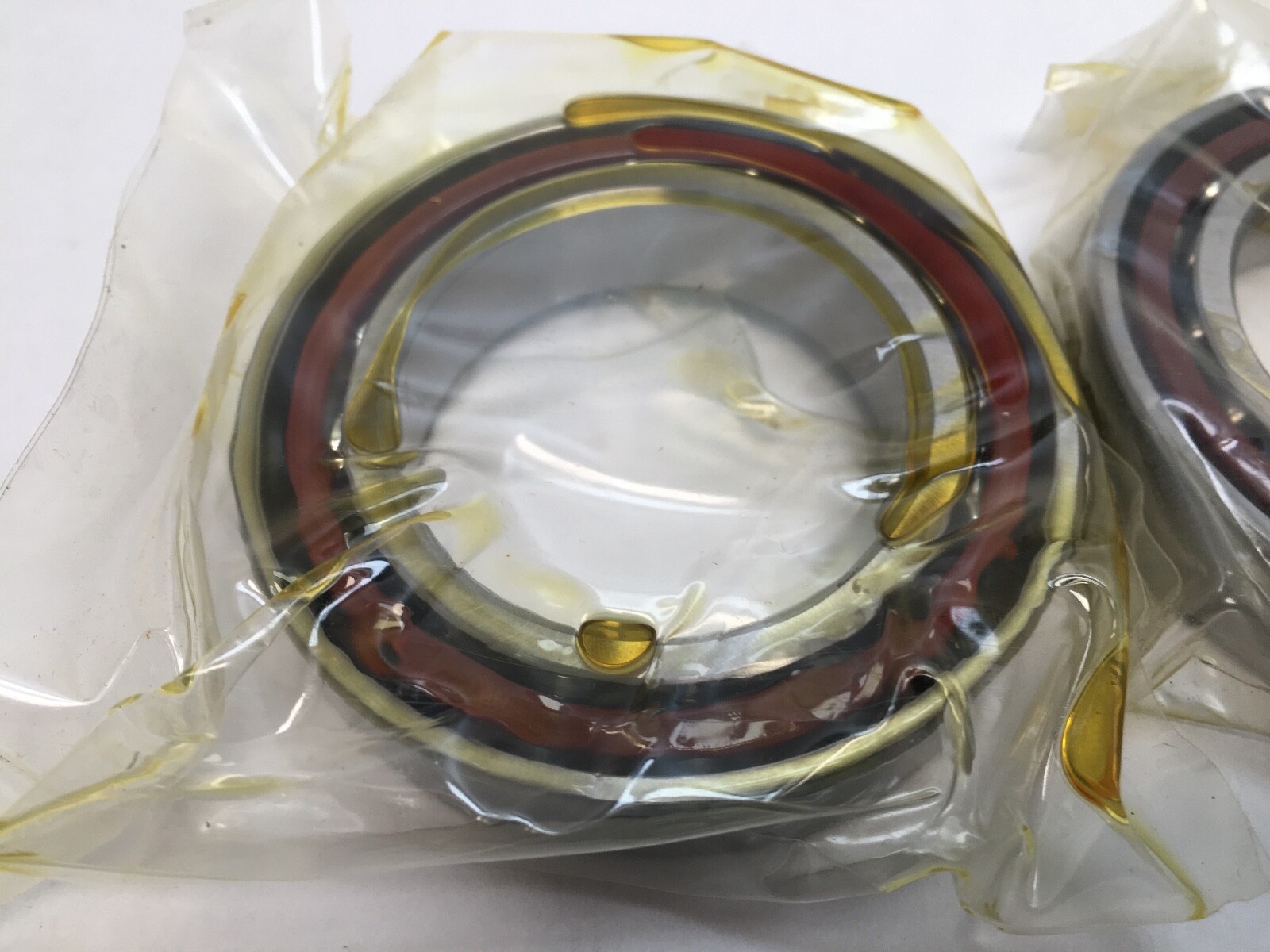

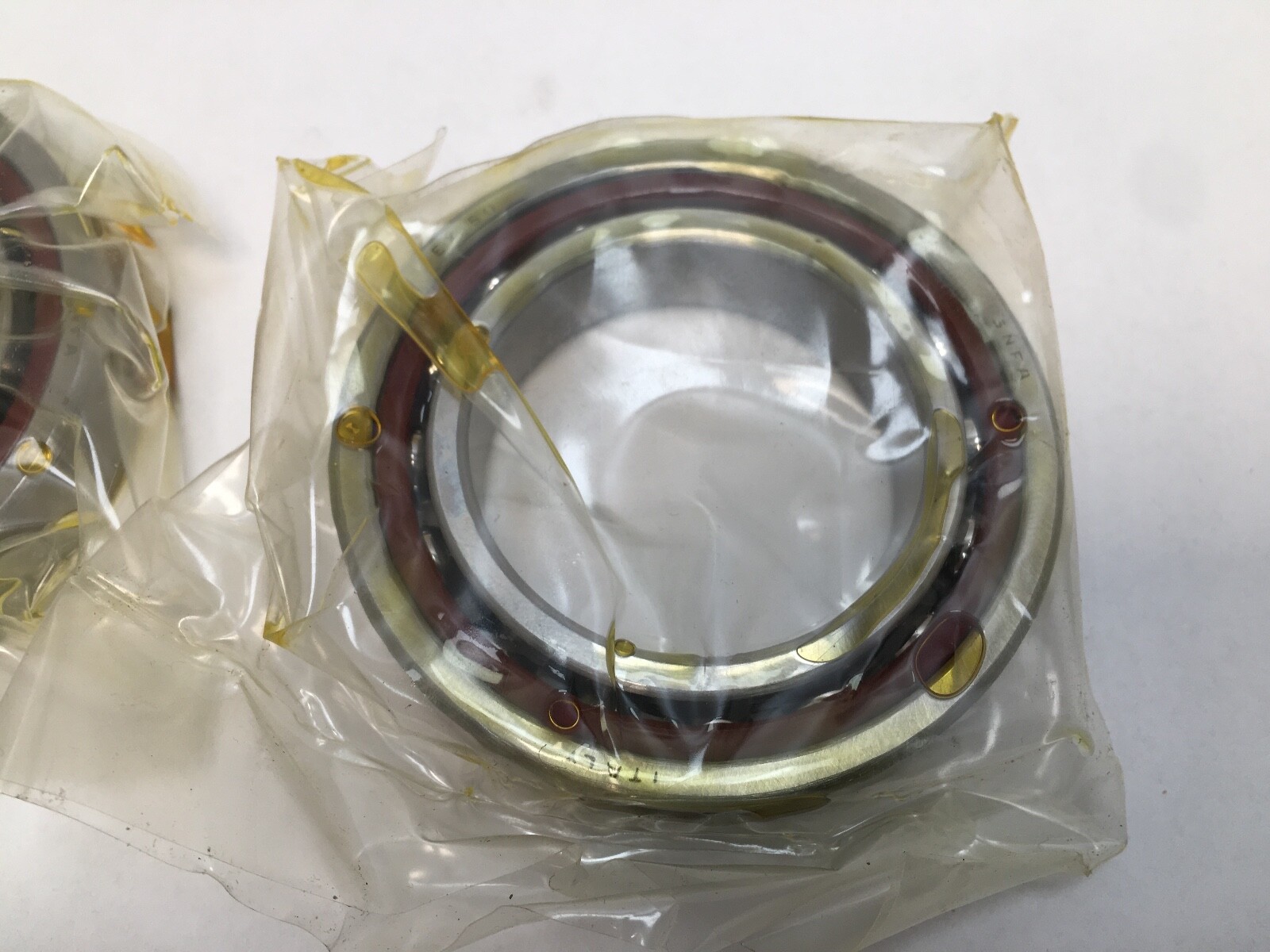

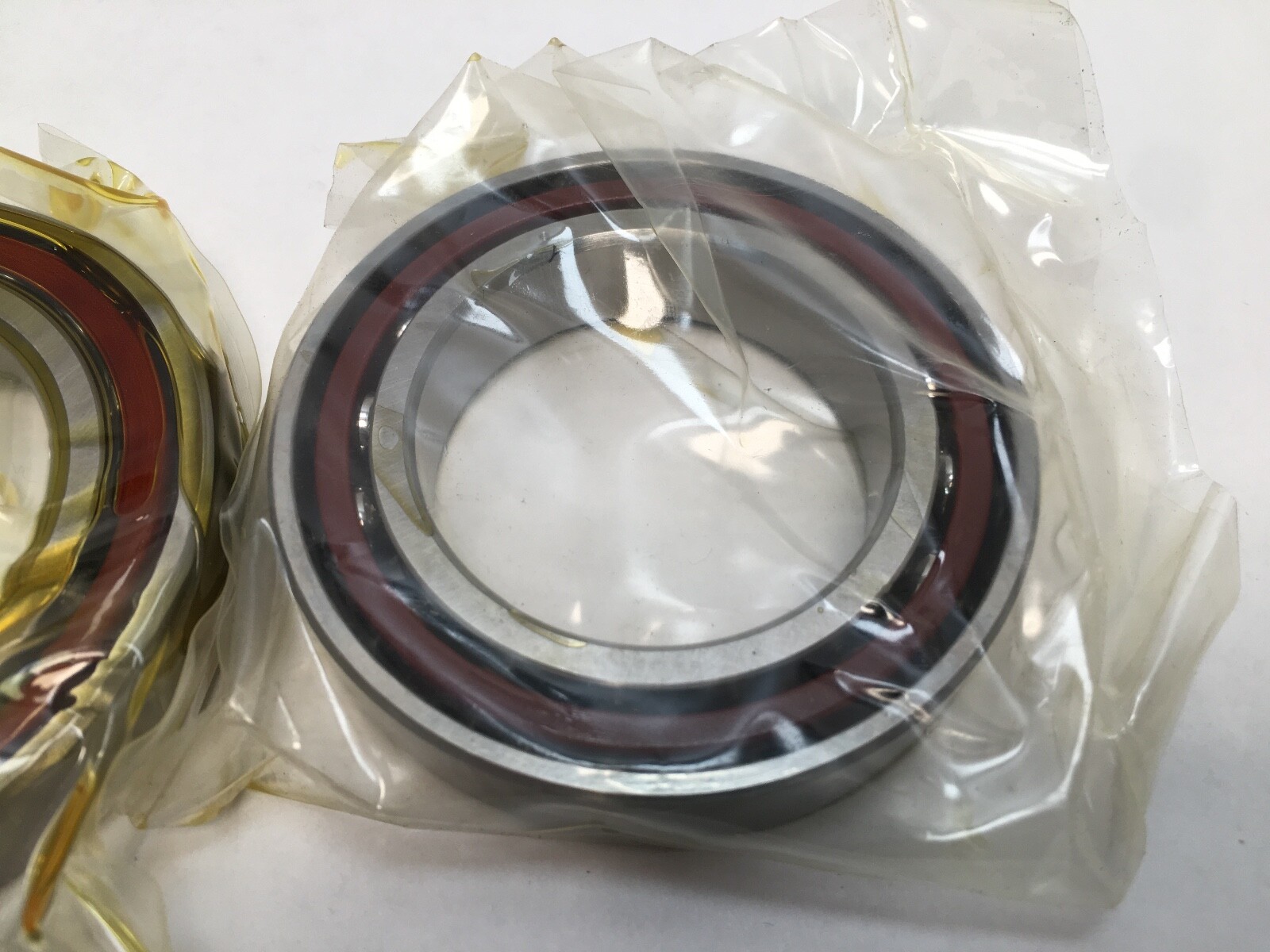

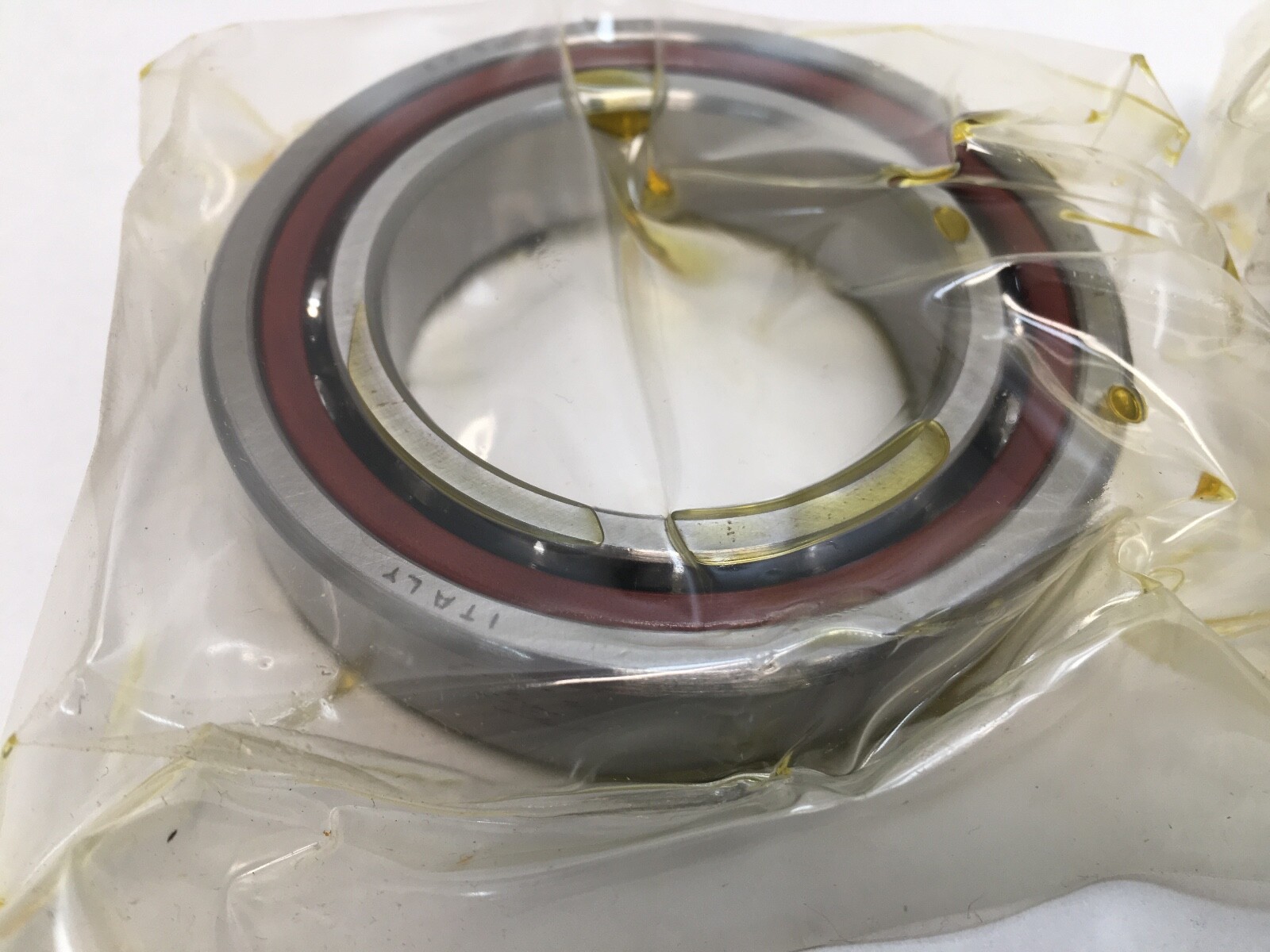

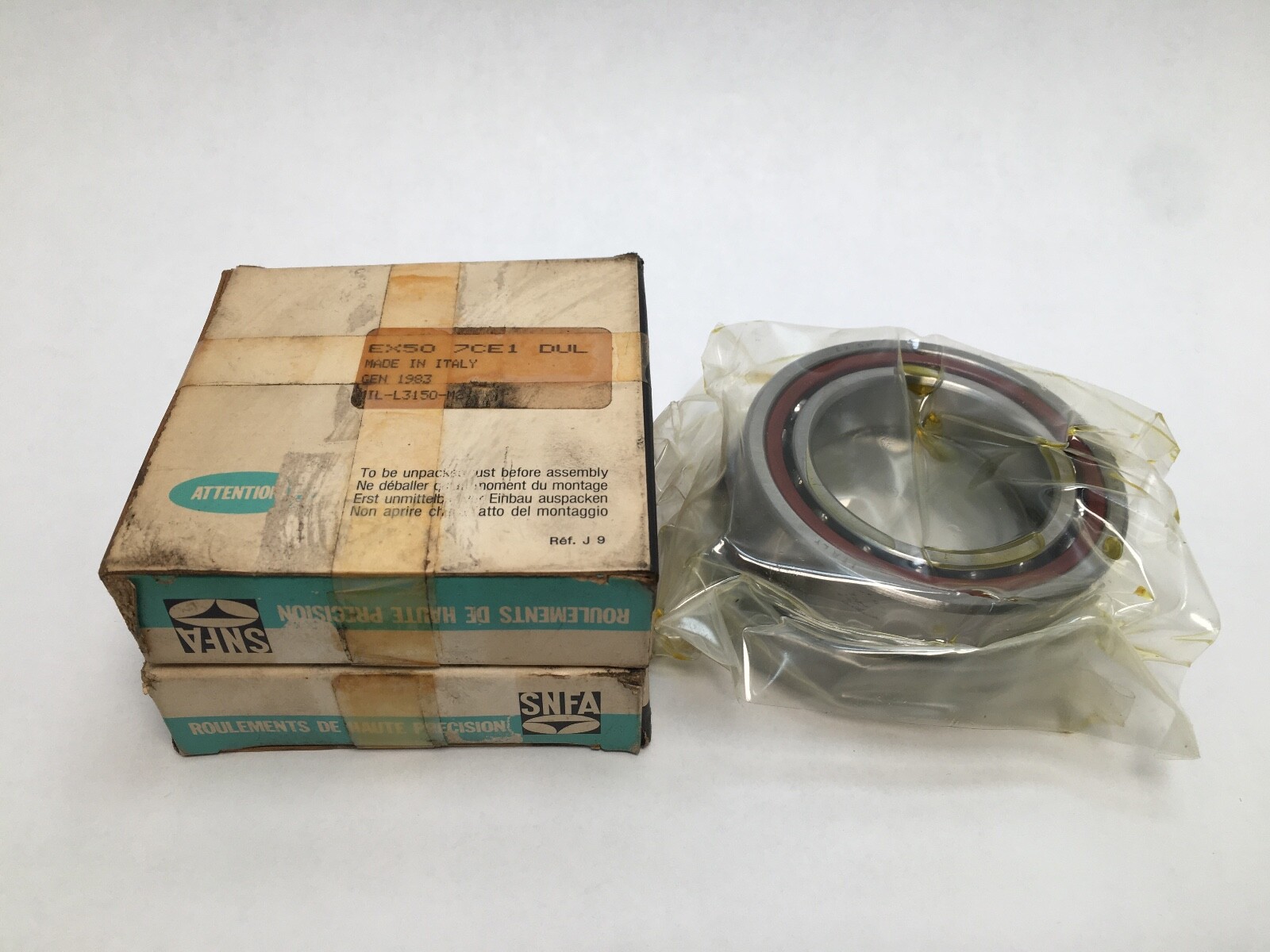

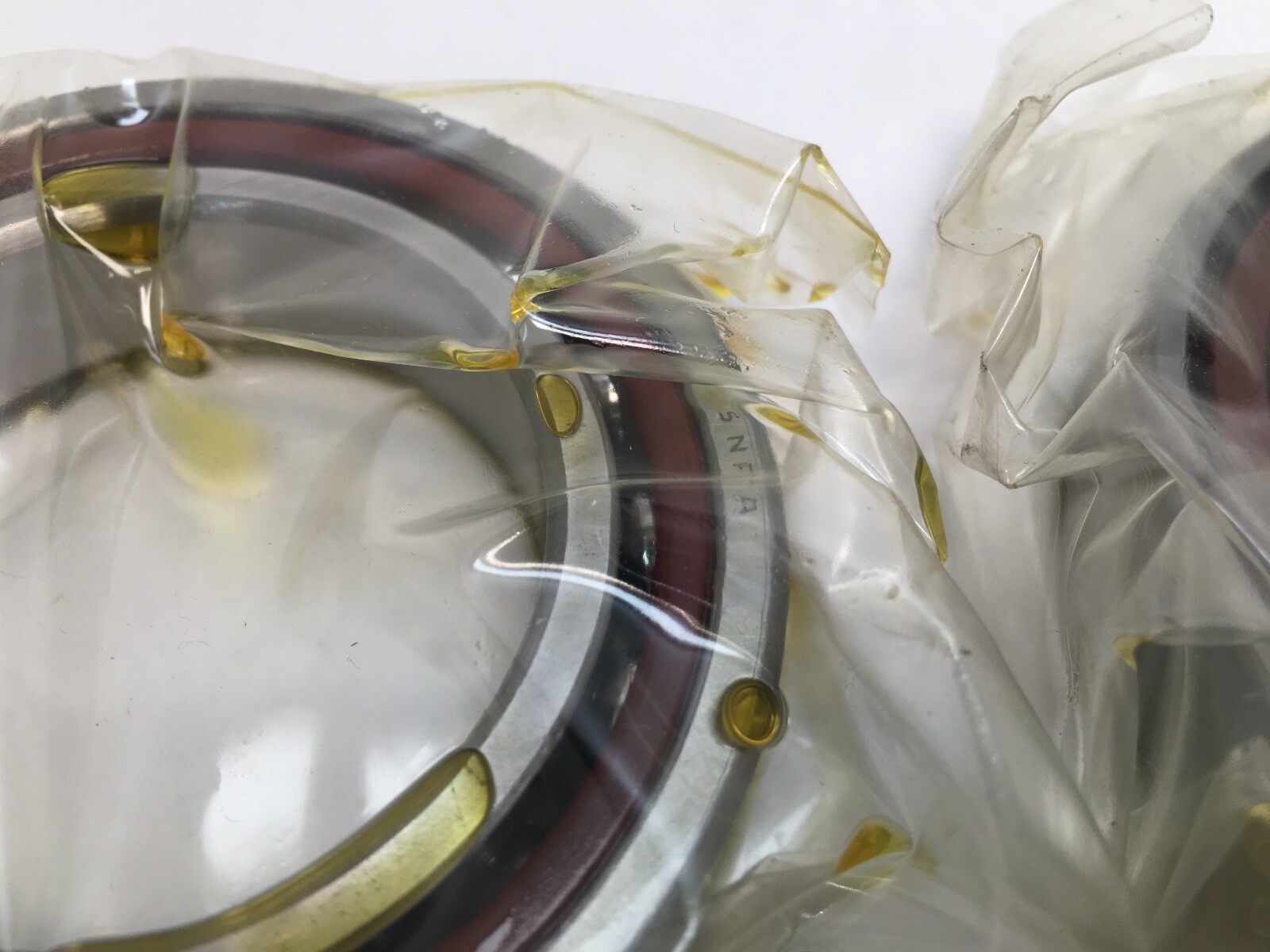

SNFA EX50-7CE1DUL is a matched set of two super-precision single-row angular contact ball bearings from the SNFA EX high-capacity series, ISO dimension series 10. Bore Diameter: 50 mm. Outside Diameter: 80 mm. Width: 16 mm per bearing. Contact Angle: 15°. Precision Class: ABEC 7 / P4. The closest SKF high-capacity D design pair is the 7010 CD/P4ADGA, at extra light rather than light preload.

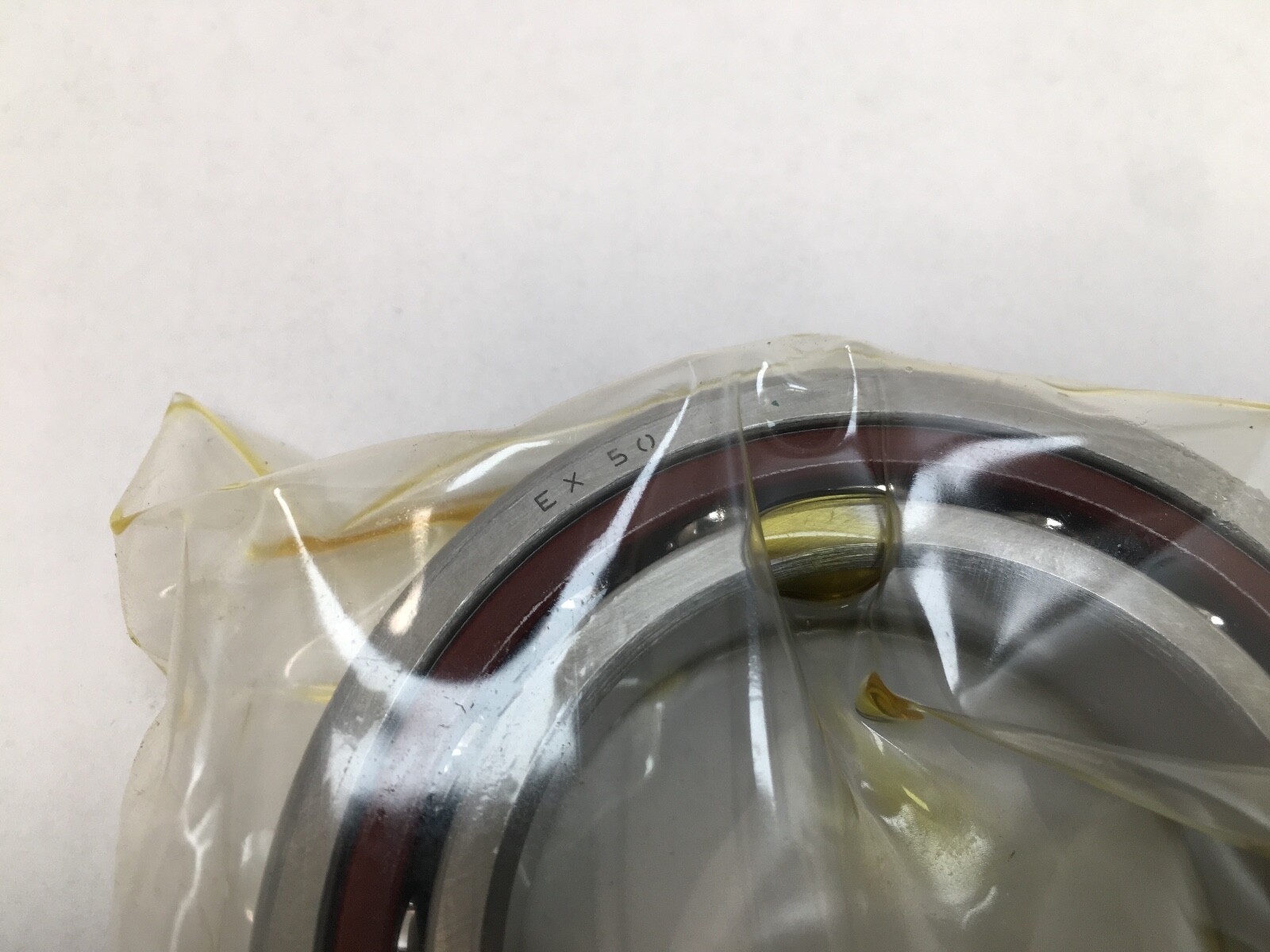

EX — SNFA high-capacity angular contact series, ISO dimension series 10 (70xx envelope).
50 — bore diameter in millimetres.
7 — SNFA precision grade, ABEC 7 (ISO P4).
C — phenolic resin cage.
E — cage centred on the outer ring.
1 — 15° contact angle.
DU — universal duplex set: two bearings ground for back-to-back, face-to-face or tandem mounting.
L — light preload.
Dynamic Load Rating: 29,600 N per bearing. Static Load Rating: 24,000 N per bearing. Limiting Speed: 17,000 rpm grease; 28,000 rpm oil-air, single bearing. The 15° angle favours radial stiffness and speed; light preload keeps heat generation low.
Item Weight: 0.249 kg (0.55 lb) per bearing. Cage Type: Outer-ring guided. Cage Material: Phenolic. Closure Type: Open.
Unit Quantity: 2 Pcs. Mounting Arrangement: Universal matched pair, back-to-back, face-to-face or tandem. Preload: Light.
SKF owns SNFA and lists the EX series alongside its 70 .. CD range. Parts with the same 50 x 80 x 16 mm size and 15° contact angle: NSK 7010CTRDULP4 and Fafnir 2MM9110WICRDUL are light preload pairs (the Fafnir is P4S tolerance). FAG B7010-C-T-P4S-UL is a single bearing at light preload. SKF 7010 CD/P4ADGA and SKF 7010 CDGA/P4A are extra light preload, the first a pair and the second a single bearing.
