Availability:
1 in stock

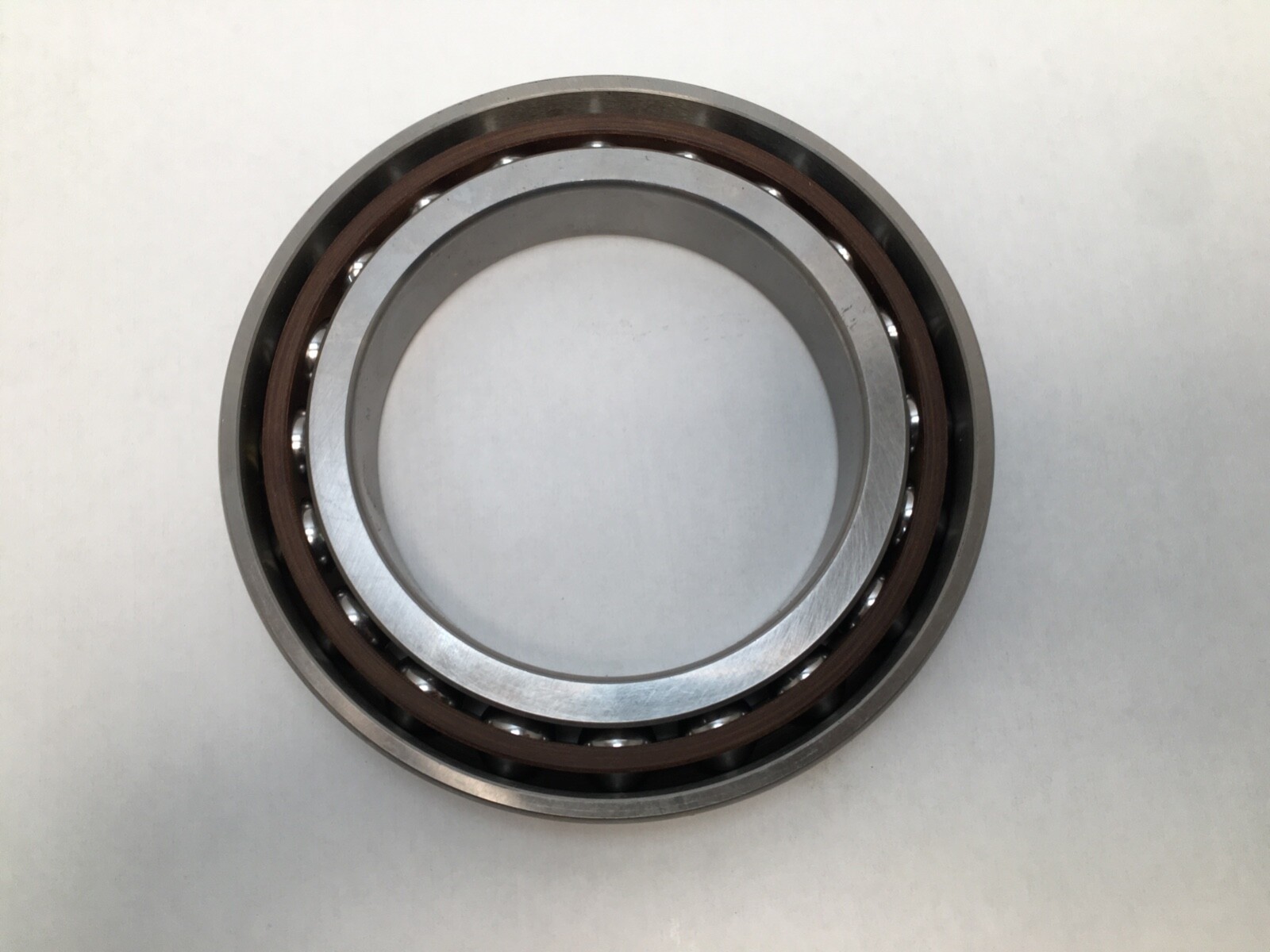

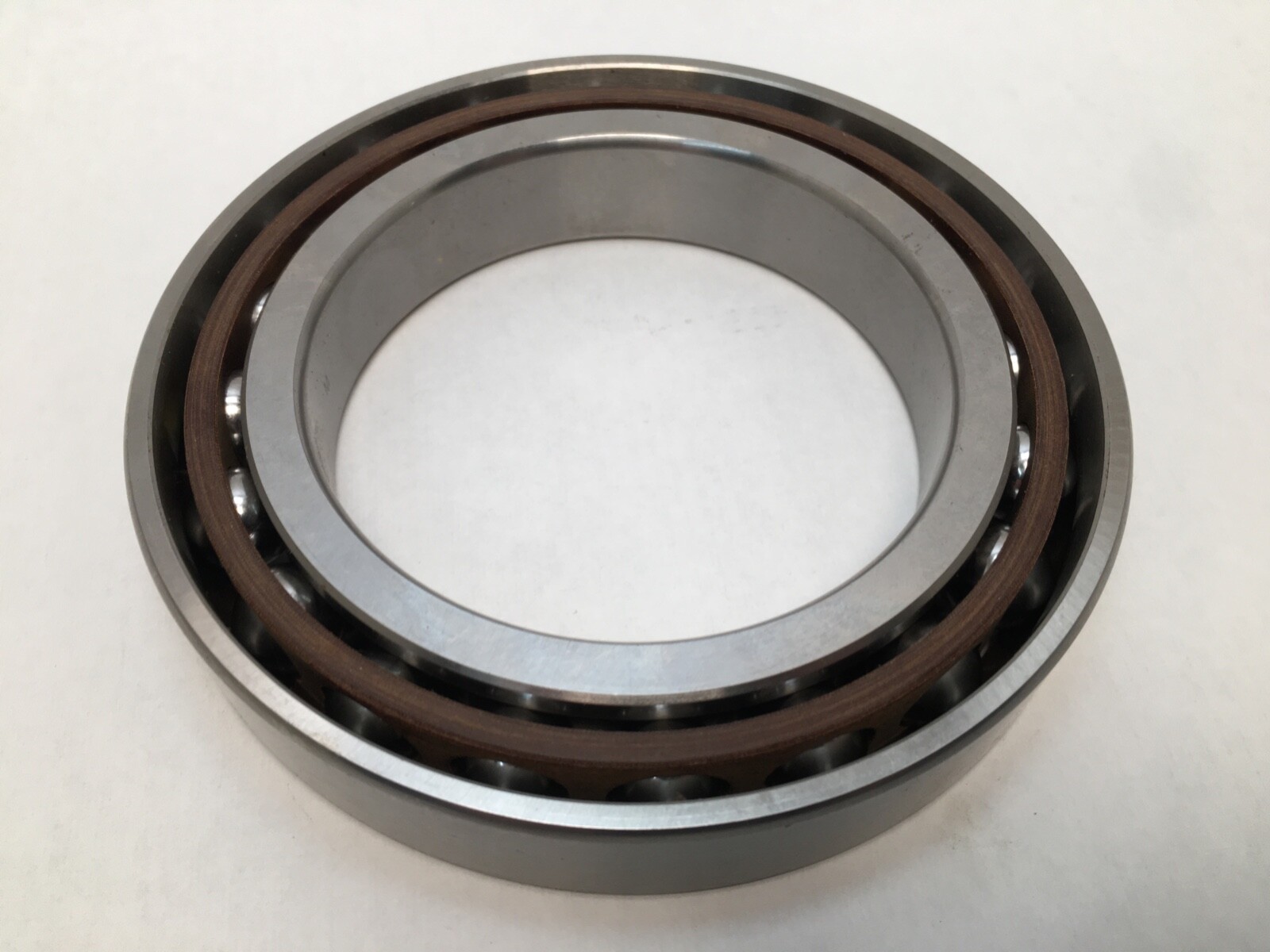

Super precision angular contact ball bearing, 95 x 145 x 24 mm, 15° contact angle, light preload, laminated phenolic cage, P4 tolerance, universally ground.
List Price
$726.67
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | RHP |
|---|---|
| MPN | 7019CTSULP4 |
| Model | 7019CT SUL P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 95 mm (3.7402 in) |
| OD | 145 mm (5.7087 in) |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Condition | New – Open box |
| Preload | Light |
| Base Number | 7019 |
| Industry Terms | Machine tool spindle bearing; super precision angular contact; universally ground single; ABEC 7 spindle bearing |

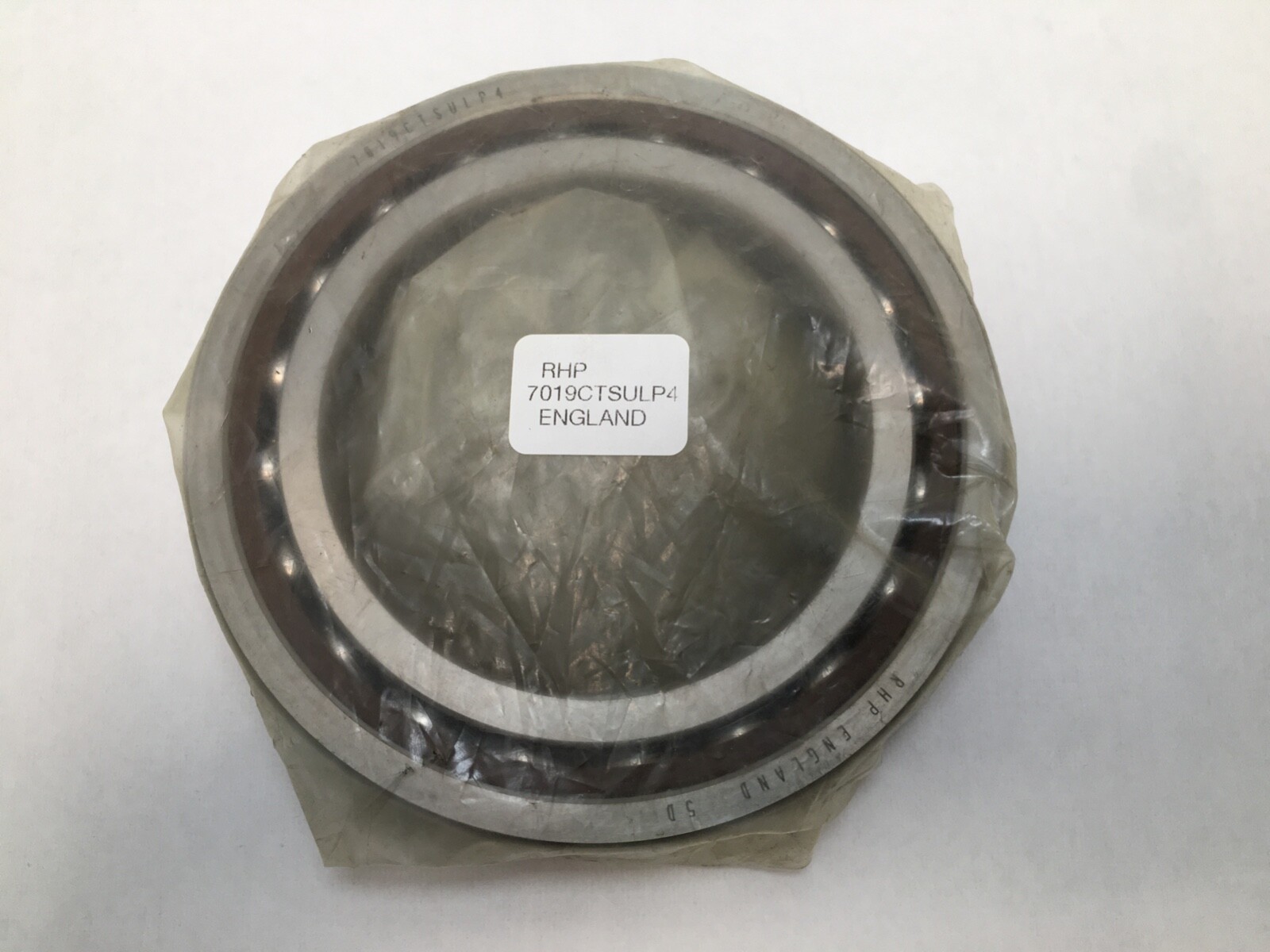

| Condition Note | Made In England, New, No Box |
| Bore Shaft Size | 95 mm (3.7402 in) |
| Mpn Variants | 7019CTSULP4; 7019-C-T-SUL-P4; 7019 CT SUL P4; 7019CTRSULP4; 7019C |
| Arrangement Configuration | SU — single universally ground bearing, matchable back-to-back, face-to-face or tandem |
| Precision Class | P4 (ABEC 7, RHP EP7, ISO Class 4) |
| Additional Attributes | Axial stiffness, paired at light preload: 124 N/µm. Effective load centre a: 28.1 mm. Abutment: d1 104 mm max, D1 136 mm min, D2 139 mm max. Corner radius r 1.5 mm min, r1 1.0 mm min. Internal free volume 51.8 cm³. |
| Min Temp | -30°C |
| Cage Type | Machined, outer ring guided |
| Dynamic Load Rating | 73,500 N (16,520 lbf) |
| Static Load Rating | 73,000 N (16,410 lbf) |
| Precision Rating | P4 / ABEC 7 / EP7 / ISO Class 4 |
| Rolling Elements | Steel balls |
| Max Temp | 120°C |
| Item Weight | 2.67 lb (1.211 kg) |
| Cage Material | Laminated phenolic resin |
| Limiting Speed | 14,000 rpm oil/air; 8,600 rpm grease |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | N/A — preloaded |
| Lubricant | Oil/air or grease |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal face control |
| Design Units | Metric |
| Bearing Material | Through-hardened carbon chrome bearing steel (SAE 52100) |
| Part Number | 7019CTSULP4 |
| Running Accuracy Radial And Axial Runout | P4: inner ring radial runout 5 µm max, outer ring radial runout 5 µm max |
| Cross Reference 1 | SKF 7019 CD/P4ADGA |
|---|---|
| Cross Reference 2 | FAG B7019-C-T-P4S |
| Cross Reference 3 | NSK 7019A5TYNSULP4 (related size, 25° contact angle, polyamide cage) |
| Cross Reference 4 | Fafnir 2MM9119WI |
| Cross Reference 5 | SNFA EX95-7CE1 |

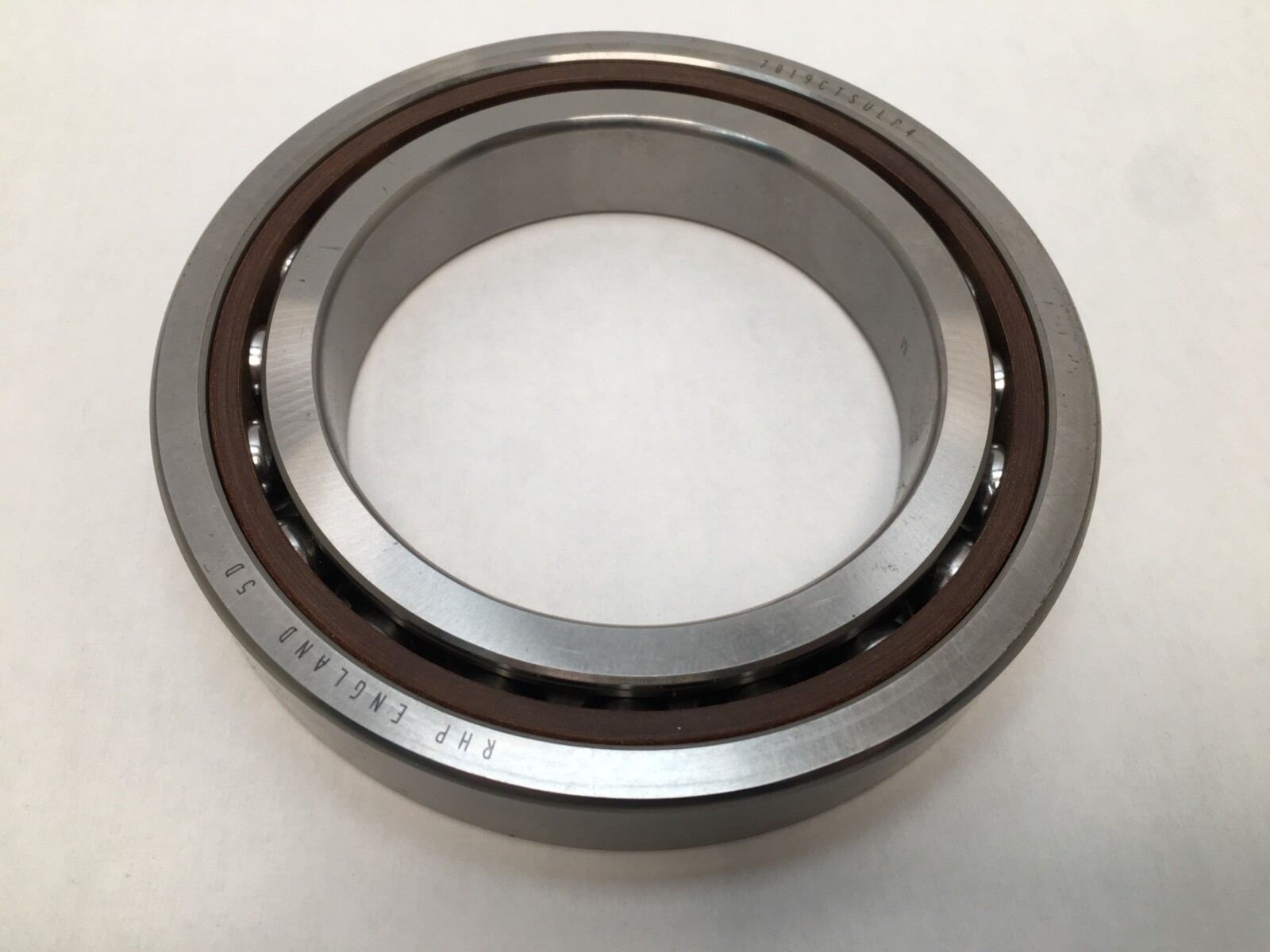

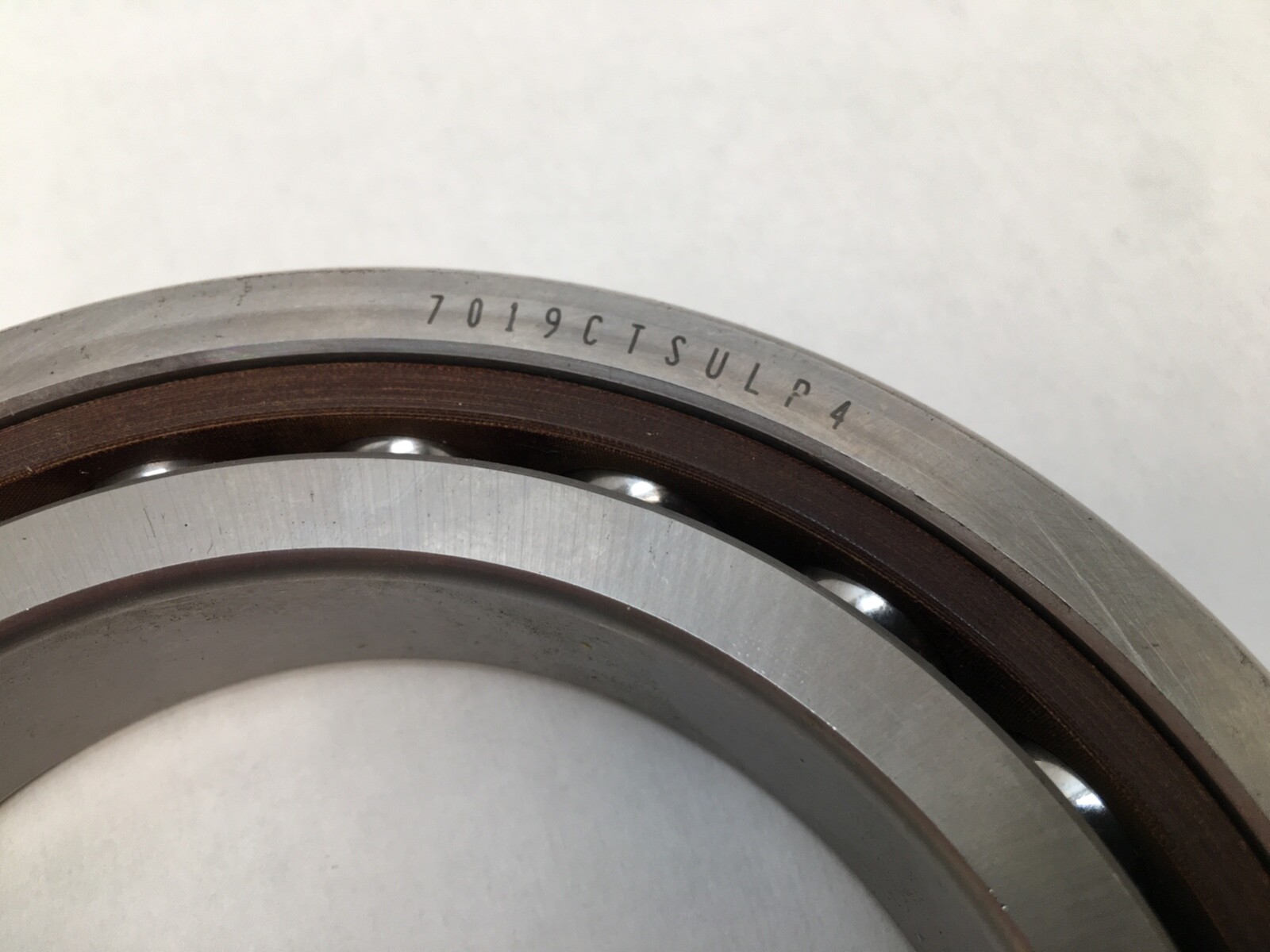

RHP 7019CTSULP4 super precision angular contact ball bearing. Series: 70, ISO dimension series 10. Bore: 95 mm. Outside Diameter: 145 mm. Width: 24 mm. Country of origin: United Kingdom. Searchable forms: 7019CTSULP4, 7019-C-T-SUL-P4, 7019 CT SUL P4, 7019CTRSUL, 7019C.
Contact Angle: 15°. Cage: laminated phenolic resin, outer ring guided. Grouping: SU, a single universally ground bearing. Preload: Light, 540 N axial when paired. Precision Grade: P4 — ABEC 7, RHP EP7, ISO Class 4.
Dynamic Load Rating: 73,500 N. Static Load Rating: 73,000 N. Limiting speed: 14,000 rpm on oil/air, 8,600 rpm on grease. A 15° contact angle carries more speed and less thrust than a 25°. Light preload is the level chosen for most spindles where loads and speeds are not extreme, and it gives a paired axial stiffness of 124 N/µm. The laminated phenolic cage runs quietly at speed and is rated to 120 °C.
One bearing. Universal grinding means any two of these bearings form a matched pair at the light preload value, in back-to-back, face-to-face or tandem order, and three or more stack into DBD, DBB or DTD sets.

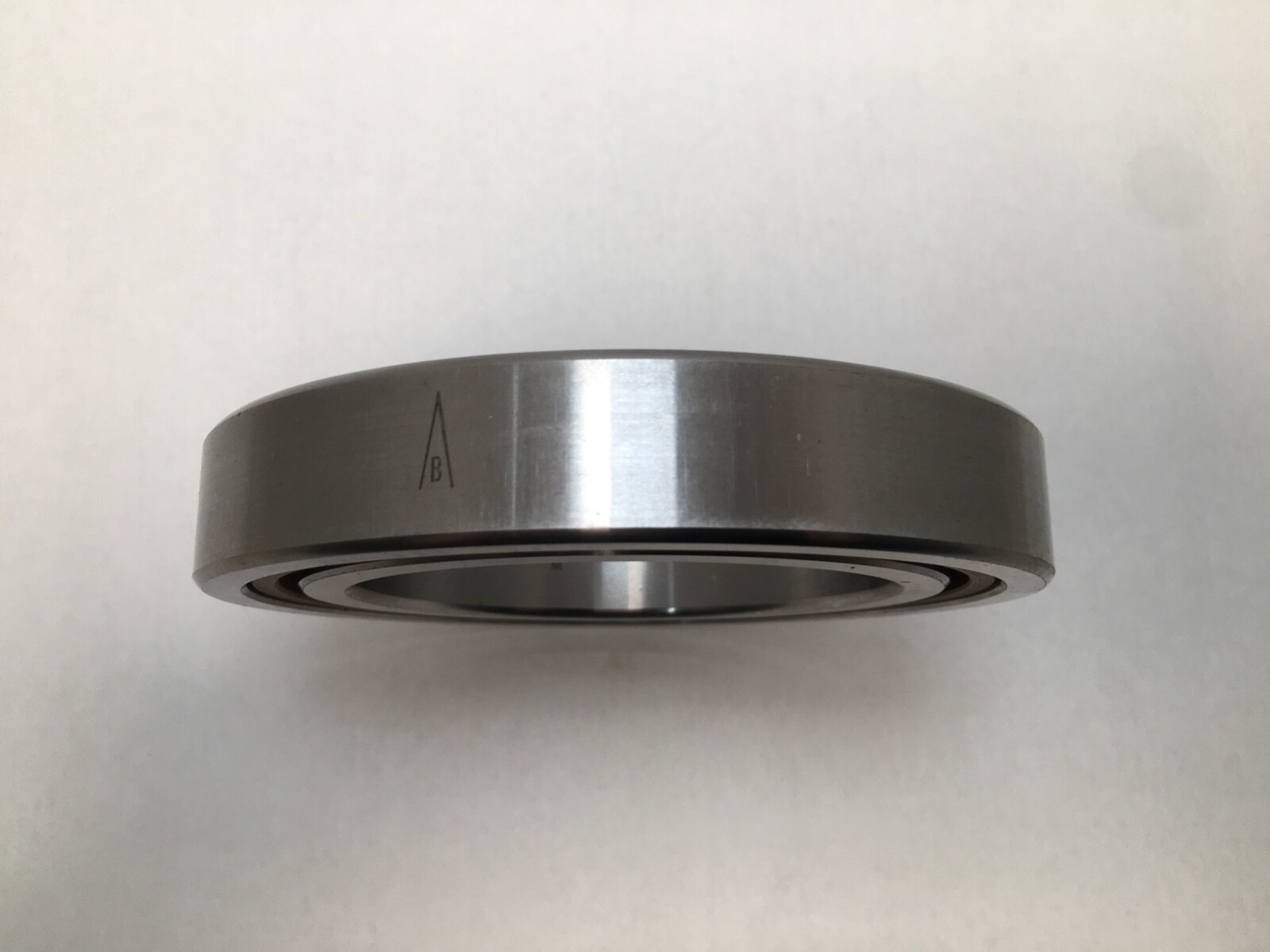

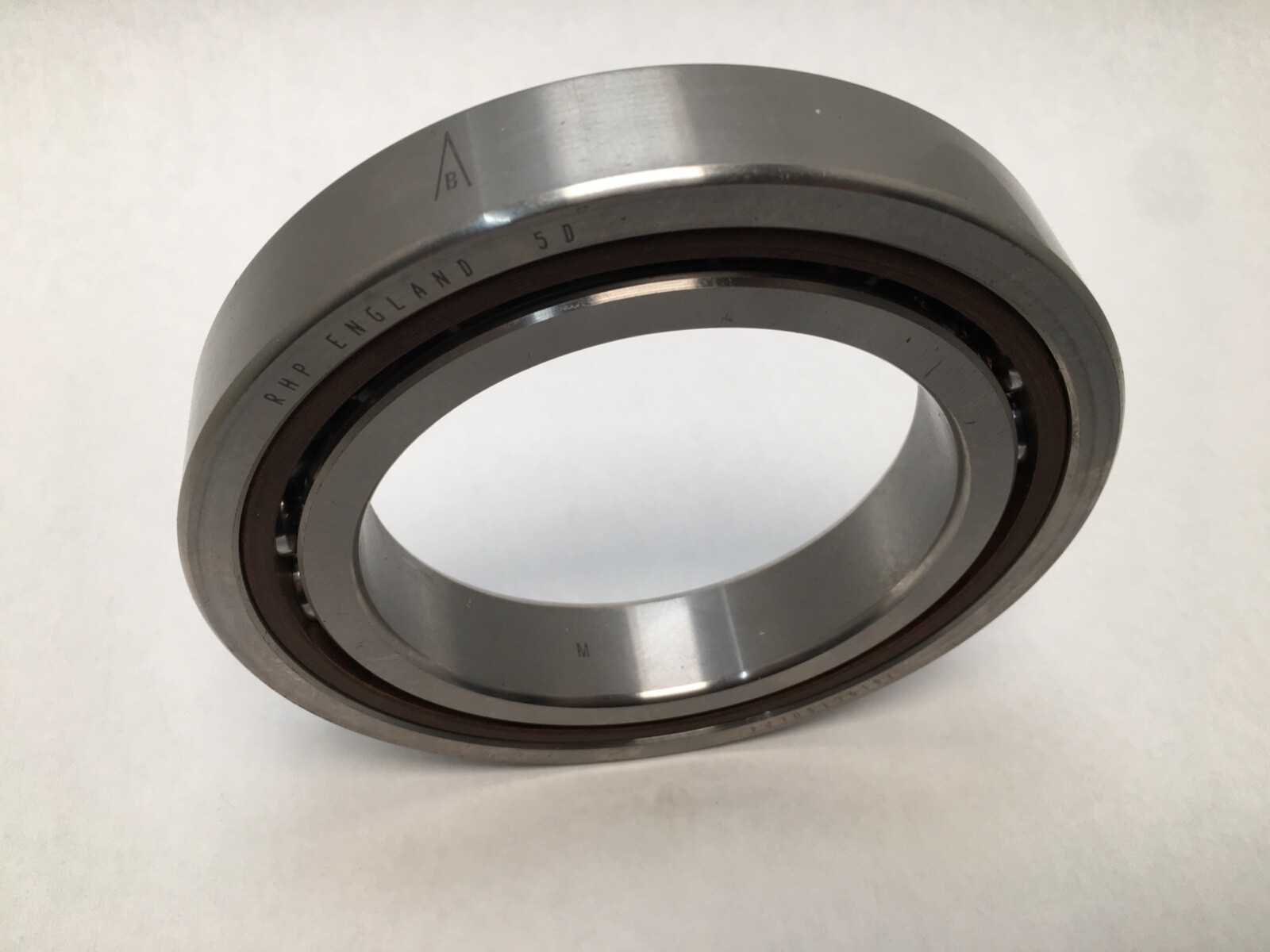

Effective load centre: 28.1 mm. Abutment dimensions: shaft shoulder 104 mm maximum, housing shoulder 136 mm minimum, outer ring abutment 139 mm maximum. Corner radii: 1.5 mm minimum outer, 1.0 mm minimum inner. Recommended shaft fit at P4 for a 95 mm seat is a mean 3 µm interference; a locating housing bore takes a mean 6.5 µm clearance. Internal free volume is 51.8 cm³, which sets the grease charge at 20 to 30 per cent fill. The high point of radial runout is marked by a burnished spot on the inner ring face and a V line on the outer ring diameter.
Same-spec equivalents: SKF 7019 CD/P4ADGA, FAG B7019-C-T-P4S, Fafnir 2MM9119WI, SNFA EX95-7CE1. Related size: NSK 7019A5TYNSULP4, the 25° version of the same envelope.
