Angular Contact Ball Bearing - 30 mm ID, 55 mm OD, 13 mm Width, Open, 25° Contact Angle, ABEC 7 / P4, Medium Preload$38.17
Angular Contact Ball Bearing — 30 mm Bore, 55 mm OD, 13 mm Width, 25° Contact Angle, P4S, Universal Light Preload$38.60
Super-Precision Angular Contact Ball Bearing 30 x 55 x 13 mm, 15 Degree Contact Angle, P4 ABEC 7, Phenolic Cage, Heavy Preload Duplex Half, Open, 1 Pc$40.72
Angular Contact Ball Bearing — 30 mm ID, 55 mm OD, 13 mm Width, Open, 25° Contact Angle, Medium Preload$60.41| MFR / Brand | SNFA |
|---|---|
| MPN | EX30-9CE3DUM |
| Model | EX 30 9 CE 3 DUM / 7006A5 / 7006 E T P2 DUM / 3MMV9106 WI CR DUM |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 55 mm |
| Width | 13 mm |
| Material | Bearing Steel |
|---|---|
| Series | EX |
| Lubricant | Oil/Grease |
| Preload | Medium |
| Running Accuracy | P2 |
| Min Temp | -30 °C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 13.2 kN / 2967 lbf |
| Static Load Rating | 7.9 kN / 1775 lbf |
| Precision Rating | ABEC 9 / P2 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.25 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Limiting Speed | 32000 rpm |
| Cross Reference 1 | Fafnir 2MM9306WI-DUM |
|---|---|
| Cross Reference 2 | SKF 71906 CD/P4ADGB |

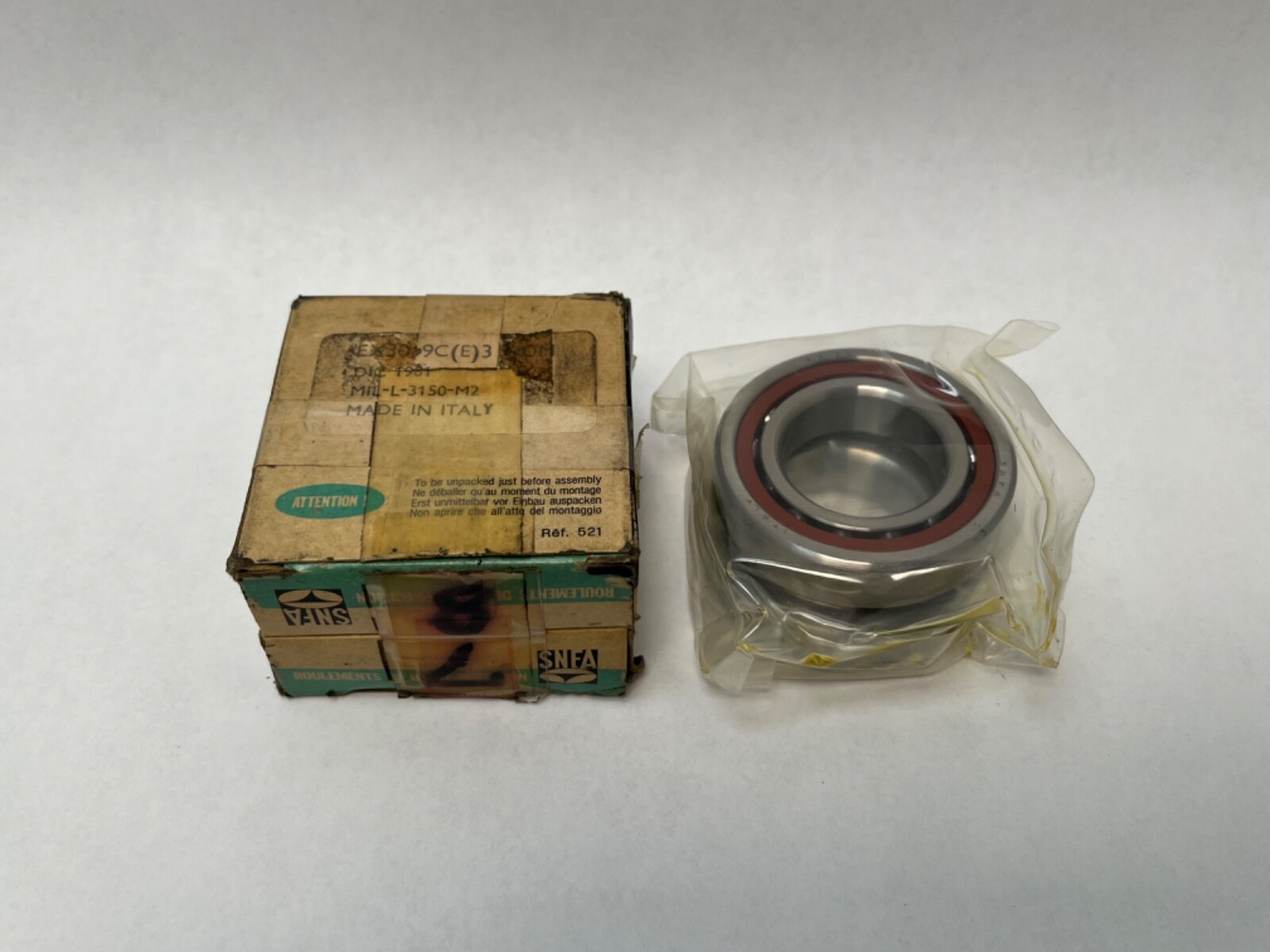

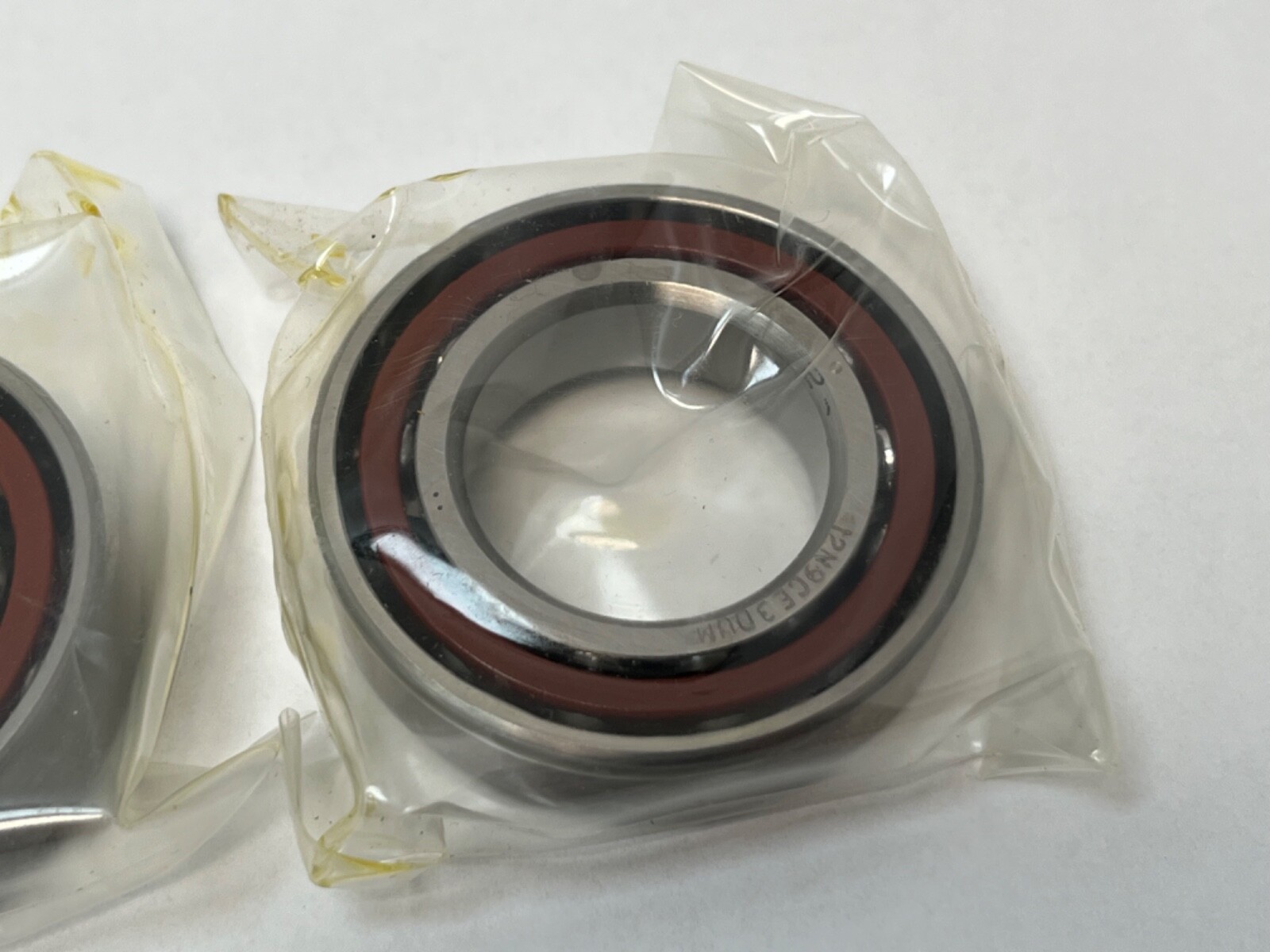

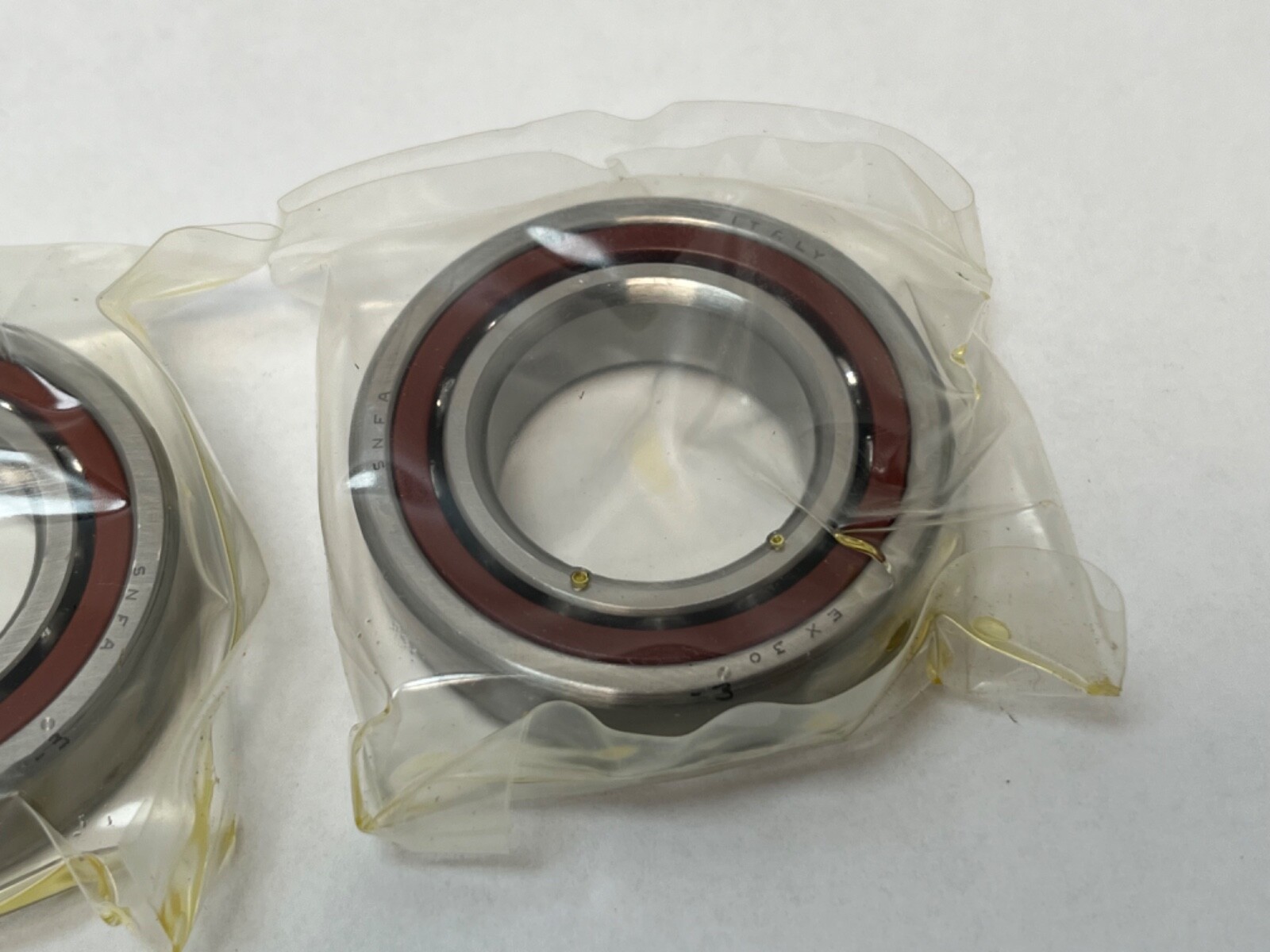

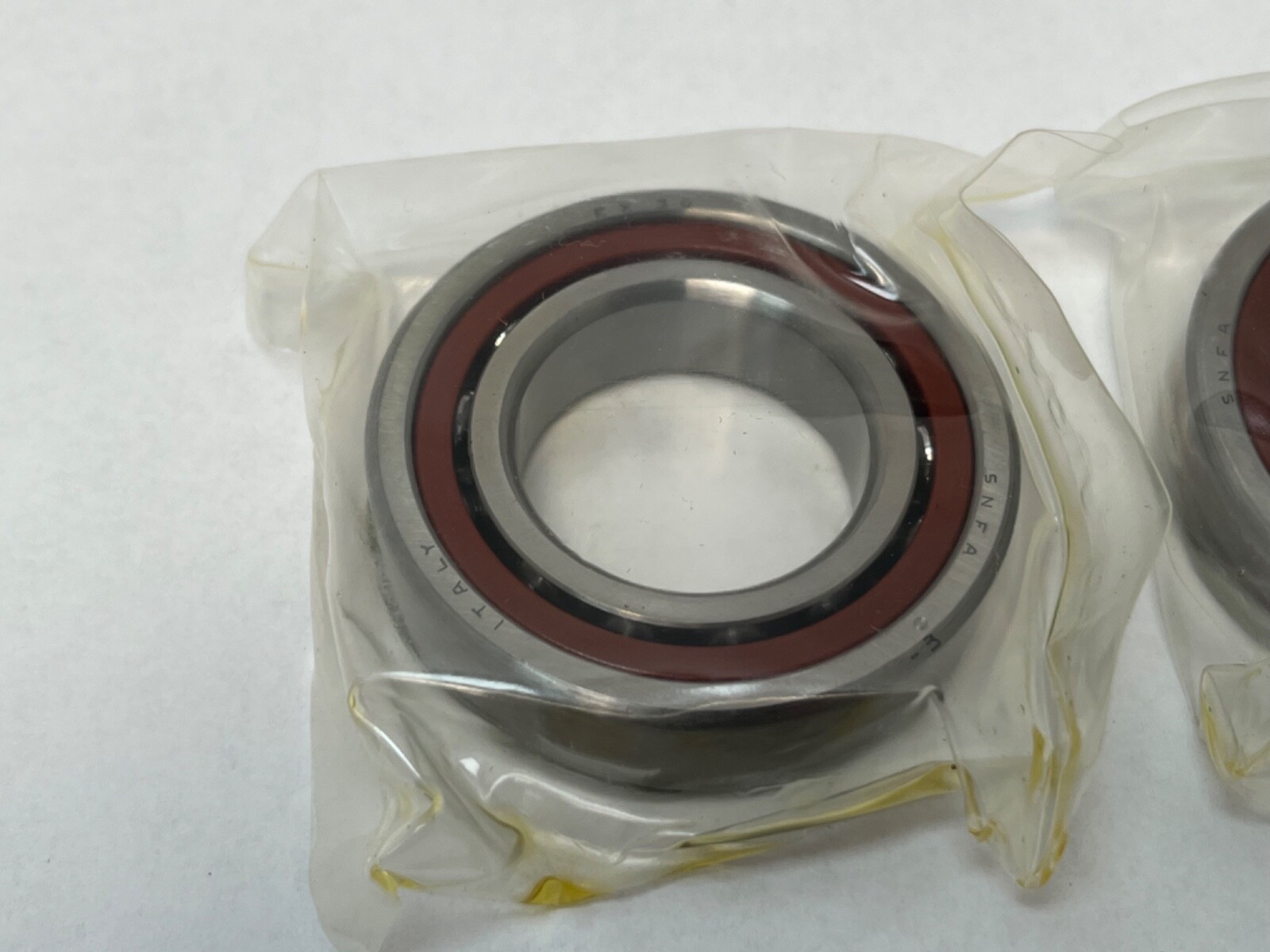

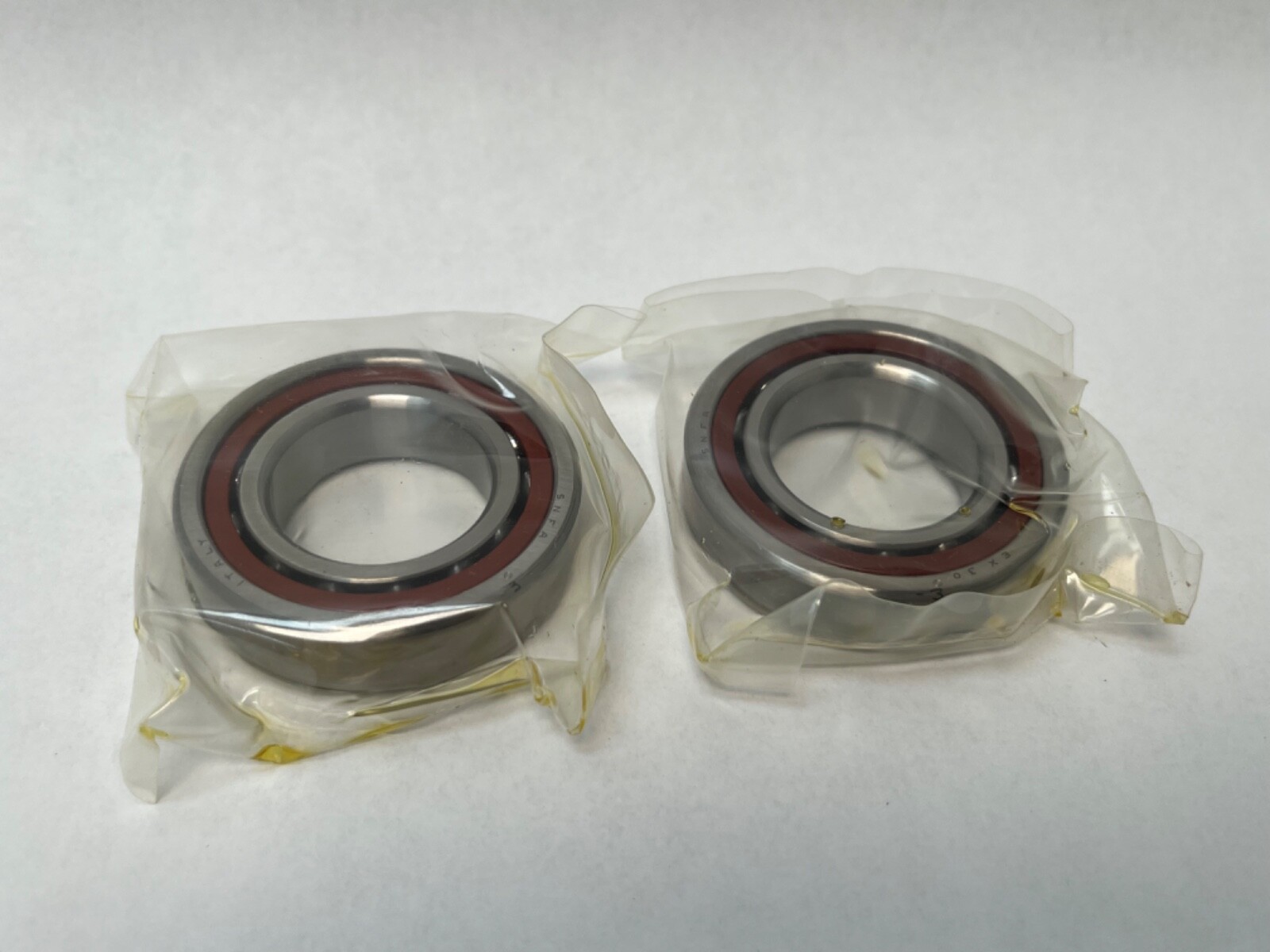

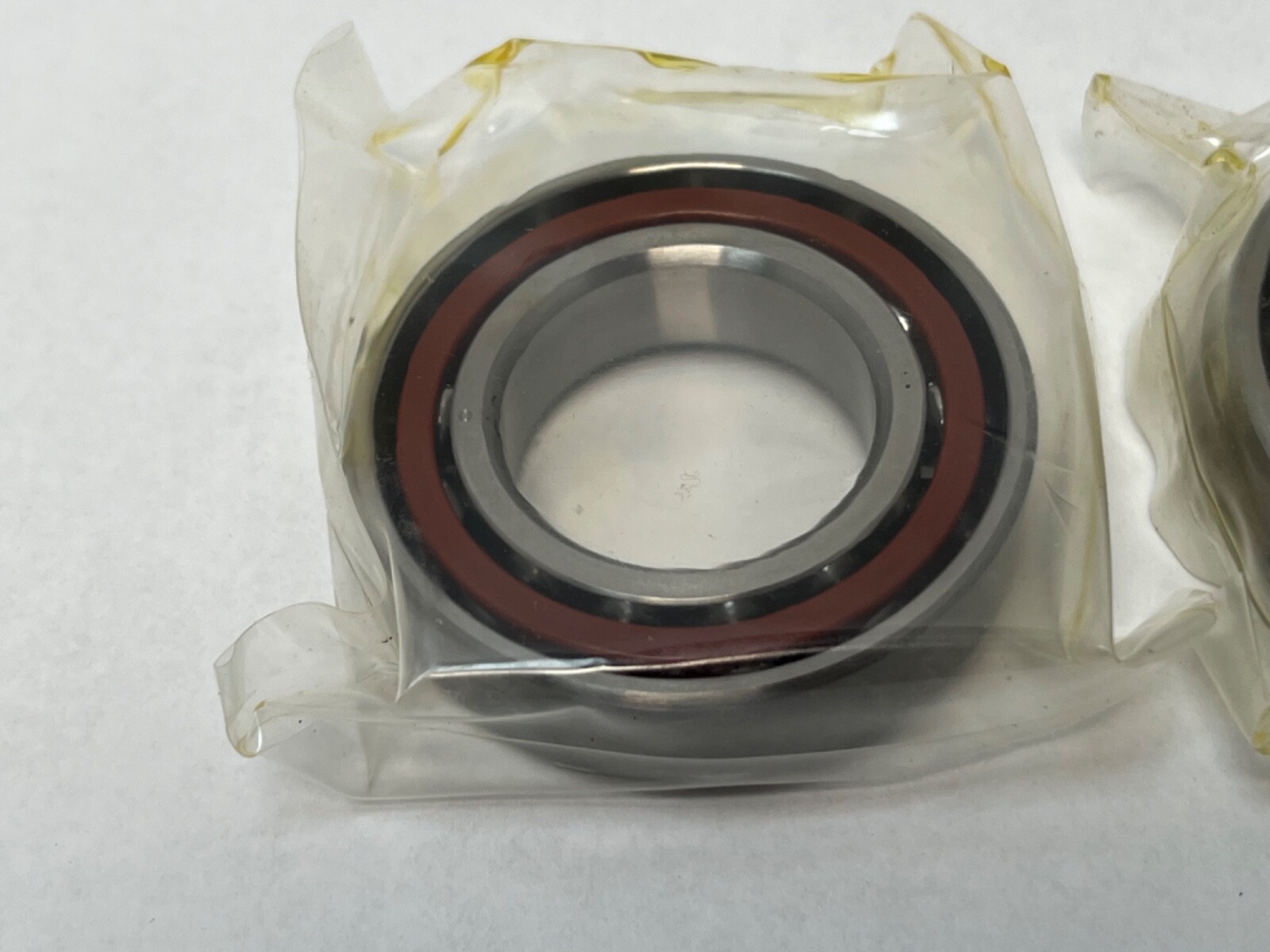

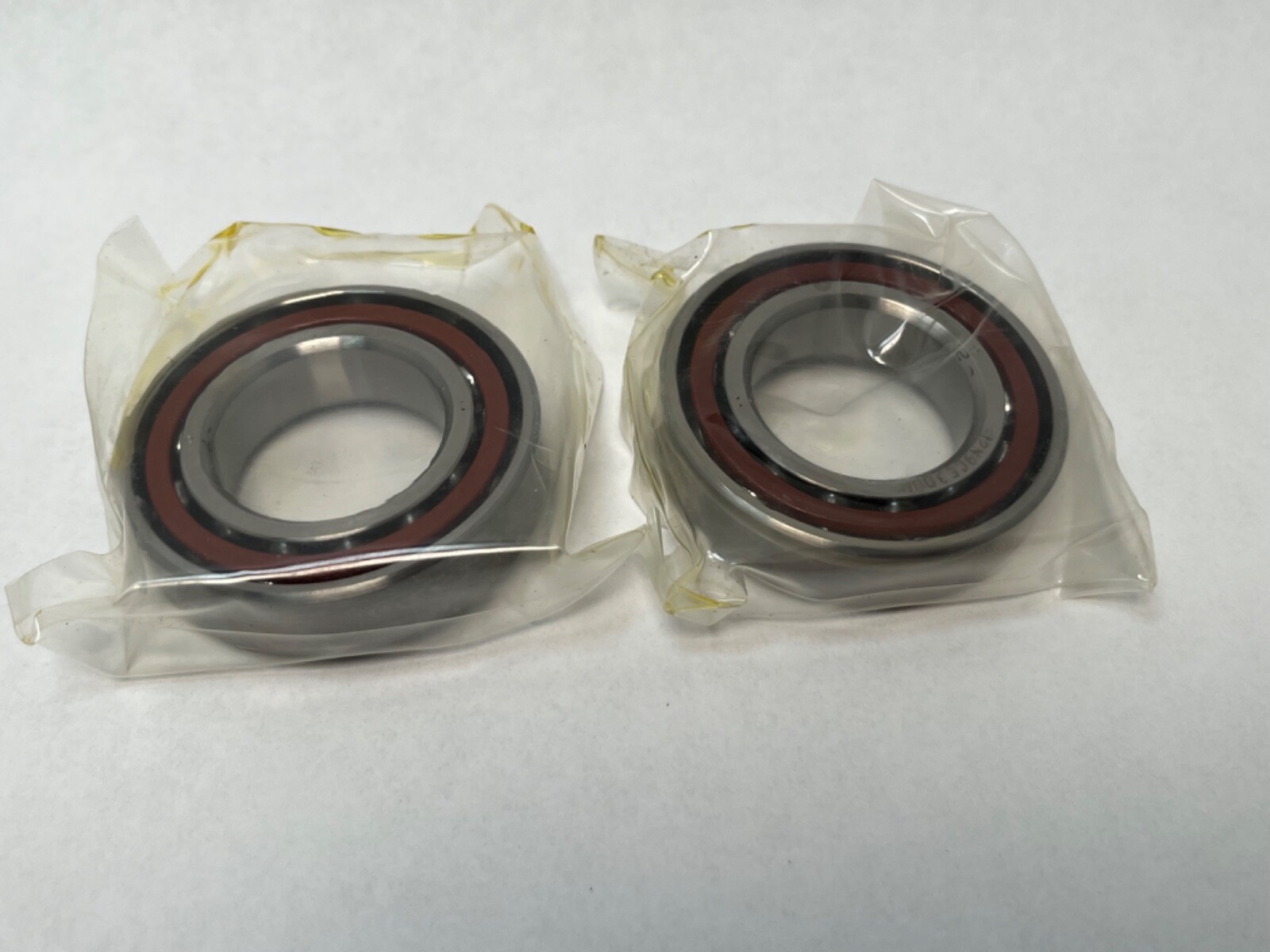

SNFA EX30-9CE3DUM Bearing – 30x55x13 mm | Pack of 2
Experience exceptional performance with the SNFA EX30-9CE3DUM Angular Contact Ball Bearing, designed for precision and reliability in a wide range of applications. Manufactured in Italy, this bearing not only meets but exceeds the prestigious ABEC9 tolerance rating, ensuring superior accuracy in operation.
Measuring 30x55x13 mm, each package contains two high-quality bearings (MPN: EX30-9CE3DUM) that enhance operational efficiency and longevity. Engineered for minimal friction, this innovative design guarantees a smoother operation and increased durability, making it ideal for precision machinery across various industries.
High precision with ABEC9 rating
Angular contact type for enhanced load carrying capacity
Robust construction for long-lasting performance
If you need additional components, do not hesitate to reach out. We offer competitive pricing and can source all necessary parts to meet your needs. Enjoy our international shipping services, including combined shipping options for all orders. Our commitment to customer satisfaction includes same-day shipping for urgent requests and next-day shipping available at checkout.
Elevate your operations with the SNFA EX30-9CE3DUM Bearing! Order now to experience unparalleled quality and service.
