Availability:
1 in stock
RHP 7006CTDUHP4-1/2PR super-precision angular contact ball bearing, 30 x 55 x 13 mm, 15 degree contact angle, P4, phenolic cage, heavy preload. 1 Pc.
List Price
$40.72
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7006CTDUHP4-1/2PR |
| Model | B7006X2TADUHEP7 / 7006 C T DUH P4 / 2MM9106WI CR DUH |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 55 mm |
| Width | 13 mm |
| Series | 7000 |
|---|---|
| Preload | Heavy |
| Base Number | 7006 |
| Industry Terms | spindle bearing; machine tool bearing; precision angular contact bearing; ABEC 7 bearing; half pair; duplex half |
| Common Misspellings | RPH; 7006CTDUHP4 1/2 PR; 7006 CTDUH P4 |
| Application Types | Machine tool spindles; grinding heads; precision rotary tables; high-speed gearboxes |
| Bore Shaft Size | 30 mm |
| Mpn Variants | 7006CTDUHP4-1/2PR; 7006CTDUHP4; 7006-C-T-DUH-P4; 7006 C T DUH P4; 7006CTDUH; 7006CTDUHP4 1/2PR |
| Manufacturer Status | RHP bearing production transferred to NSK; RHP designations map to NSK metric super-precision numbers |
| Precision Class | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Contact Angle | 15° |
| Part Number | 7006CTDUHP4-1/2PR |
| Cross Reference 1 | Fafnir 2MM9106WI CR DUH |
|---|---|
| Cross Reference 2 | NSK 7006CTYNDULP4 - light preload |
| Cross Reference 3 | NTN 7006UCG/GNP4 - normal preload |
| Cross Reference 4 | GMN S6006 CTA P4 DUL - light preload |

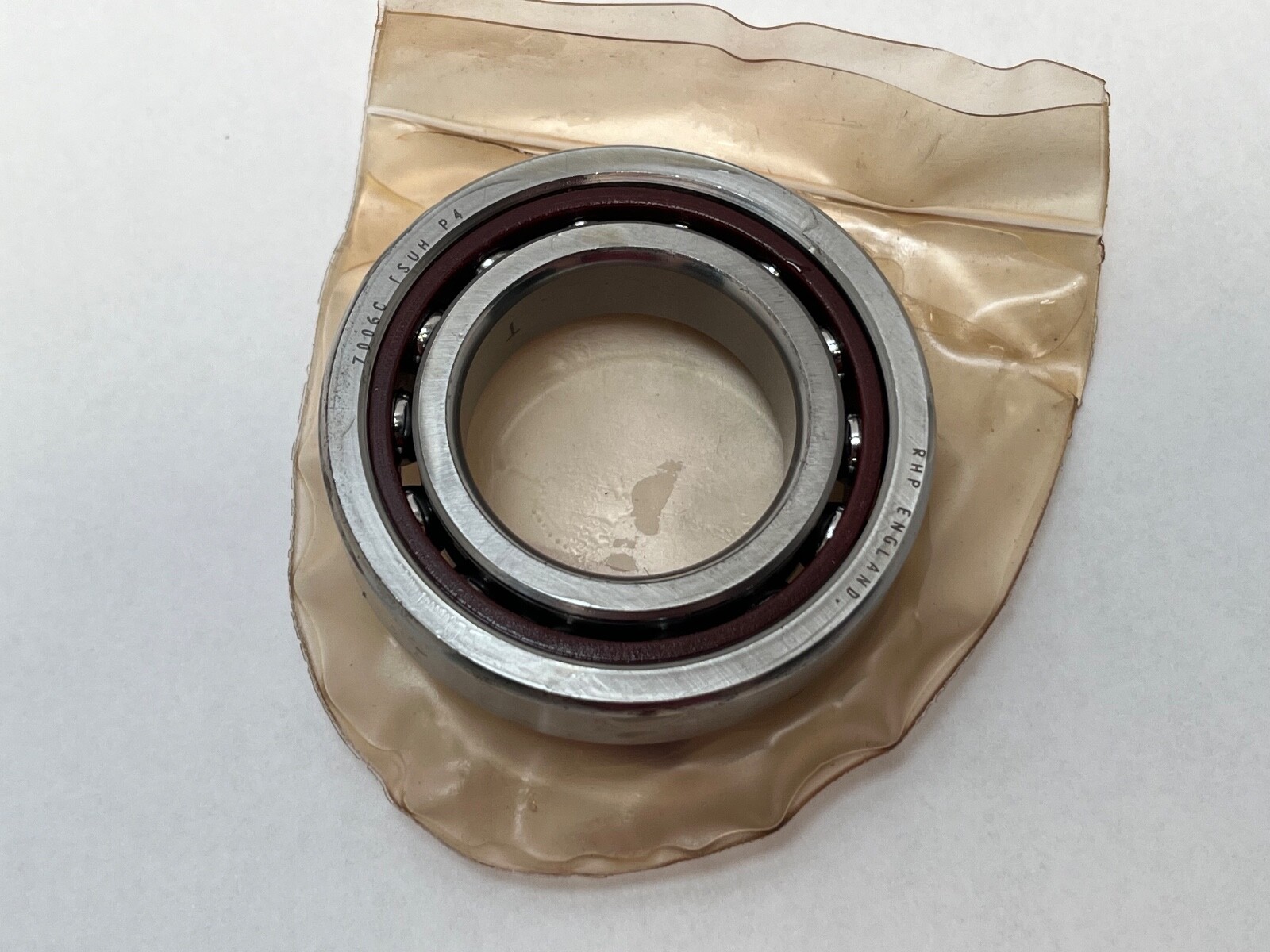

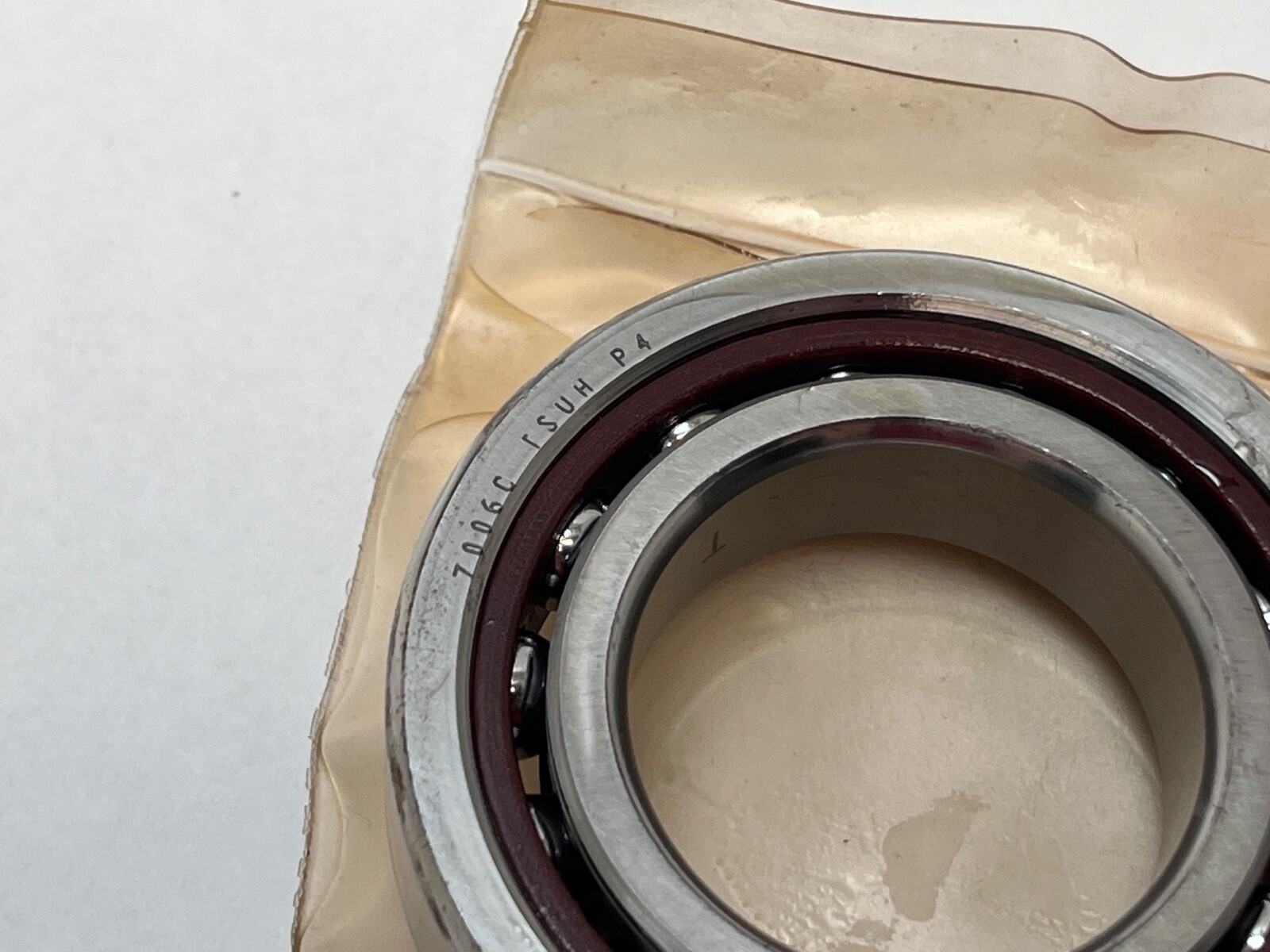

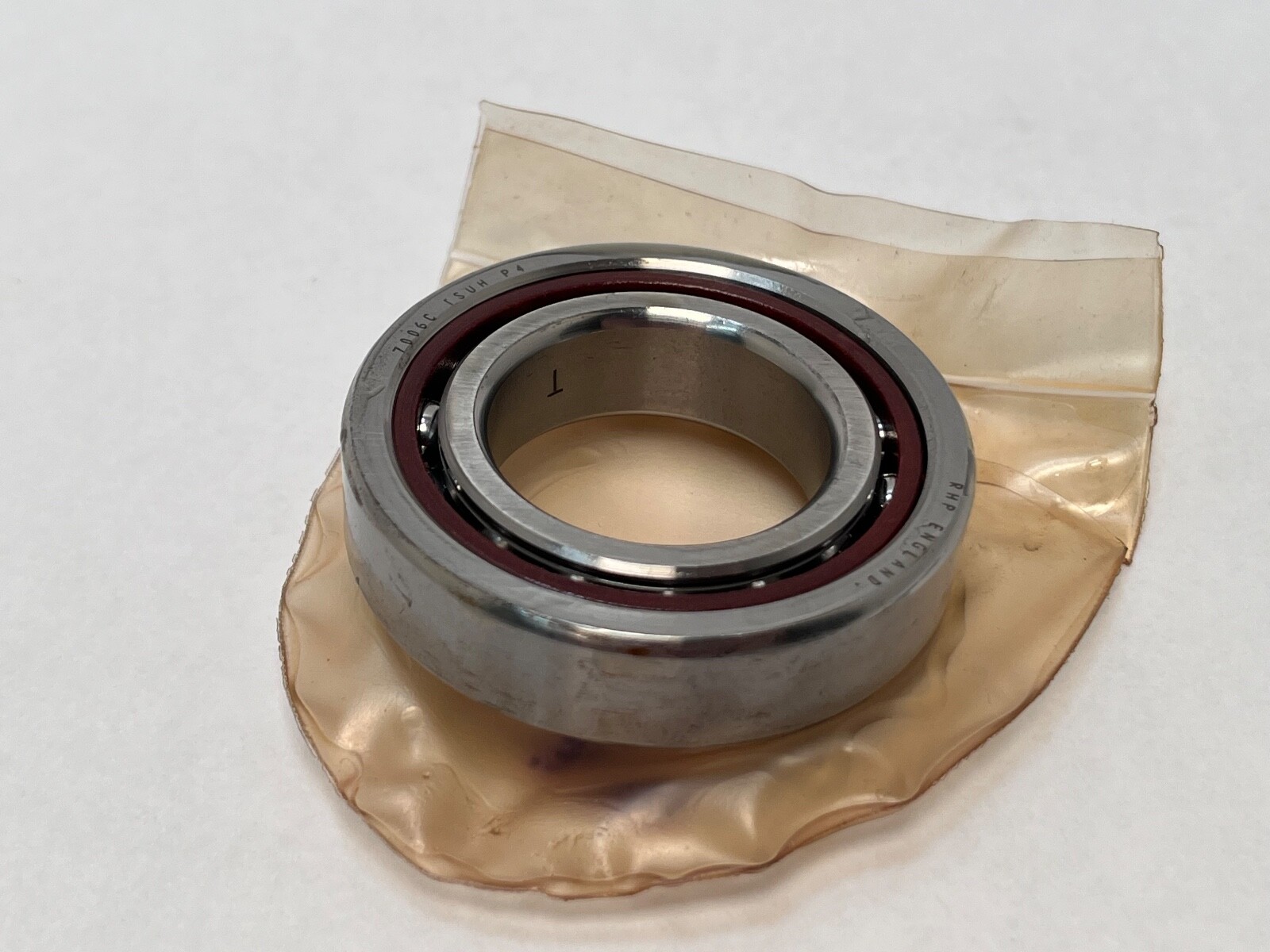

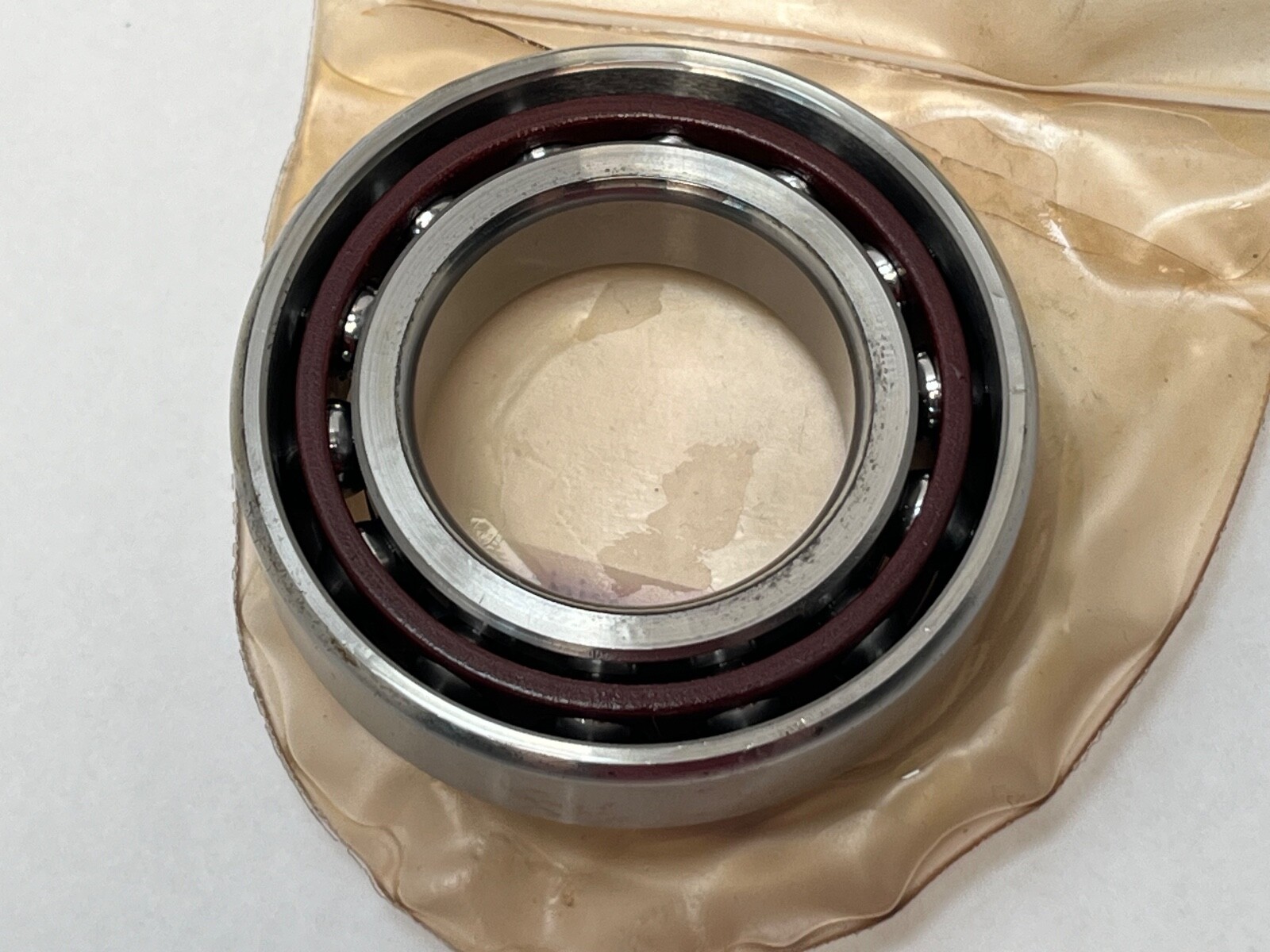

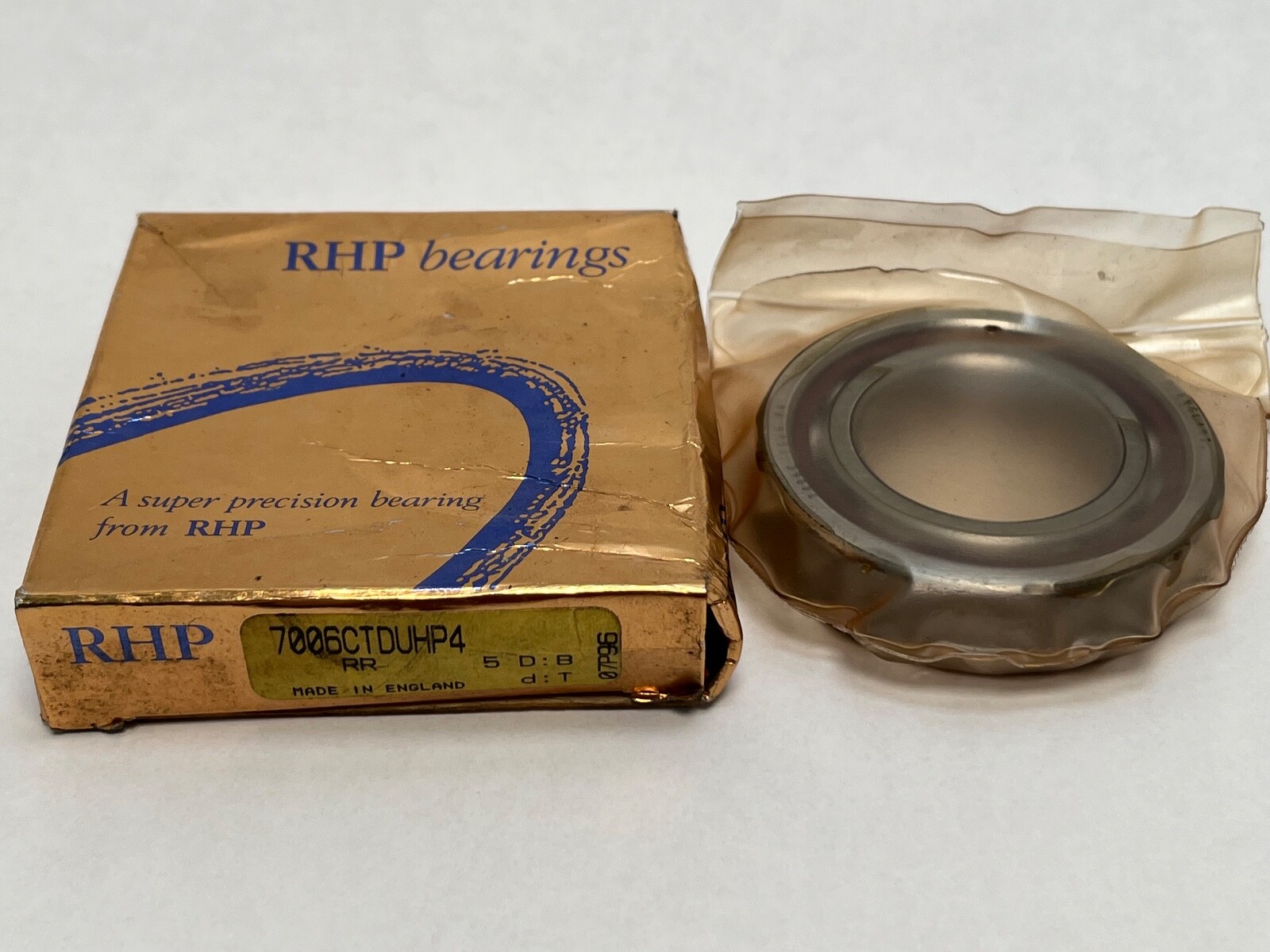

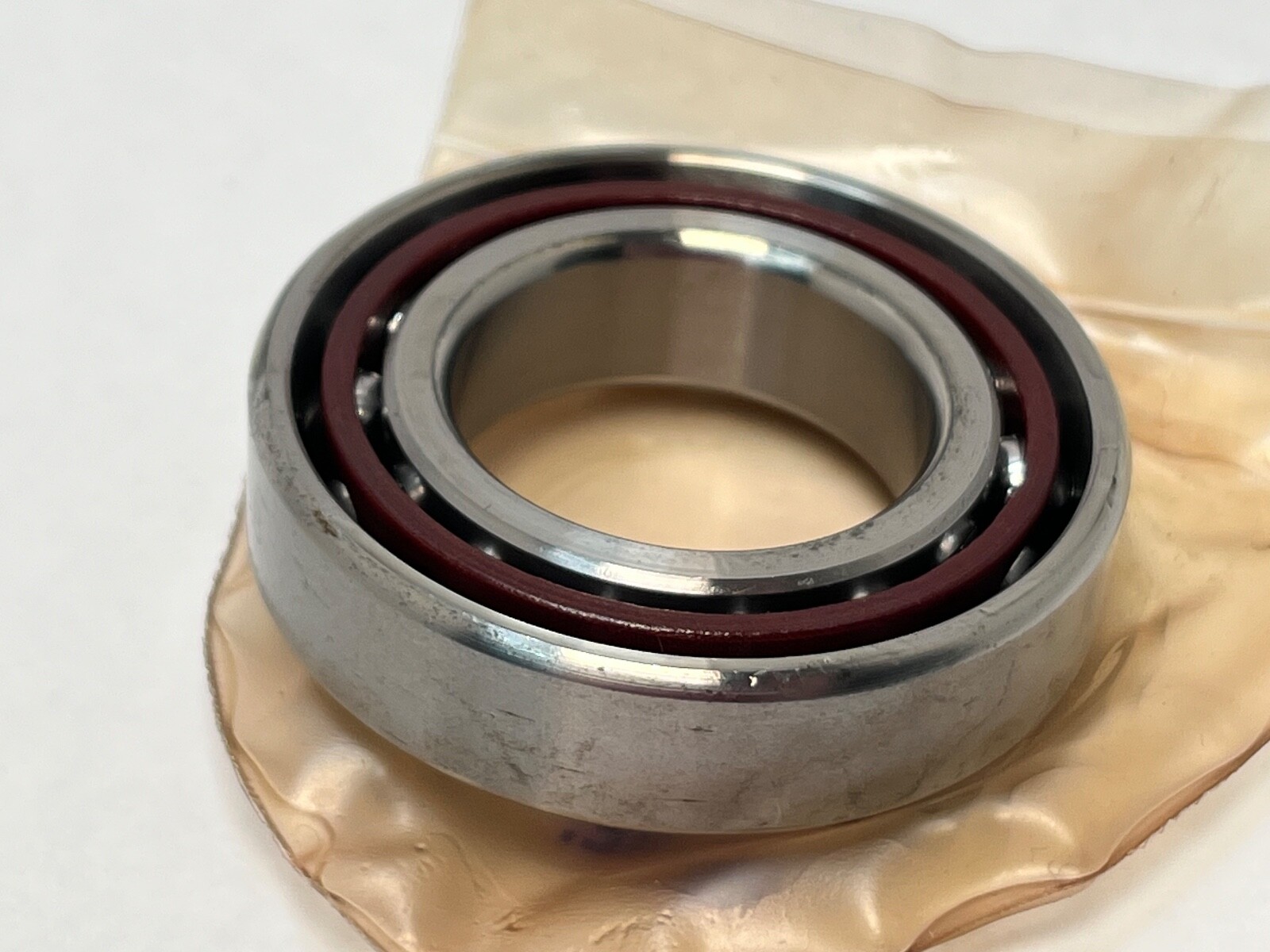

One RHP super-precision angular contact ball bearing, 7006 size: 30 mm bore, 55 mm outside diameter, 13 mm width. Open design, 15° contact angle, phenolic cage, P4 tolerance class (ABEC 7), ground as one half of a heavy-preload universally ground duplex set. The -1/2PR suffix marks one bearing of a pair. Unit Quantity: 1 Pc.
7006 — ISO 70-series angular contact size, 30 x 55 x 13 mm.
C — 15° contact angle in RHP nomenclature.
T — phenolic cage.
DU — duplex, universally ground.
H — heavy preload.
P4 — ABEC 7 tolerance class.
-1/2PR — half of a pair; one bearing.
Bore Diameter: 30 mm. Outside Diameter: 55 mm. Overall Width: 13 mm. Contact Angle: 15°. Cage Material: Phenolic. Precision Class: ABEC 7 / P4. Preload: Heavy. Rolling Elements: Ball. Closure Type: Open. Number Of Rows: 1. Unit Quantity: 1 Pc.
Envelope: 30 x 55 x 13 mm. Mounting Arrangement: single bearing from a duplex set, ground for universal pairing with a bearing carrying the same DUH code.
RHP bearing production passed to NSK. Cross-references: Fafnir 2MM9106WI CR DUH; NSK 7006CTYNDULP4 (light preload); NTN 7006UCG/GNP4 (normal preload); GMN S6006 CTA P4 DUL (light preload). RHP B-series designation: B7006X2TADUHEP7.
Half of a pair. This listing is one bearing. Unit Quantity: 1 Pc.
Contact Angle: 15° (C). Preload: Heavy (H).
Bore Diameter: 30 mm. Outside Diameter: 55 mm. Overall Width: 13 mm.
