Availability:
1 in stock

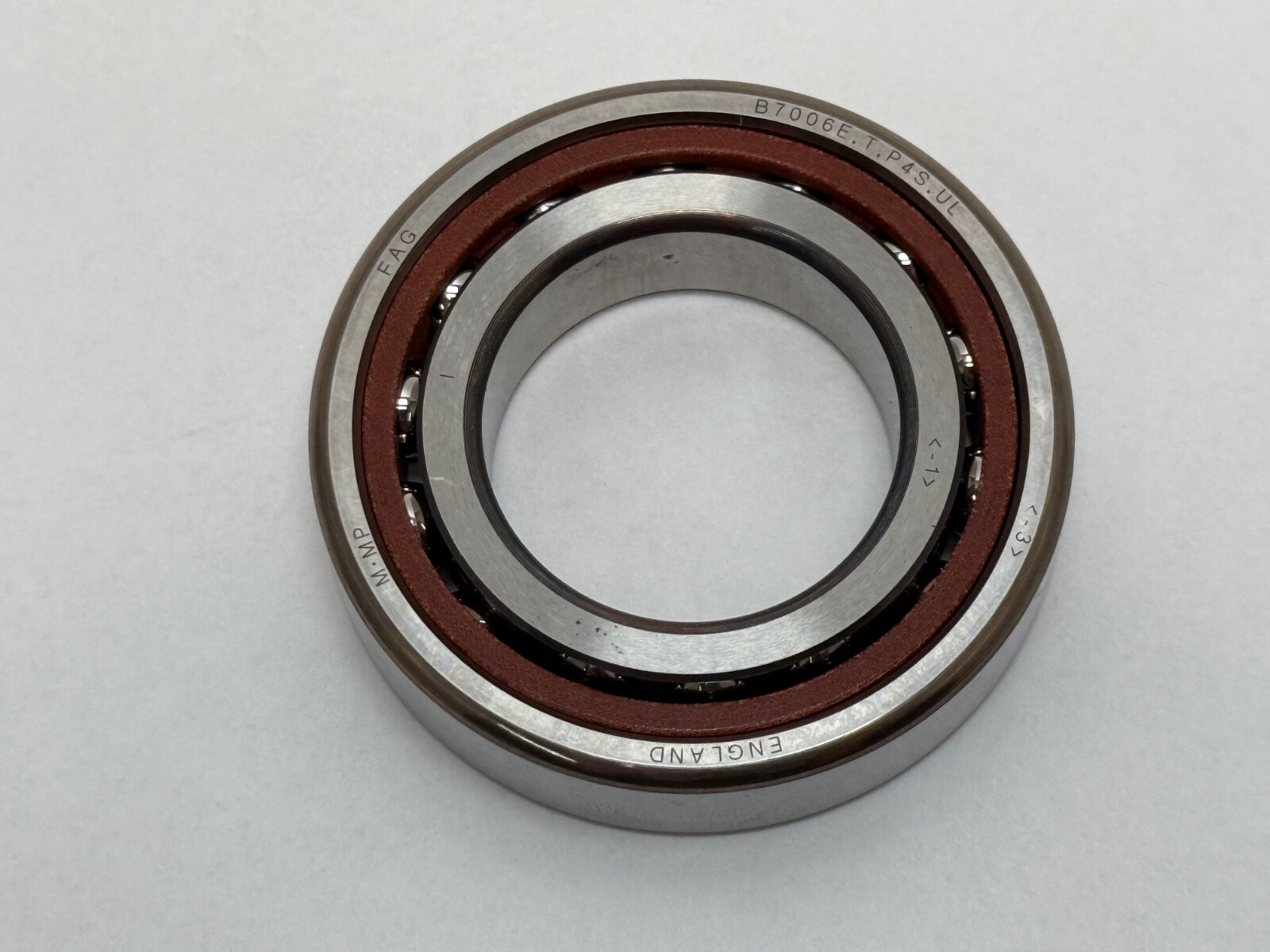

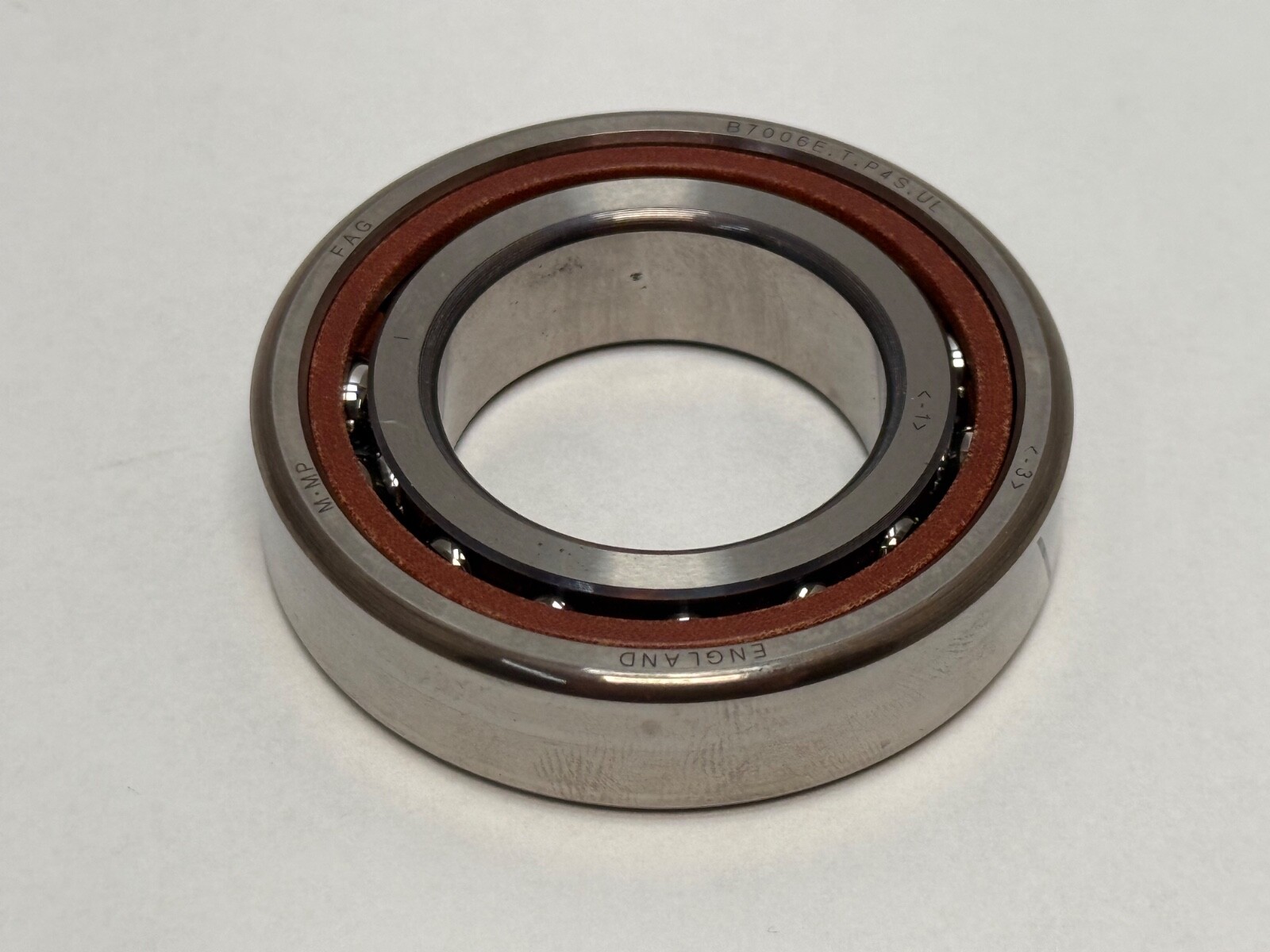

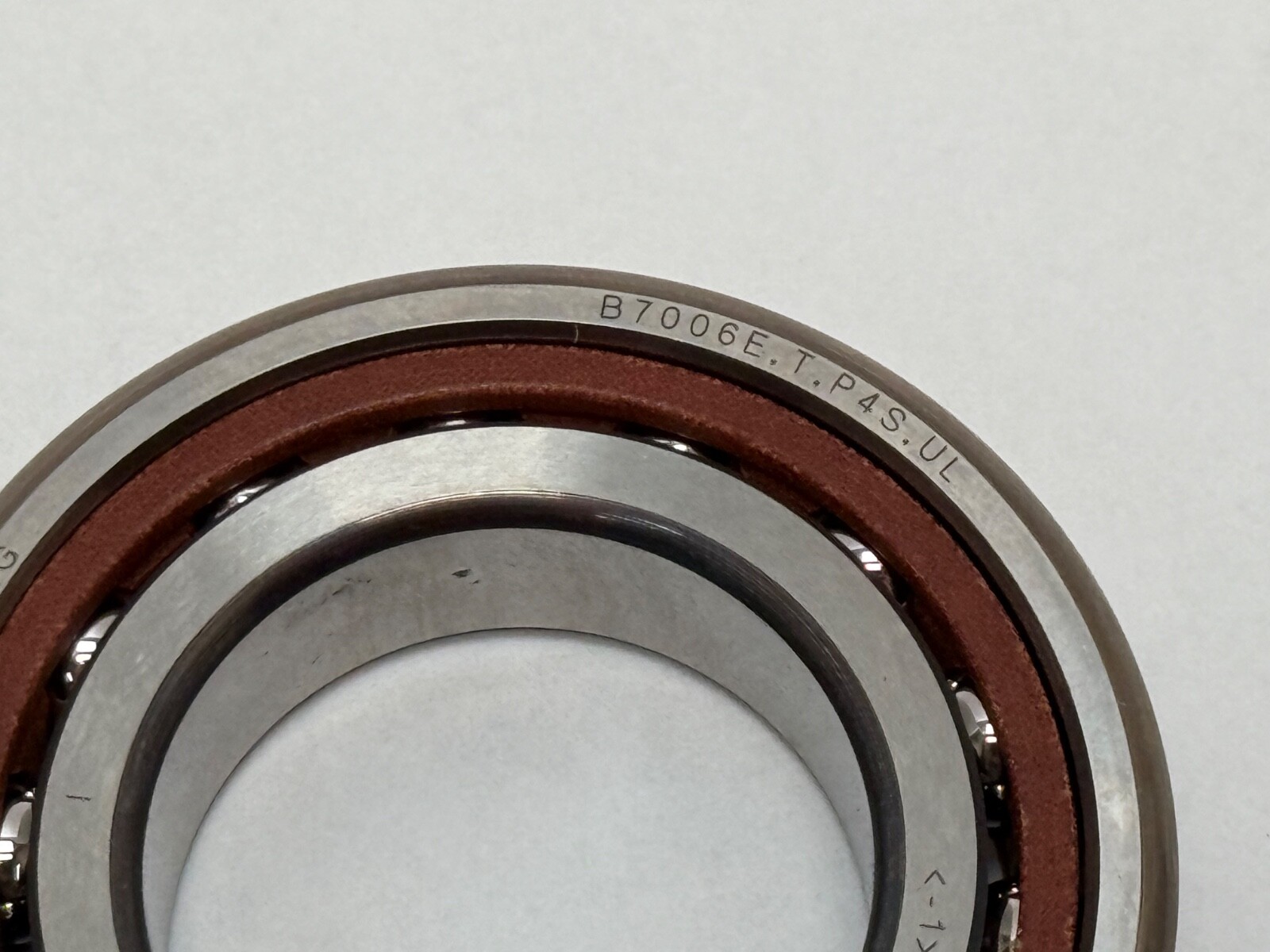

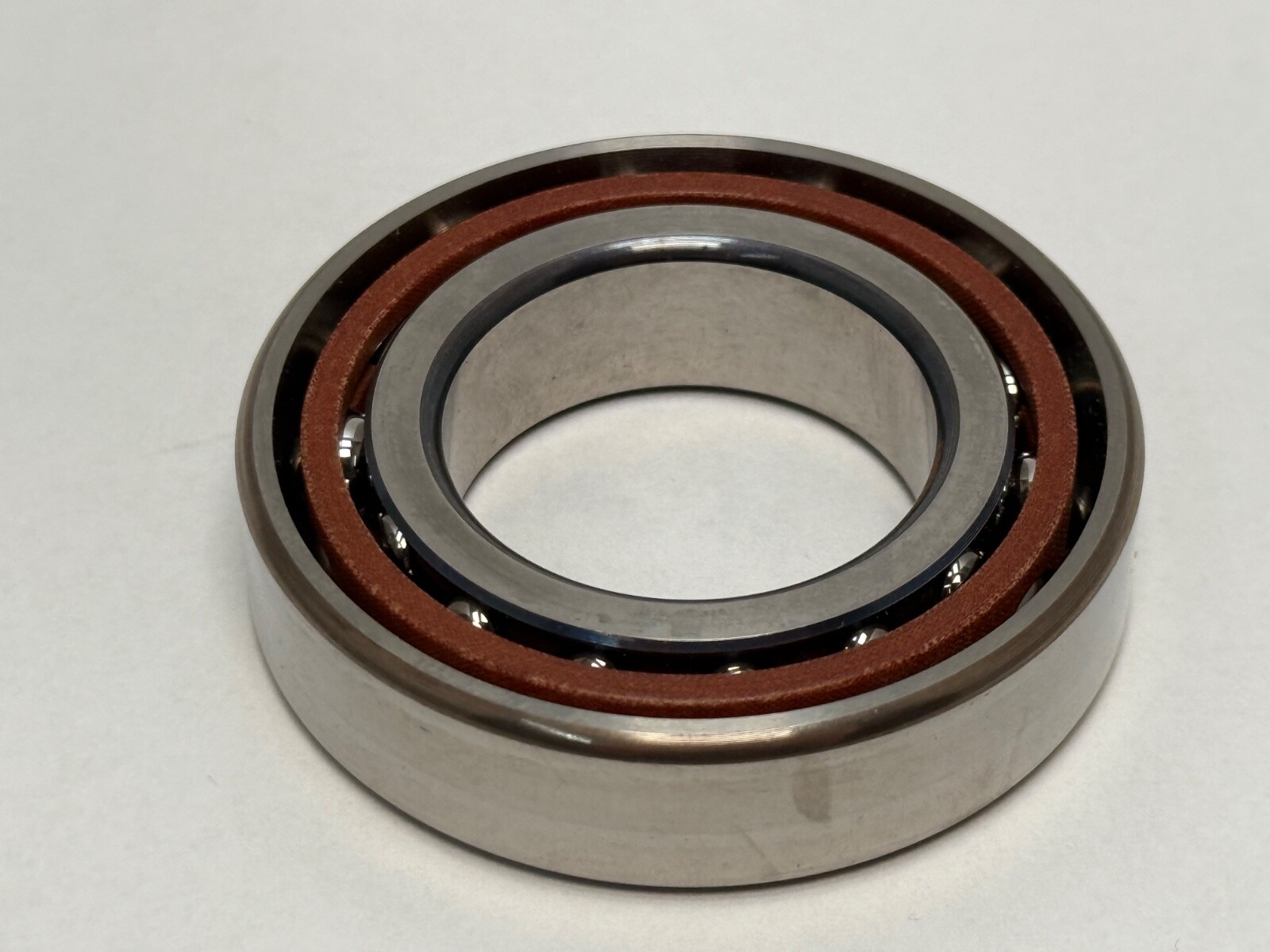

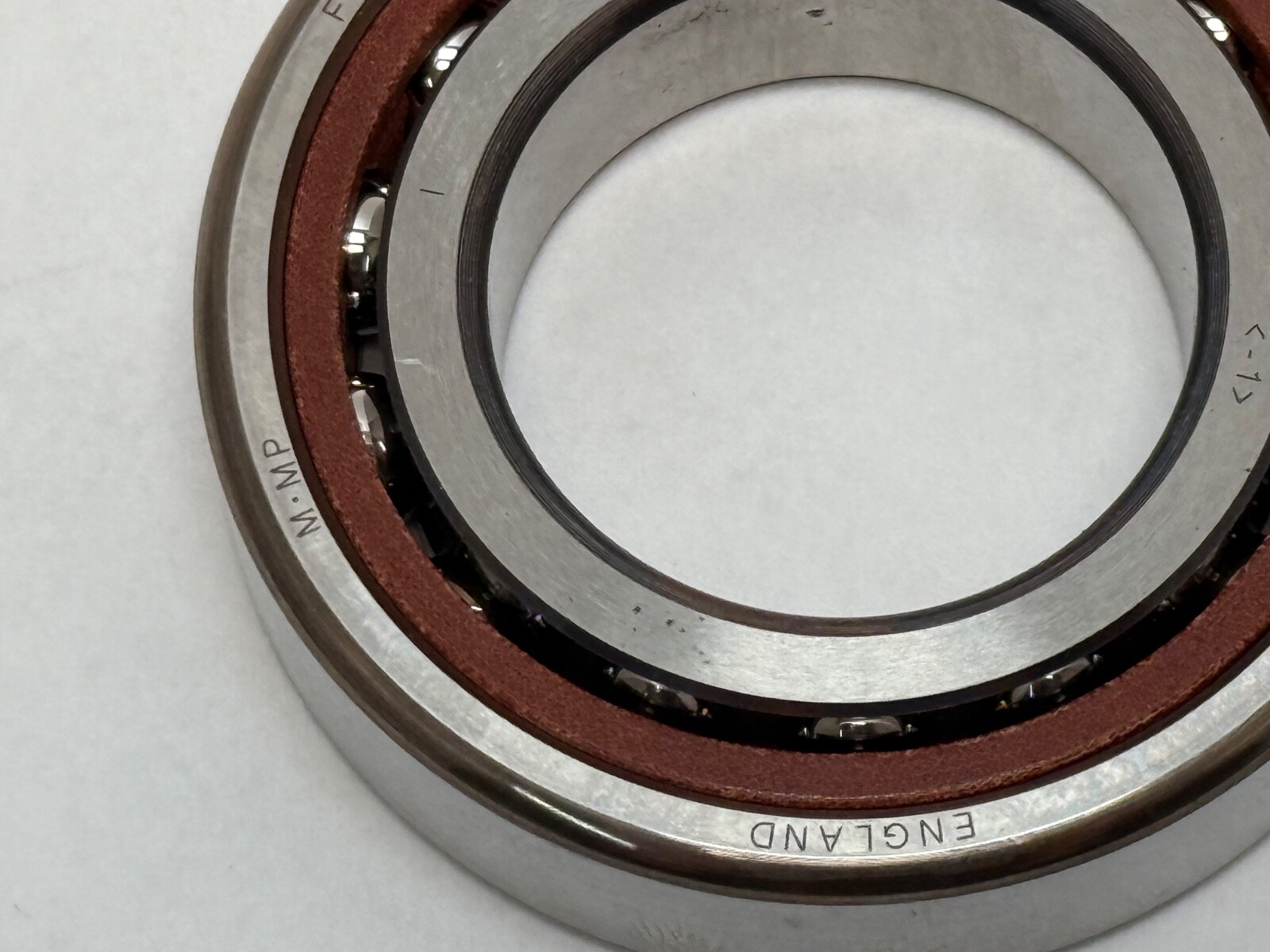

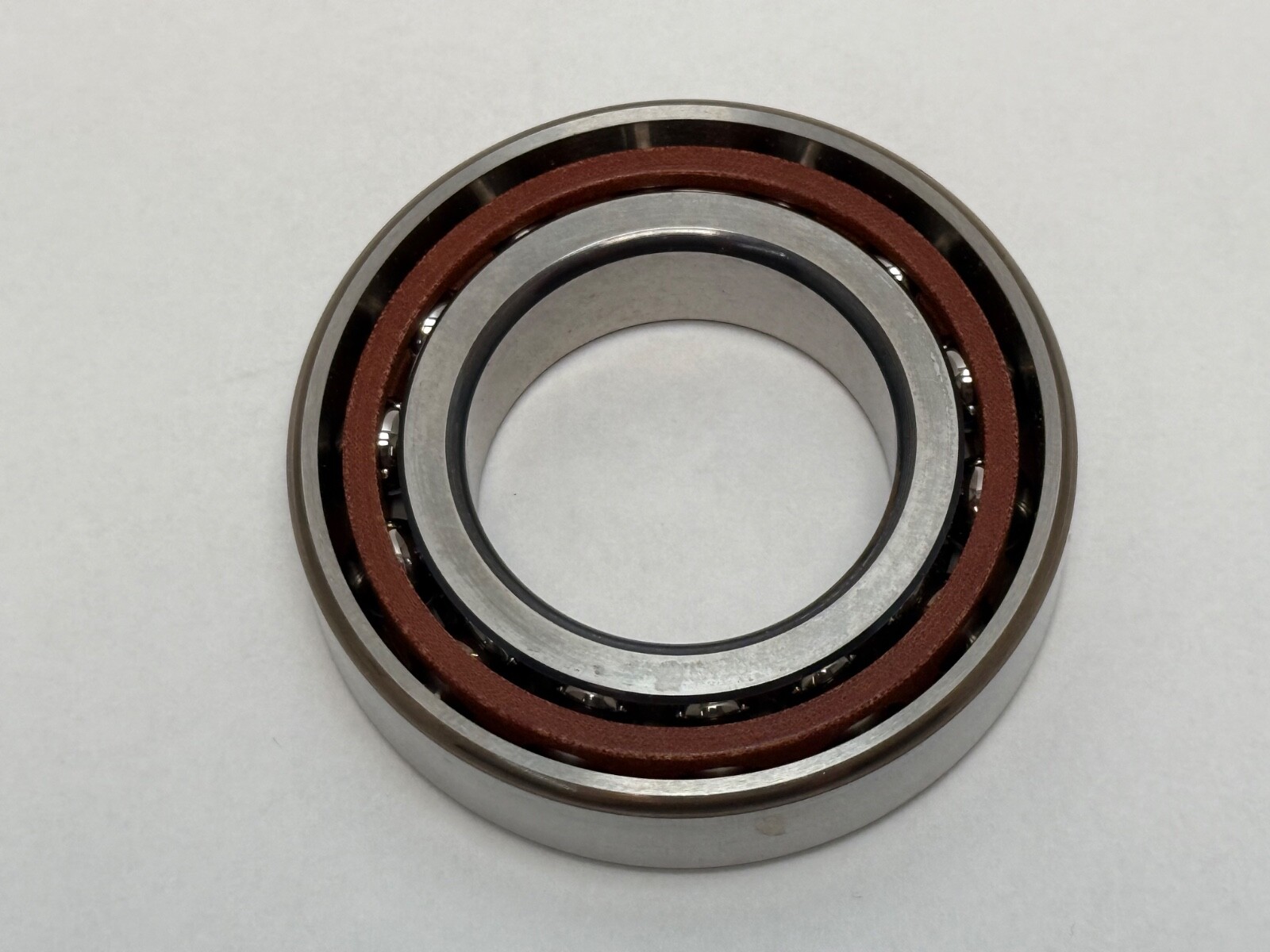

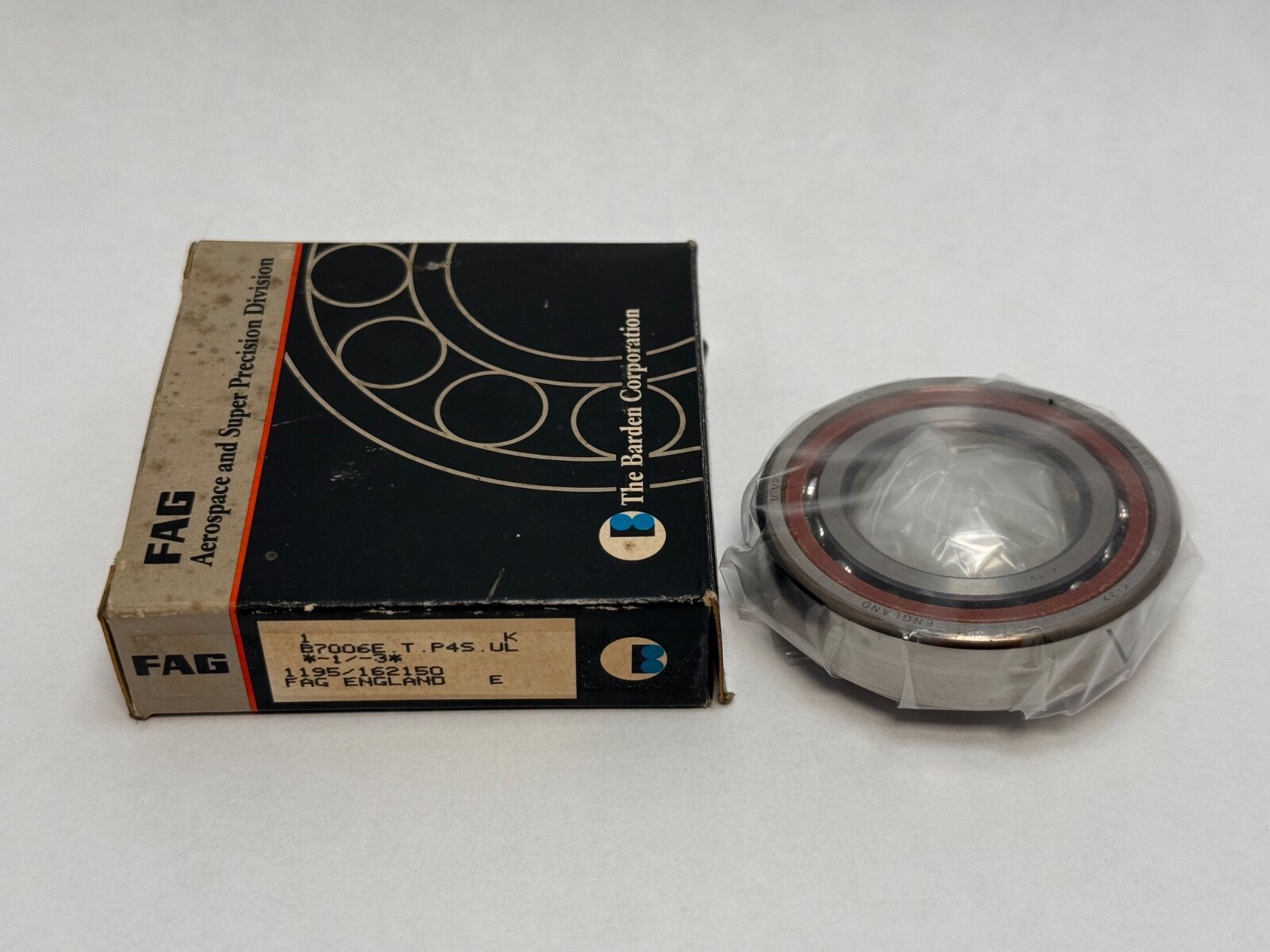

FAG B7006-E-T-P4S-UL super-precision angular contact spindle bearing, 30 x 55 x 13 mm, 25° contact angle, P4S, universal light preload, phenolic cage.
List Price
$38.60
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7006-E-T-P4S-UL |
| Model | B7006-E-T-P4S-UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 55 mm |
| Width | 13 mm |
| Series | 7000 |
|---|---|
| Preload | Light |
| Cage Type | Solid cage, laminated fabric phenolic (T) |
| Dynamic Load Rating | 13,700 N |
| Static Load Rating | 6,400 N |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 0.113 kg (0.25 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 24,000 rpm grease; 38,000 rpm oil |
| Contact Angle | 25° |
| Mounting Arrangement | Universal (UL), for O, X or tandem pairs |
| Base Number | 7006 |
| Industry Terms | spindle bearing, super precision angular contact bearing, machine tool bearing, universal matched bearing |
| Common Misspellings | B7006ETP4S, 7006E-T-P4S-UL, B7006-ETP4SUL |
| Application Types | Machine tool spindles, grinding spindles, high-speed motor spindles |
| Mpn Variants | B7006-E-T-P4S-UL; B7006E.T.P4S.UL; B7006E.TPA.P4.UL; B7006ETP4SUL; B 7006 E T P4S UL |
| Compatible With Replaces | Replaces FAG B7006E.T.P4S.UL and B7006E.TPA.P4.UL |
| Precision Class | ABEC 7 / P4S |
| Additional Attributes | Preload force light 102 N; lift-off force light 294 N; axial rigidity light 74 N/µm; pressure cone apex distance 16.5 mm; fatigue load limit 670 N |
| Min Temp | -30 °C |
| Cage Material | Phenolic |
| Cross Reference 1 | Fafnir 3MM9106WI CR SUL - P4 class |
|---|---|
| Cross Reference 2 | SKF 7006 ACDGA/P4A - P4A class |
| Cross Reference 3 | NSK 7006A5TYNSULP4 - P4 class |
FAG B7006-E-T-P4S-UL single-row super-precision spindle bearing (angular contact ball bearing), universally ground for pair or set mounting with light preload. Bore Diameter: 30 mm. Outside Diameter: 55 mm. Overall Width: 13 mm. Contact Angle: 25°. Sold as 1 Pc.
B70 — FAG spindle bearing series 70 (ISO dimension series 10).
06 — bore code; 06 × 5 = 30 mm bore.
E — 25° contact angle.
T — solid cage of fabric-base laminated phenolic resin.
P4S — FAG restricted tolerance grade: P4 dimensional accuracy with tighter running accuracy.
UL — universal design, Light preload when mounted in any O, X or tandem pair arrangement.
Dynamic Load Rating: 13,700 N.
Static Load Rating: 6,400 N.
Limiting Speed: 24,000 rpm grease; 38,000 rpm oil.
Preload: Light (preload force 102 N, lift-off force 294 N).
Axial Rigidity, light preload: 74 N/µm.
Fatigue Load Limit: 670 N.
Precision Class: ABEC 7 / P4S.
Cage Material: Phenolic.
Item Weight: 0.113 kg (0.25 lb).
Operating Temperature: −30 °C to 100 °C.
Closure Type: Open.
Country of origin: United Kingdom.
Pressure cone apex distance a: 16.5 mm. Shaft shoulder diameter: 36 mm. Outer-ring shoulder diameter: 49 mm. Maximum fillet radius: 1 mm. Oil injection pitch diameter: 39.4–40.6 mm.
Cross-references at 30 x 55 x 13 mm, 25°, light preload, universal: Fafnir 3MM9106WI CR SUL (P4 class), SKF 7006 ACDGA/P4A (P4A class), NSK 7006A5TYNSULP4 (P4 class). Current FAG designation: B7006-E-T-P4S-UL (older forms B7006E.T.P4S.UL and B7006E.TPA.P4.UL).
25°.
Dynamic 13,700 N, static 6,400 N, limiting speed 24,000 rpm grease and 38,000 rpm oil.
Light preload, 102 N, when mounted in any O, X or tandem pair arrangement.
