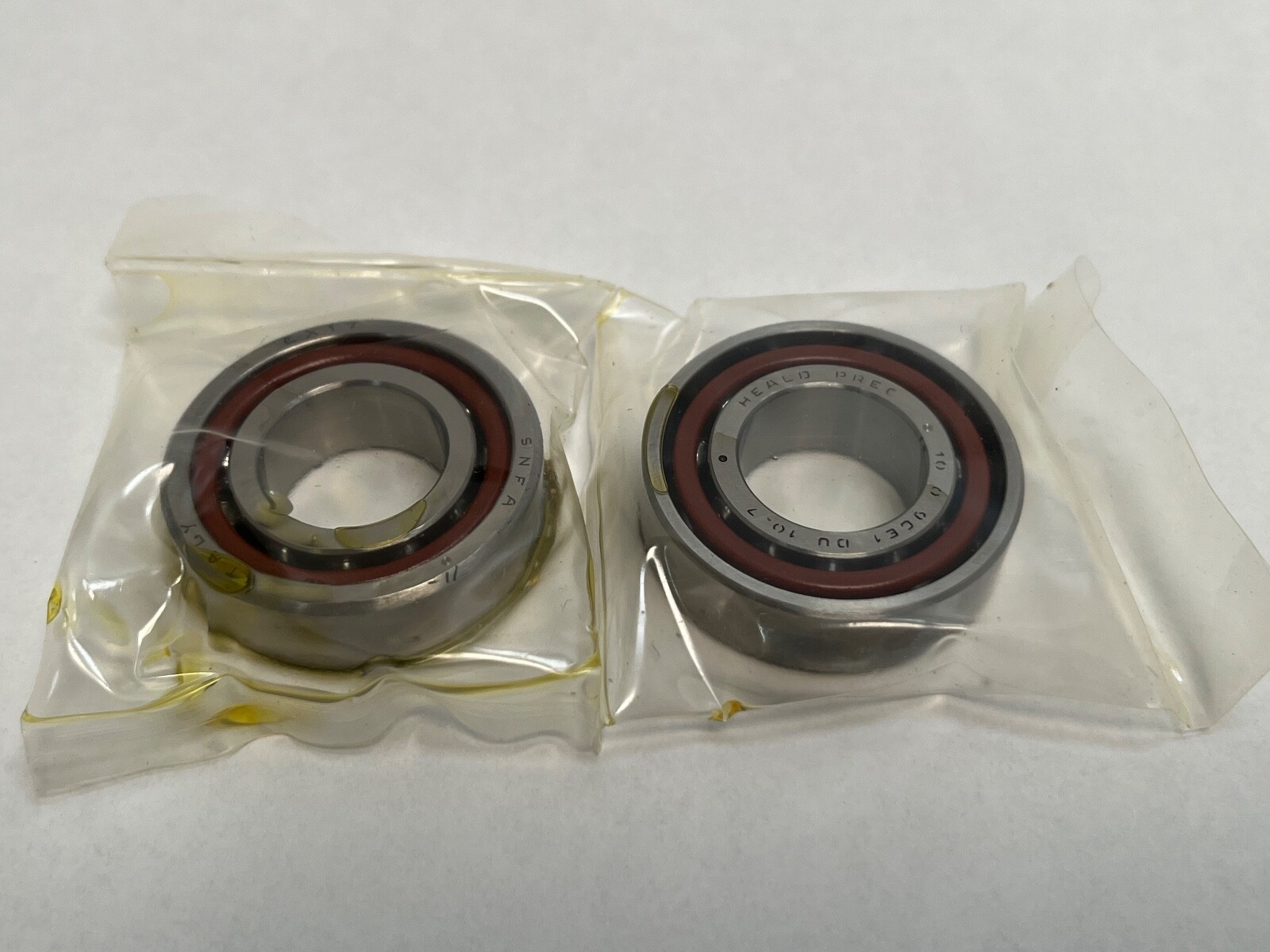

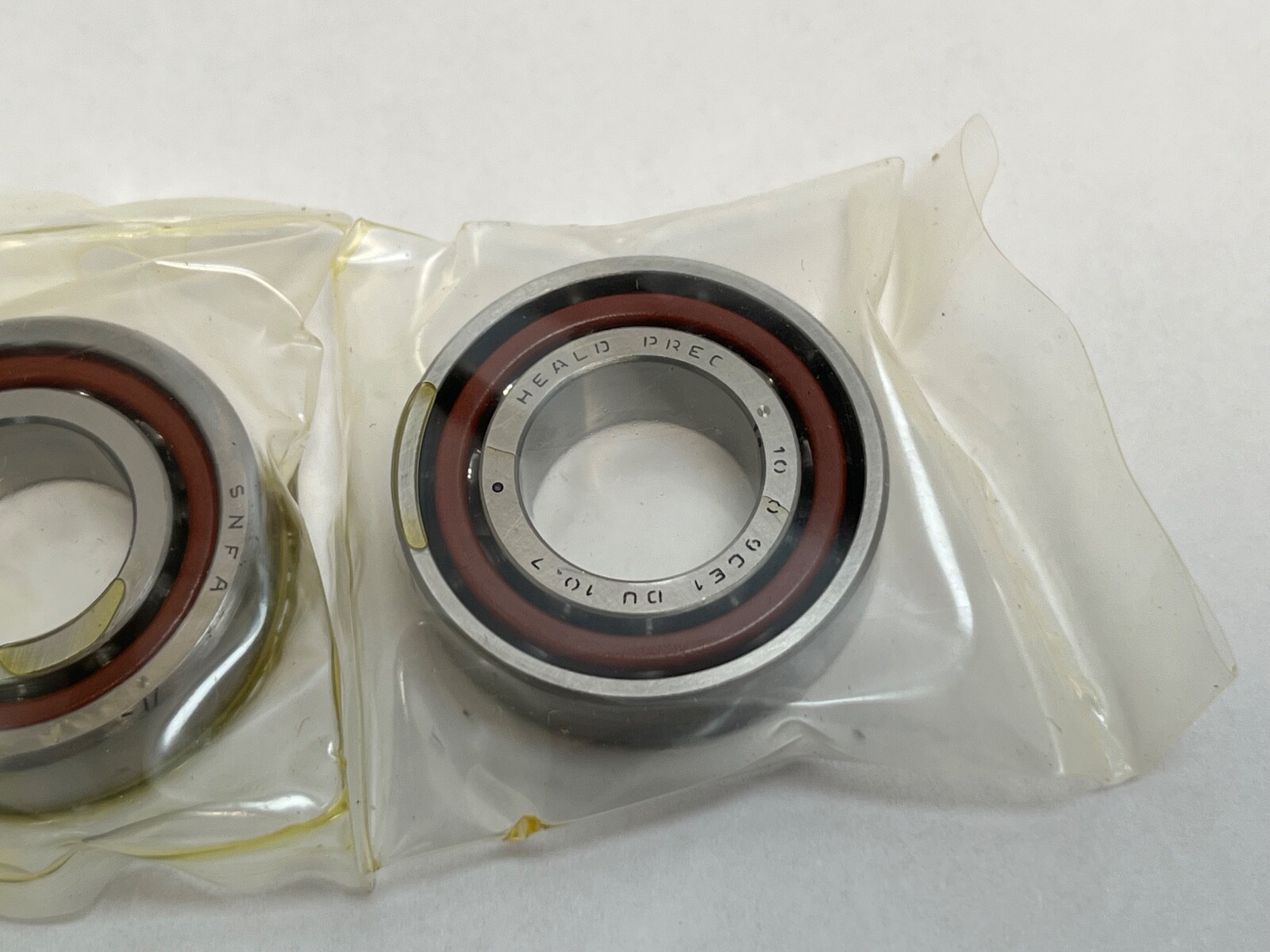

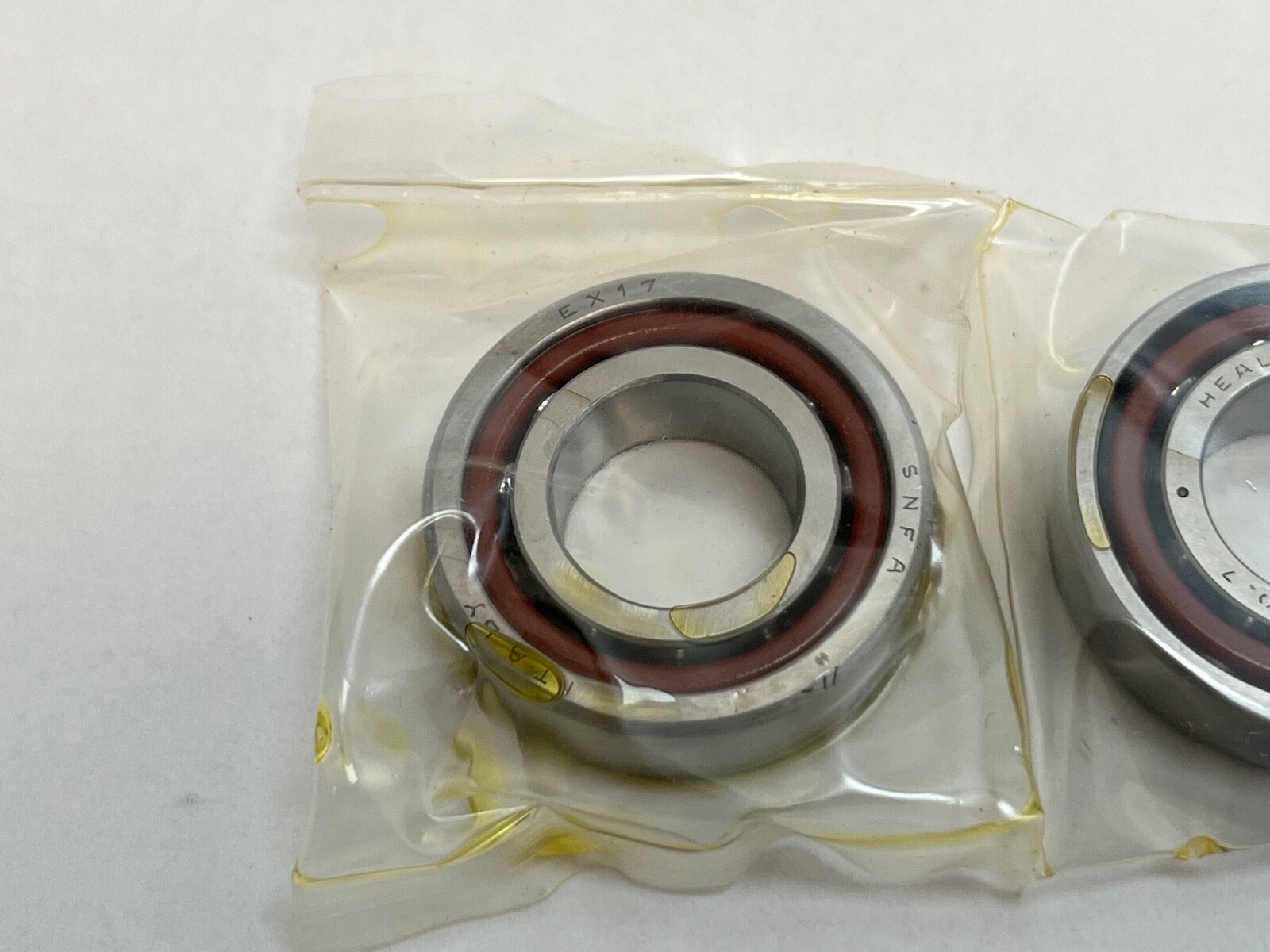

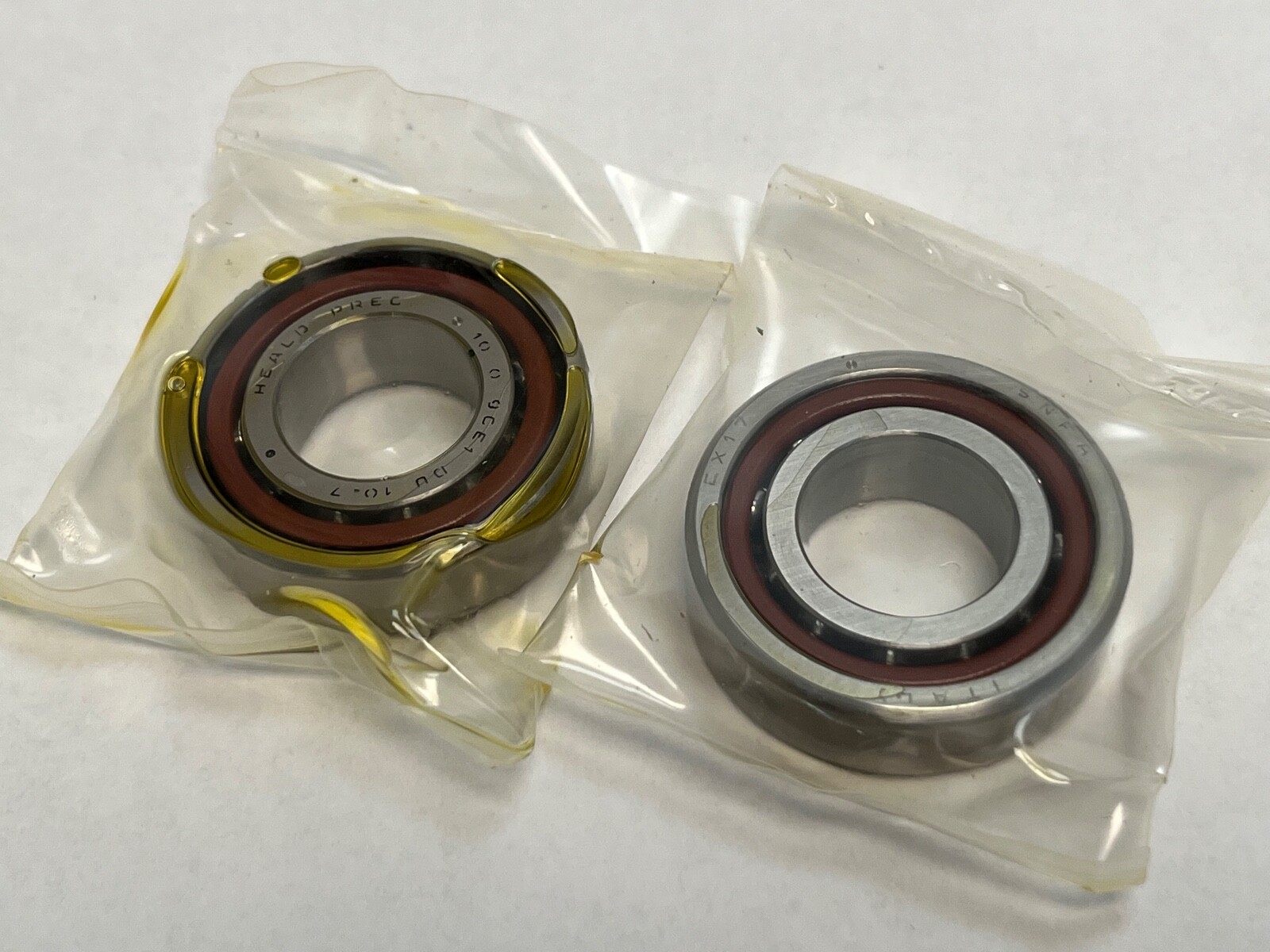

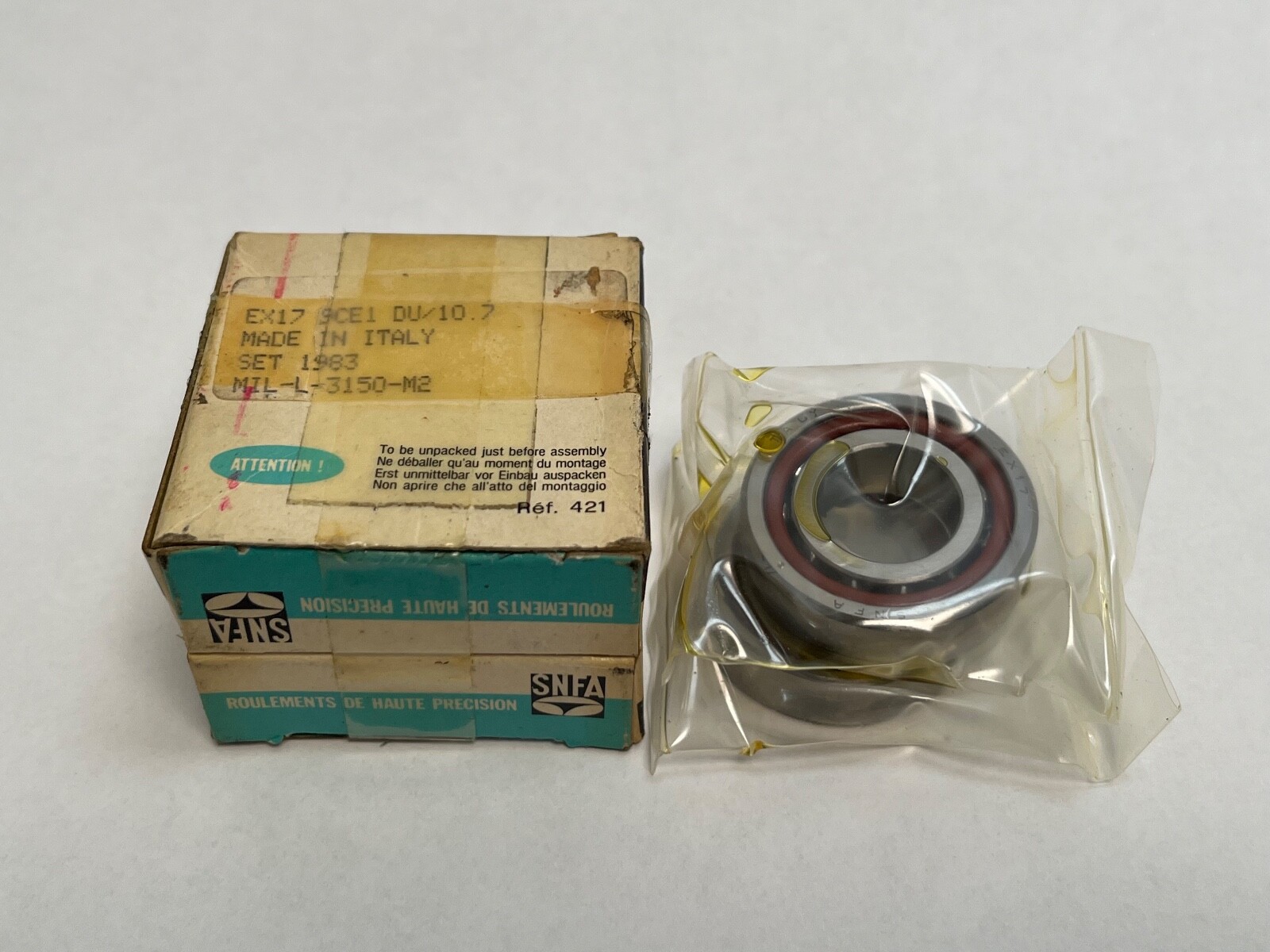

SNFA EX17-9CE1DUL super-precision angular contact ball bearing pair, 17 x 35 x 10 mm, 15° contact angle, ABEC 9 / P2, light preload. Two bearings.
List Price
$166.10
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNFA |
|---|---|
| MPN | EX17-9CE1DUL |
| Model | EX17-9CE1DUL |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 17 mm |
| OD | 35 mm |
| Width | 10 mm |
| Base Number | 7003 |
|---|---|
| Overall Width | 10 mm |
| Mpn Variants | EX17-9CE1DUL, EX17-9-CE-1-DUL, EX17-9 CE 1 DUL, 7003-C-P2, 7003 C T P2 DUL |
| Arrangement Configuration | Duplex universal pair (DU) |
| Precision Class | ABEC 9 / P2 |
| Additional Attributes | Minimum chamfer Rmin 0.3 mm; rmin 0.15 mm |
| Cage Type | Machined, outer-ring located |
| Dynamic Load Rating | 761 daN (C33, per bearing) |
| Static Load Rating | 480 daN (C0, per bearing) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Contact Angle | 15° |
| Preload | Light (L) |
| Cross Reference 1 | Fafnir 2MMV9103WI CR DUL |
|---|
SNFA EX17-9CE1DUL is a duplex universal pair of super-precision angular contact ball bearings, SNFA EX series, ISO dimension series 10, size 7003. Bore Diameter: 17 mm. Outside Diameter: 35 mm. Overall Width: 10 mm. Contact Angle: 15°. Precision Class: ABEC 9 / P2. Preload: Light.
EX — SNFA EX series, ISO dimension series 10.
17 — bore diameter, 17 mm.
9 — ABEC 9 precision.
C — stratified textile resin (phenolic) cage.
E — cage located on the outer ring.
1 — 15° nominal contact angle.
DU — duplex universal. The pair mounts back-to-back, face-to-face or tandem.
L — light preload.
Dynamic Load Rating: 761 daN per bearing (SNFA C33 rating). Static Load Rating: 480 daN per bearing (C0). Cage Material: Phenolic. Cage Type: Machined, outer-ring located. ABEC 9 is the tightest SNFA running-accuracy grade.
Minimum chamfer, outer ring (Rmin): 0.3 mm. Minimum chamfer, inner ring (rmin): 0.15 mm. Bore Type: Straight. Closure Type: Open. Snap Ring: No.
Unit Quantity: 2 Pcs. A universally matched pair with light preload.
ISO size 7003, 17 x 35 x 10 mm, 15°, light preload. Fafnir 2MMV9103WI CR DUL shares the envelope, angle and preload level.
