Availability:
4 in stock

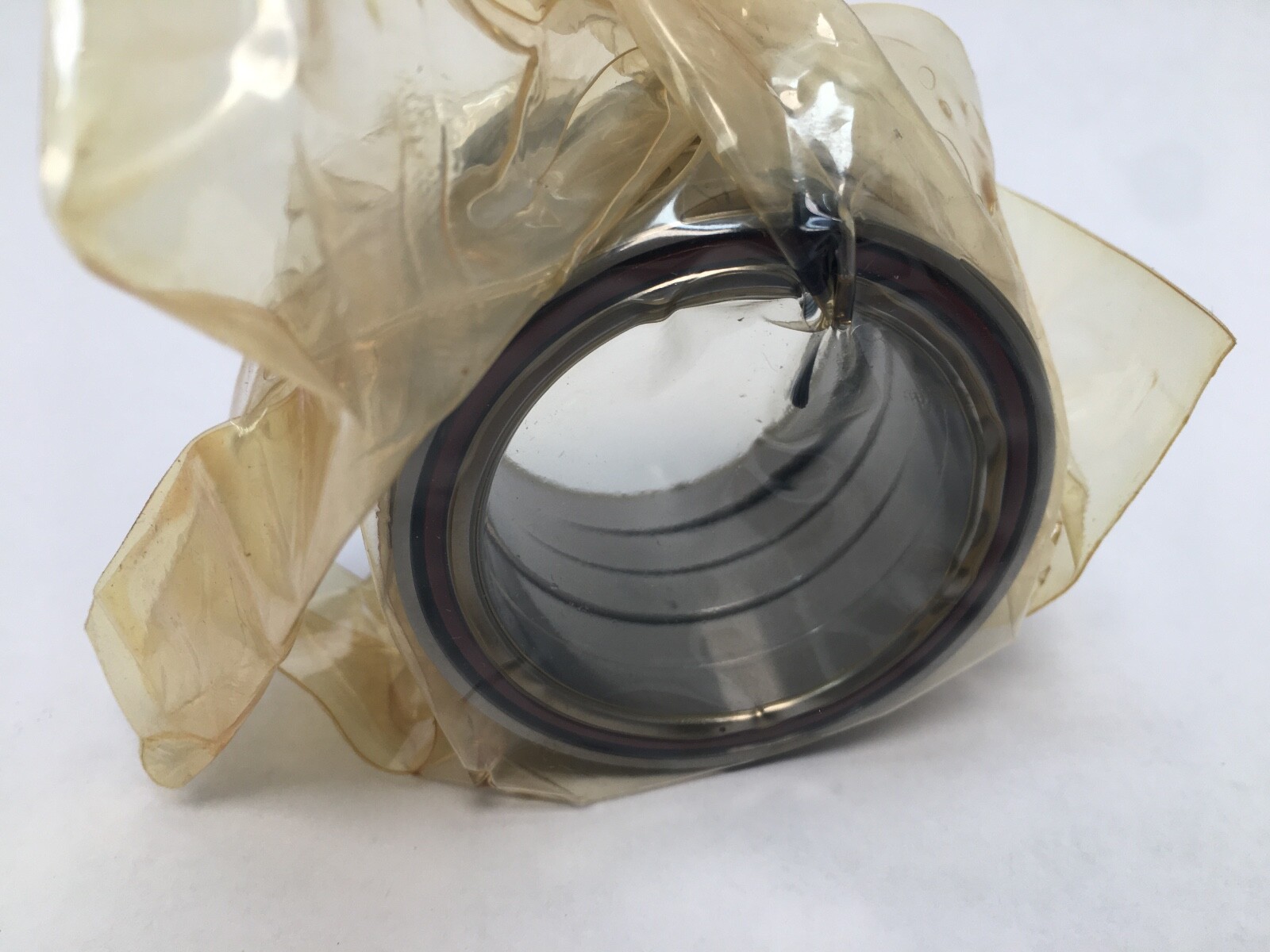

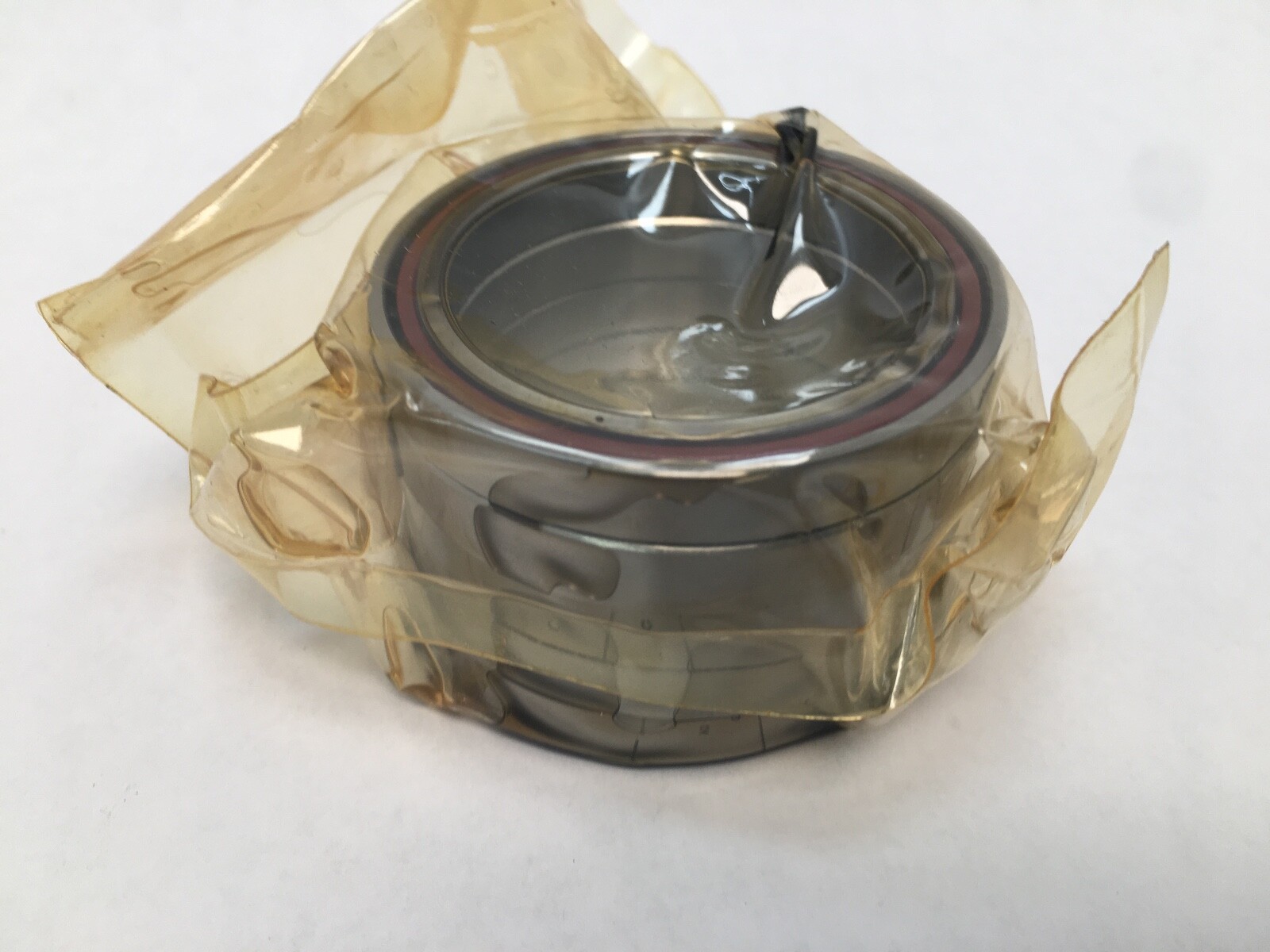

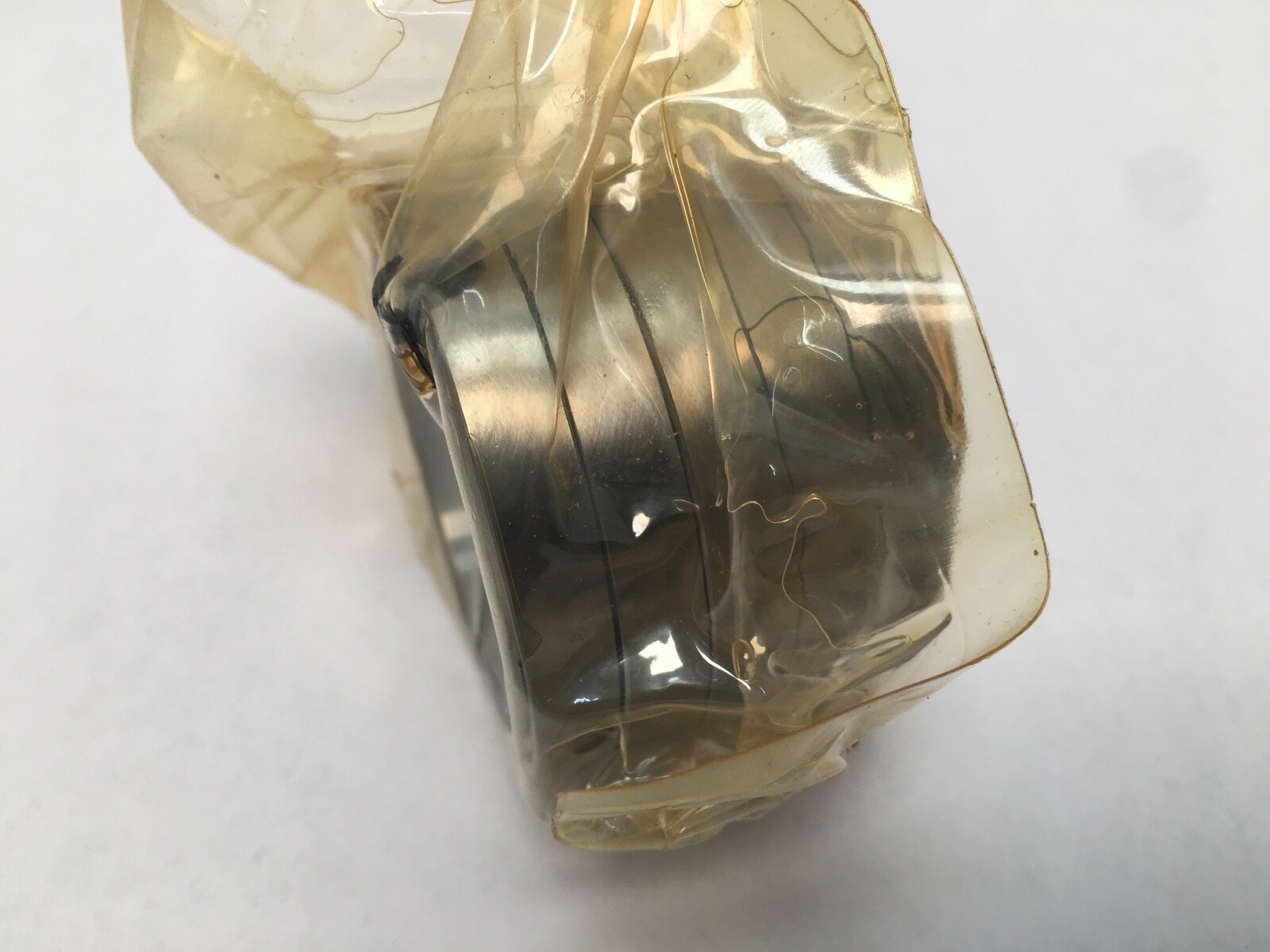

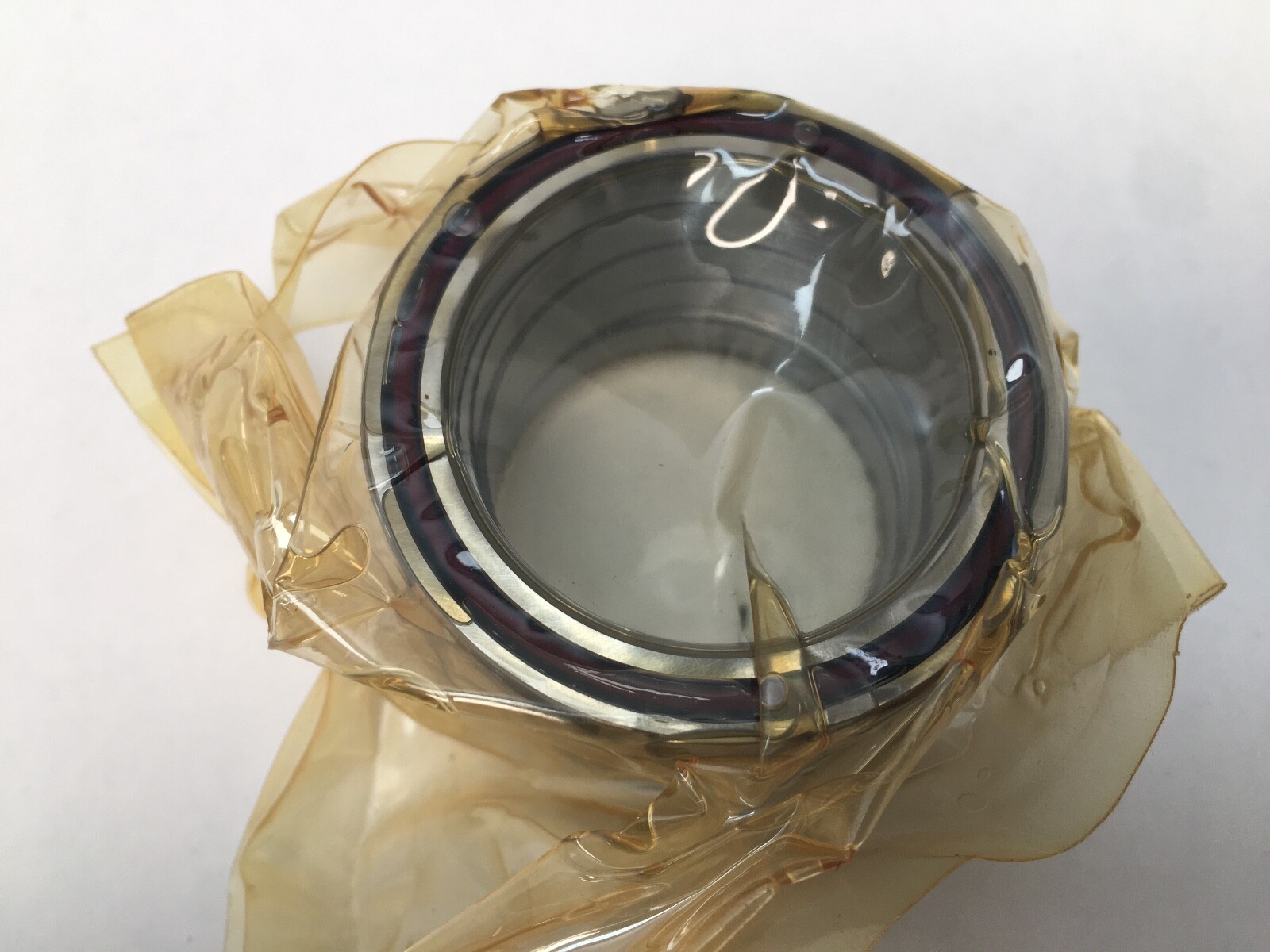

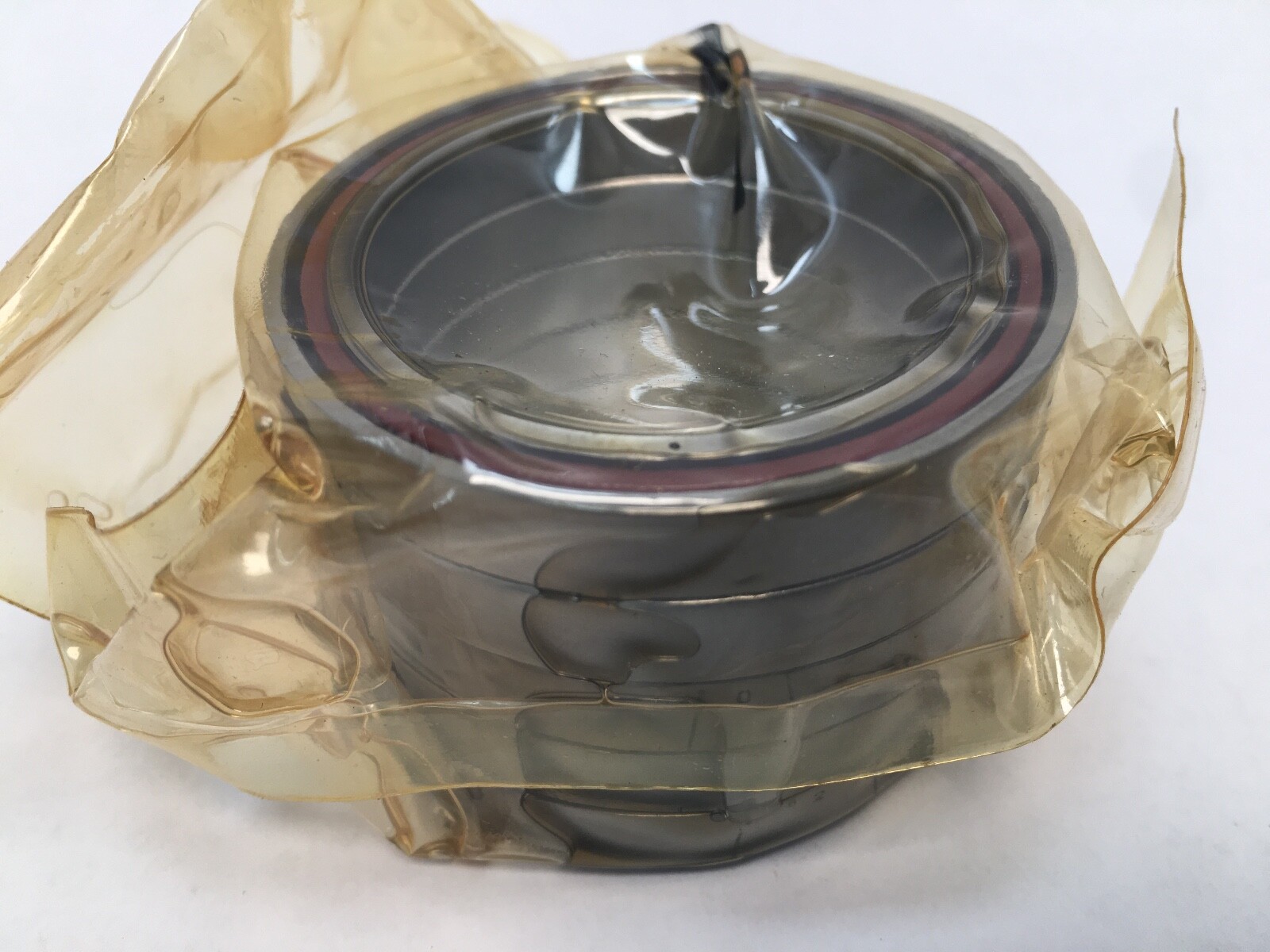

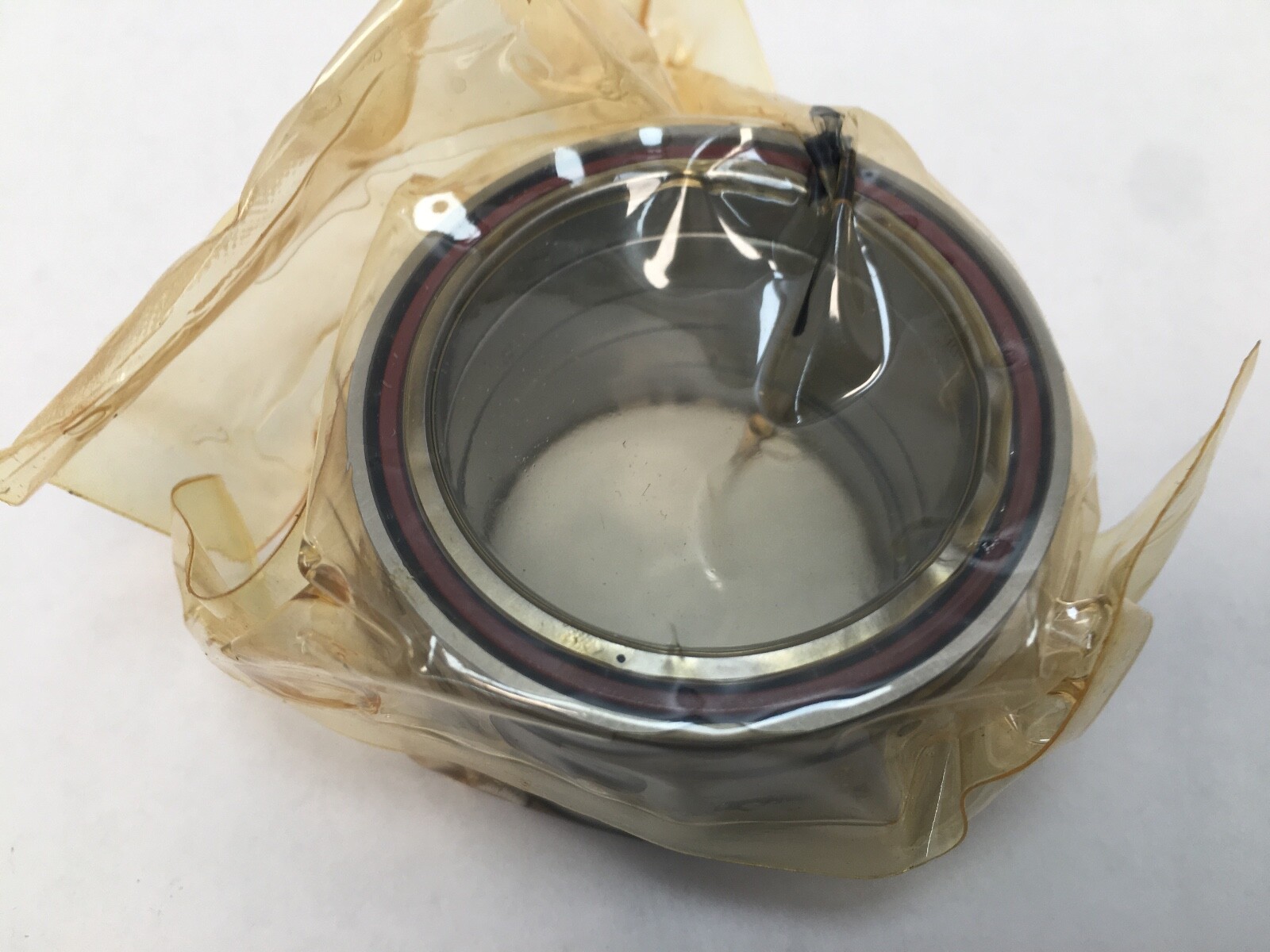

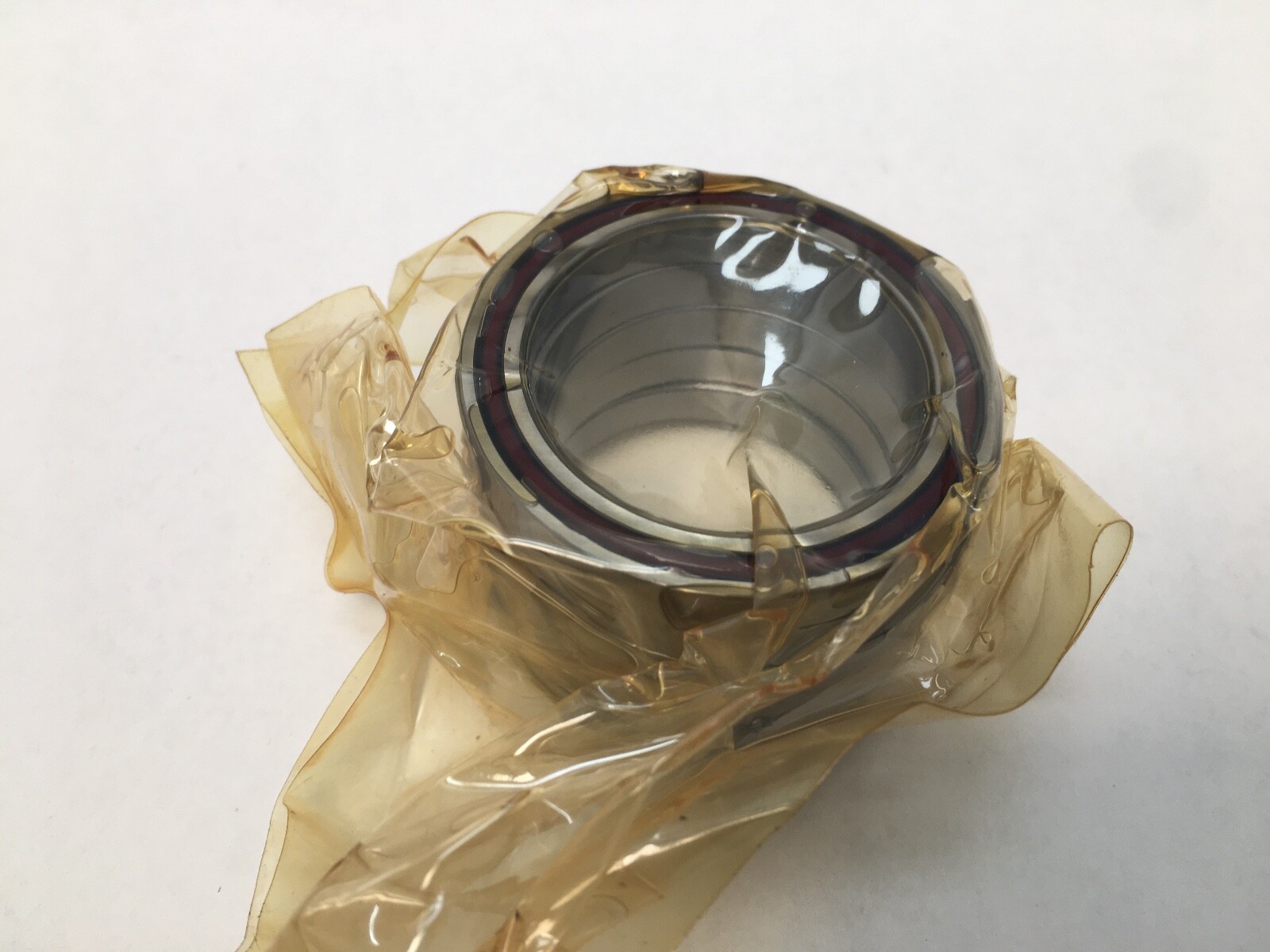

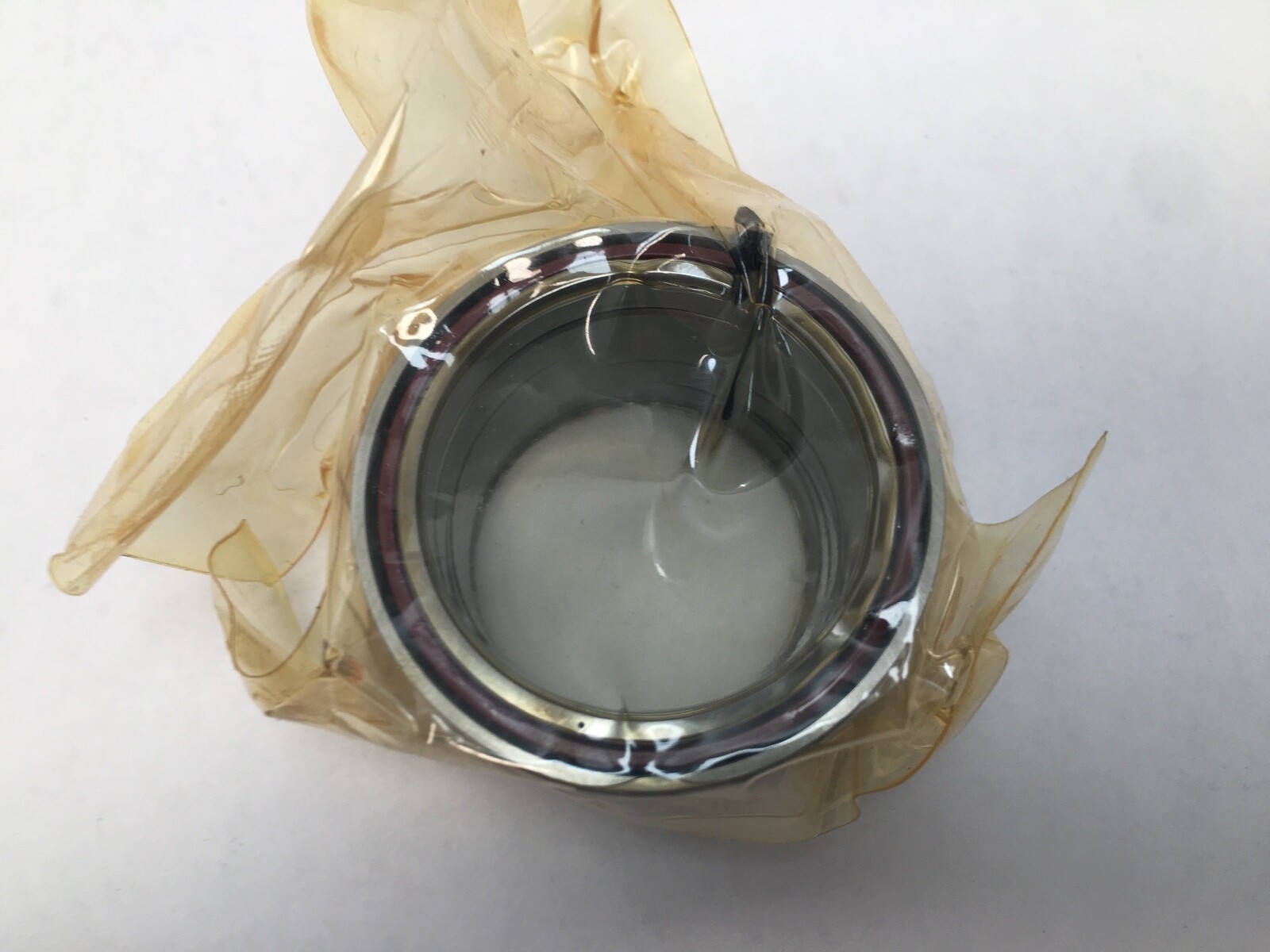

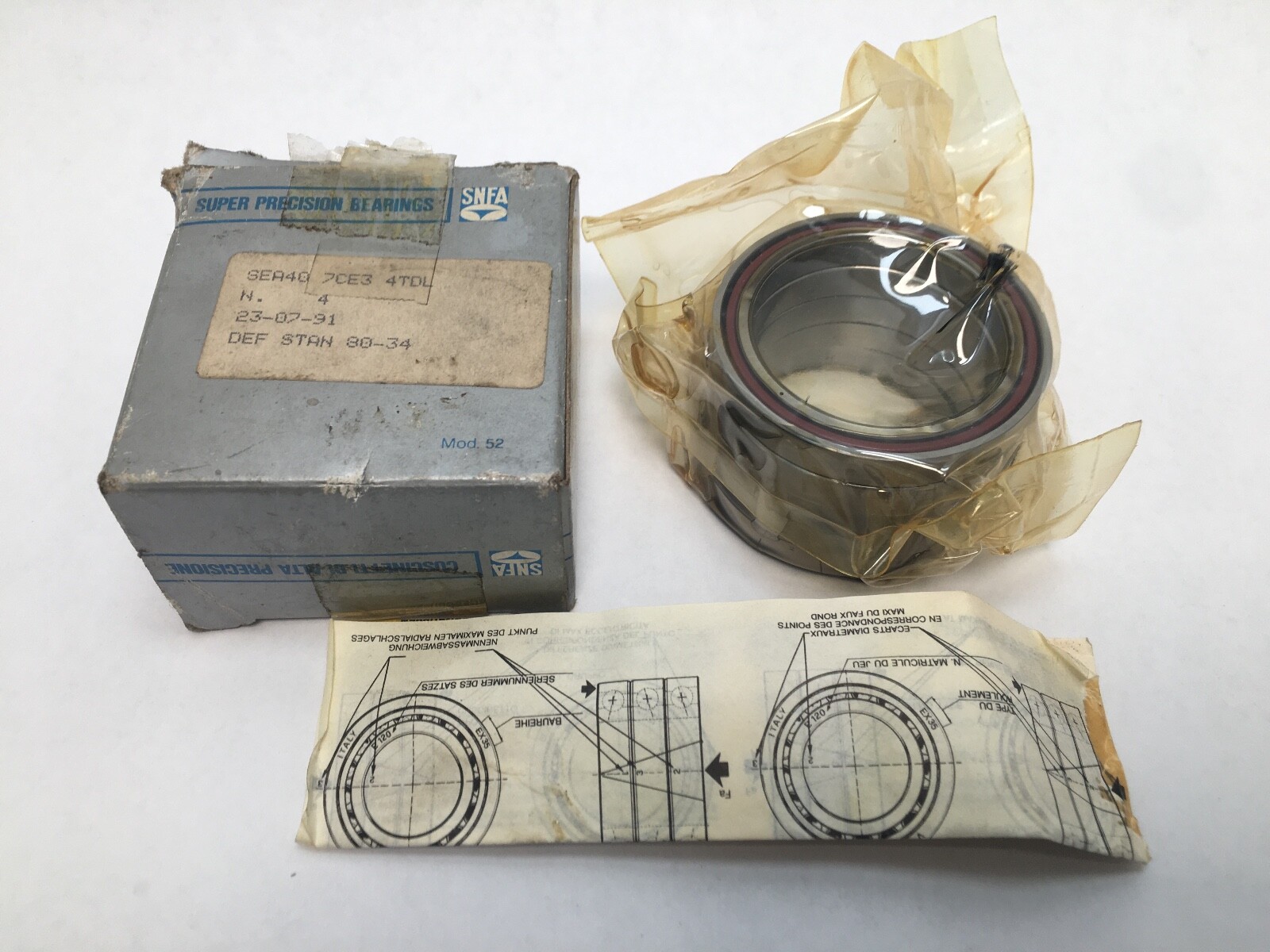

SNFA SEA40-7CE34TDL super-precision angular contact ball bearing, 40 x 52 x 7 mm, 25° contact angle, ABEC 7 / P4, light preload. Set of 5 pieces, phenolic cage.
List Price
$420.27
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNFA |
|---|---|
| MPN | SEA40-7CE34TDL |
| Model | SEA40-7-CE-3-4TDL |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 40 mm |
| OD | 52 mm |
| Width | 7 mm |
| Base Number | 71808 |
|---|---|
| Overall Width | 7 mm |
| Mpn Variants | SEA40-7CE34TDL, SEA40 7CE3 4TDL, SEA 40 7 CE 3 4TDL, SEA40-7-CE-3-4TDL, 71808-A |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Minimum chamfer Rmin 0.3 mm; rmin 0.1 mm |
| Cage Type | Machined, outer-ring located |
| Dynamic Load Rating | 465 daN (C33) |
| Static Load Rating | 590 daN (C0) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Contact Angle | 25° |
| Preload | Light (L) |
| Cross Reference 1 | SKF 71808 ACD/P4 |
|---|
SNFA SEA40-7CE34TDL is a super-precision angular contact ball bearing set from the SNFA SEA series, ISO dimension series 18, size 71808. Bore Diameter: 40 mm. Outside Diameter: 52 mm. Overall Width: 7 mm. Contact Angle: 25°. Precision Class: ABEC 7 / P4. The thin 18-series section fits compact spindles and rotary assemblies with limited radial space.
SEA — SNFA extra-light series, ISO dimension series 18.
40 — bore diameter, 40 mm.
7 — ABEC 7 precision.
C — stratified textile resin (phenolic) cage.
E — cage located on the outer ring.
3 — 25° nominal contact angle.
L — light preload.
Dynamic Load Rating: 465 daN (SNFA C33 rating). Static Load Rating: 590 daN (C0). Cage Material: Phenolic (stratified textile resin). Cage Type: Machined, outer-ring located. Preload: Light. The 25° contact angle gives higher axial load capacity and axial stiffness than the 15° execution of the same size.
Minimum chamfer, outer ring (Rmin): 0.3 mm. Minimum chamfer, inner ring (rmin): 0.1 mm. Closure Type: Open. Snap Ring: No.
Unit Quantity: 5 Pcs. Five bearings supplied as a set carrying the SNFA 4TDL group marking with light preload.
ISO size 71808 with a 25° contact angle and P4 precision. SNFA is part of SKF; the SKF super-precision 718 series covers this envelope as 71808 ACD/P4.
