Availability:
Out of stock
Single row angular contact ball bearing, 70 mm bore, 125 mm OD, 24 mm wide, 15° contact angle. Open, straight bore, ISO 02 series, radial and one-way axial load.
List Price
$132.55
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super Precision Angular Contact Ball Bearing - 70 mm ID, 125 mm OD, 24 mm Width, 15° Contact Angle, P4A, Extra Light Preload$199.76
Super Precision Angular Contact Ball Bearing - Matched Pair, Straight Bore, 70 mm ID, 125 mm OD, 24 mm Width, Open, 15° Contact Angle, Universal Medium Preload, ABEC 5$334.62
Super Precision Angular Contact Ball Bearing - Straight Bore, 70 mm ID, 125 mm OD, 24 mm Width, Open, 15 Degree Contact Angle, Universal Matchable Duplex Pair, Light Preload, Laminated Phenolic Cage$365.69
Angular Contact Ball Bearing — Super-Precision, 70 mm ID, 125 mm OD, 24 mm Width, 15° Contact Angle, Extra Light Preload, P4A, Matched Pair$458.60| MFR / Brand | SKF |
|---|---|
| MPN | 7214CTCC78 |
| Model | 7214 CTC C78 / 2M214WI CR |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Condition | New – Open box |
| Base Number | 7214 |
| Industry Terms | Spindle bearing; Precision angular contact bearing; 15 degree angular contact ball bearing; ISO 02 series angular contact ball bearing |
| Common Misspellings | 7214CTC78; 7214 CTCC78; 7214CTCC7; 7214 CT C78; 7214CCTC78 |
| Application Types | Machine tool spindles; Gearbox shafts; Pump shafts; Screw drive supports; Rotary tables |

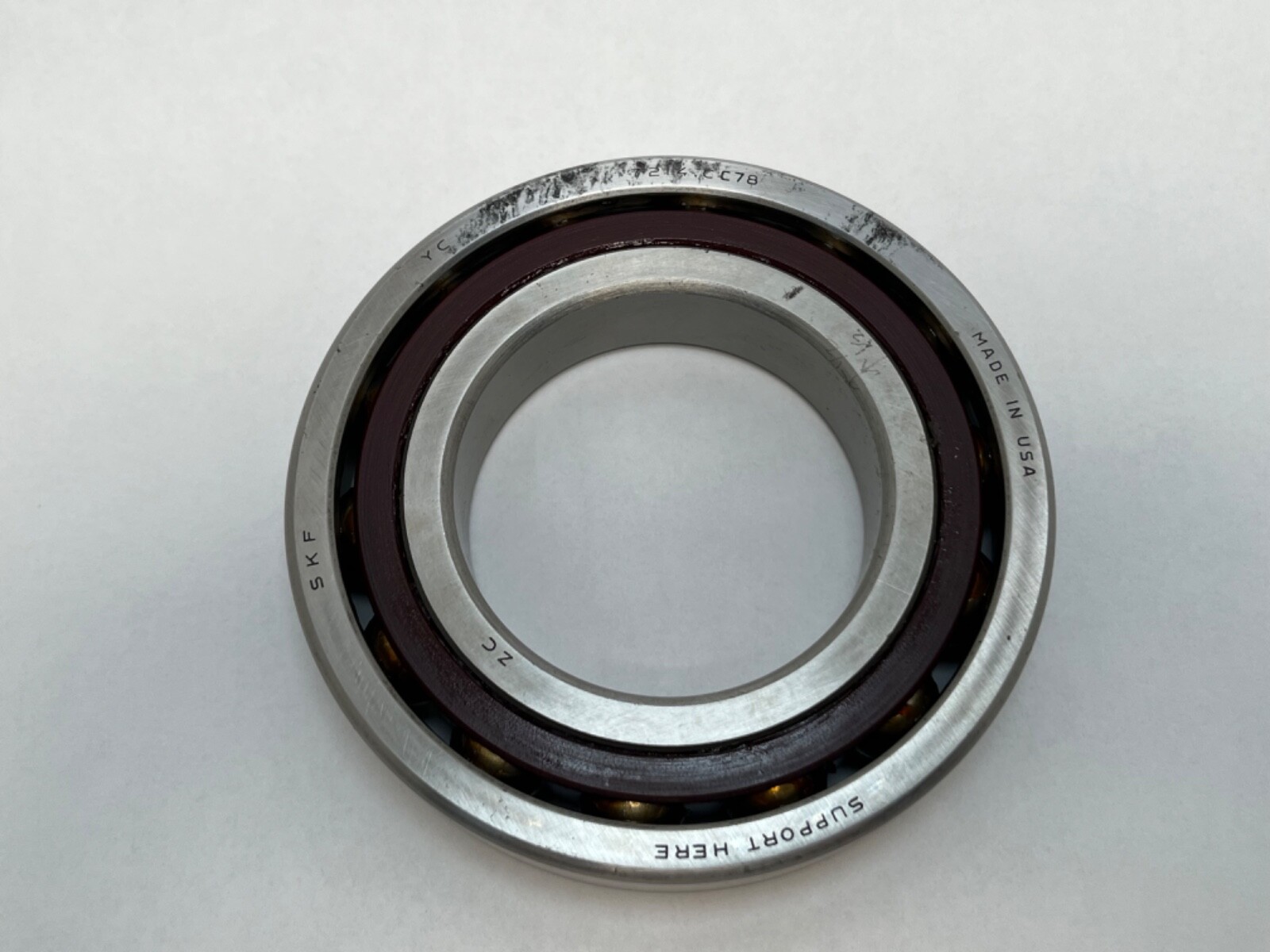

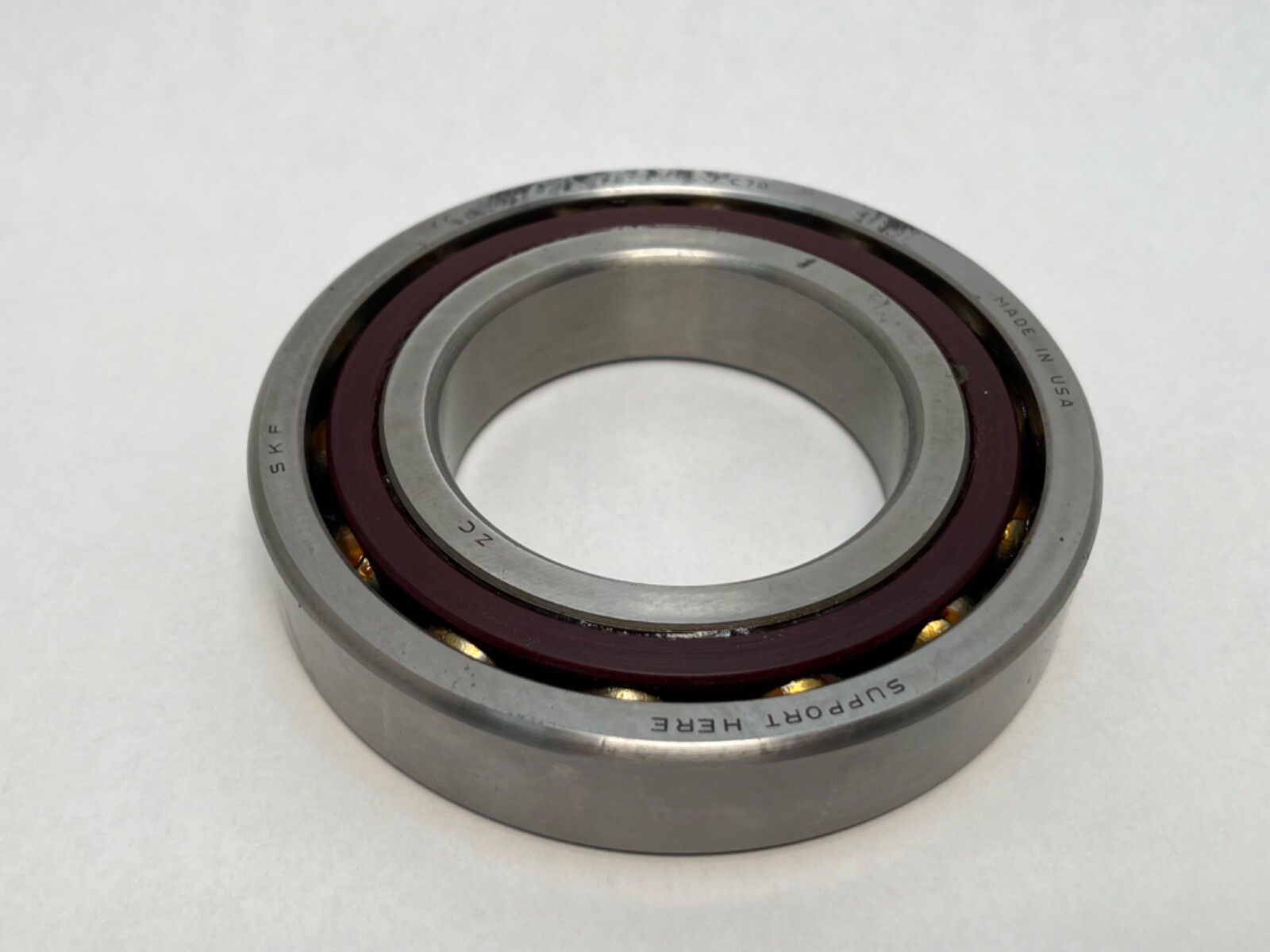

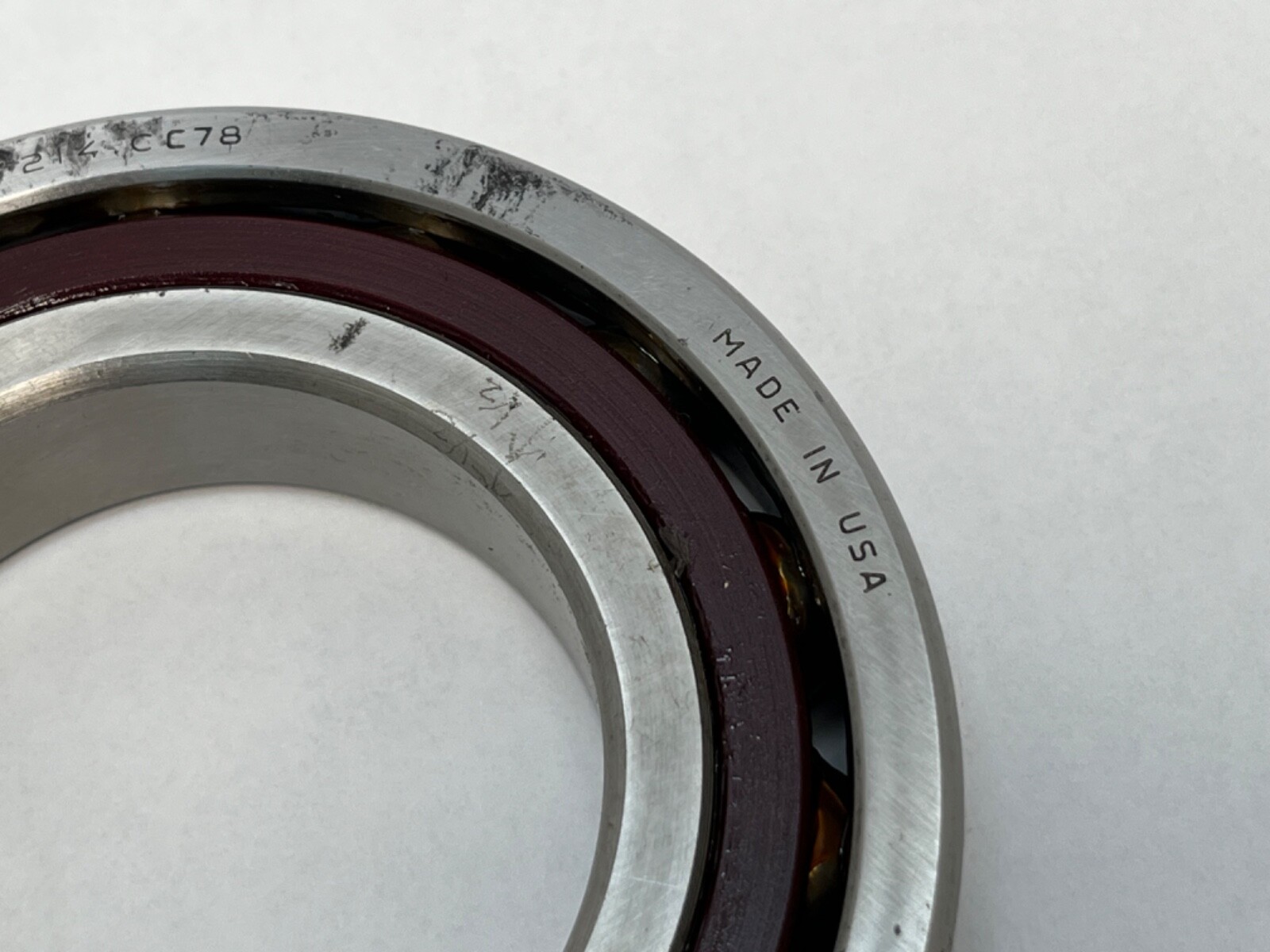

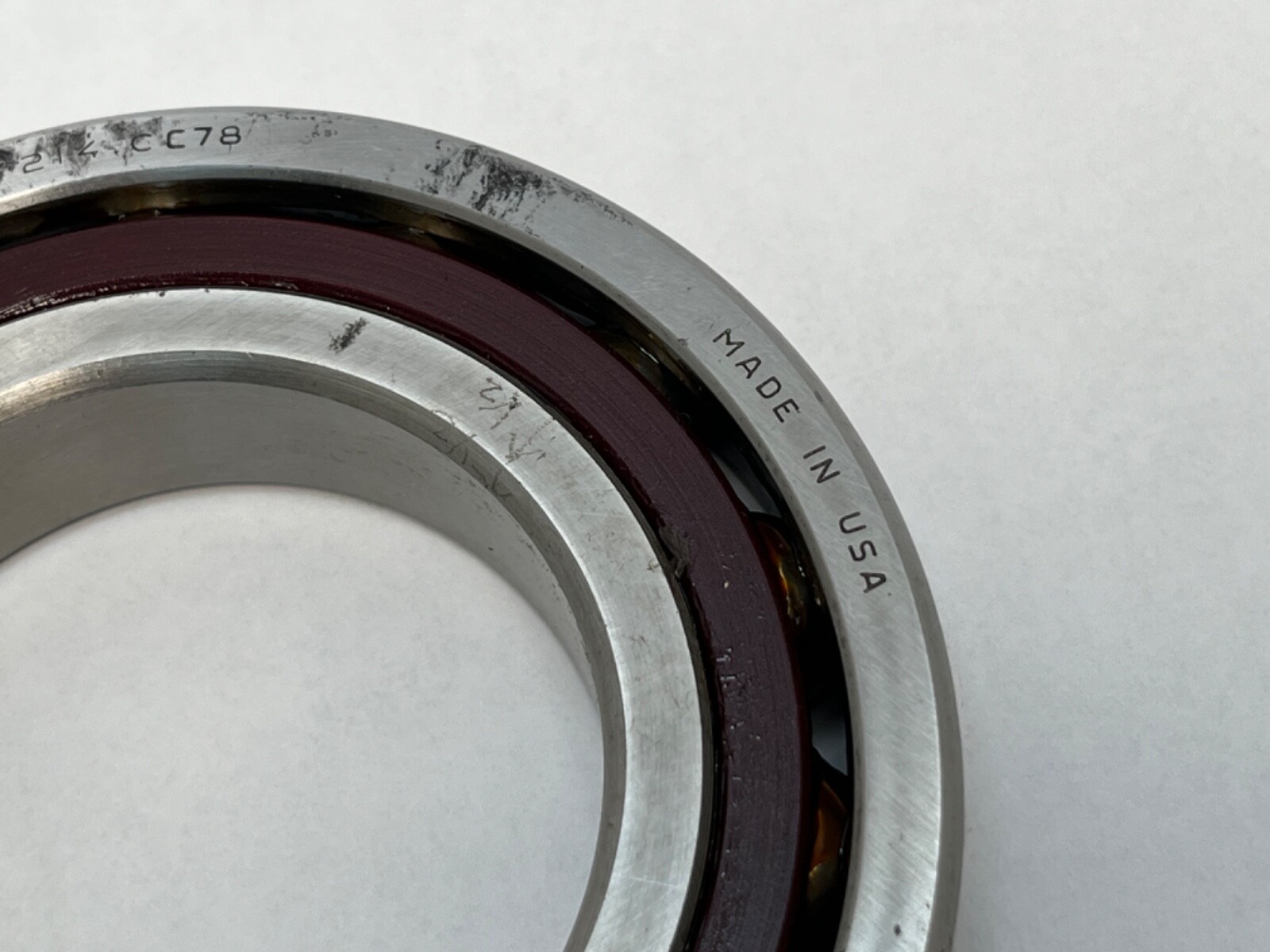

| Condition Note | Made In USA, New Old Stock, (See Pictures) |
| Overall Width | 24 mm |
| Mpn Variants | 7214CTCC78; 7214 CTC/C78; 7214-CTC-C78; 7214 CTC C78; 7214CTC; 7214C; 7214; 2MM214WICR |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Bearing Material | Bearing steel |
| Cross Reference 1 | FAG B7214C.T.P4S |
|---|---|
| Cross Reference 2 | NSK 7214CTR |
| Cross Reference 3 | NTN 7214C |
| Cross Reference 4 | Timken Fafnir 2MM214WICR |
| Cross Reference 5 | RHP B7214X2TA |
| Cross Reference 6 | Koyo 7214C |
| Cross Reference 7 | GMN S6214C |
| Cross Reference 8 | IBC 7214C.T |
| Cross Reference 9 | SNR 7214CG1 |
SKF single row angular contact ball bearing in the 72 series, ISO dimension series 02. Bore Diameter: 70 mm. Outside Diameter: 125 mm. Overall Width: 24 mm. Contact Angle: 15°. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Bearing Material: Bearing steel. Series: 7200. Base Number: 7214. Unit Quantity: 1 Pc.
72 — angular contact ball bearing to ISO dimension series 02.
14 — bore code. Bore diameter 70 mm.
C — 15° contact angle.
Contact Angle: 15°. The load line runs at 15° to the radial plane, so the bearing carries radial load together with axial load in one direction. The shallow angle favours running speed and radial stiffness. Ring Type: One-piece inner and outer rings.
ISO dimension series 02 at a 70 mm bore gives a 125 mm outside diameter and a 24 mm width. Single row angular contact bearings of this size run in machine tool spindles, gearbox shafts, pumps and screw drive supports, mounted in opposed pairs or in tandem so that thrust is taken in both directions.

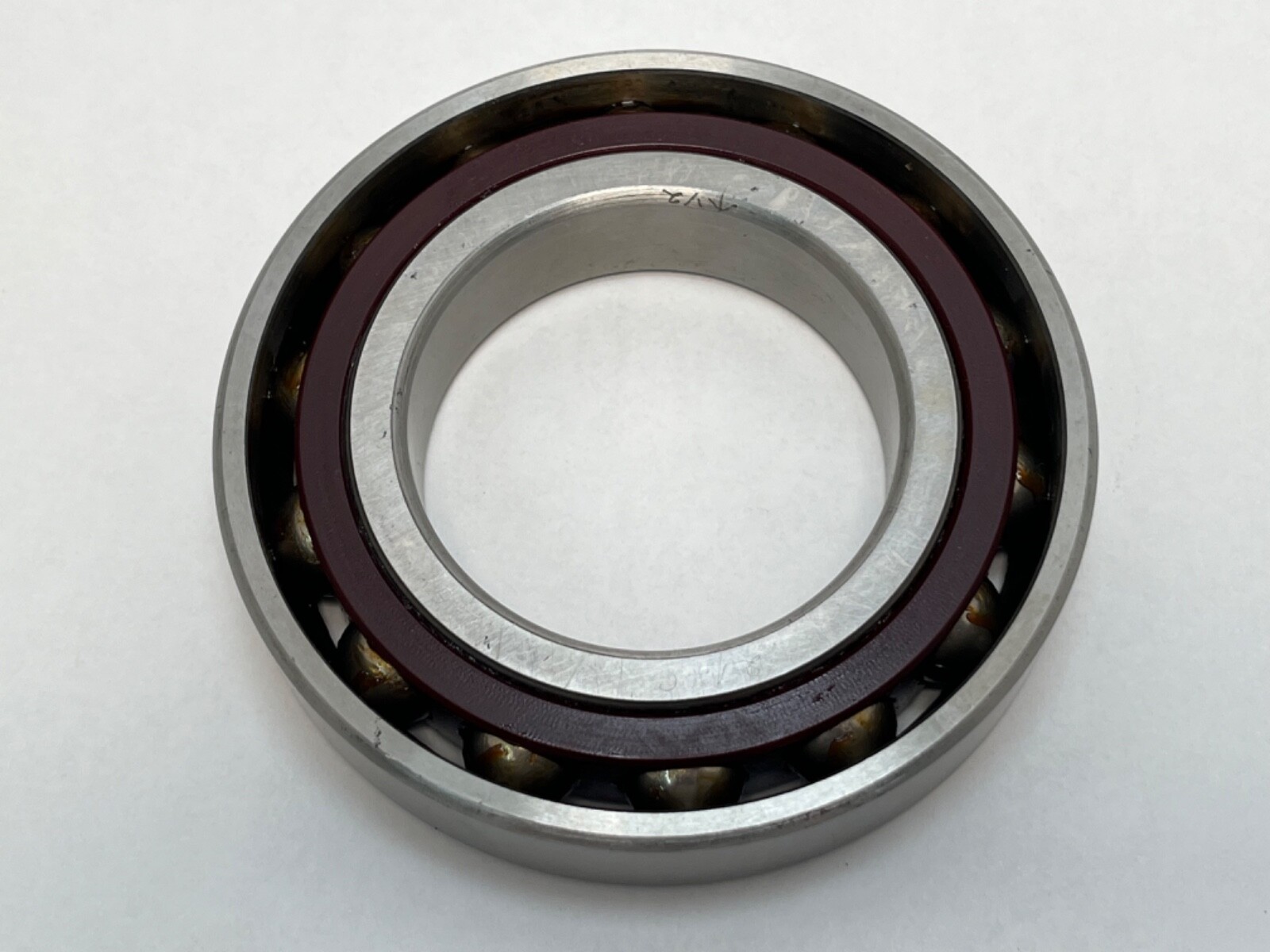

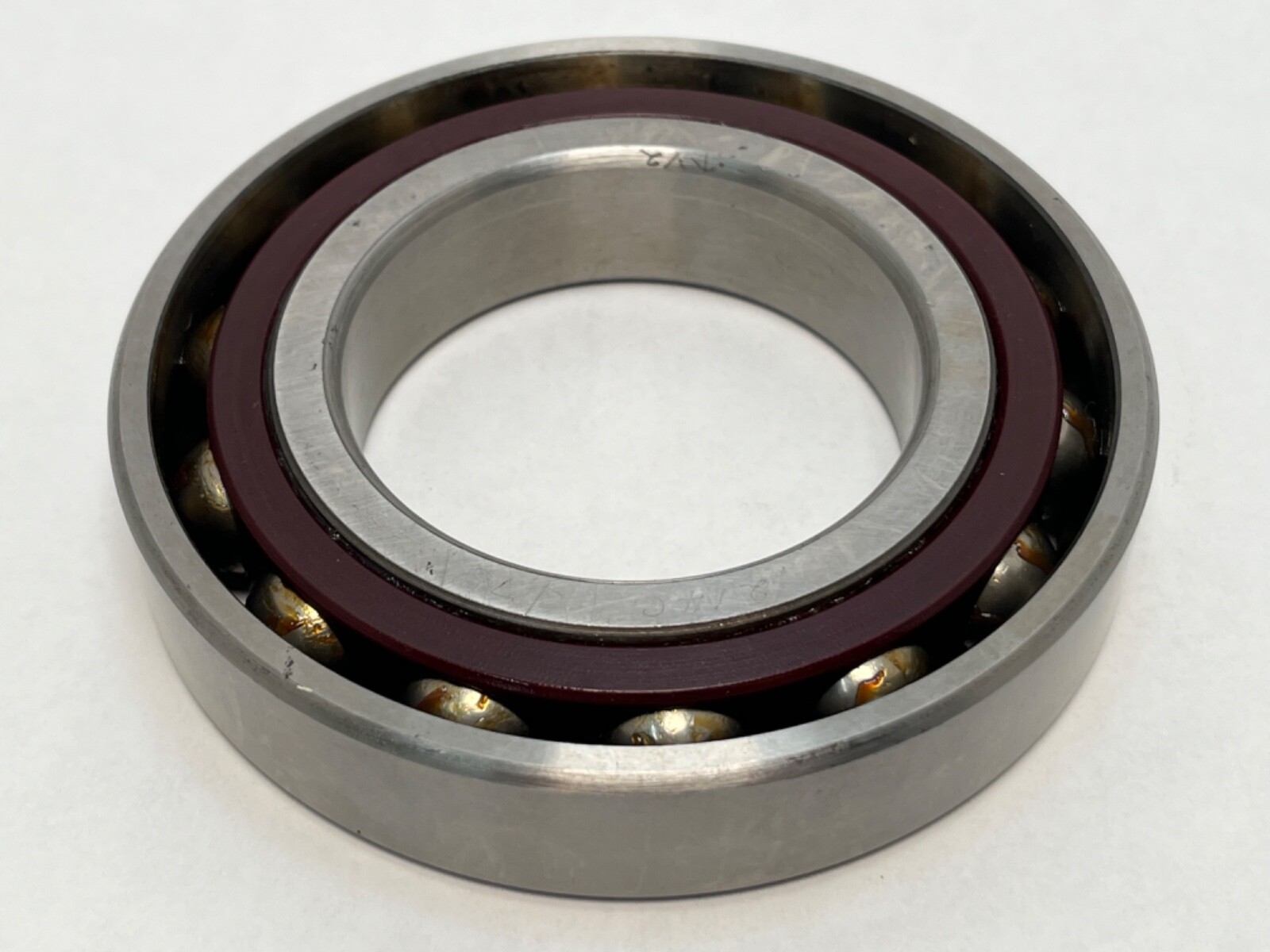

Unit Quantity: 1 Pc. Single bearing, open on both faces, straight bore, one row of balls.

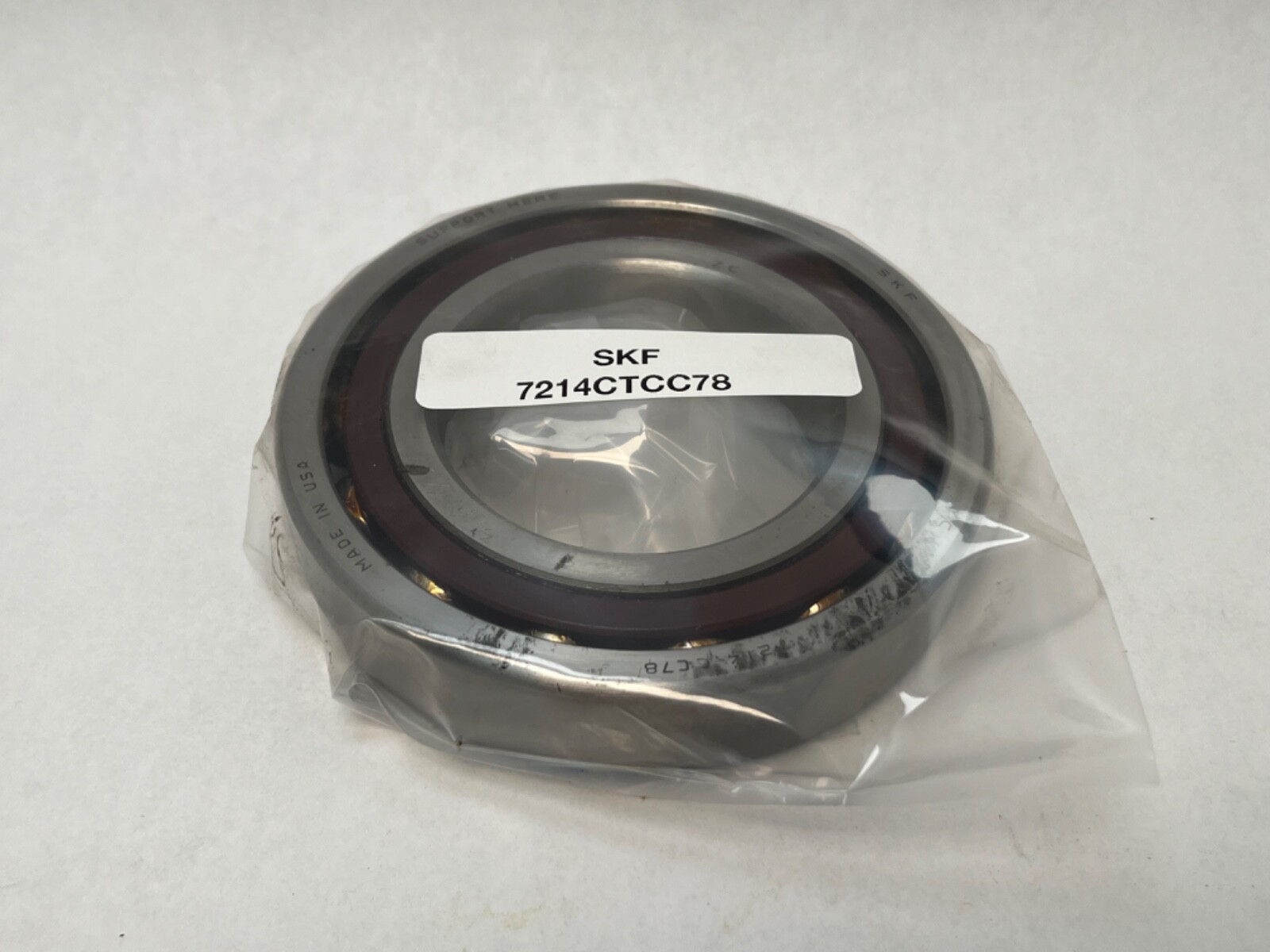

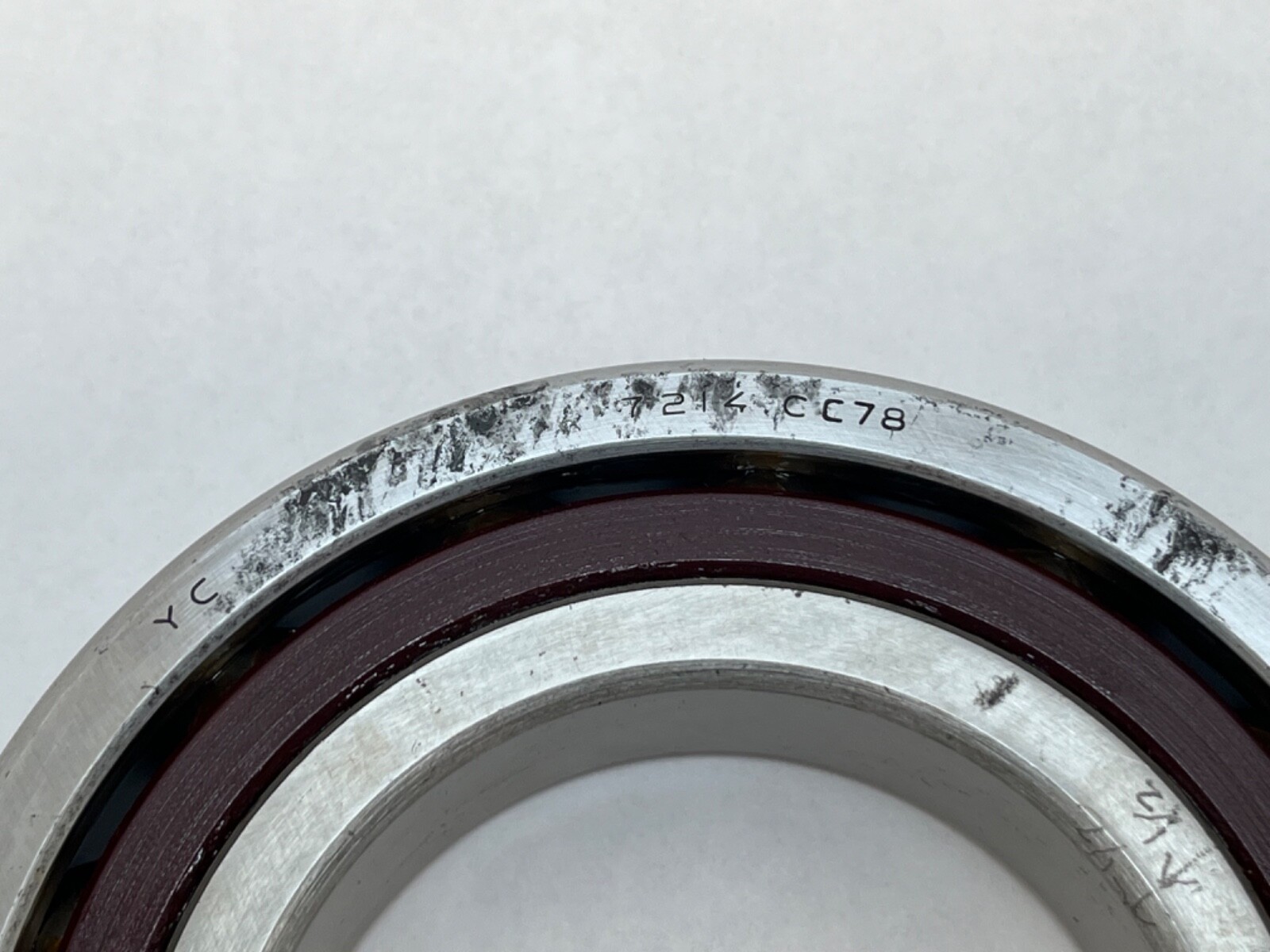

The cross-references listed are same-envelope, same-angle equivalents at 70 x 125 x 24 mm and 15°: FAG B7214C.T.P4S, NSK 7214CTR, NTN 7214C, Timken Fafnir 2MM214WICR, RHP B7214X2TA, Koyo 7214C, GMN S6214C, IBC 7214C.T and SNR 7214CG1. The carton carries the Fafnir designation 2MM214WI CR alongside the SKF number.
