Availability:
1 in stock

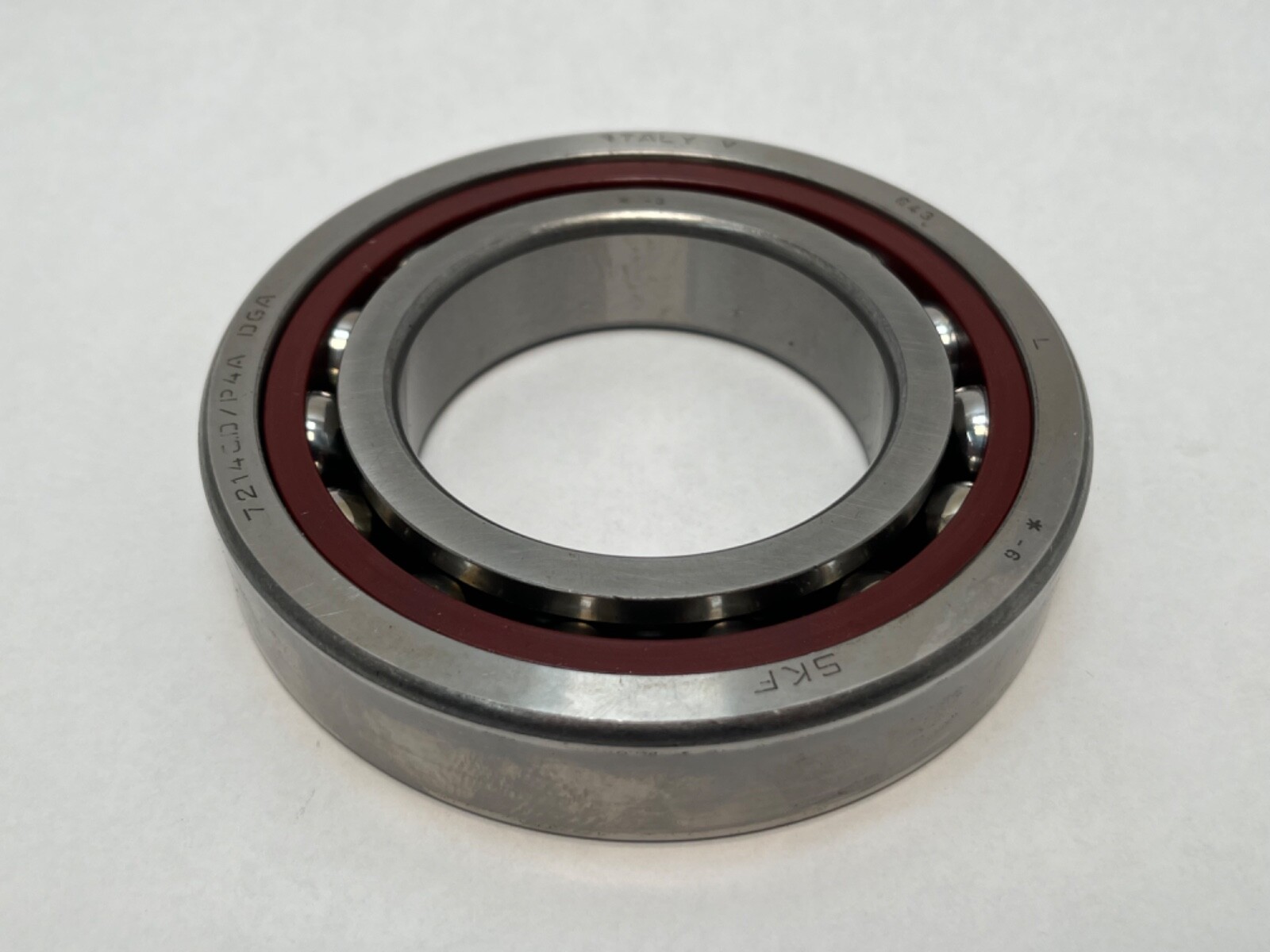

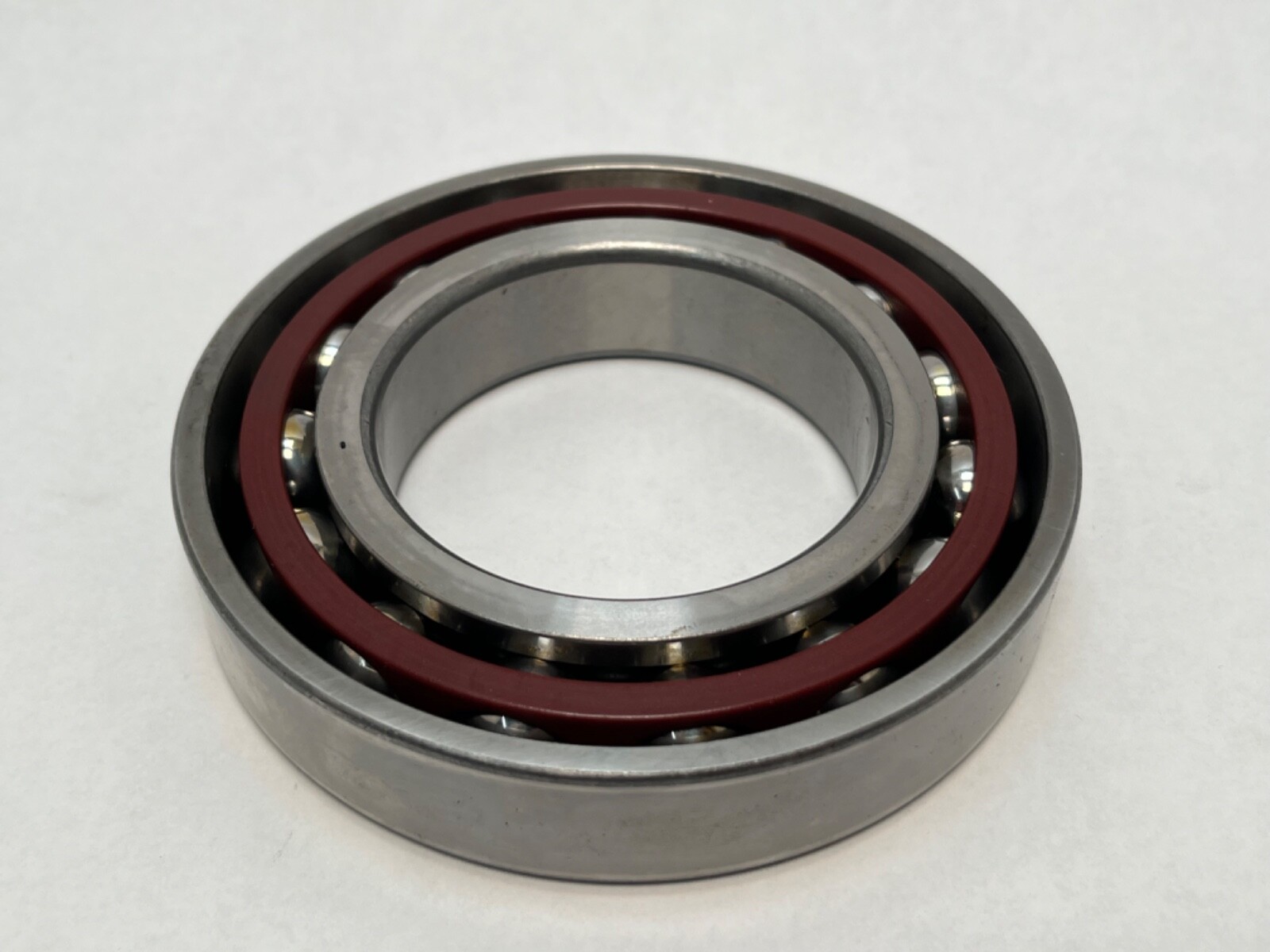

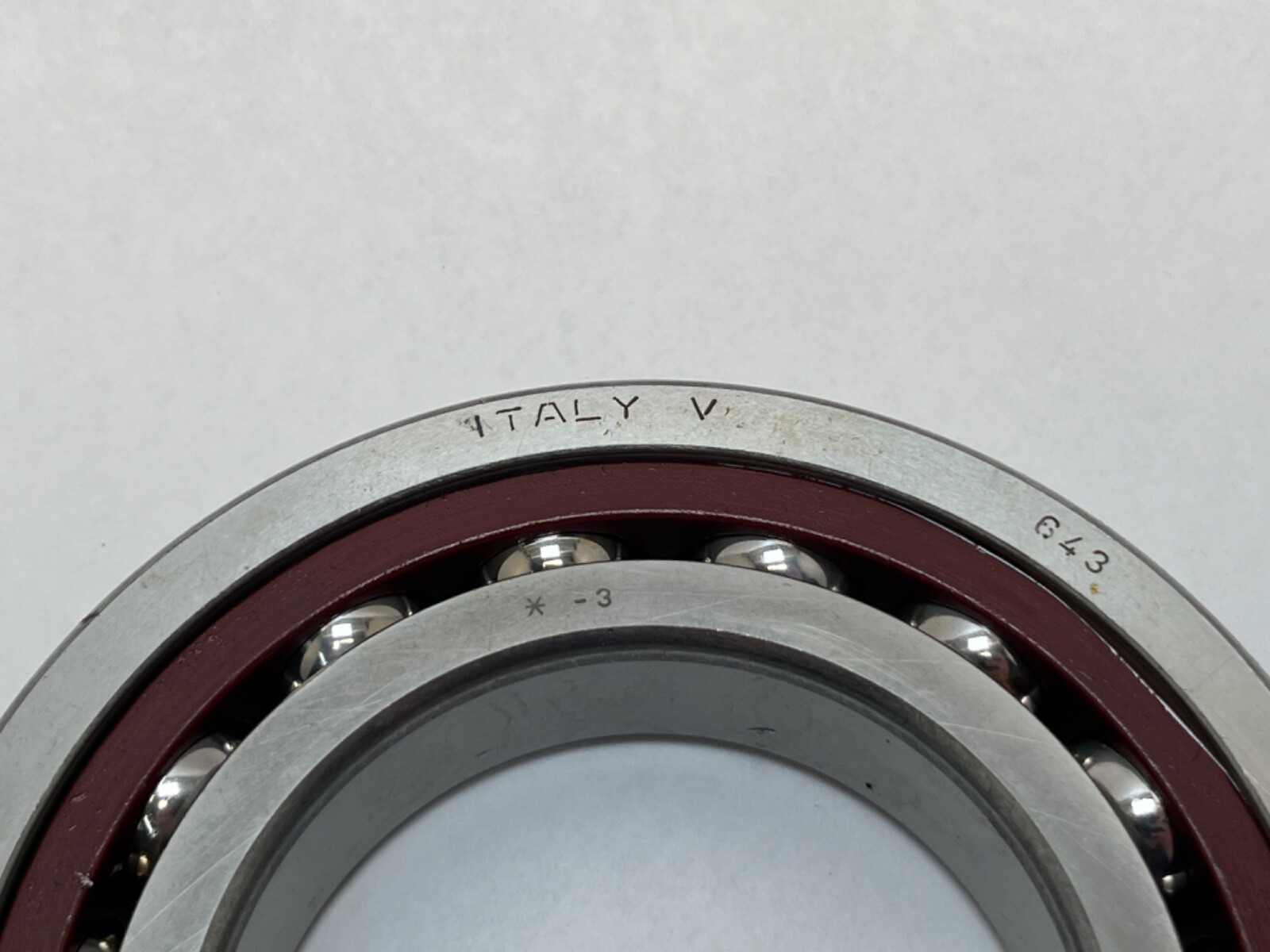

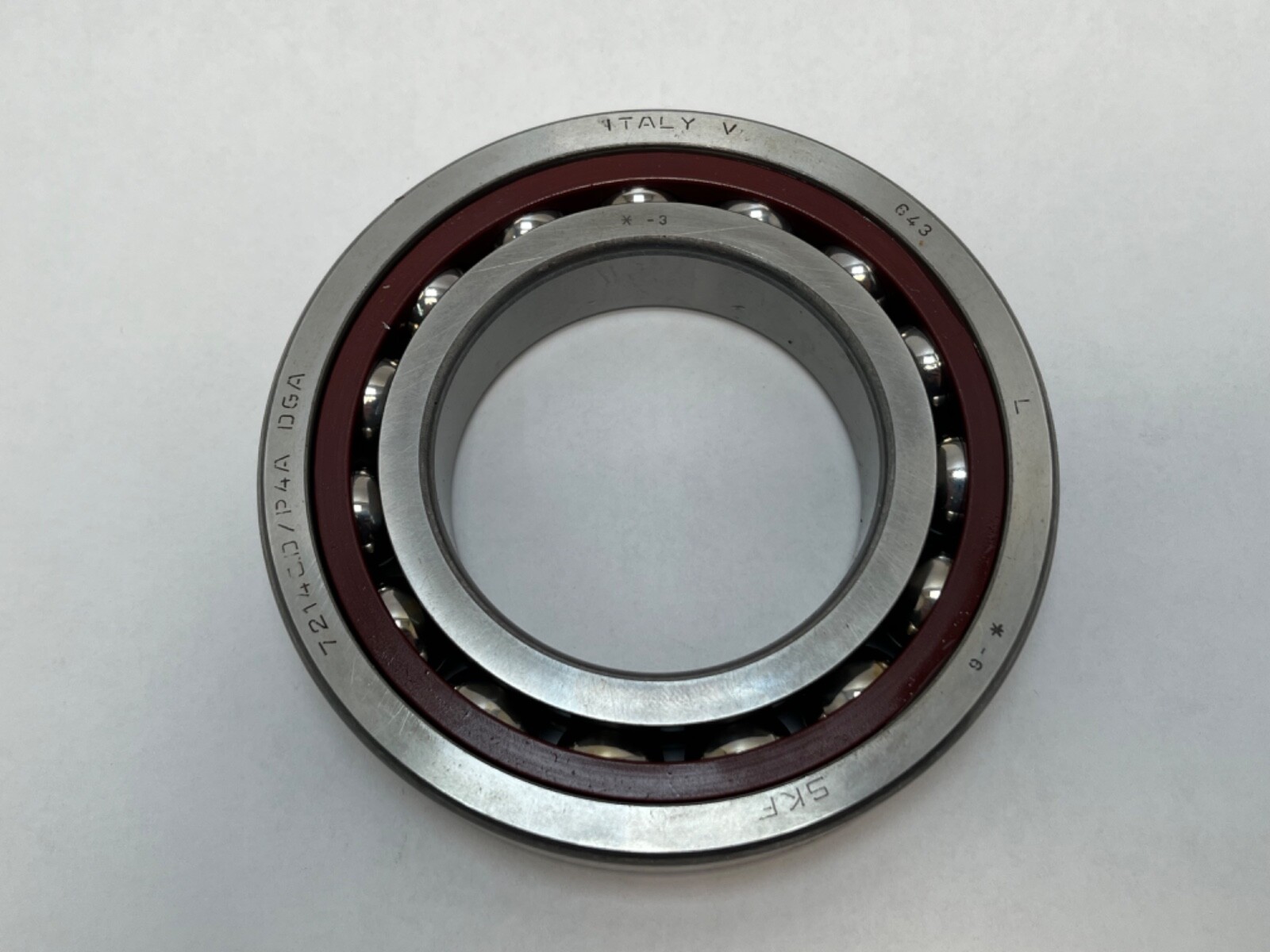

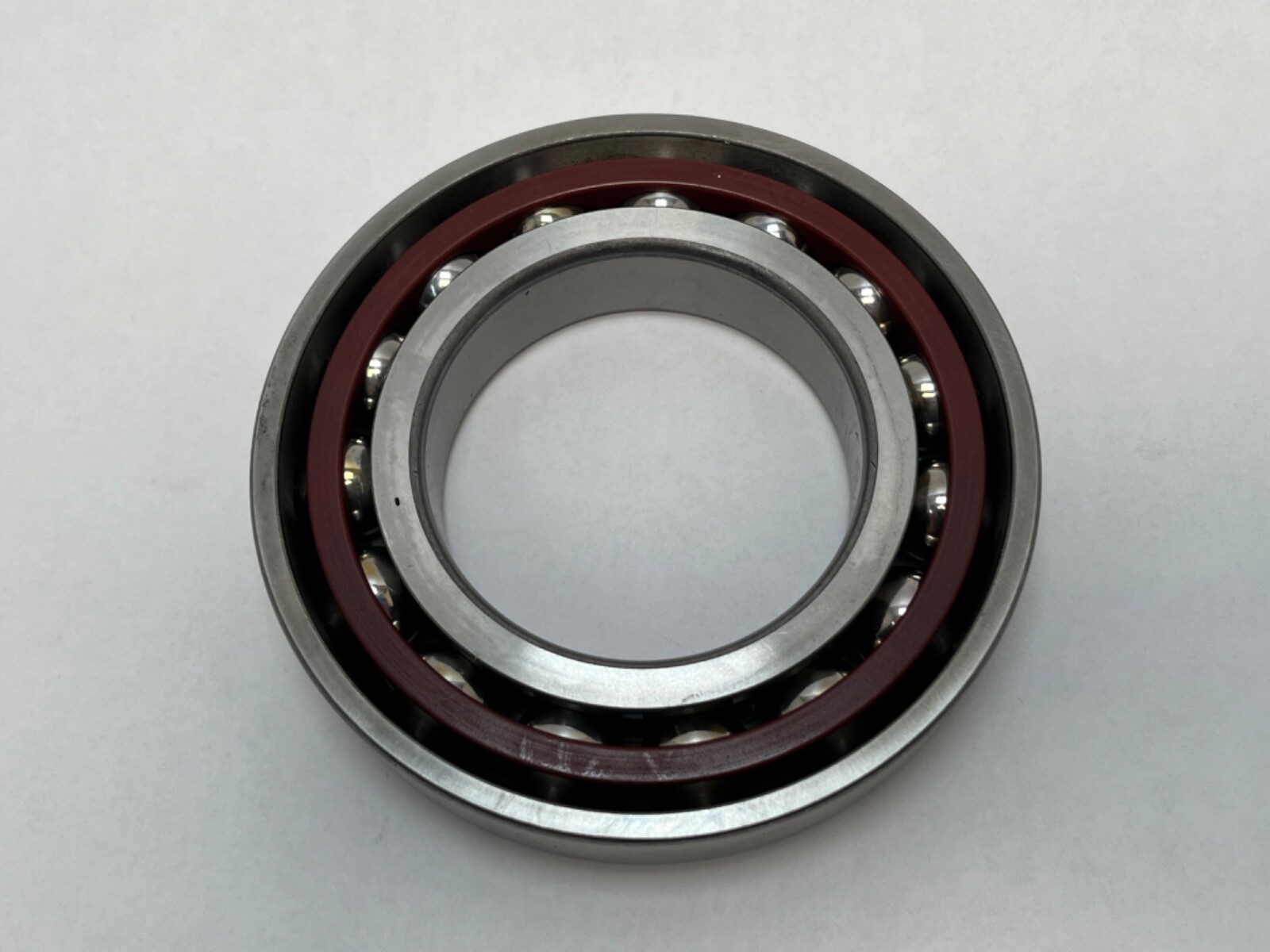

Super precision angular contact ball bearing, 70 x 125 x 24 mm, 15° contact angle, P4A tolerance, Extra light preload (260 N). SKF 72 series high-capacity D design.
List Price
$199.76
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7214-CDGA/P4A |
| Model | 7214CD/P4A DGA / 2MM214WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Preload | Extra light (260 N) |
| Series | 7200 |
| Rolling Elements | Ball |
| Mpn Variants | 7214-CDGA/P4A, 7214 CDGA/P4A, 7214CDGAP4A, 7214-CD-P4A-DGA, 7214CD/P4A DGA, 7214C |
| Precision Class | ABEC 7 / P4A |
| Additional Attributes | Fatigue load limit 2,450 N; axial stiffness 83 N/µm; 16 balls of 15.875 mm; oil nozzle position 91.6 mm |
| Dynamic Load Rating | 68,900 N |
| Static Load Rating | 58,500 N |
| Item Weight | 1.09 kg (2.40 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally matchable: back-to-back, face-to-face or tandem |
| Bearing Material | Bearing steel |
| Cross Reference 1 | FAG B7214-C-T-P4S-UL |
|---|---|
| Cross Reference 2 | NSK 7214CTYNSULP4 |
| Cross Reference 3 | Timken 2MM214WI SUL |
SKF 7214 CDGA/P4A is a super-precision, high-capacity single row angular contact ball bearing from the SKF 72 series. It is universally matchable and can be combined back-to-back, face-to-face or in tandem to give a predetermined extra light preload without shims.

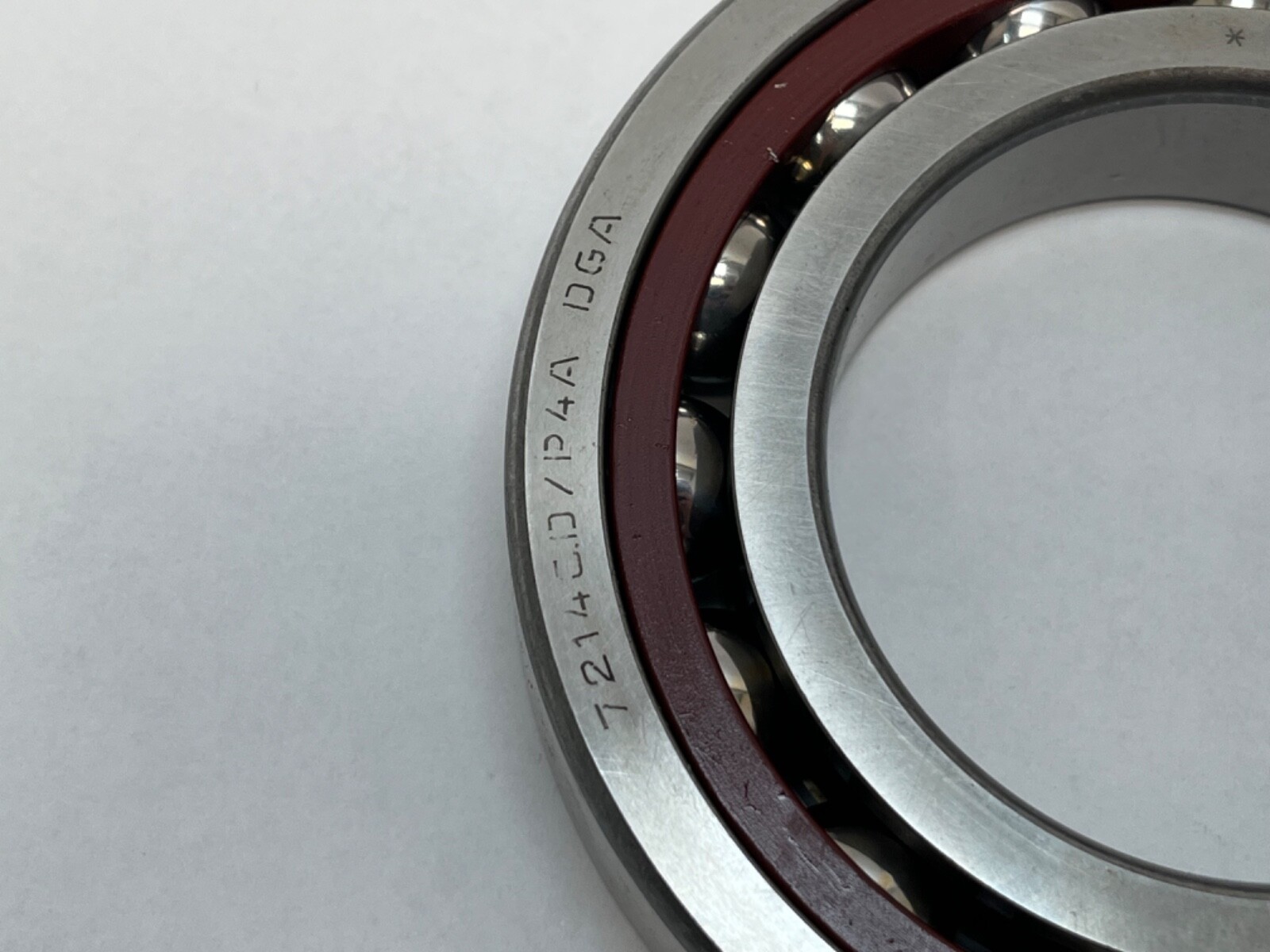

7214 — 72 series angular contact ball bearing, 70 mm bore, 125 mm outside diameter.
CD — high-capacity D design with a 15° contact angle.
GA — single bearing for universal matching, extra light preload.
P4A — SKF precision class: ISO P4 dimensional accuracy with tighter running accuracy.
Bore Diameter: 70 mm. Outside Diameter: 125 mm. Width: 24 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4A. Preload: Extra light, 260 N unmounted (back-to-back or face-to-face pair). Axial stiffness: 83 N/µm. Dynamic Load Rating: 68,900 N. Static Load Rating: 58,500 N. Fatigue load limit: 2,450 N. Ball diameter: 15.875 mm. Number of balls: 16. Reference grease quantity: 13.7 cm³. Item Weight: 1.09 kg (2.40 lb). Bearing Material: Bearing steel. Closure Type: Open.
Inner ring shoulder diameter d1: 87.9 mm. Outer ring shoulder diameter D1: 107.1 mm. Chamfer r1,2 min: 1.5 mm. Chamfer r3,4 min: 0.6 mm. Pressure point distance a: 25.1 mm. Shaft abutment da/db min: 79 mm. Housing abutment Da max: 116 mm; Db max: 120.8 mm. Fillet radius ra max: 1.5 mm; rb max: 0.6 mm. Oil nozzle position dn: 91.6 mm.

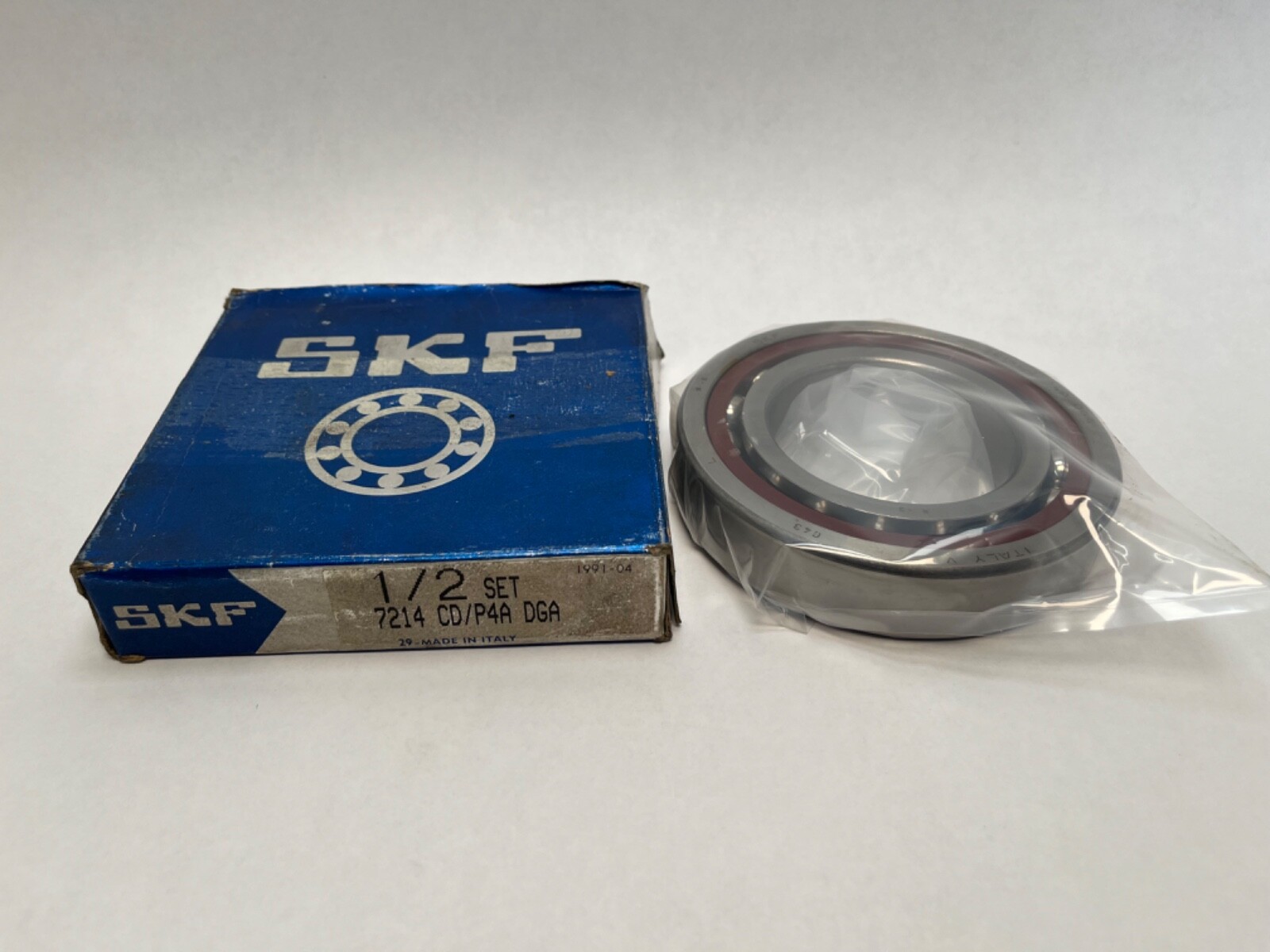

Unit Quantity: 1 Pc. Single universally matchable bearing.
Same envelope and 15° angle: FAG B7214-C-T-P4S-UL, NSK 7214CTYNSULP4, Timken/Fafnir 2MM214WI SUL. Cage execution and exact class vary by maker.
