Super-precision angular contact ball bearing, 25 x 52 x 15 mm, 15° contact angle, ABEC 7 / P4A, extra light preload. Matched set of two, 22,100 N set dynamic rating.
List Price
$180.51
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7205 CX/P4ADGA |
| Model | 7205CX/P4A DGA |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 52 mm |
| Width | 15 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 7200 |
| Lubricant | None |
| Preload | Extra light |
| Total Width | 30 mm |
| Arrangement Configuration | Matched set of two |
| Precision Class | ABEC 7 / P4A |
| Additional Attributes | eCl@ss 23-05-08-04; UNSPSC 31171531; indicative carbon footprint 0.93 kg CO2e; GTIN 7316571829937 |
| Cage Type | Outer-ring shoulder-guided |
| Dynamic Load Rating | 22,100 N (matched set of two) |
| Static Load Rating | 14,600 N (matched set of two) |
| Precision Rating | ABEC 7 / P4A |
| Rolling Elements | Ball |
| Item Weight | 0.252 kg (0.56 lb) per matched pair |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally matchable: back-to-back (DB), face-to-face (DF) or tandem (DT) |
| Bearing Material | Bearing steel |
| Cross Reference 1 | SKF 7205 CD/P4ADGA – SKF successor design to CX |
|---|---|
| Cross Reference 2 | FAG B7205-C-T-P4S – add suffix for pair and preload |
| Cross Reference 3 | NSK 7205CTYNSULP4 – single piece, light preload |
| Cross Reference 4 | NTN 7205UCG/GNP4 – verify preload class |
| Cross Reference 5 | RHP 7205CTDULP4 – duplex pair, light preload |

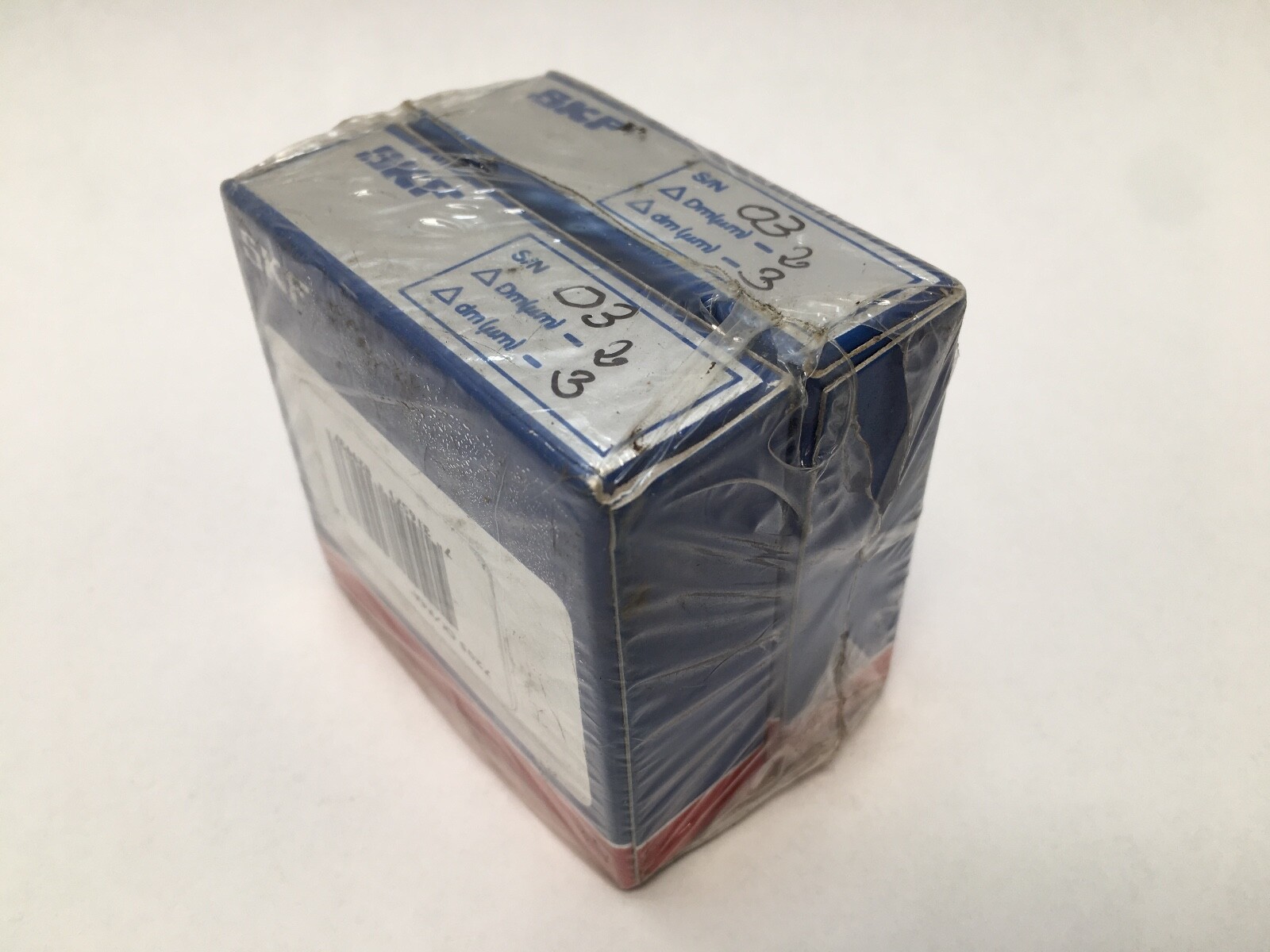

SKF 7205 CX/P4ADGA is a matched set of two super-precision, high-capacity D design, single row angular contact ball bearings with extra light preload. SKF lists 7205 CD/P4ADGA as the replacement for this designation, and the figures below are SKF’s published data for that replacement. Bore Diameter: 25 mm. Outside Diameter: 52 mm. Overall Width: 15 mm per bearing. Total Width: 30 mm across the matched pair. Contact Angle: 15°. Precision Class: ABEC 7 / P4A. Preload: Extra light. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Bore Type: Straight. Closure Type: Open. Seal type: Open. Bearing Material: Bearing steel. Unit Quantity: 2 Pcs. GTIN: 7316571829937.
7205 — ISO 72 light dimension series, bore code 05, giving a 25 x 52 x 15 mm envelope per bearing.
C — 15° contact angle.
P4A — SKF super-precision tolerance class P4A, ABEC 7 running accuracy.
DGA — universally matchable set of two bearings, extra light preload.
Dynamic Load Rating: 22,100 N. Static Load Rating: 14,600 N. Both are SKF set ratings covering the two bearings together. Design: high-capacity D. Contact type: normal contact, two-point. Ring type: one-piece inner and outer rings. Preload: Extra light. The set is preload-adjusted at the factory and carries no internal clearance class. Coating: without. Sealing: without. Lubricant: none.
Item Weight: 0.252 kg (0.56 lb) per matched pair. Indicative carbon footprint for a new product: 0.93 kg CO2e. eCl@ss code: 23-05-08-04. UNSPSC code: 31171531. Harmonization Code: 8482.10.50.
Mounting Arrangement: universally matchable, back-to-back (DB), face-to-face (DF) or tandem (DT). Arrangement / Configuration: matched set of two. Number of bearings in the matched set: 2. Unit Quantity: 2 Pcs. Cage Type: outer-ring shoulder-guided. Snap ring included: No.
SKF 7205 CD/P4ADGA is SKF’s own named successor for this designation. Other 25 x 52 x 15 mm 15° super-precision executions: FAG B7205-C-T-P4S, NSK 7205CTYNSULP4, NTN 7205UCG/GNP4, RHP 7205CTDULP4. Preload class and arrangement are carried by separate suffixes in each maker’s own scheme.
