Availability:
1 in stock

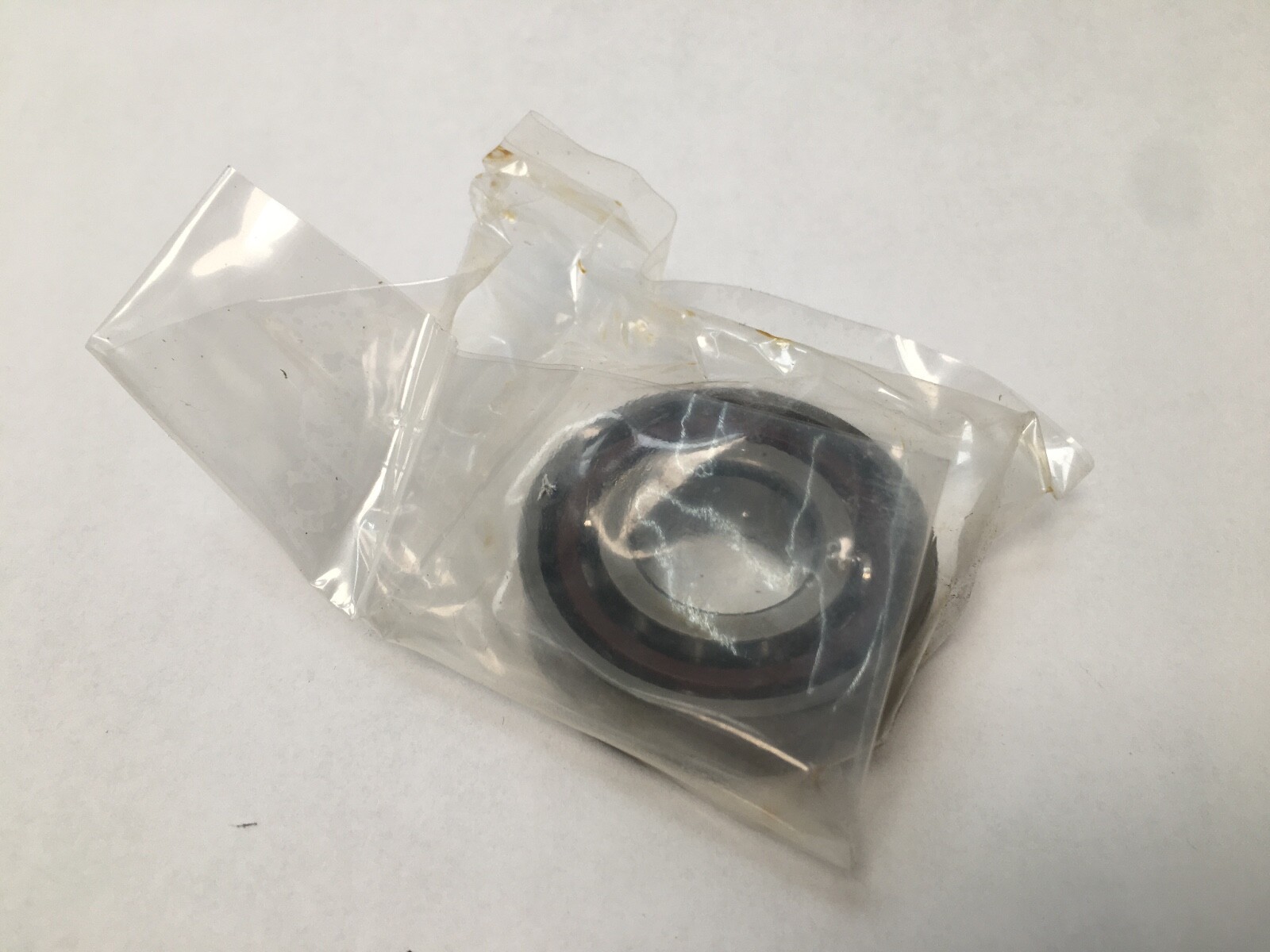

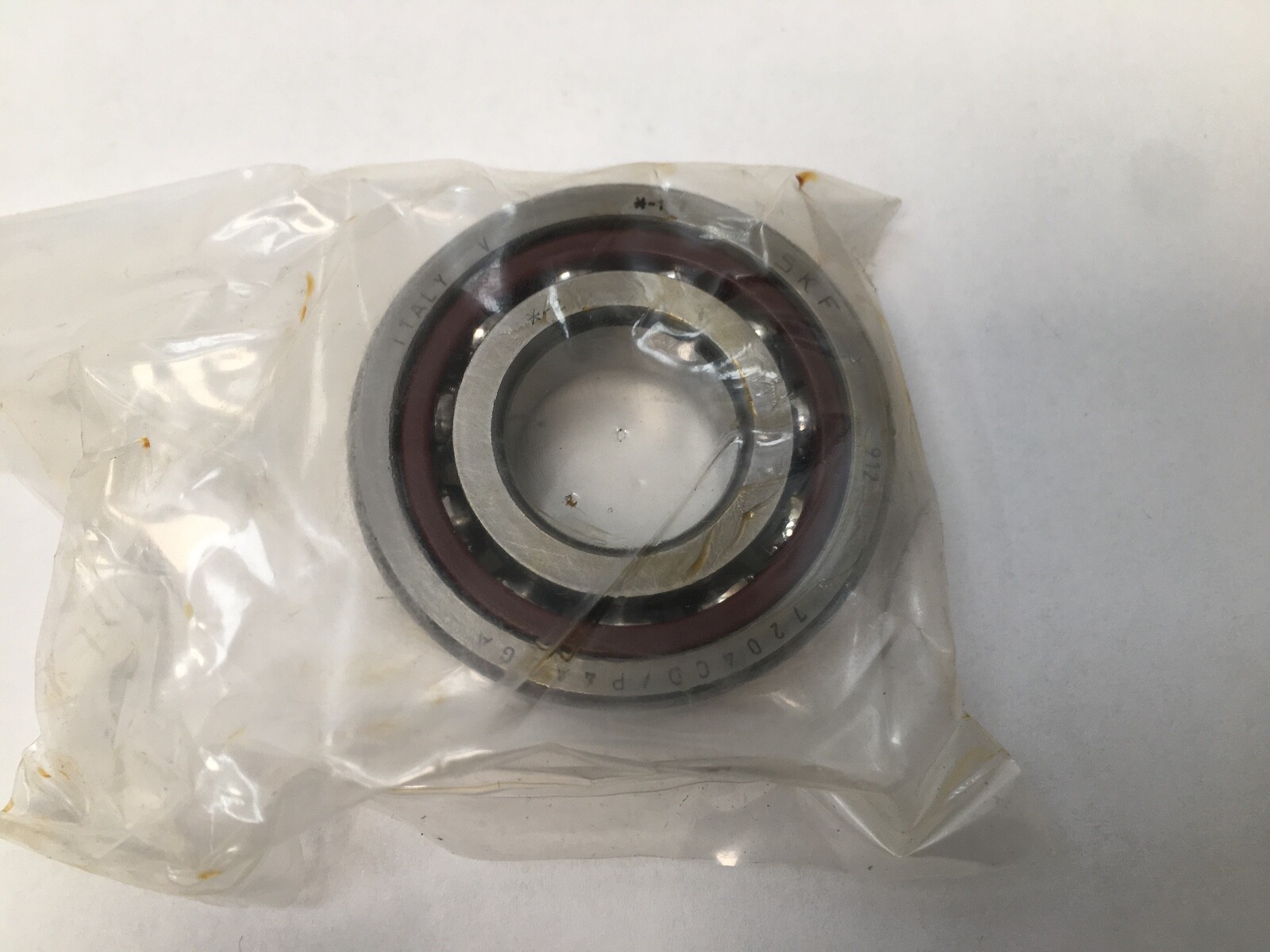

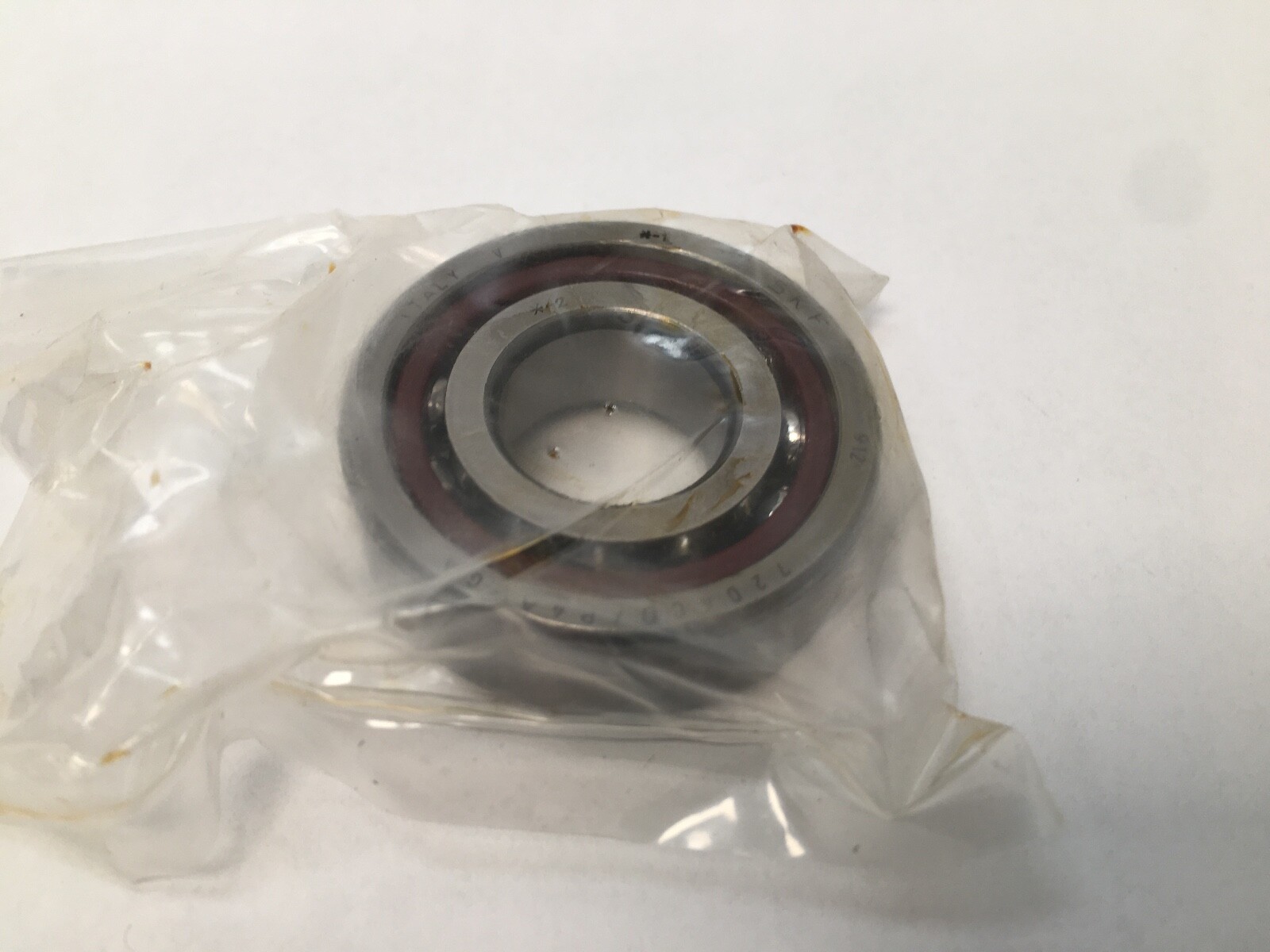

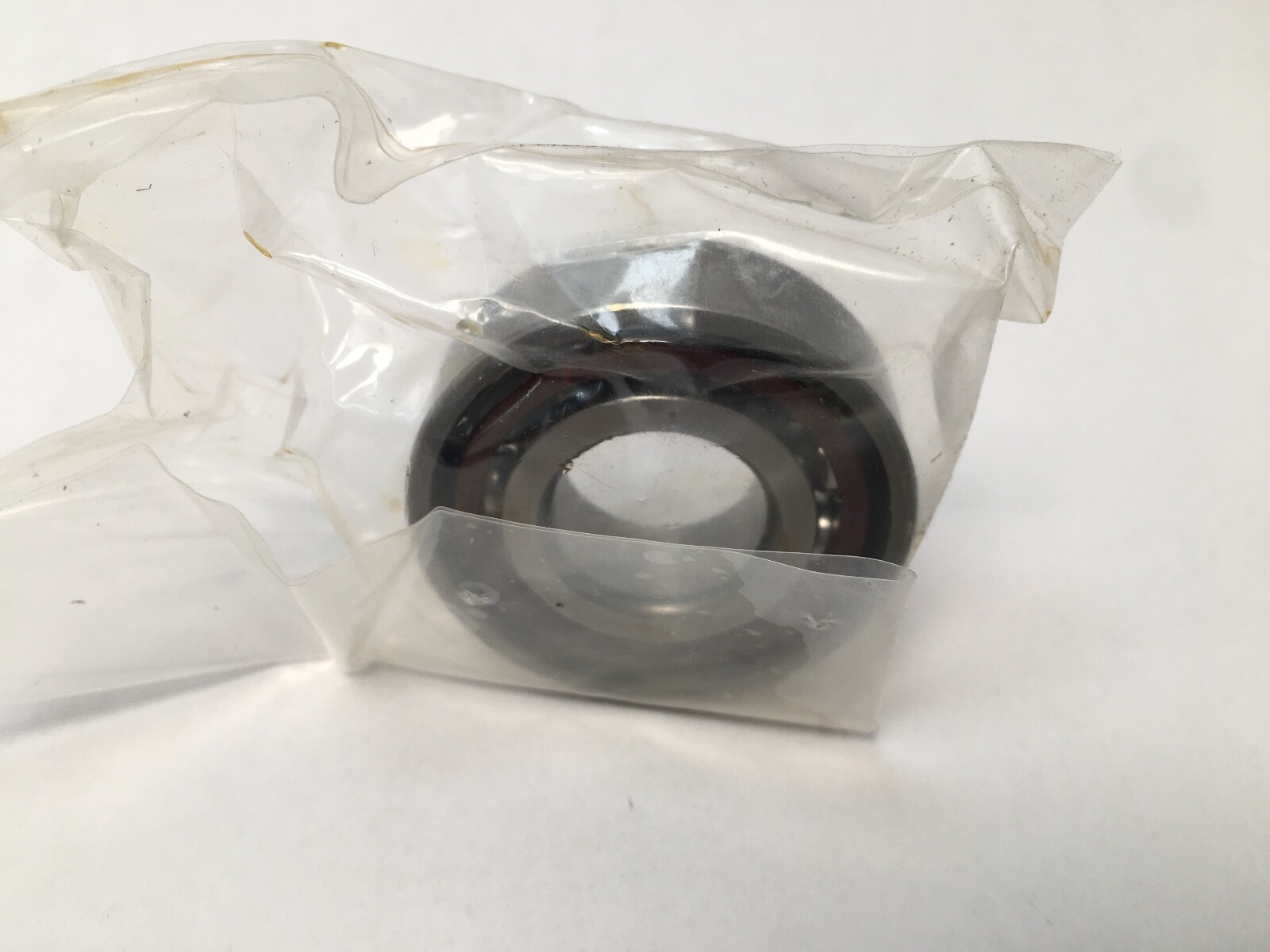

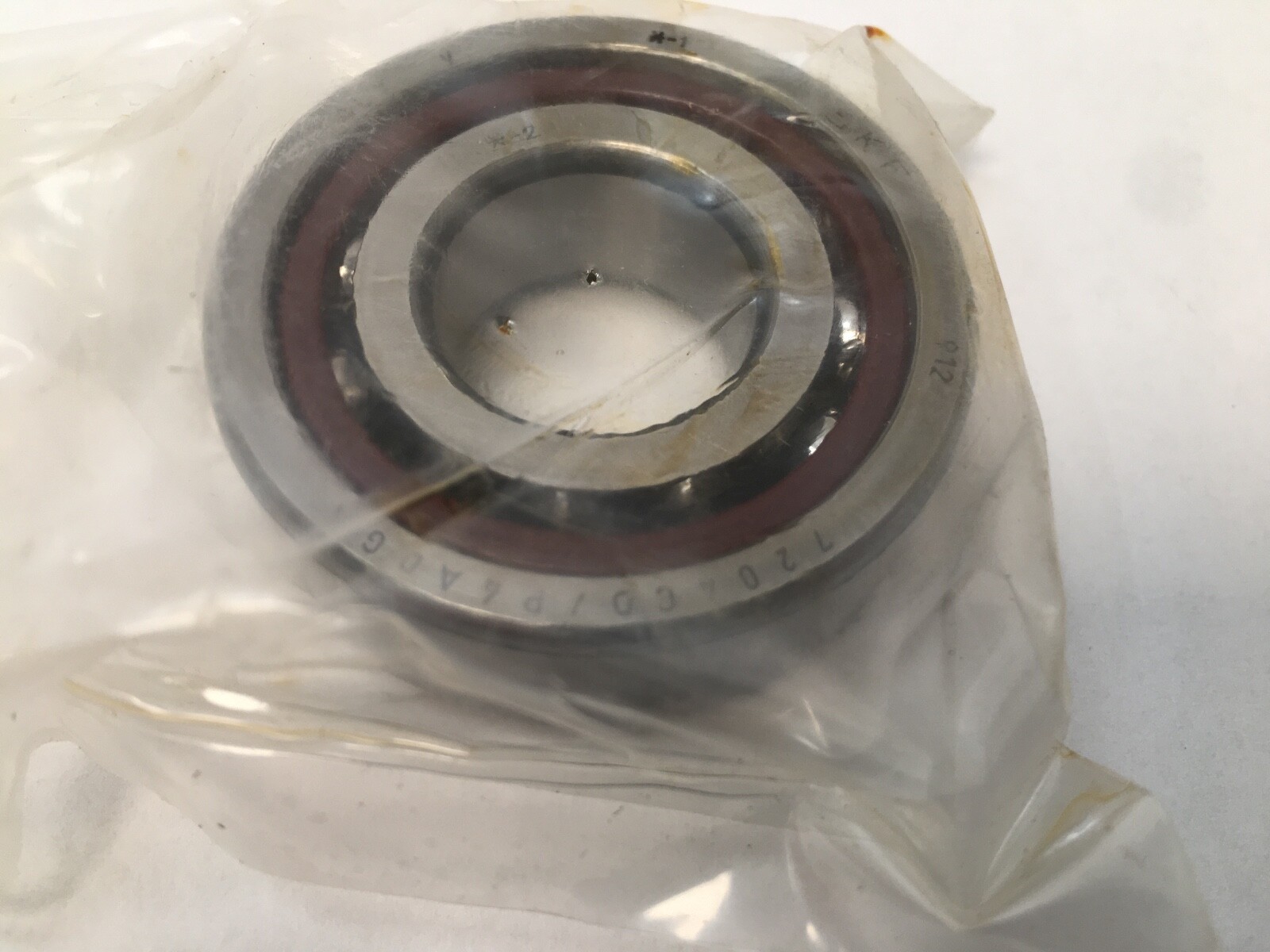

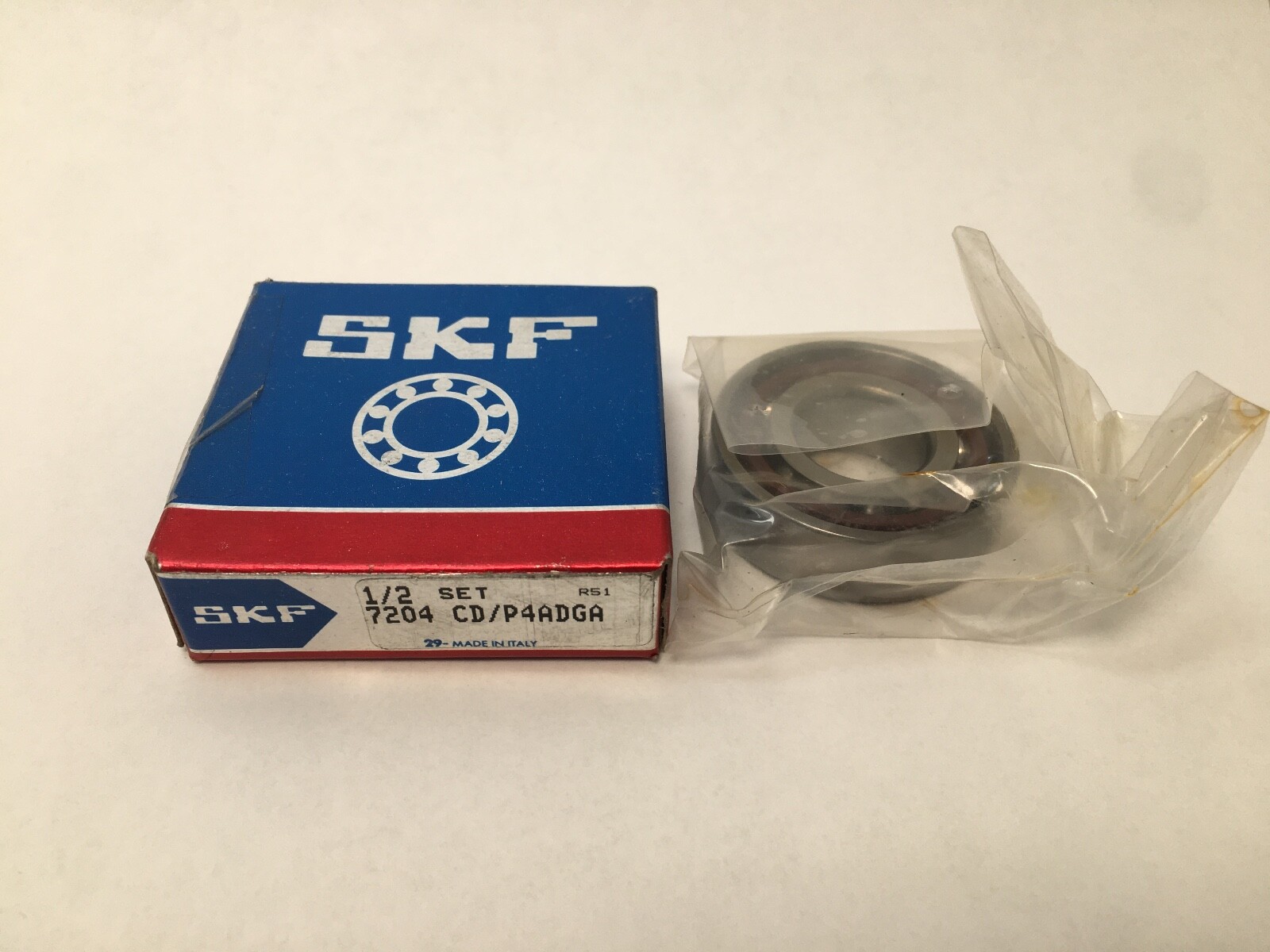

Super-precision angular contact ball bearing, 20 x 47 x 14 mm, 15° contact angle, open. Light preload, P4A tolerance, universally matchable.
List Price
$86.90
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | SKF |
|---|---|
| MPN | 7204 CDGA/P4A |
| GTIN | 7316570038040 |
| Model | 7204CD/P4A DGA |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 47 mm (1.8504 in) |
| Width | 14 mm |
| Material | Chrome Steel |
|---|---|
| Condition | New |
| Preload | Light preload |
| Base Number | 7204 |
| Industry Terms | Spindle bearing, super precision angular contact bearing, machine tool bearing, 15 degree angular contact, universally matchable bearing |
| Common Misspellings | 7204 CDGA P4A, 7204CDGA-P4A, 7204 CDGAP4A, SKF 7204CD GA |
| Application Types | CNC machine tool spindles, grinding spindles, high-speed motors, precision indexing heads |
| Overall Width | 14 mm (0.5512 in) |
| Bore Shaft Size | 20 mm (0.7874 in) |
| Mpn Variants | 7204CDGA/P4A, 7204-CDGA/P4A, 7204 CDGA P4A, 7204CDGAP4A, 7204 CD GA P4A, 7204-CD-GA-P4A, 7204CDP4ADGA, 7204 CD-GA/P4A |
| Precision Class | P4A / ABEC 7 |
| Cage Type | Machined |
| Dynamic Load Rating | 11.9 kN / 2675 lbf |
| Static Load Rating | 5.85 kN / 1315 lbf |
| Precision Rating | ABEC 7 / P4 |
| Series | 72 (7204) |
| Rolling Elements | Ball |
| Item Weight | 0.24 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 38000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Internal Clearance | N/A (preloaded execution) |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Design Units | Metric |
| Bearing Material | Chrome Steel |
| Part Number | 7204 CDGA/P4A |
| Cross Reference 1 | FAG B7204-C-T-P4S-UL |
|---|---|
| Cross Reference 2 | Fafnir 2MM204WI (15°, same envelope) |
| Cross Reference 3 | SKF 7204 ACDGA/P4A (related size, 25° contact angle) |
SKF 7204 CDGA/P4A single-row super-precision angular contact ball bearing. Bore: 20 mm. Outside diameter: 47 mm. Width: 14 mm. Series: 72 (7204). Bore form: straight. Closure: open on both faces. Rolling elements: chrome steel balls in a machined non-metallic phenolic cage.
Contact Angle: 15°, from the CD design code. Precision Class: P4A. Preload: light, from the GA code. Universally matchable, so pieces stack in any combination and reach the stated preload range without shims.
Dynamic Load Rating: 11.9 kN. Static Load Rating: 5.85 kN. Limiting Speed: 38,000 rpm. A 15° contact angle gives the highest speed capability of the super-precision angular contact range and high radial stiffness, with thrust taken in one direction. Light preload holds the spindle rigid while keeping frictional heat low, which is what allows the high speed rating.
Unit Quantity: 1 Pc. Single universally matchable bearing, supplied open. Item weight: 0.24 lb.
Straight bore, mounted directly on the shaft seat. Faces are universally ground for flush abutment in back-to-back, face-to-face or tandem stacks. Internal Clearance: N/A on a preloaded execution.
FAG B7204-C-T-P4S-UL matches on angle, cage material and class. Fafnir 2MM204WI is the equivalent 15° execution on the same envelope. SKF 7204 ACDGA/P4A shares the 20 x 47 x 14 mm envelope at 25° and is a related size.
