Availability:
17 in stock

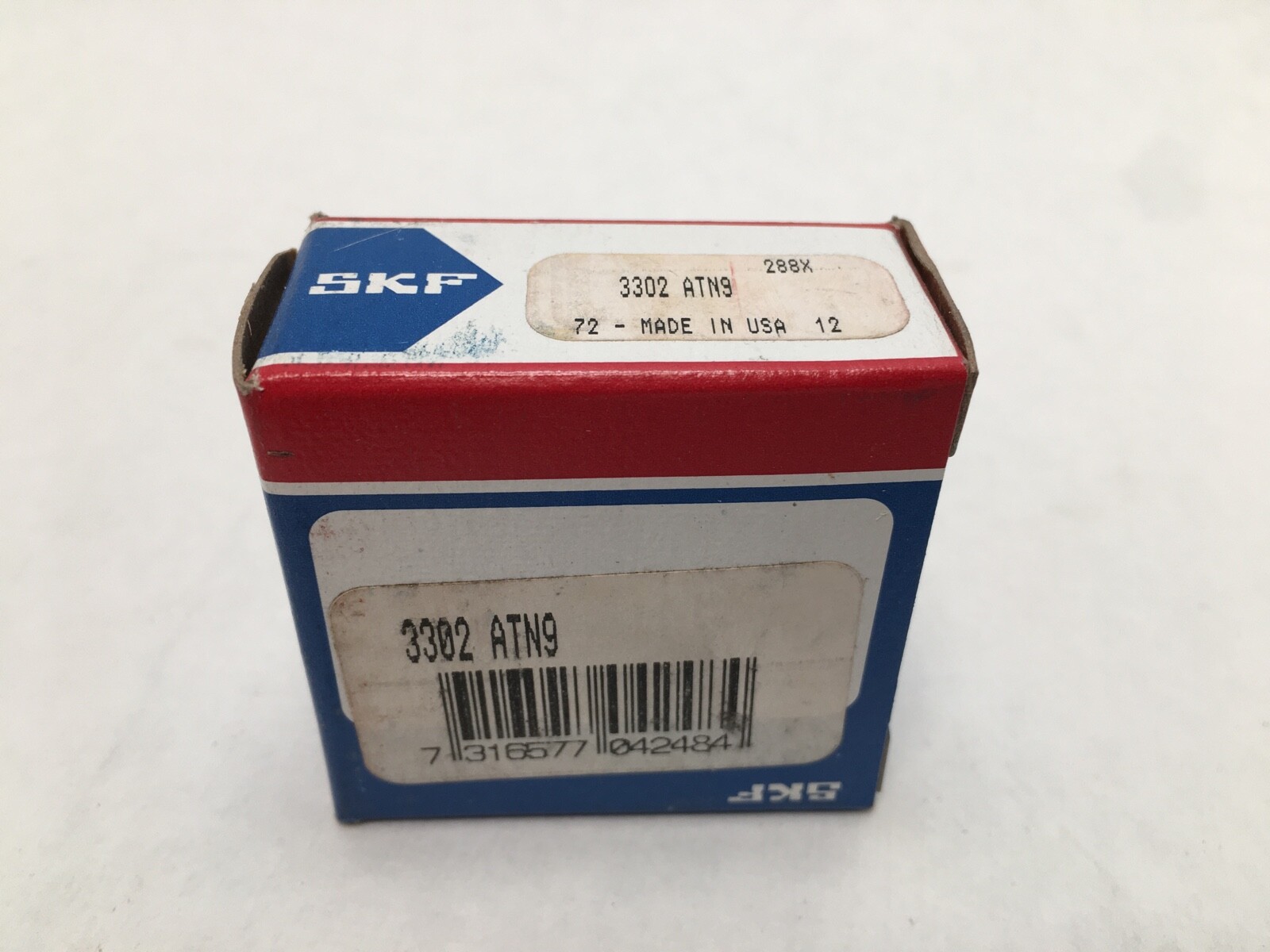

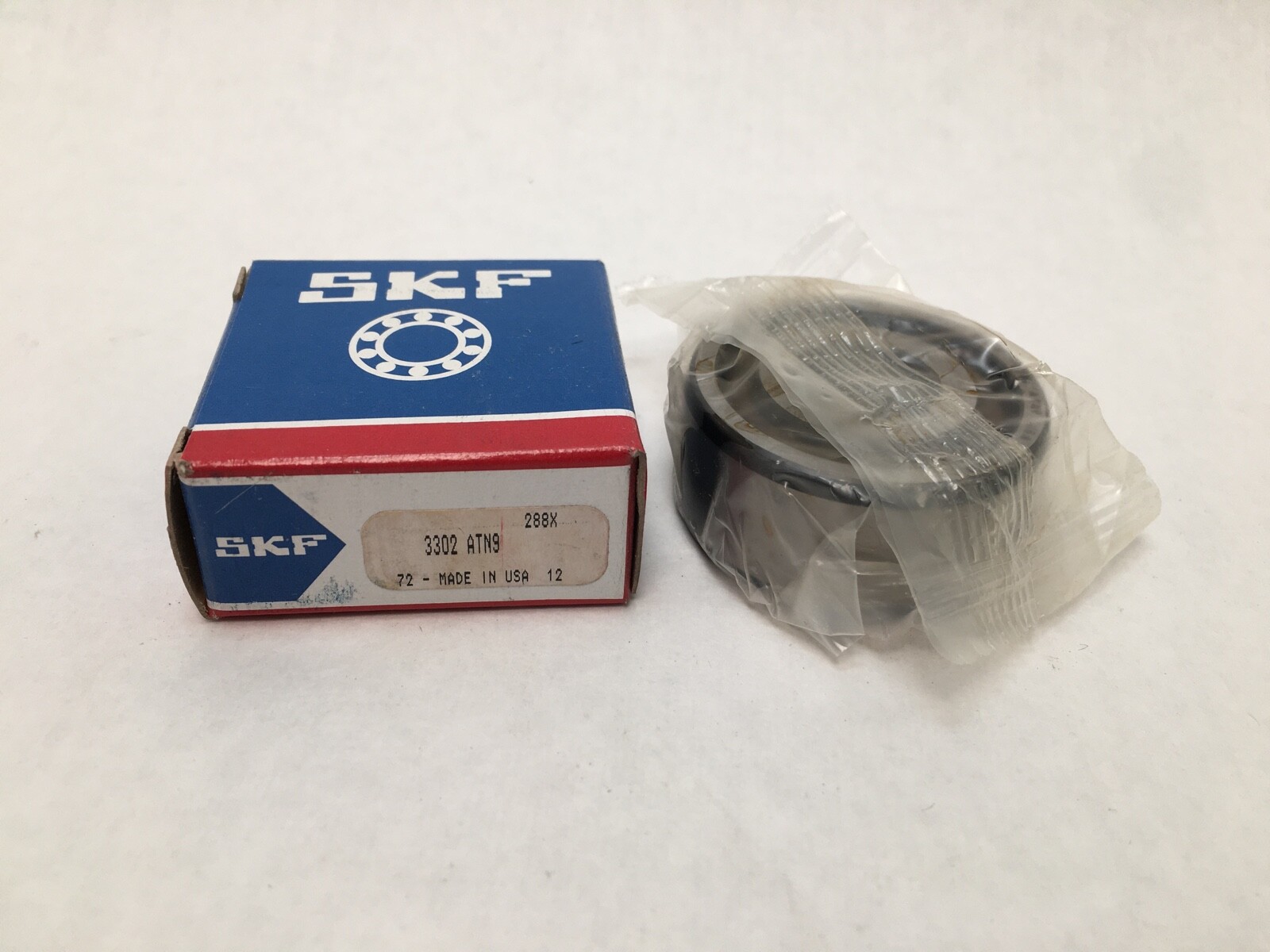

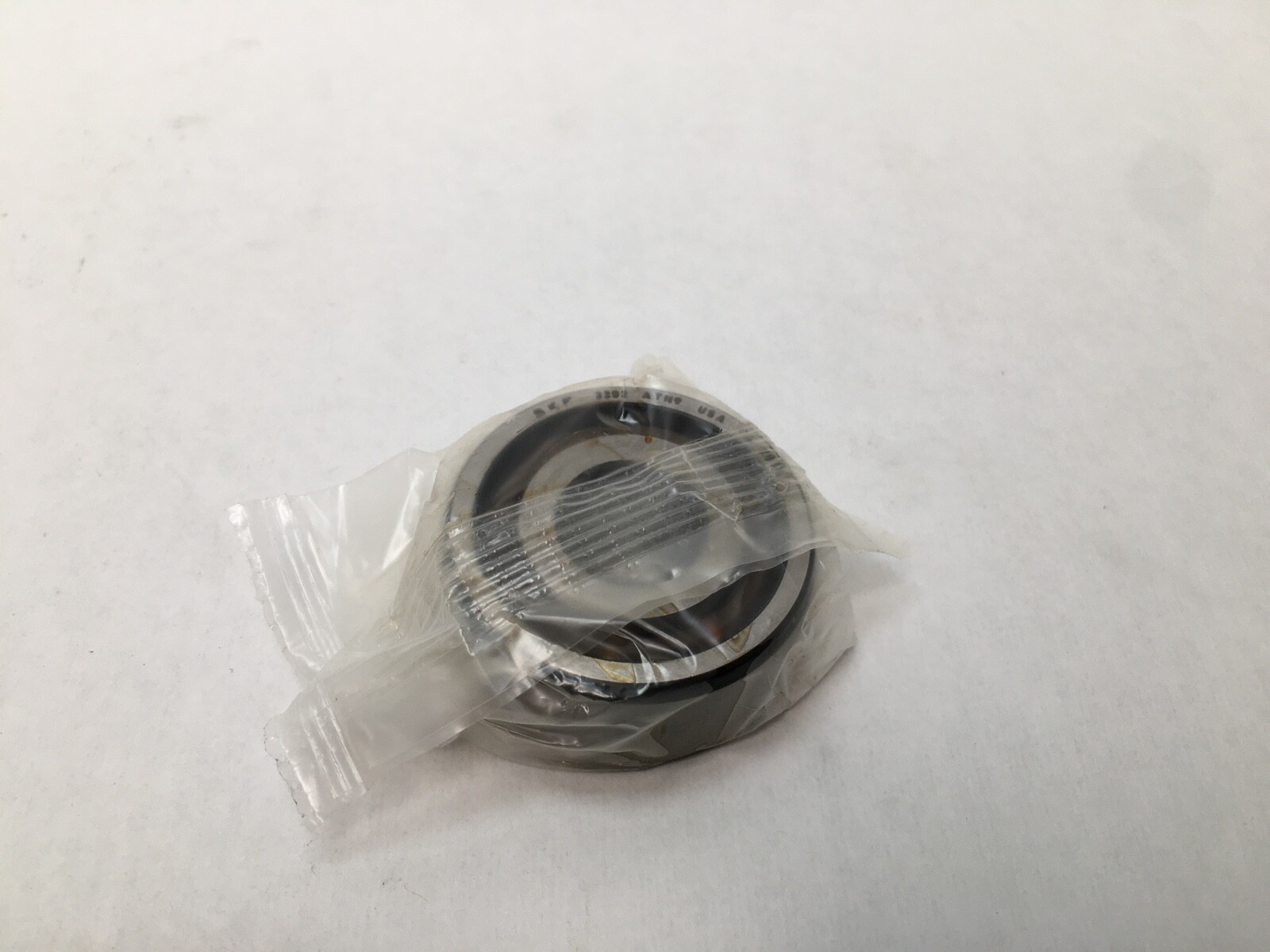

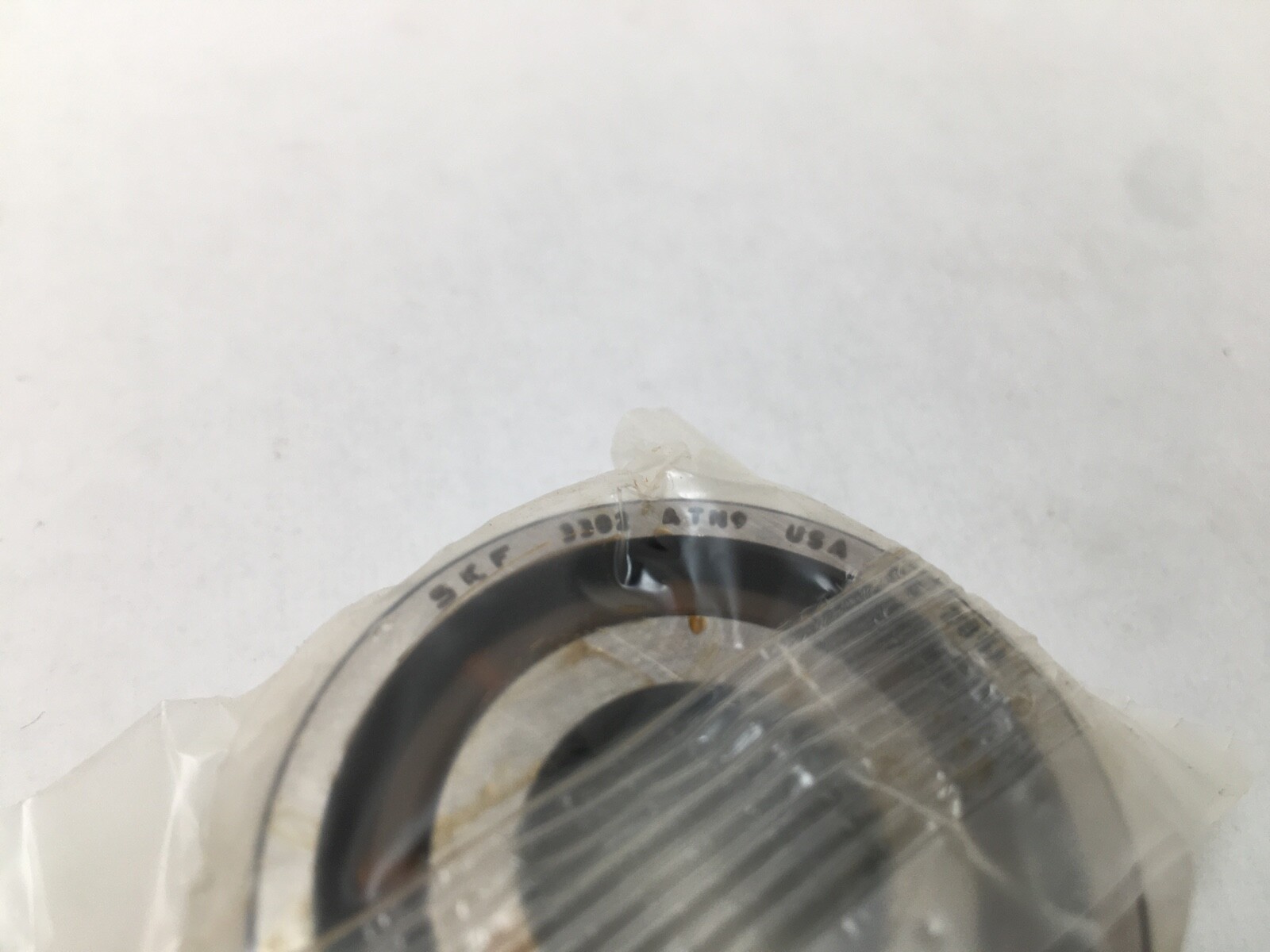

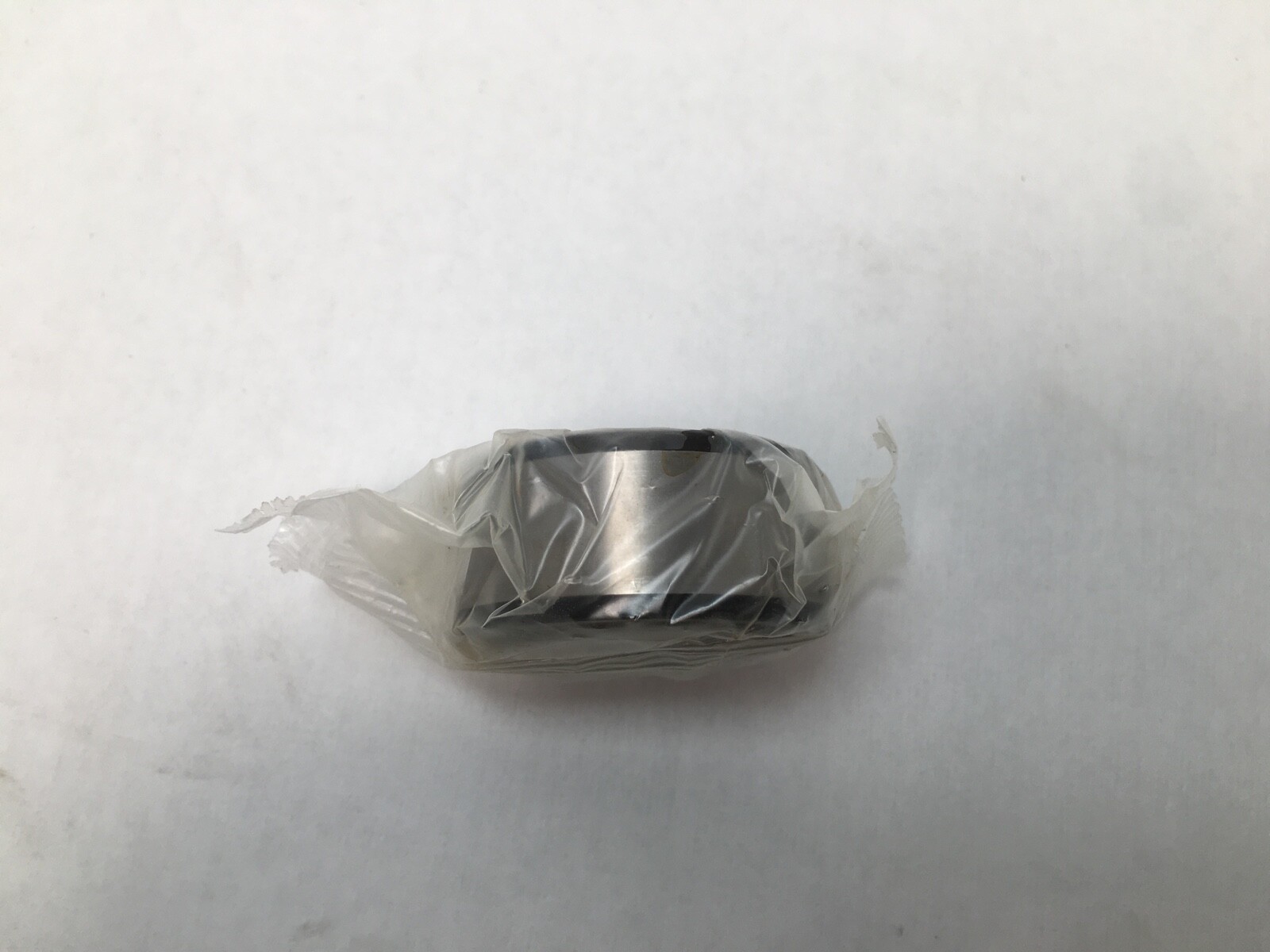

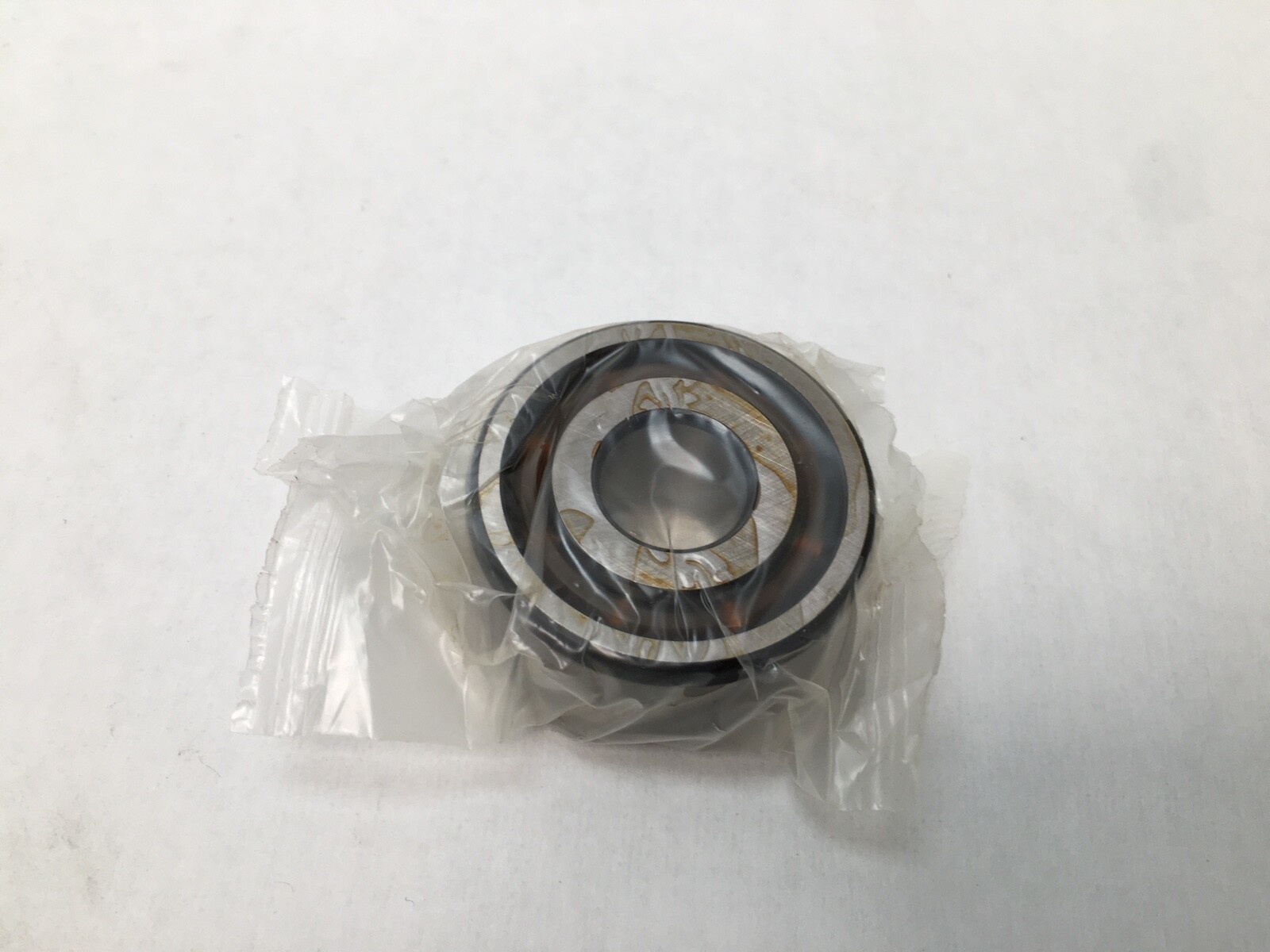

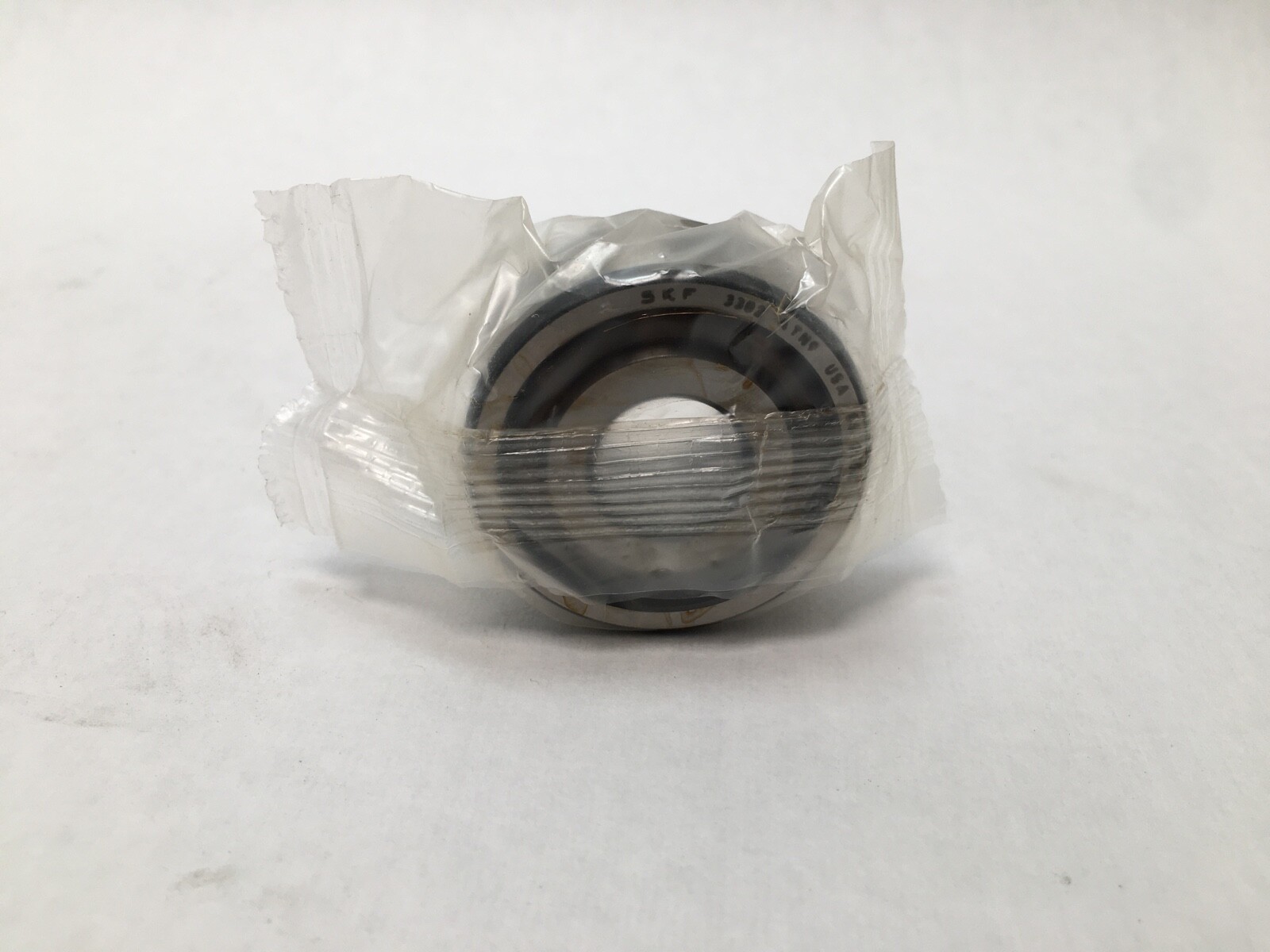

SKF 3302 ATN9 double row angular contact ball bearing, 15 mm bore x 42 mm OD x 19 mm wide, 30 degree contact angle, open, polymer cage, CN axial clearance. US-series equivalent 5302.
List Price
$18.16
17 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| GTIN | 7316577042484 |
| Model | 3302A TN9 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 15 mm |
| OD | 42 mm |
| Width | 19 mm |
| Material | Bearing Steel |
|---|---|
| Series | 3300 |
| Dynamic Load Rating | 15.1 kN |
| Static Load Rating | 9.3 kN |
| Rolling Elements | Ball |
| Item Weight | 0.125 kg |
| Cage Material | Non-metallic |
| Limiting Speed | 16000 |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN (normal axial) |
| Harmonization Code | 8482.10.5052 |
| Contact Angle | 30° |
| Mounting Arrangement | Back-to-back (O) |
| Bearing Material | Bearing steel |
| Cross Reference 1 | SKF 5302 |
|---|
An SKF 3302 ATN9 double row angular contact ball bearing, new. Bore Diameter: 15 mm. Outside Diameter: 42 mm. Width: 19 mm. Contact Angle: 30°. Two rows of balls in a back-to-back (O) arrangement inside one-piece inner and outer rings, open on both sides. The SKF US-series number is 5302.
3302 — ISO double row angular contact series, 15 mm bore, medium (03) section.
A — standard internal design for this series.
TN9 — non-metallic (injection moulded polymer) cage.
Basic Dynamic Load Rating (C): 15.1 kN. Basic Static Load Rating (C0): 9.3 kN. Reference Speed: 18 000 r/min. Limiting Speed: 16 000 r/min. Cage: non-metallic. Axial Internal Clearance: CN (normal). Material: bearing steel. Supplied without lubricant and without a relubrication feature. The polymer cage is what lifts the speed rating on this size well above the sheet-metal executions in the same series.
Arrangement of contact angle: back-to-back (O). Carries high axial load in both directions plus radial load and tilting moment, in less axial space than a matched pair of single row bearings.
Sold as a single bearing. Not a matched set — this is a one-piece double row unit.
SKF US-series number: 5302. Common spellings: 3302 A TN9, 3302ATN9, 3302-ATN9, 3302A.
$111.47
35 in stock
