Super precision angular contact ball bearing pair, 110 x 170 x 28 mm, 25° contact angle, medium preload, laminated phenolic cage, P4 tolerance.
List Price
$929.39
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super-Precision Angular Contact Ball Bearing 110x170x28 mm 25° Light Preload ABEC 7$464.70
Angular Contact Ball Bearing - 17 mm ID, 35 mm OD, 10 mm Width, 25° Contact Angle, ABEC 7 / P4, Light Preload, Open.$50.24
Super-Precision Angular Contact Ball Bearing – Straight Bore, 55 mm ID, 100 mm OD, 21 mm Width, Open, 25° Contact Angle, ABEC 7, Medium Preload$51.26
Super-Precision Angular Contact Ball Bearing Duplex Pair – 15 mm Bore x 32 mm OD x 9 mm Wide, 25° Contact Angle, Phenolic Cage, ABEC 7, Medium Preload$66.29| MFR / Brand | RHP |
|---|---|
| MPN | 7022ETDUMP4 |
| Model | 7022 E T DUM P4 3MM9122 WI CR DUM / 122HDM |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 110 mm (4.3307 in) |
| OD | 170 mm (6.6929 in) |
| Width | 28 mm (1.1024 in) per bearing |
| Material | Through-hardened carbon chrome bearing steel (SAE 52100) |
|---|---|
| Series | 70 Series (ISO dimension series 10) |
| Base Number | 7022 |
| Industry Terms | Machine tool spindle bearing; super precision angular contact; matched duplex pair; ABEC 7 spindle bearing |
| Bore Shaft Size | 110 mm (4.3307 in) |
| Mpn Variants | 7022ETDUMP4; 7022-E-T-DUM-P4; 7022 E T DUM P4; 7022E; 3MM9122WI-CR-DUM; 122HDM |
| Rolling Elements | Steel balls |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | No |
| Lubricant | Oil/air or grease |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Part Number | 7022ETDUMP4 |

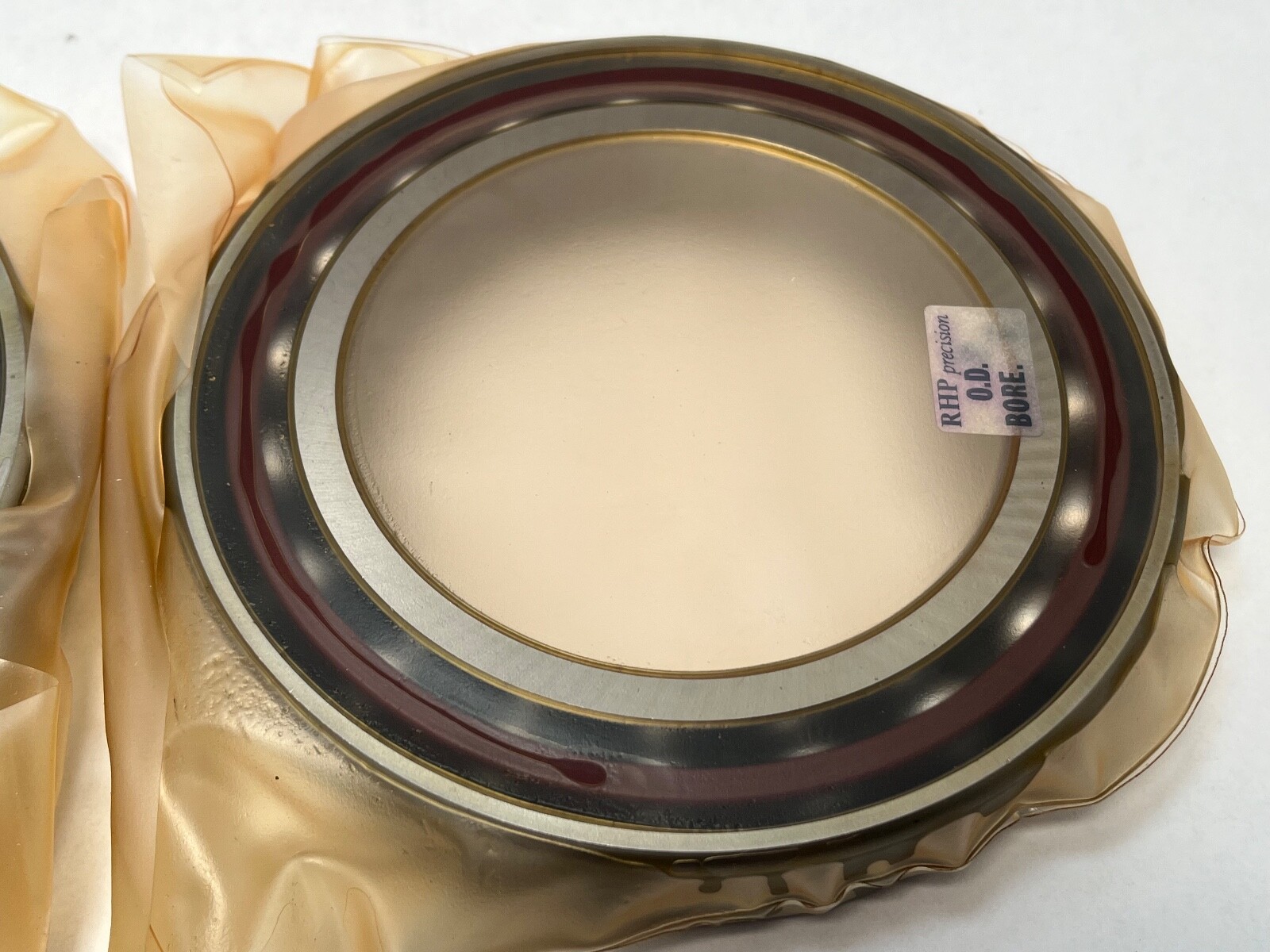

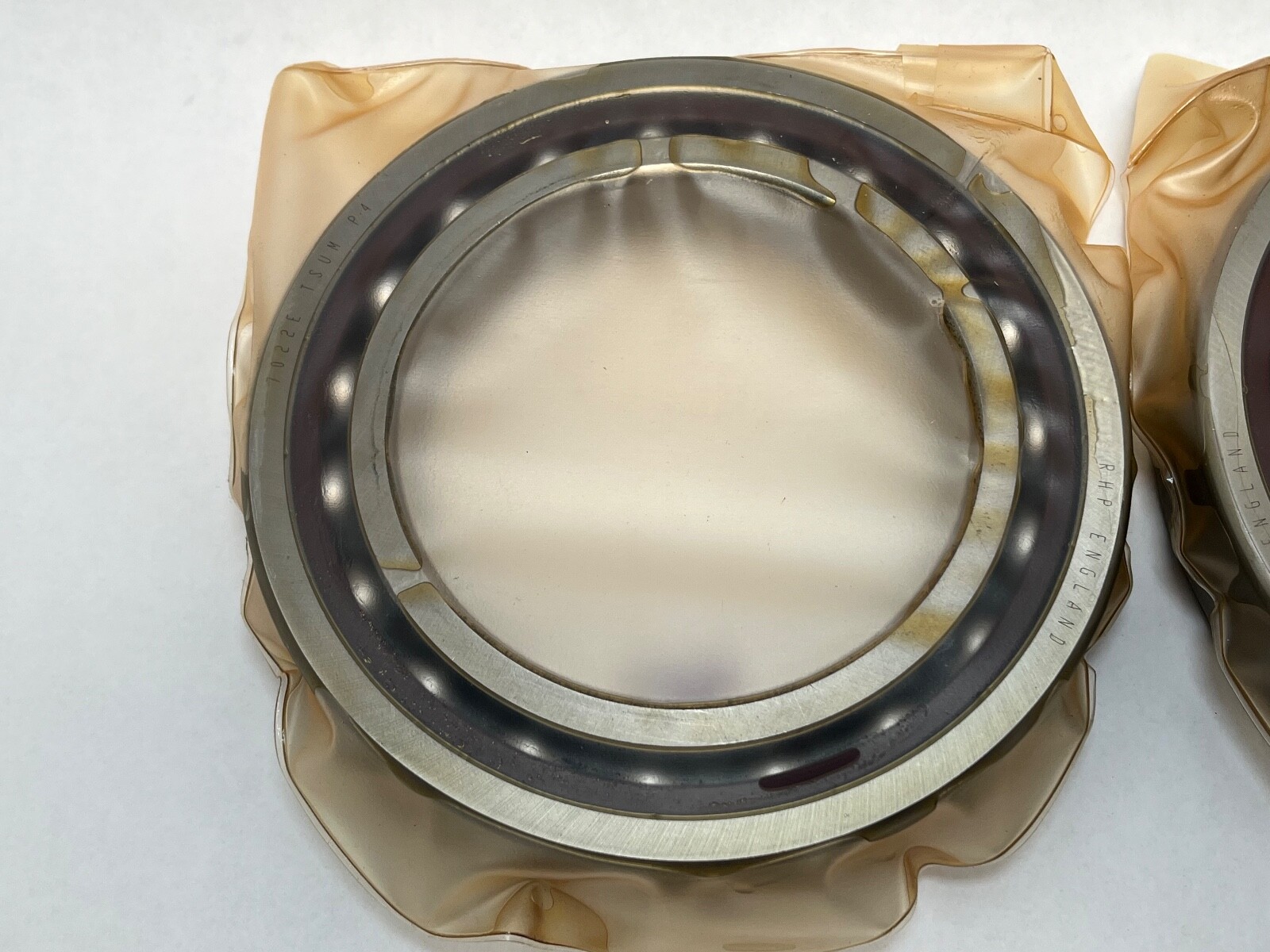

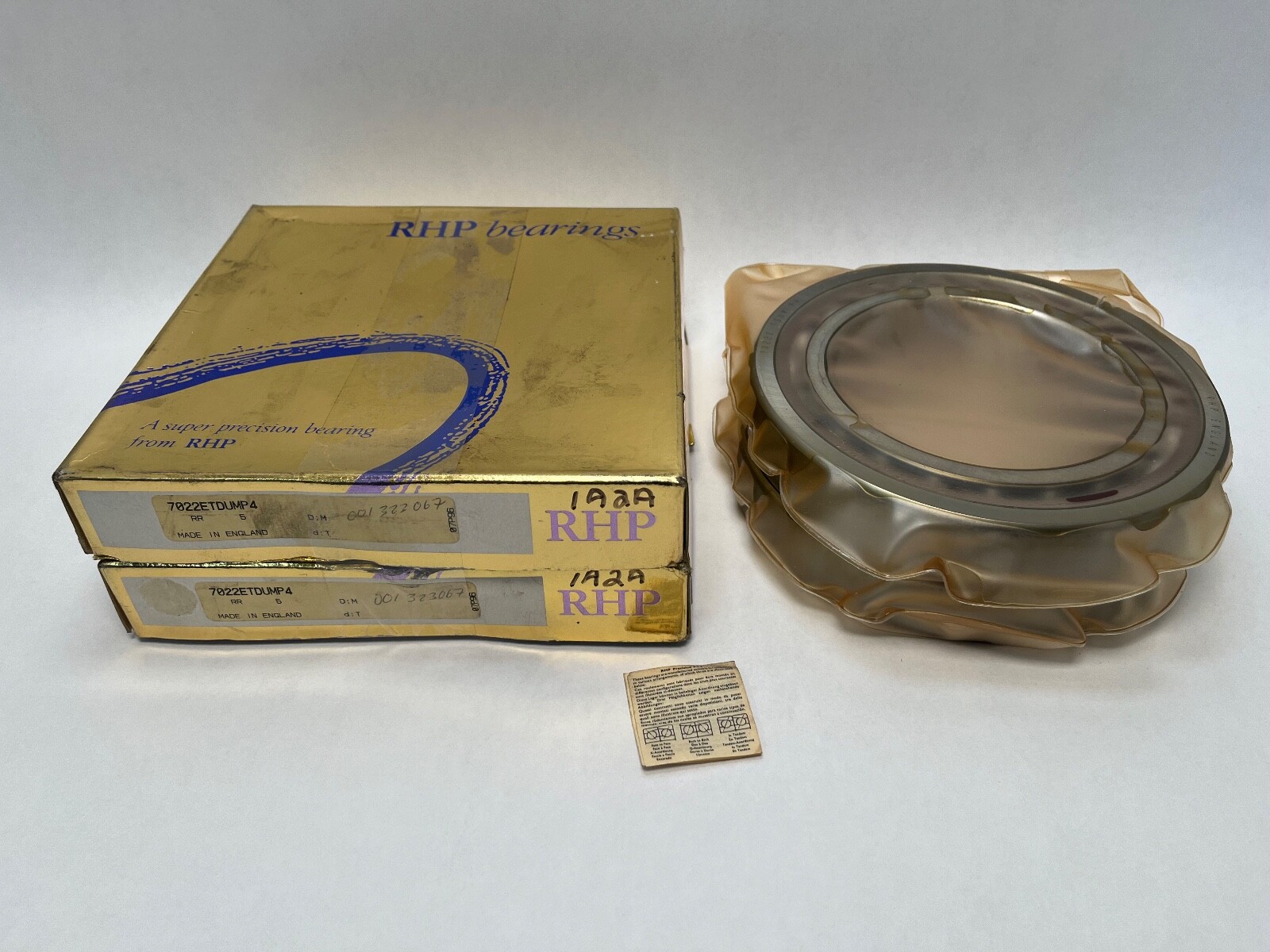

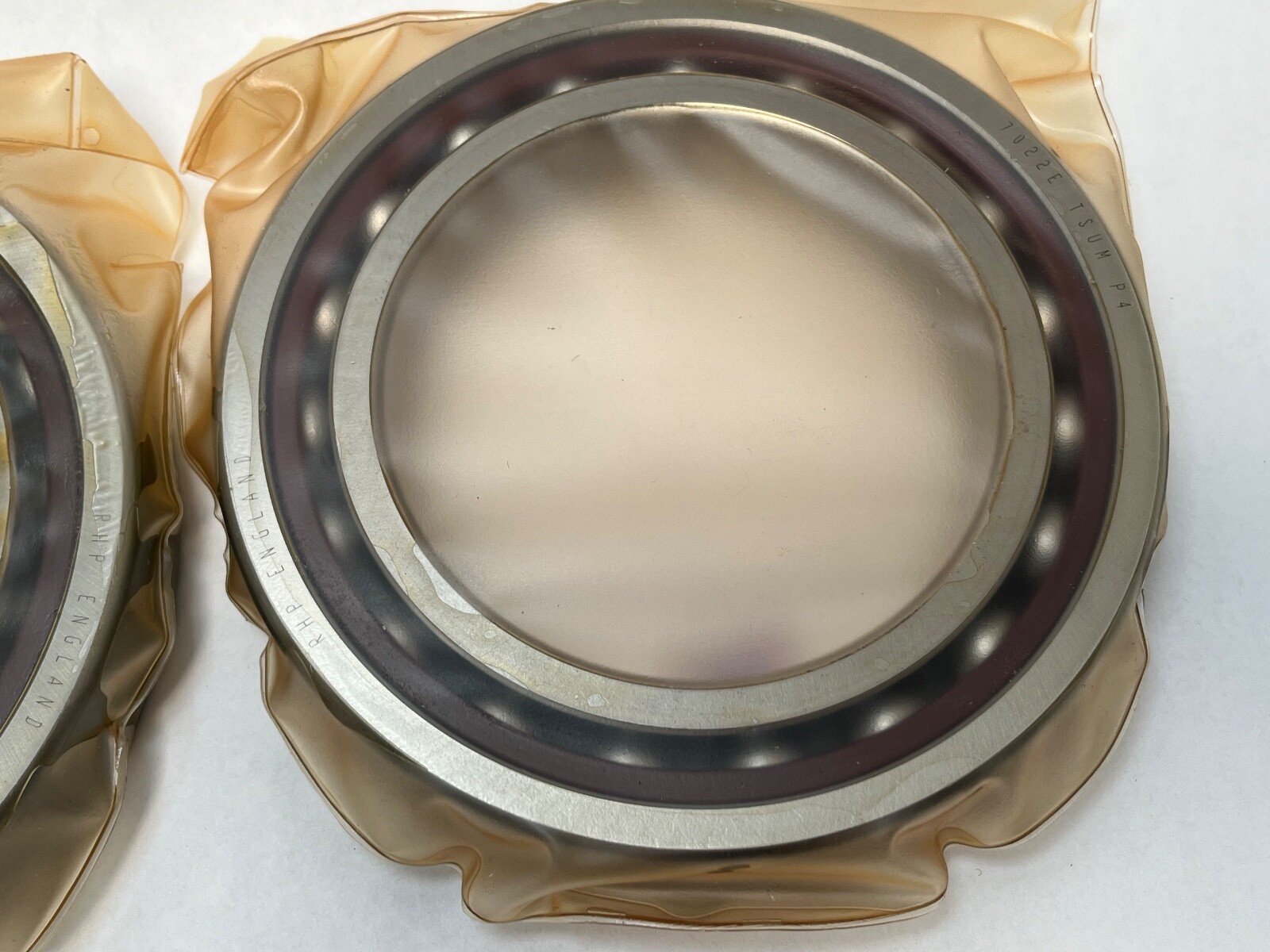

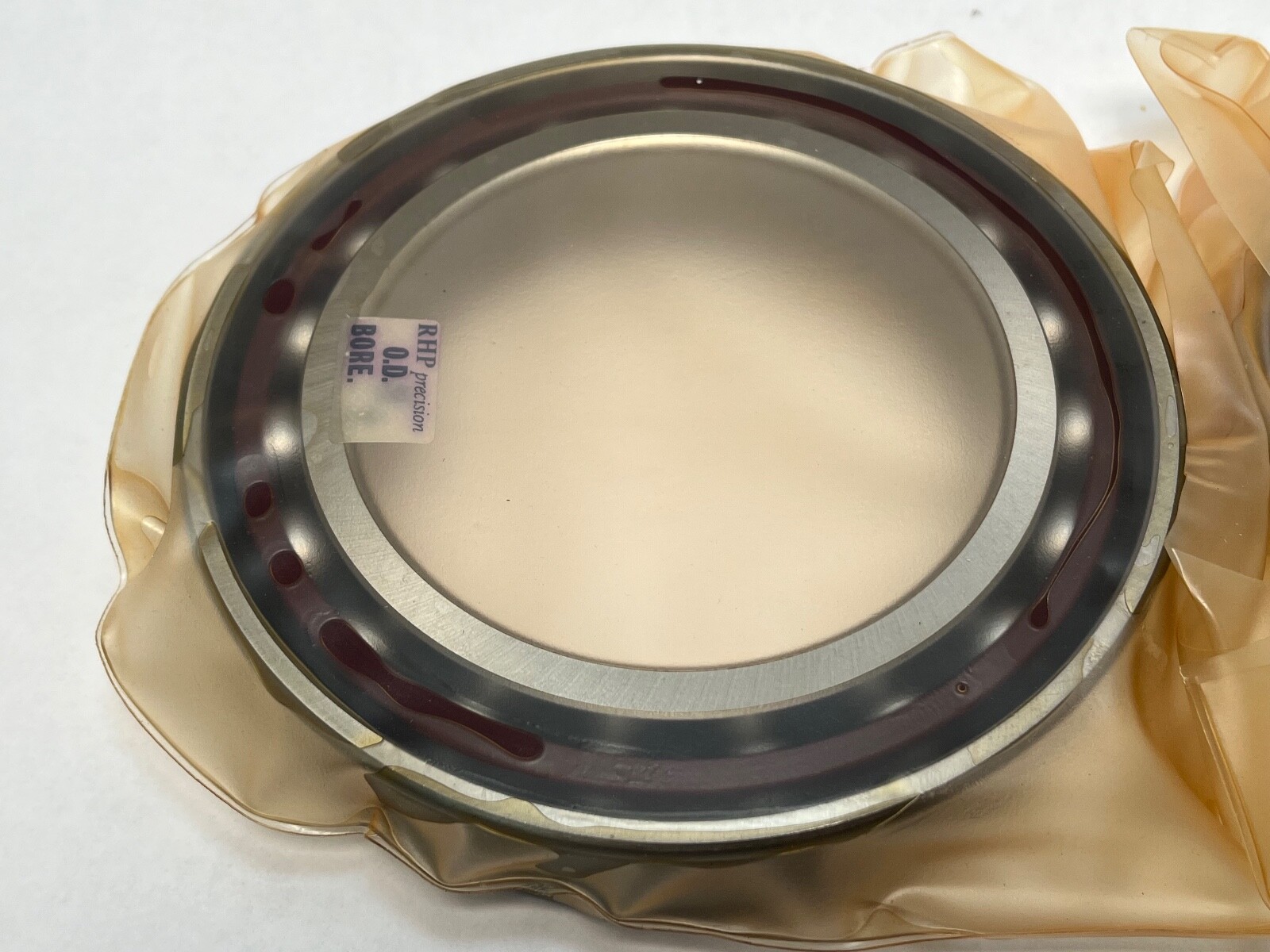

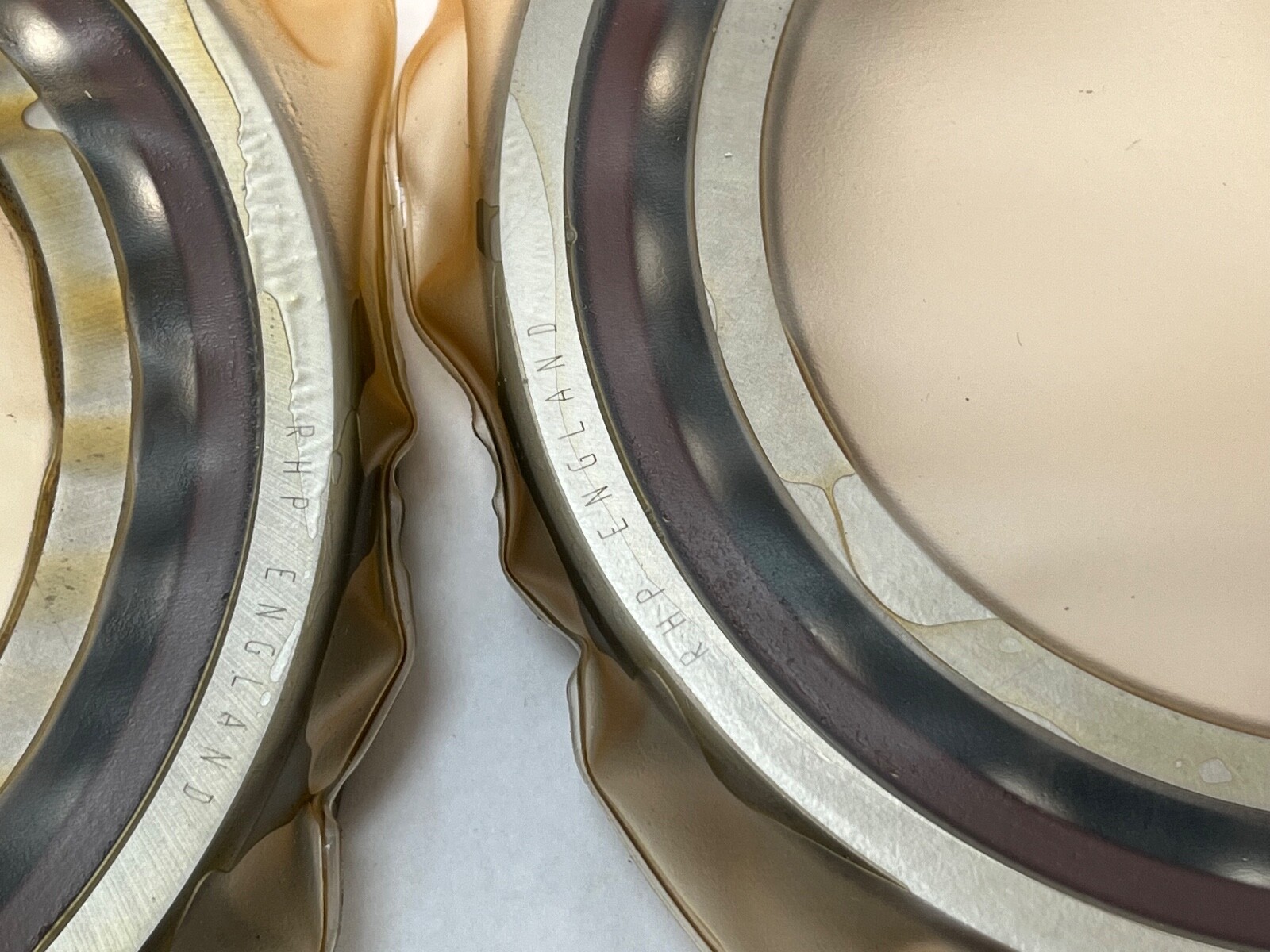

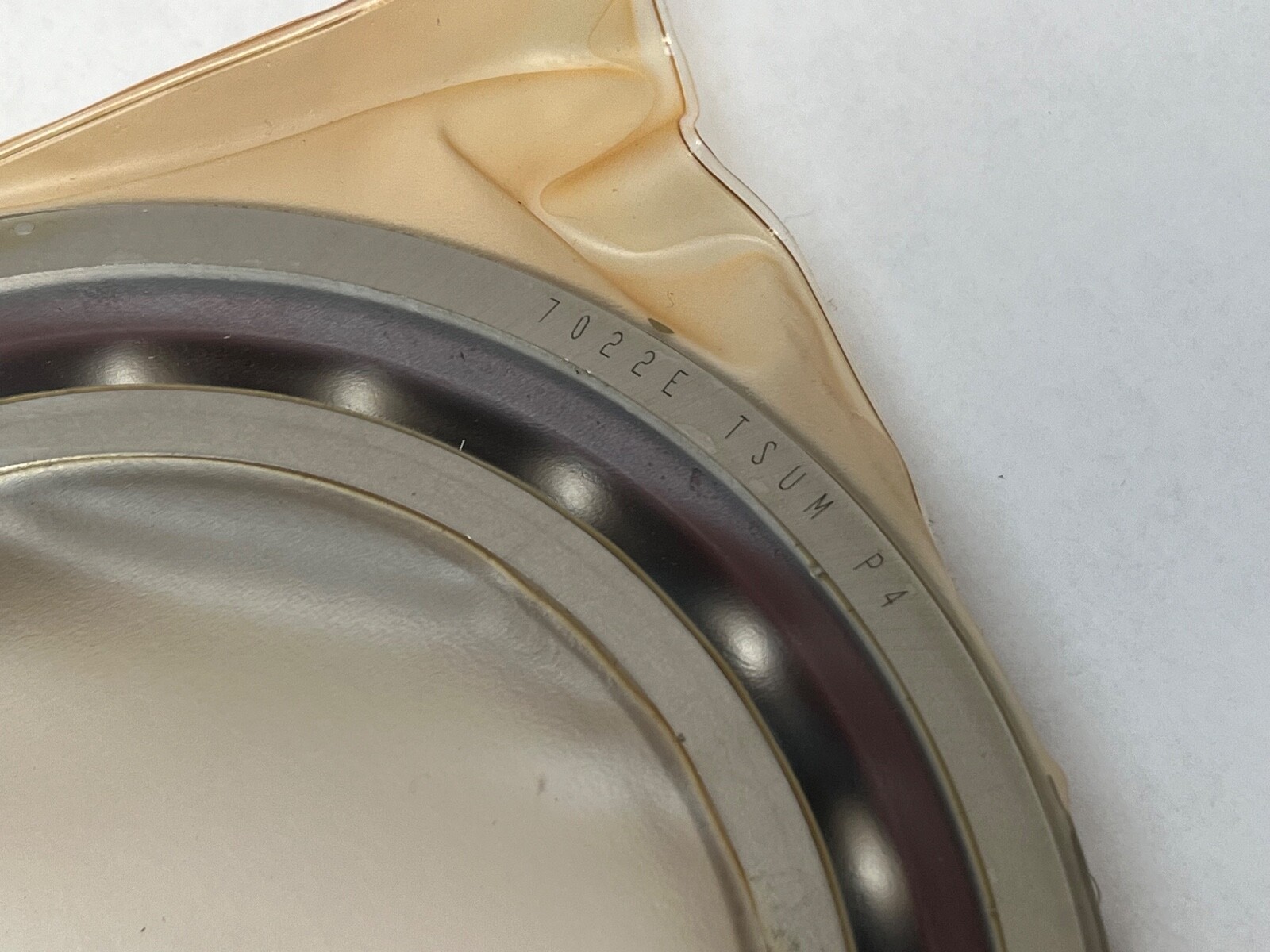

RHP 7022ETDUMP4 super precision angular contact ball bearing set. Series: 70, ISO dimension series 10. Bore: 110 mm. Outside Diameter: 170 mm. Width: 28 mm per bearing. Country of origin: United Kingdom. Searchable forms: 7022ETDUMP4, 7022-E-T-DUM-P4, 7022 E T DUM P4, 7022E, and the carton cross-references 3MM9122WI-CR-DUM and 122HDM.
Contact Angle: 25°. Cage: laminated phenolic resin, outer ring guided. Grouping: DU, a universally ground pair. Preload: Medium, 2,650 N axial. Precision Grade: P4 — ABEC 7, RHP EP7, ISO Class 4.
Dynamic Load Rating: 100,000 N. Static Load Rating: 99,000 N. Limiting speed for a single bearing: 10,500 rpm on oil/air, 6,900 rpm on grease. A 25° contact angle carries more thrust and less speed than a 15°, which suits spindles working against heavy axial cutting loads. Medium preload gives the pair an axial stiffness of 447 N/µm. The laminated phenolic cage runs quietly at speed and is rated to 120 °C.

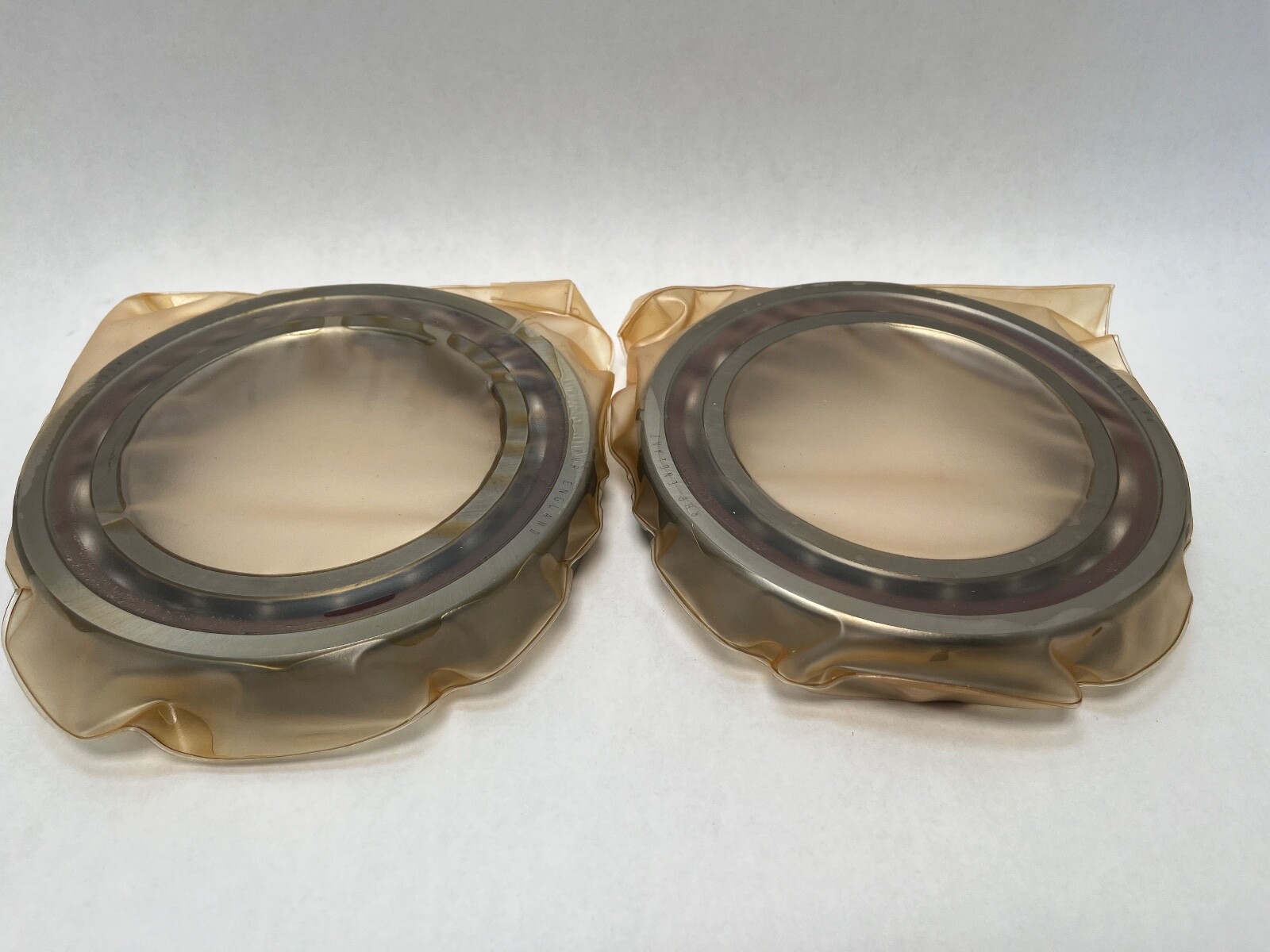

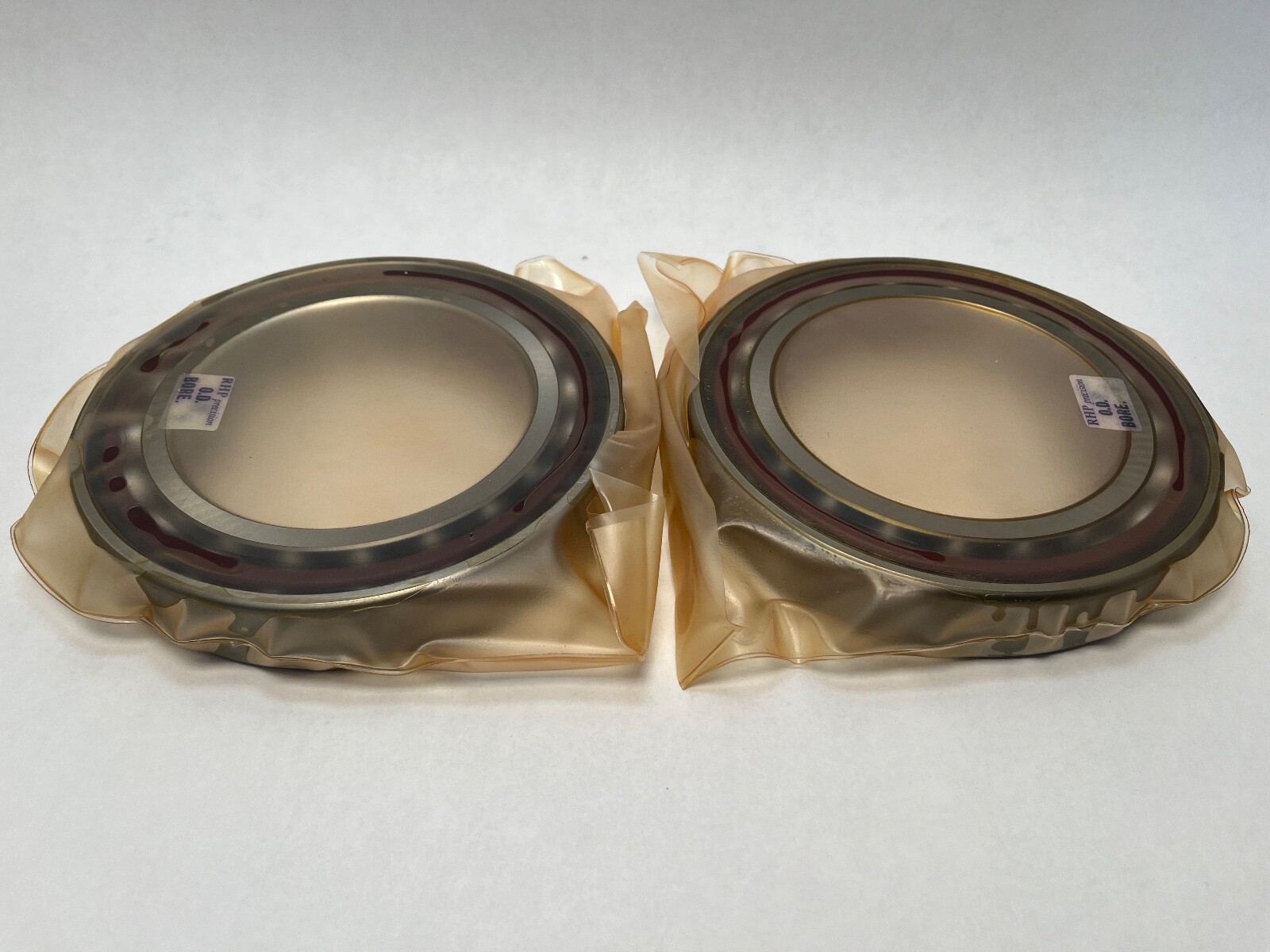

Two pieces, supplied as a universally faced pair. Universal face control lets the pair mount back-to-back, face-to-face or in tandem at the same preload value. Total width mounted side by side: 56 mm.
Effective load centre: 46.6 mm. Abutment dimensions: shaft shoulder 120 mm maximum, housing shoulder 160 mm minimum, outer ring abutment 164 mm maximum. Corner radii: 2.5 mm minimum outer, 1.0 mm minimum inner. Recommended shaft fit at P4 for a 110 mm seat is a mean 3 µm interference; a locating housing bore takes a mean 5 µm clearance. Internal free volume is 88.3 cm³ per bearing, which sets the grease charge at 20 to 30 per cent fill.
Same-spec equivalents: SKF 7022 ACD/P4ADGB, Fafnir 3MM9122WI-CR-DUM, Barden 122HDM, FAG B7022-E-T-P4S-DUM. Related size: 7022CTDUM, the 15° version of the same envelope.
