Availability:
1 in stock
Super-precision single-row angular contact ball bearing, 110 mm bore x 170 mm OD x 28 mm wide, 25° contact angle, light preload, ABEC 7. Sold as 1 Pc.
List Price
$464.70
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7022ETSULP4 |
| Model | 7022 E T SUL P4 /3MM9122WI CR SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 110 mm |
| OD | 170 mm |
| Width | 28 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Base Number | 7022 |
| Industry Terms | super precision spindle bearing, machine tool bearing, 25 degree angular contact, ABEC 7 bearing |
| Common Misspellings | 7022 ETSULP4, RHP 7022ETSUL P4, Ransome Hoffmann Pollard, 7022ETSULP-4 |
| Application Types | Machine tool spindles, milling spindles, precision gearboxes, rotary tables |
| Bore Shaft Size | 110 mm (4.331 in) |
| Mpn Variants | 7022ETSULP4, 7022-E-T-SUL-P4, 7022 E T SUL P4, 7022E, 7022ETSUL |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Part Number | 7022ETSULP4 |
| Cross Reference 1 | Fafnir 3MM9122WI-CR-SUL |
|---|---|
| Cross Reference 2 | FAG B7022-E-T-P4S-UL |
| Cross Reference 3 | SKF 7022 ACD/P4A |
| Cross Reference 4 | NSK 7022A5TRSULP4 |
| Cross Reference 5 | GMN S6022 E TA P4 D UL |
| Cross Reference 6 | RHP 7022CTSULP4 – 15° contact angle, not 25° |

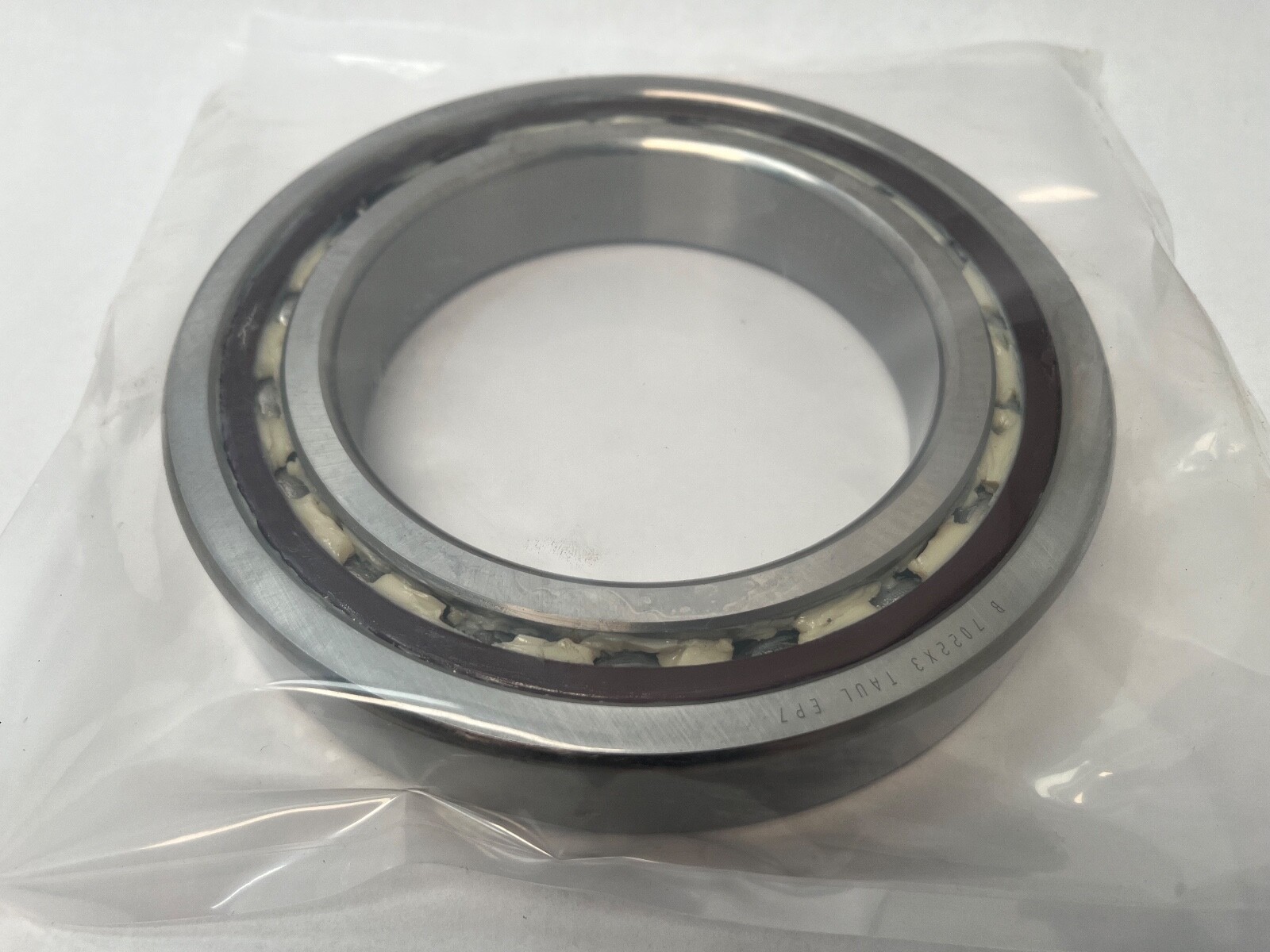

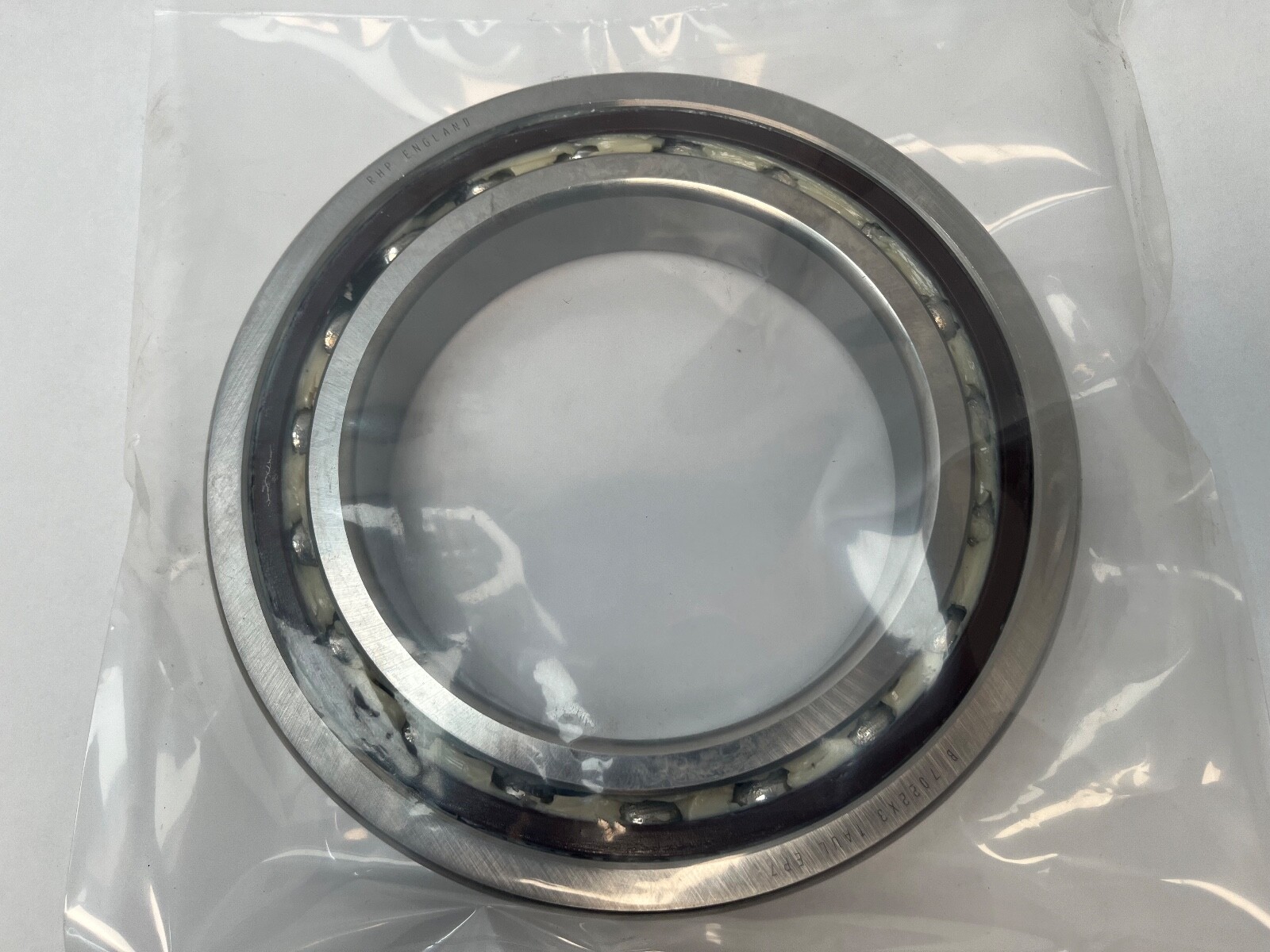

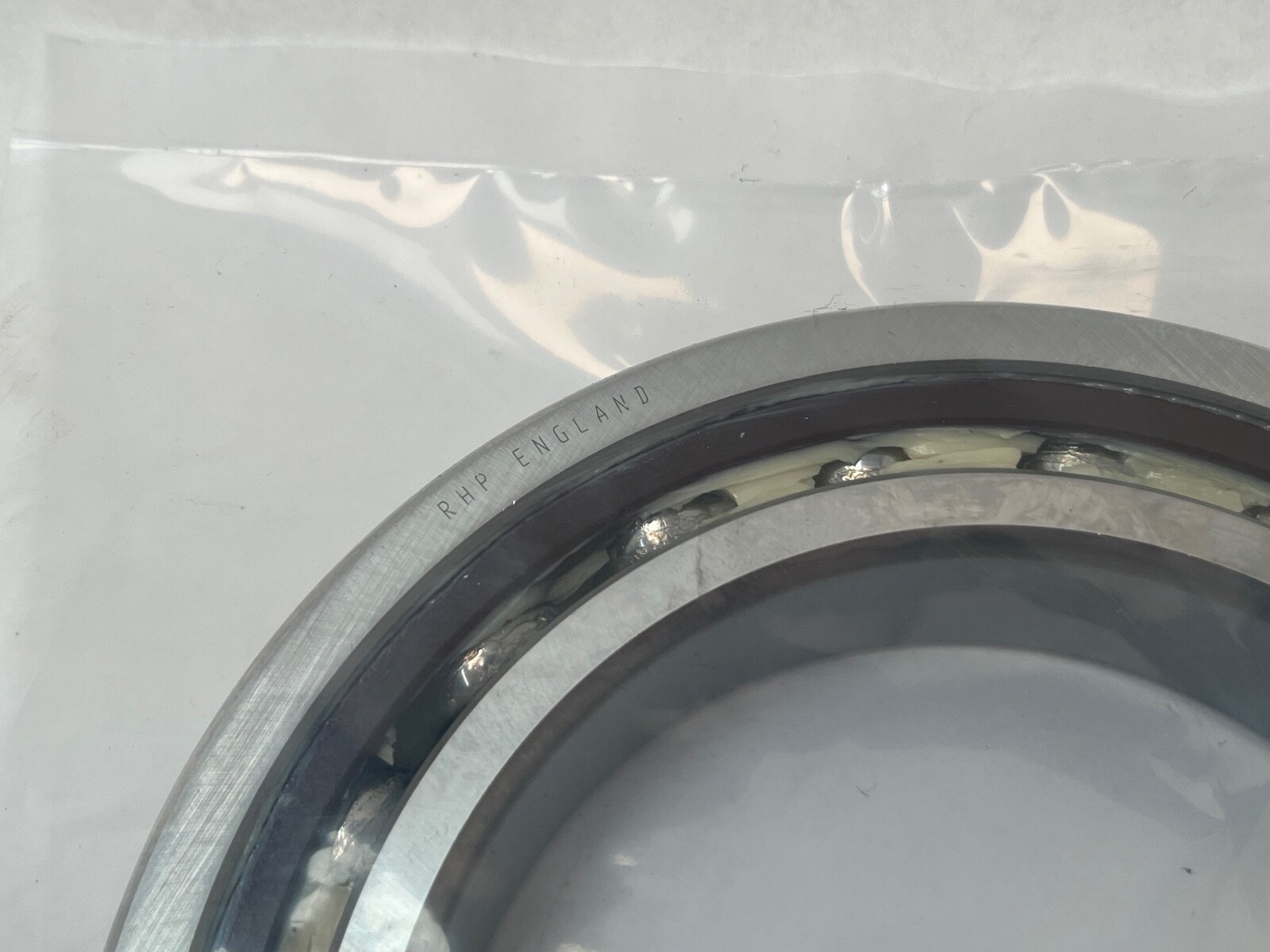

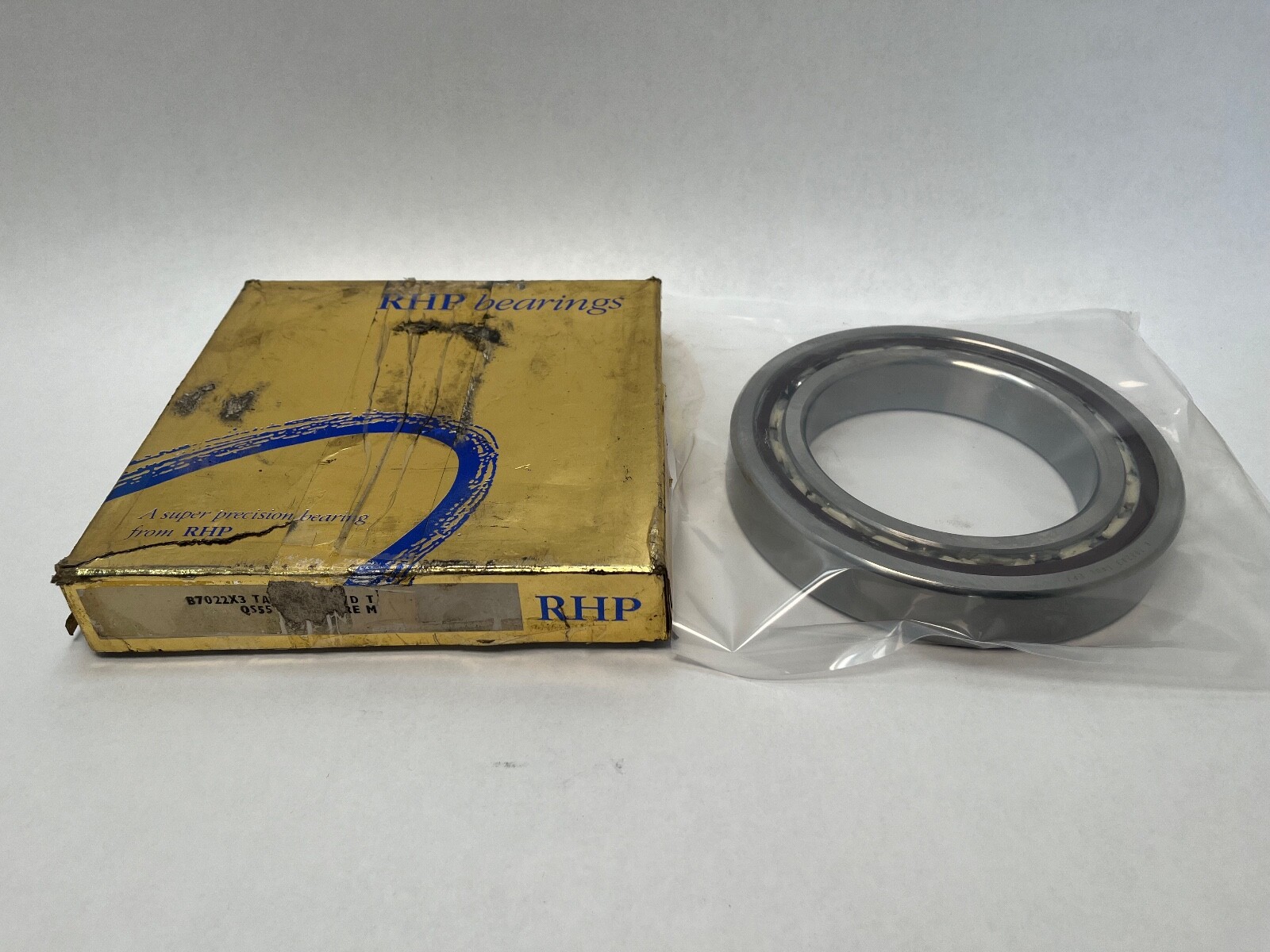

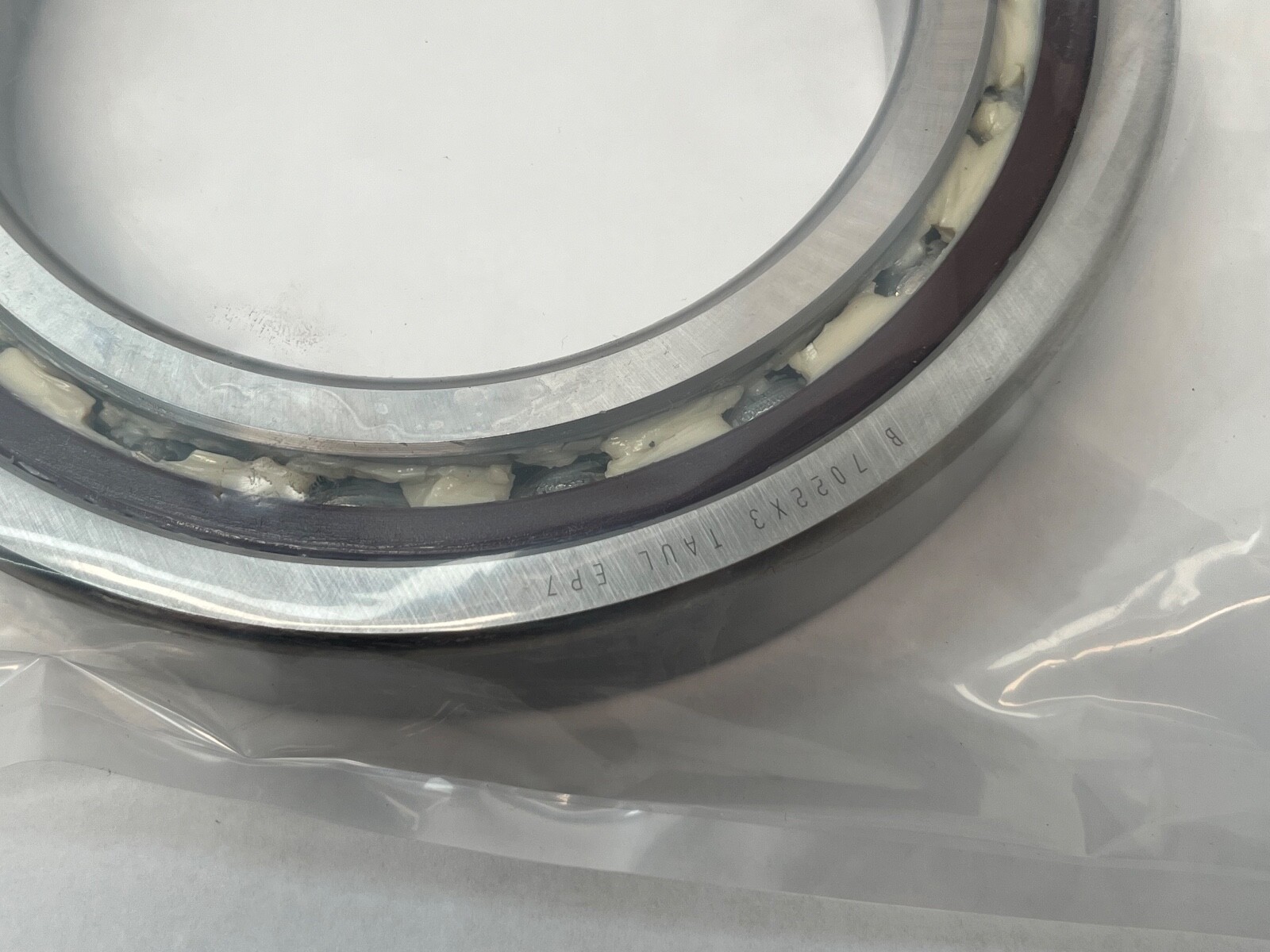

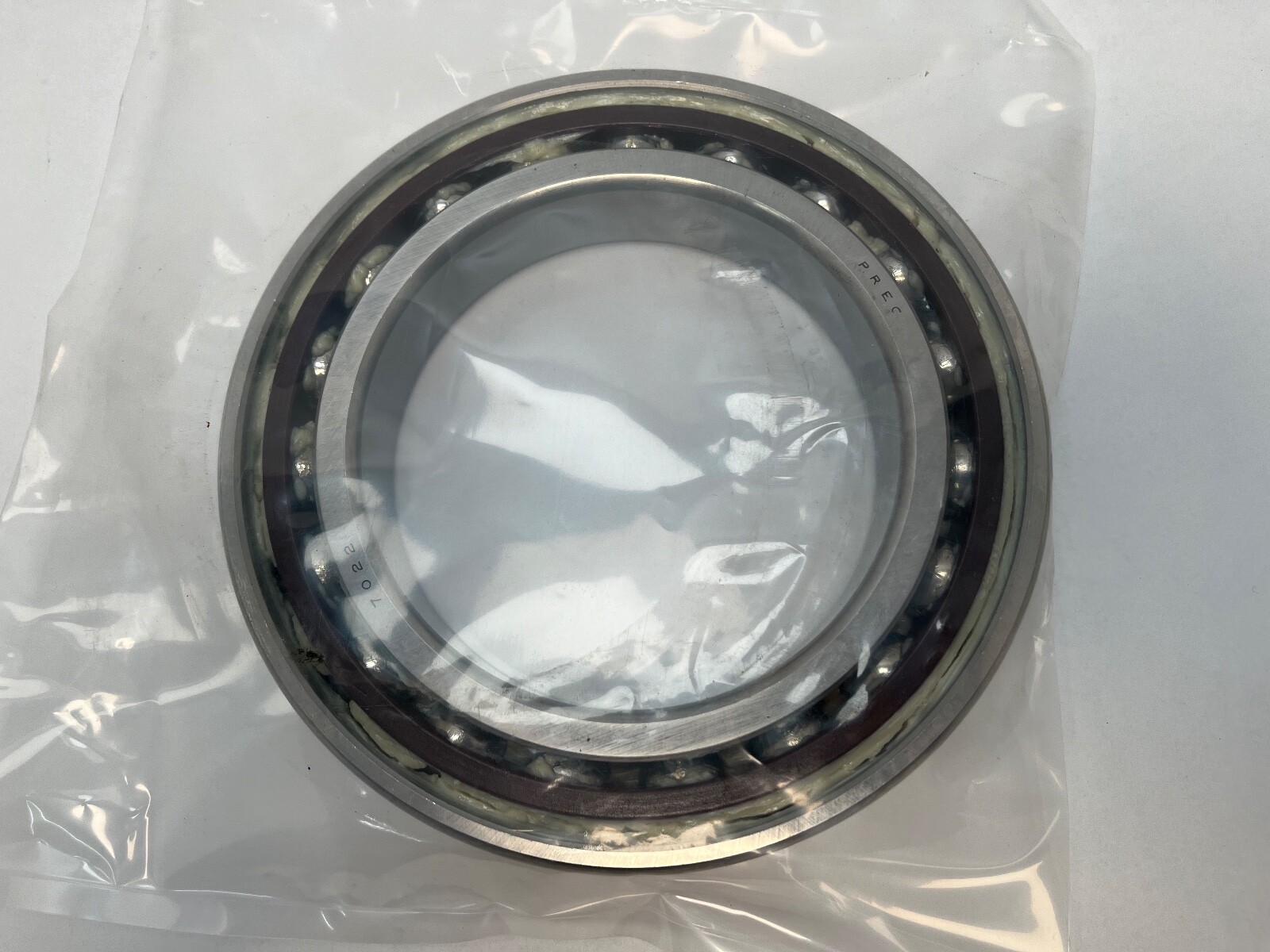

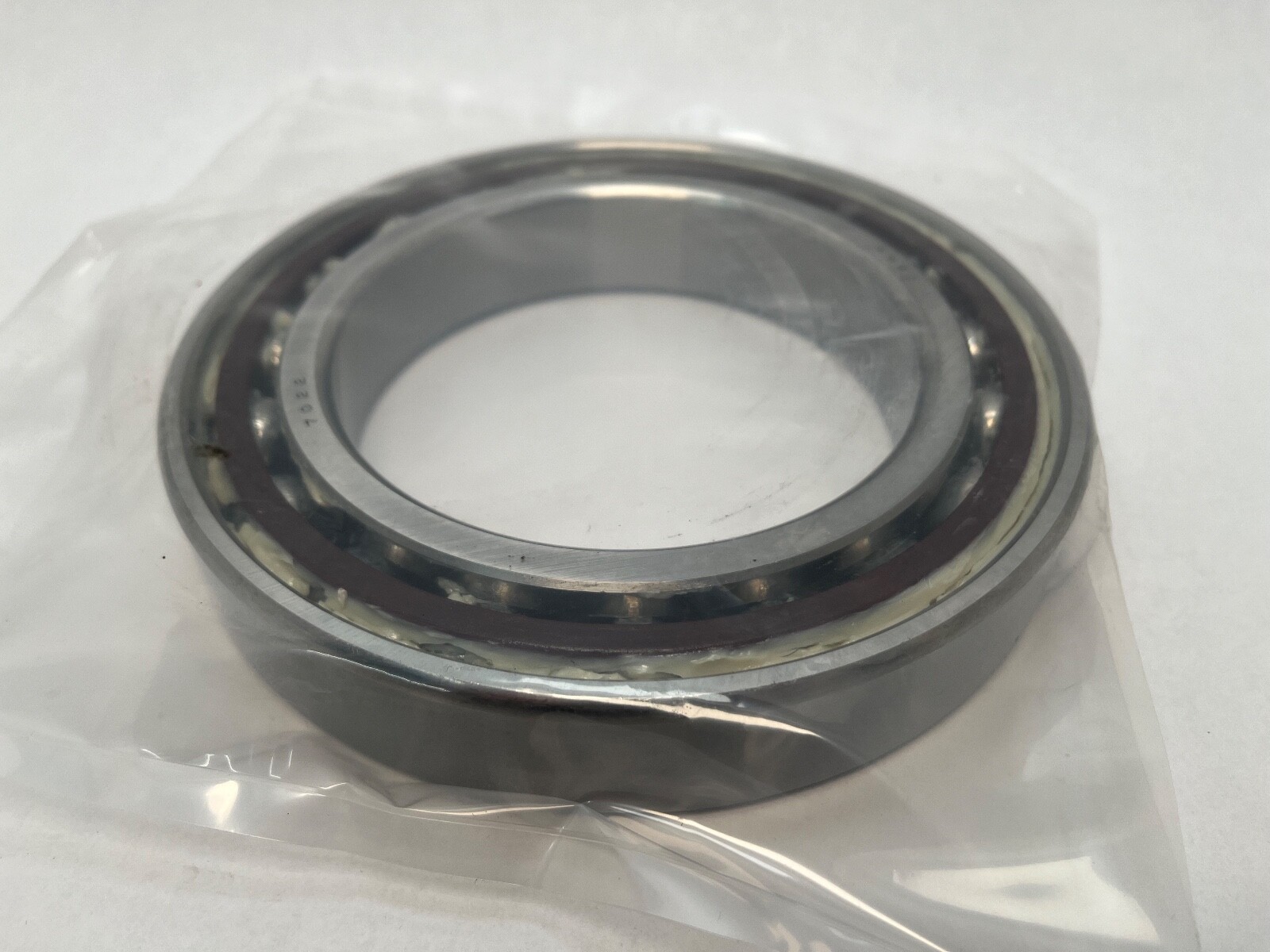

An RHP 7022ETSULP4 super-precision single-row angular contact ball bearing in the 70 dimension series. Bore 110 mm, outside diameter 170 mm, width 28 mm. Open on both faces, phenolic cage, universally ground.
7022 — single-row angular contact, 110 mm bore, 70 series.
E — 25° contact angle in the RHP/Timken scheme.
T — phenolic cage.
SU — single universally ground.
L — light preload.
P4 — ABEC 7 precision.
A 25° contact angle carries more thrust and less speed than the 15° 7022C of the same envelope, and gives higher axial stiffness for spindles that see heavy cutting thrust. Light preload holds running temperature down. The phenolic cage rides the outer land and suits high cage speeds.
Bore: 110 mm. Outside diameter: 170 mm. Width: 28 mm. Contact angle: 25°. Precision: P4 / ABEC 7. Preload: light. Rows: 1. Closure: open.
Single universally ground bearing. 1 Pc per sale unit.
Thrust is carried in one direction only, so the bearing runs against an opposing bearing or a housing shoulder. The wide outer-ring land is the thrust face and its orientation sets the arrangement.
Matching 25°, ABEC 7, light-preload universal bearings: Fafnir 3MM9122WI-CR-SUL, FAG B7022-E-T-P4S-UL, SKF 7022 ACD/P4A, NSK 7022A5TRSULP4. The 15° 7022C has the same size but a shallower contact angle, so it carries less thrust and is not a drop-in.
