Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
3 in stock
Single-row precision angular contact ball bearing, 85 mm bore x 120 mm OD x 18 mm wide, 15° contact angle, ISO P5 / ABEC 5 tolerance. Thin-section 19-series spindle envelope. Open, no seals. Sold as one bearing.
List Price
$76.48
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| Model | 7917 C P5 71917 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 85 mm |
| OD | 120 mm |
| Width | 18 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7900 |
| Base Number | 7917 / 71917 |
| Industry Terms | precision angular contact bearing, spindle bearing, ABEC 5 bearing, P5 bearing, thin section bearing, 15 degree contact angle, 71917, rotary table bearing |
| Common Misspellings | NTN 7917 CP5, 7917-CP5, 7917CP-5, NTM 7917CP5, 71917 CP5 |
| Application Types | Precision drive spindles, indexing tables, rotary axes, precision gearboxes, machine tool rebuilds |
| Bore Shaft Size | 85 mm |
| Mpn Variants | 7917CP5, 7917-C-P5, 7917 C P5, 7917C, 71917CP5, 71917C |
| Manufacturer Status | NTN current production designation |
| Compatible With Replaces | NTN 7917C precision spindle positions, 71917C, 7917 15° P5 thin-section angular contact bearings |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Part Number | 7917CP5 |
| Cross Reference 1 | NSK 7917CTYNP5 - 15 deg, P5 |
|---|---|
| Cross Reference 2 | SKF 71917 CD/P4A - 15 deg, P4A (tighter class) |
| Cross Reference 3 | FAG B71917-C-T-P4S - 15 deg, P4S (tighter class) |
| Cross Reference 4 | Fafnir 2MM9117WICR - 15 deg |
| Cross Reference 5 | RHP 7917CTP5 - 15 deg, P5 |
| Cross Reference 6 | NSK 7917A5TYNP5 - 25 deg, more thrust, less speed |
| Cross Reference 7 | SKF 71917 ACD/P4A - 25 deg, P4A |
| Cross Reference 8 | Fafnir 3MM9117WI - 25 deg |
| Cross Reference 9 | NTN 7917CGD2GLP4 - universally ground, preload-matched, P4 |

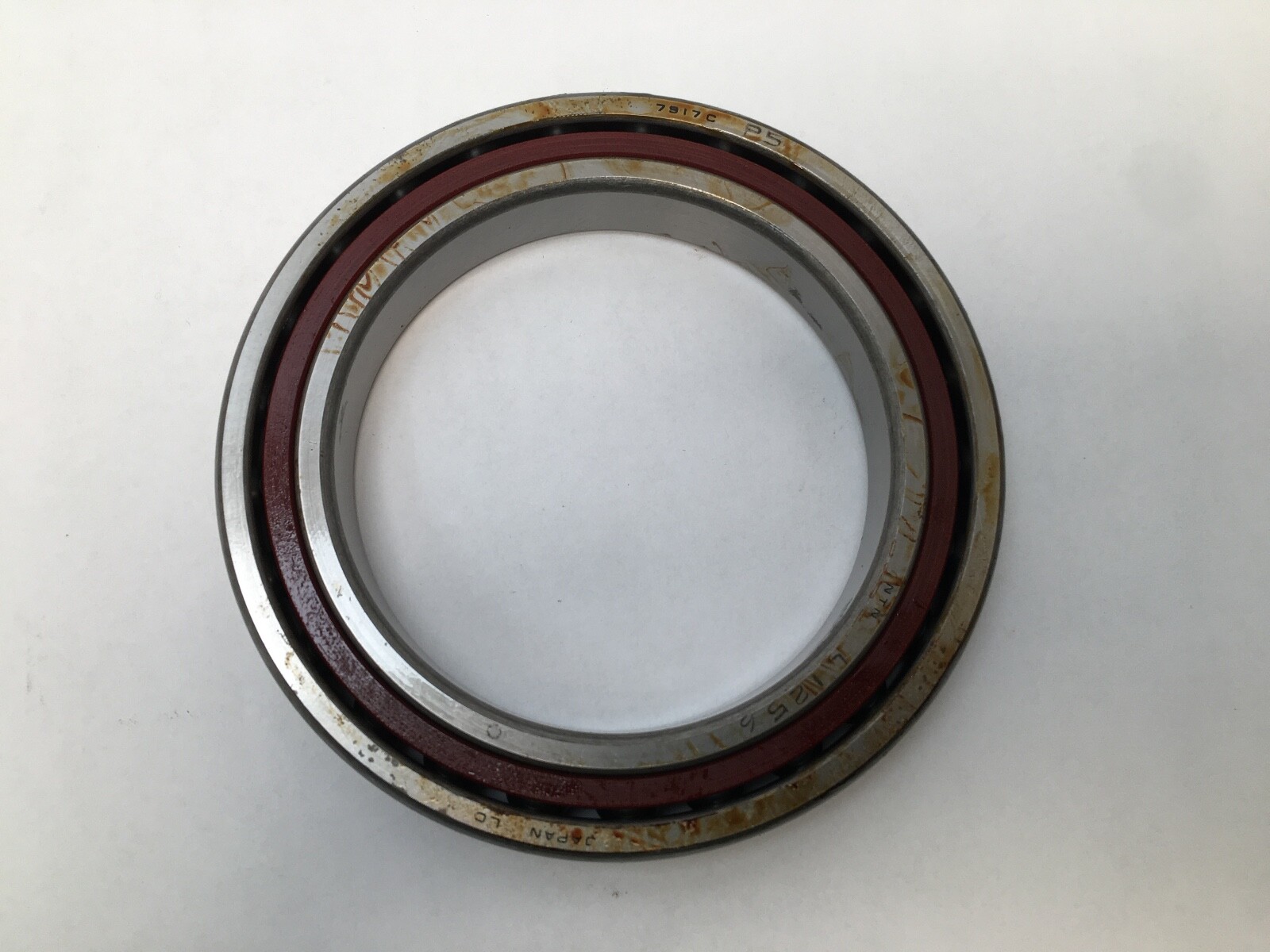

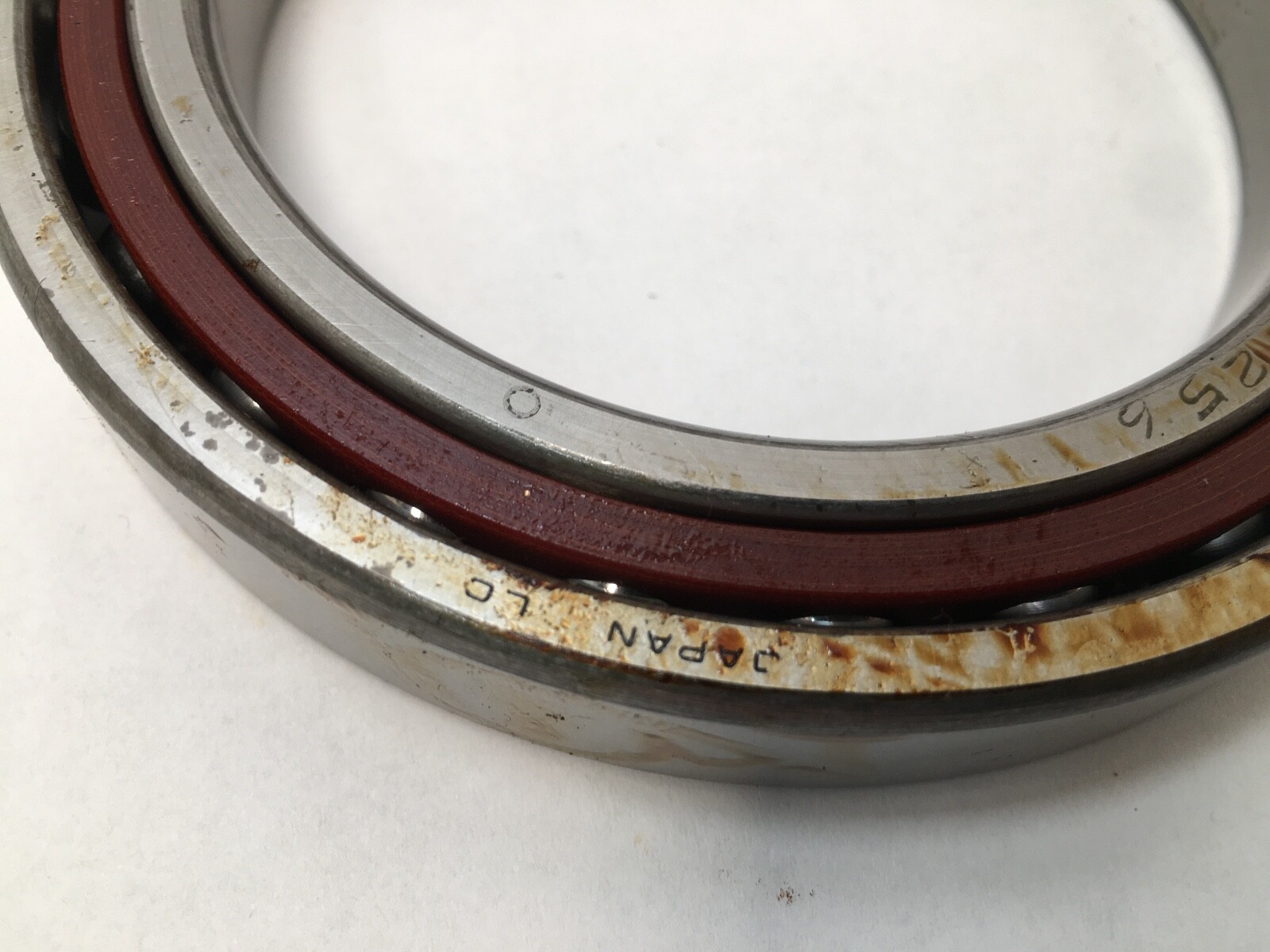

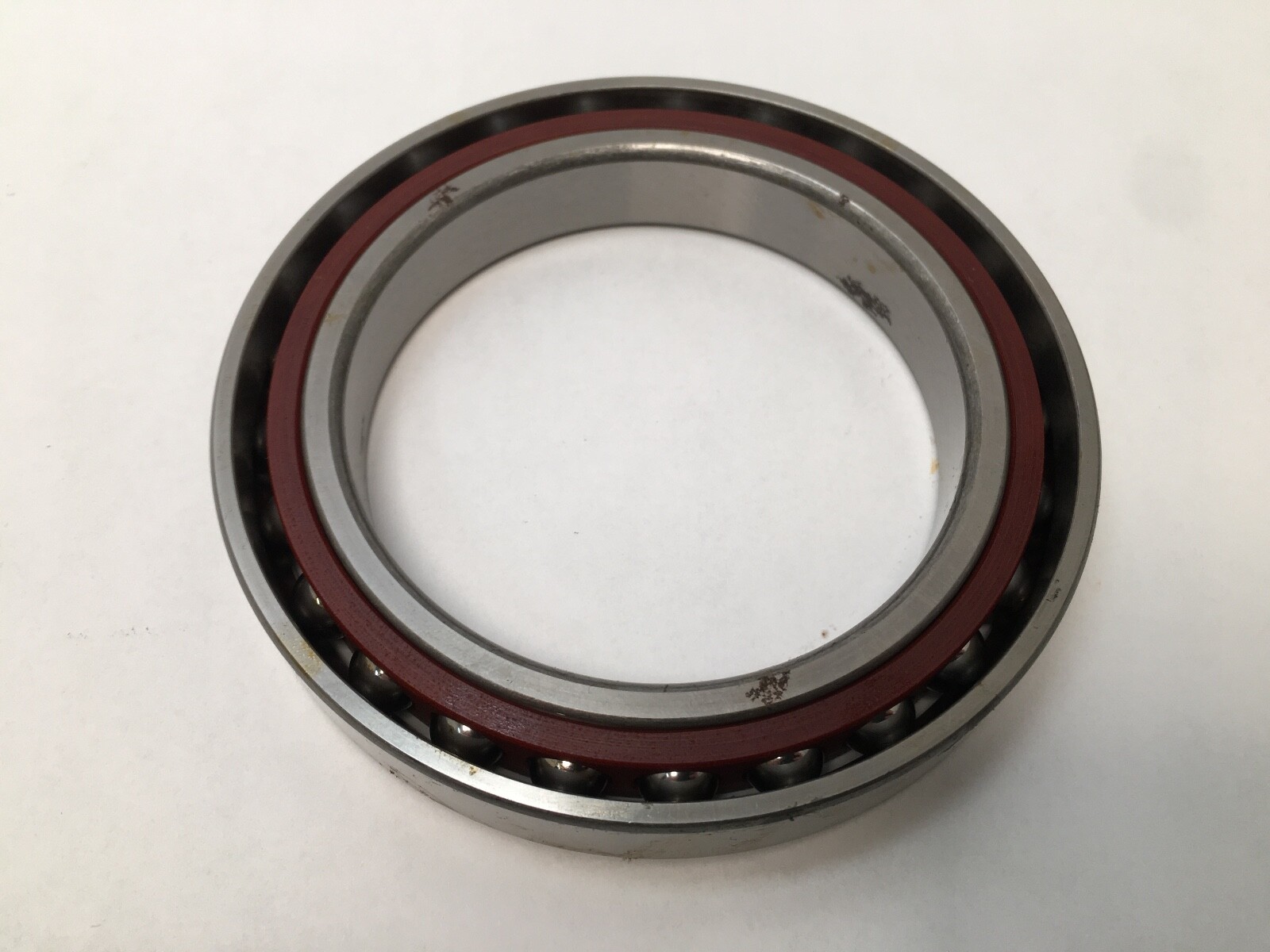

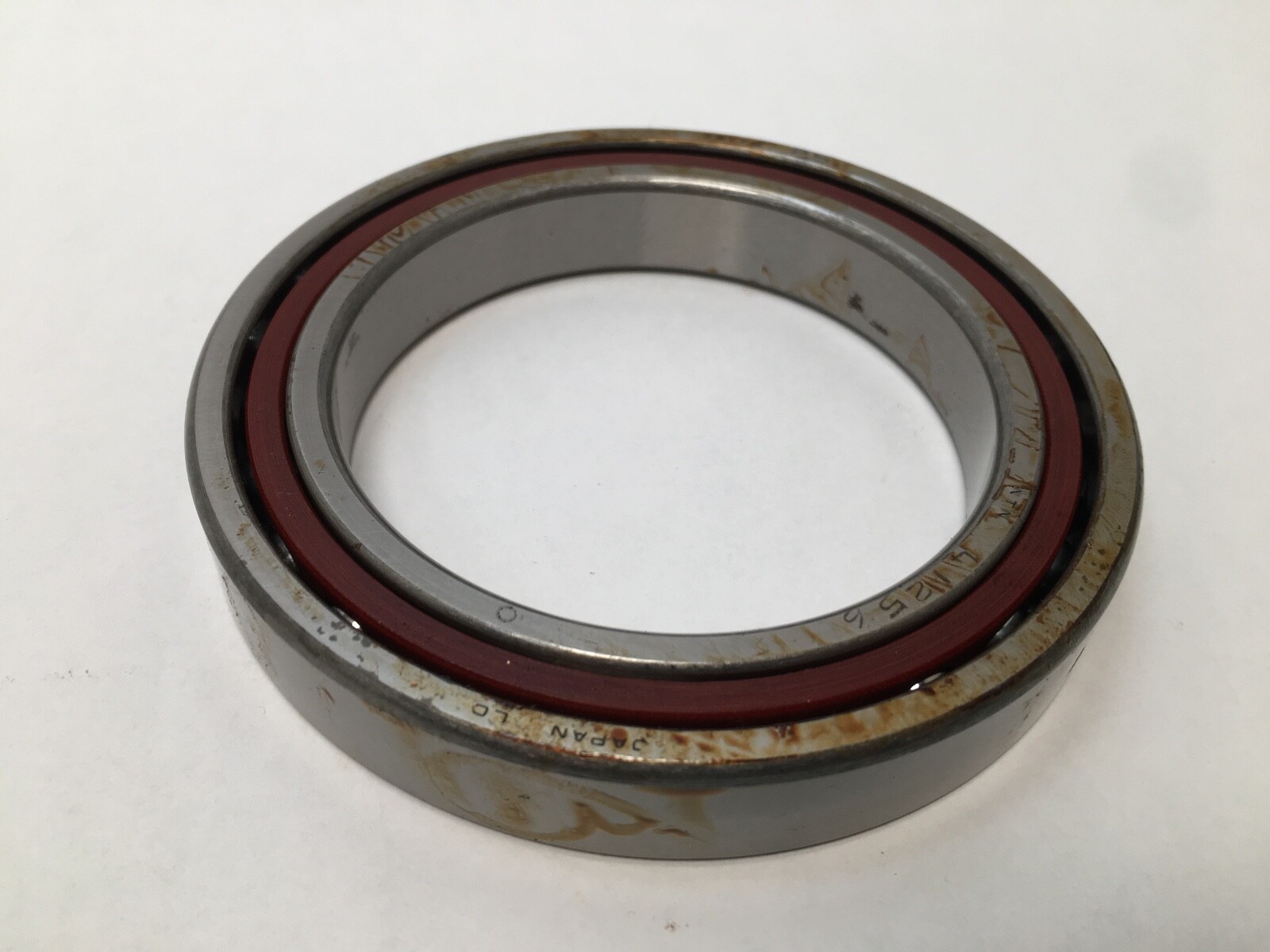

An NTN 7917C precision angular contact ball bearing, 85 mm bore x 120 mm outside diameter x 18 mm wide, in the 71917 / 7917 thin-section spindle envelope. It carries radial load plus thrust in one direction, with the high shoulder facing the thrust.

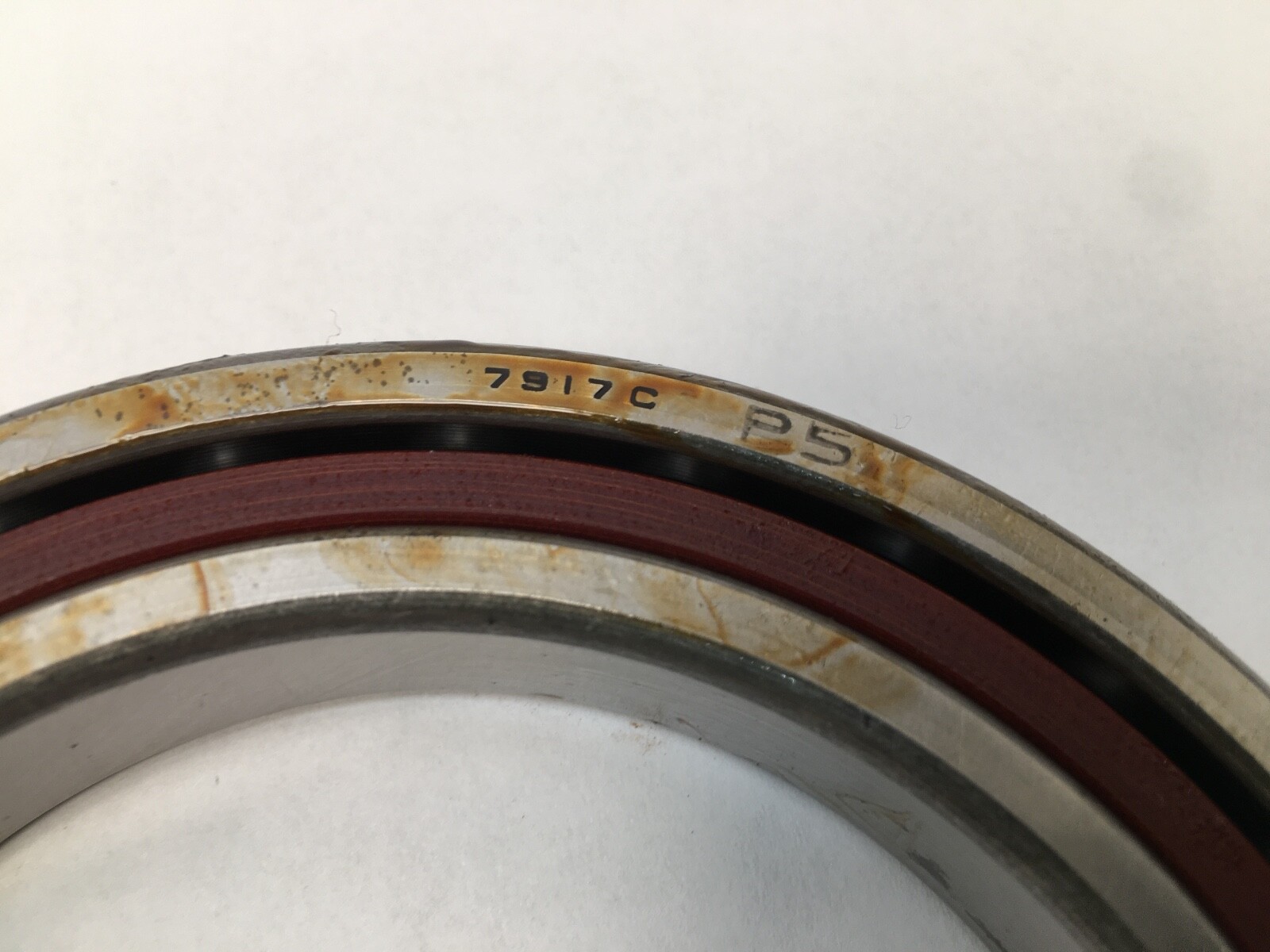

7917 — single-row angular contact ball bearing, 19-series thin section, 85 x 120 x 18 mm. The 71917 form describes the same bearing.
C — contact angle 15° in NTN nomenclature.
P5 — ISO tolerance class 5, equivalent to ABEC 5.
15° is the high-speed end of the contact-angle range. The shallow angle keeps the ball load path closer to radial, so centrifugal ball loading and heat generation stay low and the bearing tolerates a higher DN value than a 25° or 40° equivalent, at the cost of thrust capacity and axial stiffness. An 18 mm width on an 85 mm bore makes this a thin-section bearing for spindle positions where axial space is tight and several bearings are stacked in a short length. P5 / ABEC 5 tightens bore, outside diameter, width and running accuracy well beyond a standard bearing; it is the grade used for precision drive spindles, indexing tables and rotary axes.
Bore Diameter (d): 85 mm. Outside Diameter (D): 120 mm. Width (B): 18 mm. Contact Angle: 15°. Number Of Rows: 1. Precision Class: ISO P5 / ABEC 5. Closure Type: Open, no seals or shields.
A single angular contact bearing locates the shaft in one direction only. The bearing is open and relies on the housing for sealing.

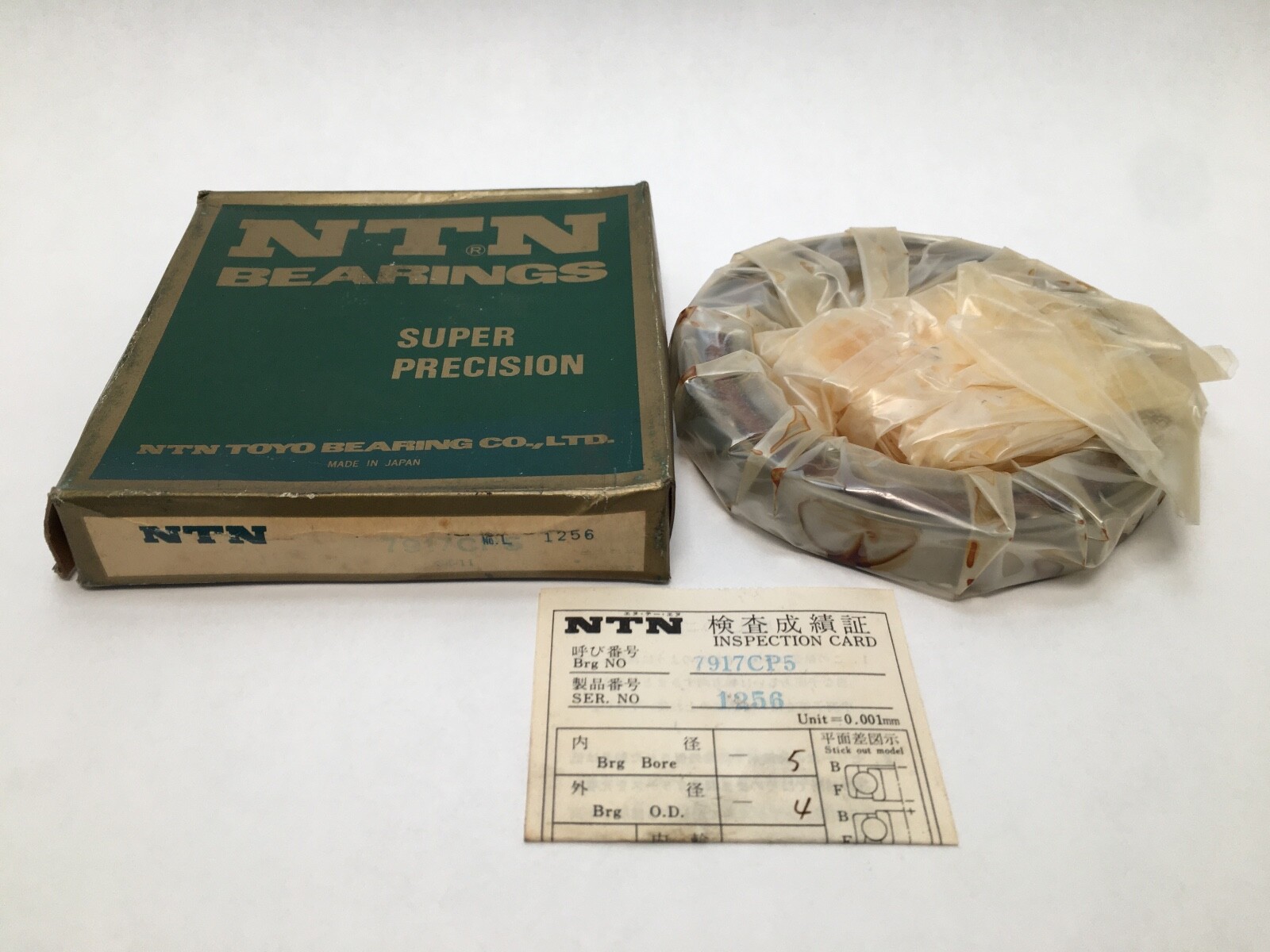

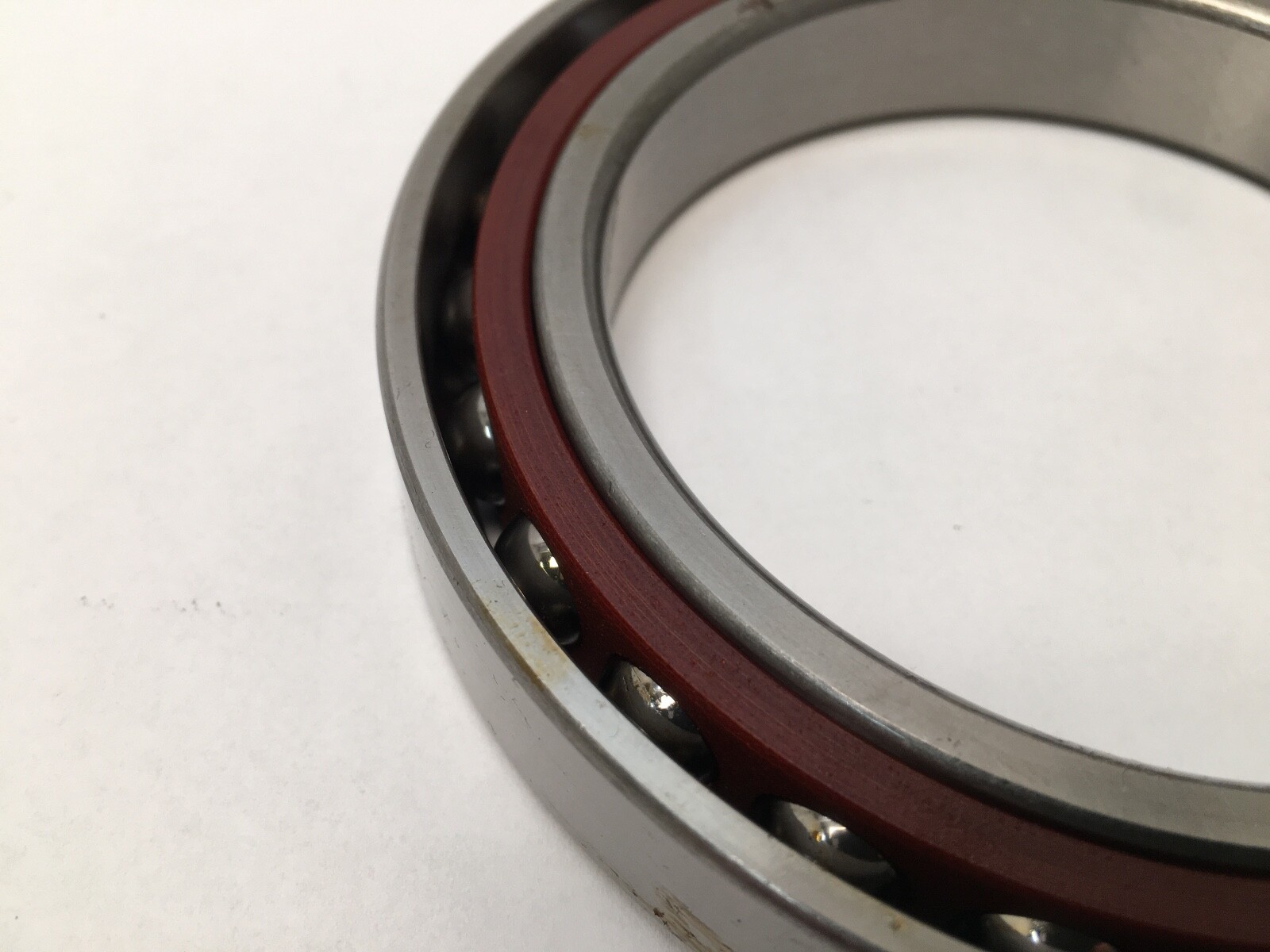

One bearing: a complete unit with inner ring, outer ring, ball complement and cage. This is a single bearing with no universal-grinding or preload suffix, not a matched set. The matched universally ground version of this envelope is NTN 7917CGD2GLP4.
15° equivalents on the 85 x 120 x 18 mm envelope: NSK 7917CTYNP5 and 71917CTYNP5, SKF 71917 CD/P4A (P4A, one class tighter), FAG B71917-C-T-P4S (one class tighter), Fafnir 2MM9117WICR, RHP 7917CTP5. The same envelope at 25°: NSK 7917A5TYNP5, SKF 71917 ACD/P4A and Fafnir 3MM9117WI, with more thrust capacity and less speed. Several of these are P4 / ABEC 7, a tighter grade than P5.
