Availability:
Out of stock
Super-precision single-row angular contact ball bearing, 110 mm bore x 170 mm OD x 28 mm wide, 15° contact angle, light preload, ABEC 7. Sold as 1 Pc.
List Price
$464.70
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super-Precision Angular Contact Ball Bearings - 110 mm ID, 170 mm OD, 28 mm Width, Open, 15° Contact Angle, Extra Light Preload, P4A, Set of 2$1,200.23
Angular Contact Ball Bearing – 110 mm Bore, 170 mm OD, 28 mm Width, 15° Contact Angle, Open$152.02
Angular Contact Ball Bearing — Super-Precision P4A, 110 mm ID, 170 mm OD, 28 mm Width, 15° Contact Angle, Universally Matchable, Light Preload$1,200.23
Angular Contact Ball Bearing - Straight Bore, 110 mm ID, 170 mm OD, 28 mm Width, Open, 25° Contact Angle, Medium Preload$464.70| MFR / Brand | RHP |
|---|---|
| MPN | 7022CTSULP4 |
| Model | 7022 C T SUL P4 / 2MM9122WI CR SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 110 mm |
| OD | 170 mm |
| Width | 28 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil/Grease |
| Preload | Light |
| Base Number | 7022 |
| Industry Terms | super precision spindle bearing, machine tool bearing, precision angular contact, ABEC 7 bearing |
| Common Misspellings | 7022 CTSULP4, RHP 7022CTSUL P4, Ransome Hoffmann Pollard, 7022CTSULP-4 |
| Application Types | Machine tool spindles, grinding spindles, precision gearboxes, high-speed rotary tables |
| Bore Shaft Size | 110 mm (4.331 in) |
| Mpn Variants | 7022CTSULP4, 7022-C-T-SUL-P4, 7022 C T SUL P4, 7022C, 7022CTSUL |
| Arrangement Configuration | SU — single universally ground, stackable DB / DF / DT |
| Precision Class | P4 / ABEC 7 |
| Min Temp | -30 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 106 kN / 23830 lbf |
| Static Load Rating | 73 kN / 16411 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Balls |
| Max Temp | 120 °C |
| Item Weight | 4.30 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Design Units | Metric |
| Part Number | 7022CTSULP4 |
| Limiting Speed | 12000 rpm |
| Cross Reference 1 | Fafnir 2MM9122WI-CR-SUL |
|---|---|
| Cross Reference 2 | FAG B7022C.T.P4S.UL |
| Cross Reference 3 | SKF 7022 CD/P4A |
| Cross Reference 4 | NSK 7022CTRSULP4 |

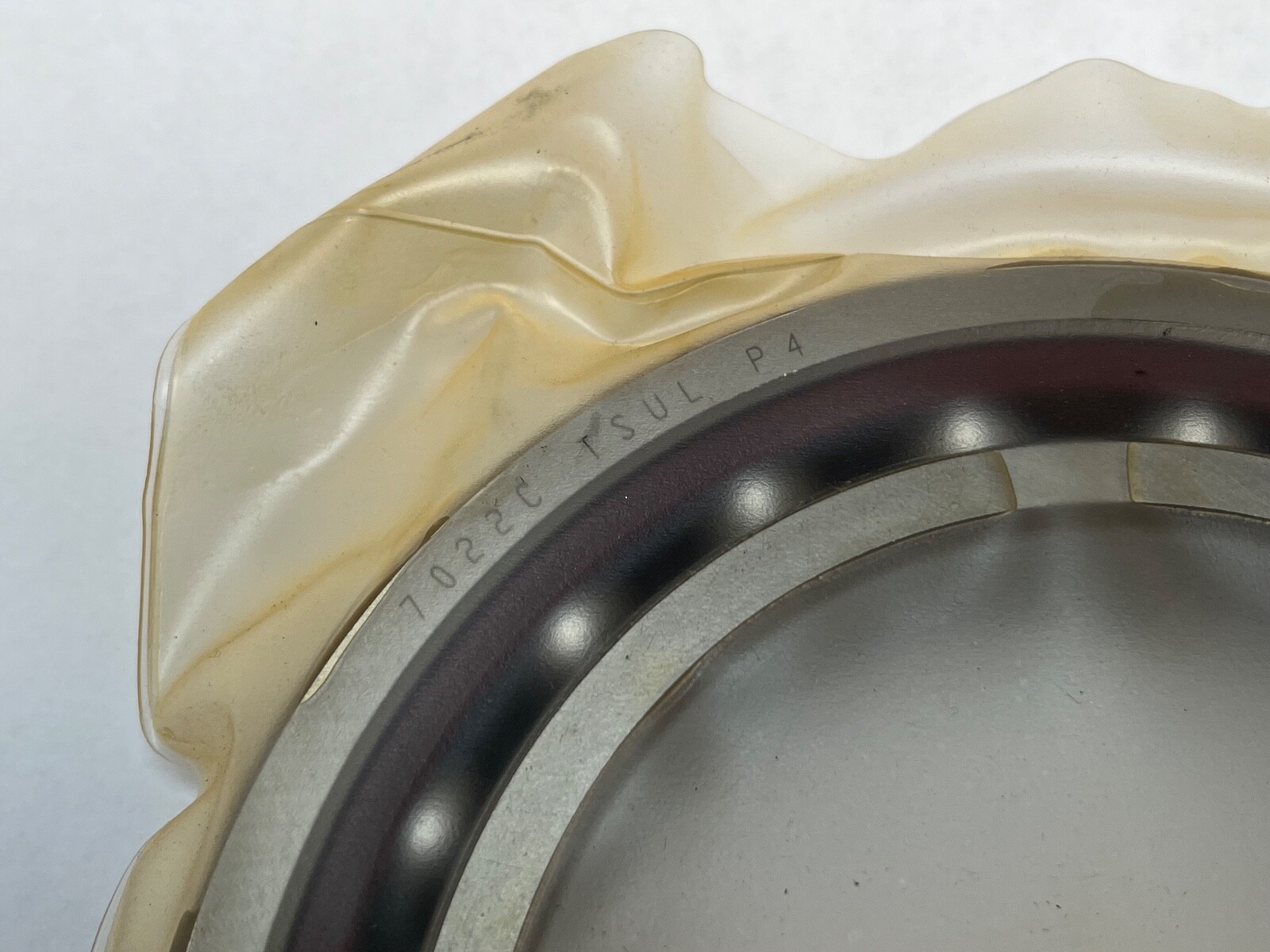

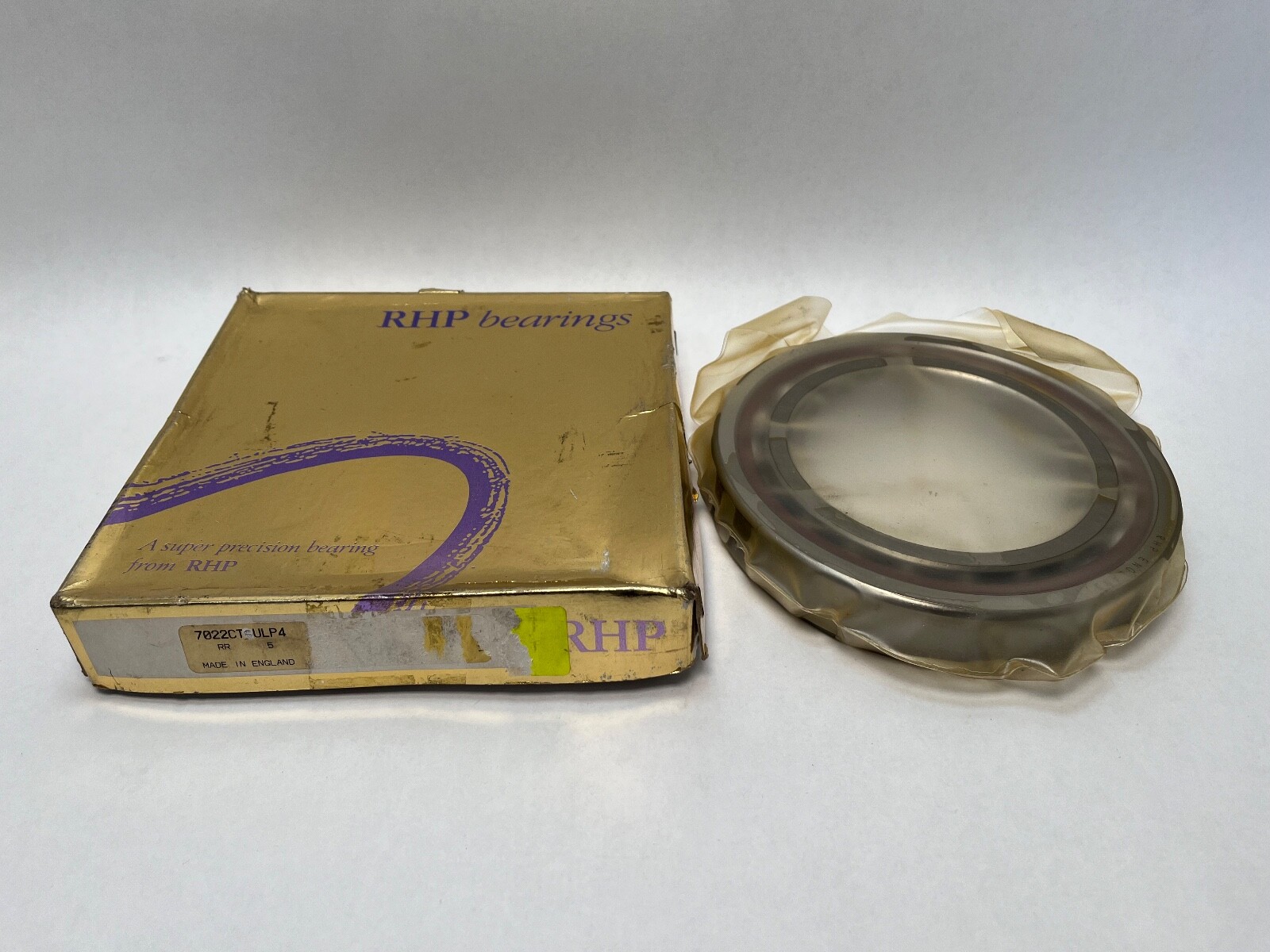

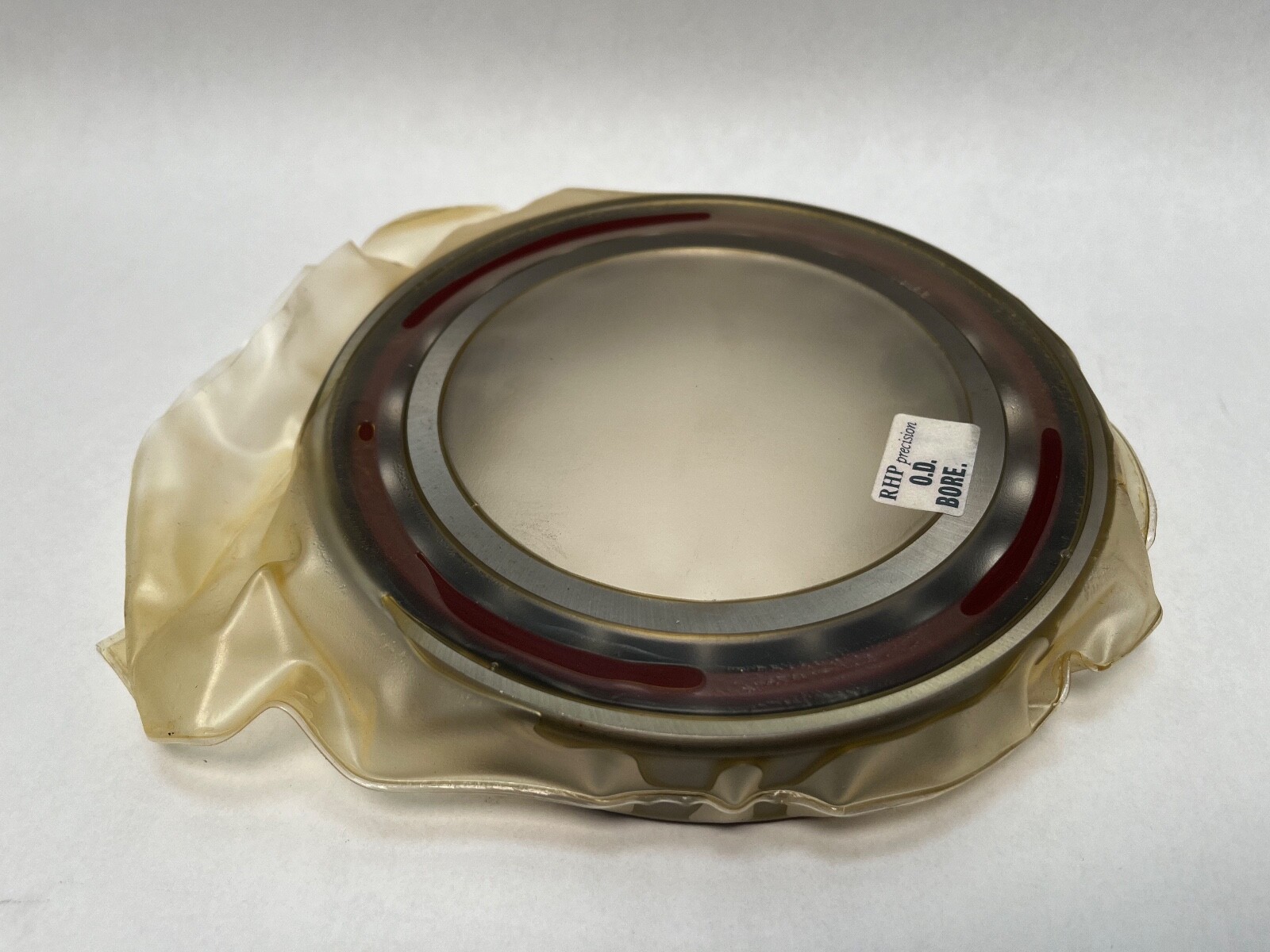

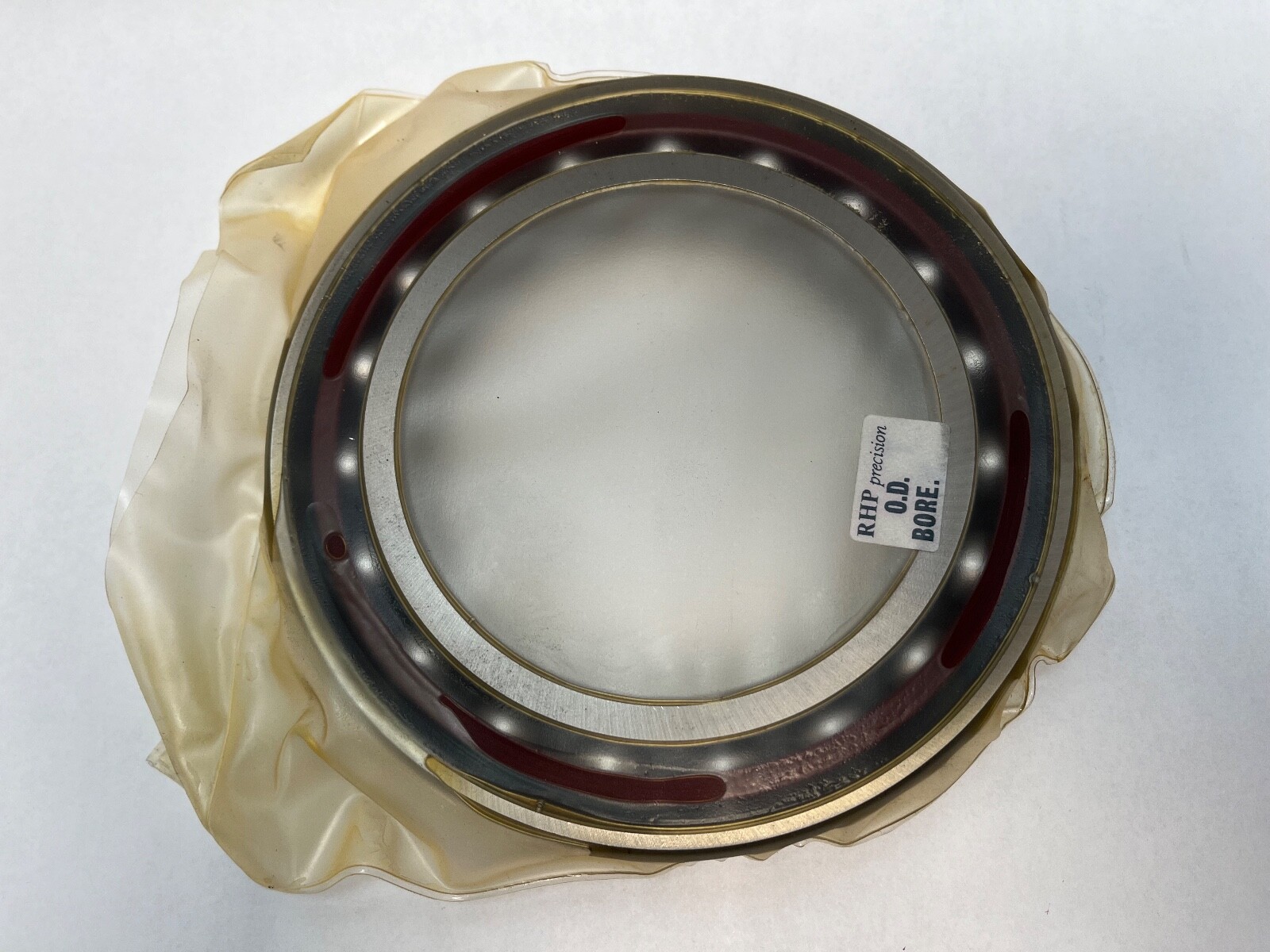

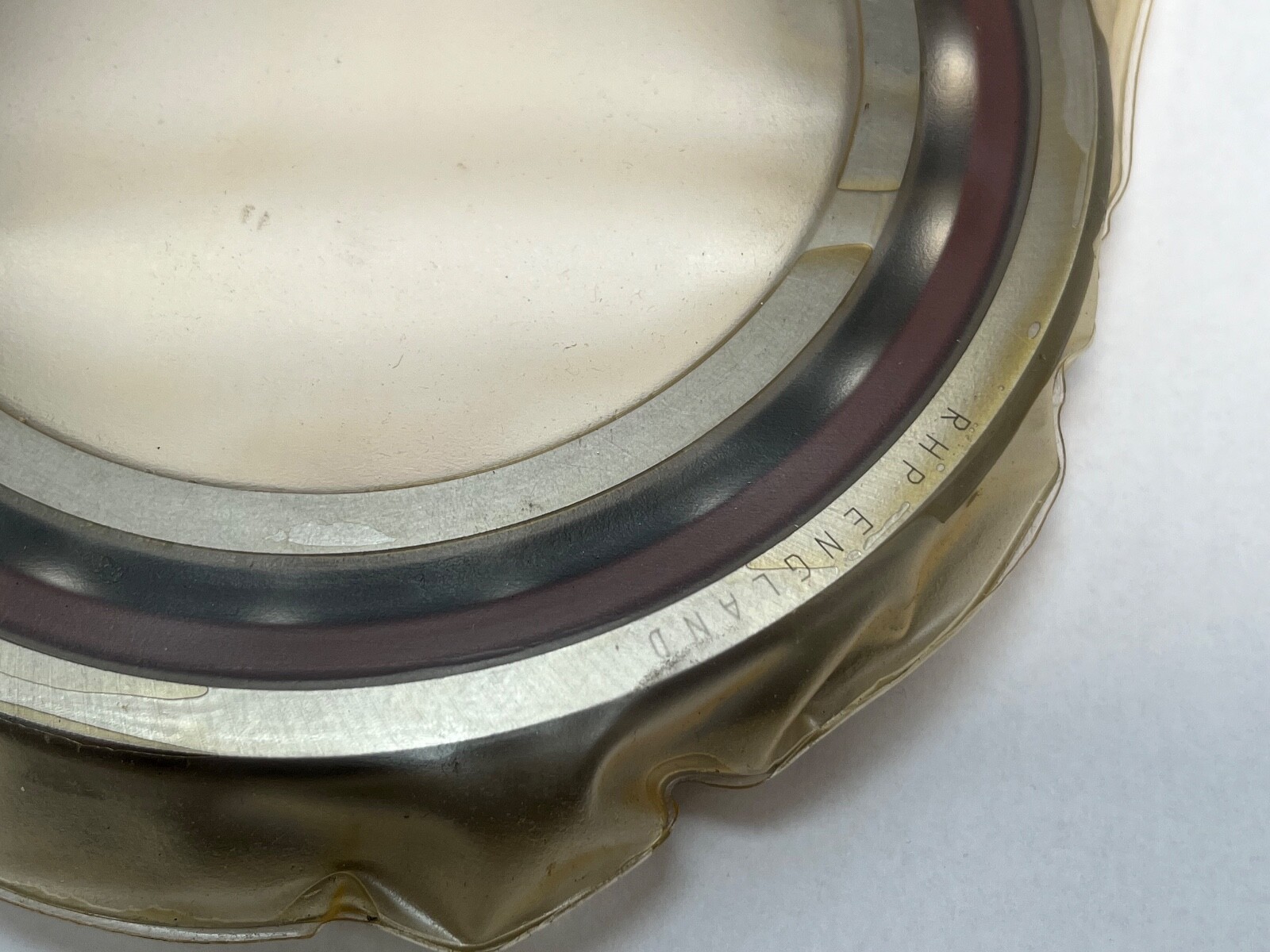

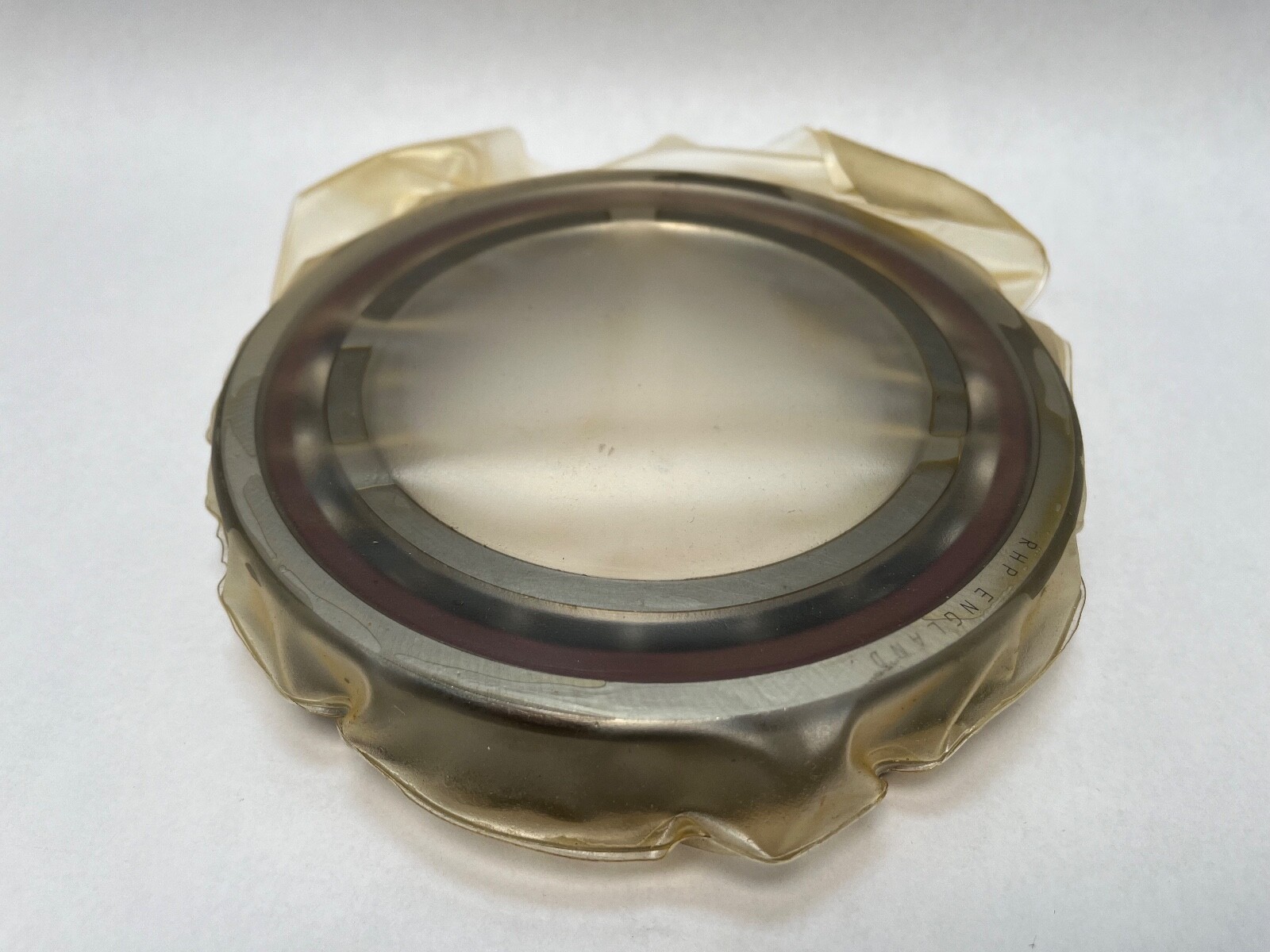

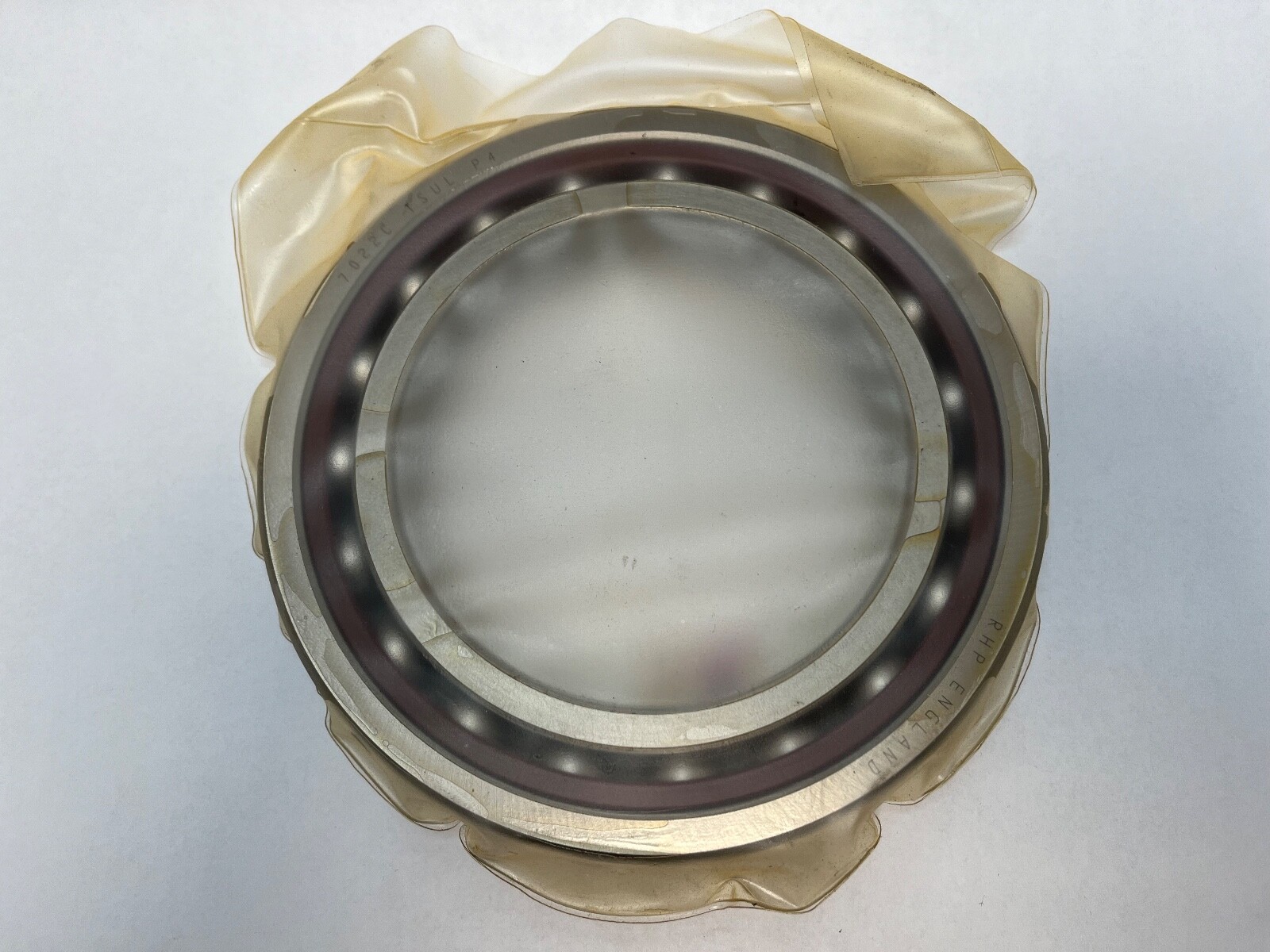

An RHP 7022CTSULP4 super-precision single-row angular contact ball bearing in the 72 dimension series. Bore 110 mm, outside diameter 170 mm, width 28 mm. Open on both faces, phenolic cage, universally ground.
7022 — single-row angular contact, 110 mm bore, 72 seriesC — 15° contact angle in the RHP/Timken schemeT — phenolic cageSU — single universally groundL — light preloadP4 — ABEC 7 precision
The 15° angle buys speed and radial stiffness; the 25° 7022E of the same envelope trades speed for thrust capacity. Light preload keeps heat generation down for continuous spindle running. A phenolic cage rides the outer land and tolerates high cage speeds.
Bore: 110 mmOutside diameter: 170 mmWidth: 28 mmContact angle: 15°Precision: P4 / ABEC 7Preload: lightRows: 1Closure: open
Single universally ground bearing. 1 Pc per sale unit.
Thrust is carried in one direction only, so the bearing runs against an opposing bearing or a housing shoulder. The wide outer-ring land is the thrust face and its orientation sets the arrangement.
Same-spec equivalents at 15°, ABEC 7, light preload: Fafnir 2MM9122WI-CR-SUL, FAG B7022C.T.P4S.UL, SKF 7022 CD/P4A, NSK 7022CTRSULP4. The 7022E at 25° and the 7022-A at 30° are related sizes rather than interchanges.
